Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2025-02-05 12:42:09 (GMT)
 Μέγεθος
 M 1.4
 Γεωγρ. Πλάτος
 38.3515° Β
 Γεωγρ. Μήκος
 22.0612° Α
 Εστιακό Βάθος
 8 χμ
 Αρ. αφίξεων
 24
 Επίκεντρο 11.6 χμ Β του Αιγίου
30.9 χμ ΑΒΑ της Πάτρας
151.8 χμ ΔΒΔ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

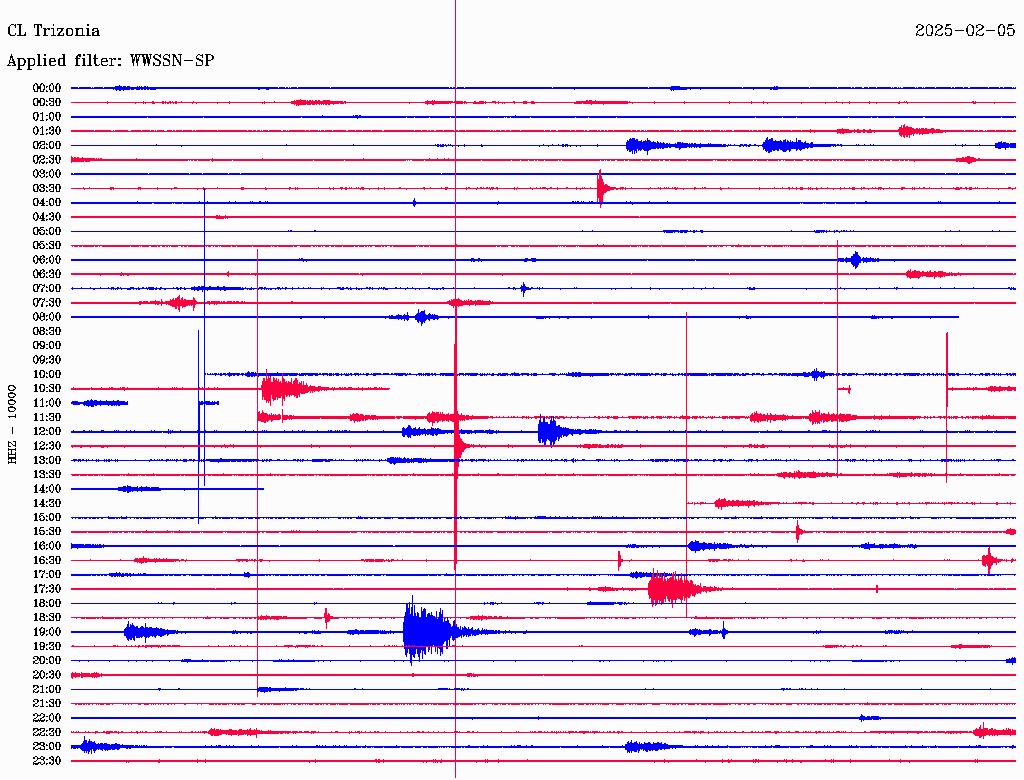

TRIZCL1.9 34 P12:42:10.73 0.01.0M
TRIZCL1.9 34 S12:42:11.95 0.01.0M

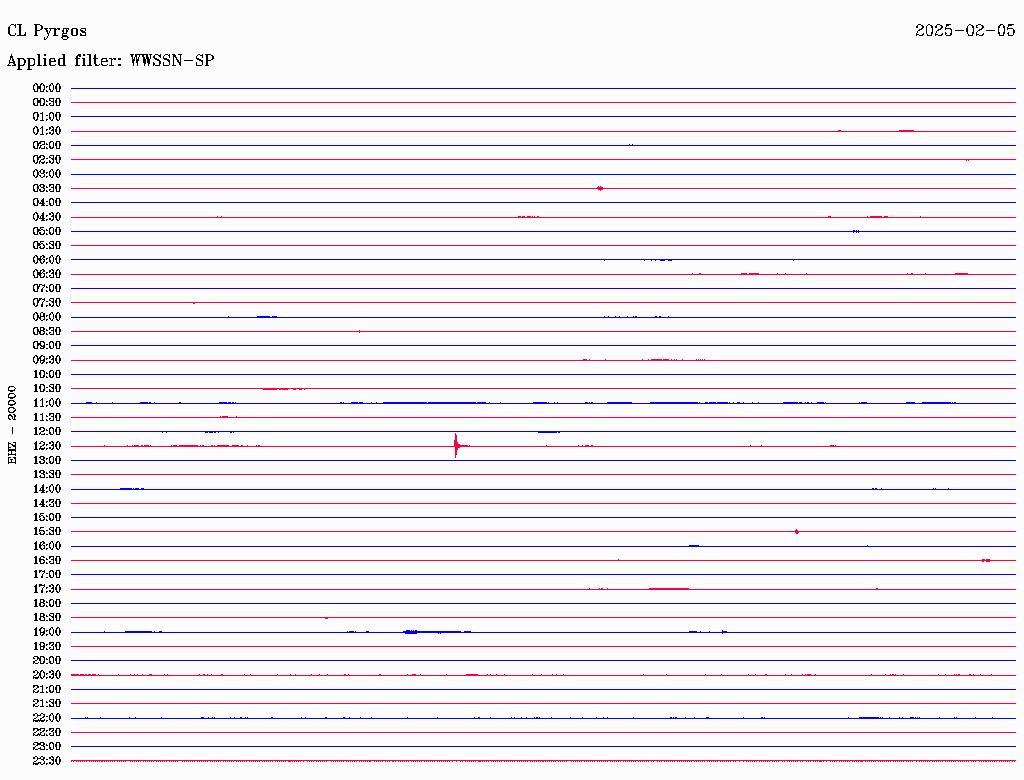

PYRGCL7.6329 P12:42:11.30 0.01.0M
PYRGCL7.6329 S12:42:12.95 0.01.0M

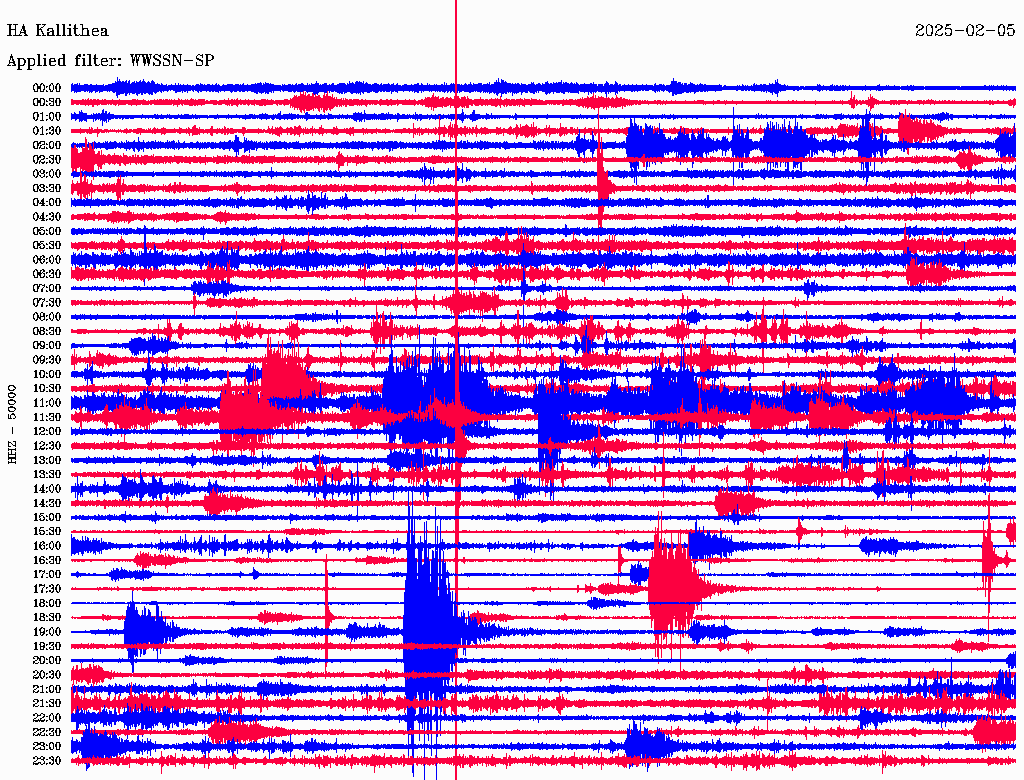

KALEHA8.1 57 P12:42:11.51 0.11.0M
KALEHA8.1 57 S12:42:13.18 0.01.0M

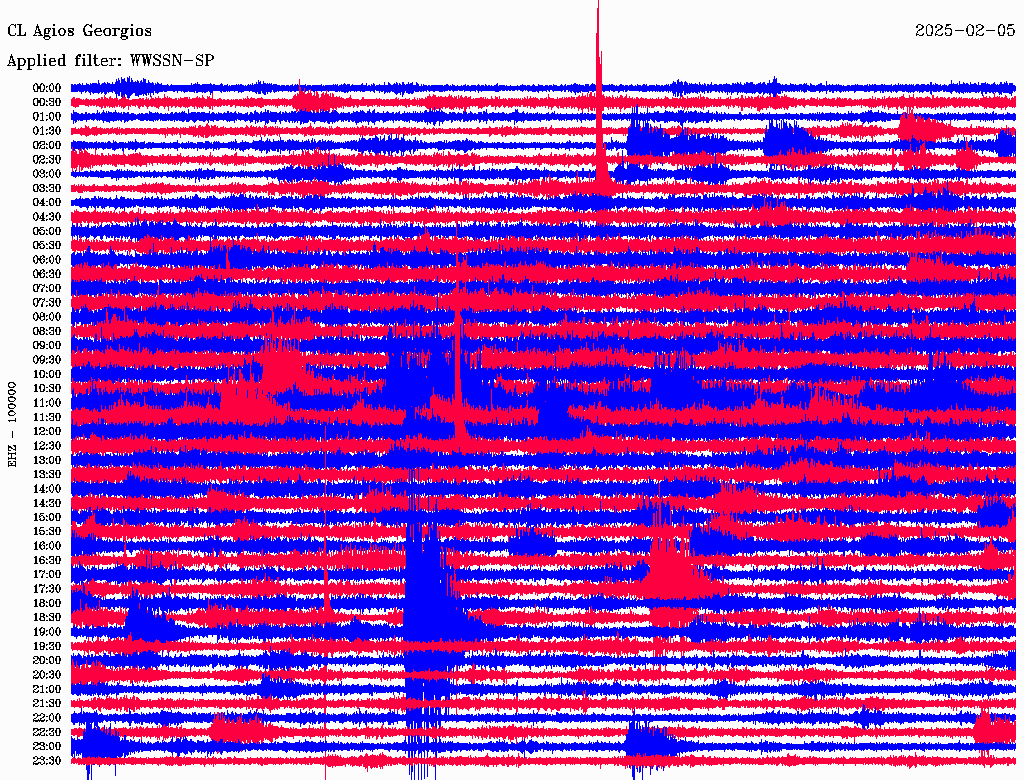

AGEOCL9.6179 P12:42:11.65 0.21.0M
AGEOCL9.6179 S12:42:13.43 0.11.0M

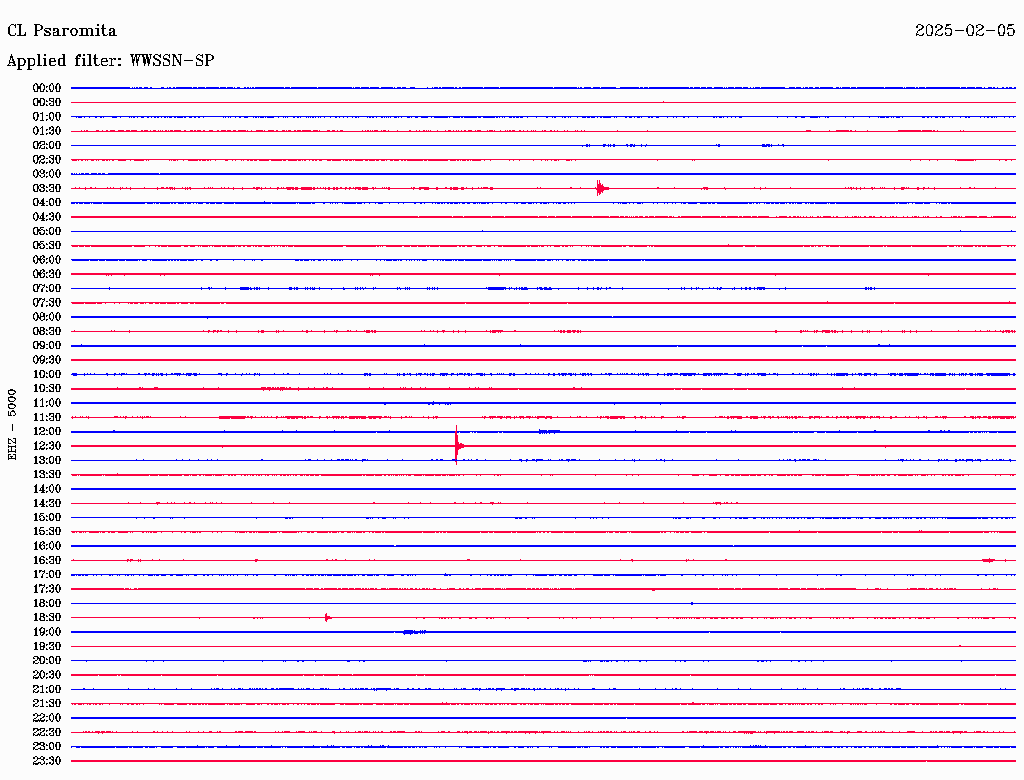

PSARCL10.2102 P12:42:11.51 -0.11.0M
PSARCL10.2102 S12:42:13.39 -0.11.0M

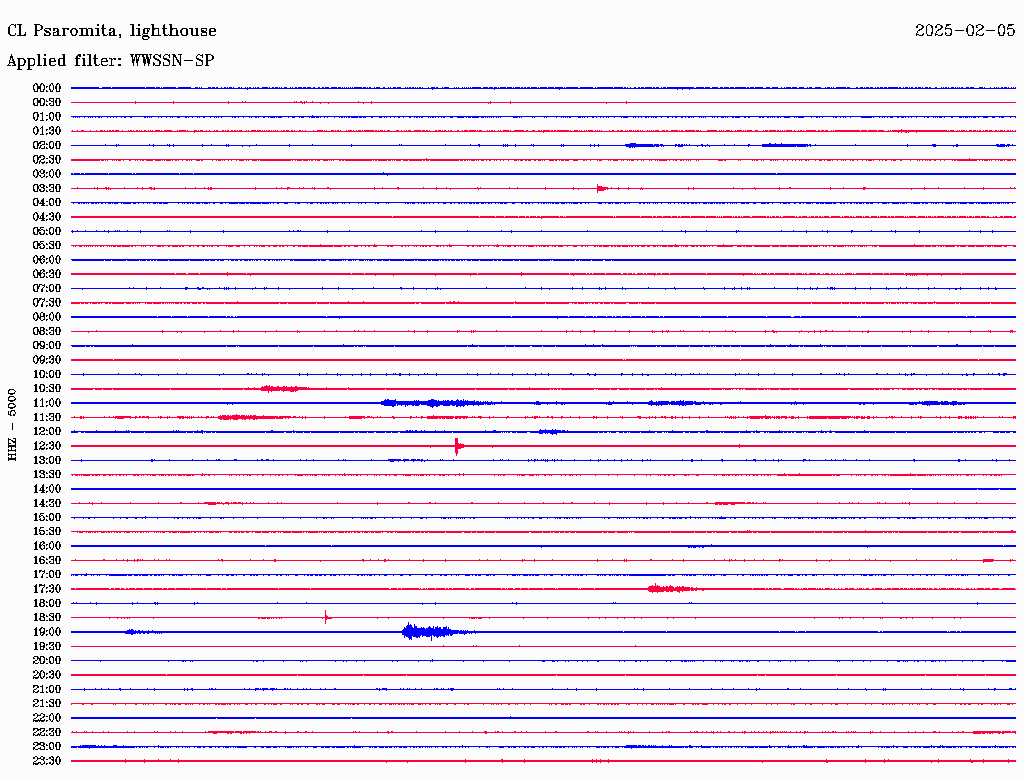

PSAMCL11.2107 P12:42:11.65 -0.11.0M
PSAMCL11.2107 S12:42:13.62 -0.11.0M

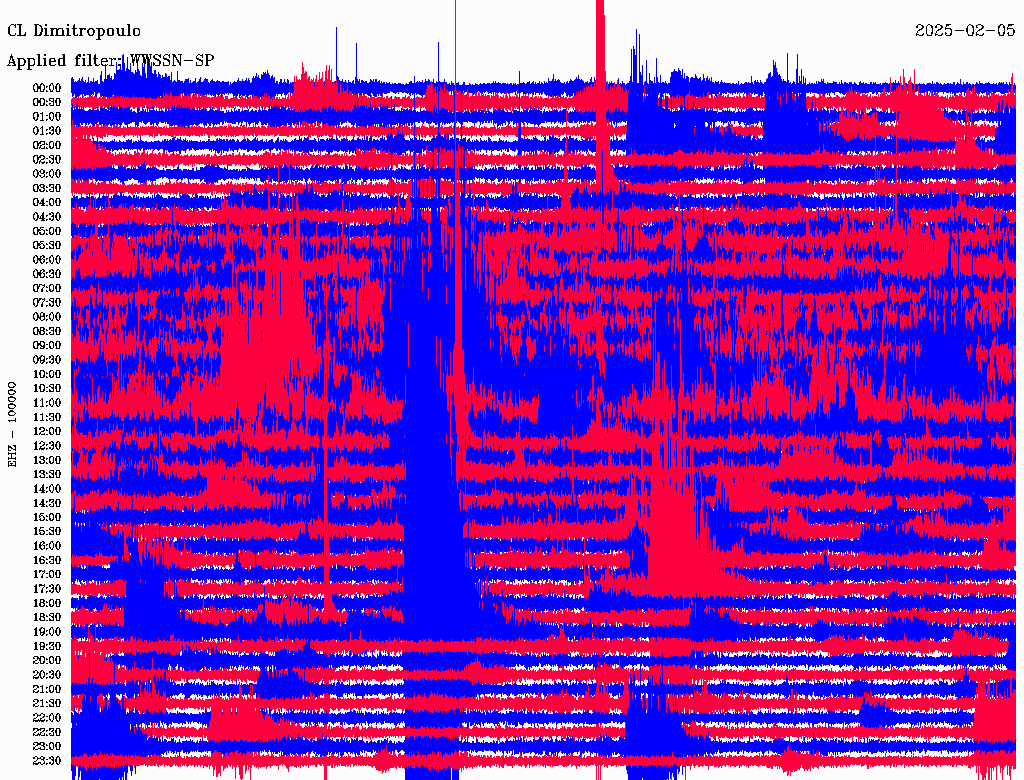

DIMTCL11.7188 P12:42:12.03 0.21.0M
DIMTCL11.7188 S12:42:13.91 0.01.0M

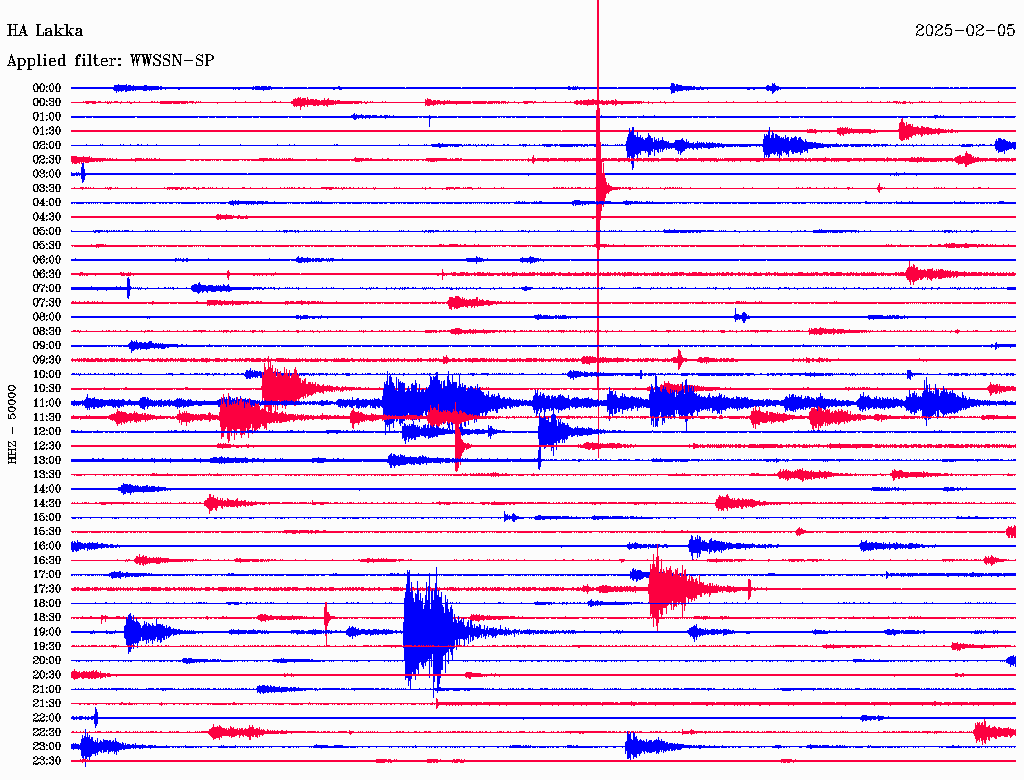

LAKAHA14.3210 P12:42:12.30 0.11.0M
LAKAHA14.3210 S12:42:14.55 -0.11.0M

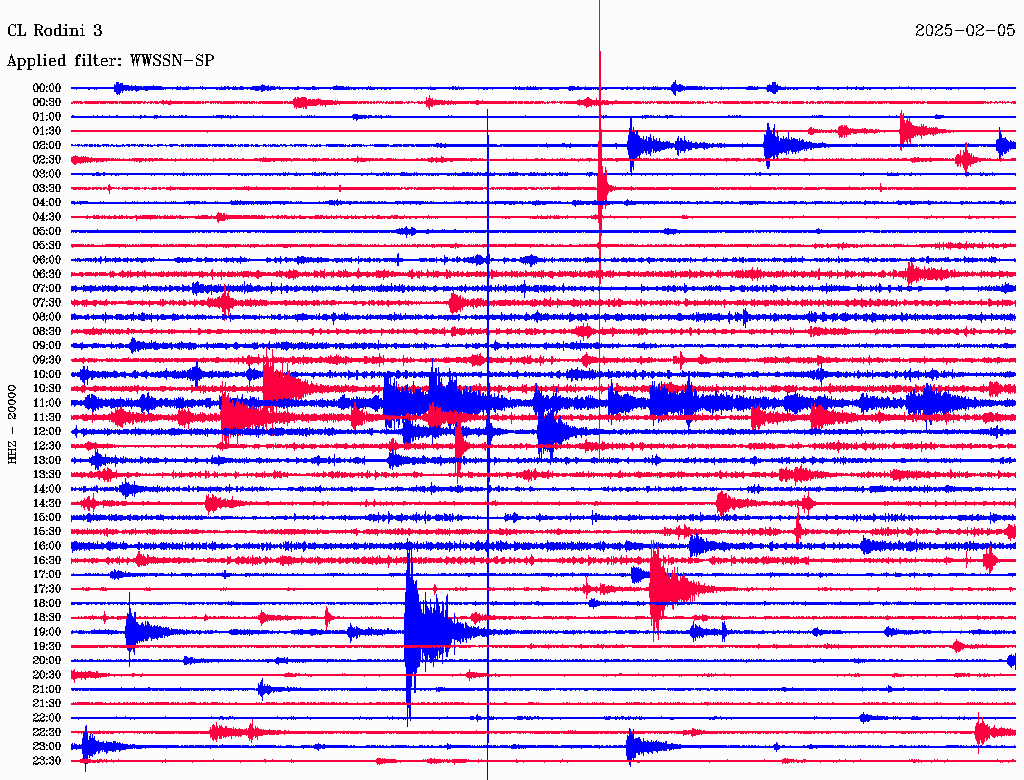

ROD3CL15.5252 P12:42:12.55 0.11.0M
ROD3CL15.5252 S12:42:14.88 -0.11.0M

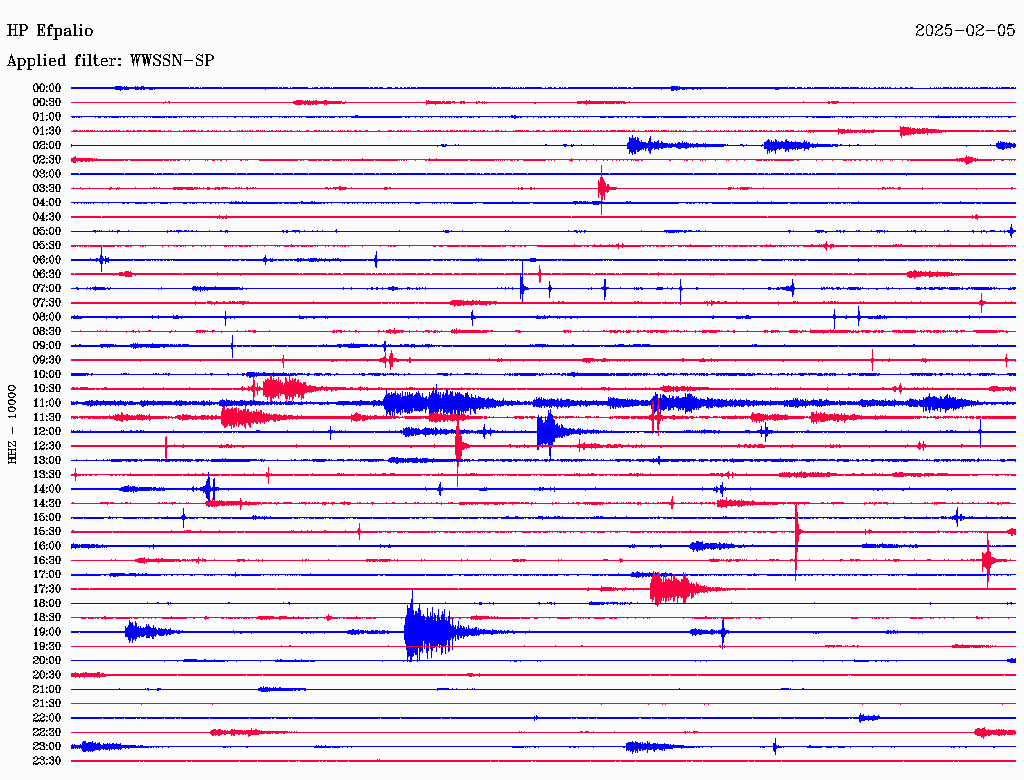

EFPHP15.9302 P12:42:12.51 0.11.0M
EFPHP15.9302 S12:42:14.90 -0.11.0M

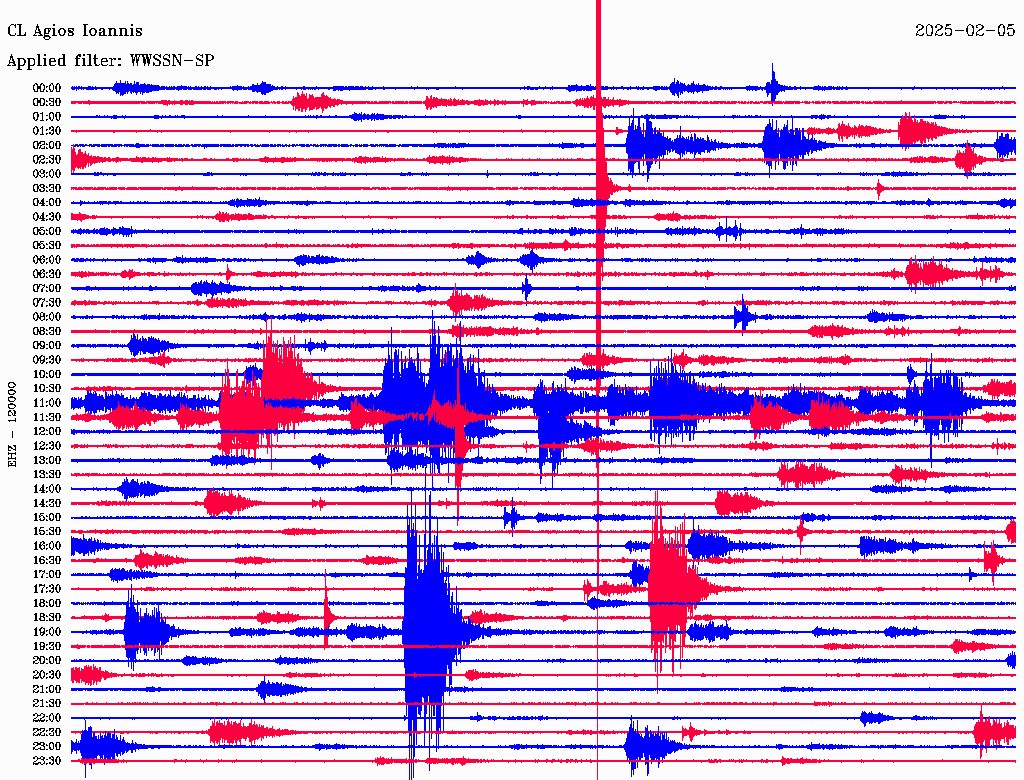

AIOACL17.5181 P12:42:12.62 -0.11.0M
AIOACL17.5181 S12:42:15.27 -0.21.0M

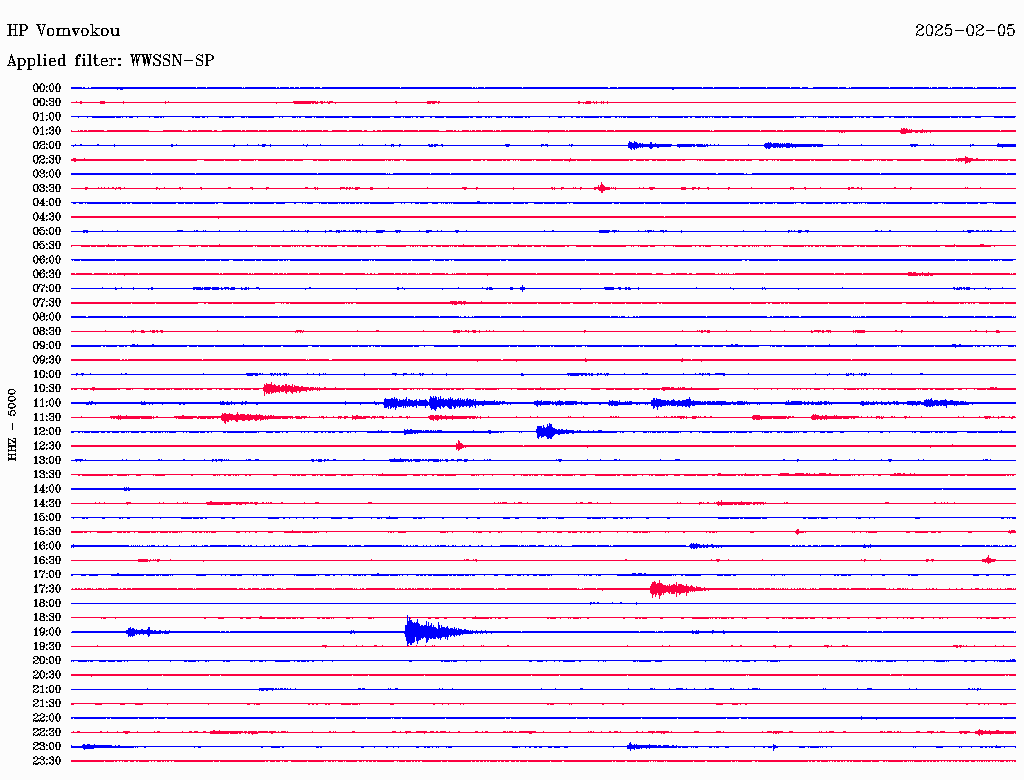

VVKHP23.1290 P12:42:13.79 0.11.0M
VVKHP23.1290 S12:42:16.81 -0.41.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2025cmxt
    Description
      region name: Greece
Origin:
    Date                   2025-02-05
    Time                  12:42:09.08
    Latitude              38.3515 deg  +/-      0 km
    Longitude             22.0612 deg  +/-      0 km
    Depth                       8 km   +/-    0 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.10 s
    Azimuthal gap              72 deg

2 Network magnitudes:
    MLv       1.43 +/- 0.37  10
    M         1.43           10 preferred

24 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    TRIZ  CL    0.0  34  P       12:42:10.73   0.0 M  1.0  TRIZ
    TRIZ  CL    0.0  34  S       12:42:11.95   0.0 M  1.0  TRIZ
    PYRG  CL    0.1 329  P       12:42:11.30  -0.0 M  1.0  PYRG
    PYRG  CL    0.1 329  S       12:42:12.95  -0.0 M  1.0  PYRG
    KALE  HA    0.1  57  P       12:42:11.51   0.1 M  1.0  KALE
    KALE  HA    0.1  57  S       12:42:13.18   0.0 M  1.0  KALE
    AGEO  CL    0.1 179  P       12:42:11.65   0.2 M  1.0  AGEO
    AGEO  CL    0.1 179  S       12:42:13.43   0.1 M  1.0  AGEO
    PSAR  CL    0.1 102  P       12:42:11.51  -0.1 M  1.0  PSAR
    PSAR  CL    0.1 102  S       12:42:13.39  -0.1 M  1.0  PSAR
    PSAM  CL    0.1 107  P       12:42:11.65  -0.1 M  1.0  PSAM
    PSAM  CL    0.1 107  S       12:42:13.62  -0.1 M  1.0  PSAM
    DIMT  CL    0.1 188  P       12:42:12.03   0.2 M  1.0  DIMT
    DIMT  CL    0.1 188  S       12:42:13.91   0.0 M  1.0  DIMT
    LAKA  HA    0.1 210  P       12:42:12.30   0.1 M  1.0  LAKA
    LAKA  HA    0.1 210  S       12:42:14.55  -0.1 M  1.0  LAKA
    ROD3  CL    0.1 252  P       12:42:12.55   0.1 M  1.0  ROD3
    ROD3  CL    0.1 252  S       12:42:14.88  -0.1 M  1.0  ROD3
    EFP   HP    0.1 302  P       12:42:12.51   0.1 M  1.0  EFP
    EFP   HP    0.1 302  S       12:42:14.90  -0.1 M  1.0  EFP
    AIOA  CL    0.2 181  P       12:42:12.62  -0.1 M  1.0  AIOA
    AIOA  CL    0.2 181  S       12:42:15.27  -0.2 M  1.0  AIOA
    VVK   HP    0.2 290  P       12:42:13.79   0.1 M  1.0  VVK
    VVK   HP    0.2 290  S       12:42:16.81  -0.4 M  1.0  VVK

12 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    TRIZ  CL    0.0  34  MLv     2.16  0.73    10.2703
    PYRG  CL    0.1 329  MLv     1.73  0.30    1.72082
    KALE  HA    0.1  57  MLv     2.08  0.65    5.97214
    AGEO  CL    0.1 179  MLv     1.44  0.01   0.359317
    PSAR  CL    0.1 102  MLv     0.44 -0.98   0.123103
    PSAM  CL    0.1 107  MLv     1.32 -0.11   0.868188
    DIMT  CL    0.1 188  MLv     1.65  0.22    1.79124
    LAKA  HA    0.1 210  MLv     1.02 -0.40   0.366432
    ROD3  CL    0.1 252  MLv     1.12 -0.31   0.647318
    EFP   HP    0.1 302  MLv     1.50  0.08     1.0107
    AIOA  CL    0.2 181  MLv     1.73  0.31   0.401237
    VVK   HP    0.2 290  MLv     0.57 -0.85   0.365309
