Earthquake Information
 Origin Time
2024-10-22 17:58:45 (GMT)
 Magnitude
M 1.7
 Latitude
38.9897° N
 Longitude
21.9193° E
 Focal Depth
14 km
 # of Arrivals
22
 Location 26.5 km NE of Karpenision
41.8 km S of Karditsa
193.5 km NW of Athens
 Solution type
automatic
 Files / Links
QuakeML  GSE2.0  Alert  .phi


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
GR201Y31.1331 P17:58:52.99 0.71.0A
AGGHT36.2 84 P17:58:49.65 -3.41.0A
GR241Y41.1144 P17:58:50.79 -3.01.0A
ANXHP44.1180 P17:58:53.10 -1.11.0A
EFPHP62.6181 P17:58:56.77 -0.21.0A
PYRGCL65.0172 P17:58:56.97 -0.41.0A
AXARHA68.7111 P17:59:01.84 3.91.0A
KALEHA69.3164 P17:58:59.97 2.01.0A
TRIZCL70.7169 P17:58:57.72 -0.51.0A
PDOHP77.2236 P17:59:01.82 2.61.0A
GR221Y79.1 82 P17:58:59.87 0.41.0A
DSFHP83.2140 P17:59:01.53 1.41.0A

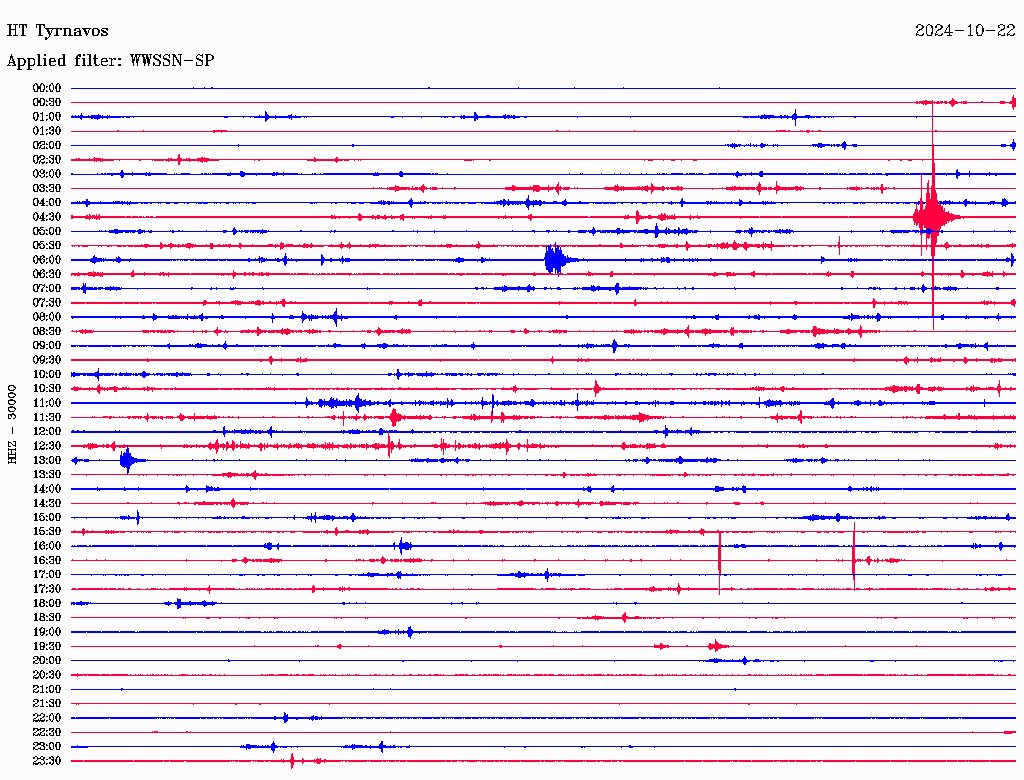

TYRNHT84.6 18 P17:59:00.82 0.51.0A
FSKHP131.7244 P17:59:10.25 3.31.0A
VLSHL146.8232 P17:59:09.20 0.31.0A
ATHRHA150.4241 P17:59:08.04 -1.41.0A
LX11HA155.9236 P17:59:08.45 -1.71.0A
DMLNHT158.2239 P17:59:08.22 -2.21.0A
LX10HA159.4236 P17:59:08.71 -1.91.0A
HAVDHA159.4237 P17:59:08.37 -2.21.0A
ORTHHL165.5220 P17:59:14.62 3.31.0A
GR121Y173.1 18 P17:59:11.84 -0.51.0A


  Solution details

Event:
    Public ID              nkua2024uuiz
    Description
      region name: Greece
Origin:
    Date                   2024-10-22
    Time                  17:58:45.24  +/-    0.3 s
    Latitude              38.9897 deg  +/-      2 km
    Longitude             21.9193 deg  +/-      3 km
    Depth                      14 km   +/-    4 km
    Agency                 HA
    Mode                   automatic
    Status                 NOT SET
    Residual RMS             2.04 s
    Azimuthal gap              88 deg

2 Network magnitudes:
    MLv       1.67 +/- 0.17  11
    M         1.67           11 preferred

22 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    GR20  1Y    0.3 331  P       17:58:52.99   0.7 A  1.0  GR20
    AGG   HT    0.3  84  P       17:58:49.65  -3.4 A  1.0  AGG
    GR24  1Y    0.4 144  P       17:58:50.79  -3.0 A  1.0  GR24
    ANX   HP    0.4 180  P       17:58:53.10  -1.1 A  1.0  ANX
    EFP   HP    0.6 181  P       17:58:56.77  -0.2 A  1.0  EFP
    PYRG  CL    0.6 172  P       17:58:56.97  -0.4 A  1.0  PYRG
    AXAR  HA    0.6 111  P       17:59:01.84   3.9 A  1.0  AXAR
    KALE  HA    0.6 164  P       17:58:59.97   2.0 A  1.0  KALE
    TRIZ  CL    0.6 169  P       17:58:57.72  -0.5 A  1.0  TRIZ
    PDO   HP    0.7 236  P       17:59:01.82   2.6 A  1.0  PDO
    GR22  1Y    0.7  82  P       17:58:59.87   0.4 A  1.0  GR22
    DSF   HP    0.7 140  P       17:59:01.53   1.4 A  1.0  DSF
    TYRN  HT    0.8  18  P       17:59:00.82   0.5 A  1.0  TYRN
    FSK   HP    1.2 244  P       17:59:10.25   3.3 A  1.0  FSK
    VLS   HL    1.3 232  P       17:59:09.20   0.3 A  1.0  VLS
    ATHR  HA    1.4 241  P       17:59:08.04  -1.4 A  1.0  ATHR
    LX11  HA    1.4 236  P       17:59:08.45  -1.7 A  1.0  LX11
    DMLN  HT    1.4 239  P       17:59:08.22  -2.2 A  1.0  DMLN
    LX10  HA    1.4 236  P       17:59:08.71  -1.9 A  1.0  LX10
    HAVD  HA    1.4 237  P       17:59:08.37  -2.2 A  1.0  HAVD
    ORTH  HL    1.5 220  P       17:59:14.62   3.3 A  1.0  ORTH
    GR12  1Y    1.6  18  P       17:59:11.84  -0.5 A  1.0  GR12

13 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    GR20  1Y    0.3 331  MLv     1.17 -0.51   0.194328
    AGG   HT    0.3  84  MLv     1.47 -0.20   0.229434
    GR24  1Y    0.4 144  MLv     1.73  0.06    0.39989
    ANX   HP    0.4 180  MLv     1.64 -0.03   0.276034
    EFP   HP    0.6 181  MLv     1.84  0.17   0.168316
    PYRG  CL    0.6 172  MLv     1.48 -0.19   0.0450484
    AXAR  HA    0.6 111  MLv     1.29 -0.38   0.176683
    KALE  HA    0.6 164  MLv     1.90  0.22    0.17762
    TRIZ  CL    0.6 169  MLv     1.88  0.20   0.167345
    PDO   HP    0.7 236  MLv     2.57  0.90   0.771334
    GR22  1Y    0.7  82  MLv     1.63 -0.04   0.0866769
    DSF   HP    0.7 140  MLv     1.82  0.14    0.12589
    TYRN  HT    0.8  18  MLv     1.63 -0.04   0.0624609
