Earthquake Information
 Origin Time
 2021-03-04 18:38:20 (GMT)
 Magnitude
 M 5.9
 Latitude
 39.7757° N
 Longitude
 22.0852° E
 Focal Depth
 8 km
 # of Arrivals
 74
 Location 32.5 km WNW of Larissa
36.6 km NE of Trikala
245.1 km NW of Athens
 Solution type
 manual
 Files / Links
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Foc.Mech.


  Focal Mechanism

Foc.Mech. Strike (°) Dip (°) Rake (°) Seism.Mom. (dyn*cm)
11243-79 1.65E+25

Latitude (°N) Longitude (°E) Depth (km) Magnitude Mw
39.770422.090817.06.1

Source parameters determination

Click here for detailed focal mechanism solution

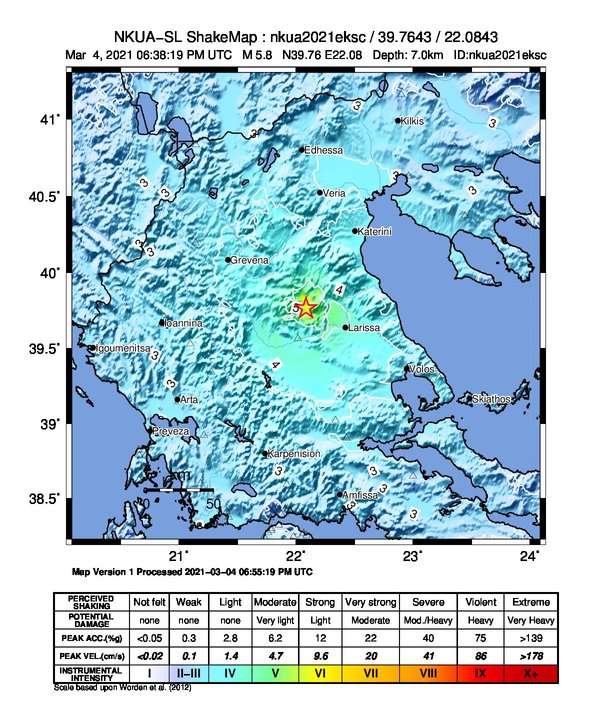

  Intensity map

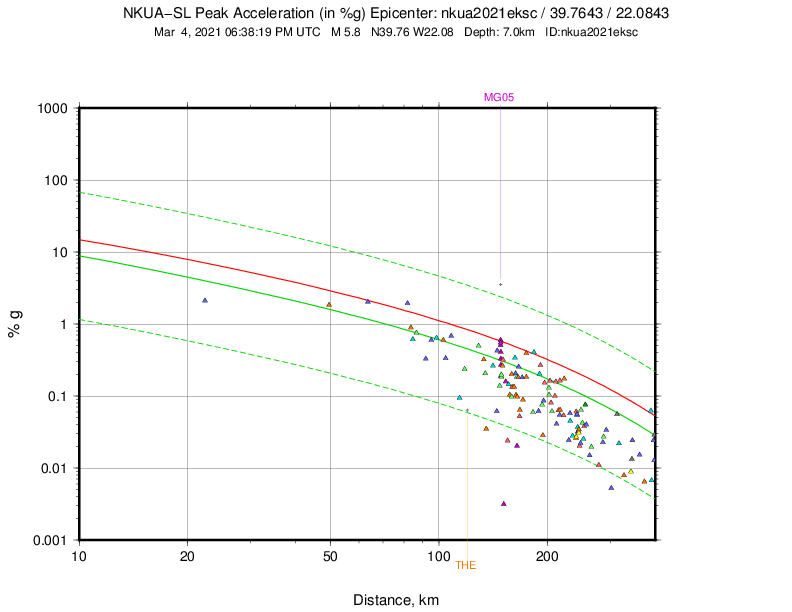

PGA

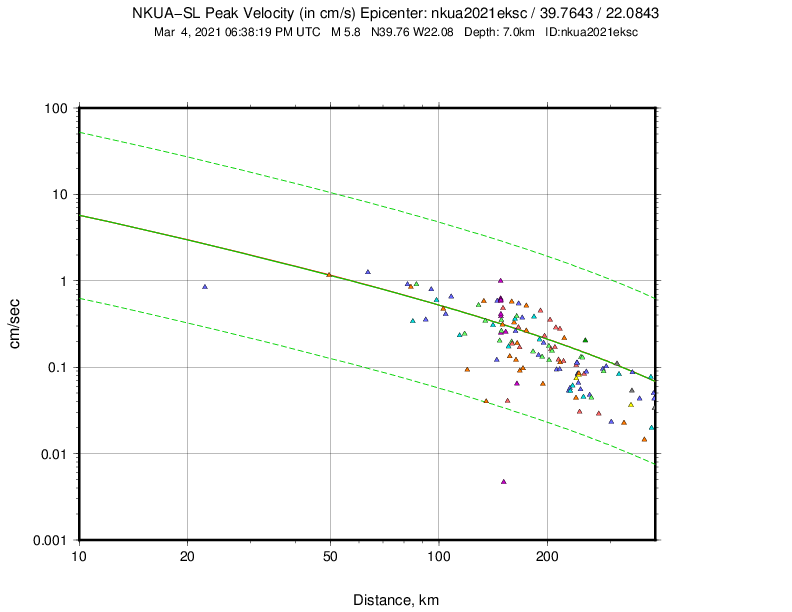

 PGV

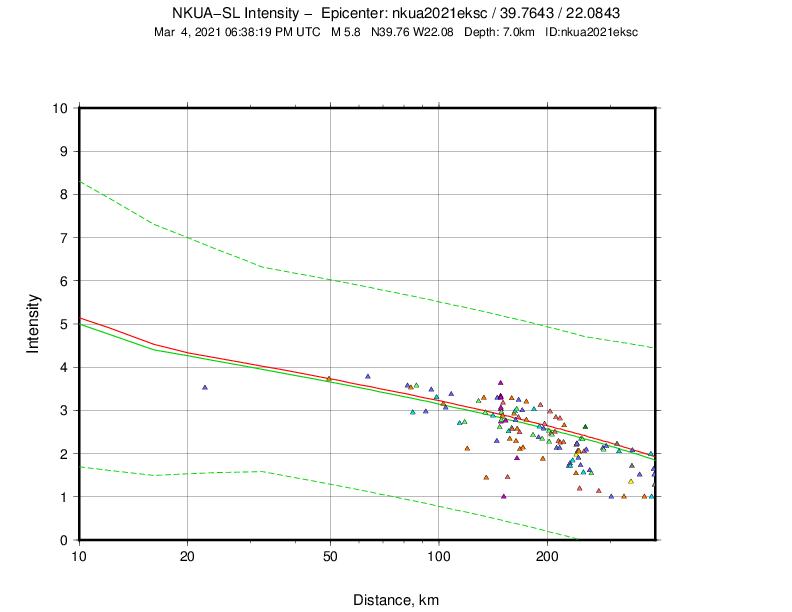

 MI

Download files: Google Earth (.kmz), Measurements (.csv)


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
TYRNHT14.5120 P18:38:22.78 -0.71.0M
THLHL24.2195 P18:38:24.35 -0.71.0M
THLHL24.2195 S18:38:27.95 -0.71.0M
LITHT49.9 44 P18:38:28.85 -0.51.0M
LITHT49.9 44 S18:38:36.40 0.21.0M
KPROHT64.8288 P18:38:31.34 -0.51.0M
KPROHT64.8288 S18:38:40.32 -0.21.0M
TETRHL84.4235 P18:38:34.30 -0.71.0M
TETRHL84.4235 S18:38:46.31 0.21.0M
AGGHT86.6166 P18:38:34.79 -0.51.0M
AGGHT86.6166 S18:38:46.88 0.31.0M
VOL2HI87.0121 P18:38:34.87 -0.41.0M
VOL2HI87.0121 S18:38:46.47 -0.21.0M
PRMDHP88.9252 P18:38:35.12 -0.61.0M
PRMDHP88.9252 S18:38:46.96 -0.41.0M
PENTHL93.3300 P18:38:35.81 -0.61.0M
PENTHL93.3300 S18:38:48.79 0.21.0M
EVRHL98.4194 P18:38:36.69 -0.51.0M
EVRHL98.4194 S18:38:49.81 -0.21.0M
LAM2HI101.6163 P18:38:36.65 -0.91.0M
LAM2HI101.6163 S18:38:50.34 -0.31.0M
JANHL106.6263 P18:38:38.45 0.01.0M
JANHL106.6263 S18:38:52.57 0.31.0M
NEOHL110.6118 P18:38:38.32 -0.71.0M
NEOHL110.6118 S18:38:53.53 0.31.0M
ART2HI116.9233 P18:38:40.14 0.11.0M
ART2HI116.9233 S18:38:55.27 0.31.0M
THEHT120.9 38 P18:38:41.16 0.51.0M
THEHT120.9 38 S18:38:56.95 0.91.0M
AMPLHP120.9218 P18:38:40.61 0.01.0M
AMPLHP120.9218 S18:38:56.44 0.41.0M
ANXHP132.2186 P18:38:42.78 0.31.0M
PLGHL133.2 60 P18:38:42.44 -0.21.0M
GRGHT134.0 12 P18:38:42.81 0.11.0M
PAIGHT137.0 83 P18:38:42.79 -0.41.0M
PAIGHT137.0 83 S18:39:00.91 0.41.0M
PVOHP137.6201 P18:38:43.39 0.21.0M
LMS2HI142.4326 P18:38:44.30 0.31.0M
LKRHL147.9148 P18:38:45.02 0.21.0M
LKRHL147.9148 S18:39:04.15 0.81.0M
DLFAHL148.5166 P18:38:44.87 0.01.0M
DLFAHL148.5166 S18:39:03.90 0.31.0M
EFPHP150.8186 P18:38:45.55 0.41.0M
EFPHP150.8186 S18:39:04.91 0.91.0M
MG00CL151.8185 P18:38:45.56 0.21.0M
PYRGCL152.0182 P18:38:45.34 -0.11.0M
PYRGCL152.0182 S18:39:05.23 0.71.0M
PDOHP152.2211 P18:38:45.67 0.21.0M
VVKHP152.3189 P18:38:45.93 0.41.0M
VVKHP152.3189 S18:39:05.50 0.91.0M
IGTHT152.7260 P18:38:46.10 0.51.0M
KALEHA154.0178 P18:38:45.61 -0.21.0M
KALEHA154.0178 S18:39:05.63 0.51.0M
AGRPCL156.6192 P18:38:46.33 0.21.0M
AGRPCL156.6192 S18:39:06.51 0.81.0M
SOHHT158.4 43 P18:38:46.53 0.11.0M
SOHHT158.4 43 S18:39:06.92 0.61.0M
PLEVHP162.5201 P18:38:47.02 0.01.0M
DRESHA163.1187 P18:38:47.24 0.21.0M
AOS2HT166.3115 P18:38:47.25 -0.41.0M
UPRHP167.9189 P18:38:47.83 0.01.0M
NYDRHT168.0225 P18:38:47.48 -0.31.0M
NYDRHT168.0225 S18:39:09.47 0.81.0M
AGEOCL168.0181 P18:38:47.61 -0.21.0M
AIGSHA169.7180 P18:38:47.54 -0.51.0M
OURHT173.0 69 P18:38:48.02 -0.51.0M
OURHT173.0 69 S18:39:09.65 -0.21.0M
AXSHP186.0199 P18:38:50.08 0.01.0M
AXSHP186.0199 S18:39:13.01 0.31.0M
KLV1HI193.8179 P18:38:50.65 -0.51.0M
SRSHT195.1 41 P18:38:50.93 -0.51.0M
SRSHT195.1 41 S18:39:15.31 0.31.0M
THALHA199.8165 P18:38:51.40 -0.51.0M
THALHA199.8165 S18:39:16.13 0.31.0M


  Solution details

Event:
    Public ID              nkua2021eksc
    Type                   earthquake
    Description
      region name: Greece
Origin:
    Date                   2021-03-04
    Time                  18:38:20.35
    Latitude              39.7757 deg  +/-      0 km
    Longitude             22.0852 deg  +/-      0 km
    Depth                       8 km   +/-    1 km
    Agency                 HA
    Author                 A.Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.42 s
    Azimuthal gap              46 deg

2 Network magnitudes:
    MLv       5.87 +/- 0.14  28
    M         5.87           28 preferred

74 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    TYRN  HT    0.1 120  P       18:38:22.78  -0.7 M  1.0  TYRN
    THL   HL    0.2 195  P       18:38:24.35  -0.7 M  1.0  THL
    THL   HL    0.2 195  S       18:38:27.95  -0.7 M  1.0  THL
    LIT   HT    0.5  44  P       18:38:28.85  -0.5 M  1.0  LIT
    LIT   HT    0.5  44  S       18:38:36.40   0.2 M  1.0  LIT
    KPRO  HT    0.6 288  P       18:38:31.34  -0.5 M  1.0  KPRO
    KPRO  HT    0.6 288  S       18:38:40.32  -0.2 M  1.0  KPRO
    TETR  HL    0.8 235  P       18:38:34.30  -0.7 M  1.0  TETR
    TETR  HL    0.8 235  S       18:38:46.31   0.2 M  1.0  TETR
    AGG   HT    0.8 166  P       18:38:34.79  -0.5 M  1.0  AGG
    AGG   HT    0.8 166  S       18:38:46.88   0.3 M  1.0  AGG
    VOL2  HI    0.8 121  P       18:38:34.87  -0.4 M  1.0  VOL2
    VOL2  HI    0.8 121  S       18:38:46.47  -0.2 M  1.0  VOL2
    PRMD  HP    0.8 252  P       18:38:35.12  -0.6 M  1.0  PRMD
    PRMD  HP    0.8 252  S       18:38:46.96  -0.4 M  1.0  PRMD
    PENT  HL    0.8 300  P       18:38:35.81  -0.6 M  1.0  PENT
    PENT  HL    0.8 300  S       18:38:48.79   0.2 M  1.0  PENT
    EVR   HL    0.9 194  P       18:38:36.69  -0.5 M  1.0  EVR
    EVR   HL    0.9 194  S       18:38:49.81  -0.2 M  1.0  EVR
    LAM2  HI    0.9 163  P       18:38:36.65  -0.9 M  1.0  LAM2
    LAM2  HI    0.9 163  S       18:38:50.34  -0.3 M  1.0  LAM2
    JAN   HL    1.0 263  P       18:38:38.45  -0.0 M  1.0  JAN
    JAN   HL    1.0 263  S       18:38:52.57   0.3 M  1.0  JAN
    NEO   HL    1.0 118  P       18:38:38.32  -0.7 M  1.0  NEO
    NEO   HL    1.0 118  S       18:38:53.53   0.3 M  1.0  NEO
    ART2  HI    1.1 233  P       18:38:40.14   0.1 M  1.0  ART2
    ART2  HI    1.1 233  S       18:38:55.27   0.3 M  1.0  ART2
    AMPL  HP    1.1 218  P       18:38:40.61  -0.0 M  1.0  AMPL
    AMPL  HP    1.1 218  S       18:38:56.44   0.4 M  1.0  AMPL
    THE   HT    1.1  38  P       18:38:41.16   0.5 M  1.0  THE
    THE   HT    1.1  38  S       18:38:56.95   0.9 M  1.0  THE
    ANX   HP    1.2 186  P       18:38:42.78   0.3 M  1.0  ANX
    PLG   HL    1.2  60  P       18:38:42.44  -0.2 M  1.0  PLG
    GRG   HT    1.2  12  P       18:38:42.81   0.1 M  1.0  GRG
    PAIG  HT    1.2  83  P       18:38:42.79  -0.4 M  1.0  PAIG
    PAIG  HT    1.2  83  S       18:39:00.91   0.4 M  1.0  PAIG
    PVO   HP    1.2 201  P       18:38:43.39   0.2 M  1.0  PVO
    LMS2  HI    1.3 326  P       18:38:44.30   0.3 M  1.0  LMS2
    LKR   HL    1.3 148  P       18:38:45.02   0.2 M  1.0  LKR
    LKR   HL    1.3 148  S       18:39:04.15   0.8 M  1.0  LKR
    DLFA  HL    1.3 166  P       18:38:44.87  -0.0 M  1.0  DLFA
    DLFA  HL    1.3 166  S       18:39:03.90   0.3 M  1.0  DLFA
    EFP   HP    1.4 186  P       18:38:45.55   0.4 M  1.0  EFP
    EFP   HP    1.4 186  S       18:39:04.91   0.9 M  1.0  EFP
    MG00  CL    1.4 185  P       18:38:45.56   0.2 M  1.0  MG00
    PYRG  CL    1.4 182  P       18:38:45.34  -0.1 M  1.0  PYRG
    PYRG  CL    1.4 182  S       18:39:05.23   0.7 M  1.0  PYRG
    VVK   HP    1.4 189  P       18:38:45.93   0.4 M  1.0  VVK
    VVK   HP    1.4 189  S       18:39:05.50   0.9 M  1.0  VVK
    PDO   HP    1.4 211  P       18:38:45.67   0.2 M  1.0  PDO
    IGT   HT    1.4 260  P       18:38:46.10   0.5 M  1.0  IGT
    KALE  HA    1.4 178  P       18:38:45.61  -0.2 M  1.0  KALE
    KALE  HA    1.4 178  S       18:39:05.63   0.5 M  1.0  KALE
    AGRP  CL    1.4 192  P       18:38:46.33   0.2 M  1.0  AGRP
    AGRP  CL    1.4 192  S       18:39:06.51   0.8 M  1.0  AGRP
    SOH   HT    1.4  43  P       18:38:46.53   0.1 M  1.0  SOH
    SOH   HT    1.4  43  S       18:39:06.92   0.6 M  1.0  SOH
    PLEV  HP    1.5 201  P       18:38:47.02   0.0 M  1.0  PLEV
    DRES  HA    1.5 187  P       18:38:47.24   0.2 M  1.0  DRES
    AOS2  HT    1.5 115  P       18:38:47.25  -0.4 M  1.0  AOS2
    AGEO  CL    1.5 181  P       18:38:47.61  -0.2 M  1.0  AGEO
    UPR   HP    1.5 189  P       18:38:47.83   0.0 M  1.0  UPR
    NYDR  HT    1.5 225  P       18:38:47.48  -0.3 M  1.0  NYDR
    NYDR  HT    1.5 225  S       18:39:09.47   0.8 M  1.0  NYDR
    AIGS  HA    1.5 180  P       18:38:47.54  -0.5 M  1.0  AIGS
    OUR   HT    1.6  69  P       18:38:48.02  -0.5 M  1.0  OUR
    OUR   HT    1.6  69  S       18:39:09.65  -0.2 M  1.0  OUR
    AXS   HP    1.7 199  P       18:38:50.08  -0.0 M  1.0  AXS
    AXS   HP    1.7 199  S       18:39:13.01   0.3 M  1.0  AXS
    KLV1  HI    1.7 179  P       18:38:50.65  -0.5 M  1.0  KLV1
    SRS   HT    1.8  41  P       18:38:50.93  -0.5 M  1.0  SRS
    SRS   HT    1.8  41  S       18:39:15.31   0.3 M  1.0  SRS
    THAL  HA    1.8 165  P       18:38:51.40  -0.5 M  1.0  THAL
    THAL  HA    1.8 165  S       18:39:16.13   0.3 M  1.0  THAL

45 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    TYRN  HT    0.1 120  MLv     5.38 -0.49    6407.28
    THL   HL    0.2 195  MLv     5.59 -0.29    4579.89
    LIT   HT    0.5  44  MLv     5.78 -0.09    1936.07
    KPRO  HT    0.6 288  MLv     6.11  0.24    3086.23
    TETR  HL    0.8 235  MLv     5.94  0.07    1670.87
    AGG   HT    0.8 166  MLv     6.00  0.13    1449.61
    VOL2  HI    0.8 121  MLv     5.59 -0.28    712.682
    PRMD  HP    0.8 252  MLv     5.92  0.05    1501.06
    PENT  HL    0.8 300  MLv     5.89  0.02    1033.68
    EVR   HL    0.9 194  MLv     5.92  0.05    1347.75
    LAM2  HI    0.9 163  MLv     6.22  0.34    2565.31
    JAN   HL    1.0 263  MLv     5.66 -0.21    883.764
    NEO   HL    1.0 118  MLv     5.84 -0.03    1335.47
    ART2  HI    1.1 233  MLv     5.33 -0.54    280.965
    AMPL  HP    1.1 218  MLv     5.62 -0.26    515.922
    THE   HT    1.1  38  MLv     5.51 -0.36    266.449
    ANX   HP    1.2 186  MLv     6.06  0.19    1257.64
    PLG   HL    1.2  60  MLv     5.57 -0.31    398.302
    GRG   HT    1.2  12  MLv     5.85 -0.03    750.089
    PAIG  HT    1.2  83  MLv     5.04 -0.83    87.7393
    PVO   HP    1.2 201  MLv     5.81 -0.06    660.721
    LMS2  HI    1.3 326  MLv     5.91  0.04    799.435
    LKR   HL    1.3 148  MLv     5.77 -0.10    288.056
    DLFA  HL    1.3 166  MLv     5.95  0.08    816.581
    EFP   HP    1.4 186  MLv     5.76 -0.12    504.431
    MG00  CL    1.4 185  MLv     5.93  0.06    963.766
    PYRG  CL    1.4 182  MLv     5.90  0.02    432.541
    VVK   HP    1.4 189  MLv     5.11 -0.77    518.892
    PDO   HP    1.4 211  MLv     5.71 -0.16    448.467
    IGT   HT    1.4 260  MLv     5.86 -0.01    623.796
    KALE  HA    1.4 178  MLv     6.00  0.13    851.147
    AGRP  CL    1.4 192  MLv     5.76 -0.11    479.188
    SOH   HT    1.4  43  MLv     5.63 -0.25    342.199
    PLEV  HP    1.5 201  MLv     5.80 -0.08    483.504
    DRES  HA    1.5 187  MLv     5.73 -0.15    409.087
    AOS2  HT    1.5 115  MLv     5.53 -0.34    253.364
    AGEO  CL    1.5 181  MLv     5.55 -0.32    74.6084
    UPR   HP    1.5 189  MLv     4.90 -0.98    656.578
    NYDR  HT    1.5 225  MLv     5.51 -0.36    169.777
    AIGS  HA    1.5 180  MLv     5.96  0.09    654.344
    OUR   HT    1.6  69  MLv     5.48 -0.39    207.801
    AXS   HP    1.7 199  MLv     5.59 -0.28    228.088
    KLV1  HI    1.7 179  MLv     5.75 -0.12    306.085
    SRS   HT    1.8  41  MLv     5.57 -0.30    139.213
    THAL  HA    1.8 165  MLv     5.57 -0.31    329.328
