Earthquake Information
 Origin Time
 2019-03-30 10:46:19 (GMT)
 Magnitude
 M 5.2
 Latitude
 38.3375° N
 Longitude
 22.2937° E
 Focal Depth
 7 km
 # of Arrivals
 97
 Location 21.0 km ENE of Aegion
22.0 km SSW of Amfissa
131.9 km WNW of Athens
 Solution type
 manual
 Files / Links
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Foc.Mech.


  Focal Mechanism

Foc.Mech. Strike (°) Dip (°) Rake (°) Seism.Mom. (dyn*cm)
26830-98 5.93E+23

Latitude (°N) Longitude (°E) Depth (km) Magnitude Mw
38.344022.294615.05.1

Source parameters determination

Click here for detailed focal mechanism solution

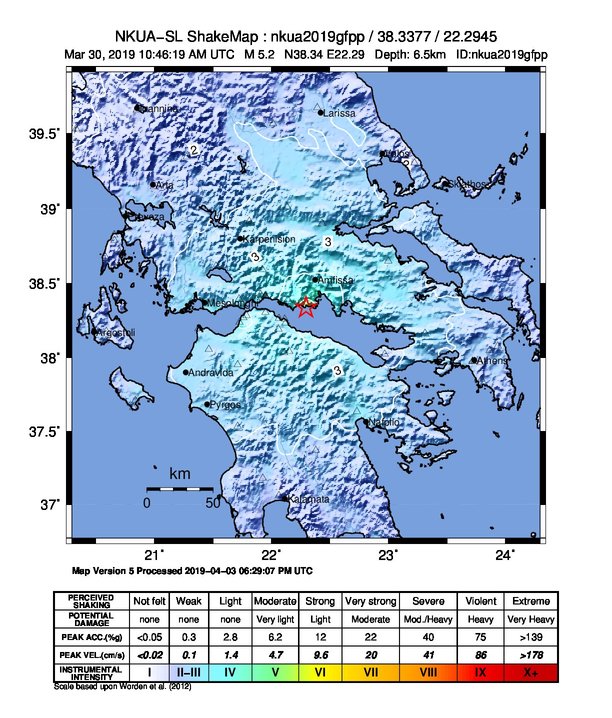

  Intensity map

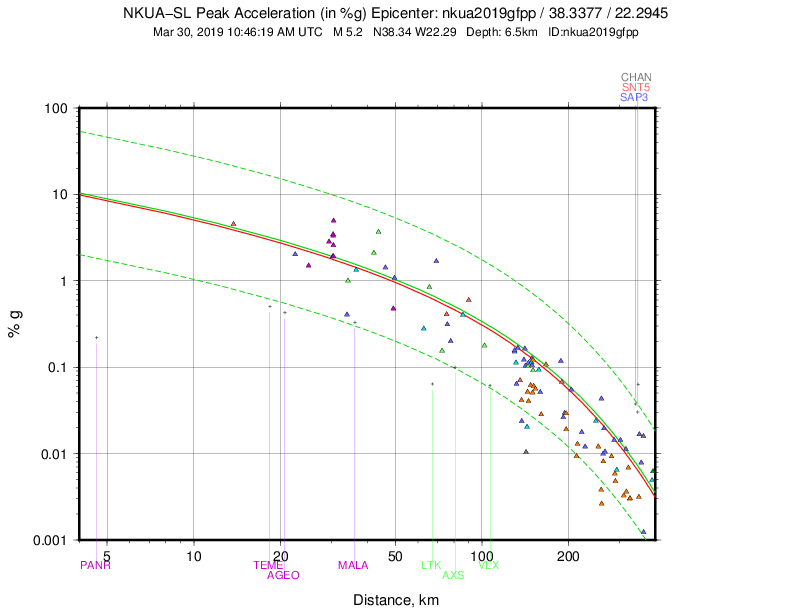

PGA

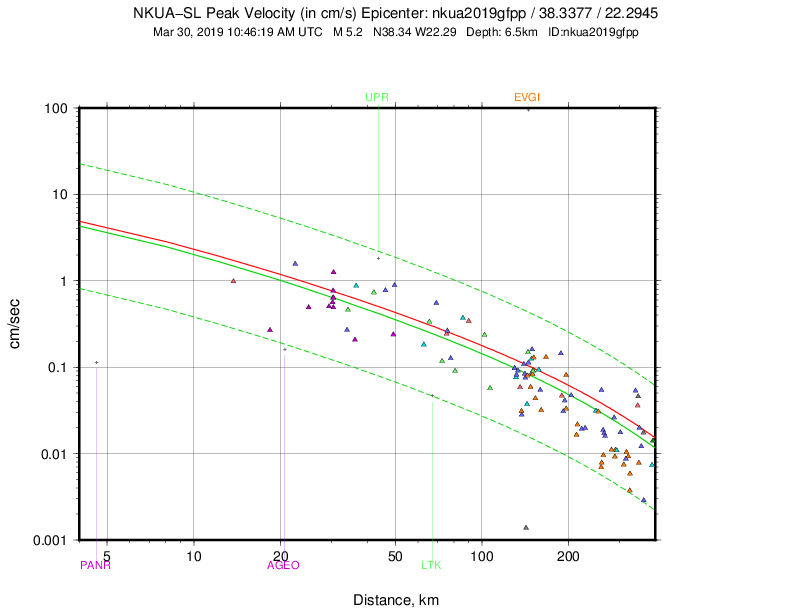

 PGV

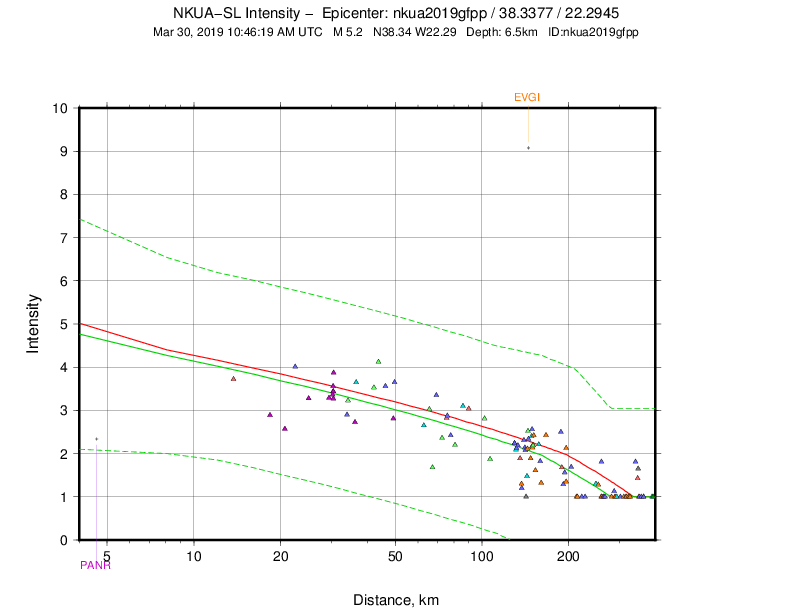

 MI

Download files: Google Earth (.kmz), Measurements (.csv)


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

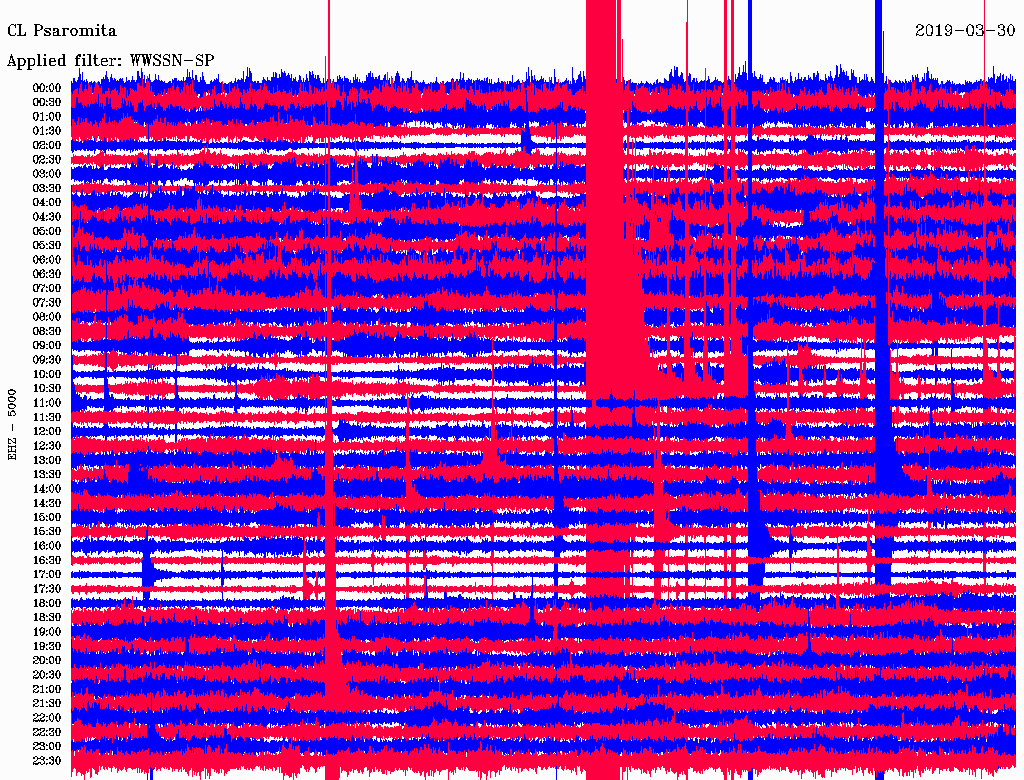

PSARCL10.4267 P10:46:22.04 0.41.0M
PSARCL10.4267 S10:46:23.82 0.31.0M
TEMECL19.3233 P10:46:23.49 0.31.0M
TEMECL19.3233 S10:46:26.55 0.51.0M
AGEOCL21.7248 P10:46:23.81 0.31.0M
AGEOCL21.7248 S10:46:27.34 0.61.0M
DLFAHL23.6 48 P10:46:23.78 -0.11.0M
DLFAHL23.6 48 S10:46:27.36 -0.11.0M
PYRGCL25.5288 P10:46:24.13 -0.11.0M
PYRGCL25.5288 S10:46:28.16 0.11.0M
ZIRICL29.9263 P10:46:25.21 0.21.0M
ZIRICL29.9263 S10:46:29.50 0.11.0M
MG00CL31.4286 P10:46:25.03 -0.11.0M
MG00CL31.4286 S10:46:29.67 0.01.0M
KLVHL35.0201 P10:46:25.51 -0.31.0M
KLVHL35.0201 S10:46:30.19 -0.61.0M
EFPHP35.2286 P10:46:25.73 -0.11.0M
EFPHP35.2286 S10:46:30.78 0.01.0M

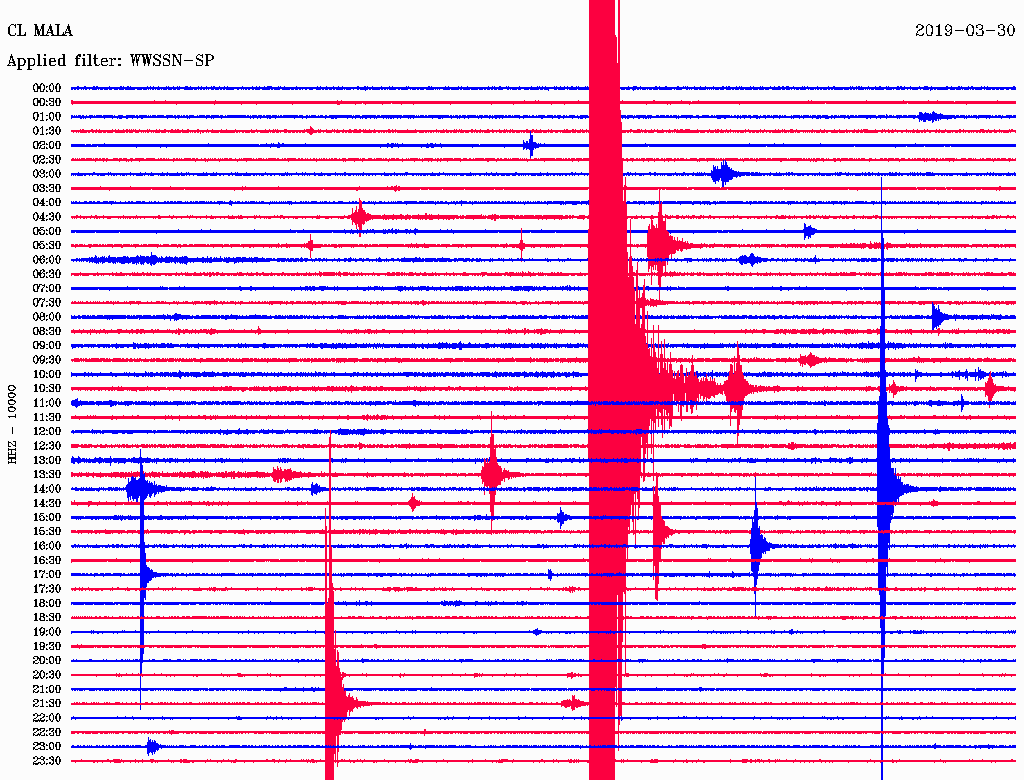

MALACL37.2280 P10:46:26.18 0.11.0M
MALACL37.2280 S10:46:31.40 0.11.0M
KLV1HI37.6206 P10:46:26.04 -0.21.0M
KLV1HI37.6206 S10:46:30.91 -0.61.0M
PATCHL47.2261 P10:46:27.98 0.21.0M
AGRPCL50.2277 P10:46:28.29 0.01.0M
AGRPCL50.2277 S10:46:35.05 -0.11.0M
PATGHL50.7258 P10:46:28.94 0.61.0M
PATGHL50.7258 S10:46:35.65 0.51.0M
AXARHA57.3 34 P10:46:29.16 -0.21.0M
AXARHA57.3 34 S10:46:37.22 0.11.0M
LAM2HI63.9 11 P10:46:29.90 -0.51.0M
LAM2HI63.9 11 S10:46:38.42 -0.51.0M
DROHP66.6230 P10:46:30.68 -0.31.0M
DROHP66.6230 S10:46:40.17 0.31.0M
LTKHP68.5121 P10:46:31.50 0.21.0M
LTKHP68.5121 S10:46:40.46 0.11.0M
LKRHL70.5 61 P10:46:31.18 -0.41.0M
LKRHL70.5 61 S10:46:40.87 -0.11.0M
PVOHP73.7295 P10:46:32.32 0.21.0M
PVOHP73.7295 S10:46:41.50 -0.41.0M
MAKRHA76.4349 P10:46:32.43 -0.11.0M
MAKRHA76.4349 S10:46:42.85 0.21.0M
EVRHL76.9327 P10:46:33.21 0.51.0M
RLSHL78.9247 P10:46:32.67 -0.31.0M
RLSHL78.9247 S10:46:43.59 0.21.0M
AXSHP81.6259 P10:46:33.43 0.01.0M
AXSHP81.6259 S10:46:44.05 -0.11.0M
ARS1HI87.0154 P10:46:34.34 0.11.0M
ARS1HI87.0154 S10:46:45.58 0.01.0M
VILLHA91.0102 P10:46:34.96 0.01.0M
VLXHP107.8176 P10:46:37.12 -0.51.0M
VLXHP107.8176 S10:46:52.01 0.41.0M
ATHHL130.9108 P10:46:41.77 0.61.0M
ATHHL130.9108 S10:46:58.18 0.31.0M
NOACHL130.9108 P10:46:41.92 0.71.0M
NOACHL130.9108 S10:46:58.41 0.61.0M
ATH5HI132.5108 P10:46:42.10 0.71.0M
ATH5HI132.5108 S10:46:58.59 0.31.0M
ITMHL132.9194 P10:46:41.04 -0.41.0M
NEOHL134.4 37 P10:46:41.79 0.11.0M
NEOHL134.4 37 S10:46:58.70 0.01.0M
ATHUHA136.7107 P10:46:42.49 0.41.0M
ATHUHA136.7107 S10:47:00.01 0.51.0M
THLHL138.6350 P10:46:43.04 0.71.0M
PTLHL141.0103 P10:46:43.13 0.31.0M
PTLHL141.0103 S10:47:00.70 0.01.0M
VLYHL142.0112 P10:46:43.27 0.41.0M
VLYHL142.0112 S10:47:01.13 0.21.0M
TETRHL142.6322 P10:46:43.20 0.11.0M
NYDRHT144.9287 P10:46:43.64 0.31.0M
LTHKHP145.5241 P10:46:44.01 0.61.0M
EVGIHT146.0282 P10:46:43.71 0.21.0M
DIONHL146.1101 P10:46:43.97 0.41.0M
DIONHL146.1101 S10:47:01.29 -0.81.0M
LRSOHT148.6 3 P10:46:44.26 0.41.0M
KRI1HI149.6240 P10:46:44.60 0.51.0M
VLSHL149.9263 P10:46:43.72 -0.51.0M
YDRAHL150.5137 P10:46:44.64 0.51.0M
PSDAHT151.4261 P10:46:43.81 -0.51.0M
FSKHP151.5275 P10:46:44.20 -0.21.0M
TSLKHT152.4291 P10:46:45.06 0.61.0M
DRAGHT154.5284 P10:46:44.96 0.11.0M
ARG2HI158.7264 P10:46:45.03 -0.41.0M

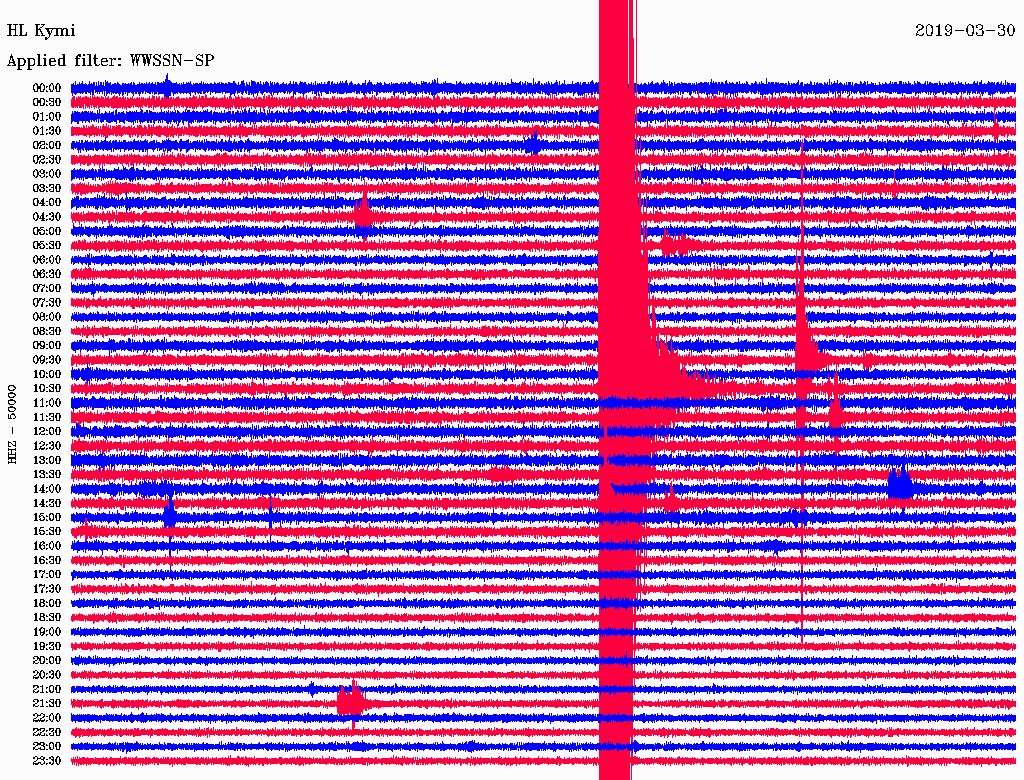

KYMIHL160.6 78 P10:46:45.28 -0.51.0M
AOS2HT161.8 56 P10:46:45.28 -0.71.0M
DMLNHT168.0266 P10:46:46.62 -0.31.0M
VLIHL189.1162 P10:46:48.70 -0.81.0M
VLIHL189.1162 S10:47:13.08 0.51.0M
KARYHA190.4100 P10:46:49.25 -0.61.0M
MNVAHL194.9160 P10:46:50.40 0.11.0M
KPROHT196.9336 P10:46:50.74 0.11.0M
SKYHL205.1 73 P10:46:50.92 -0.81.0M
PENTHL229.4334 P10:46:54.63 -0.21.0M
MHLOHL261.0134 P10:46:58.08 -0.71.0M
TNSAHL266.8109 P10:46:58.87 -0.71.0M
EFSAHL268.7 60 P10:46:58.87 -0.91.0M
FNAHT282.8344 P10:47:01.41 -0.21.0M
ANKYHL288.9162 P10:47:01.72 -0.61.0M


  Solution details

Event:
    Public ID              nkua2019gfpp
    Type                   earthquake
    Description
      region name: Greece
Origin:
    Date                   2019-03-30
    Time                  10:46:19.26
    Latitude              38.3375 deg  +/-      0 km
    Longitude             22.2937 deg  +/-      0 km
    Depth                       7 km   +/-    1 km
    Agency                 HA
    Author                 A.Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.40 s
    Azimuthal gap              27 deg

2 Network magnitudes:
    MLv       5.23 +/- 0.15  48
    M         5.23           48 preferred

97 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    PSAR  CL    0.1 267  P       10:46:22.04   0.4 M  1.0  PSAR
    PSAR  CL    0.1 267  S       10:46:23.82   0.3 M  1.0  PSAR
    TEME  CL    0.2 233  P       10:46:23.49   0.3 M  1.0  TEME
    TEME  CL    0.2 233  S       10:46:26.55   0.5 M  1.0  TEME
    AGEO  CL    0.2 248  P       10:46:23.81   0.3 M  1.0  AGEO
    AGEO  CL    0.2 248  S       10:46:27.34   0.6 M  1.0  AGEO
    DLFA  HL    0.2  48  P       10:46:23.78  -0.1 M  1.0  DLFA
    DLFA  HL    0.2  48  S       10:46:27.36  -0.1 M  1.0  DLFA
    PYRG  CL    0.2 288  P       10:46:24.13  -0.1 M  1.0  PYRG
    PYRG  CL    0.2 288  S       10:46:28.16   0.1 M  1.0  PYRG
    ZIRI  CL    0.3 263  P       10:46:25.21   0.2 M  1.0  ZIRI
    ZIRI  CL    0.3 263  S       10:46:29.50   0.1 M  1.0  ZIRI
    MG00  CL    0.3 286  P       10:46:25.03  -0.1 M  1.0  MG00
    MG00  CL    0.3 286  S       10:46:29.67   0.0 M  1.0  MG00
    KLV   HL    0.3 201  P       10:46:25.51  -0.3 M  1.0  KLV
    KLV   HL    0.3 201  S       10:46:30.19  -0.6 M  1.0  KLV
    EFP   HP    0.3 286  P       10:46:25.73  -0.1 M  1.0  EFP
    EFP   HP    0.3 286  S       10:46:30.78   0.0 M  1.0  EFP
    MALA  CL    0.3 280  P       10:46:26.18   0.1 M  1.0  MALA
    MALA  CL    0.3 280  S       10:46:31.40   0.1 M  1.0  MALA
    KLV1  HI    0.3 206  P       10:46:26.04  -0.2 M  1.0  KLV1
    KLV1  HI    0.3 206  S       10:46:30.91  -0.6 M  1.0  KLV1
    PATC  HL    0.4 261  P       10:46:27.98   0.2 M  1.0  PATC
    AGRP  CL    0.5 277  P       10:46:28.29   0.0 M  1.0  AGRP
    AGRP  CL    0.5 277  S       10:46:35.05  -0.1 M  1.0  AGRP
    PATG  HL    0.5 258  P       10:46:28.94   0.6 M  1.0  PATG
    PATG  HL    0.5 258  S       10:46:35.65   0.5 M  1.0  PATG
    AXAR  HA    0.5  34  P       10:46:29.16  -0.2 M  1.0  AXAR
    AXAR  HA    0.5  34  S       10:46:37.22   0.1 M  1.0  AXAR
    LAM2  HI    0.6  11  P       10:46:29.90  -0.5 M  1.0  LAM2
    LAM2  HI    0.6  11  S       10:46:38.42  -0.5 M  1.0  LAM2
    DRO   HP    0.6 230  P       10:46:30.68  -0.3 M  1.0  DRO
    DRO   HP    0.6 230  S       10:46:40.17   0.3 M  1.0  DRO
    LTK   HP    0.6 121  P       10:46:31.50   0.2 M  1.0  LTK
    LTK   HP    0.6 121  S       10:46:40.46   0.1 M  1.0  LTK
    LKR   HL    0.6  61  P       10:46:31.18  -0.4 M  1.0  LKR
    LKR   HL    0.6  61  S       10:46:40.87  -0.1 M  1.0  LKR
    PVO   HP    0.7 295  P       10:46:32.32   0.2 M  1.0  PVO
    PVO   HP    0.7 295  S       10:46:41.50  -0.4 M  1.0  PVO
    MAKR  HA    0.7 349  P       10:46:32.43  -0.1 M  1.0  MAKR
    MAKR  HA    0.7 349  S       10:46:42.85   0.2 M  1.0  MAKR
    EVR   HL    0.7 327  P       10:46:33.21   0.5 M  1.0  EVR
    RLS   HL    0.7 247  P       10:46:32.67  -0.3 M  1.0  RLS
    RLS   HL    0.7 247  S       10:46:43.59   0.2 M  1.0  RLS
    AXS   HP    0.7 259  P       10:46:33.43   0.0 M  1.0  AXS
    AXS   HP    0.7 259  S       10:46:44.05  -0.1 M  1.0  AXS
    ARS1  HI    0.8 154  P       10:46:34.34   0.1 M  1.0  ARS1
    ARS1  HI    0.8 154  S       10:46:45.58   0.0 M  1.0  ARS1
    VILL  HA    0.8 102  P       10:46:34.96  -0.0 M  1.0  VILL
    VLX   HP    1.0 176  P       10:46:37.12  -0.5 M  1.0  VLX
    VLX   HP    1.0 176  S       10:46:52.01   0.4 M  1.0  VLX
    ATH   HL    1.2 108  P       10:46:41.77   0.6 M  1.0  ATH
    ATH   HL    1.2 108  S       10:46:58.18   0.3 M  1.0  ATH
    NOAC  HL    1.2 108  P       10:46:41.92   0.7 M  1.0  NOAC
    NOAC  HL    1.2 108  S       10:46:58.41   0.6 M  1.0  NOAC
    ATH5  HI    1.2 108  P       10:46:42.10   0.7 M  1.0  ATH5
    ATH5  HI    1.2 108  S       10:46:58.59   0.3 M  1.0  ATH5
    ITM   HL    1.2 194  P       10:46:41.04  -0.4 M  1.0  ITM
    NEO   HL    1.2  37  P       10:46:41.79   0.1 M  1.0  NEO
    NEO   HL    1.2  37  S       10:46:58.70  -0.0 M  1.0  NEO
    ATHU  HA    1.2 107  P       10:46:42.49   0.4 M  1.0  ATHU
    ATHU  HA    1.2 107  S       10:47:00.01   0.5 M  1.0  ATHU
    THL   HL    1.2 350  P       10:46:43.04   0.7 M  1.0  THL
    PTL   HL    1.3 103  P       10:46:43.13   0.3 M  1.0  PTL
    PTL   HL    1.3 103  S       10:47:00.70   0.0 M  1.0  PTL
    VLY   HL    1.3 112  P       10:46:43.27   0.4 M  1.0  VLY
    VLY   HL    1.3 112  S       10:47:01.13   0.2 M  1.0  VLY
    TETR  HL    1.3 322  P       10:46:43.20   0.1 M  1.0  TETR
    NYDR  HT    1.3 287  P       10:46:43.64   0.3 M  1.0  NYDR
    LTHK  HP    1.3 241  P       10:46:44.01   0.6 M  1.0  LTHK
    EVGI  HT    1.3 282  P       10:46:43.71   0.2 M  1.0  EVGI
    DION  HL    1.3 101  P       10:46:43.97   0.4 M  1.0  DION
    DION  HL    1.3 101  S       10:47:01.29  -0.8 M  1.0  DION
    LRSO  HT    1.3   3  P       10:46:44.26   0.4 M  1.0  LRSO
    KRI1  HI    1.3 240  P       10:46:44.60   0.5 M  1.0  KRI1
    VLS   HL    1.4 263  P       10:46:43.72  -0.5 M  1.0  VLS
    YDRA  HL    1.4 137  P       10:46:44.64   0.5 M  1.0  YDRA
    PSDA  HT    1.4 261  P       10:46:43.81  -0.5 M  1.0  PSDA
    FSK   HP    1.4 275  P       10:46:44.20  -0.2 M  1.0  FSK
    TSLK  HT    1.4 291  P       10:46:45.06   0.6 M  1.0  TSLK
    DRAG  HT    1.4 284  P       10:46:44.96   0.1 M  1.0  DRAG
    ARG2  HI    1.4 264  P       10:46:45.03  -0.4 M  1.0  ARG2
    KYMI  HL    1.4  78  P       10:46:45.28  -0.5 M  1.0  KYMI
    AOS2  HT    1.5  56  P       10:46:45.28  -0.7 M  1.0  AOS2
    DMLN  HT    1.5 266  P       10:46:46.62  -0.3 M  1.0  DMLN
    VLI   HL    1.7 162  P       10:46:48.70  -0.8 M  1.0  VLI
    VLI   HL    1.7 162  S       10:47:13.08   0.5 M  1.0  VLI
    KARY  HA    1.7 100  P       10:46:49.25  -0.6 M  1.0  KARY
    MNVA  HL    1.8 160  P       10:46:50.40   0.1 M  1.0  MNVA
    KPRO  HT    1.8 336  P       10:46:50.74   0.1 M  1.0  KPRO
    SKY   HL    1.8  73  P       10:46:50.92  -0.8 M  1.0  SKY
    PENT  HL    2.1 334  P       10:46:54.63  -0.2 M  1.0  PENT
    MHLO  HL    2.3 134  P       10:46:58.08  -0.7 M  1.0  MHLO
    TNSA  HL    2.4 109  P       10:46:58.87  -0.7 M  1.0  TNSA
    EFSA  HL    2.4  60  P       10:46:58.87  -0.9 M  1.0  EFSA
    FNA   HT    2.5 344  P       10:47:01.41  -0.2 M  1.0  FNA
    ANKY  HL    2.6 162  P       10:47:01.72  -0.6 M  1.0  ANKY

64 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    PSAR  CL    0.1 267  MLv     4.33 -0.90    942.345
    TEME  CL    0.2 233  MLv     5.05 -0.18    965.643
    AGEO  CL    0.2 248  MLv     4.85 -0.38    462.322
    DLFA  HL    0.2  48  MLv     4.96 -0.27    1848.54
    PYRG  CL    0.2 288  MLv     4.83 -0.40    775.713
    ZIRI  CL    0.3 263  MLv     4.95 -0.28     1232.3
    MG00  CL    0.3 286  MLv     5.02 -0.21    1745.52
    KLV   HL    0.3 201  MLv     5.29  0.06    1565.06
    EFP   HP    0.3 286  MLv     5.02 -0.21    1085.36
    MALA  CL    0.3 280  MLv     5.17 -0.06    1064.91
    KLV1  HI    0.3 206  MLv     5.13 -0.10    1230.54
    PATC  HL    0.4 261  MLv     5.54  0.31    1824.06
    AGRP  CL    0.5 277  MLv     5.07 -0.16    519.741
    PATG  HL    0.5 258  MLv     5.63  0.40    1824.29
    AXAR  HA    0.5  34  MLv     5.03 -0.20    1247.27
    LAM2  HI    0.6  11  MLv     5.19 -0.04    372.389
    DRO   HP    0.6 230  MLv     5.09 -0.14    600.259
    LTK   HP    0.6 121  MLv     4.00 -1.23    87.1881
    LKR   HL    0.6  61  MLv     5.72  0.49    626.373
    PVO   HP    0.7 295  MLv     5.32  0.10    452.925
    MAKR  HA    0.7 349  MLv     5.16 -0.07      457.5
    EVR   HL    0.7 327  MLv     5.47  0.24    608.481
    RLS   HL    0.7 247  MLv     5.31  0.08    408.237
    AXS   HP    0.7 259  MLv     5.02 -0.21     203.97
    ARS1  HI    0.8 154  MLv     5.35  0.12    409.677
    VILL  HA    0.8 102  MLv     5.45  0.23    501.135
    VLX   HP    1.0 176  MLv     4.83 -0.40    98.7325
    ATH   HL    1.2 108  MLv     5.51  0.28    356.794
    NOAC  HL    1.2 108  MLv     5.51  0.28    359.667
    ATH5  HI    1.2 108  MLv     5.42  0.19    288.544
    ITM   HL    1.2 194  MLv     5.52  0.29    362.353
    NEO   HL    1.2  37  MLv     5.05 -0.18    165.784
    ATHU  HA    1.2 107  MLv     5.33  0.10    136.729
    THL   HL    1.2 350  MLv     5.36  0.13    139.829
    PTL   HL    1.3 103  MLv     5.52  0.29    326.666
    VLY   HL    1.3 112  MLv     5.10 -0.13    123.954
    TETR  HL    1.3 322  MLv     5.53  0.31     332.81
    NYDR  HT    1.3 287  MLv     5.22 -0.01    113.955
    LTHK  HP    1.3 241  MLv     5.36  0.13     214.18
    EVGI  HT    1.3 282  MLv     5.36  0.13    215.272
    DION  HL    1.3 101  MLv     5.15 -0.08    374.277
    LRSO  HT    1.3   3  MLv     4.76 -0.47    137.506
    KRI1  HI    1.3 240  MLv     5.44  0.21     248.26
    VLS   HL    1.4 263  MLv     5.37  0.14    208.247
    YDRA  HL    1.4 137  MLv     5.18 -0.05    133.225
    PSDA  HT    1.4 261  MLv     5.27  0.04    163.066
    FSK   HP    1.4 275  MLv     5.33  0.10    186.248
    TSLK  HT    1.4 291  MLv     5.07 -0.15    102.894
    DRAG  HT    1.4 284  MLv     4.54 -0.69    1.94975
    ARG2  HI    1.4 264  MLv     5.33  0.10    171.591
    KYMI  HL    1.4  78  MLv     5.04 -0.19    86.8481
    AOS2  HT    1.5  56  MLv     5.07 -0.16     91.815
    DMLN  HT    1.5 266  MLv     5.09 -0.14    121.711
    VLI   HL    1.7 162  MLv     5.76  0.53    423.327
    KARY  HA    1.7 100  MLv     5.37  0.14    132.454
    MNVA  HL    1.8 160  MLv     5.23  0.01     91.392
    KPRO  HT    1.8 336  MLv     5.34  0.11    113.118
    SKY   HL    1.8  73  MLv     4.99 -0.24    75.9792
    PENT  HL    2.1 334  MLv     5.43  0.20    74.6272
    MHLO  HL    2.3 134  MLv     5.33  0.10    108.349
    TNSA  HL    2.4 109  MLv     5.32  0.09    48.5034
    EFSA  HL    2.4  60  MLv     5.18 -0.05    34.0861
    FNA   HT    2.5 344  MLv     5.29  0.06    37.5375
    ANKY  HL    2.6 162  MLv     5.37  0.14    42.2988
