Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2025-02-12 09:26:47 (GMT)
Πανεπιστήμιο Αθηνών - Εργαστήριο Σεισμολογίας
+−
10 km
5 mi
Leaflet | Tiles © Esri
 Μέγεθος
 M 3.6
 Γεωγρ. Πλάτος
 36.5672° Β
 Γεωγρ. Μήκος
 25.6288° Α
 Εστιακό Βάθος
 10 χμ
 Αρ. αφίξεων
 28
 Επίκεντρο 24.2 χμ ΒΑ της Θήρας
63.9 χμ ΝΝΑ της Νάξου
230.0 χμ ΝΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap

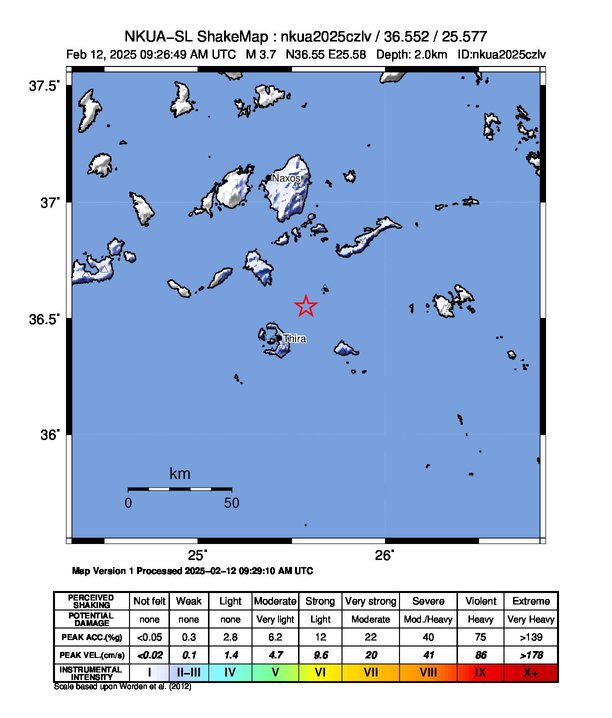

  Χάρτης εντάσεως

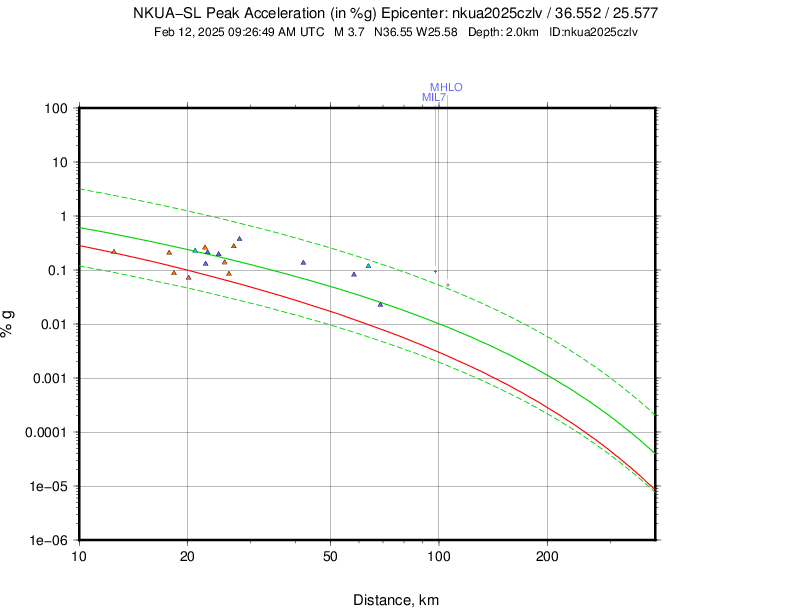

PGA

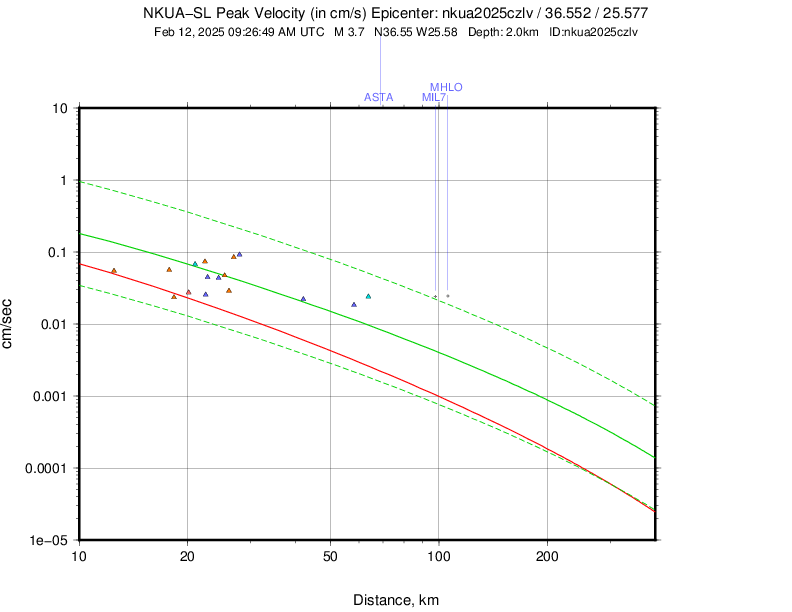

 PGV

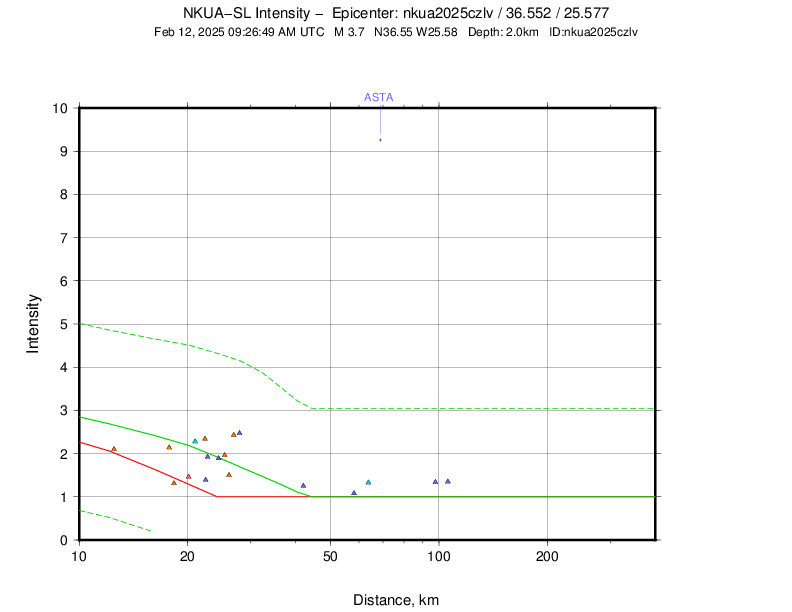

 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
ANYDHT8.2 32 P09:26:49.89 0.21.0M
ANYDHT8.2 32 S09:26:51.48 -0.11.0M
THR2HT21.9232 P09:26:51.83 0.11.0M
THR2HT21.9232 S09:26:55.15 0.11.0M
CMBOHT22.6242 P09:26:52.17 0.31.0M
CMBOHT22.6242 S09:26:55.15 -0.11.0M
SNT1HA24.6227 P09:26:52.21 0.11.0M
SNT1HA24.6227 S09:26:55.66 -0.11.0M
SFR2HI25.2223 P09:26:52.56 0.31.0M
SFR2HI25.2223 S09:26:56.14 0.11.0M
THERAHL26.2212 P09:26:52.46 0.11.0M
THERAHL26.2212 S09:26:56.08 -0.21.0M
SANTHL26.6215 P09:26:52.61 0.11.0M
SANTHL26.6215 S09:26:56.18 -0.31.0M
THR3HT26.9229 P09:26:52.73 0.21.0M
THR3HT26.9229 S09:26:56.86 0.41.0M
SAP3HL29.3240 P09:26:53.05 0.11.0M
SAP3HL29.3240 S09:26:57.05 -0.11.0M
AKROHT31.1222 P09:26:53.61 0.41.0M
AKROHT31.1222 S09:26:57.91 0.21.0M
APEHL57.0350 P09:26:57.19 -0.31.0M
APEHL57.0350 S09:27:04.54 -0.61.0M
MHLOHL110.3277 P09:27:05.66 -0.31.0M
MHLOHL110.3277 S09:27:20.17 0.11.0M
TNSAHL115.7339 P09:27:06.78 0.11.0M
TNSAHL115.7339 S09:27:21.50 0.11.0M
SERIHA121.3303 P09:27:07.43 -0.21.0M
SERIHA121.3303 S09:27:23.07 0.01.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2025czlv
    Description
      region name: Dodecanese Islands, Greece
Origin:
    Date                   2025-02-12
    Time                  09:26:47.34
    Latitude              36.5672 deg  +/-      1 km
    Longitude             25.6288 deg  +/-      1 km
    Depth                      10 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.18 s
    Azimuthal gap             180 deg

2 Network magnitudes:
    MLv       3.63 +/- 0.31  12
    M         3.63           12 preferred

28 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    ANYD  HT    0.1  32  P       09:26:49.89   0.2 M  1.0  ANYD
    ANYD  HT    0.1  32  S       09:26:51.48  -0.1 M  1.0  ANYD
    THR2  HT    0.2 232  P       09:26:51.83   0.1 M  1.0  THR2
    THR2  HT    0.2 232  S       09:26:55.15   0.1 M  1.0  THR2
    CMBO  HT    0.2 242  P       09:26:52.17   0.3 M  1.0  CMBO
    CMBO  HT    0.2 242  S       09:26:55.15  -0.1 M  1.0  CMBO
    SNT1  HA    0.2 227  P       09:26:52.21   0.1 M  1.0  SNT1
    SNT1  HA    0.2 227  S       09:26:55.66  -0.1 M  1.0  SNT1
    SFR2  HI    0.2 223  P       09:26:52.56   0.3 M  1.0  SFR2
    SFR2  HI    0.2 223  S       09:26:56.14   0.1 M  1.0  SFR2
    THERA HL    0.2 212  P       09:26:52.46   0.1 M  1.0  THERA
    THERA HL    0.2 212  S       09:26:56.08  -0.2 M  1.0  THERA
    SANT  HL    0.2 215  P       09:26:52.61   0.1 M  1.0  SANT
    SANT  HL    0.2 215  S       09:26:56.18  -0.3 M  1.0  SANT
    THR3  HT    0.2 229  P       09:26:52.73   0.2 M  1.0  THR3
    THR3  HT    0.2 229  S       09:26:56.86   0.4 M  1.0  THR3
    SAP3  HL    0.3 240  P       09:26:53.05   0.1 M  1.0  SAP3
    SAP3  HL    0.3 240  S       09:26:57.05  -0.1 M  1.0  SAP3
    AKRO  HT    0.3 222  P       09:26:53.61   0.4 M  1.0  AKRO
    AKRO  HT    0.3 222  S       09:26:57.91   0.2 M  1.0  AKRO
    APE   HL    0.5 350  P       09:26:57.19  -0.3 M  1.0  APE
    APE   HL    0.5 350  S       09:27:04.54  -0.6 M  1.0  APE
    MHLO  HL    1.0 277  P       09:27:05.66  -0.3 M  1.0  MHLO
    MHLO  HL    1.0 277  S       09:27:20.17   0.1 M  1.0  MHLO
    TNSA  HL    1.0 339  P       09:27:06.78   0.1 M  1.0  TNSA
    TNSA  HL    1.0 339  S       09:27:21.50   0.1 M  1.0  TNSA
    SERI  HA    1.1 303  P       09:27:07.43  -0.2 M  1.0  SERI
    SERI  HA    1.1 303  S       09:27:23.07   0.0 M  1.0  SERI

14 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    ANYD  HT    0.1  32  MLv     3.27 -0.36    92.2343
    THR2  HT    0.2 232  MLv     3.29 -0.34    101.438
    CMBO  HT    0.2 242  MLv     3.58 -0.05    82.6154
    SNT1  HA    0.2 227  MLv     3.55 -0.08    45.9739
    SFR2  HI    0.2 223  MLv     3.86  0.23    135.211
    THERA HL    0.2 212  MLv     3.26 -0.37    32.2001
    SANT  HL    0.2 215  MLv     3.55 -0.08     46.438
    THR3  HT    0.2 229  MLv     3.14 -0.49    61.1552
    SAP3  HL    0.3 240  MLv     3.30 -0.33    48.8362
    AKRO  HT    0.3 222  MLv     3.95  0.32    117.336
    APE   HL    0.5 350  MLv     3.79  0.16    18.4907
    MHLO  HL    1.0 277  MLv     4.13  0.50    38.5631
    TNSA  HL    1.0 339  MLv     4.66  1.03    60.6436
    SERI  HA    1.1 303  MLv     4.18  0.55    18.7555
