Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2025-02-12 02:03:38 (GMT)
Πανεπιστήμιο Αθηνών - Εργαστήριο Σεισμολογίας
+−
10 km
5 mi
Leaflet | Tiles © Esri
 Μέγεθος
 M 3.6
 Γεωγρ. Πλάτος
 36.6163° Β
 Γεωγρ. Μήκος
 25.6002° Α
 Εστιακό Βάθος
 4 χμ
 Αρ. αφίξεων
 26
 Επίκεντρο 26.7 χμ ΒΑ της Θήρας
57.9 χμ ΝΝΑ της Νάξου
224.4 χμ ΝΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap

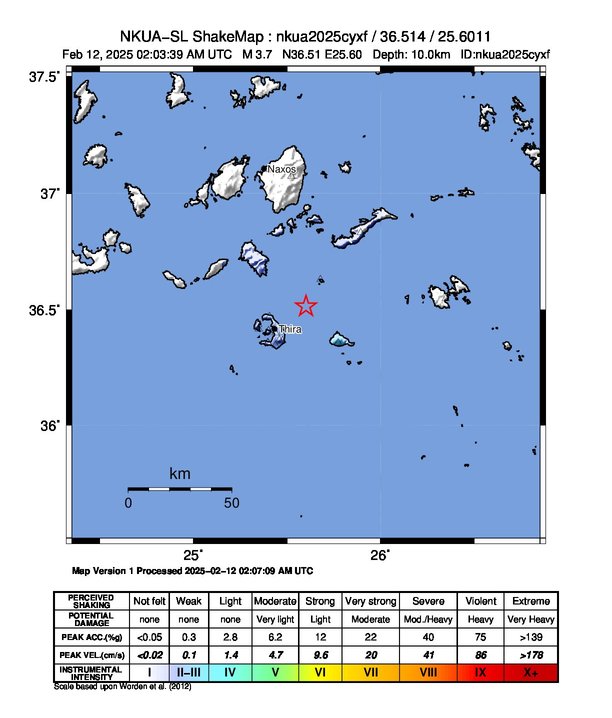

  Χάρτης εντάσεως

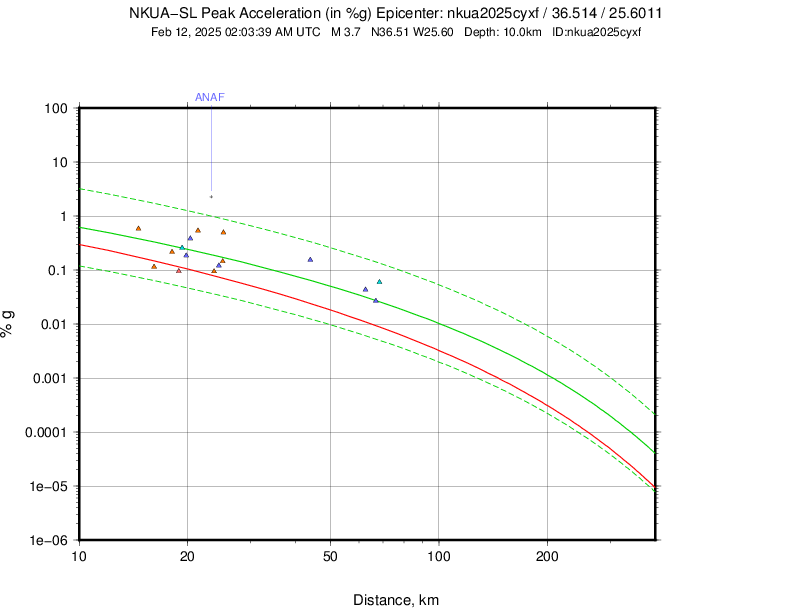

PGA

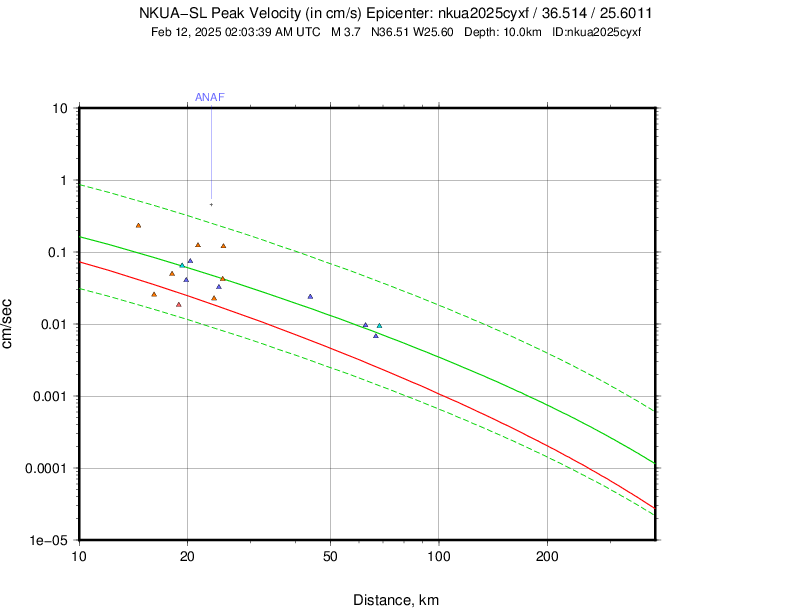

 PGV

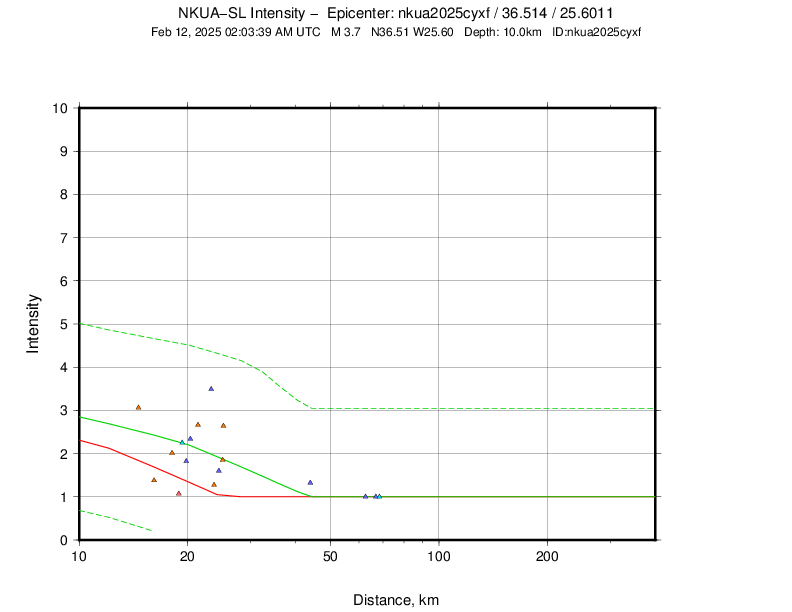

 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
ANYDHT7.1 78 P02:03:39.34 0.01.0M
ANYDHT7.1 78 S02:03:40.61 0.01.0M
CMBOHT23.7227 P02:03:42.34 0.11.0M
CMBOHT23.7227 S02:03:46.22 0.51.0M
THR2HT23.9218 P02:03:42.37 0.11.0M
THR2HT23.9218 S02:03:45.72 -0.11.0M
THR8HT25.7205 P02:03:42.21 -0.41.0M
THR8HT25.7205 S02:03:45.82 -0.51.0M
SNT1HA27.1215 P02:03:42.61 -0.21.0M
SNT1HA27.1215 S02:03:46.59 -0.21.0M
SFR2HI28.1211 P02:03:42.97 0.01.0M
SFR2HI28.1211 S02:03:46.91 -0.21.0M
THR3HT29.1218 P02:03:43.15 0.01.0M
THR3HT29.1218 S02:03:47.52 0.11.0M
SANTHL30.1205 P02:03:43.00 -0.41.0M
SANTHL30.1205 S02:03:46.60 -1.21.0M
SAP3HL30.4229 P02:03:43.47 0.11.0M
SAP3HL30.4229 S02:03:46.70 -1.11.0M
MHLOHL107.2274 P02:03:56.63 0.61.0M
MHLOHL107.2274 S02:04:10.18 0.11.0M
TNSAHL109.7339 P02:03:56.48 0.11.0M
TNSAHL109.7339 S02:04:10.42 -0.21.0M
SERIHA116.2301 P02:03:57.46 0.01.0M
SERIHA116.2301 S02:04:12.44 -0.11.0M
KLNAHL128.0 73 P02:03:59.37 0.11.0M
KLNAHL128.0 73 S02:04:15.77 0.01.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2025cyxf
    Description
      region name: Dodecanese Islands, Greece
Origin:
    Date                   2025-02-12
    Time                  02:03:37.61
    Latitude              36.6163 deg  +/-      0 km
    Longitude             25.6002 deg  +/-      0 km
    Depth                       4 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.20 s
    Azimuthal gap             127 deg

2 Network magnitudes:
    MLv       3.58 +/- 0.19  11
    M         3.58           11 preferred

26 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    ANYD  HT    0.1  78  P       02:03:39.34   0.0 M  1.0  ANYD
    ANYD  HT    0.1  78  S       02:03:40.61  -0.0 M  1.0  ANYD
    CMBO  HT    0.2 227  P       02:03:42.34   0.1 M  1.0  CMBO
    CMBO  HT    0.2 227  S       02:03:46.22   0.5 M  1.0  CMBO
    THR2  HT    0.2 218  P       02:03:42.37   0.1 M  1.0  THR2
    THR2  HT    0.2 218  S       02:03:45.72  -0.1 M  1.0  THR2
    THR8  HT    0.2 205  P       02:03:42.21  -0.4 M  1.0  THR8
    THR8  HT    0.2 205  S       02:03:45.82  -0.5 M  1.0  THR8
    SNT1  HA    0.2 215  P       02:03:42.61  -0.2 M  1.0  SNT1
    SNT1  HA    0.2 215  S       02:03:46.59  -0.2 M  1.0  SNT1
    SFR2  HI    0.3 211  P       02:03:42.97  -0.0 M  1.0  SFR2
    SFR2  HI    0.3 211  S       02:03:46.91  -0.2 M  1.0  SFR2
    THR3  HT    0.3 218  P       02:03:43.15  -0.0 M  1.0  THR3
    THR3  HT    0.3 218  S       02:03:47.52   0.1 M  1.0  THR3
    SANT  HL    0.3 205  P       02:03:43.00  -0.4 M  1.0  SANT
    SANT  HL    0.3 205  S       02:03:46.60  -1.2 M  1.0  SANT
    SAP3  HL    0.3 229  P       02:03:43.47   0.1 M  1.0  SAP3
    SAP3  HL    0.3 229  S       02:03:46.70  -1.1 M  1.0  SAP3
    MHLO  HL    1.0 274  P       02:03:56.63   0.6 M  1.0  MHLO
    MHLO  HL    1.0 274  S       02:04:10.18   0.1 M  1.0  MHLO
    TNSA  HL    1.0 339  P       02:03:56.48   0.1 M  1.0  TNSA
    TNSA  HL    1.0 339  S       02:04:10.42  -0.2 M  1.0  TNSA
    SERI  HA    1.0 301  P       02:03:57.46  -0.0 M  1.0  SERI
    SERI  HA    1.0 301  S       02:04:12.44  -0.1 M  1.0  SERI
    KLNA  HL    1.2  73  P       02:03:59.37   0.1 M  1.0  KLNA
    KLNA  HL    1.2  73  S       02:04:15.77  -0.0 M  1.0  KLNA

13 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    ANYD  HT    0.1  78  MLv     3.57 -0.01     198.31
    CMBO  HT    0.2 227  MLv     3.56 -0.03    73.0745
    THR2  HT    0.2 218  MLv     3.41 -0.18    118.654
    THR8  HT    0.2 205  MLv     2.92 -0.66    34.7776
    SNT1  HA    0.2 215  MLv     3.52 -0.06    36.8751
    SFR2  HI    0.3 211  MLv     3.77  0.19    93.3521
    THR3  HT    0.3 218  MLv     3.22 -0.36    65.1296
    SANT  HL    0.3 205  MLv     3.72  0.14    56.4641
    SAP3  HL    0.3 229  MLv     3.43 -0.15    61.7786
    MHLO  HL    1.0 274  MLv     4.02  0.43    30.9269
    TNSA  HL    1.0 339  MLv     4.04  0.45    15.3865
    SERI  HA    1.0 301  MLv     3.83  0.25    8.94498
    KLNA  HL    1.2  73  MLv     3.41 -0.18    2.92844
