Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2025-02-10 22:44:31 (GMT)
Πανεπιστήμιο Αθηνών - Εργαστήριο Σεισμολογίας
+−
10 km
5 mi
Leaflet | Tiles © Esri
 Μέγεθος
 M 4.0
 Γεωγρ. Πλάτος
 36.6670° Β
 Γεωγρ. Μήκος
 25.6545° Α
 Εστιακό Βάθος
 8 χμ
 Αρ. αφίξεων
 34
 Επίκεντρο 34.1 χμ ΒΑ της Θήρας
54.7 χμ ΝΝΑ της Νάξου
224.2 χμ ΝΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap

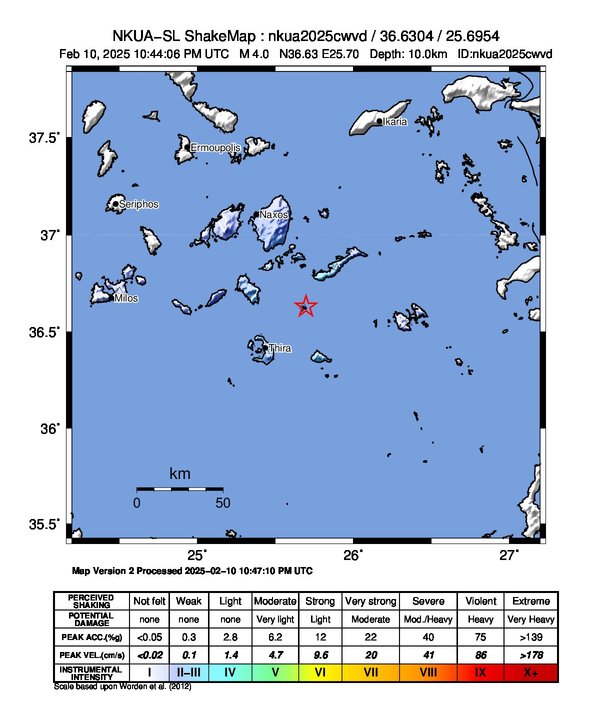

  Χάρτης εντάσεως

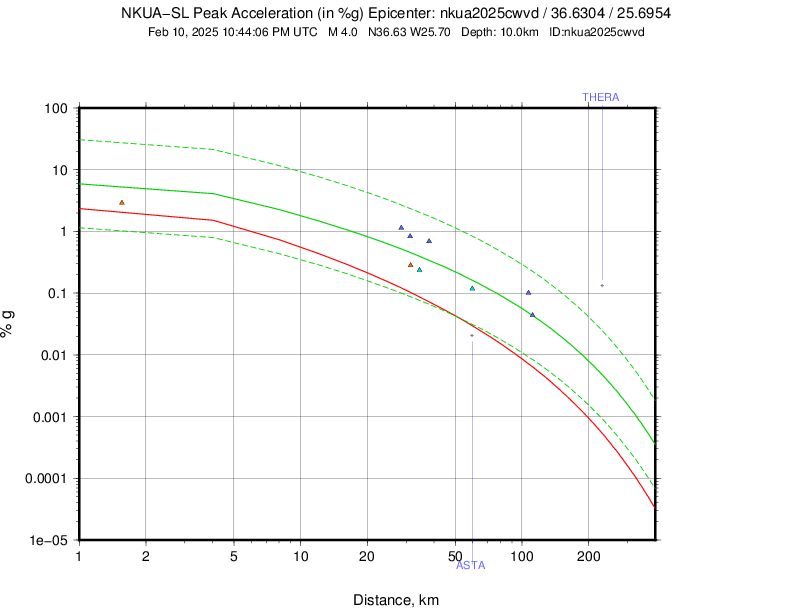

PGA

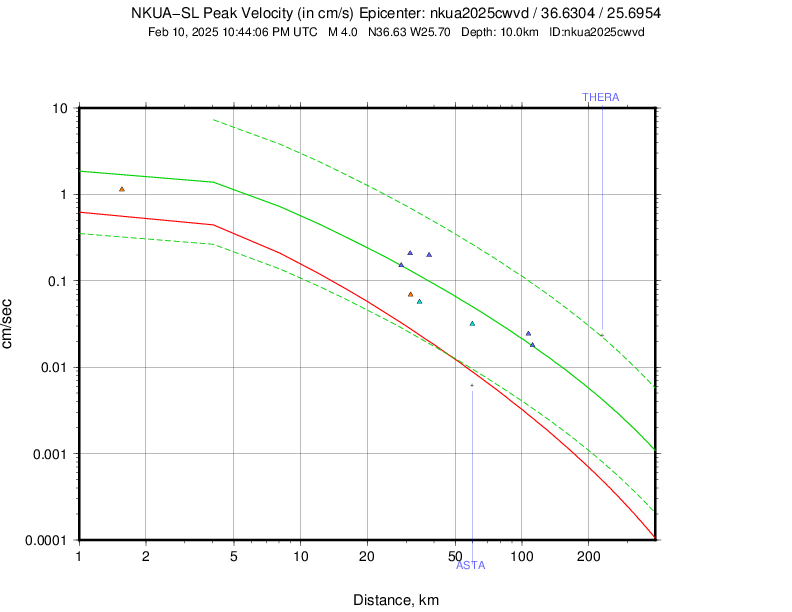

 PGV

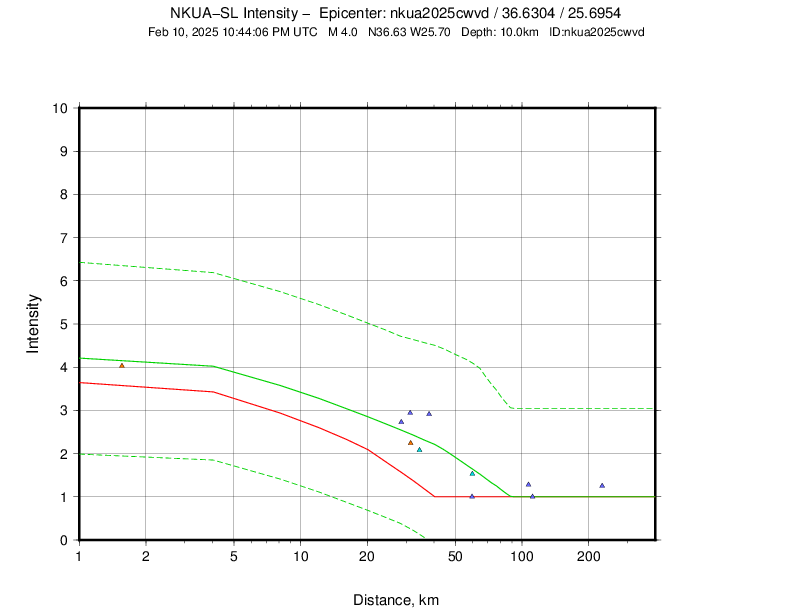

 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
ANYDHT4.6153 P22:44:32.81 0.11.0M
ANYDHT4.6153 S22:44:34.08 0.01.0M
AMGAHL28.1 49 P22:44:36.50 0.21.0M
AMGAHL28.1 49 S22:44:40.51 0.11.0M
CMBOHT31.1226 P22:44:37.10 0.31.0M
CMBOHT31.1226 S22:44:41.61 0.41.0M
THR2HT31.3219 P22:44:37.09 0.31.0M
THR2HT31.3219 S22:44:41.16 -0.11.0M
THR8HT32.9209 P22:44:37.04 0.01.0M
THR8HT32.9209 S22:44:41.54 -0.11.0M
SNT1HA34.5216 P22:44:37.46 0.21.0M
SNT1HA34.5216 S22:44:42.01 -0.11.0M
SFR2HI35.4213 P22:44:37.76 0.31.0M
SFR2HI35.4213 S22:44:42.29 -0.21.0M
ANAFHL36.1163 P22:44:37.55 -0.11.0M
ANAFHL36.1163 S22:44:42.38 -0.31.0M
THERAHL37.0206 P22:44:37.77 0.01.0M
THERAHL37.0206 S22:44:42.73 -0.21.0M
SANTHL37.3208 P22:44:37.85 0.01.0M
SANTHL37.3208 S22:44:42.79 -0.31.0M
SAP3HL37.7227 P22:44:38.25 0.41.0M
SAP3HL37.7227 S22:44:43.75 0.61.0M
AKROHT41.3214 P22:44:38.69 0.21.0M
AKROHT41.3214 S22:44:44.38 0.21.0M
APEHL46.6345 P22:44:39.27 -0.11.0M
APEHL46.6345 S22:44:45.39 -0.41.0M
NAX1HI54.4333 P22:44:40.67 0.11.0M
NAX1HI54.4333 S22:44:47.81 -0.11.0M
ASTAHL63.2102 P22:44:42.09 -0.11.0M
ASTAHL63.2102 S22:44:50.68 0.01.0M
MIL7HL103.1273 P22:44:49.41 1.01.0M
MIL7HL103.1273 S22:45:01.93 0.21.0M
MHLOHL111.8271 P22:44:50.63 0.81.0M
MHLOHL111.8271 S22:45:05.12 0.91.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2025cwvd
    Description
      region name: Dodecanese Islands, Greece
Origin:
    Date                   2025-02-10
    Time                  22:44:30.94
    Latitude              36.6670 deg  +/-      0 km
    Longitude             25.6545 deg  +/-      0 km
    Depth                       8 km   +/-    0 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.18 s
    Azimuthal gap              64 deg

2 Network magnitudes:
    MLv       3.97 +/- 0.20  13
    M         3.97           13 preferred

34 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    ANYD  HT    0.0 153  P       22:44:32.81   0.1 M  1.0  ANYD
    ANYD  HT    0.0 153  S       22:44:34.08  -0.0 M  1.0  ANYD
    AMGA  HL    0.3  49  P       22:44:36.50   0.2 M  1.0  AMGA
    AMGA  HL    0.3  49  S       22:44:40.51   0.1 M  1.0  AMGA
    CMBO  HT    0.3 226  P       22:44:37.10   0.3 M  1.0  CMBO
    CMBO  HT    0.3 226  S       22:44:41.61   0.4 M  1.0  CMBO
    THR2  HT    0.3 219  P       22:44:37.09   0.3 M  1.0  THR2
    THR2  HT    0.3 219  S       22:44:41.16  -0.1 M  1.0  THR2
    THR8  HT    0.3 209  P       22:44:37.04  -0.0 M  1.0  THR8
    THR8  HT    0.3 209  S       22:44:41.54  -0.1 M  1.0  THR8
    SNT1  HA    0.3 216  P       22:44:37.46   0.2 M  1.0  SNT1
    SNT1  HA    0.3 216  S       22:44:42.01  -0.1 M  1.0  SNT1
    SFR2  HI    0.3 213  P       22:44:37.76   0.3 M  1.0  SFR2
    SFR2  HI    0.3 213  S       22:44:42.29  -0.2 M  1.0  SFR2
    ANAF  HL    0.3 163  P       22:44:37.55  -0.1 M  1.0  ANAF
    ANAF  HL    0.3 163  S       22:44:42.38  -0.3 M  1.0  ANAF
    THERA HL    0.3 206  P       22:44:37.77   0.0 M  1.0  THERA
    THERA HL    0.3 206  S       22:44:42.73  -0.2 M  1.0  THERA
    SANT  HL    0.3 208  P       22:44:37.85   0.0 M  1.0  SANT
    SANT  HL    0.3 208  S       22:44:42.79  -0.3 M  1.0  SANT
    SAP3  HL    0.3 227  P       22:44:38.25   0.4 M  1.0  SAP3
    SAP3  HL    0.3 227  S       22:44:43.75   0.6 M  1.0  SAP3
    AKRO  HT    0.4 214  P       22:44:38.69   0.2 M  1.0  AKRO
    AKRO  HT    0.4 214  S       22:44:44.38   0.2 M  1.0  AKRO
    APE   HL    0.4 345  P       22:44:39.27  -0.1 M  1.0  APE
    APE   HL    0.4 345  S       22:44:45.39  -0.4 M  1.0  APE
    NAX1  HI    0.5 333  P       22:44:40.67   0.1 M  1.0  NAX1
    NAX1  HI    0.5 333  S       22:44:47.81  -0.1 M  1.0  NAX1
    ASTA  HL    0.6 102  P       22:44:42.09  -0.1 M  1.0  ASTA
    ASTA  HL    0.6 102  S       22:44:50.68   0.0 M  1.0  ASTA
    MIL7  HL    0.9 273  P       22:44:49.41   1.0 M  1.0  MIL7
    MIL7  HL    0.9 273  S       22:45:01.93   0.2 M  1.0  MIL7
    MHLO  HL    1.0 271  P       22:44:50.63   0.8 M  1.0  MHLO
    MHLO  HL    1.0 271  S       22:45:05.12   0.9 M  1.0  MHLO

17 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    ANYD  HT    0.0 153  MLv     4.37  0.40    1426.13
    AMGA  HL    0.3  49  MLv     3.97 -0.01    145.713
    CMBO  HT    0.3 226  MLv     3.88 -0.09    100.527
    THR2  HT    0.3 219  MLv     3.73 -0.24    162.021
    THR8  HT    0.3 209  MLv     3.16 -0.81    39.7379
    SNT1  HA    0.3 216  MLv     3.90 -0.07    58.7555
    SFR2  HI    0.3 213  MLv     4.22  0.25    171.437
    ANAF  HL    0.3 163  MLv     4.20  0.23    158.828
    THERA HL    0.3 206  MLv     3.58 -0.39    35.7676
    SANT  HL    0.3 208  MLv     3.92 -0.06    58.0273
    SAP3  HL    0.3 227  MLv     3.77 -0.20    89.4507
    AKRO  HT    0.4 214  MLv     4.23  0.26    124.589
    APE   HL    0.4 345  MLv     3.88 -0.10    40.7944
    NAX1  HI    0.5 333  MLv     3.97 -0.00    32.3287
    ASTA  HL    0.6 102  MLv     3.69 -0.28    11.8925
    MIL7  HL    0.9 273  MLv     4.77  0.80    90.5309
    MHLO  HL    1.0 271  MLv     4.27  0.30    52.4791
