Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2025-02-09 18:53:59 (GMT)
Πανεπιστήμιο Αθηνών - Εργαστήριο Σεισμολογίας
+−
10 km
5 mi
Leaflet | Tiles © Esri
 Μέγεθος
 M 4.5
 Γεωγρ. Πλάτος
 36.6565° Β
 Γεωγρ. Μήκος
 25.5945° Α
 Εστιακό Βάθος
 3 χμ
 Αρ. αφίξεων
 34
 Επίκεντρο 30.3 χμ ΒΒΑ της Θήρας
53.6 χμ ΝΝΑ της Νάξου
221.0 χμ ΝΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap

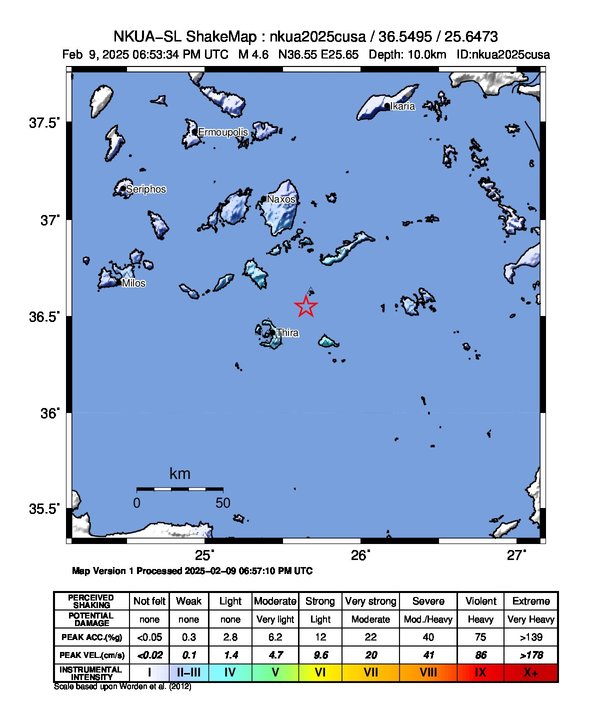

  Χάρτης εντάσεως

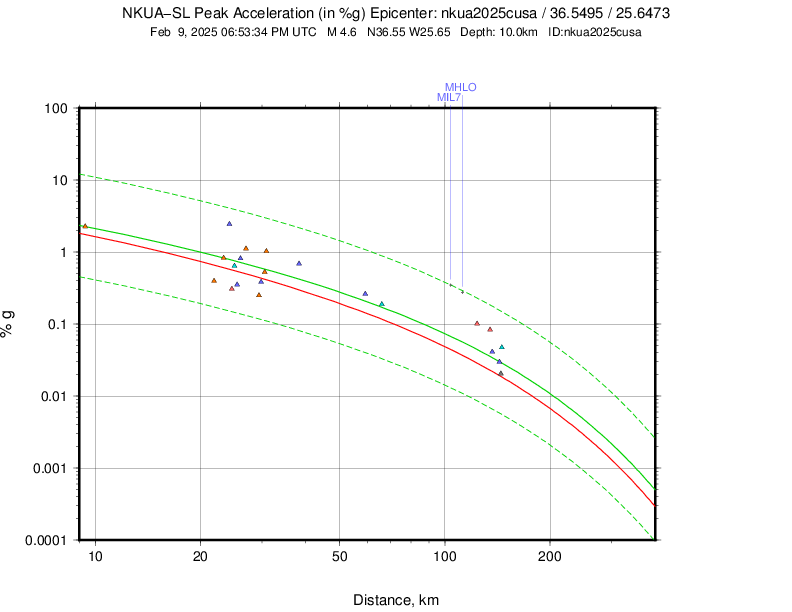

PGA

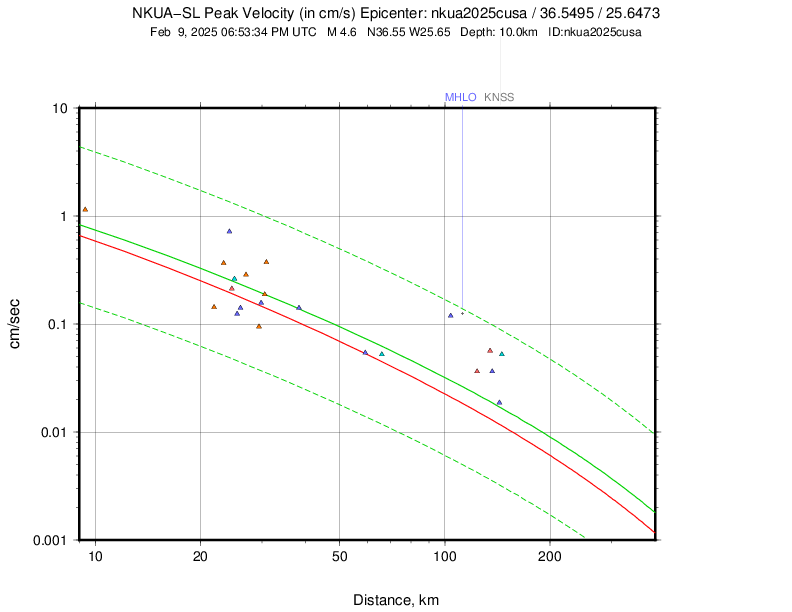

 PGV

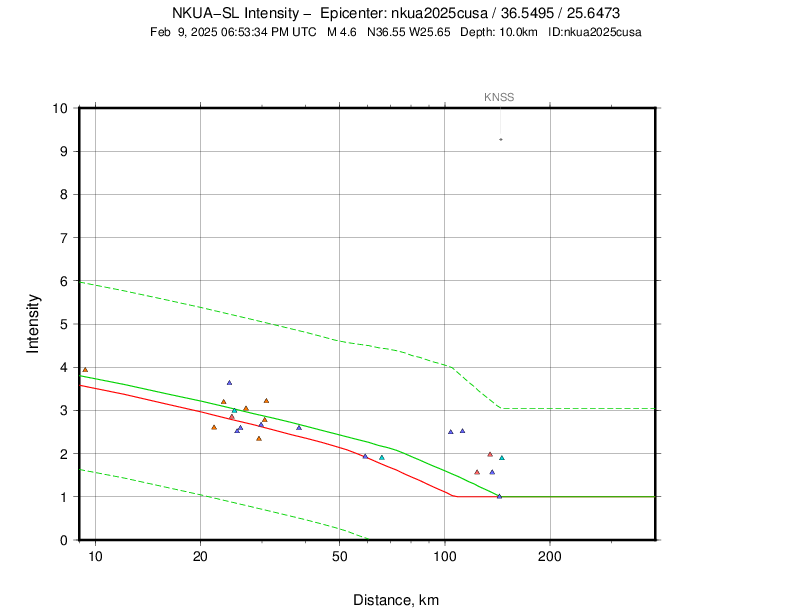

 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
ANYDHT8.0112 P18:54:00.37 -0.41.0M
ANYDHT8.0112 S18:54:01.94 -0.21.0M
CMBOHT26.7219 P18:54:04.52 0.41.0M
CMBOHT26.7219 S18:54:08.60 0.61.0M
THR2HT27.3212 P18:54:04.30 0.11.0M
THR2HT27.3212 S18:54:07.71 -0.61.0M
THR8HT29.6201 P18:54:04.37 -0.21.0M
THR8HT29.6201 S18:54:08.19 -0.81.0M
SNT1HA30.6209 P18:54:04.68 -0.11.0M
SNT1HA30.6209 S18:54:08.81 -0.41.0M
SFR2HI31.8206 P18:54:04.89 -0.11.0M
SFR2HI31.8206 S18:54:08.90 -0.81.0M
THR3HT32.5212 P18:54:05.12 0.01.0M
THR3HT32.5212 S18:54:09.34 -0.51.0M
AMGAHL33.0 54 P18:54:04.55 -0.71.0M
AMGAHL33.0 54 S18:54:09.12 -0.91.0M
SAP3HL33.1222 P18:54:05.42 0.21.0M
SAP3HL33.1222 S18:54:10.10 0.01.0M
THERAHL33.9198 P18:54:04.99 -0.41.0M
THERAHL33.9198 S18:54:09.33 -1.01.0M
SANTHL34.0201 P18:54:05.00 -0.41.0M
SANTHL34.0201 S18:54:09.62 -0.81.0M
THR5HT34.5220 P18:54:05.50 0.01.0M
THR5HT34.5220 S18:54:10.04 -0.51.0M
AKROHT37.6208 P18:54:05.94 -0.11.0M
AKROHT37.6208 S18:54:11.28 -0.11.0M
APEHL46.7352 P18:54:07.42 -0.21.0M
APEHL46.7352 S18:54:13.84 -0.31.0M
SERIHA113.5300 P18:54:19.42 1.01.0M
SERIHA113.5300 S18:54:33.08 -0.21.0M
NSR2HA139.6 94 P18:54:23.42 0.91.0M
NSR2HA139.6 94 S18:54:41.24 0.81.0M
NISR2HL141.5 94 P18:54:23.57 0.81.0M
NISR2HL141.5 94 S18:54:41.59 0.61.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2025cusa
    Description
      region name: Dodecanese Islands, Greece
Origin:
    Date                   2025-02-09
    Time                  18:53:58.89
    Latitude              36.6565 deg  +/-      1 km
    Longitude             25.5945 deg  +/-      1 km
    Depth                       3 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.60 s
    Azimuthal gap              87 deg

2 Network magnitudes:
    MLv       4.48 +/- 0.28  13
    M         4.48           13 preferred

34 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    ANYD  HT    0.1 112  P       18:54:00.37  -0.4 M  1.0  ANYD
    ANYD  HT    0.1 112  S       18:54:01.94  -0.2 M  1.0  ANYD
    CMBO  HT    0.2 219  P       18:54:04.52   0.4 M  1.0  CMBO
    CMBO  HT    0.2 219  S       18:54:08.60   0.6 M  1.0  CMBO
    THR2  HT    0.2 212  P       18:54:04.30   0.1 M  1.0  THR2
    THR2  HT    0.2 212  S       18:54:07.71  -0.6 M  1.0  THR2
    THR8  HT    0.3 201  P       18:54:04.37  -0.2 M  1.0  THR8
    THR8  HT    0.3 201  S       18:54:08.19  -0.8 M  1.0  THR8
    SNT1  HA    0.3 209  P       18:54:04.68  -0.1 M  1.0  SNT1
    SNT1  HA    0.3 209  S       18:54:08.81  -0.4 M  1.0  SNT1
    SFR2  HI    0.3 206  P       18:54:04.89  -0.1 M  1.0  SFR2
    SFR2  HI    0.3 206  S       18:54:08.90  -0.8 M  1.0  SFR2
    THR3  HT    0.3 212  P       18:54:05.12  -0.0 M  1.0  THR3
    THR3  HT    0.3 212  S       18:54:09.34  -0.5 M  1.0  THR3
    AMGA  HL    0.3  54  P       18:54:04.55  -0.7 M  1.0  AMGA
    AMGA  HL    0.3  54  S       18:54:09.12  -0.9 M  1.0  AMGA
    SAP3  HL    0.3 222  P       18:54:05.42   0.2 M  1.0  SAP3
    SAP3  HL    0.3 222  S       18:54:10.10   0.0 M  1.0  SAP3
    THERA HL    0.3 198  P       18:54:04.99  -0.4 M  1.0  THERA
    THERA HL    0.3 198  S       18:54:09.33  -1.0 M  1.0  THERA
    SANT  HL    0.3 201  P       18:54:05.00  -0.4 M  1.0  SANT
    SANT  HL    0.3 201  S       18:54:09.62  -0.8 M  1.0  SANT
    THR5  HT    0.3 220  P       18:54:05.50   0.0 M  1.0  THR5
    THR5  HT    0.3 220  S       18:54:10.04  -0.5 M  1.0  THR5
    AKRO  HT    0.3 208  P       18:54:05.94  -0.1 M  1.0  AKRO
    AKRO  HT    0.3 208  S       18:54:11.28  -0.1 M  1.0  AKRO
    APE   HL    0.4 352  P       18:54:07.42  -0.2 M  1.0  APE
    APE   HL    0.4 352  S       18:54:13.84  -0.3 M  1.0  APE
    SERI  HA    1.0 300  P       18:54:19.42   1.0 M  1.0  SERI
    SERI  HA    1.0 300  S       18:54:33.08  -0.2 M  1.0  SERI
    NSR2  HA    1.3  94  P       18:54:23.42   0.9 M  1.0  NSR2
    NSR2  HA    1.3  94  S       18:54:41.24   0.8 M  1.0  NSR2
    NISR2 HL    1.3  94  P       18:54:23.57   0.8 M  1.0  NISR2
    NISR2 HL    1.3  94  S       18:54:41.59   0.6 M  1.0  NISR2

17 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    ANYD  HT    0.1 112  MLv     4.59  0.12    1971.84
    CMBO  HT    0.2 219  MLv     4.44 -0.04    474.403
    THR2  HT    0.2 212  MLv     4.24 -0.24    666.478
    THR8  HT    0.3 201  MLv     3.75 -0.73     187.55
    SNT1  HA    0.3 209  MLv     4.37 -0.10     215.98
    SFR2  HI    0.3 206  MLv     4.79  0.31    781.308
    THR3  HT    0.3 212  MLv     4.05 -0.43      359.9
    AMGA  HL    0.3  54  MLv     3.96 -0.52    109.144
    SAP3  HL    0.3 222  MLv     4.06 -0.42    224.909
    THERA HL    0.3 198  MLv     4.21 -0.27    182.212
    SANT  HL    0.3 201  MLv     4.47 -0.01    251.247
    THR5  HT    0.3 220  MLv     3.45 -1.03    236.828
    AKRO  HT    0.3 208  MLv     4.85  0.37    651.817
    APE   HL    0.4 352  MLv     4.05 -0.43    60.8344
    SERI  HA    1.0 300  MLv     4.74  0.26    74.3991
    NSR2  HA    1.3  94  MLv     4.80  0.32    63.7367
    NISR2 HL    1.3  94  MLv     4.60  0.12    39.1361
