Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2025-02-07 08:52:22 (GMT)
Πανεπιστήμιο Αθηνών - Εργαστήριο Σεισμολογίας
+−
10 km
5 mi
Leaflet | Tiles © Esri
 Μέγεθος
 M 3.8
 Γεωγρ. Πλάτος
 36.5705° Β
 Γεωγρ. Μήκος
 25.6192° Α
 Εστιακό Βάθος
 8 χμ
 Αρ. αφίξεων
 30
 Επίκεντρο 23.8 χμ ΒΑ της Θήρας
63.3 χμ ΝΝΑ της Νάξου
229.2 χμ ΝΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap

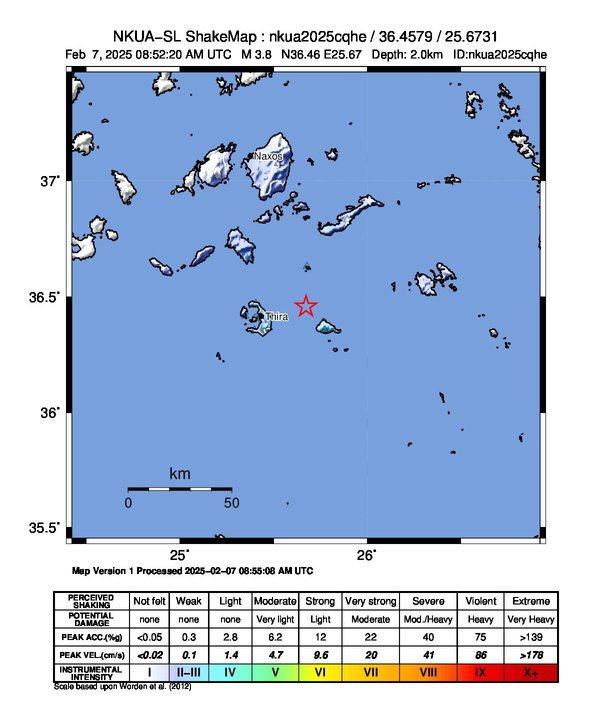

  Χάρτης εντάσεως

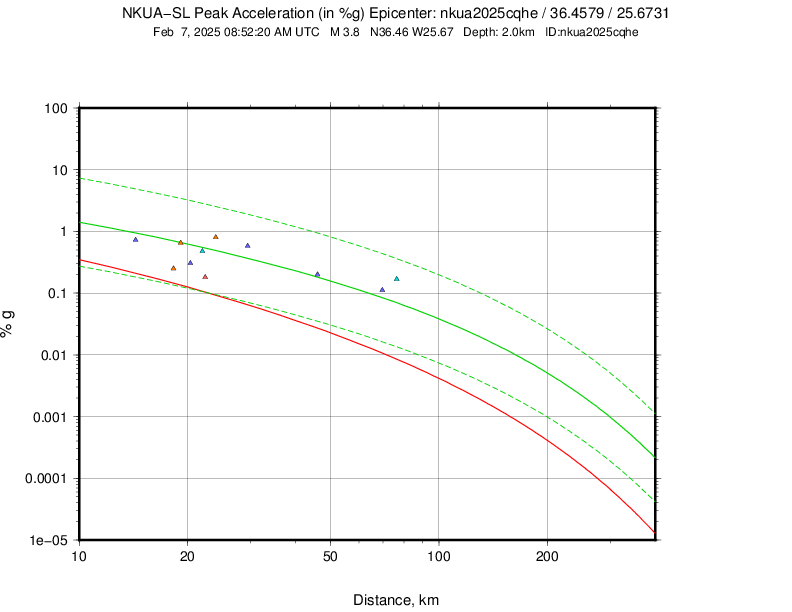

PGA

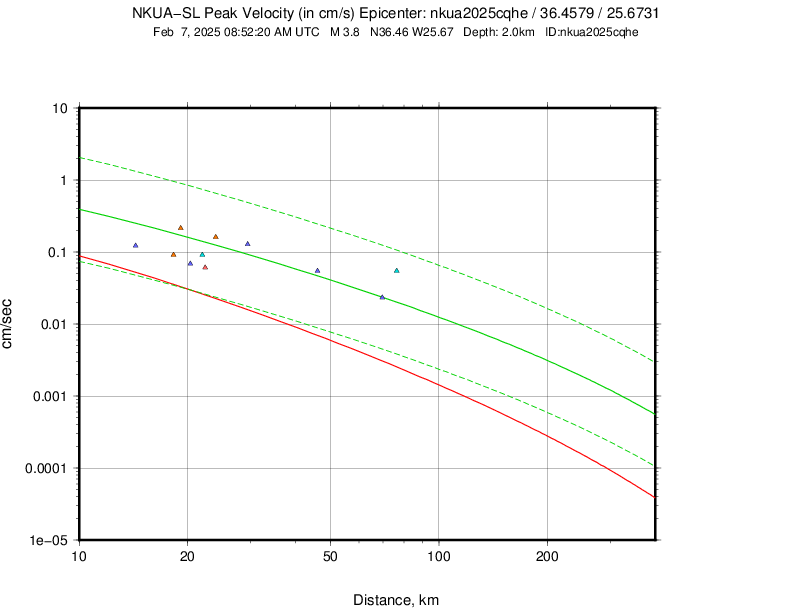

 PGV

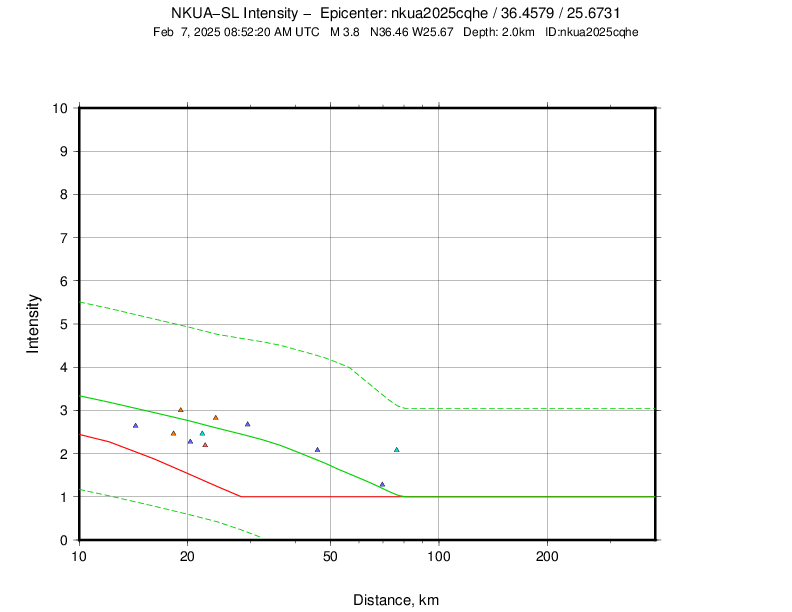

 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
ANYDHT8.4 39 P08:52:24.64 0.41.0M
ANYDHT8.4 39 S08:52:26.20 0.21.0M
THR2HT21.4230 P08:52:26.31 0.01.0M
THR2HT21.4230 S08:52:29.45 -0.11.0M
CMBOHT22.1240 P08:52:26.39 0.01.0M
CMBOHT22.1240 S08:52:29.64 -0.11.0M
THR8HT22.1215 P08:52:26.28 -0.11.0M
THR8HT22.1215 S08:52:29.33 -0.41.0M
SNT1HA24.2225 P08:52:26.57 -0.11.0M
SNT1HA24.2225 S08:52:29.77 -0.51.0M
SFR2HI24.9221 P08:52:26.89 0.01.0M
SFR2HI24.9221 S08:52:29.98 -0.61.0M
THERAHL26.0210 P08:52:26.95 -0.11.0M
THERAHL26.0210 S08:52:30.49 -0.41.0M
SANTHL26.4213 P08:52:27.00 -0.21.0M
SANTHL26.4213 S08:52:30.63 -0.41.0M
ANAFHL27.4150 P08:52:27.52 0.21.0M
ANAFHL27.4150 S08:52:31.16 -0.11.0M
SAP3HL28.7239 P08:52:27.48 0.01.0M
SAP3HL28.7239 S08:52:31.32 -0.31.0M
AKROHT30.9220 P08:52:27.93 0.11.0M
AKROHT30.9220 S08:52:31.84 -0.41.0M
THR9HT33.3225 P08:52:28.29 0.11.0M
THR9HT33.3225 S08:52:32.53 -0.41.0M
AMGAHL38.0 40 P08:52:29.23 0.21.0M
AMGAHL38.0 40 S08:52:33.94 -0.41.0M
APEHL56.5351 P08:52:31.80 -0.31.0M
APEHL56.5351 S08:52:39.15 -0.61.0M
MHLOHL109.4277 P08:52:41.43 0.91.0M
MHLOHL109.4277 S08:52:55.00 0.41.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2025cqhe
    Description
      region name: Dodecanese Islands, Greece
Origin:
    Date                   2025-02-07
    Time                  08:52:22.05
    Latitude              36.5705 deg  +/-      0 km
    Longitude             25.6192 deg  +/-      0 km
    Depth                       8 km   +/-    2 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.33 s
    Azimuthal gap             110 deg

2 Network magnitudes:
    MLv       3.80 +/- 0.21  13
    M         3.80           13 preferred

30 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    ANYD  HT    0.1  39  P       08:52:24.64   0.4 M  1.0  ANYD
    ANYD  HT    0.1  39  S       08:52:26.20   0.2 M  1.0  ANYD
    THR2  HT    0.2 230  P       08:52:26.31   0.0 M  1.0  THR2
    THR2  HT    0.2 230  S       08:52:29.45  -0.1 M  1.0  THR2
    CMBO  HT    0.2 240  P       08:52:26.39   0.0 M  1.0  CMBO
    CMBO  HT    0.2 240  S       08:52:29.64  -0.1 M  1.0  CMBO
    THR8  HT    0.2 215  P       08:52:26.28  -0.1 M  1.0  THR8
    THR8  HT    0.2 215  S       08:52:29.33  -0.4 M  1.0  THR8
    SNT1  HA    0.2 225  P       08:52:26.57  -0.1 M  1.0  SNT1
    SNT1  HA    0.2 225  S       08:52:29.77  -0.5 M  1.0  SNT1
    SFR2  HI    0.2 221  P       08:52:26.89   0.0 M  1.0  SFR2
    SFR2  HI    0.2 221  S       08:52:29.98  -0.6 M  1.0  SFR2
    THERA HL    0.2 210  P       08:52:26.95  -0.1 M  1.0  THERA
    THERA HL    0.2 210  S       08:52:30.49  -0.4 M  1.0  THERA
    SANT  HL    0.2 213  P       08:52:27.00  -0.2 M  1.0  SANT
    SANT  HL    0.2 213  S       08:52:30.63  -0.4 M  1.0  SANT
    ANAF  HL    0.2 150  P       08:52:27.52   0.2 M  1.0  ANAF
    ANAF  HL    0.2 150  S       08:52:31.16  -0.1 M  1.0  ANAF
    SAP3  HL    0.3 239  P       08:52:27.48   0.0 M  1.0  SAP3
    SAP3  HL    0.3 239  S       08:52:31.32  -0.3 M  1.0  SAP3
    AKRO  HT    0.3 220  P       08:52:27.93   0.1 M  1.0  AKRO
    AKRO  HT    0.3 220  S       08:52:31.84  -0.4 M  1.0  AKRO
    THR9  HT    0.3 225  P       08:52:28.29   0.1 M  1.0  THR9
    THR9  HT    0.3 225  S       08:52:32.53  -0.4 M  1.0  THR9
    AMGA  HL    0.3  40  P       08:52:29.23   0.2 M  1.0  AMGA
    AMGA  HL    0.3  40  S       08:52:33.94  -0.4 M  1.0  AMGA
    APE   HL    0.5 351  P       08:52:31.80  -0.3 M  1.0  APE
    APE   HL    0.5 351  S       08:52:39.15  -0.6 M  1.0  APE
    MHLO  HL    1.0 277  P       08:52:41.43   0.9 M  1.0  MHLO
    MHLO  HL    1.0 277  S       08:52:55.00   0.4 M  1.0  MHLO

15 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    ANYD  HT    0.1  39  MLv     3.62 -0.18    203.444
    THR2  HT    0.2 230  MLv     3.76 -0.04    304.367
    CMBO  HT    0.2 240  MLv     3.92  0.12    186.093
    THR8  HT    0.2 215  MLv     3.36 -0.44    117.284
    SNT1  HA    0.2 225  MLv     3.84  0.04    90.4722
    SFR2  HI    0.2 221  MLv     4.22  0.43    316.859
    THERA HL    0.2 210  MLv     3.45 -0.35    49.6526
    SANT  HL    0.2 213  MLv     3.85  0.05    92.6208
    ANAF  HL    0.2 150  MLv     4.13  0.34    222.907
    SAP3  HL    0.3 239  MLv     3.77 -0.03    147.325
    AKRO  HT    0.3 220  MLv     4.25  0.46    241.033
    THR9  HT    0.3 225  MLv     3.59 -0.20    166.314
    AMGA  HL    0.3  40  MLv     3.44 -0.36    24.4783
    APE   HL    0.5 351  MLv     3.75 -0.05    17.2208
    MHLO  HL    1.0 277  MLv     4.09  0.29    35.5904
