Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2025-02-03 20:39:16 (GMT)
Πανεπιστήμιο Αθηνών - Εργαστήριο Σεισμολογίας
+−
10 km
5 mi
Leaflet | Tiles © Esri
 Μέγεθος
 M 4.3
 Γεωγρ. Πλάτος
 36.6522° Β
 Γεωγρ. Μήκος
 25.5892° Α
 Εστιακό Βάθος
 3 χμ
 Αρ. αφίξεων
 28
 Επίκεντρο 29.7 χμ ΒΒΑ της Θήρας
53.9 χμ ΝΝΑ της Νάξου
221.0 χμ ΝΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap

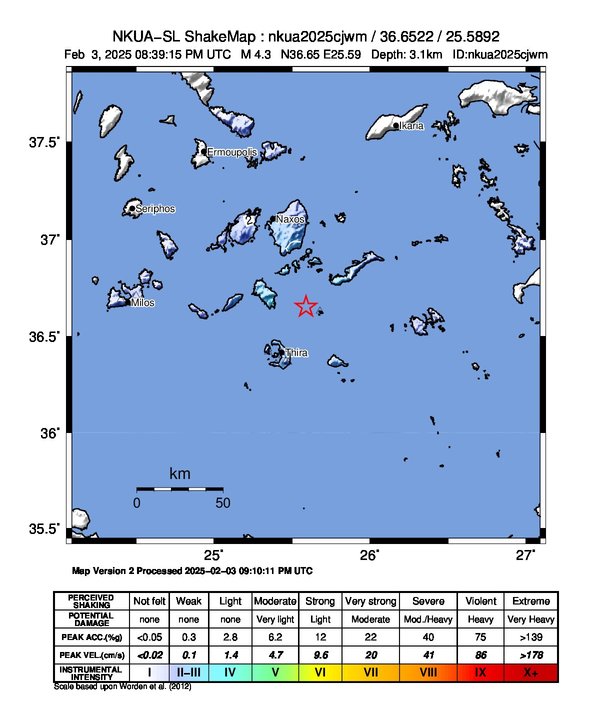

  Χάρτης εντάσεως

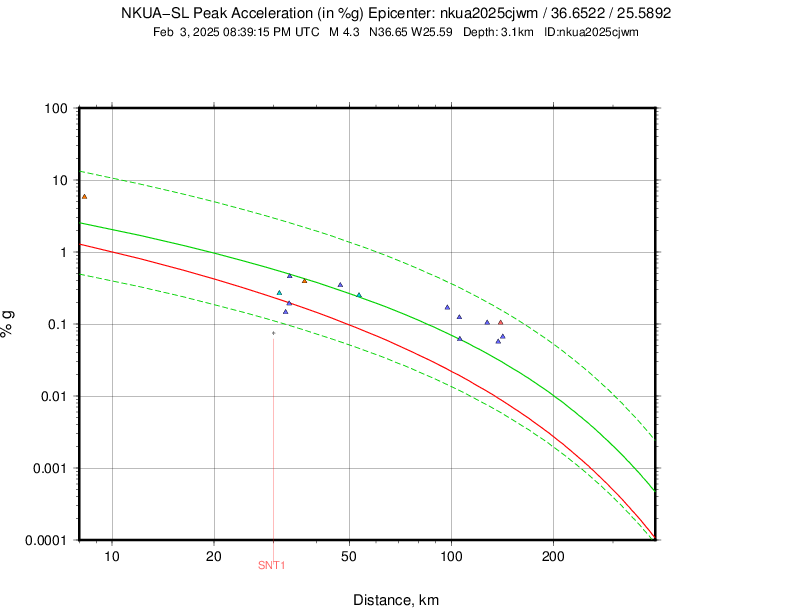

PGA

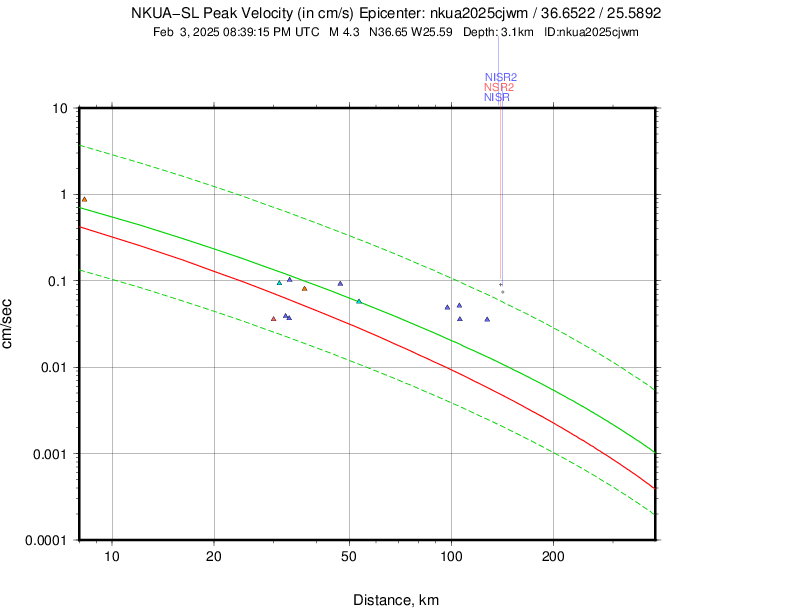

 PGV
 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
ANYDHT8.3107 P20:39:17.64 0.01.0M
ANYDHT8.3107 S20:39:18.82 -0.21.0M
CMBOHT26.0219 P20:39:21.81 0.91.0M
CMBOHT26.0219 S20:39:24.62 -0.21.0M
THR2HT26.6211 P20:39:21.57 0.61.0M
THR2HT26.6211 S20:39:24.76 -0.21.0M
SNT1HA30.0209 P20:39:21.84 0.31.0M
SNT1HA30.0209 S20:39:25.72 -0.21.0M
SFR2HI31.1206 P20:39:22.65 0.91.0M
SFR2HI31.1206 S20:39:25.95 -0.41.0M
SAP3HL32.5222 P20:39:22.69 0.71.0M
SAP3HL32.5222 S20:39:26.45 -0.31.0M
THERAHL33.3198 P20:39:22.11 -0.11.0M
THERAHL33.3198 S20:39:26.53 -0.51.0M
SANTHL33.4200 P20:39:22.21 0.01.0M
SANTHL33.4200 S20:39:26.60 -0.61.0M
AKROHT36.9208 P20:39:23.41 0.61.0M
AKROHT36.9208 S20:39:27.71 -0.41.0M
THR9HT38.8212 P20:39:23.97 0.81.0M
THR9HT38.8212 S20:39:28.34 -0.41.0M
APEHL47.1353 P20:39:24.54 0.01.0M
APEHL47.1353 S20:39:30.32 -0.91.0M
NAX1HI53.5339 P20:39:25.91 0.41.0M
NAX1HI53.5339 S20:39:32.34 -0.61.0M
TNSAHL105.6339 P20:39:34.68 0.71.0M
TNSAHL105.6339 S20:39:47.83 0.01.0M
NSR2HA140.0 94 P20:39:39.60 0.11.0M
NSR2HA140.0 94 S20:39:57.61 0.11.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2025cjwm
    Description
      region name: Dodecanese Islands, Greece
Origin:
    Date                   2025-02-03
    Time                  20:39:15.77
    Latitude              36.6522 deg  +/-      0 km
    Longitude             25.5892 deg  +/-      0 km
    Depth                       3 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.36 s
    Azimuthal gap             117 deg

2 Network magnitudes:
    MLv       4.34 +/- 0.43  10
    M         4.34           10 preferred

28 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    ANYD  HT    0.1 107  P       20:39:17.64   0.0 M  1.0  ANYD
    ANYD  HT    0.1 107  S       20:39:18.82  -0.2 M  1.0  ANYD
    CMBO  HT    0.2 219  P       20:39:21.81   0.9 M  1.0  CMBO
    CMBO  HT    0.2 219  S       20:39:24.62  -0.2 M  1.0  CMBO
    THR2  HT    0.2 211  P       20:39:21.57   0.6 M  1.0  THR2
    THR2  HT    0.2 211  S       20:39:24.76  -0.2 M  1.0  THR2
    SNT1  HA    0.3 209  P       20:39:21.84   0.3 M  1.0  SNT1
    SNT1  HA    0.3 209  S       20:39:25.72  -0.2 M  1.0  SNT1
    SFR2  HI    0.3 206  P       20:39:22.65   0.9 M  1.0  SFR2
    SFR2  HI    0.3 206  S       20:39:25.95  -0.4 M  1.0  SFR2
    SAP3  HL    0.3 222  P       20:39:22.69   0.7 M  1.0  SAP3
    SAP3  HL    0.3 222  S       20:39:26.45  -0.3 M  1.0  SAP3
    THERA HL    0.3 198  P       20:39:22.11  -0.1 M  1.0  THERA
    THERA HL    0.3 198  S       20:39:26.53  -0.5 M  1.0  THERA
    SANT  HL    0.3 200  P       20:39:22.21  -0.0 M  1.0  SANT
    SANT  HL    0.3 200  S       20:39:26.60  -0.6 M  1.0  SANT
    AKRO  HT    0.3 208  P       20:39:23.41   0.6 M  1.0  AKRO
    AKRO  HT    0.3 208  S       20:39:27.71  -0.4 M  1.0  AKRO
    THR9  HT    0.3 212  P       20:39:23.97   0.8 M  1.0  THR9
    THR9  HT    0.3 212  S       20:39:28.34  -0.4 M  1.0  THR9
    APE   HL    0.4 353  P       20:39:24.54  -0.0 M  1.0  APE
    APE   HL    0.4 353  S       20:39:30.32  -0.9 M  1.0  APE
    NAX1  HI    0.5 339  P       20:39:25.91   0.4 M  1.0  NAX1
    NAX1  HI    0.5 339  S       20:39:32.34  -0.6 M  1.0  NAX1
    TNSA  HL    0.9 339  P       20:39:34.68   0.7 M  1.0  TNSA
    TNSA  HL    0.9 339  S       20:39:47.83  -0.0 M  1.0  TNSA
    NSR2  HA    1.3  94  P       20:39:39.60   0.1 M  1.0  NSR2
    NSR2  HA    1.3  94  S       20:39:57.61   0.1 M  1.0  NSR2

14 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    ANYD  HT    0.1 107  MLv     4.67  0.33    2324.93
    CMBO  HT    0.2 219  MLv     3.80 -0.54    112.181
    THR2  HT    0.2 211  MLv     3.42 -0.92    105.532
    SNT1  HA    0.3 209  MLv     3.93 -0.41     80.197
    SFR2  HI    0.3 206  MLv     4.17 -0.17     193.97
    SAP3  HL    0.3 222  MLv     3.56 -0.78    74.1881
    THERA HL    0.3 198  MLv     3.71 -0.63    60.0207
    SANT  HL    0.3 200  MLv     4.00 -0.34    88.0393
    AKRO  HT    0.3 208  MLv     3.95 -0.39    84.4448
    THR9  HT    0.3 212  MLv     3.31 -1.03    63.5421
    APE   HL    0.4 353  MLv     4.49  0.15    161.856
    NAX1  HI    0.5 339  MLv     4.56  0.22    131.734
    TNSA  HL    0.9 339  MLv     5.00  0.66    147.512
    NSR2  HA    1.3  94  MLv     4.84  0.50    69.8194
