Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2025-02-02 19:10:38 (GMT)
Πανεπιστήμιο Αθηνών - Εργαστήριο Σεισμολογίας
+−
10 km
5 mi
Leaflet | Tiles © Esri
 Μέγεθος
 M 3.6
 Γεωγρ. Πλάτος
 36.6238° Β
 Γεωγρ. Μήκος
 25.6657° Α
 Εστιακό Βάθος
 7 χμ
 Αρ. αφίξεων
 26
 Επίκεντρο 31.0 χμ ΒΑ της Θήρας
59.4 χμ ΝΝΑ της Νάξου
228.2 χμ ΝΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap

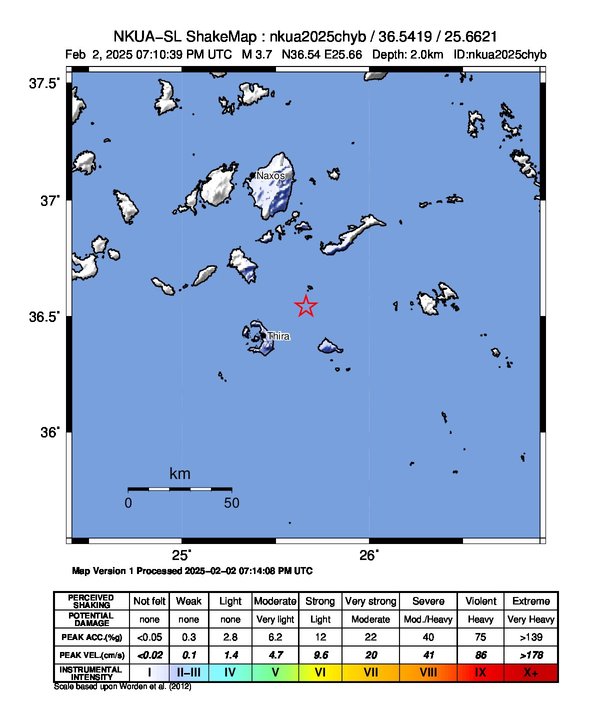

  Χάρτης εντάσεως


PGA

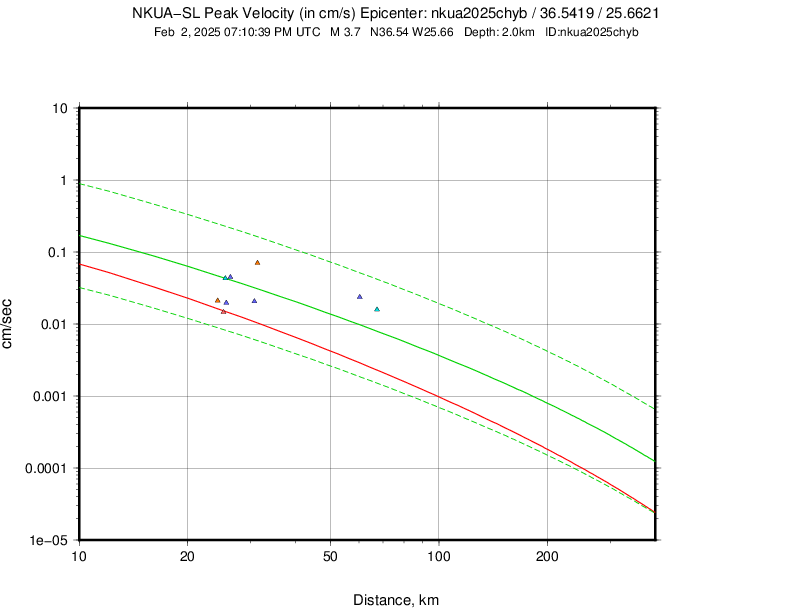

 PGV

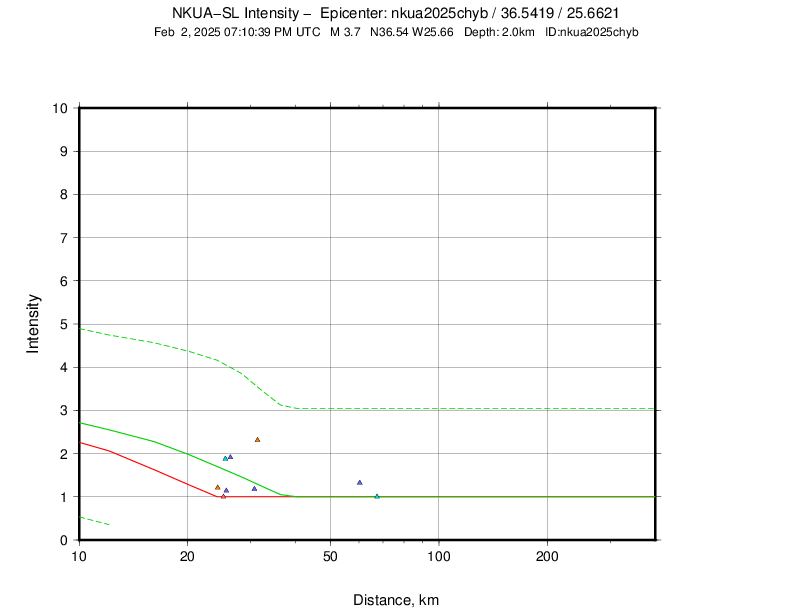

 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
THR2HT28.5226 P19:10:43.65 0.31.0M
THR2HT28.5226 S19:10:47.54 0.11.0M
CMBOHT28.8234 P19:10:43.84 0.41.0M
CMBOHT28.8234 S19:10:47.55 0.01.0M
SNT1HA31.4223 P19:10:43.94 0.11.0M
SNT1HA31.4223 S19:10:47.96 -0.31.0M
SFR2HI32.2219 P19:10:44.20 0.21.0M
SFR2HI32.2219 S19:10:48.23 -0.31.0M
THERAHL33.2211 P19:10:44.33 0.21.0M
THERAHL33.2211 S19:10:48.19 -0.71.0M
SANTHL33.7213 P19:10:44.28 0.01.0M
SANTHL33.7213 S19:10:48.38 -0.71.0M
SAP3HL35.5234 P19:10:44.69 0.21.0M
SAP3HL35.5234 S19:10:49.42 -0.11.0M
THR5HT36.5231 P19:10:44.89 0.21.0M
THR5HT36.5231 S19:10:49.41 -0.41.0M
AKROHT38.1219 P19:10:45.40 0.51.0M
AKROHT38.1219 S19:10:49.84 -0.41.0M
THR6HT38.2219 P19:10:45.27 0.31.0M
THR6HT38.2219 S19:10:49.90 -0.41.0M
APEHL51.5346 P19:10:47.15 0.01.0M
APEHL51.5346 S19:10:53.31 -0.91.0M
TNSAHL111.1336 P19:10:56.99 0.31.0M
TNSAHL111.1336 S19:11:11.28 0.31.0M
MHLOHL113.0274 P19:10:57.91 0.81.0M
MHLOHL113.0274 S19:11:12.13 0.51.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2025chyb
    Description
      region name: Dodecanese Islands, Greece
Origin:
    Date                   2025-02-02
    Time                  19:10:37.96
    Latitude              36.6238 deg  +/-      2 km
    Longitude             25.6657 deg  +/-      2 km
    Depth                       7 km   +/-    5 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.41 s
    Azimuthal gap             225 deg

2 Network magnitudes:
    MLv       3.64 +/- 0.36  11
    M         3.64           11 preferred

26 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    THR2  HT    0.3 226  P       19:10:43.65   0.3 M  1.0  THR2
    THR2  HT    0.3 226  S       19:10:47.54   0.1 M  1.0  THR2
    CMBO  HT    0.3 234  P       19:10:43.84   0.4 M  1.0  CMBO
    CMBO  HT    0.3 234  S       19:10:47.55   0.0 M  1.0  CMBO
    SNT1  HA    0.3 223  P       19:10:43.94   0.1 M  1.0  SNT1
    SNT1  HA    0.3 223  S       19:10:47.96  -0.3 M  1.0  SNT1
    SFR2  HI    0.3 219  P       19:10:44.20   0.2 M  1.0  SFR2
    SFR2  HI    0.3 219  S       19:10:48.23  -0.3 M  1.0  SFR2
    THERA HL    0.3 211  P       19:10:44.33   0.2 M  1.0  THERA
    THERA HL    0.3 211  S       19:10:48.19  -0.7 M  1.0  THERA
    SANT  HL    0.3 213  P       19:10:44.28   0.0 M  1.0  SANT
    SANT  HL    0.3 213  S       19:10:48.38  -0.7 M  1.0  SANT
    SAP3  HL    0.3 234  P       19:10:44.69   0.2 M  1.0  SAP3
    SAP3  HL    0.3 234  S       19:10:49.42  -0.1 M  1.0  SAP3
    THR5  HT    0.3 231  P       19:10:44.89   0.2 M  1.0  THR5
    THR5  HT    0.3 231  S       19:10:49.41  -0.4 M  1.0  THR5
    AKRO  HT    0.3 219  P       19:10:45.40   0.5 M  1.0  AKRO
    AKRO  HT    0.3 219  S       19:10:49.84  -0.4 M  1.0  AKRO
    THR6  HT    0.3 219  P       19:10:45.27   0.3 M  1.0  THR6
    THR6  HT    0.3 219  S       19:10:49.90  -0.4 M  1.0  THR6
    APE   HL    0.5 346  P       19:10:47.15  -0.0 M  1.0  APE
    APE   HL    0.5 346  S       19:10:53.31  -0.9 M  1.0  APE
    TNSA  HL    1.0 336  P       19:10:56.99   0.3 M  1.0  TNSA
    TNSA  HL    1.0 336  S       19:11:11.28   0.3 M  1.0  TNSA
    MHLO  HL    1.0 274  P       19:10:57.91   0.8 M  1.0  MHLO
    MHLO  HL    1.0 274  S       19:11:12.13   0.5 M  1.0  MHLO

13 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    THR2  HT    0.3 226  MLv     3.31 -0.33    73.7321
    CMBO  HT    0.3 234  MLv     3.37 -0.27    35.3264
    SNT1  HA    0.3 223  MLv     3.36 -0.29    19.7963
    SFR2  HI    0.3 219  MLv     3.72  0.08    66.0971
    THERA HL    0.3 211  MLv     3.28 -0.36    22.3136
    SANT  HL    0.3 213  MLv     3.61 -0.03    35.7413
    SAP3  HL    0.3 234  MLv     3.23 -0.41    29.3949
    THR5  HT    0.3 231  MLv     2.91 -0.73    61.5127
    AKRO  HT    0.3 219  MLv     3.78  0.14    53.7644
    THR6  HT    0.3 219  MLv     3.51 -0.13    51.0184
    APE   HL    0.5 346  MLv     3.62 -0.02    17.0857
    TNSA  HL    1.0 336  MLv     4.49  0.85    43.4216
    MHLO  HL    1.0 274  MLv     4.00  0.35    27.6673
