Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2025-02-02 09:34:22 (GMT)
Πανεπιστήμιο Αθηνών - Εργαστήριο Σεισμολογίας
+−
10 km
5 mi
Leaflet | Tiles © Esri
 Μέγεθος
 M 4.0
 Γεωγρ. Πλάτος
 36.5950° Β
 Γεωγρ. Μήκος
 25.6875° Α
 Εστιακό Βάθος
 8 χμ
 Αρ. αφίξεων
 22
 Επίκεντρο 30.2 χμ ΒΑ της Θήρας
63.2 χμ ΝΝΑ της Νάξου
231.8 χμ ΝΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap

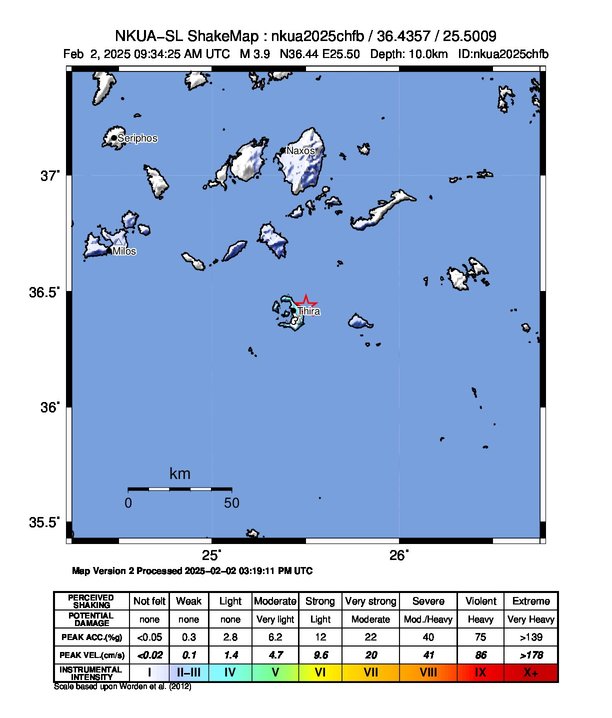

  Χάρτης εντάσεως


PGA

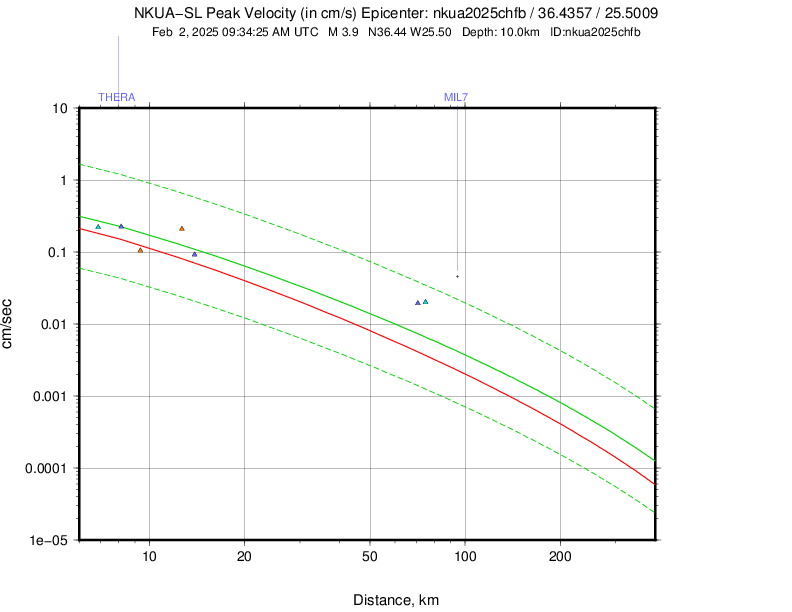

 PGV

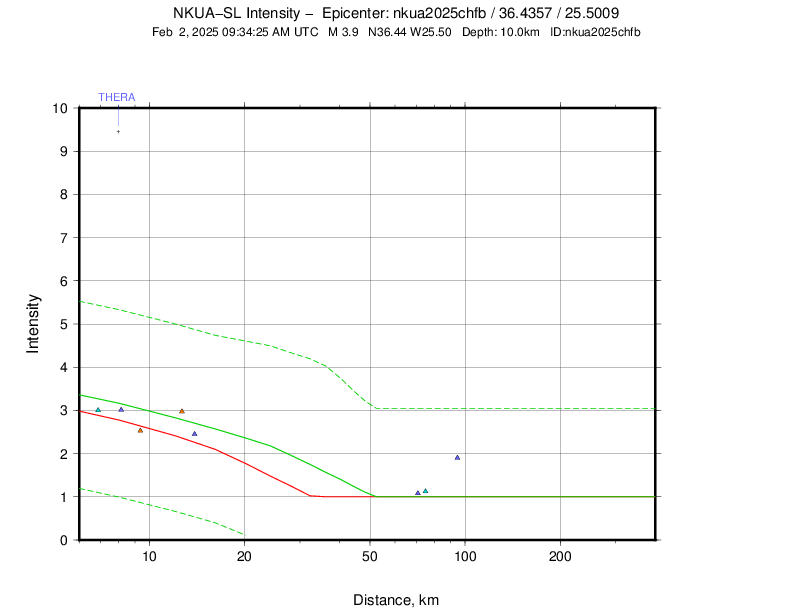

 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
THR2HT27.9234 P09:34:26.74 -0.51.0M
THR2HT27.9234 S09:34:31.42 0.21.0M
CMBOHT28.7241 P09:34:26.87 -0.51.0M
CMBOHT28.7241 S09:34:31.70 0.21.0M
SFR2HI31.1226 P09:34:27.85 0.11.0M
SFR2HI31.1226 S09:34:32.11 -0.11.0M
THERAHL31.7217 P09:34:28.00 0.21.0M
THERAHL31.7217 S09:34:32.13 -0.21.0M
SANTHL32.2219 P09:34:28.01 0.01.0M
SANTHL32.2219 S09:34:32.34 -0.21.0M
SAP3HL35.3240 P09:34:29.04 0.61.0M
SAP3HL35.3240 S09:34:33.63 0.21.0M
AKROHT37.0225 P09:34:29.41 0.71.0M
AKROHT37.0225 S09:34:33.97 0.11.0M
THR6HT37.1224 P09:34:28.13 -0.61.0M
THR6HT37.1224 S09:34:33.59 -0.31.0M
APEHL55.1345 P09:34:31.38 -0.31.0M
APEHL55.1345 S09:34:38.95 -0.21.0M
NAX1HI62.8334 P09:34:33.41 0.51.0M
NAX1HI62.8334 S09:34:41.29 0.01.0M
MIL7HL106.7277 P09:34:40.55 0.61.0M
MIL7HL106.7277 S09:34:53.24 -0.51.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2025chfb
    Description
      region name: Dodecanese Islands, Greece
Origin:
    Date                   2025-02-02
    Time                  09:34:21.89
    Latitude              36.5950 deg  +/-      1 km
    Longitude             25.6875 deg  +/-      1 km
    Depth                       8 km   +/-    5 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.34 s
    Azimuthal gap             232 deg

2 Network magnitudes:
    MLv       3.99 +/- 0.22  10
    M         3.99           10 preferred

22 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    THR2  HT    0.3 234  P       09:34:26.74  -0.5 M  1.0  THR2
    THR2  HT    0.3 234  S       09:34:31.42   0.2 M  1.0  THR2
    CMBO  HT    0.3 241  P       09:34:26.87  -0.5 M  1.0  CMBO
    CMBO  HT    0.3 241  S       09:34:31.70   0.2 M  1.0  CMBO
    SFR2  HI    0.3 226  P       09:34:27.85   0.1 M  1.0  SFR2
    SFR2  HI    0.3 226  S       09:34:32.11  -0.1 M  1.0  SFR2
    THERA HL    0.3 217  P       09:34:28.00   0.2 M  1.0  THERA
    THERA HL    0.3 217  S       09:34:32.13  -0.2 M  1.0  THERA
    SANT  HL    0.3 219  P       09:34:28.01   0.0 M  1.0  SANT
    SANT  HL    0.3 219  S       09:34:32.34  -0.2 M  1.0  SANT
    SAP3  HL    0.3 240  P       09:34:29.04   0.6 M  1.0  SAP3
    SAP3  HL    0.3 240  S       09:34:33.63   0.2 M  1.0  SAP3
    AKRO  HT    0.3 225  P       09:34:29.41   0.7 M  1.0  AKRO
    AKRO  HT    0.3 225  S       09:34:33.97   0.1 M  1.0  AKRO
    THR6  HT    0.3 224  P       09:34:28.13  -0.6 M  1.0  THR6
    THR6  HT    0.3 224  S       09:34:33.59  -0.3 M  1.0  THR6
    APE   HL    0.5 345  P       09:34:31.38  -0.3 M  1.0  APE
    APE   HL    0.5 345  S       09:34:38.95  -0.2 M  1.0  APE
    NAX1  HI    0.6 334  P       09:34:33.41   0.5 M  1.0  NAX1
    NAX1  HI    0.6 334  S       09:34:41.29   0.0 M  1.0  NAX1
    MIL7  HL    1.0 277  P       09:34:40.55   0.6 M  1.0  MIL7
    MIL7  HL    1.0 277  S       09:34:53.24  -0.5 M  1.0  MIL7

11 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    THR2  HT    0.3 234  MLv     3.85 -0.14    261.622
    CMBO  HT    0.3 241  MLv     4.06  0.06    174.325
    SFR2  HI    0.3 226  MLv     4.39  0.39    323.422
    THERA HL    0.3 217  MLv     3.92 -0.08     106.49
    SANT  HL    0.3 219  MLv     4.15  0.16    133.332
    SAP3  HL    0.3 240  MLv     3.83 -0.16    118.045
    AKRO  HT    0.3 225  MLv     4.21  0.21    152.835
    THR6  HT    0.3 224  MLv     3.64 -0.35    73.0933
    APE   HL    0.5 345  MLv     3.80 -0.20    20.8459
    NAX1  HI    0.6 334  MLv     4.10  0.10    30.3367
    MIL7  HL    1.0 277  MLv     4.63  0.64     63.065
