Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2025-02-02 09:14:24 (GMT)
Πανεπιστήμιο Αθηνών - Εργαστήριο Σεισμολογίας
+−
10 km
5 mi
Leaflet | Tiles © Esri
 Μέγεθος
 M 3.9
 Γεωγρ. Πλάτος
 36.6282° Β
 Γεωγρ. Μήκος
 25.6668° Α
 Εστιακό Βάθος
 7 χμ
 Αρ. αφίξεων
 26
 Επίκεντρο 31.4 χμ ΒΑ της Θήρας
59.0 χμ ΝΝΑ της Νάξου
227.9 χμ ΝΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap

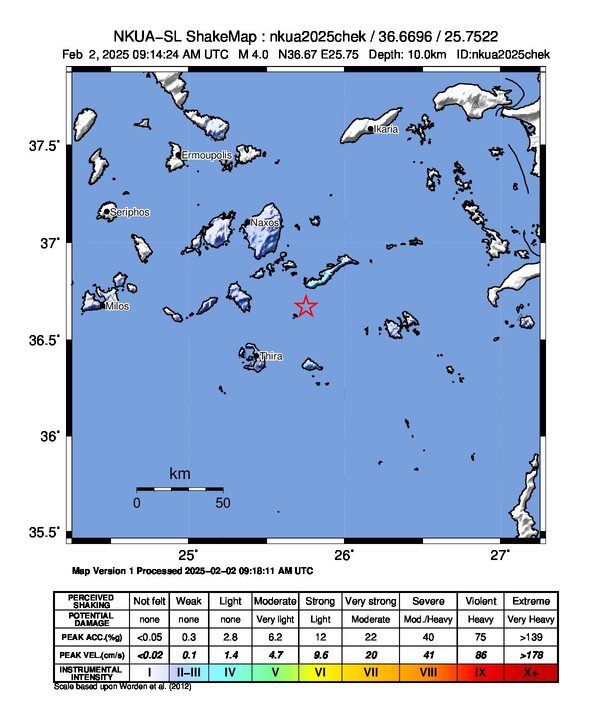

  Χάρτης εντάσεως

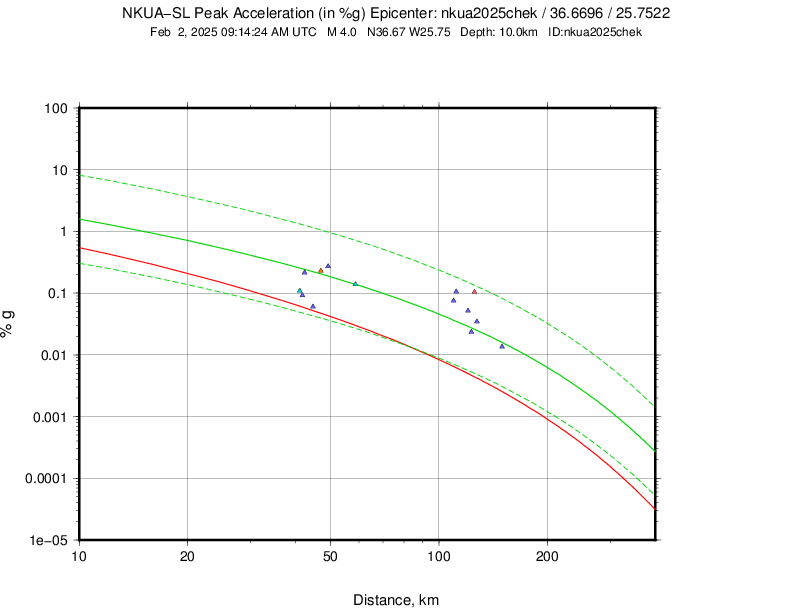

PGA

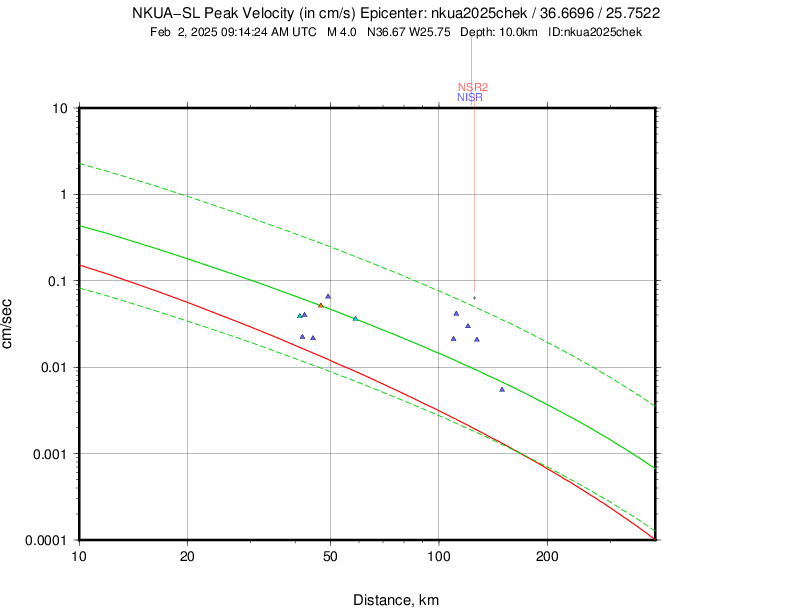

 PGV
 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
THR2HT28.9226 P09:14:29.90 0.21.0M
THR2HT28.9226 S09:14:33.80 0.01.0M
CMBOHT29.2233 P09:14:30.04 0.31.0M
CMBOHT29.2233 S09:14:33.99 0.11.0M
SFR2HI32.6219 P09:14:30.49 0.21.0M
SFR2HI32.6219 S09:14:34.78 -0.11.0M
THERAHL33.7211 P09:14:30.53 0.11.0M
THERAHL33.7211 S09:14:34.83 -0.41.0M
SANTHL34.1213 P09:14:30.53 -0.11.0M
SANTHL34.1213 S09:14:34.90 -0.51.0M
SAP3HL35.8233 P09:14:30.97 0.11.0M
SAP3HL35.8233 S09:14:35.75 -0.11.0M
THR5HT36.9231 P09:14:31.13 0.11.0M
THR5HT36.9231 S09:14:36.12 0.01.0M
AKROHT38.5219 P09:14:31.56 0.31.0M
AKROHT38.5219 S09:14:36.41 -0.21.0M
THR6HT38.7219 P09:14:31.50 0.21.0M
THR6HT38.7219 S09:14:36.30 -0.31.0M
THR9HT40.9223 P09:14:32.77 1.11.0M
THR9HT40.9223 S09:14:36.96 -0.31.0M
APEHL51.1345 P09:14:33.34 0.01.0M
APEHL51.1345 S09:14:40.09 -0.21.0M
NAX1HI58.7334 P09:14:34.67 0.11.0M
NAX1HI58.7334 S09:14:42.38 0.01.0M
MIL7HL104.5275 P09:14:42.58 0.61.0M
MIL7HL104.5275 S09:14:55.91 0.41.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2025chek
    Description
      region name: Dodecanese Islands, Greece
Origin:
    Date                   2025-02-02
    Time                  09:14:24.21
    Latitude              36.6282 deg  +/-      1 km
    Longitude             25.6668 deg  +/-      1 km
    Depth                       7 km   +/-    4 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.21 s
    Azimuthal gap             225 deg

2 Network magnitudes:
    MLv       3.89 +/- 0.40  10
    M         3.89           10 preferred

26 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    THR2  HT    0.3 226  P       09:14:29.90   0.2 M  1.0  THR2
    THR2  HT    0.3 226  S       09:14:33.80  -0.0 M  1.0  THR2
    CMBO  HT    0.3 233  P       09:14:30.04   0.3 M  1.0  CMBO
    CMBO  HT    0.3 233  S       09:14:33.99   0.1 M  1.0  CMBO
    SFR2  HI    0.3 219  P       09:14:30.49   0.2 M  1.0  SFR2
    SFR2  HI    0.3 219  S       09:14:34.78  -0.1 M  1.0  SFR2
    THERA HL    0.3 211  P       09:14:30.53   0.1 M  1.0  THERA
    THERA HL    0.3 211  S       09:14:34.83  -0.4 M  1.0  THERA
    SANT  HL    0.3 213  P       09:14:30.53  -0.1 M  1.0  SANT
    SANT  HL    0.3 213  S       09:14:34.90  -0.5 M  1.0  SANT
    SAP3  HL    0.3 233  P       09:14:30.97   0.1 M  1.0  SAP3
    SAP3  HL    0.3 233  S       09:14:35.75  -0.1 M  1.0  SAP3
    THR5  HT    0.3 231  P       09:14:31.13   0.1 M  1.0  THR5
    THR5  HT    0.3 231  S       09:14:36.12  -0.0 M  1.0  THR5
    AKRO  HT    0.3 219  P       09:14:31.56   0.3 M  1.0  AKRO
    AKRO  HT    0.3 219  S       09:14:36.41  -0.2 M  1.0  AKRO
    THR6  HT    0.3 219  P       09:14:31.50   0.2 M  1.0  THR6
    THR6  HT    0.3 219  S       09:14:36.30  -0.3 M  1.0  THR6
    THR9  HT    0.4 223  P       09:14:32.77   1.1 M  1.0  THR9
    THR9  HT    0.4 223  S       09:14:36.96  -0.3 M  1.0  THR9
    APE   HL    0.5 345  P       09:14:33.34  -0.0 M  1.0  APE
    APE   HL    0.5 345  S       09:14:40.09  -0.2 M  1.0  APE
    NAX1  HI    0.5 334  P       09:14:34.67   0.1 M  1.0  NAX1
    NAX1  HI    0.5 334  S       09:14:42.38   0.0 M  1.0  NAX1
    MIL7  HL    0.9 275  P       09:14:42.58   0.6 M  1.0  MIL7
    MIL7  HL    0.9 275  S       09:14:55.91   0.4 M  1.0  MIL7

13 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    THR2  HT    0.3 226  MLv     3.35 -0.55    77.9228
    CMBO  HT    0.3 233  MLv     3.75 -0.14    84.2441
    SFR2  HI    0.3 219  MLv     4.05  0.15    136.391
    THERA HL    0.3 211  MLv     3.40 -0.49    28.6548
    SANT  HL    0.3 213  MLv     3.69 -0.20    41.8335
    SAP3  HL    0.3 233  MLv     3.48 -0.41     51.245
    THR5  HT    0.3 231  MLv     2.93 -0.97    62.2389
    AKRO  HT    0.3 219  MLv     3.76 -0.13    49.9939
    THR6  HT    0.3 219  MLv     3.70 -0.20    76.1193
    THR9  HT    0.4 223  MLv     3.19 -0.71    42.3237
    APE   HL    0.5 345  MLv     4.10  0.20    52.5104
    NAX1  HI    0.5 334  MLv     4.29  0.40    53.2861
    MIL7  HL    0.9 275  MLv     4.71  0.82    77.9499
