Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2025-01-25 06:57:25 (GMT)
Πανεπιστήμιο Αθηνών - Εργαστήριο Σεισμολογίας
+−
10 km
5 mi
Leaflet | Tiles © Esri
 Μέγεθος
 M 3.8
 Γεωγρ. Πλάτος
 36.4172° Β
 Γεωγρ. Μήκος
 25.3487° Α
 Εστιακό Βάθος
 8 χμ
 Αρ. αφίξεων
 19
 Επίκεντρο 7.6 χμ Δ της Θήρας
76.6 χμ Ν της Νάξου
225.4 χμ ΝΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap

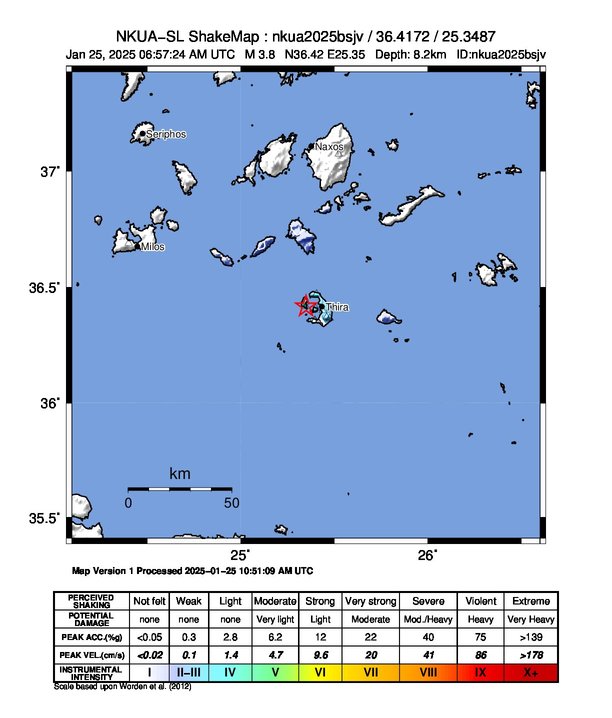

  Χάρτης εντάσεως

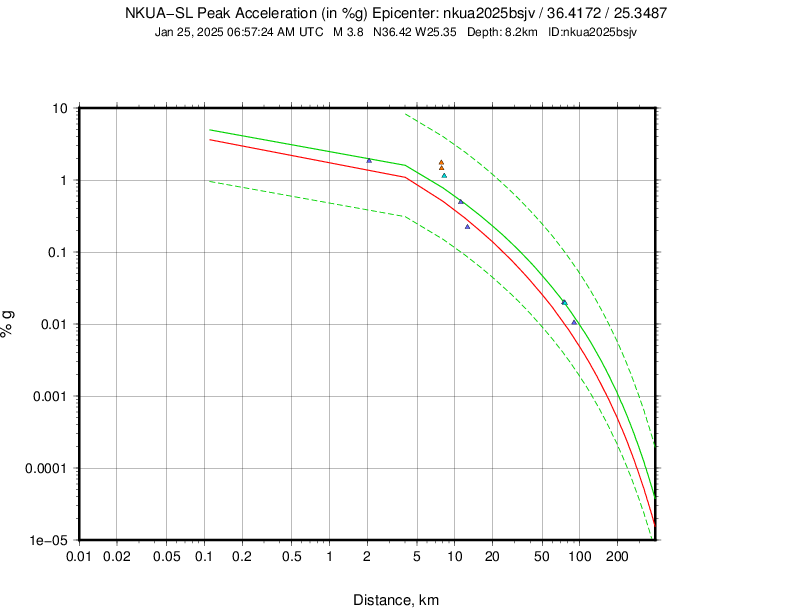

PGA
 PGV

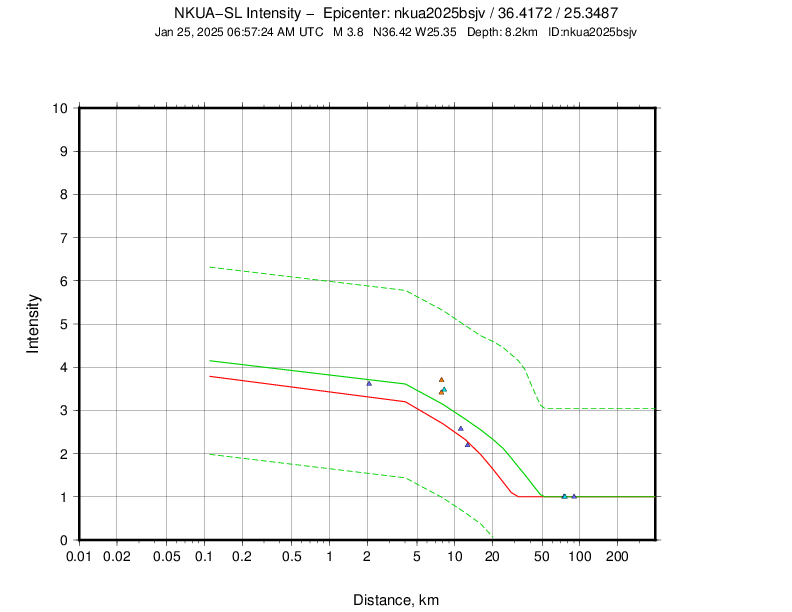

 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
THR5HT0.1271 P06:57:26.13 -0.21.0M
SAP3HL2.1352 P06:57:26.25 -0.11.0M
SAP3HL2.1352 S06:57:27.70 0.11.0M
THR3HT4.7101 P06:57:26.92 0.41.0M
THR9HT6.7173 P06:57:27.02 0.31.0M
AKROHT7.8147 P06:57:27.25 0.41.0M
AKROHT7.8147 S06:57:28.90 0.41.0M
CMBOHT7.8 41 P06:57:26.92 0.11.0M
CMBOHT7.8 41 S06:57:28.79 0.31.0M
THR6HT8.1147 P06:57:26.19 -0.71.0M
SFR2HI8.2103 P06:57:27.30 0.31.0M
THR2HT8.4 67 P06:57:26.92 0.01.0M
SANTHL11.2118 P06:57:27.46 0.11.0M
SANTHL11.2118 S06:57:29.07 -0.41.0M
THR8HT11.7 96 P06:57:26.16 -1.21.0M
THERAHL12.6116 P06:57:27.79 0.21.0M
THERAHL12.6116 S06:57:29.13 -0.61.0M
APEHL74.5 12 P06:57:37.86 0.21.0M
APEHL74.5 12 S06:57:47.59 0.01.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2025bsjv
    Description
      region name: Dodecanese Islands, Greece
Origin:
    Date                   2025-01-25
    Time                  06:57:24.71
    Latitude              36.4172 deg  +/-      1 km
    Longitude             25.3487 deg  +/-      1 km
    Depth                       8 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.31 s
    Azimuthal gap              98 deg

2 Network magnitudes:
    MLv       3.85 +/- 0.35   9
    M         3.85            9 preferred

19 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    THR5  HT    0.0 271  P       06:57:26.13  -0.2 M  1.0  THR5
    SAP3  HL    0.0 352  P       06:57:26.25  -0.1 M  1.0  SAP3
    SAP3  HL    0.0 352  S       06:57:27.70   0.1 M  1.0  SAP3
    THR3  HT    0.0 101  P       06:57:26.92   0.4 M  1.0  THR3
    THR9  HT    0.1 173  P       06:57:27.02   0.3 M  1.0  THR9
    AKRO  HT    0.1 147  P       06:57:27.25   0.4 M  1.0  AKRO
    AKRO  HT    0.1 147  S       06:57:28.90   0.4 M  1.0  AKRO
    CMBO  HT    0.1  41  P       06:57:26.92   0.1 M  1.0  CMBO
    CMBO  HT    0.1  41  S       06:57:28.79   0.3 M  1.0  CMBO
    THR6  HT    0.1 147  P       06:57:26.19  -0.7 M  1.0  THR6
    SFR2  HI    0.1 103  P       06:57:27.30   0.3 M  1.0  SFR2
    THR2  HT    0.1  67  P       06:57:26.92  -0.0 M  1.0  THR2
    SANT  HL    0.1 118  P       06:57:27.46   0.1 M  1.0  SANT
    SANT  HL    0.1 118  S       06:57:29.07  -0.4 M  1.0  SANT
    THR8  HT    0.1  96  P       06:57:26.16  -1.2 M  1.0  THR8
    THERA HL    0.1 116  P       06:57:27.79   0.2 M  1.0  THERA
    THERA HL    0.1 116  S       06:57:29.13  -0.6 M  1.0  THERA
    APE   HL    0.7  12  P       06:57:37.86   0.2 M  1.0  APE
    APE   HL    0.7  12  S       06:57:47.59   0.0 M  1.0  APE

13 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    THR5  HT    0.0 271  MLv     2.02 -1.82    64.5218
    SAP3  HL    0.0 352  MLv     3.73 -0.12    624.287
    THR3  HT    0.0 101  MLv    -1.84 -5.69   0.00227527
    THR9  HT    0.1 173  MLv     3.62 -0.23     821.09
    AKRO  HT    0.1 147  MLv     3.90  0.06    403.567
    CMBO  HT    0.1  41  MLv     4.36  0.51    1150.65
    THR6  HT    0.1 147  MLv     2.86 -0.99    64.2281
    SFR2  HI    0.1 103  MLv     4.34  0.49    1078.33
    THR2  HT    0.1  67  MLv     4.05  0.21    1268.92
    SANT  HL    0.1 118  MLv     3.65 -0.19    142.237
    THR8  HT    0.1  96  MLv     2.22 -1.63    15.3546
    THERA HL    0.1 116  MLv     3.34 -0.50    84.6931
    APE   HL    0.7  12  MLv     3.62 -0.23    8.85899
