Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2024-11-15 13:42:25 (GMT)
 Μέγεθος
 M 2.5
 Γεωγρ. Πλάτος
 36.4030° Β
 Γεωγρ. Μήκος
 25.3972° Α
 Εστιακό Βάθος
 6 χμ
 Αρ. αφίξεων
 30
 Επίκεντρο 3.6 χμ ΔΝΔ της Θήρας
78.1 χμ Ν της Νάξου
229.3 χμ ΝΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap

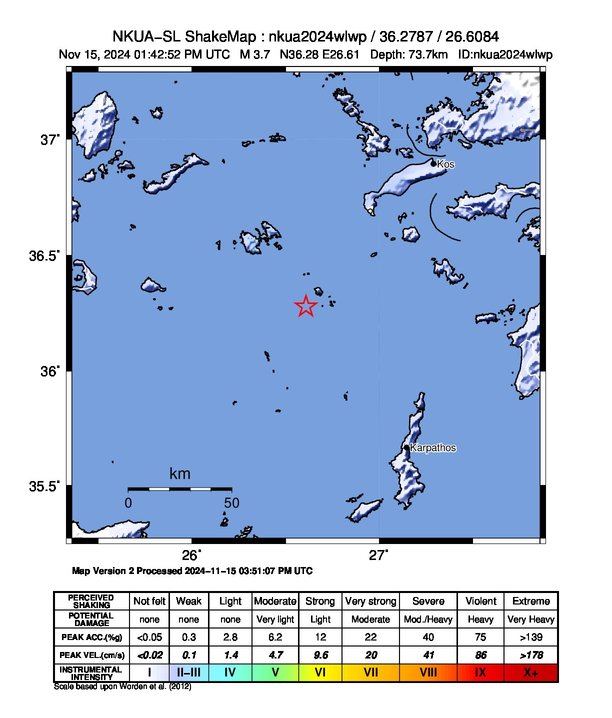

  Χάρτης εντάσεως


PGA
 PGV
 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
THR3HT0.8 26 P13:42:26.29 -0.11.0M
THR3HT0.8 26 S13:42:27.39 0.11.0M
SFR2HI3.7 96 P13:42:26.71 0.11.0M
SFR2HI3.7 96 S13:42:27.59 -0.11.0M
THR5HT4.7290 P13:42:26.37 -0.31.0M
THR5HT4.7290 S13:42:27.90 0.01.0M
AKROHT5.0180 P13:42:27.00 0.21.0M
AKROHT5.0180 S13:42:28.18 0.21.0M
THR6HT5.2180 P13:42:26.48 -0.31.0M
THR6HT5.2180 S13:42:28.32 0.31.0M
THR2HT6.0 35 P13:42:26.48 -0.41.0M
THR2HT6.0 35 S13:42:28.17 0.01.0M
THR9HT6.2216 P13:42:26.28 -0.61.0M
THR9HT6.2216 S13:42:28.25 0.11.0M
SANTHL6.6123 P13:42:27.03 0.01.0M
SANTHL6.6123 S13:42:28.20 -0.21.0M
THR8HT7.3 87 P13:42:27.05 0.01.0M
THR8HT7.3 87 S13:42:28.77 0.31.0M
CMBOHT7.6 6 P13:42:27.27 0.21.0M
CMBOHT7.6 6 S13:42:28.66 0.11.0M
THERAHL8.1120 P13:42:27.24 0.01.0M
THERAHL8.1120 S13:42:28.42 -0.31.0M
APEHL75.3 9 P13:42:38.30 0.01.0M
APEHL75.3 9 S13:42:48.30 0.01.0M
NAX1HI77.7358 P13:42:38.71 0.11.0M
NAX1HI77.7358 S13:42:49.00 0.11.0M
MIL7HL87.1293 P13:42:40.37 0.11.0M
MIL7HL87.1293 S13:42:51.60 -0.11.0M
MHLOHL94.5290 P13:42:41.68 0.31.0M
MHLOHL94.5290 S13:42:53.67 -0.11.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2024wlwp
    Description
      region name: Dodecanese Islands, Greece
Origin:
    Date                   2024-11-15
    Time                  13:42:25.17
    Latitude              36.4030 deg  +/-      0 km
    Longitude             25.3972 deg  +/-      0 km
    Depth                       6 km   +/-    0 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.21 s
    Azimuthal gap              74 deg

2 Network magnitudes:
    MLv       2.51 +/- 0.21  12
    M         2.51           12 preferred

30 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    THR3  HT    0.0  26  P       13:42:26.29  -0.1 M  1.0  THR3
    THR3  HT    0.0  26  S       13:42:27.39   0.1 M  1.0  THR3
    SFR2  HI    0.0  96  P       13:42:26.71   0.1 M  1.0  SFR2
    SFR2  HI    0.0  96  S       13:42:27.59  -0.1 M  1.0  SFR2
    THR5  HT    0.0 290  P       13:42:26.37  -0.3 M  1.0  THR5
    THR5  HT    0.0 290  S       13:42:27.90   0.0 M  1.0  THR5
    AKRO  HT    0.0 180  P       13:42:27.00   0.2 M  1.0  AKRO
    AKRO  HT    0.0 180  S       13:42:28.18   0.2 M  1.0  AKRO
    THR6  HT    0.0 180  P       13:42:26.48  -0.3 M  1.0  THR6
    THR6  HT    0.0 180  S       13:42:28.32   0.3 M  1.0  THR6
    THR2  HT    0.1  35  P       13:42:26.48  -0.4 M  1.0  THR2
    THR2  HT    0.1  35  S       13:42:28.17  -0.0 M  1.0  THR2
    THR9  HT    0.1 216  P       13:42:26.28  -0.6 M  1.0  THR9
    THR9  HT    0.1 216  S       13:42:28.25   0.1 M  1.0  THR9
    SANT  HL    0.1 123  P       13:42:27.03   0.0 M  1.0  SANT
    SANT  HL    0.1 123  S       13:42:28.20  -0.2 M  1.0  SANT
    THR8  HT    0.1  87  P       13:42:27.05   0.0 M  1.0  THR8
    THR8  HT    0.1  87  S       13:42:28.77   0.3 M  1.0  THR8
    CMBO  HT    0.1   6  P       13:42:27.27   0.2 M  1.0  CMBO
    CMBO  HT    0.1   6  S       13:42:28.66   0.1 M  1.0  CMBO
    THERA HL    0.1 120  P       13:42:27.24   0.0 M  1.0  THERA
    THERA HL    0.1 120  S       13:42:28.42  -0.3 M  1.0  THERA
    APE   HL    0.7   9  P       13:42:38.30  -0.0 M  1.0  APE
    APE   HL    0.7   9  S       13:42:48.30  -0.0 M  1.0  APE
    NAX1  HI    0.7 358  P       13:42:38.71   0.1 M  1.0  NAX1
    NAX1  HI    0.7 358  S       13:42:49.00   0.1 M  1.0  NAX1
    MIL7  HL    0.8 293  P       13:42:40.37   0.1 M  1.0  MIL7
    MIL7  HL    0.8 293  S       13:42:51.60  -0.1 M  1.0  MIL7
    MHLO  HL    0.9 290  P       13:42:41.68   0.3 M  1.0  MHLO
    MHLO  HL    0.9 290  S       13:42:53.67  -0.1 M  1.0  MHLO

15 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    THR3  HT    0.0  26  MLv     2.37 -0.14     46.767
    SFR2  HI    0.0  96  MLv     2.57  0.07    24.1024
    THR5  HT    0.0 290  MLv     2.16 -0.35    67.4342
    AKRO  HT    0.0 180  MLv     2.78  0.27     36.035
    THR6  HT    0.0 180  MLv     2.81  0.30    68.0798
    THR2  HT    0.1  35  MLv     2.55  0.04     45.557
    THR9  HT    0.1 216  MLv     1.80 -0.71    12.8392
    SANT  HL    0.1 123  MLv     2.46 -0.05    11.8903
    THR8  HT    0.1  87  MLv     2.49 -0.01    37.3051
    CMBO  HT    0.1   6  MLv     2.84  0.33    35.5976
    THERA HL    0.1 120  MLv     2.14 -0.37    6.87728
    APE   HL    0.7   9  MLv     2.77  0.26     1.2298
    NAX1  HI    0.7 358  MLv     2.66  0.15   0.941015
    MIL7  HL    0.8 293  MLv     2.60  0.09   0.737935
    MHLO  HL    0.9 290  MLv     2.55  0.04    1.22411
