Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2024-10-05 21:06:54 (GMT)
 Μέγεθος
 M 2.1
 Γεωγρ. Πλάτος
 36.4280° Β
 Γεωγρ. Μήκος
 25.4237° Α
 Εστιακό Βάθος
 7 χμ
 Αρ. αφίξεων
 23
 Επίκεντρο 1.5 χμ ΒΔ της Θήρας
75.5 χμ Ν της Νάξου
228.7 χμ ΝΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
SNT1HA1.4163 P21:06:55.44 -0.11.0M
SNT1HA1.4163 S21:06:56.29 -0.31.0M
THR2HT2.3 27 P21:06:55.62 0.11.0M
THR2HT2.3 27 S21:06:56.93 0.21.0M
THR3HT2.9224 P21:06:55.57 0.01.0M
THR3HT2.9224 S21:06:56.66 -0.11.0M
SFR2HI3.4157 P21:06:56.12 0.51.0M
SFR2HI3.4157 S21:06:56.78 -0.11.0M

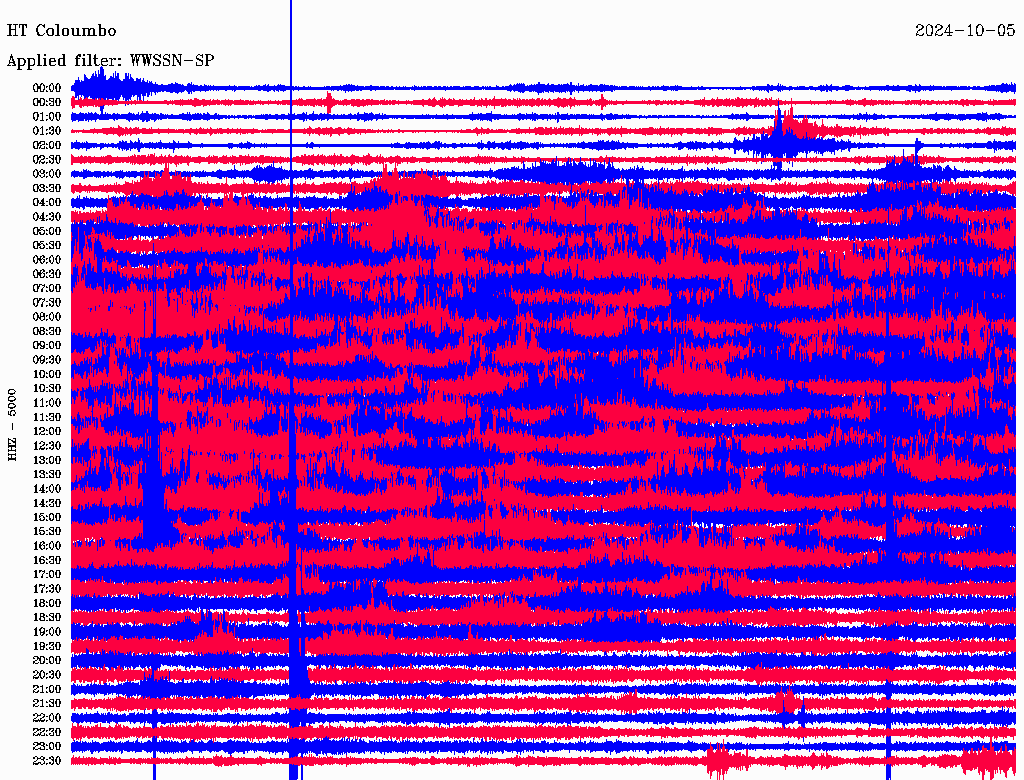

CMBOHT5.0341 P21:06:55.85 0.11.0M
CMBOHT5.0341 S21:06:56.95 -0.11.0M
THR8HT5.5115 P21:06:55.72 -0.11.0M
THR5HT6.9260 P21:06:55.83 -0.21.0M
THR5HT6.9260 S21:06:57.57 0.11.0M
SANTHL7.1153 P21:06:56.31 0.21.0M
SANTHL7.1153 S21:06:57.43 -0.21.0M
AKROHT8.1197 P21:06:56.63 0.41.0M
AKROHT8.1197 S21:06:58.20 0.41.0M
THERAHL8.2146 P21:06:56.42 0.21.0M
THERAHL8.2146 S21:06:57.65 -0.21.0M

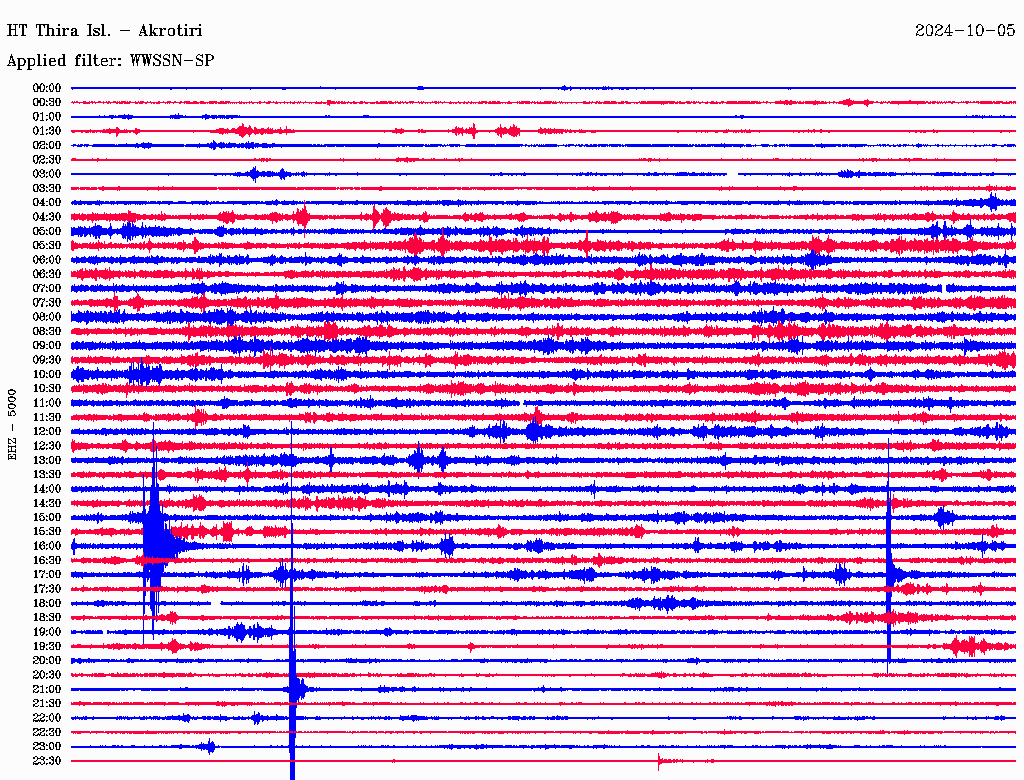

THR6HT8.3196 P21:06:55.68 -0.51.0M
THR6HT8.3196 S21:06:57.98 0.11.0M

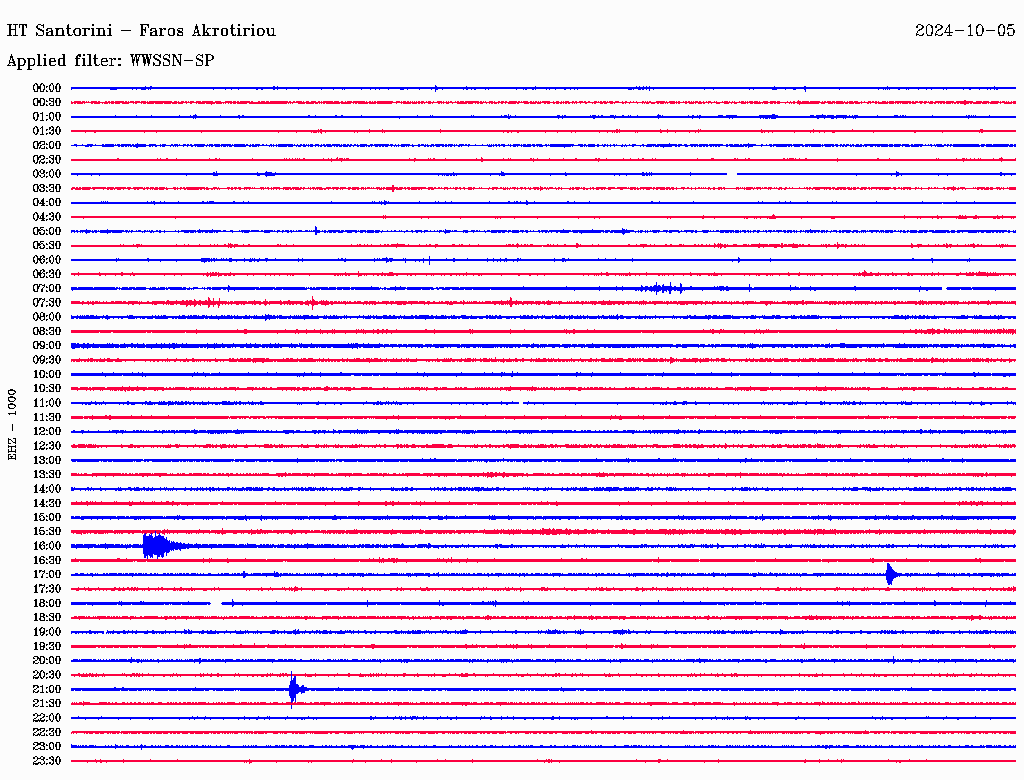

THR9HT9.8218 P21:06:55.69 -0.71.0M
THR9HT9.8218 S21:06:58.15 -0.11.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2024tpnq
    Description
      region name: Dodecanese Islands, Greece
Origin:
    Date                   2024-10-05
    Time                  21:06:54.09
    Latitude              36.4280 deg  +/-      0 km
    Longitude             25.4237 deg  +/-      0 km
    Depth                       7 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.20 s
    Azimuthal gap              89 deg

2 Network magnitudes:
    MLv       2.15 +/- 0.33   9
    M         2.15            9 preferred

23 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    SNT1  HA    0.0 163  P       21:06:55.44  -0.1 M  1.0  SNT1
    SNT1  HA    0.0 163  S       21:06:56.29  -0.3 M  1.0  SNT1
    THR2  HT    0.0  27  P       21:06:55.62   0.1 M  1.0  THR2
    THR2  HT    0.0  27  S       21:06:56.93   0.2 M  1.0  THR2
    THR3  HT    0.0 224  P       21:06:55.57  -0.0 M  1.0  THR3
    THR3  HT    0.0 224  S       21:06:56.66  -0.1 M  1.0  THR3
    SFR2  HI    0.0 157  P       21:06:56.12   0.5 M  1.0  SFR2
    SFR2  HI    0.0 157  S       21:06:56.78  -0.1 M  1.0  SFR2
    CMBO  HT    0.0 341  P       21:06:55.85   0.1 M  1.0  CMBO
    CMBO  HT    0.0 341  S       21:06:56.95  -0.1 M  1.0  CMBO
    THR8  HT    0.0 115  P       21:06:55.72  -0.1 M  1.0  THR8
    THR5  HT    0.1 260  P       21:06:55.83  -0.2 M  1.0  THR5
    THR5  HT    0.1 260  S       21:06:57.57   0.1 M  1.0  THR5
    SANT  HL    0.1 153  P       21:06:56.31   0.2 M  1.0  SANT
    SANT  HL    0.1 153  S       21:06:57.43  -0.2 M  1.0  SANT
    AKRO  HT    0.1 197  P       21:06:56.63   0.4 M  1.0  AKRO
    AKRO  HT    0.1 197  S       21:06:58.20   0.4 M  1.0  AKRO
    THERA HL    0.1 146  P       21:06:56.42   0.2 M  1.0  THERA
    THERA HL    0.1 146  S       21:06:57.65  -0.2 M  1.0  THERA
    THR6  HT    0.1 196  P       21:06:55.68  -0.5 M  1.0  THR6
    THR6  HT    0.1 196  S       21:06:57.98   0.1 M  1.0  THR6
    THR9  HT    0.1 218  P       21:06:55.69  -0.7 M  1.0  THR9
    THR9  HT    0.1 218  S       21:06:58.15  -0.1 M  1.0  THR9

11 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    SNT1  HA    0.0 163  MLv     2.48  0.34    14.7517
    THR2  HT    0.0  27  MLv     2.40  0.26    40.0978
    THR3  HT    0.0 224  MLv     2.28  0.13    33.5631
    CMBO  HT    0.0 341  MLv     2.66  0.52    27.3886
    THR8  HT    0.0 115  MLv     1.91 -0.23    10.8785
    THR5  HT    0.1 260  MLv     2.10 -0.04    52.3711
    SANT  HL    0.1 153  MLv     3.30  1.16    79.9671
    AKRO  HT    0.1 197  MLv     1.93 -0.21    4.26003
    THERA HL    0.1 146  MLv     1.74 -0.40    2.75092
    THR6  HT    0.1 196  MLv     2.68  0.54    42.1113
    THR9  HT    0.1 218  MLv     1.79 -0.36    10.0567
