Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2024-09-24 00:23:32 (GMT)
Πανεπιστήμιο Αθηνών - Εργαστήριο Σεισμολογίας
+−
10 km
5 mi
Leaflet | Tiles © Esri
 Μέγεθος
 M 1.0
 Γεωγρ. Πλάτος
 36.4255° Β
 Γεωγρ. Μήκος
 25.4275° Α
 Εστιακό Βάθος
 5 χμ
 Αρ. αφίξεων
 22
 Επίκεντρο 1.1 χμ ΒΒΔ της Θήρας
75.8 χμ Ν της Νάξου
229.2 χμ ΝΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
SNT1HA1.1177 P00:23:32.73 0.01.0M
SNT1HA1.1177 S00:23:33.55 0.01.0M
THR2HT2.5 17 P00:23:32.99 0.11.0M
THR2HT2.5 17 S00:23:33.92 0.11.0M
THR3HT3.0233 P00:23:32.95 0.01.0M
THR3HT3.0233 S00:23:33.89 0.11.0M
SFR2HI3.0161 P00:23:33.09 0.11.0M
SFR2HI3.0161 S00:23:33.87 0.01.0M
THR8HT5.0114 P00:23:33.34 0.21.0M
THR8HT5.0114 S00:23:34.24 0.01.0M

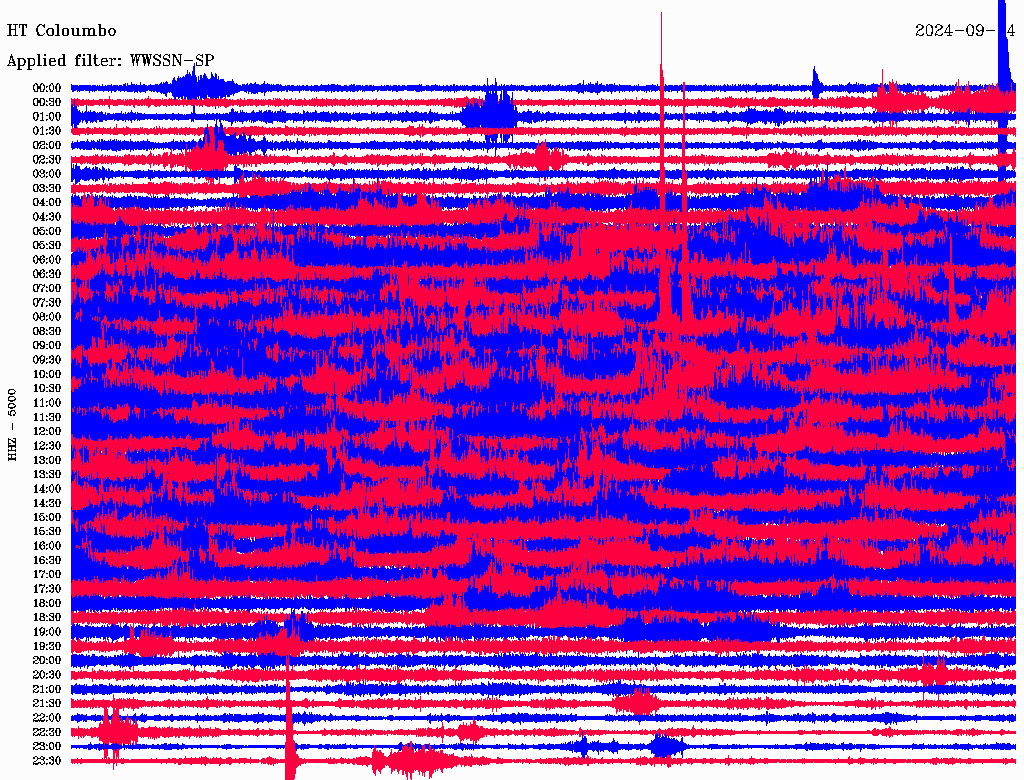

CMBOHT5.4339 P00:23:33.19 0.01.0M
CMBOHT5.4339 S00:23:34.20 -0.21.0M
SANTHL6.7155 P00:23:33.19 -0.31.0M
SANTHL6.7155 S00:23:34.53 -0.31.0M
THR5HT7.2263 P00:23:33.58 0.11.0M
THR5HT7.2263 S00:23:34.81 -0.11.0M
THERAHL7.8147 P00:23:33.68 0.11.0M
THERAHL7.8147 S00:23:34.97 -0.11.0M
AKROHT8.0200 P00:23:33.78 0.11.0M
AKROHT8.0200 S00:23:35.16 0.11.0M

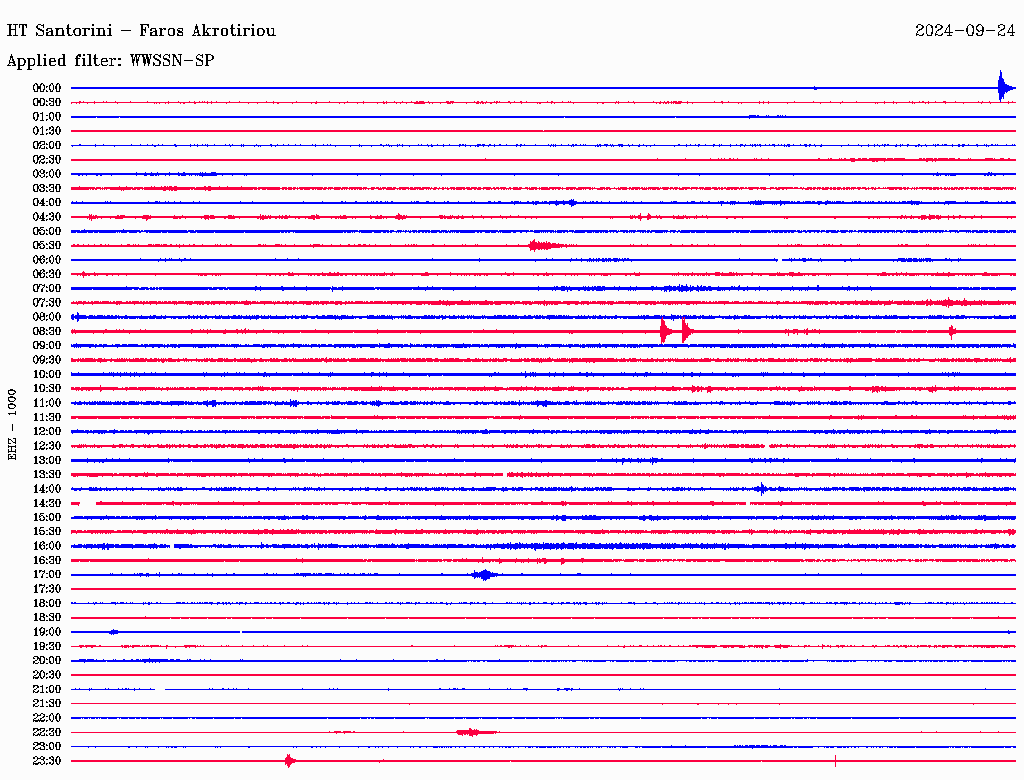

THR9HT9.8220 P00:23:33.87 -0.11.0M
THR9HT9.8220 S00:23:35.71 0.11.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2024stwc
    Description
      region name: Dodecanese Islands, Greece
Origin:
    Date                   2024-09-24
    Time                  00:23:31.73
    Latitude              36.4255 deg  +/-      0 km
    Longitude             25.4275 deg  +/-      0 km
    Depth                       5 km   +/-    0 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.11 s
    Azimuthal gap              98 deg

2 Network magnitudes:
    MLv       1.02 +/- 0.22   9
    M         1.02            9 preferred

22 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    SNT1  HA    0.0 177  P       00:23:32.73  -0.0 M  1.0  SNT1
    SNT1  HA    0.0 177  S       00:23:33.55   0.0 M  1.0  SNT1
    THR2  HT    0.0  17  P       00:23:32.99   0.1 M  1.0  THR2
    THR2  HT    0.0  17  S       00:23:33.92   0.1 M  1.0  THR2
    SFR2  HI    0.0 161  P       00:23:33.09   0.1 M  1.0  SFR2
    SFR2  HI    0.0 161  S       00:23:33.87   0.0 M  1.0  SFR2
    THR3  HT    0.0 233  P       00:23:32.95   0.0 M  1.0  THR3
    THR3  HT    0.0 233  S       00:23:33.89   0.1 M  1.0  THR3
    THR8  HT    0.0 114  P       00:23:33.34   0.2 M  1.0  THR8
    THR8  HT    0.0 114  S       00:23:34.24  -0.0 M  1.0  THR8
    CMBO  HT    0.0 339  P       00:23:33.19  -0.0 M  1.0  CMBO
    CMBO  HT    0.0 339  S       00:23:34.20  -0.2 M  1.0  CMBO
    SANT  HL    0.1 155  P       00:23:33.19  -0.3 M  1.0  SANT
    SANT  HL    0.1 155  S       00:23:34.53  -0.3 M  1.0  SANT
    THR5  HT    0.1 263  P       00:23:33.58   0.1 M  1.0  THR5
    THR5  HT    0.1 263  S       00:23:34.81  -0.1 M  1.0  THR5
    THERA HL    0.1 147  P       00:23:33.68   0.1 M  1.0  THERA
    THERA HL    0.1 147  S       00:23:34.97  -0.1 M  1.0  THERA
    AKRO  HT    0.1 200  P       00:23:33.78   0.1 M  1.0  AKRO
    AKRO  HT    0.1 200  S       00:23:35.16   0.1 M  1.0  AKRO
    THR9  HT    0.1 220  P       00:23:33.87  -0.1 M  1.0  THR9
    THR9  HT    0.1 220  S       00:23:35.71   0.1 M  1.0  THR9

11 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    SNT1  HA    0.0 177  MLv     0.96 -0.06   0.453844
    THR2  HT    0.0  17  MLv     1.29  0.26    3.05549
    SFR2  HI    0.0 161  MLv     1.34  0.31    1.45657
    THR3  HT    0.0 233  MLv     1.30  0.27    3.47918
    THR8  HT    0.0 114  MLv     0.71 -0.31   0.699483
    CMBO  HT    0.0 339  MLv     0.93 -0.09   0.494886
    SANT  HL    0.1 155  MLv     3.37  2.34      95.22
    THR5  HT    0.1 263  MLv     0.94 -0.08    3.57365
    THERA HL    0.1 147  MLv     0.22 -0.80   0.0850644
    AKRO  HT    0.1 200  MLv     0.80 -0.23    0.31577
    THR9  HT    0.1 220  MLv     0.96 -0.07    1.48162
