Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2024-09-21 14:03:02 (GMT)
Πανεπιστήμιο Αθηνών - Εργαστήριο Σεισμολογίας
+−
10 km
5 mi
Leaflet | Tiles © Esri
 Μέγεθος
 M 2.9
 Γεωγρ. Πλάτος
 36.6225° Β
 Γεωγρ. Μήκος
 25.5675° Α
 Εστιακό Βάθος
 21 χμ
 Αρ. αφίξεων
 34
 Επίκεντρο 25.8 χμ ΒΒΑ της Θήρας
56.3 χμ ΝΝΑ της Νάξου
221.8 χμ ΝΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

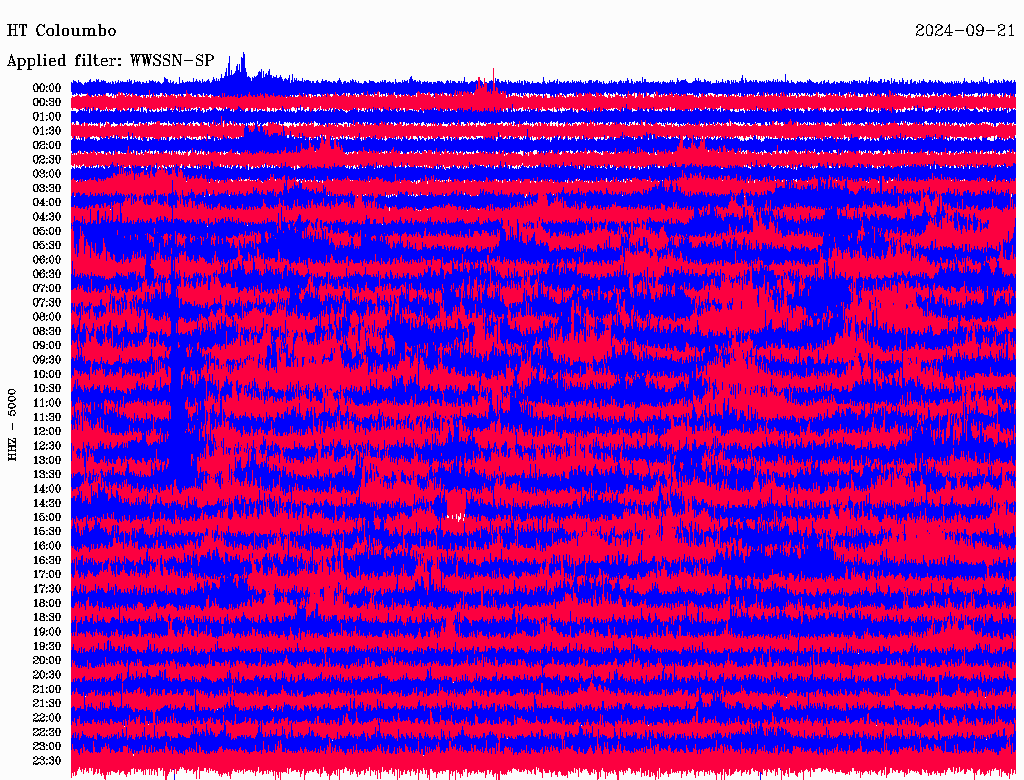

CMBOHT22.2221 P14:03:06.90 0.21.0M
CMBOHT22.2221 S14:03:10.84 0.21.0M
THR2HT22.8211 P14:03:06.87 0.11.0M
THR2HT22.8211 S14:03:10.68 -0.11.0M
THERAHL29.6196 P14:03:07.33 -0.31.0M
THERAHL29.6196 S14:03:11.96 -0.31.0M
APEHL50.2355 P14:03:10.01 -0.61.0M
APEHL50.2355 S14:03:17.00 -0.61.0M
NAX1HI56.0342 P14:03:11.45 0.01.0M
NAX1HI56.0342 S14:03:19.15 0.21.0M
SERIHA113.3302 P14:03:21.19 0.91.0M
SERIHA113.3302 S14:03:34.90 0.31.0M
NSR2HA141.8 92 P14:03:24.87 0.41.0M
NSR2HA141.8 92 S14:03:42.00 0.01.0M
IDIMN160.4202 P14:03:26.28 -0.61.0M
IDIMN160.4202 S14:03:45.65 -0.61.0M
SMGHL164.7 43 P14:03:27.20 -0.21.0M
SMGHL164.7 43 S14:03:46.42 -0.71.0M
KARYHA185.9327 P14:03:30.43 0.31.0M
KARYHA185.9327 S14:03:51.83 0.01.0M
ANKYHL219.9248 P14:03:34.75 0.21.0M
ANKYHL219.9248 S14:03:59.76 0.21.0M
KTHAHL227.8260 P14:03:35.93 0.41.0M
KTHAHL227.8260 S14:04:01.44 0.01.0M
VLIHL234.0273 P14:03:36.84 0.51.0M
VLIHL234.0273 S14:04:02.76 -0.11.0M

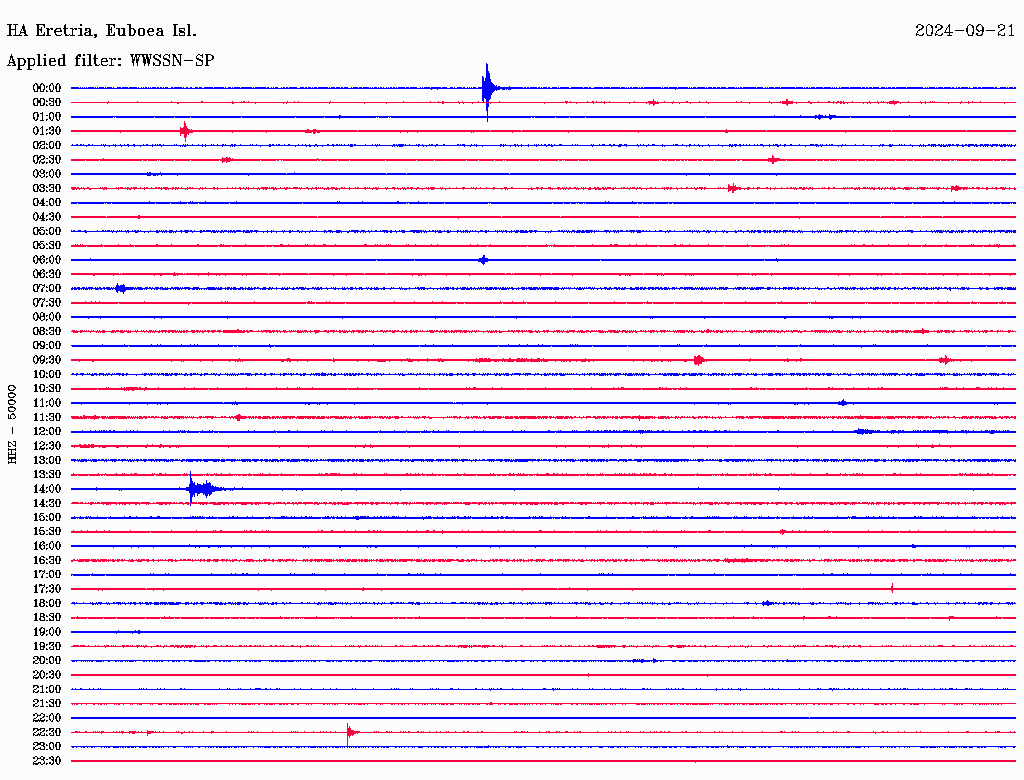

ERTRHA253.0322 P14:03:38.90 0.21.0M
ERTRHA253.0322 S14:04:06.95 0.01.0M
LTKHP277.7304 P14:03:42.41 0.51.0M
LTKHP277.7304 S14:04:12.55 -0.11.0M
MRKAHA289.8323 P14:03:43.72 0.21.0M
MRKAHA289.8323 S14:04:15.13 -0.21.0M
KLVHL340.9298 P14:03:50.39 0.21.0M
KLVHL340.9298 S14:04:26.67 -0.51.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2024spkq
    Description
      region name: Dodecanese Islands, Greece
Origin:
    Date                   2024-09-21
    Time                  14:03:01.50
    Latitude              36.6225 deg  +/-      0 km
    Longitude             25.5675 deg  +/-      0 km
    Depth                      21 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.34 s
    Azimuthal gap             104 deg

2 Network magnitudes:
    MLv       2.94 +/- 0.22  13
    M         2.94           13 preferred

34 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    CMBO  HT    0.2 221  P       14:03:06.90   0.2 M  1.0  CMBO
    CMBO  HT    0.2 221  S       14:03:10.84   0.2 M  1.0  CMBO
    THR2  HT    0.2 211  P       14:03:06.87   0.1 M  1.0  THR2
    THR2  HT    0.2 211  S       14:03:10.68  -0.1 M  1.0  THR2
    THERA HL    0.3 196  P       14:03:07.33  -0.3 M  1.0  THERA
    THERA HL    0.3 196  S       14:03:11.96  -0.3 M  1.0  THERA
    APE   HL    0.5 355  P       14:03:10.01  -0.6 M  1.0  APE
    APE   HL    0.5 355  S       14:03:17.00  -0.6 M  1.0  APE
    NAX1  HI    0.5 342  P       14:03:11.45   0.0 M  1.0  NAX1
    NAX1  HI    0.5 342  S       14:03:19.15   0.2 M  1.0  NAX1
    SERI  HA    1.0 302  P       14:03:21.19   0.9 M  1.0  SERI
    SERI  HA    1.0 302  S       14:03:34.90   0.3 M  1.0  SERI
    NSR2  HA    1.3  92  P       14:03:24.87   0.4 M  1.0  NSR2
    NSR2  HA    1.3  92  S       14:03:42.00   0.0 M  1.0  NSR2
    IDI   MN    1.4 202  P       14:03:26.28  -0.6 M  1.0  IDI
    IDI   MN    1.4 202  S       14:03:45.65  -0.6 M  1.0  IDI
    SMG   HL    1.5  43  P       14:03:27.20  -0.2 M  1.0  SMG
    SMG   HL    1.5  43  S       14:03:46.42  -0.7 M  1.0  SMG
    KARY  HA    1.7 327  P       14:03:30.43   0.3 M  1.0  KARY
    KARY  HA    1.7 327  S       14:03:51.83   0.0 M  1.0  KARY
    ANKY  HL    2.0 248  P       14:03:34.75   0.2 M  1.0  ANKY
    ANKY  HL    2.0 248  S       14:03:59.76   0.2 M  1.0  ANKY
    KTHA  HL    2.1 260  P       14:03:35.93   0.4 M  1.0  KTHA
    KTHA  HL    2.1 260  S       14:04:01.44  -0.0 M  1.0  KTHA
    VLI   HL    2.1 273  P       14:03:36.84   0.5 M  1.0  VLI
    VLI   HL    2.1 273  S       14:04:02.76  -0.1 M  1.0  VLI
    ERTR  HA    2.3 322  P       14:03:38.90   0.2 M  1.0  ERTR
    ERTR  HA    2.3 322  S       14:04:06.95  -0.0 M  1.0  ERTR
    LTK   HP    2.5 304  P       14:03:42.41   0.5 M  1.0  LTK
    LTK   HP    2.5 304  S       14:04:12.55  -0.1 M  1.0  LTK
    MRKA  HA    2.6 323  P       14:03:43.72   0.2 M  1.0  MRKA
    MRKA  HA    2.6 323  S       14:04:15.13  -0.2 M  1.0  MRKA
    KLV   HL    3.1 298  P       14:03:50.39   0.2 M  1.0  KLV
    KLV   HL    3.1 298  S       14:04:26.67  -0.5 M  1.0  KLV

17 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    CMBO  HT    0.2 221  MLv     2.50 -0.45     6.9558
    THR2  HT    0.2 211  MLv     2.69 -0.26    23.9545
    THERA HL    0.3 196  MLv     2.28 -0.66    2.78632
    APE   HL    0.5 355  MLv     2.94 -0.00    3.87361
    NAX1  HI    0.5 342  MLv     3.27  0.33    5.91083
    SERI  HA    1.0 302  MLv     3.13  0.19    1.83911
    NSR2  HA    1.3  92  MLv     3.45  0.51    2.76592
    IDI   MN    1.4 202  MLv     2.78 -0.16   0.481399
    SMG   HL    1.5  43  MLv     2.81 -0.13   0.485286
    KARY  HA    1.7 327  MLv     3.23  0.28   0.994019
    ANKY  HL    2.0 248  MLv     2.95  0.01   0.358752
    KTHA  HL    2.1 260  MLv     2.96  0.02   0.331435
    VLI   HL    2.1 273  MLv     2.88 -0.07   0.329367
    ERTR  HA    2.3 322  MLv     2.94  0.00   0.239547
    LTK   HP    2.5 304  MLv     2.47 -0.47   0.230065
    MRKA  HA    2.6 323  MLv     3.17  0.23   0.264638
    KLV   HL    3.1 298  MLv     3.30  0.35   0.149145
