Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2024-09-18 17:45:08 (GMT)
Πανεπιστήμιο Αθηνών - Εργαστήριο Σεισμολογίας
+−
10 km
5 mi
Leaflet | Tiles © Esri
 Μέγεθος
 M 1.4
 Γεωγρ. Πλάτος
 36.4260° Β
 Γεωγρ. Μήκος
 25.4242° Α
 Εστιακό Βάθος
 5 χμ
 Αρ. αφίξεων
 24
 Επίκεντρο 1.3 χμ ΒΔ της Θήρας
75.7 χμ Ν της Νάξου
228.9 χμ ΝΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
SNT1HA1.2162 P17:45:09.40 0.01.0M
SNT1HA1.2162 S17:45:10.21 0.01.0M
THR2HT2.5 24 P17:45:09.59 0.01.0M
THR2HT2.5 24 S17:45:10.61 0.11.0M
THR3HT2.8228 P17:45:09.66 0.11.0M
THR3HT2.8228 S17:45:10.73 0.31.0M
SFR2HI3.2157 P17:45:09.41 -0.21.0M
SFR2HI3.2157 S17:45:10.67 0.11.0M

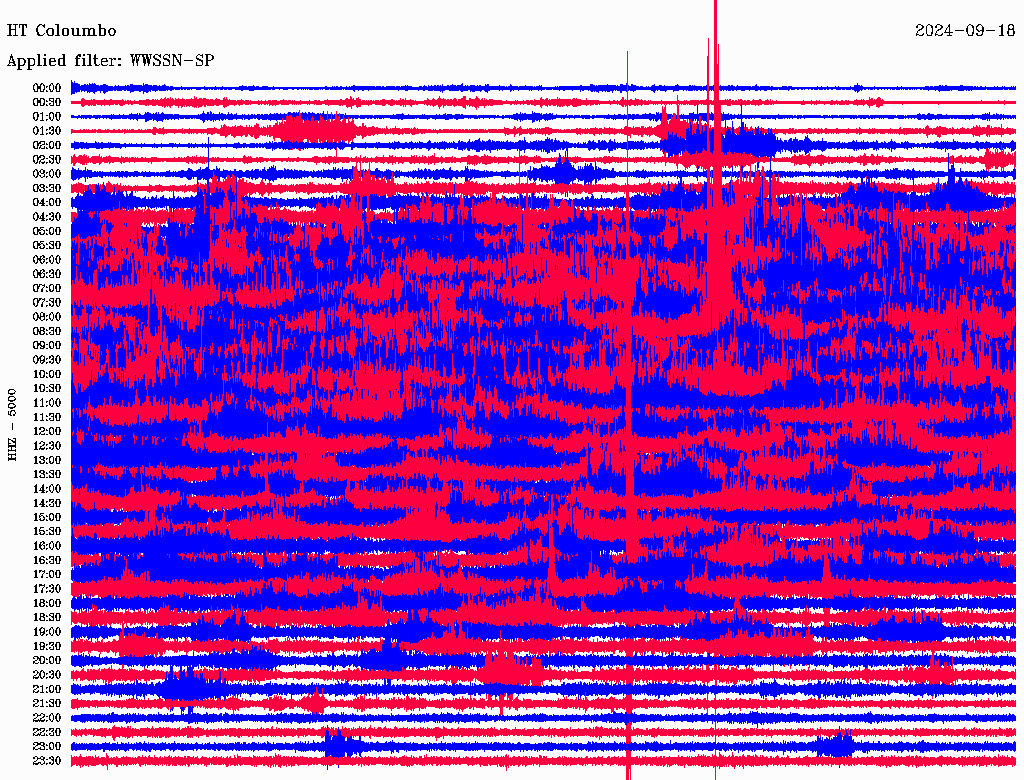

CMBOHT5.3341 P17:45:09.94 0.11.0M
CMBOHT5.3341 S17:45:10.78 -0.21.0M
THR8HT5.3114 P17:45:10.07 0.21.0M
THR8HT5.3114 S17:45:10.73 -0.31.0M
THR5HT6.9262 P17:45:10.20 0.11.0M
THR5HT6.9262 S17:45:11.35 -0.11.0M
SANTHL6.9153 P17:45:10.26 0.11.0M
SANTHL6.9153 S17:45:11.51 0.01.0M
AKROHT7.9198 P17:45:09.81 -0.51.0M
AKROHT7.9198 S17:45:11.82 0.11.0M
THERAHL8.0145 P17:45:10.39 0.11.0M
THERAHL8.0145 S17:45:11.57 -0.21.0M

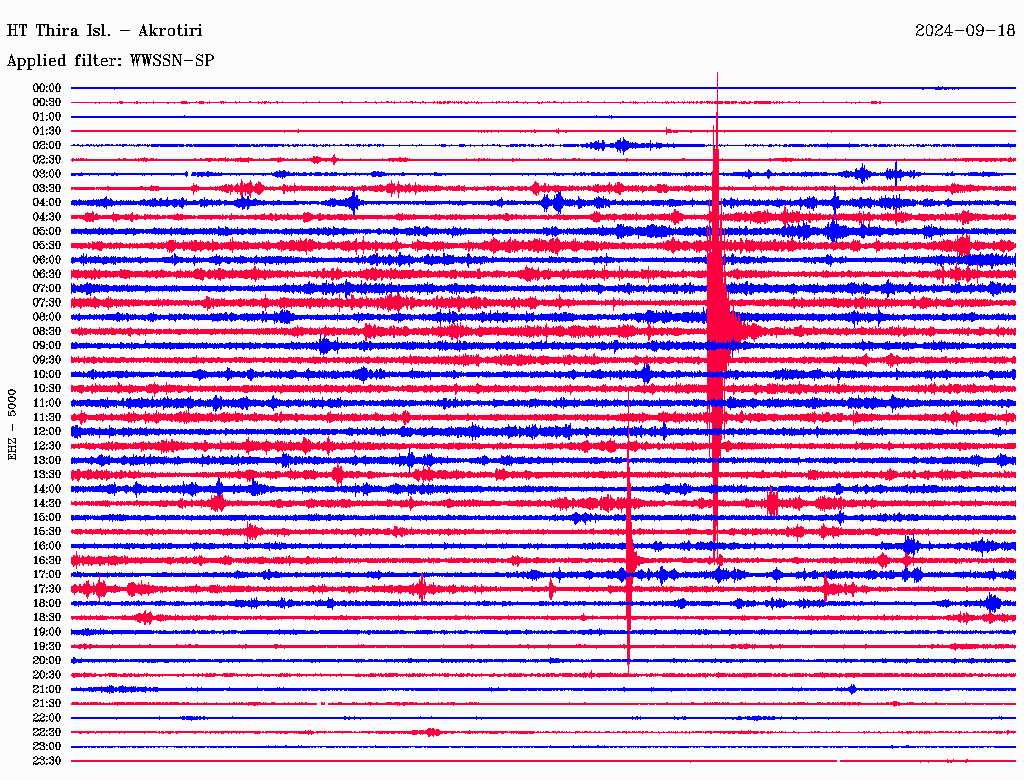

THR6HT8.1197 P17:45:10.44 0.11.0M
THR6HT8.1197 S17:45:11.71 -0.11.0M

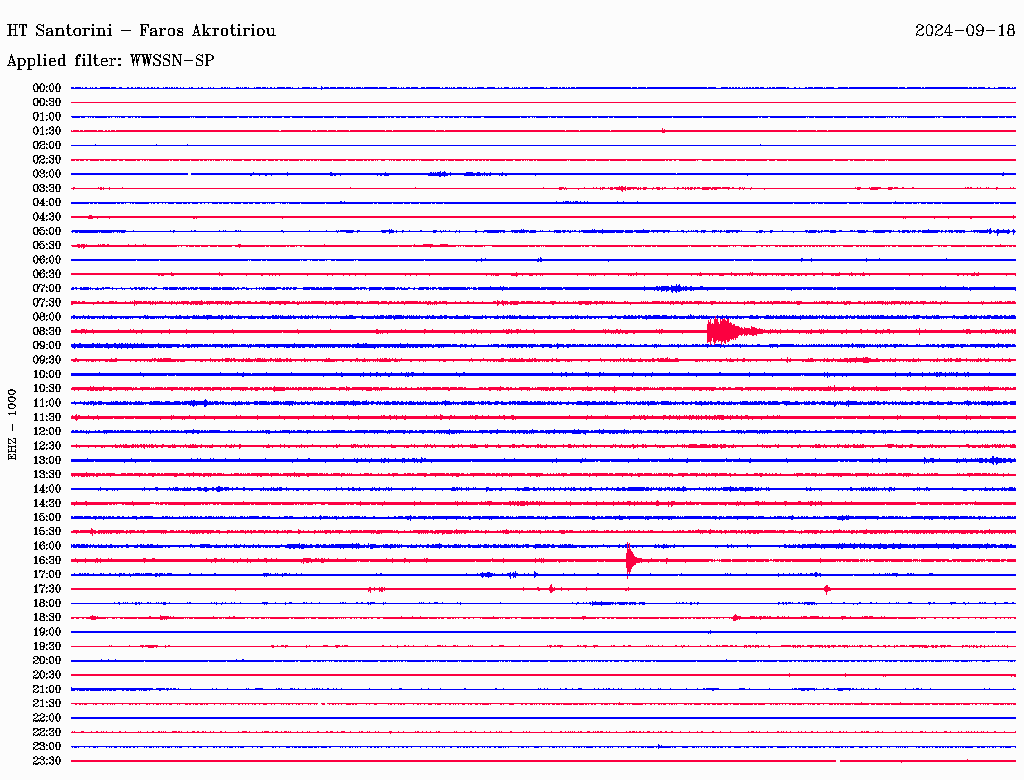

THR9HT9.7219 P17:45:10.76 0.21.0M
THR9HT9.7219 S17:45:12.19 0.01.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2024skfl
    Description
      region name: Dodecanese Islands, Greece
Origin:
    Date                   2024-09-18
    Time                  17:45:08.40
    Latitude              36.4260 deg  +/-      0 km
    Longitude             25.4242 deg  +/-      0 km
    Depth                       5 km   +/-    0 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.13 s
    Azimuthal gap              90 deg

2 Network magnitudes:
    MLv       1.40 +/- 0.29  10
    M         1.40           10 preferred

24 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    SNT1  HA    0.0 162  P       17:45:09.40  -0.0 M  1.0  SNT1
    SNT1  HA    0.0 162  S       17:45:10.21  -0.0 M  1.0  SNT1
    THR2  HT    0.0  24  P       17:45:09.59   0.0 M  1.0  THR2
    THR2  HT    0.0  24  S       17:45:10.61   0.1 M  1.0  THR2
    THR3  HT    0.0 228  P       17:45:09.66   0.1 M  1.0  THR3
    THR3  HT    0.0 228  S       17:45:10.73   0.3 M  1.0  THR3
    SFR2  HI    0.0 157  P       17:45:09.41  -0.2 M  1.0  SFR2
    SFR2  HI    0.0 157  S       17:45:10.67   0.1 M  1.0  SFR2
    CMBO  HT    0.0 341  P       17:45:09.94   0.1 M  1.0  CMBO
    CMBO  HT    0.0 341  S       17:45:10.78  -0.2 M  1.0  CMBO
    THR8  HT    0.0 114  P       17:45:10.07   0.2 M  1.0  THR8
    THR8  HT    0.0 114  S       17:45:10.73  -0.3 M  1.0  THR8
    SANT  HL    0.1 153  P       17:45:10.26   0.1 M  1.0  SANT
    SANT  HL    0.1 153  S       17:45:11.51  -0.0 M  1.0  SANT
    THR5  HT    0.1 262  P       17:45:10.20   0.1 M  1.0  THR5
    THR5  HT    0.1 262  S       17:45:11.35  -0.1 M  1.0  THR5
    AKRO  HT    0.1 198  P       17:45:09.81  -0.5 M  1.0  AKRO
    AKRO  HT    0.1 198  S       17:45:11.82   0.1 M  1.0  AKRO
    THERA HL    0.1 145  P       17:45:10.39   0.1 M  1.0  THERA
    THERA HL    0.1 145  S       17:45:11.57  -0.2 M  1.0  THERA
    THR6  HT    0.1 197  P       17:45:10.44   0.1 M  1.0  THR6
    THR6  HT    0.1 197  S       17:45:11.71  -0.1 M  1.0  THR6
    THR9  HT    0.1 219  P       17:45:10.76   0.2 M  1.0  THR9
    THR9  HT    0.1 219  S       17:45:12.19  -0.0 M  1.0  THR9

12 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    SNT1  HA    0.0 162  MLv     1.19 -0.21   0.765605
    THR2  HT    0.0  24  MLv     2.19  0.79    24.5201
    THR3  HT    0.0 228  MLv     1.56  0.15    6.38253
    SFR2  HI    0.0 157  MLv     1.49  0.09    2.03322
    CMBO  HT    0.0 341  MLv     1.49  0.09    1.81224
    THR8  HT    0.0 114  MLv     0.95 -0.45    1.20439
    SANT  HL    0.1 153  MLv     3.39  1.99    99.0757
    THR5  HT    0.1 262  MLv     1.68  0.27    19.6519
    AKRO  HT    0.1 198  MLv     1.14 -0.27   0.690249
    THERA HL    0.1 145  MLv     0.61 -0.79   0.206088
    THR6  HT    0.1 197  MLv     1.28 -0.12    1.70251
    THR9  HT    0.1 219  MLv     1.23 -0.18    2.78026
