Πληροφορίες Σεισμού
 Χρόνος Γένεσης
2024-03-29 07:12:50 (GMT)
 Μέγεθος
M 5.7
 Γεωγρ. Πλάτος
37.2442° Β
 Γεωγρ. Μήκος
21.2358° Α
 Εστιακό Βάθος
23 χμ
 Αρ. αφίξεων
94
 Επίκεντρο 52.4 χμ ΝΝΔ του Πύργου
62.9 χμ ΒΔ της Μεθώνης
234.8 χμ ΔΝΔ της Αθήνας
 Τύπος Λύσης
Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
QuakeML  GSE2.0  Alert  .phi  ShakeMap

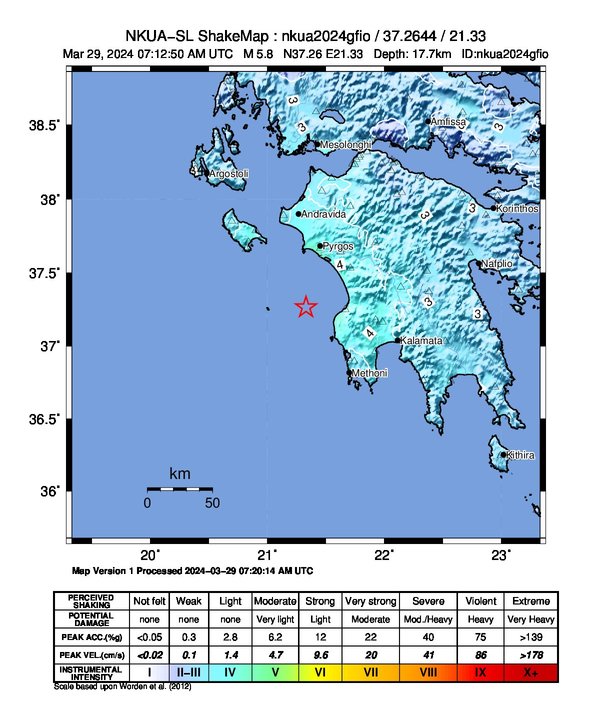

  Χάρτης εντάσεως

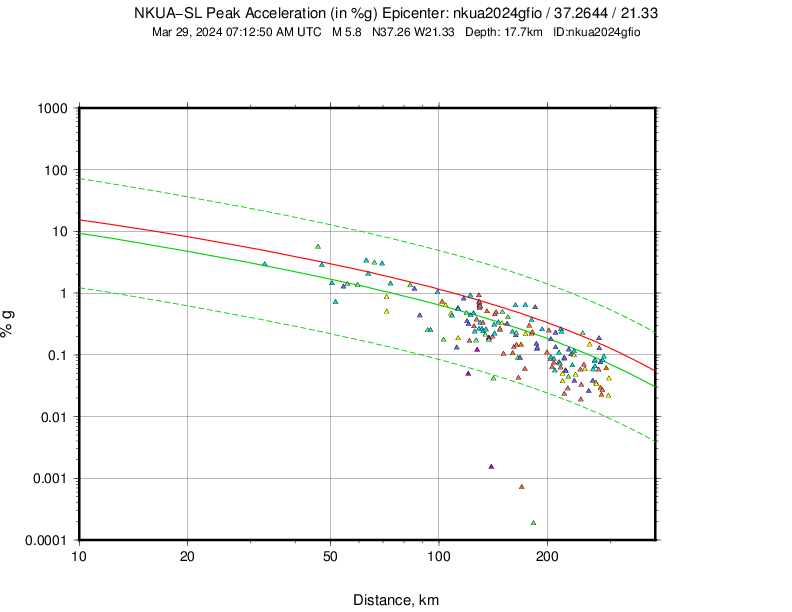

PGA

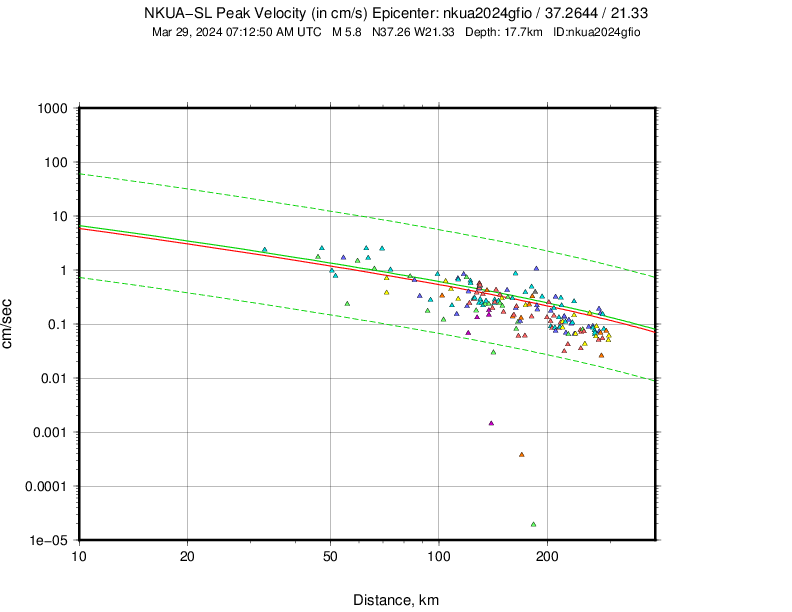

PGV

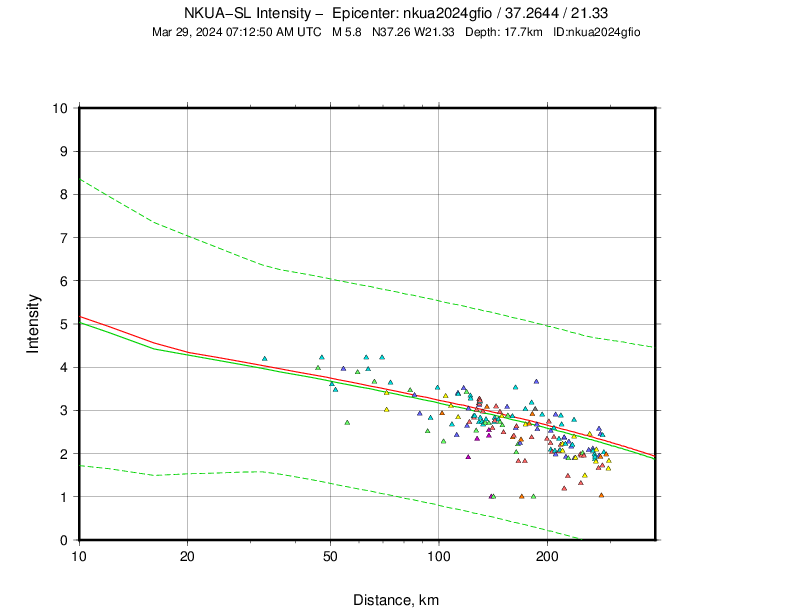

MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
AMTHP52.7 53 P07:12:59.47 -0.31.0M
AMTHP52.7 53 S07:13:07.71 0.71.0M
PYL1HI54.8132 P07:12:59.67 -0.31.0M
PYL1HI54.8132 S07:13:08.38 0.91.0M
PYLHP59.3131 P07:13:00.42 -0.31.0M
PYLHP59.3131 S07:13:09.44 0.71.0M
KRI1HI59.4321 P07:13:00.29 -0.41.0M
KRI1HI59.4321 S07:13:09.39 0.71.0M
LTHKHP62.6326 P07:13:00.87 -0.31.0M
LTHKHP62.6326 S07:13:10.05 0.51.0M
VALYHP66.8 98 P07:13:01.54 -0.31.0M
VALYHP66.8 98 S07:13:11.16 0.51.0M
GR281Y72.3353 P07:13:02.12 -0.51.0M
GR281Y72.3353 S07:13:12.23 0.11.0M
ORTHHL82.6325 P07:13:03.48 -0.81.0M
ORTHHL82.6325 S07:13:15.19 0.21.0M
DROHP89.2 28 P07:13:04.59 -0.61.0M
DROHP89.2 28 S07:13:16.59 -0.11.0M
RLSHL92.5 13 P07:13:05.07 -0.61.0M
RLSHL92.5 13 S07:13:17.83 0.31.0M
RTZLHT101.1336 P07:13:06.14 -0.91.0M
RTZLHT101.1336 S07:13:20.34 0.51.0M
VLXHP102.1 82 P07:13:06.79 -0.51.0M
VLXHP102.1 82 S07:13:20.58 0.21.0M
GR331Y111.3119 P07:13:08.68 0.01.0M
GR331Y111.3119 S07:13:23.26 0.61.0M
GR311Y116.3102 P07:13:09.24 -0.21.0M
GR311Y116.3102 S07:13:23.93 -0.21.0M
KLV1HI116.5 41 P07:13:08.52 -0.91.0M
KLV1HI116.5 41 S07:13:23.91 -0.31.0M
KLVHL119.9 42 P07:13:09.05 -0.91.0M
KLVHL119.9 42 S07:13:24.69 -0.41.0M
GR301Y122.5 75 P07:13:10.10 -0.31.0M
GR301Y122.5 75 S07:13:25.75 0.01.0M
PATCHL122.9 22 P07:13:10.42 0.11.0M
PATCHL122.9 22 S07:13:25.67 0.01.0M
UPRHP125.3 23 P07:13:10.76 0.11.0M
UPRHP125.3 23 S07:13:26.29 -0.11.0M
MSL1HI126.6 8 P07:13:10.74 -0.11.0M
MSL1HI126.6 8 S07:13:27.11 0.51.0M
LX20HA127.2326 P07:13:10.81 -0.21.0M
LX20HA127.2326 S07:13:27.27 0.41.0M
LX12HA127.6327 P07:13:10.99 0.01.0M
LX12HA127.6327 S07:13:27.48 0.61.0M
LX22HA127.6326 P07:13:11.08 0.01.0M
LX22HA127.6326 S07:13:27.50 0.61.0M
LX17HA127.7326 P07:13:11.29 0.21.0M
LX17HA127.7326 S07:13:27.41 0.41.0M
LX24HA127.8327 P07:13:10.91 -0.21.0M
LX24HA127.8327 S07:13:27.44 0.51.0M
AIOACL128.0 35 P07:13:10.63 -0.51.0M
AIOACL128.0 35 S07:13:27.18 0.11.0M
LX15HA128.2327 P07:13:11.10 0.01.0M
LX15HA128.2327 S07:13:27.15 0.11.0M
LAKAHA128.6 31 P07:13:10.86 -0.41.0M
LAKAHA128.6 31 S07:13:27.13 -0.11.0M
HAVDHA130.3325 P07:13:10.86 -0.61.0M
HAVDHA130.3325 S07:13:27.99 0.41.0M
PLEVHP130.8 7 P07:13:11.10 -0.31.0M
PLEVHP130.8 7 S07:13:27.80 0.11.0M
DMLNHT134.1325 P07:13:11.83 -0.11.0M
DMLNHT134.1325 S07:13:28.84 0.31.0M
AGEOCL134.8 33 P07:13:11.73 -0.21.0M
AGEOCL134.8 33 S07:13:28.73 0.21.0M
ARS1HI138.8 72 P07:13:12.47 -0.11.0M
ARS1HI138.8 72 S07:13:29.66 0.11.0M
ATHRHA139.4329 P07:13:12.41 -0.21.0M
ATHRHA139.4329 S07:13:30.04 0.41.0M
MALACL139.5 24 P07:13:12.80 0.21.0M
MALACL139.5 24 S07:13:29.86 0.31.0M
VVKHP140.4 21 P07:13:12.62 -0.11.0M
VVKHP140.4 21 S07:13:30.03 0.01.0M
EFPHP144.1 24 P07:13:13.53 0.41.0M
EFPHP144.1 24 S07:13:31.11 0.51.0M
TRIZCL144.7 31 P07:13:13.23 0.01.0M
TRIZCL144.7 31 S07:13:31.26 0.51.0M
PYRGCL146.7 28 P07:13:13.92 0.31.0M
PYRGCL146.7 28 S07:13:31.30 -0.11.0M
FSKHP147.5336 P07:13:13.20 -0.41.0M
FSKHP147.5336 S07:13:31.10 -0.31.0M
KALEHA150.2 32 P07:13:14.13 0.11.0M
KALEHA150.2 32 S07:13:32.40 0.11.0M
THALHA153.4 55 P07:13:14.03 -0.41.0M
THALHA153.4 55 S07:13:33.28 0.41.0M
KIASHA157.2 58 P07:13:14.48 -0.41.0M
KIASHA157.2 58 S07:13:33.84 0.21.0M
GR321Y158.4101 P07:13:15.02 0.01.0M
GR321Y158.4101 S07:13:33.56 -0.41.0M
ACORHA160.9 64 P07:13:14.67 -0.81.0M
ACORHA160.9 64 S07:13:34.27 -0.41.0M
ANXHP161.6 22 P07:13:15.72 0.21.0M
ANXHP161.6 22 S07:13:34.91 0.11.0M
VLIHL162.9111 P07:13:15.88 0.21.0M
VLIHL162.9111 S07:13:35.48 0.41.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2024gfio
    Type                   earthquake
    Description
      region name: Southern Greece
Origin:
    Date                   2024-03-29
    Time                  07:12:50.14
    Latitude              37.2442 deg  +/-      0 km
    Longitude             21.2358 deg  +/-      0 km
    Depth                      23 km   +/-    0 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.38 s
    Azimuthal gap             189 deg

2 Network magnitudes:
    MLv       5.72 +/- 0.24  34
    M         5.72           34 preferred

94 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    AMT   HP    0.5  53  P       07:12:59.47  -0.3 M  1.0  AMT
    AMT   HP    0.5  53  S       07:13:07.71   0.7 M  1.0  AMT
    PYL1  HI    0.5 132  P       07:12:59.67  -0.3 M  1.0  PYL1
    PYL1  HI    0.5 132  S       07:13:08.38   0.9 M  1.0  PYL1
    KRI1  HI    0.5 321  P       07:13:00.29  -0.4 M  1.0  KRI1
    KRI1  HI    0.5 321  S       07:13:09.39   0.7 M  1.0  KRI1
    PYL   HP    0.5 131  P       07:13:00.42  -0.3 M  1.0  PYL
    PYL   HP    0.5 131  S       07:13:09.44   0.7 M  1.0  PYL
    LTHK  HP    0.6 326  P       07:13:00.87  -0.3 M  1.0  LTHK
    LTHK  HP    0.6 326  S       07:13:10.05   0.5 M  1.0  LTHK
    VALY  HP    0.6  98  P       07:13:01.54  -0.3 M  1.0  VALY
    VALY  HP    0.6  98  S       07:13:11.16   0.5 M  1.0  VALY
    GR28  1Y    0.6 353  P       07:13:02.12  -0.5 M  1.0  GR28
    GR28  1Y    0.6 353  S       07:13:12.23   0.1 M  1.0  GR28
    ORTH  HL    0.7 325  P       07:13:03.48  -0.8 M  1.0  ORTH
    ORTH  HL    0.7 325  S       07:13:15.19   0.2 M  1.0  ORTH
    DRO   HP    0.8  28  P       07:13:04.59  -0.6 M  1.0  DRO
    DRO   HP    0.8  28  S       07:13:16.59  -0.1 M  1.0  DRO
    RLS   HL    0.8  13  P       07:13:05.07  -0.6 M  1.0  RLS
    RLS   HL    0.8  13  S       07:13:17.83   0.3 M  1.0  RLS
    RTZL  HT    0.9 336  P       07:13:06.14  -0.9 M  1.0  RTZL
    RTZL  HT    0.9 336  S       07:13:20.34   0.5 M  1.0  RTZL
    VLX   HP    0.9  82  P       07:13:06.79  -0.5 M  1.0  VLX
    VLX   HP    0.9  82  S       07:13:20.58   0.2 M  1.0  VLX
    GR33  1Y    1.0 119  P       07:13:08.68   0.0 M  1.0  GR33
    GR33  1Y    1.0 119  S       07:13:23.26   0.6 M  1.0  GR33
    KLV1  HI    1.0  41  P       07:13:08.52  -0.9 M  1.0  KLV1
    KLV1  HI    1.0  41  S       07:13:23.91  -0.3 M  1.0  KLV1
    GR31  1Y    1.0 102  P       07:13:09.24  -0.2 M  1.0  GR31
    GR31  1Y    1.0 102  S       07:13:23.93  -0.2 M  1.0  GR31
    KLV   HL    1.1  42  P       07:13:09.05  -0.9 M  1.0  KLV
    KLV   HL    1.1  42  S       07:13:24.69  -0.4 M  1.0  KLV
    GR30  1Y    1.1  75  P       07:13:10.10  -0.3 M  1.0  GR30
    GR30  1Y    1.1  75  S       07:13:25.75  -0.0 M  1.0  GR30
    PATC  HL    1.1  22  P       07:13:10.42   0.1 M  1.0  PATC
    PATC  HL    1.1  22  S       07:13:25.67  -0.0 M  1.0  PATC
    UPR   HP    1.1  23  P       07:13:10.76   0.1 M  1.0  UPR
    UPR   HP    1.1  23  S       07:13:26.29  -0.1 M  1.0  UPR
    MSL1  HI    1.1   8  P       07:13:10.74  -0.1 M  1.0  MSL1
    MSL1  HI    1.1   8  S       07:13:27.11   0.5 M  1.0  MSL1
    LX20  HA    1.1 326  P       07:13:10.81  -0.2 M  1.0  LX20
    LX20  HA    1.1 326  S       07:13:27.27   0.4 M  1.0  LX20
    LX12  HA    1.1 327  P       07:13:10.99  -0.0 M  1.0  LX12
    LX12  HA    1.1 327  S       07:13:27.48   0.6 M  1.0  LX12
    LX22  HA    1.1 326  P       07:13:11.08   0.0 M  1.0  LX22
    LX22  HA    1.1 326  S       07:13:27.50   0.6 M  1.0  LX22
    LX17  HA    1.1 326  P       07:13:11.29   0.2 M  1.0  LX17
    LX17  HA    1.1 326  S       07:13:27.41   0.4 M  1.0  LX17
    LX24  HA    1.1 327  P       07:13:10.91  -0.2 M  1.0  LX24
    LX24  HA    1.1 327  S       07:13:27.44   0.5 M  1.0  LX24
    AIOA  CL    1.2  35  P       07:13:10.63  -0.5 M  1.0  AIOA
    AIOA  CL    1.2  35  S       07:13:27.18   0.1 M  1.0  AIOA
    LX15  HA    1.2 327  P       07:13:11.10  -0.0 M  1.0  LX15
    LX15  HA    1.2 327  S       07:13:27.15   0.1 M  1.0  LX15
    LAKA  HA    1.2  31  P       07:13:10.86  -0.4 M  1.0  LAKA
    LAKA  HA    1.2  31  S       07:13:27.13  -0.1 M  1.0  LAKA
    HAVD  HA    1.2 325  P       07:13:10.86  -0.6 M  1.0  HAVD
    HAVD  HA    1.2 325  S       07:13:27.99   0.4 M  1.0  HAVD
    PLEV  HP    1.2   7  P       07:13:11.10  -0.3 M  1.0  PLEV
    PLEV  HP    1.2   7  S       07:13:27.80   0.1 M  1.0  PLEV
    DMLN  HT    1.2 325  P       07:13:11.83  -0.1 M  1.0  DMLN
    DMLN  HT    1.2 325  S       07:13:28.84   0.3 M  1.0  DMLN
    AGEO  CL    1.2  33  P       07:13:11.73  -0.2 M  1.0  AGEO
    AGEO  CL    1.2  33  S       07:13:28.73   0.2 M  1.0  AGEO
    ARS1  HI    1.3  72  P       07:13:12.47  -0.1 M  1.0  ARS1
    ARS1  HI    1.3  72  S       07:13:29.66   0.1 M  1.0  ARS1
    ATHR  HA    1.3 329  P       07:13:12.41  -0.2 M  1.0  ATHR
    ATHR  HA    1.3 329  S       07:13:30.04   0.4 M  1.0  ATHR
    MALA  CL    1.3  24  P       07:13:12.80   0.2 M  1.0  MALA
    MALA  CL    1.3  24  S       07:13:29.86   0.3 M  1.0  MALA
    VVK   HP    1.3  21  P       07:13:12.62  -0.1 M  1.0  VVK
    VVK   HP    1.3  21  S       07:13:30.03   0.0 M  1.0  VVK
    EFP   HP    1.3  24  P       07:13:13.53   0.4 M  1.0  EFP
    EFP   HP    1.3  24  S       07:13:31.11   0.5 M  1.0  EFP
    TRIZ  CL    1.3  31  P       07:13:13.23  -0.0 M  1.0  TRIZ
    TRIZ  CL    1.3  31  S       07:13:31.26   0.5 M  1.0  TRIZ
    PYRG  CL    1.3  28  P       07:13:13.92   0.3 M  1.0  PYRG
    PYRG  CL    1.3  28  S       07:13:31.30  -0.1 M  1.0  PYRG
    FSK   HP    1.3 336  P       07:13:13.20  -0.4 M  1.0  FSK
    FSK   HP    1.3 336  S       07:13:31.10  -0.3 M  1.0  FSK
    KALE  HA    1.4  32  P       07:13:14.13   0.1 M  1.0  KALE
    KALE  HA    1.4  32  S       07:13:32.40   0.1 M  1.0  KALE
    THAL  HA    1.4  55  P       07:13:14.03  -0.4 M  1.0  THAL
    THAL  HA    1.4  55  S       07:13:33.28   0.4 M  1.0  THAL
    KIAS  HA    1.4  58  P       07:13:14.48  -0.4 M  1.0  KIAS
    KIAS  HA    1.4  58  S       07:13:33.84   0.2 M  1.0  KIAS
    GR32  1Y    1.4 101  P       07:13:15.02  -0.0 M  1.0  GR32
    GR32  1Y    1.4 101  S       07:13:33.56  -0.4 M  1.0  GR32
    ACOR  HA    1.5  64  P       07:13:14.67  -0.8 M  1.0  ACOR
    ACOR  HA    1.5  64  S       07:13:34.27  -0.4 M  1.0  ACOR
    ANX   HP    1.5  22  P       07:13:15.72   0.2 M  1.0  ANX
    ANX   HP    1.5  22  S       07:13:34.91   0.1 M  1.0  ANX
    VLI   HL    1.5 111  P       07:13:15.88   0.2 M  1.0  VLI
    VLI   HL    1.5 111  S       07:13:35.48   0.4 M  1.0  VLI

47 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    AMT   HP    0.5  53  MLv     5.93  0.20    3231.07
    PYL1  HI    0.5 132  MLv     5.52 -0.21    1115.28
    KRI1  HI    0.5 321  MLv     6.03  0.31    2816.18
    PYL   HP    0.5 131  MLv     6.02  0.30    1093.78
    LTHK  HP    0.6 326  MLv     5.81  0.09    1569.92
    VALY  HP    0.6  98  MLv     6.01  0.29    2391.31
    GR28  1Y    0.6 353  MLv     5.52 -0.20    720.635
    ORTH  HL    0.7 325  MLv     5.66 -0.06    886.931
    DRO   HP    0.8  28  MLv     5.57 -0.15    1394.13
    RLS   HL    0.8  13  MLv     5.62 -0.10    721.194
    RTZL  HT    0.9 336  MLv     5.45 -0.28    438.684
    VLX   HP    0.9  82  MLv     5.44 -0.28    426.339
    GR33  1Y    1.0 119  MLv     5.95  0.23    1253.26
    KLV1  HI    1.0  41  MLv     5.74  0.01    714.168
    GR31  1Y    1.0 102  MLv     6.05  0.33    1471.01
    KLV   HL    1.1  42  MLv     5.89  0.16    735.295
    GR30  1Y    1.1  75  MLv     5.67 -0.06    568.236
    PATC  HL    1.1  22  MLv     6.06  0.34    1403.45
    UPR   HP    1.1  23  MLv     5.10 -0.62    1716.16
    MSL1  HI    1.1   8  MLv     6.08  0.36     1408.3
    LX20  HA    1.1 326  MLv     5.96  0.23    1047.02
    LX12  HA    1.1 327  MLv     6.14  0.42    1597.18
    LX22  HA    1.1 326  MLv     6.04  0.31    1258.52
    LX17  HA    1.1 326  MLv     6.01  0.29    1185.76
    LX24  HA    1.1 327  MLv     6.07  0.34    1344.36
    AIOA  CL    1.2  35  MLv     5.83  0.10     198.54
    LX15  HA    1.2 327  MLv     6.06  0.34    1324.51
    LAKA  HA    1.2  31  MLv     5.66 -0.06    521.875
    HAVD  HA    1.2 325  MLv     5.53 -0.20    377.507
    PLEV  HP    1.2   7  MLv     5.55 -0.17    395.708
    DMLN  HT    1.2 325  MLv     5.65 -0.07     658.29
    AGEO  CL    1.2  33  MLv     6.19  0.47    475.294
    ARS1  HI    1.3  72  MLv     5.85  0.12    714.532
    ATHR  HA    1.3 329  MLv     5.62 -0.11    418.175
    MALA  CL    1.3  24  MLv     5.74  0.02    432.195
    VVK   HP    1.3  21  MLv     4.87 -0.85    348.159
    EFP   HP    1.3  24  MLv     5.52 -0.21    314.565
    TRIZ  CL    1.3  31  MLv     5.44 -0.28    261.618
    PYRG  CL    1.3  28  MLv     3.34 -2.38     1.2854
    FSK   HP    1.3 336  MLv     5.68 -0.04    440.249
    KALE  HA    1.4  32  MLv     5.57 -0.15    333.074
    THAL  HA    1.4  55  MLv     5.67 -0.06    708.315
    KIAS  HA    1.4  58  MLv     6.08  0.36    989.164
    GR32  1Y    1.4 101  MLv     5.81  0.08    518.875
    ACOR  HA    1.5  64  MLv     5.64 -0.08     344.62
    ANX   HP    1.5  22  MLv     5.83  0.10     523.05
    VLI   HL    1.5 111  MLv     5.92  0.19    818.233
