Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2022-12-26 10:02:13 (GMT)
 Μέγεθος
 M 3.7
 Γεωγρ. Πλάτος
 38.2142° Β
 Γεωγρ. Μήκος
 24.2638° Α
 Εστιακό Βάθος
 8 χμ
 Αρ. αφίξεων
 28
 Επίκεντρο 53.0 χμ ΑΒΑ της Αθήνας
64.2 χμ ΑΝΑ της Χαλκίδας
72.3 χμ ΒΔ της Ανδρου
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Μηχ.Γέν.

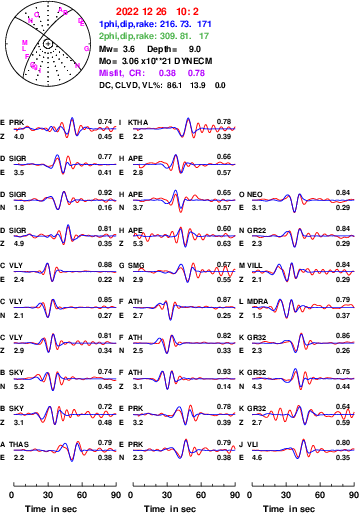

  Μηχανισμός Γένεσης

Μηχ.Γεν. Παράταξη (°) Κλίση (°) Γων.Ολίσθ. (°) Σεισμ.Ροπή (dyn*cm)
21673171 3.06E+21

Γεωγρ.Πλάτος (°Β) Γεωγρ.Μήκος (°Α) Βάθος (χμ) Μέγεθος Mw
38.204724.24219.03.6

Υπολογισμός εστιακών παραμέτρων

Κλικ εδώ για λεπτομέρειες μηχανισμού γένεσης


  Χάρτης εντάσεως

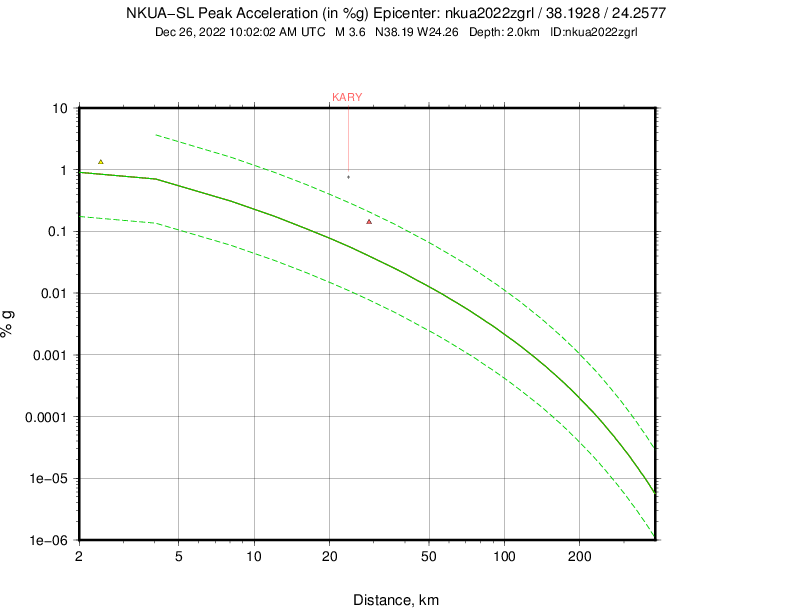

PGA
 PGV
 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
GR271Y4.4217 P10:02:14.72 0.21.0M
GR271Y4.4217 S10:02:16.04 0.11.0M
KARYHA25.3143 P10:02:17.77 0.21.0M
KARYHA25.3143 S10:02:21.09 -0.21.0M
MRTHHA30.0250 P10:02:18.34 0.01.0M
MRTHHA30.0250 S10:02:22.47 -0.21.0M
NOACHL54.8241 P10:02:22.44 0.01.0M
NOACHL54.8241 S10:02:29.42 -0.41.0M
ATHHL54.8241 P10:02:22.43 0.01.0M
ATHHL54.8241 S10:02:29.34 -0.51.0M
STFNHA63.0266 P10:02:23.74 -0.11.0M
STFNHA63.0266 S10:02:31.98 -0.31.0M
THI1HL78.3284 P10:02:26.37 0.11.0M
THI1HL78.3284 S10:02:36.45 -0.11.0M
THIVHA81.9277 P10:02:26.81 -0.11.0M
THIVHA81.9277 S10:02:37.77 0.11.0M
THVAHL82.0279 P10:02:26.55 -0.31.0M
THVAHL82.0279 S10:02:37.72 0.11.0M
AMPEHA87.4276 P10:02:27.58 -0.21.0M
AMPEHA87.4276 S10:02:39.73 0.51.0M
AOS2HT110.0341 P10:02:31.55 0.31.0M
AOS2HT110.0341 S10:02:45.07 -0.31.0M
LOUTHA115.6257 P10:02:32.93 0.71.0M
LOUTHA115.6257 S10:02:47.23 0.21.0M
ACORHA127.3254 P10:02:34.52 0.51.0M
ACORHA127.3254 S10:02:50.28 0.01.0M
KRNDHT134.6227 P10:02:35.24 0.21.0M
KRNDHT134.6227 S10:02:52.34 0.21.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2022zgrl
    Description
      region name: Aegean Sea
Origin:
    Date                   2022-12-26
    Time                  10:02:12.72
    Latitude              38.2142 deg  +/-      0 km
    Longitude             24.2638 deg  +/-      0 km
    Depth                       8 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.25 s
    Azimuthal gap             163 deg

2 Network magnitudes:
    MLv       3.73 +/- 0.28  11
    M         3.73           11 preferred

28 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    GR27  1Y    0.0 217  P       10:02:14.72   0.2 M  1.0  GR27
    GR27  1Y    0.0 217  S       10:02:16.04   0.1 M  1.0  GR27
    KARY  HA    0.2 143  P       10:02:17.77   0.2 M  1.0  KARY
    KARY  HA    0.2 143  S       10:02:21.09  -0.2 M  1.0  KARY
    MRTH  HA    0.3 250  P       10:02:18.34  -0.0 M  1.0  MRTH
    MRTH  HA    0.3 250  S       10:02:22.47  -0.2 M  1.0  MRTH
    ATH   HL    0.5 241  P       10:02:22.43   0.0 M  1.0  ATH
    ATH   HL    0.5 241  S       10:02:29.34  -0.5 M  1.0  ATH
    NOAC  HL    0.5 241  P       10:02:22.44   0.0 M  1.0  NOAC
    NOAC  HL    0.5 241  S       10:02:29.42  -0.4 M  1.0  NOAC
    STFN  HA    0.6 266  P       10:02:23.74  -0.1 M  1.0  STFN
    STFN  HA    0.6 266  S       10:02:31.98  -0.3 M  1.0  STFN
    THI1  HL    0.7 284  P       10:02:26.37   0.1 M  1.0  THI1
    THI1  HL    0.7 284  S       10:02:36.45  -0.1 M  1.0  THI1
    THIV  HA    0.7 277  P       10:02:26.81  -0.1 M  1.0  THIV
    THIV  HA    0.7 277  S       10:02:37.77   0.1 M  1.0  THIV
    THVA  HL    0.7 279  P       10:02:26.55  -0.3 M  1.0  THVA
    THVA  HL    0.7 279  S       10:02:37.72   0.1 M  1.0  THVA
    AMPE  HA    0.8 276  P       10:02:27.58  -0.2 M  1.0  AMPE
    AMPE  HA    0.8 276  S       10:02:39.73   0.5 M  1.0  AMPE
    AOS2  HT    1.0 341  P       10:02:31.55   0.3 M  1.0  AOS2
    AOS2  HT    1.0 341  S       10:02:45.07  -0.3 M  1.0  AOS2
    LOUT  HA    1.0 257  P       10:02:32.93   0.7 M  1.0  LOUT
    LOUT  HA    1.0 257  S       10:02:47.23   0.2 M  1.0  LOUT
    ACOR  HA    1.1 254  P       10:02:34.52   0.5 M  1.0  ACOR
    ACOR  HA    1.1 254  S       10:02:50.28   0.0 M  1.0  ACOR
    KRND  HT    1.2 227  P       10:02:35.24   0.2 M  1.0  KRND
    KRND  HT    1.2 227  S       10:02:52.34   0.2 M  1.0  KRND

14 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    GR27  1Y    0.0 217  MLv     3.47 -0.26    183.138
    KARY  HA    0.2 143  MLv     3.55 -0.18    65.1588
    MRTH  HA    0.3 250  MLv     3.91  0.18    115.059
    ATH   HL    0.5 241  MLv     3.61 -0.12    13.8098
    NOAC  HL    0.5 241  MLv     3.60 -0.13    13.5342
    STFN  HA    0.6 266  MLv     3.50 -0.23    7.59987
    THI1  HL    0.7 284  MLv     4.43  0.70    54.9932
    THIV  HA    0.7 277  MLv     3.67 -0.06    9.11363
    THVA  HL    0.7 279  MLv     4.43  0.70    52.8823
    AMPE  HA    0.8 276  MLv     3.44 -0.29     5.0268
    AOS2  HT    1.0 341  MLv     3.70 -0.03    7.13197
    LOUT  HA    1.0 257  MLv     4.00  0.27    13.2357
    ACOR  HA    1.1 254  MLv     3.56 -0.17    4.24126
    KRND  HT    1.2 227  MLv     3.51 -0.22    3.43472
