Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2022-11-29 20:06:40 (GMT)
 Μέγεθος
 M 5.0
 Γεωγρ. Πλάτος
 38.2145° Β
 Γεωγρ. Μήκος
 24.2368° Α
 Εστιακό Βάθος
 8 χμ
 Αρ. αφίξεων
 58
 Επίκεντρο 51.0 χμ ΑΒΑ της Αθήνας
62.1 χμ ΑΝΑ της Χαλκίδας
74.3 χμ ΒΔ της Ανδρου
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Μηχ.Γέν.

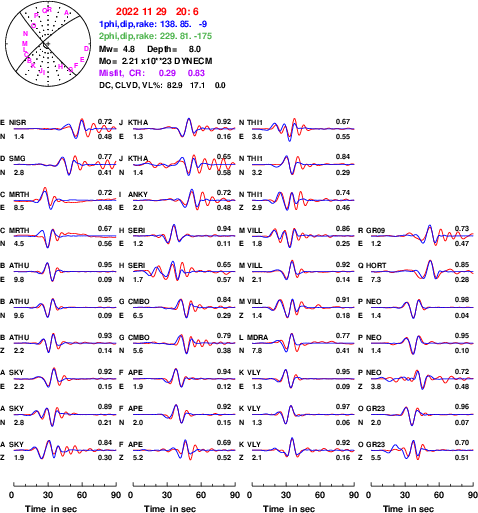

  Μηχανισμός Γένεσης

Μηχ.Γεν. Παράταξη (°) Κλίση (°) Γων.Ολίσθ. (°) Σεισμ.Ροπή (dyn*cm)
22981-175 2.21E+23

Γεωγρ.Πλάτος (°Β) Γεωγρ.Μήκος (°Α) Βάθος (χμ) Μέγεθος Mw
38.228224.22898.04.8

Υπολογισμός εστιακών παραμέτρων

Κλικ εδώ για λεπτομέρειες μηχανισμού γένεσης

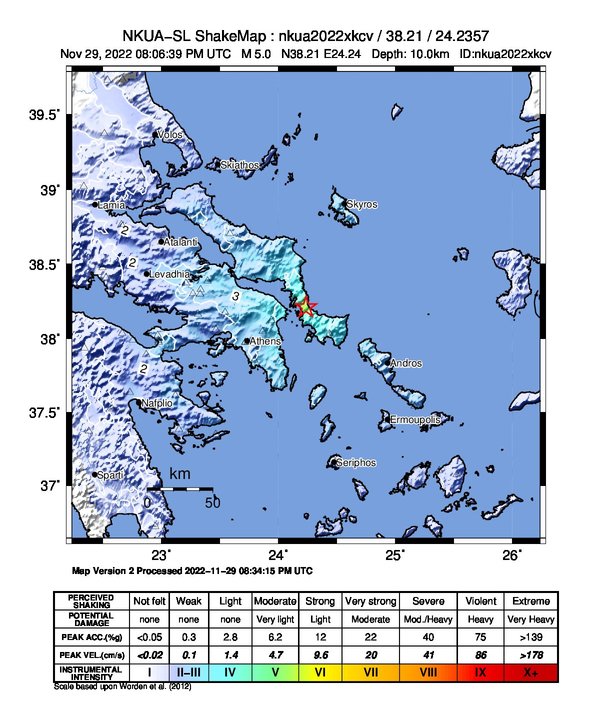

  Χάρτης εντάσεως

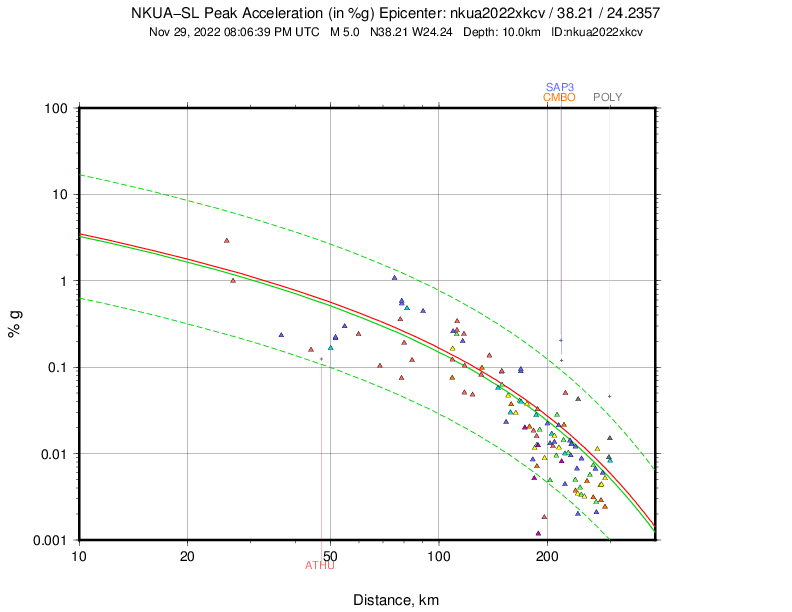

PGA

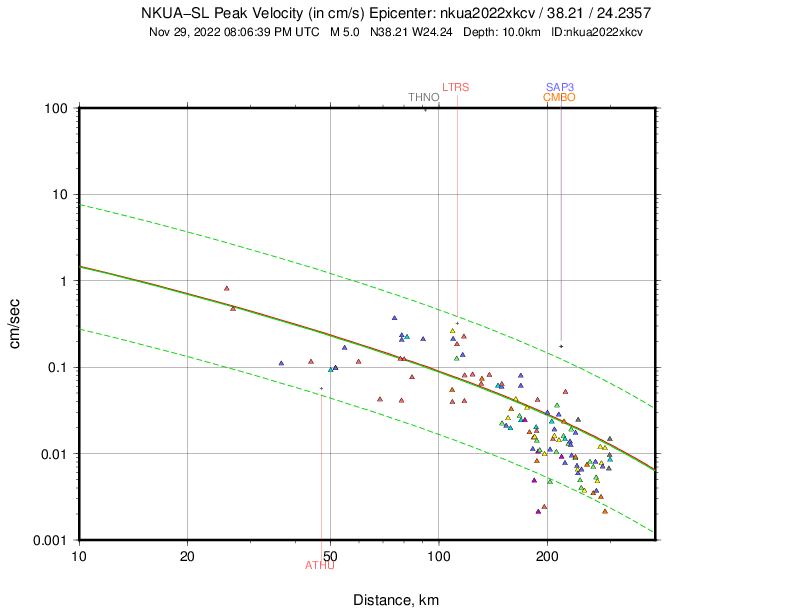

 PGV

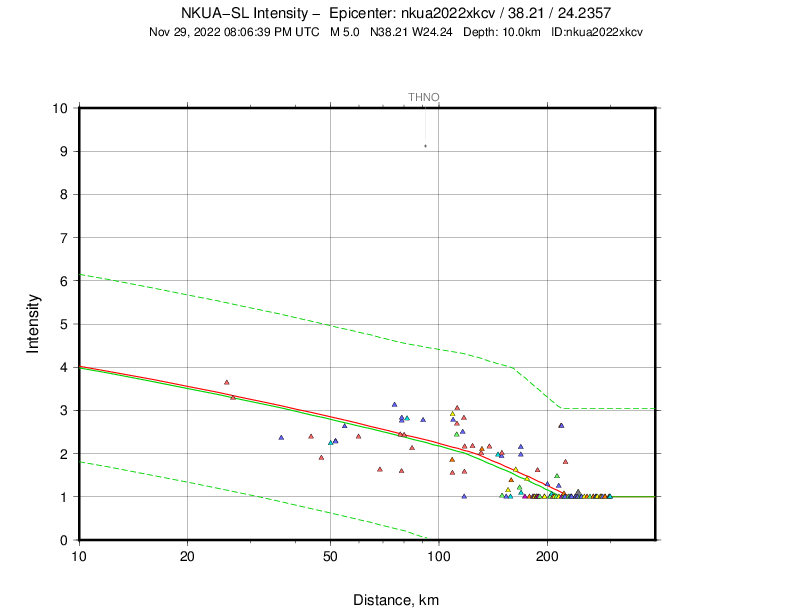

 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
GR271Y3.6185 P20:06:41.72 0.41.0M
GR271Y3.6185 S20:06:43.40 0.71.0M
KARYHA26.8139 P20:06:44.96 0.21.0M
KARYHA26.8139 S20:06:48.49 -0.21.0M
MRTHHA27.8249 P20:06:45.02 0.11.0M
MRTHHA27.8249 S20:06:49.06 0.11.0M
PTLHL37.6240 P20:06:46.53 -0.11.0M
PTLHL37.6240 S20:06:51.56 -0.31.0M
ERTRHA44.7298 P20:06:47.18 -0.51.0M
ERTRHA44.7298 S20:06:53.09 -0.81.0M
NOACHL52.7240 P20:06:49.16 0.11.0M
NOACHL52.7240 S20:06:56.26 0.11.0M
ATHHL52.7240 P20:06:49.16 0.11.0M
ATHHL52.7240 S20:06:56.05 -0.11.0M
VLYHL55.9224 P20:06:49.65 0.11.0M
VLYHL55.9224 S20:06:56.75 -0.31.0M
STFNHA60.7266 P20:06:50.28 -0.11.0M
STFNHA60.7266 S20:06:58.11 -0.51.0M
MDRAHA69.5256 P20:06:51.69 -0.11.0M
MDRAHA69.5256 S20:07:00.82 -0.31.0M
THI1HL76.0285 P20:06:52.36 -0.51.0M
THI1HL76.0285 S20:07:02.38 -0.51.0M
MRKAHA78.6314 P20:06:52.45 -0.81.0M
MRKAHA78.6314 S20:07:04.20 0.61.0M
SKYHL79.1 20 P20:06:52.90 -0.41.0M
SKYHL79.1 20 S20:07:03.99 0.31.0M
THIVHA79.6277 P20:06:53.30 -0.11.0M
THIVHA79.6277 S20:07:03.96 0.11.0M
THVAHL79.7279 P20:06:53.04 -0.41.0M
THVAHL79.7279 S20:07:03.97 0.11.0M
VILLHA81.0266 P20:06:53.91 0.21.0M
VILLHA81.0266 S20:07:04.62 0.21.0M
AMPEHA85.1276 P20:06:54.38 0.11.0M
AMPEHA85.1276 S20:07:05.96 0.51.0M
THI2HL91.2281 P20:06:55.06 -0.21.0M
THI2HL91.2281 S20:07:07.63 0.51.0M
THNOHC92.9132 P20:06:55.58 0.11.0M
THNOHC92.9132 S20:07:07.49 -0.11.0M
AOS2HT109.2342 P20:06:58.15 0.11.0M
AOS2HT109.2342 S20:07:12.02 -0.11.0M
GR231Y109.7307 P20:06:57.55 -0.61.0M
GR231Y109.7307 S20:07:11.98 -0.31.0M
DOMVHA109.9272 P20:06:57.96 -0.31.0M
DOMVHA109.9272 S20:07:12.79 0.41.0M
LTKHP113.1259 P20:06:59.29 0.51.0M
LTKHP113.1259 S20:07:14.15 0.81.0M
LKRHL118.2294 P20:06:59.40 -0.11.0M
LKRHL118.2294 S20:07:14.70 0.01.0M
ATALHA118.4297 P20:06:59.56 0.01.0M
ATALHA118.4297 S20:07:14.68 -0.11.0M
SERIHA119.2169 P20:07:00.35 0.71.0M
SERIHA119.2169 S20:07:15.24 0.41.0M
ACORHA125.0253 P20:07:01.05 0.41.0M
ACORHA125.0253 S20:07:17.07 0.51.0M
NEOHL149.9324 P20:07:04.63 0.21.0M
NEOHL149.9324 S20:07:22.38 -0.81.0M
AXARHA150.4294 P20:07:04.36 -0.21.0M
AXARHA150.4294 S20:07:23.93 0.51.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2022xkcv
    Type                   earthquake
    Description
      region name: Aegean Sea
Origin:
    Date                   2022-11-29
    Time                  20:06:39.64
    Latitude              38.2145 deg  +/-      0 km
    Longitude             24.2368 deg  +/-      0 km
    Depth                       8 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.31 s
    Azimuthal gap             112 deg

2 Network magnitudes:
    MLv       5.01 +/- 0.27  25
    M         5.01           25 preferred

58 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    GR27  1Y    0.0 185  P       20:06:41.72   0.4 M  1.0  GR27
    GR27  1Y    0.0 185  S       20:06:43.40   0.7 M  1.0  GR27
    KARY  HA    0.2 139  P       20:06:44.96   0.2 M  1.0  KARY
    KARY  HA    0.2 139  S       20:06:48.49  -0.2 M  1.0  KARY
    MRTH  HA    0.3 249  P       20:06:45.02   0.1 M  1.0  MRTH
    MRTH  HA    0.3 249  S       20:06:49.06   0.1 M  1.0  MRTH
    PTL   HL    0.3 240  P       20:06:46.53  -0.1 M  1.0  PTL
    PTL   HL    0.3 240  S       20:06:51.56  -0.3 M  1.0  PTL
    ERTR  HA    0.4 298  P       20:06:47.18  -0.5 M  1.0  ERTR
    ERTR  HA    0.4 298  S       20:06:53.09  -0.8 M  1.0  ERTR
    ATH   HL    0.5 240  P       20:06:49.16   0.1 M  1.0  ATH
    ATH   HL    0.5 240  S       20:06:56.05  -0.1 M  1.0  ATH
    NOAC  HL    0.5 240  P       20:06:49.16   0.1 M  1.0  NOAC
    NOAC  HL    0.5 240  S       20:06:56.26   0.1 M  1.0  NOAC
    VLY   HL    0.5 224  P       20:06:49.65   0.1 M  1.0  VLY
    VLY   HL    0.5 224  S       20:06:56.75  -0.3 M  1.0  VLY
    STFN  HA    0.5 266  P       20:06:50.28  -0.1 M  1.0  STFN
    STFN  HA    0.5 266  S       20:06:58.11  -0.5 M  1.0  STFN
    MDRA  HA    0.6 256  P       20:06:51.69  -0.1 M  1.0  MDRA
    MDRA  HA    0.6 256  S       20:07:00.82  -0.3 M  1.0  MDRA
    THI1  HL    0.7 285  P       20:06:52.36  -0.5 M  1.0  THI1
    THI1  HL    0.7 285  S       20:07:02.38  -0.5 M  1.0  THI1
    MRKA  HA    0.7 314  P       20:06:52.45  -0.8 M  1.0  MRKA
    MRKA  HA    0.7 314  S       20:07:04.20   0.6 M  1.0  MRKA
    SKY   HL    0.7  20  P       20:06:52.90  -0.4 M  1.0  SKY
    SKY   HL    0.7  20  S       20:07:03.99   0.3 M  1.0  SKY
    THIV  HA    0.7 277  P       20:06:53.30  -0.1 M  1.0  THIV
    THIV  HA    0.7 277  S       20:07:03.96   0.1 M  1.0  THIV
    THVA  HL    0.7 279  P       20:06:53.04  -0.4 M  1.0  THVA
    THVA  HL    0.7 279  S       20:07:03.97   0.1 M  1.0  THVA
    VILL  HA    0.7 266  P       20:06:53.91   0.2 M  1.0  VILL
    VILL  HA    0.7 266  S       20:07:04.62   0.2 M  1.0  VILL
    AMPE  HA    0.8 276  P       20:06:54.38   0.1 M  1.0  AMPE
    AMPE  HA    0.8 276  S       20:07:05.96   0.5 M  1.0  AMPE
    THI2  HL    0.8 281  P       20:06:55.06  -0.2 M  1.0  THI2
    THI2  HL    0.8 281  S       20:07:07.63   0.5 M  1.0  THI2
    THNO  HC    0.8 132  P       20:06:55.58   0.1 M  1.0  THNO
    THNO  HC    0.8 132  S       20:07:07.49  -0.1 M  1.0  THNO
    AOS2  HT    1.0 342  P       20:06:58.15   0.1 M  1.0  AOS2
    AOS2  HT    1.0 342  S       20:07:12.02  -0.1 M  1.0  AOS2
    GR23  1Y    1.0 307  P       20:06:57.55  -0.6 M  1.0  GR23
    GR23  1Y    1.0 307  S       20:07:11.98  -0.3 M  1.0  GR23
    DOMV  HA    1.0 272  P       20:06:57.96  -0.3 M  1.0  DOMV
    DOMV  HA    1.0 272  S       20:07:12.79   0.4 M  1.0  DOMV
    LTK   HP    1.0 259  P       20:06:59.29   0.5 M  1.0  LTK
    LTK   HP    1.0 259  S       20:07:14.15   0.8 M  1.0  LTK
    LKR   HL    1.1 294  P       20:06:59.40  -0.1 M  1.0  LKR
    LKR   HL    1.1 294  S       20:07:14.70   0.0 M  1.0  LKR
    ATAL  HA    1.1 297  P       20:06:59.56  -0.0 M  1.0  ATAL
    ATAL  HA    1.1 297  S       20:07:14.68  -0.1 M  1.0  ATAL
    SERI  HA    1.1 169  P       20:07:00.35   0.7 M  1.0  SERI
    SERI  HA    1.1 169  S       20:07:15.24   0.4 M  1.0  SERI
    ACOR  HA    1.1 253  P       20:07:01.05   0.4 M  1.0  ACOR
    ACOR  HA    1.1 253  S       20:07:17.07   0.5 M  1.0  ACOR
    NEO   HL    1.3 324  P       20:07:04.63   0.2 M  1.0  NEO
    NEO   HL    1.3 324  S       20:07:22.38  -0.8 M  1.0  NEO
    AXAR  HA    1.4 294  P       20:07:04.36  -0.2 M  1.0  AXAR
    AXAR  HA    1.4 294  S       20:07:23.93   0.5 M  1.0  AXAR

29 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    GR27  1Y    0.0 185  MLv     4.84 -0.17    4426.16
    KARY  HA    0.2 139  MLv     4.71 -0.29    882.007
    MRTH  HA    0.3 249  MLv     4.66 -0.35    724.509
    PTL   HL    0.3 240  MLv     4.68 -0.33     434.85
    ERTR  HA    0.4 298  MLv     4.27 -0.73    113.415
    ATH   HL    0.5 240  MLv     4.83 -0.18    256.095
    NOAC  HL    0.5 240  MLv     4.83 -0.18    257.999
    VLY   HL    0.5 224  MLv     5.12  0.12    424.556
    STFN  HA    0.5 266  MLv     5.01  0.00    254.612
    MDRA  HA    0.6 256  MLv     4.79 -0.21    139.914
    THI1  HL    0.7 285  MLv     5.37  0.36    486.298
    MRKA  HA    0.7 314  MLv     4.94 -0.07    175.619
    SKY   HL    0.7  20  MLv     4.84 -0.16    234.044
    THIV  HA    0.7 277  MLv     4.96 -0.04    184.104
    THVA  HL    0.7 279  MLv     5.67  0.67    944.834
    VILL  HA    0.7 266  MLv     5.09  0.09    243.904
    AMPE  HA    0.8 276  MLv     4.76 -0.25    108.115
    THI2  HL    0.8 281  MLv     5.39  0.39    431.987
    THNO  HC    0.8 132  MLv     5.50  0.49    538.396
    AOS2  HT    1.0 342  MLv     4.82 -0.19    94.2098
    GR23  1Y    1.0 307  MLv     5.46  0.45    408.775
    DOMV  HA    1.0 272  MLv     4.89 -0.11    110.147
    LTK   HP    1.0 259  MLv     4.67 -0.33    244.489
    LKR   HL    1.1 294  MLv     5.09  0.08    85.0737
    ATAL  HA    1.1 297  MLv     4.83 -0.18    86.7668
    SERI  HA    1.1 169  MLv     4.92 -0.08    106.701
    ACOR  HA    1.1 253  MLv     4.86 -0.15    85.2975
    NEO   HL    1.3 324  MLv     4.94 -0.07    107.405
    AXAR  HA    1.4 294  MLv     4.57 -0.43    132.698
