Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2023-03-25 20:56:05 (GMT)
 Μέγεθος
 M 3.9
 Γεωγρ. Πλάτος
 34.8893° Β
 Γεωγρ. Μήκος
 25.3048° Α
 Εστιακό Βάθος
 4 χμ
 Αρ. αφίξεων
 40
 Επίκεντρο 51.0 χμ ΝΝΑ του Ηρακλείου
92.4 χμ ΝΑ του Ρεθύμνου
371.6 χμ ΝΝΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Μηχ.Γέν.


  Μηχανισμός Γένεσης

Μηχ.Γεν. Παράταξη (°) Κλίση (°) Γων.Ολίσθ. (°) Σεισμ.Ροπή (dyn*cm)
18375-123 6.69E+21

Γεωγρ.Πλάτος (°Β) Γεωγρ.Μήκος (°Α) Βάθος (χμ) Μέγεθος Mw
34.892425.34889.03.8

Υπολογισμός εστιακών παραμέτρων

Κλικ εδώ για λεπτομέρειες μηχανισμού γένεσης

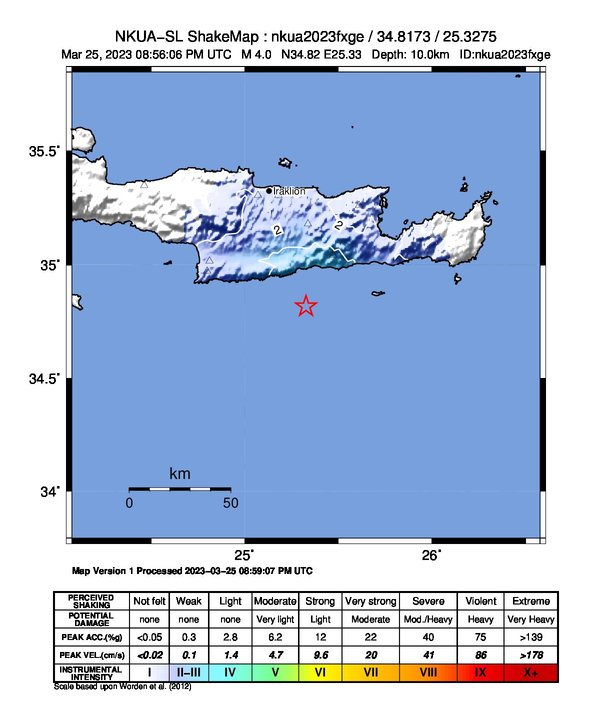

  Χάρτης εντάσεως

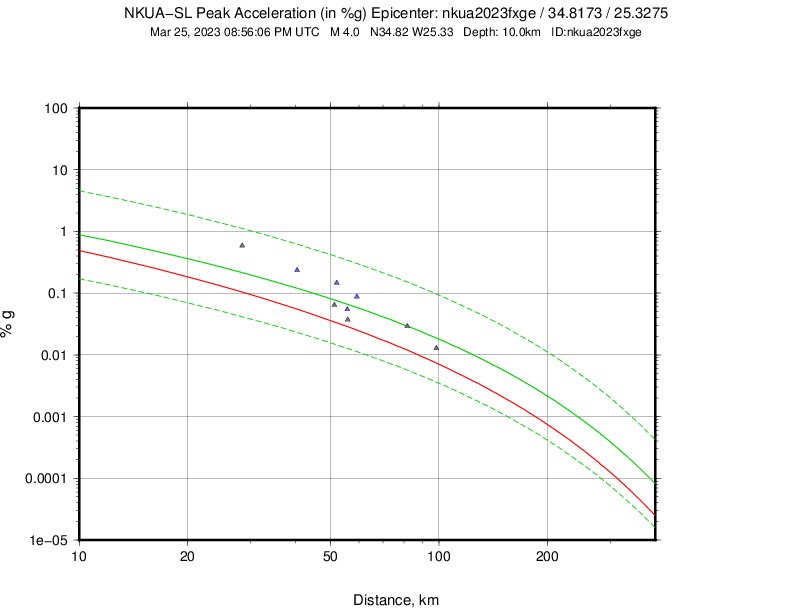

PGA

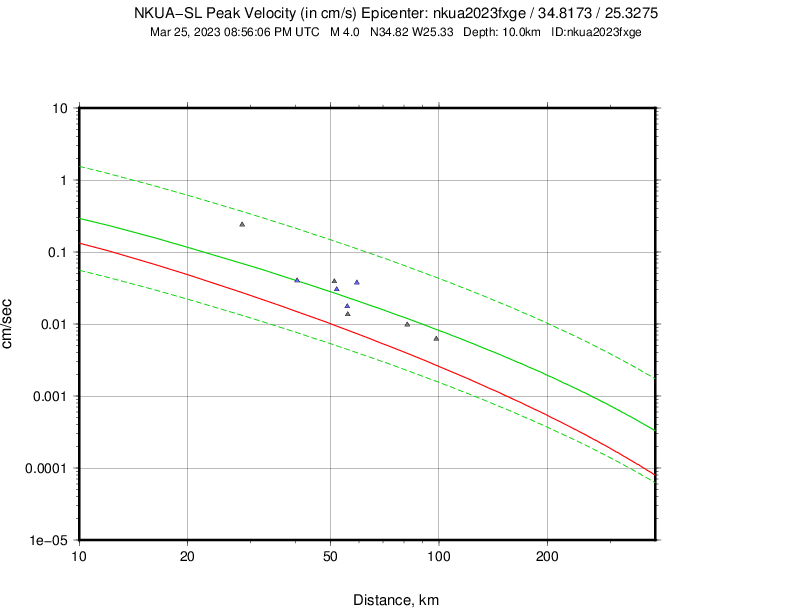

 PGV

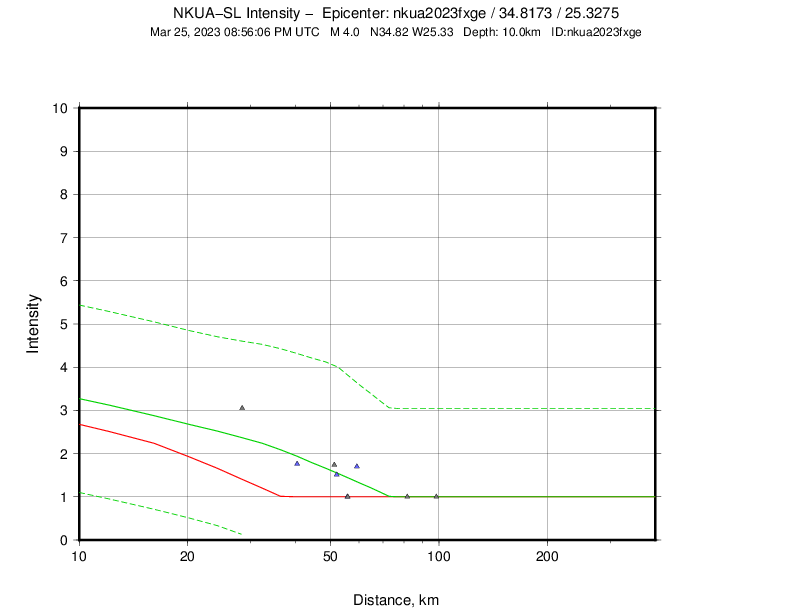

 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

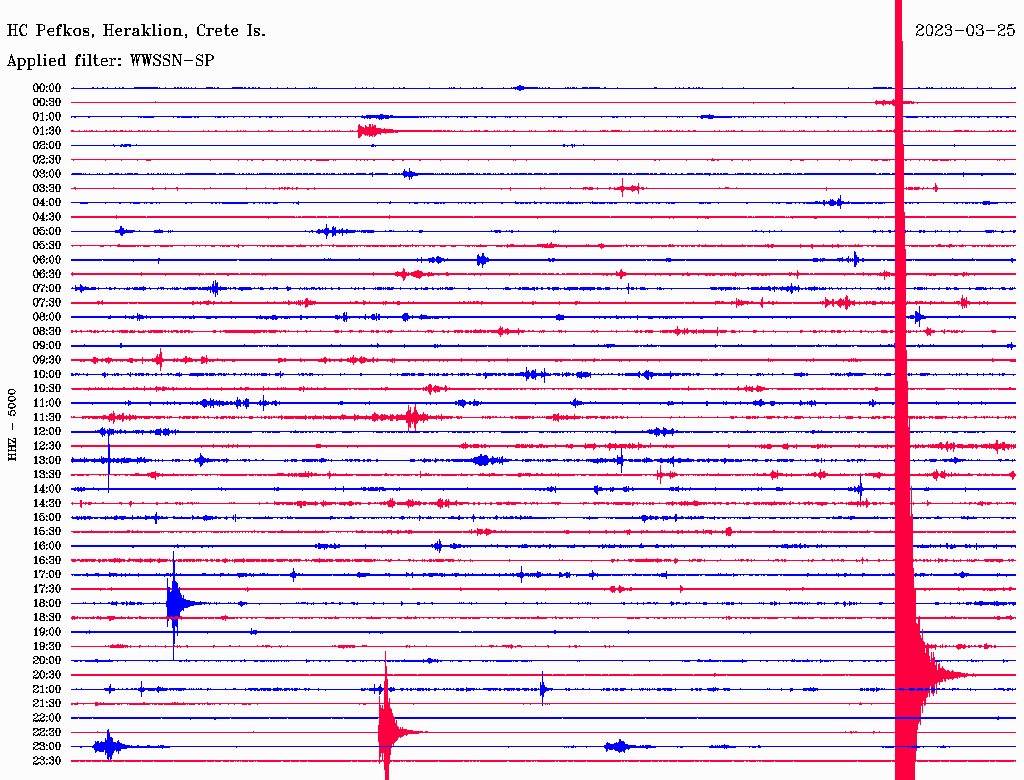

PFKSHC23.0 42 P20:56:10.05 0.11.0M
PFKSHC23.0 42 S20:56:13.72 0.31.0M
KSTEHL32.5 5 P20:56:10.95 -0.61.0M
KSTEHL32.5 5 S20:56:16.29 0.01.0M

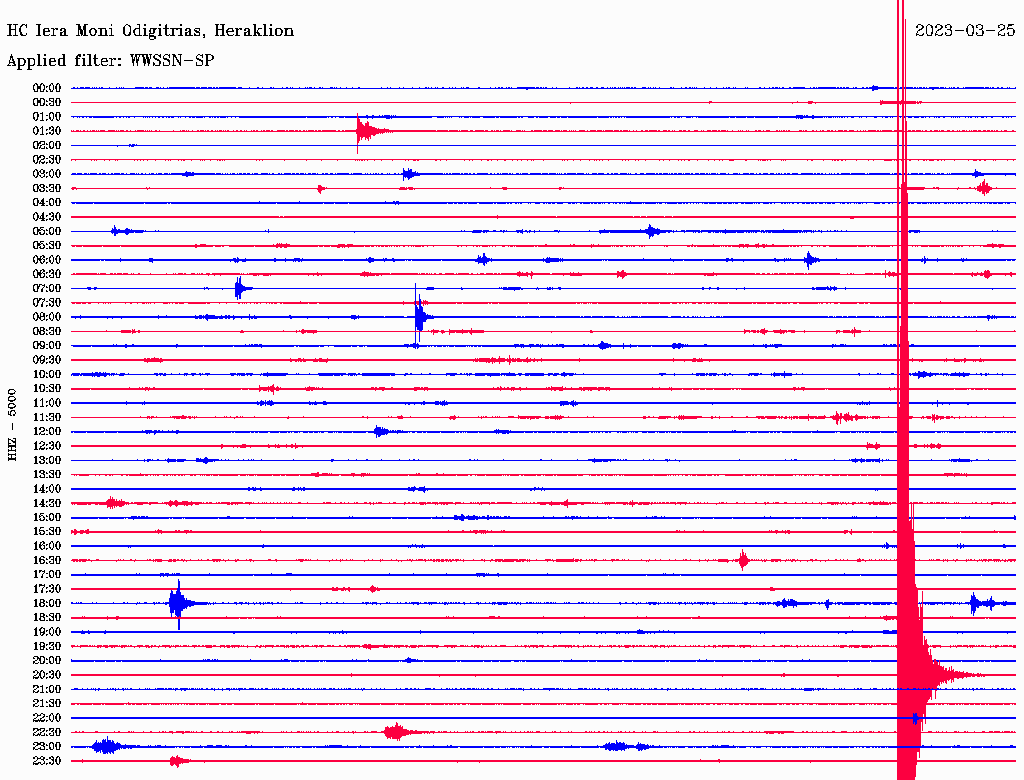

IMODHC47.0281 P20:56:14.22 0.21.0M
IMODHC47.0281 S20:56:20.47 -0.11.0M

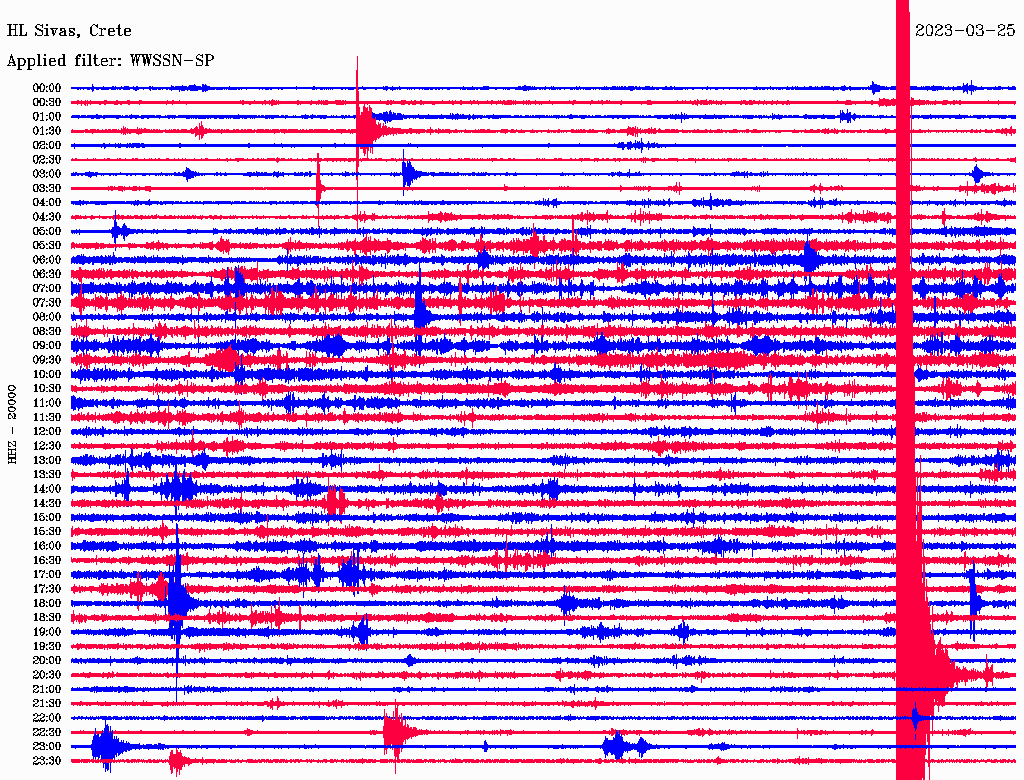

SIVAHL47.1288 P20:56:13.43 -0.61.0M
SIVAHL47.1288 S20:56:19.93 -0.71.0M

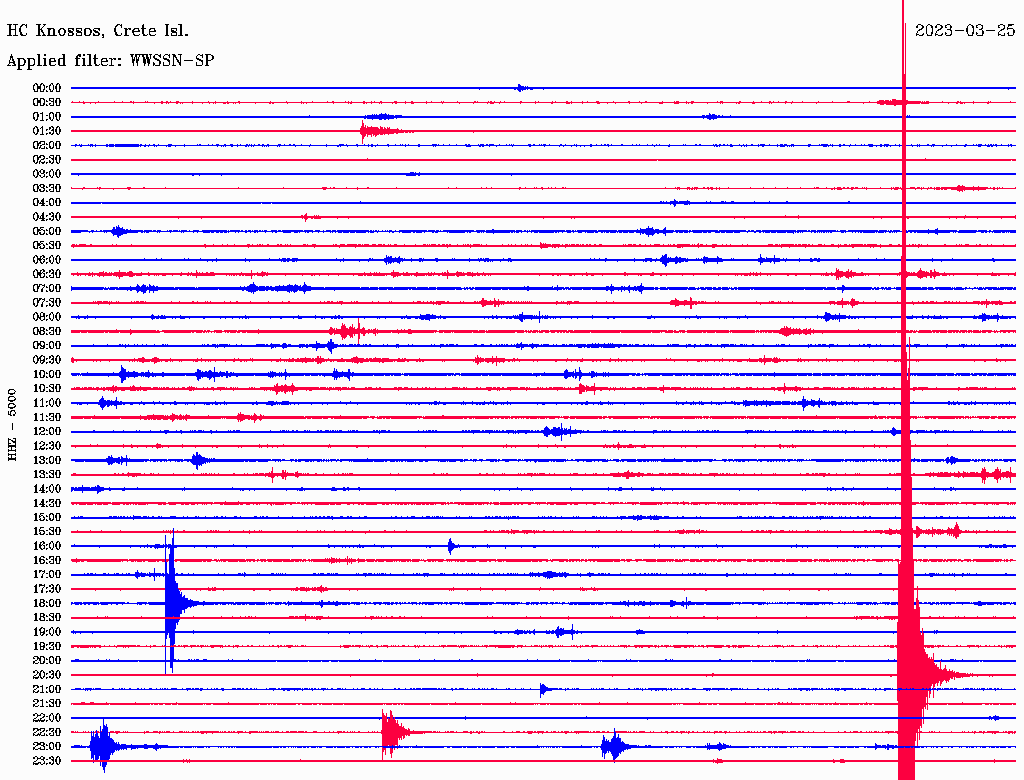

KNSSHC47.5346 P20:56:14.59 0.51.0M
KNSSHC47.5346 S20:56:20.28 -0.41.0M
NPSHL49.8 34 P20:56:13.97 -0.51.0M
NPSHL49.8 34 S20:56:20.43 -1.01.0M

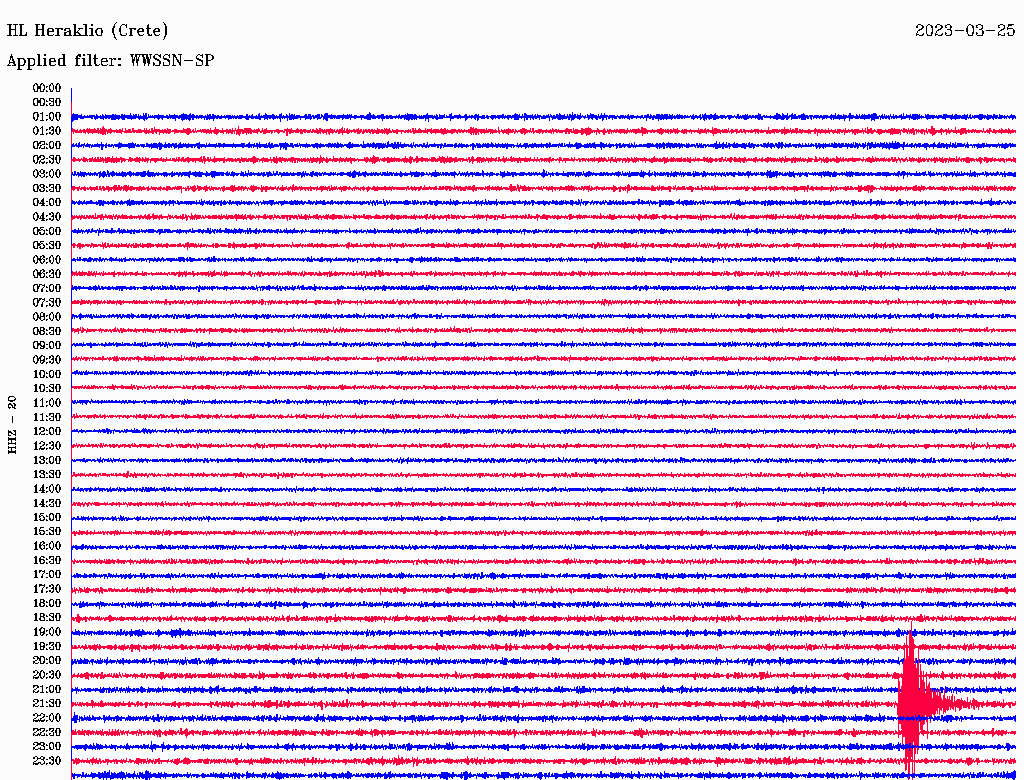

IACMHL51.0335 P20:56:15.69 1.11.0M
IACMHL51.0335 S20:56:21.29 -0.41.0M

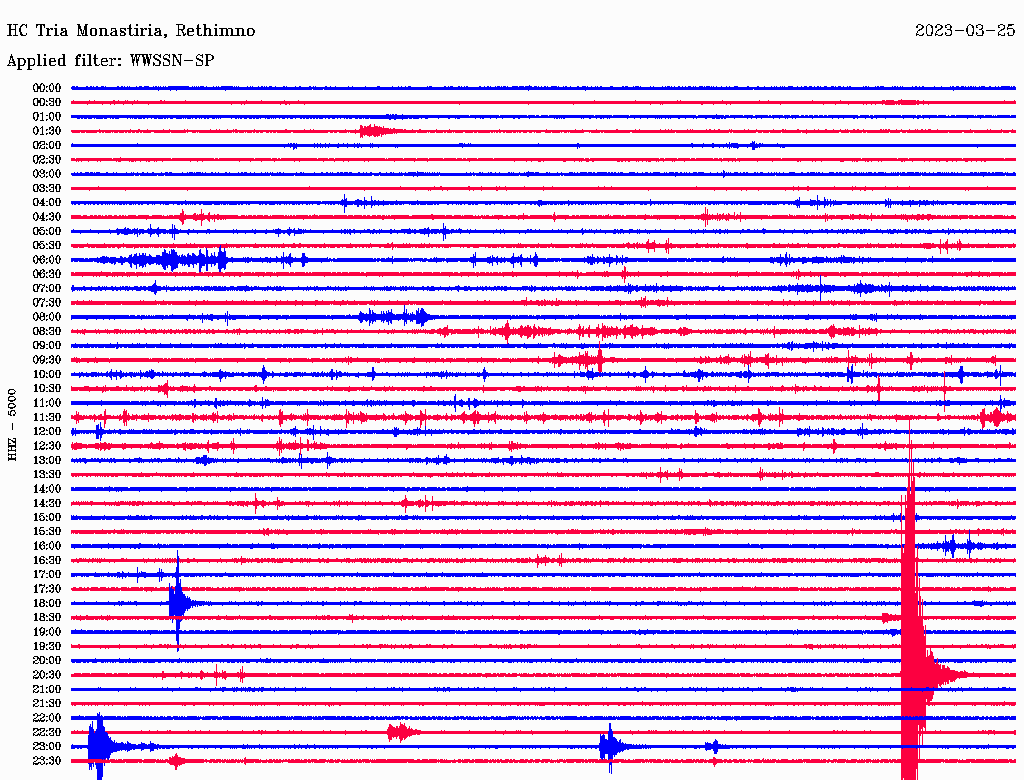

IPPLHC92.0304 P20:56:21.19 -0.21.0M
IPPLHC92.0304 S20:56:32.62 -1.01.0M

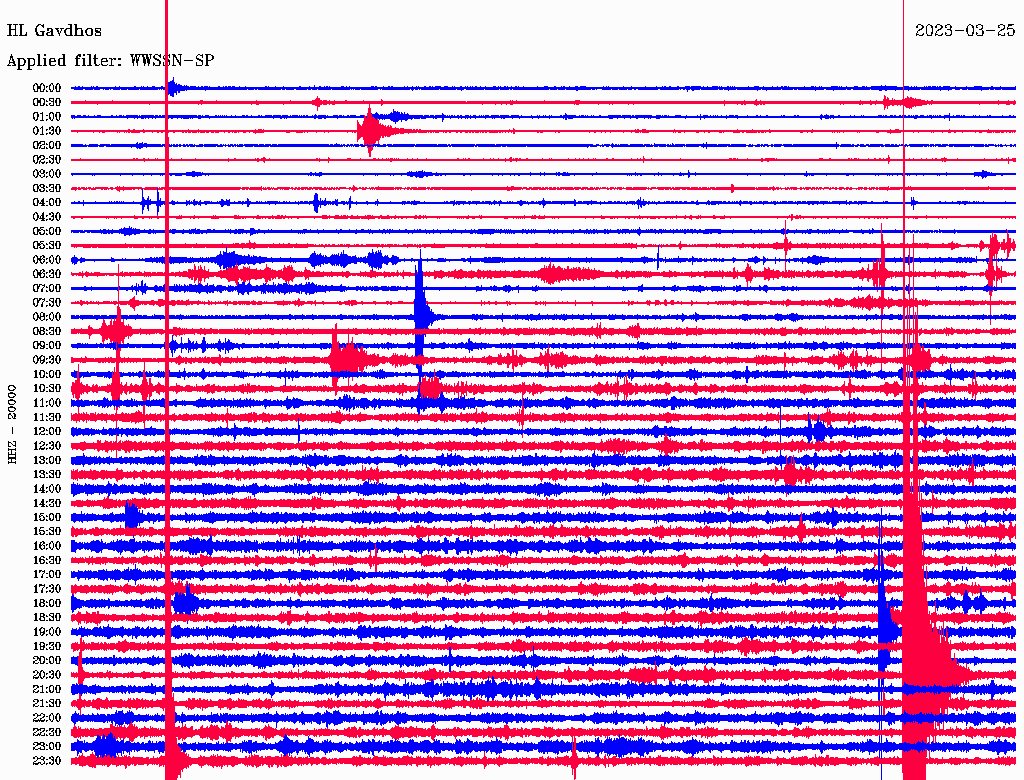

GVDHL111.2267 P20:56:24.54 0.11.0M
GVDHL111.2267 S20:56:37.74 -1.21.0M

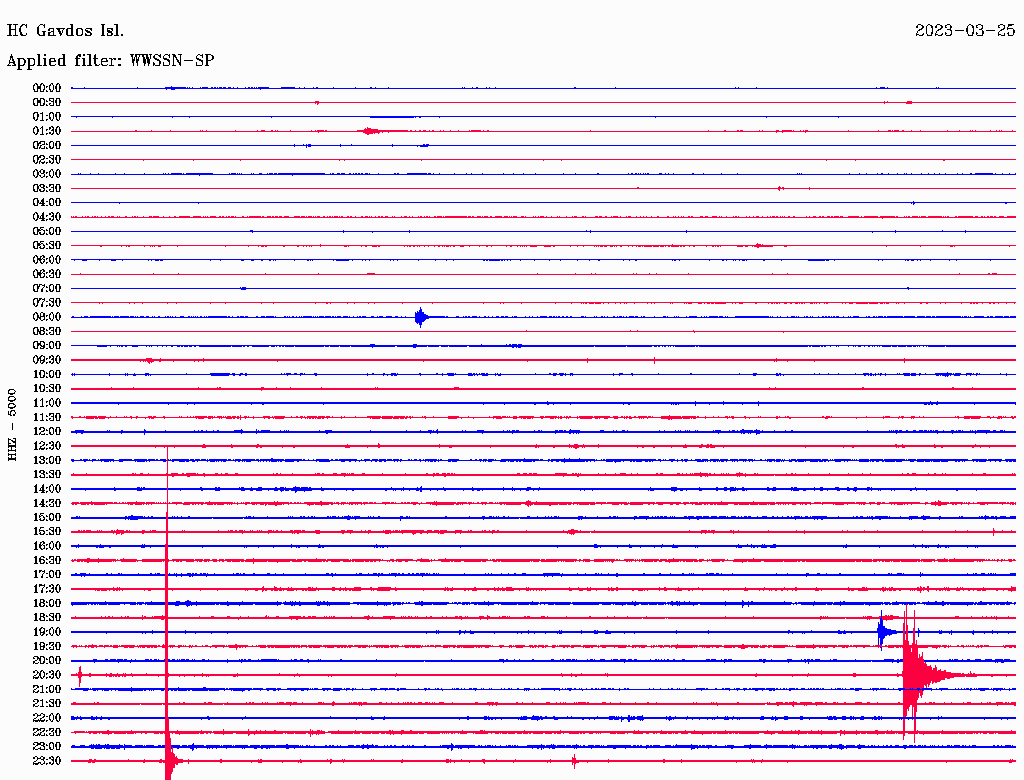

GVDSHC113.8267 P20:56:24.93 0.11.0M
GVDSHC113.8267 S20:56:39.75 0.01.0M

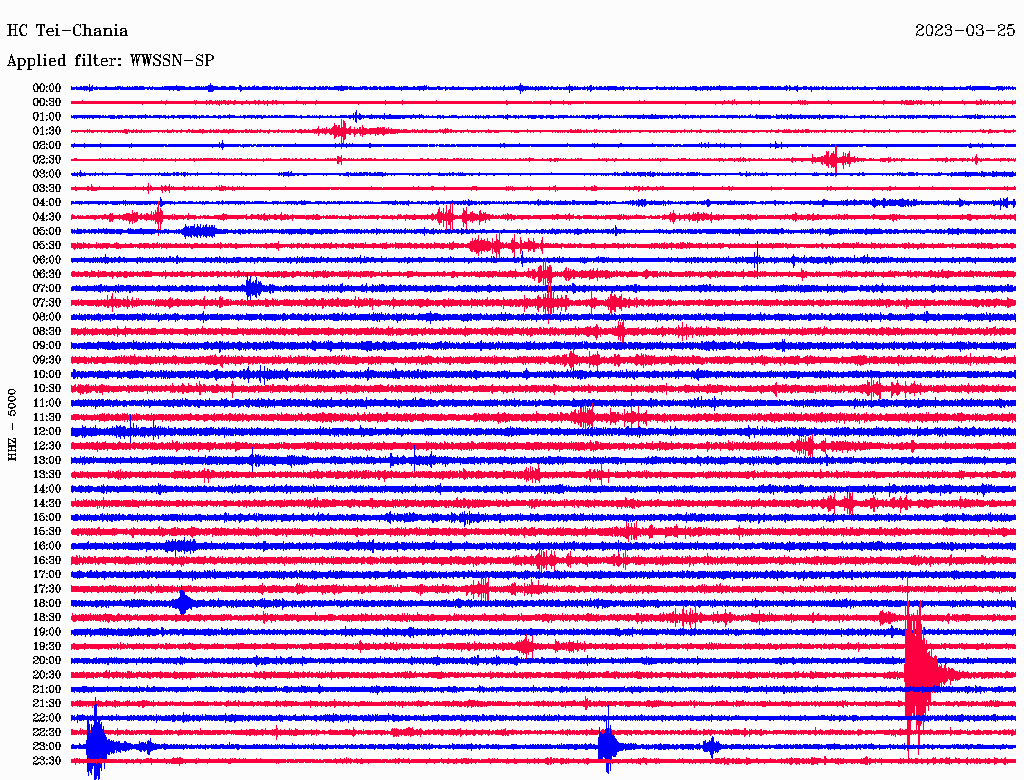

CHANHC134.4301 P20:56:28.33 0.31.0M
CHANHC134.4301 S20:56:45.63 0.31.0M
CH01HI135.9301 P20:56:29.04 0.81.0M
CH01HI135.9301 S20:56:46.15 0.41.0M

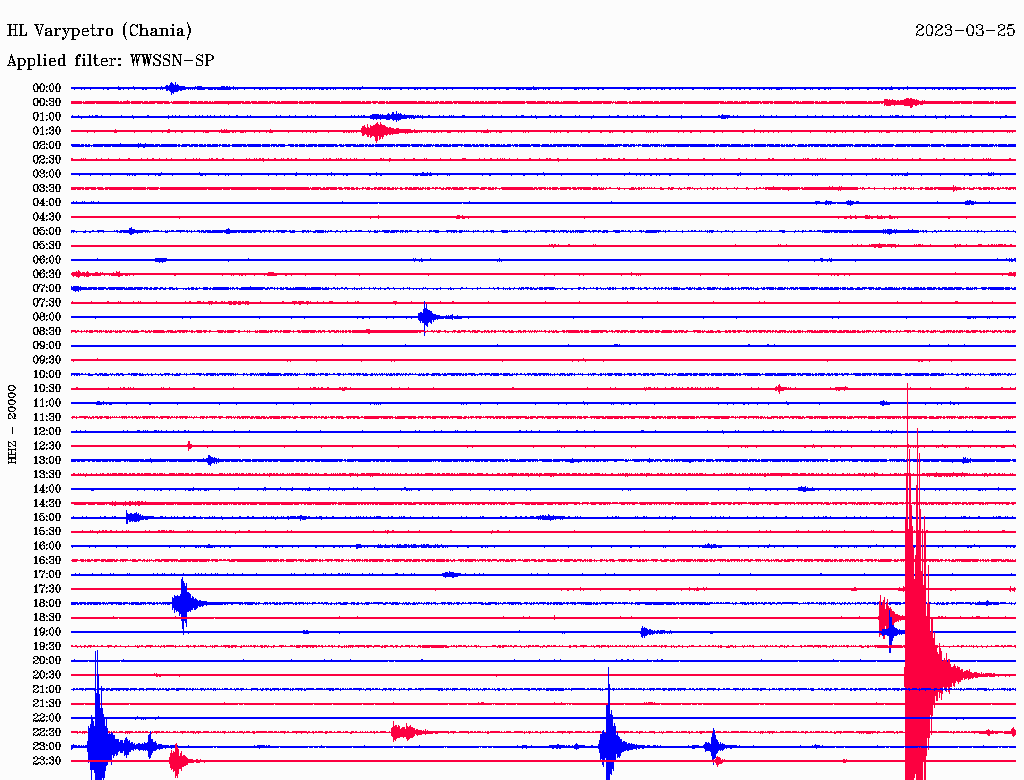

IMMVHL136.1298 P20:56:28.35 0.01.0M
IMMVHL136.1298 S20:56:46.11 0.31.0M

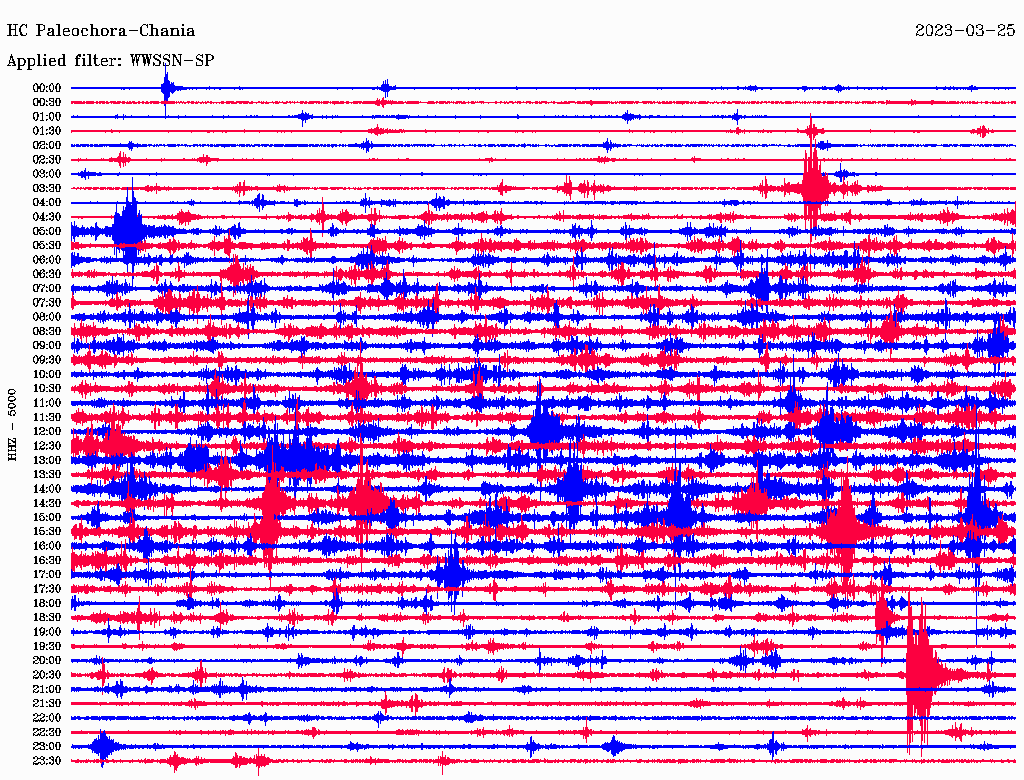

KNDRHC157.7284 P20:56:31.46 -0.21.0M
KNDRHC157.7284 S20:56:52.84 1.21.0M

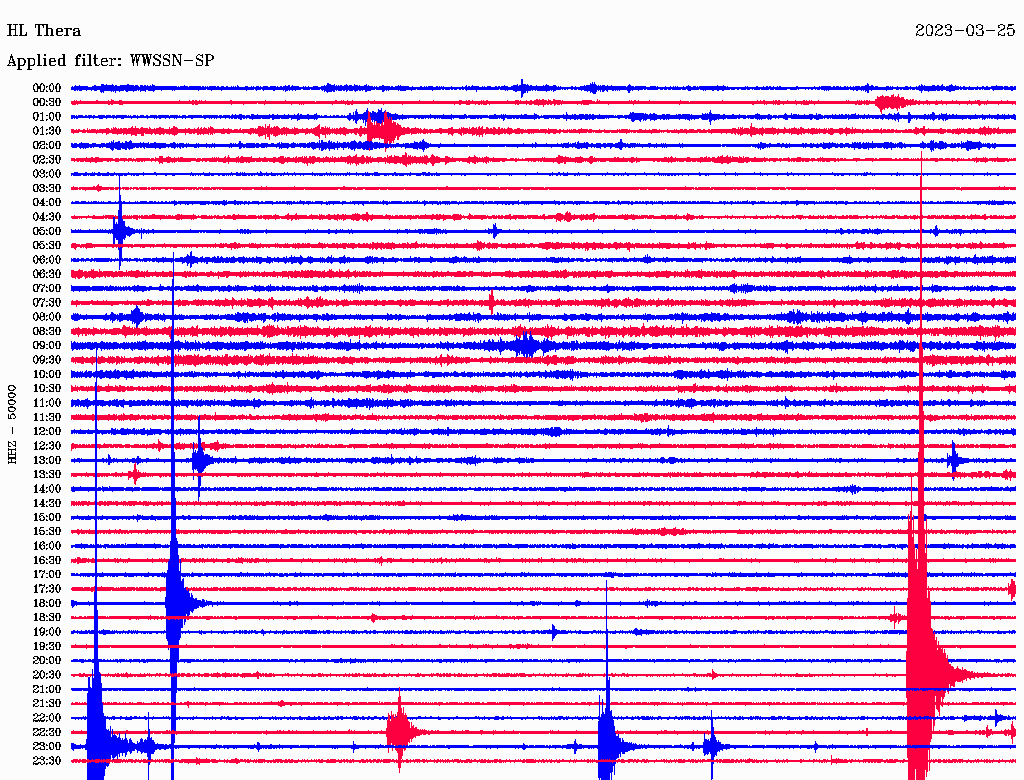

THERAHL165.0 5 P20:56:32.08 -0.61.0M
THERAHL165.0 5 S20:56:54.07 0.51.0M

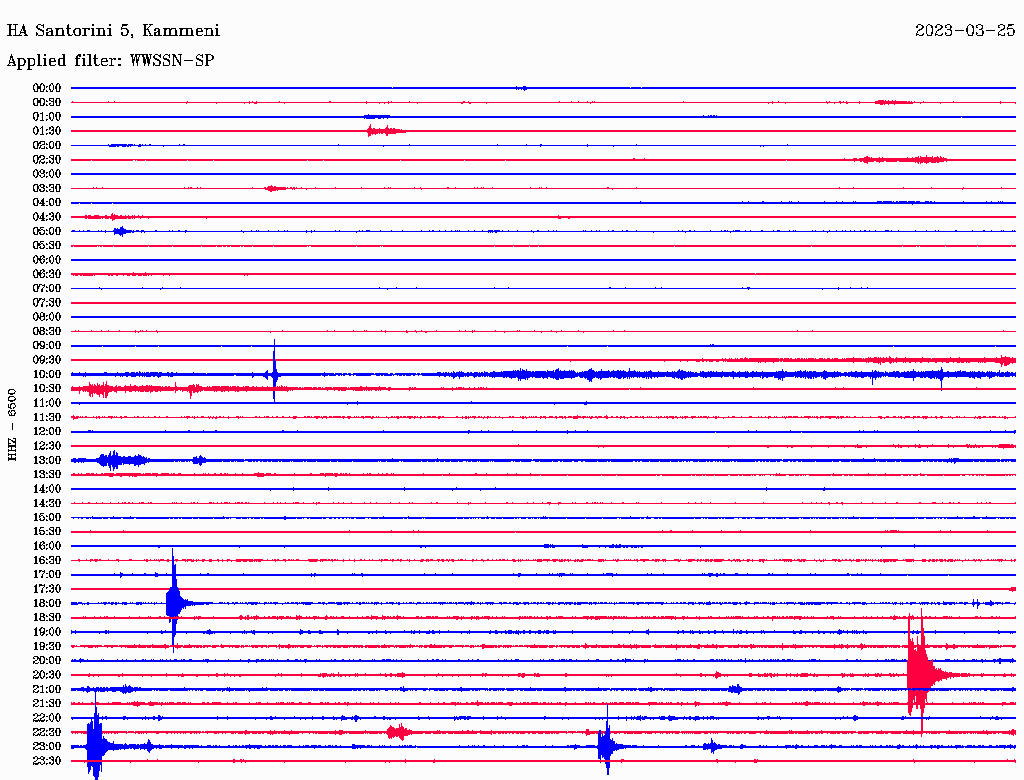

SNT5HA168.6 3 P20:56:33.37 0.11.0M
SNT5HA168.6 3 S20:56:54.85 0.41.0M

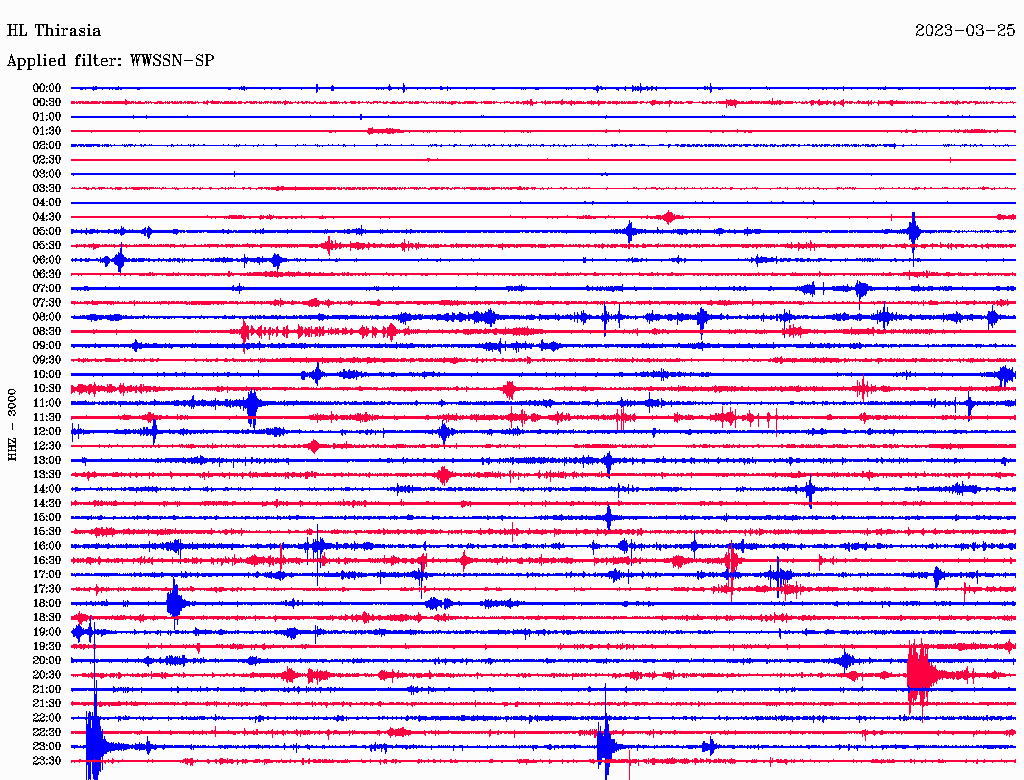

SAP3HL172.0 1 P20:56:33.65 -0.11.0M
SAP3HL172.0 1 S20:56:55.67 0.31.0M
CMBOHT176.1 3 P20:56:34.48 0.21.0M
CMBOHT176.1 3 S20:56:56.48 0.11.0M
MHLOHL216.1338 P20:56:39.45 0.01.0M
MHLOHL216.1338 S20:57:05.51 0.11.0M

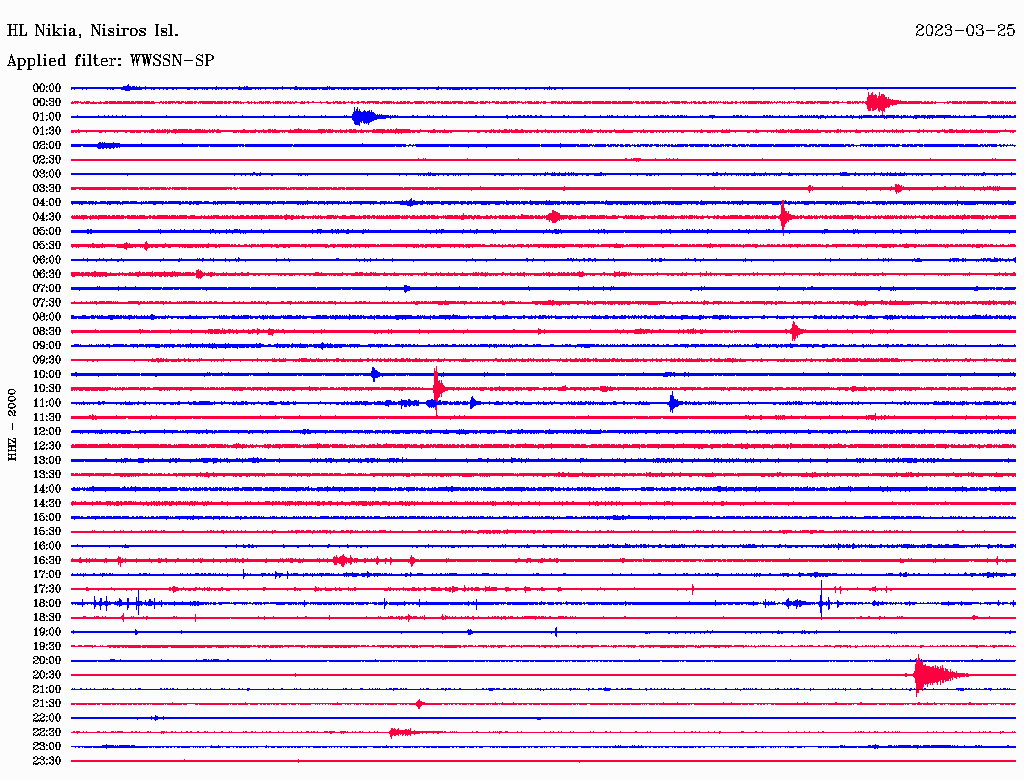

NISR2HL252.3 42 P20:56:44.77 0.61.0M
NISR2HL252.3 42 S20:57:13.35 -0.31.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2023fxge
    Description
      region name: Crete, Greece
Origin:
    Date                   2023-03-25
    Time                  20:56:05.30
    Latitude              34.8893 deg  +/-      1 km
    Longitude             25.3048 deg  +/-      1 km
    Depth                       4 km   +/-    2 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.48 s
    Azimuthal gap             225 deg

2 Network magnitudes:
    MLv       3.89 +/- 0.11  16
    M         3.89           16 preferred

40 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    PFKS  HC    0.2  42  P       20:56:10.05   0.1 M  1.0  PFKS
    PFKS  HC    0.2  42  S       20:56:13.72   0.3 M  1.0  PFKS
    KSTE  HL    0.3   5  P       20:56:10.95  -0.6 M  1.0  KSTE
    KSTE  HL    0.3   5  S       20:56:16.29   0.0 M  1.0  KSTE
    IMOD  HC    0.4 281  P       20:56:14.22   0.2 M  1.0  IMOD
    IMOD  HC    0.4 281  S       20:56:20.47  -0.1 M  1.0  IMOD
    SIVA  HL    0.4 288  P       20:56:13.43  -0.6 M  1.0  SIVA
    SIVA  HL    0.4 288  S       20:56:19.93  -0.7 M  1.0  SIVA
    KNSS  HC    0.4 346  P       20:56:14.59   0.5 M  1.0  KNSS
    KNSS  HC    0.4 346  S       20:56:20.28  -0.4 M  1.0  KNSS
    NPS   HL    0.4  34  P       20:56:13.97  -0.5 M  1.0  NPS
    NPS   HL    0.4  34  S       20:56:20.43  -1.0 M  1.0  NPS
    IACM  HL    0.5 335  P       20:56:15.69   1.1 M  1.0  IACM
    IACM  HL    0.5 335  S       20:56:21.29  -0.4 M  1.0  IACM
    IPPL  HC    0.8 304  P       20:56:21.19  -0.2 M  1.0  IPPL
    IPPL  HC    0.8 304  S       20:56:32.62  -1.0 M  1.0  IPPL
    GVD   HL    1.0 267  P       20:56:24.54   0.1 M  1.0  GVD
    GVD   HL    1.0 267  S       20:56:37.74  -1.2 M  1.0  GVD
    GVDS  HC    1.0 267  P       20:56:24.93   0.1 M  1.0  GVDS
    GVDS  HC    1.0 267  S       20:56:39.75  -0.0 M  1.0  GVDS
    CHAN  HC    1.2 301  P       20:56:28.33   0.3 M  1.0  CHAN
    CHAN  HC    1.2 301  S       20:56:45.63   0.3 M  1.0  CHAN
    CH01  HI    1.2 301  P       20:56:29.04   0.8 M  1.0  CH01
    CH01  HI    1.2 301  S       20:56:46.15   0.4 M  1.0  CH01
    IMMV  HL    1.2 298  P       20:56:28.35   0.0 M  1.0  IMMV
    IMMV  HL    1.2 298  S       20:56:46.11   0.3 M  1.0  IMMV
    KNDR  HC    1.4 284  P       20:56:31.46  -0.2 M  1.0  KNDR
    KNDR  HC    1.4 284  S       20:56:52.84   1.2 M  1.0  KNDR
    THERA HL    1.5   5  P       20:56:32.08  -0.6 M  1.0  THERA
    THERA HL    1.5   5  S       20:56:54.07   0.5 M  1.0  THERA
    SNT5  HA    1.5   3  P       20:56:33.37   0.1 M  1.0  SNT5
    SNT5  HA    1.5   3  S       20:56:54.85   0.4 M  1.0  SNT5
    SAP3  HL    1.5   1  P       20:56:33.65  -0.1 M  1.0  SAP3
    SAP3  HL    1.5   1  S       20:56:55.67   0.3 M  1.0  SAP3
    CMBO  HT    1.6   3  P       20:56:34.48   0.2 M  1.0  CMBO
    CMBO  HT    1.6   3  S       20:56:56.48   0.1 M  1.0  CMBO
    MHLO  HL    1.9 338  P       20:56:39.45   0.0 M  1.0  MHLO
    MHLO  HL    1.9 338  S       20:57:05.51   0.1 M  1.0  MHLO
    NISR2 HL    2.3  42  P       20:56:44.77   0.6 M  1.0  NISR2
    NISR2 HL    2.3  42  S       20:57:13.35  -0.3 M  1.0  NISR2

20 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    PFKS  HC    0.2  42  MLv     3.77 -0.12    124.794
    KSTE  HL    0.3   5  MLv     3.70 -0.19    62.0545
    IMOD  HC    0.4 281  MLv     4.30  0.41    105.695
    SIVA  HL    0.4 288  MLv     4.30  0.40    104.175
    KNSS  HC    0.4 346  MLv     3.67 -0.22    24.4296
    NPS   HL    0.4  34  MLv     3.77 -0.12    26.6471
    IACM  HL    0.5 335  MLv     3.91  0.02    77.4443
    IPPL  HC    0.8 304  MLv     3.92  0.03    14.5899
    GVD   HL    1.0 267  MLv     4.00  0.11    10.7021
    GVDS  HC    1.0 267  MLv     3.88 -0.01    10.3719
    CHAN  HC    1.2 301  MLv     3.82 -0.07    13.9837
    CH01  HI    1.2 301  MLv     3.94  0.05      9.065
    IMMV  HL    1.2 298  MLv     3.88 -0.01     7.9342
    KNDR  HC    1.4 284  MLv     3.96  0.07    7.44611
    THERA HL    1.5   5  MLv     3.76 -0.13    4.27959
    SNT5  HA    1.5   3  MLv     3.76 -0.14    2.41544
    SAP3  HL    1.5   1  MLv     4.06  0.17    13.1078
    CMBO  HT    1.6   3  MLv     4.14  0.25    9.12841
    MHLO  HL    1.9 338  MLv     3.77 -0.12    5.04181
    NISR2 HL    2.3  42  MLv     3.97  0.08    2.58989
