Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2023-02-28 17:43:46 (GMT)
 Μέγεθος
 M 4.0
 Γεωγρ. Πλάτος
 41.0847° Β
 Γεωγρ. Μήκος
 19.7073° Α
 Εστιακό Βάθος
 29 χμ
 Αρ. αφίξεων
 94
 Επίκεντρο 145.4 χμ ΒΔ της Κόνιτσας
145.7 χμ ΔΒΔ της Καστοριάς
487.9 χμ ΒΔ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Μηχ.Γέν.


  Μηχανισμός Γένεσης

Μηχ.Γεν. Παράταξη (°) Κλίση (°) Γων.Ολίσθ. (°) Σεισμ.Ροπή (dyn*cm)
2913821 8.87E+21

Γεωγρ.Πλάτος (°Β) Γεωγρ.Μήκος (°Α) Βάθος (χμ) Μέγεθος Mw
41.044319.72065.03.9

Υπολογισμός εστιακών παραμέτρων

Κλικ εδώ για λεπτομέρειες μηχανισμού γένεσης

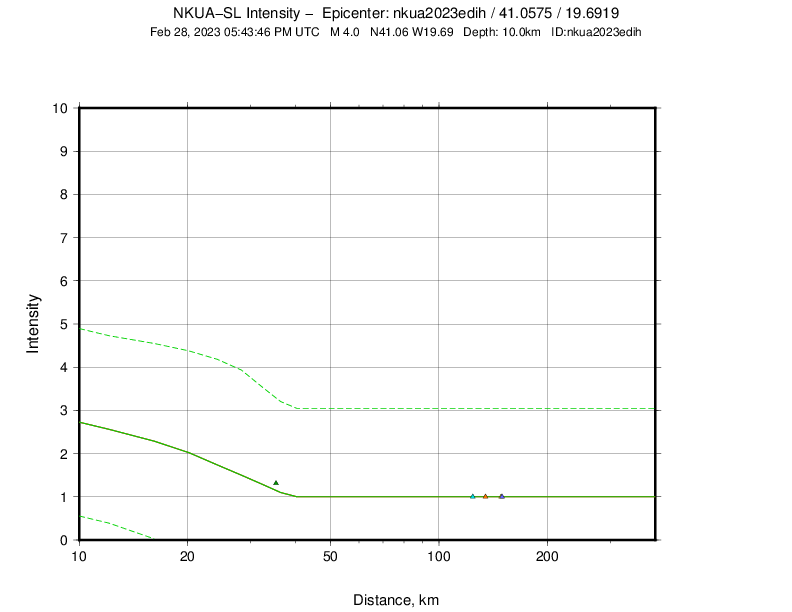

  Χάρτης εντάσεως

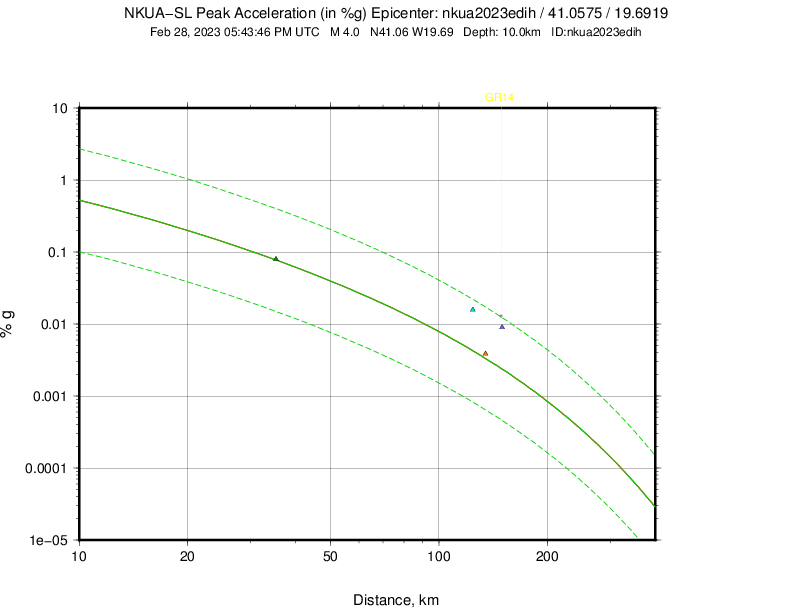

PGA

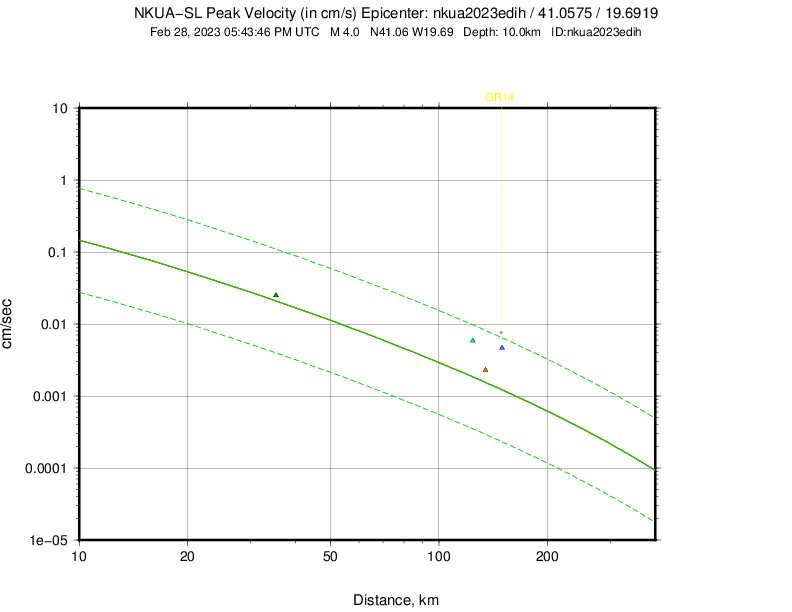

 PGV
 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
TIRMN32.0 24 P17:43:53.17 -0.11.0M
TIRMN32.0 24 S17:43:58.73 0.01.0M
GR141Y150.9151 P17:44:09.64 0.01.0M
GR141Y150.9151 S17:44:27.42 -0.11.0M

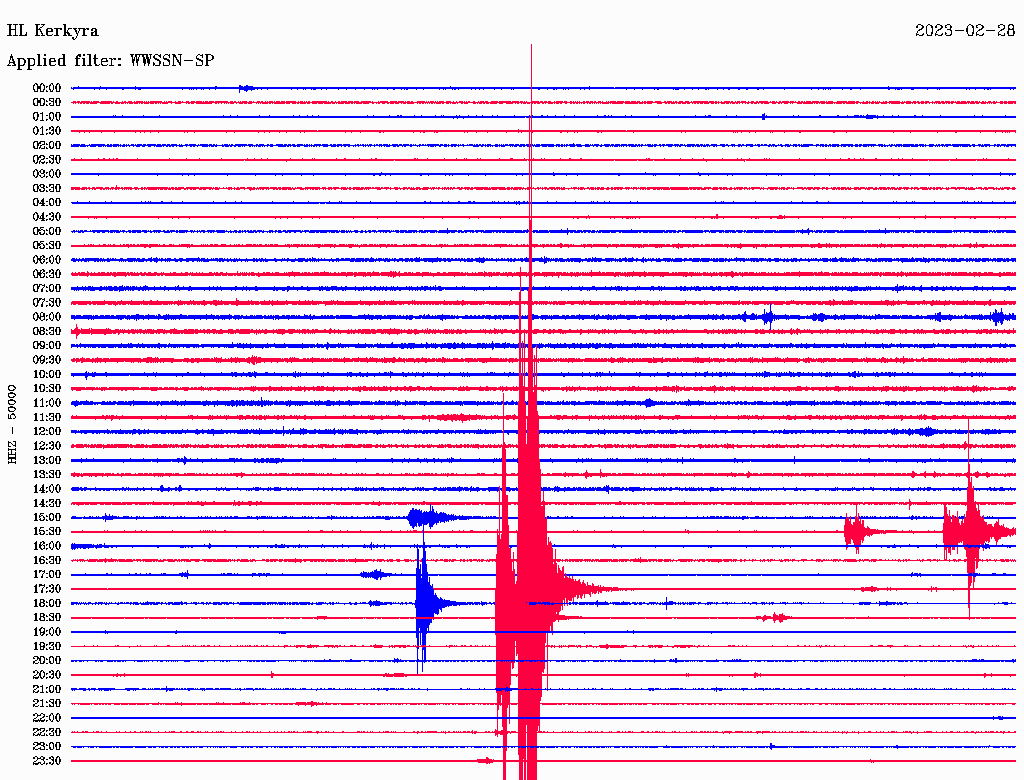

KEKHL152.7177 P17:44:10.13 0.31.0M
KEKHL152.7177 S17:44:28.07 0.21.0M

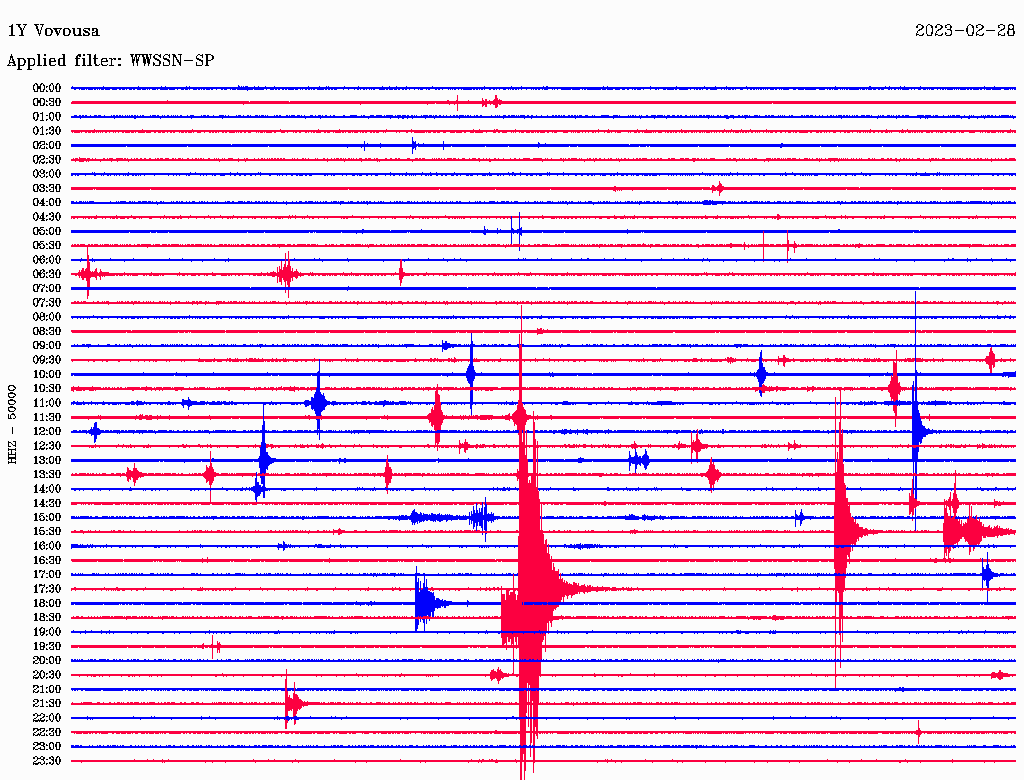

GR151Y170.3138 P17:44:12.02 -0.21.0M
GR151Y170.3138 S17:44:32.07 0.01.0M

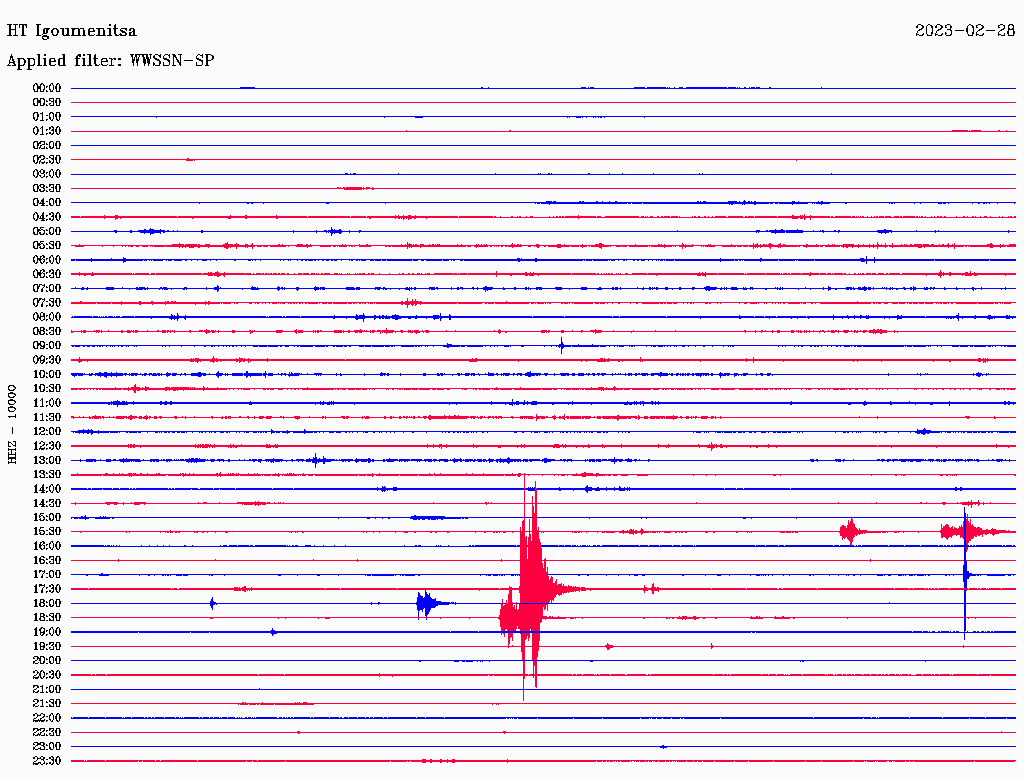

IGTHT180.6163 P17:44:13.91 0.51.0M
IGTHT180.6163 S17:44:34.38 0.31.0M

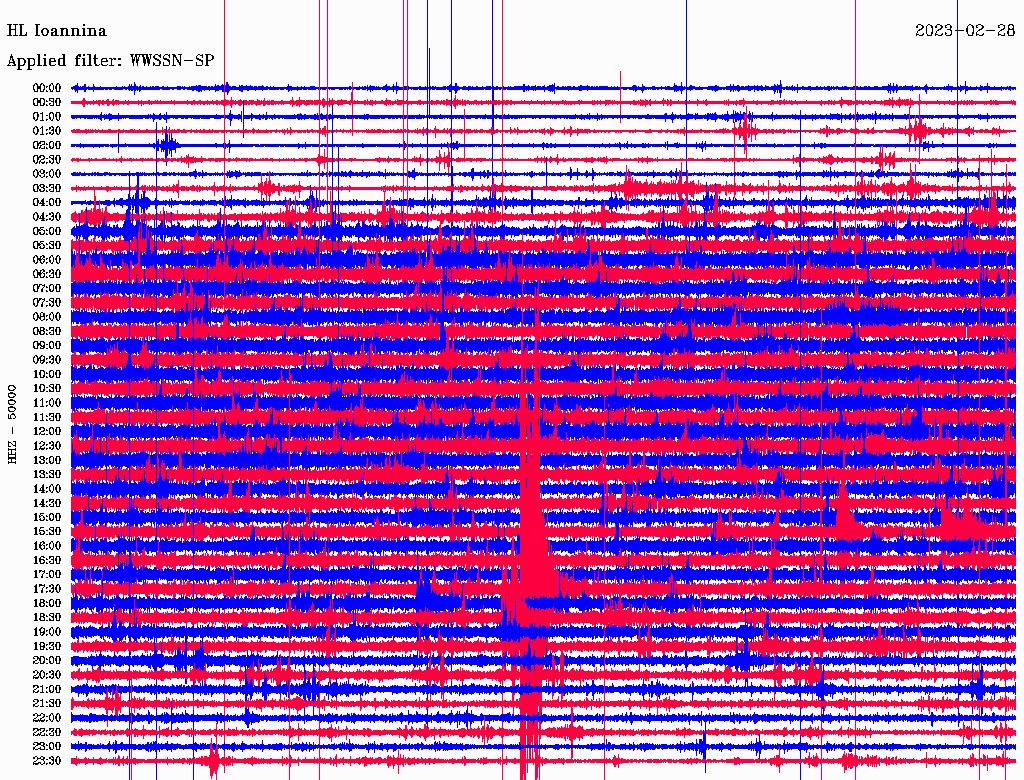

JANHL186.0149 P17:44:15.10 0.91.0M
JANHL186.0149 S17:44:35.62 0.21.0M
KPROHT188.1132 P17:44:14.77 0.31.0M
KPROHT188.1132 S17:44:36.42 0.41.0M

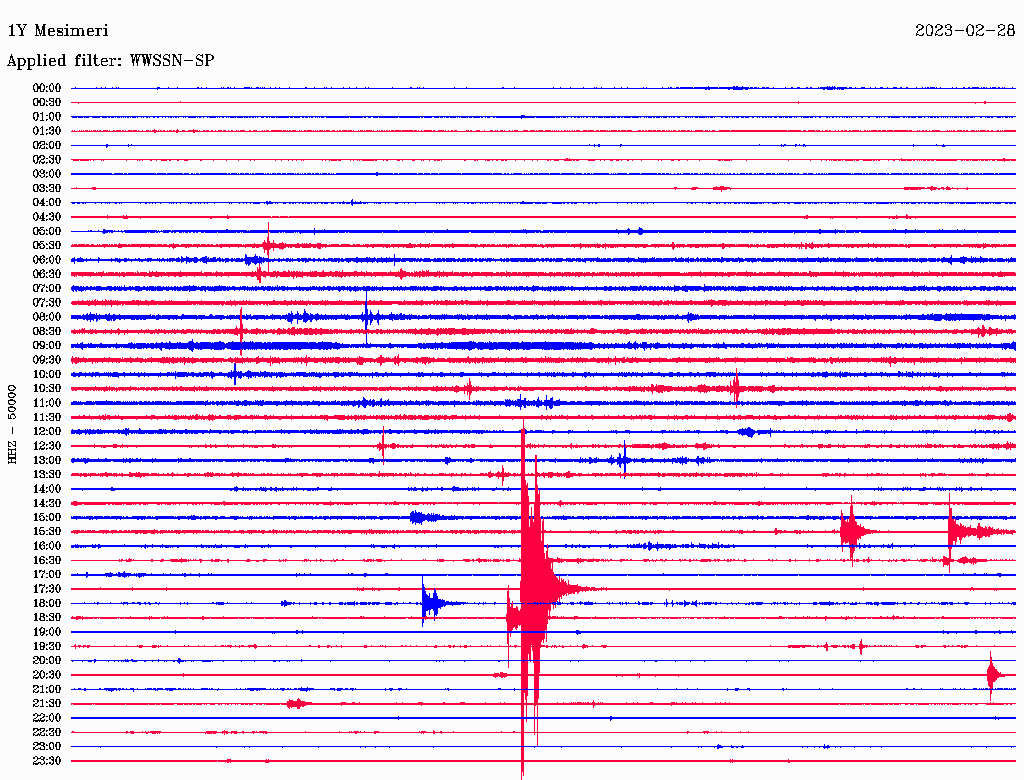

GR071Y197.2100 P17:44:16.19 0.51.0M
GR071Y197.2100 S17:44:38.26 0.21.0M
GR111Y218.1107 P17:44:18.84 0.51.0M
GR111Y218.1107 S17:44:42.90 0.21.0M

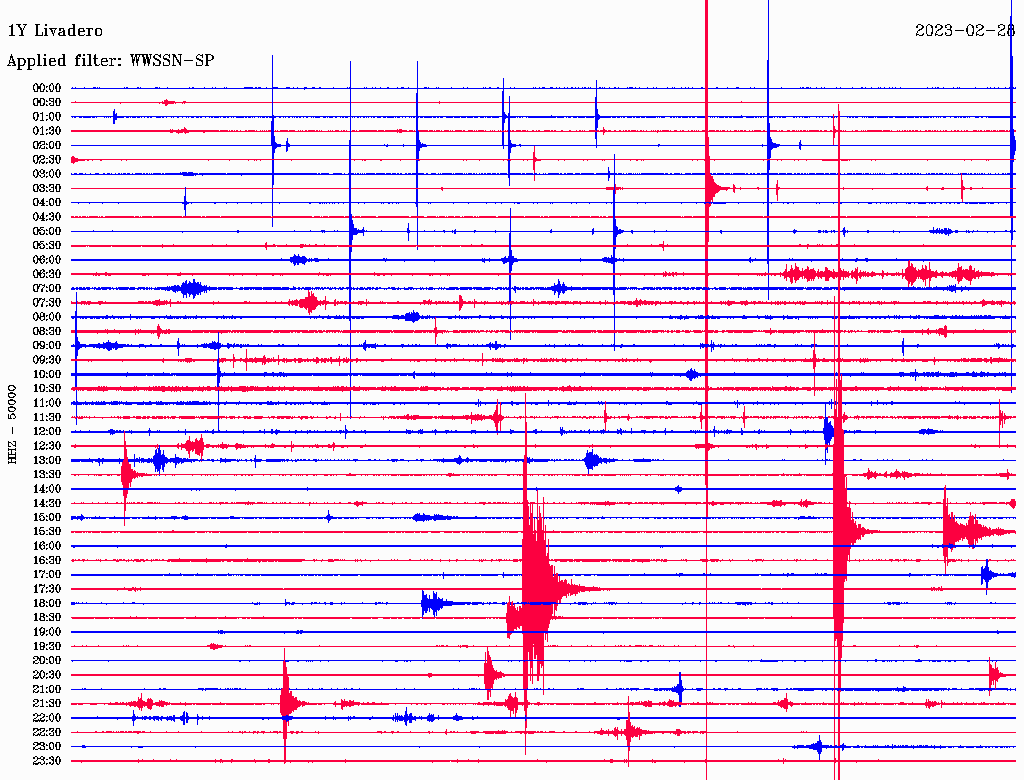

GR161Y221.3122 P17:44:19.68 0.81.0M
GR161Y221.3122 S17:44:43.50 -0.11.0M
GR171Y221.5133 P17:44:19.90 1.21.0M
GR171Y221.5133 S17:44:43.50 0.01.0M
GRGHT226.6 94 P17:44:19.92 0.51.0M
GRGHT226.6 94 S17:44:44.77 0.11.0M

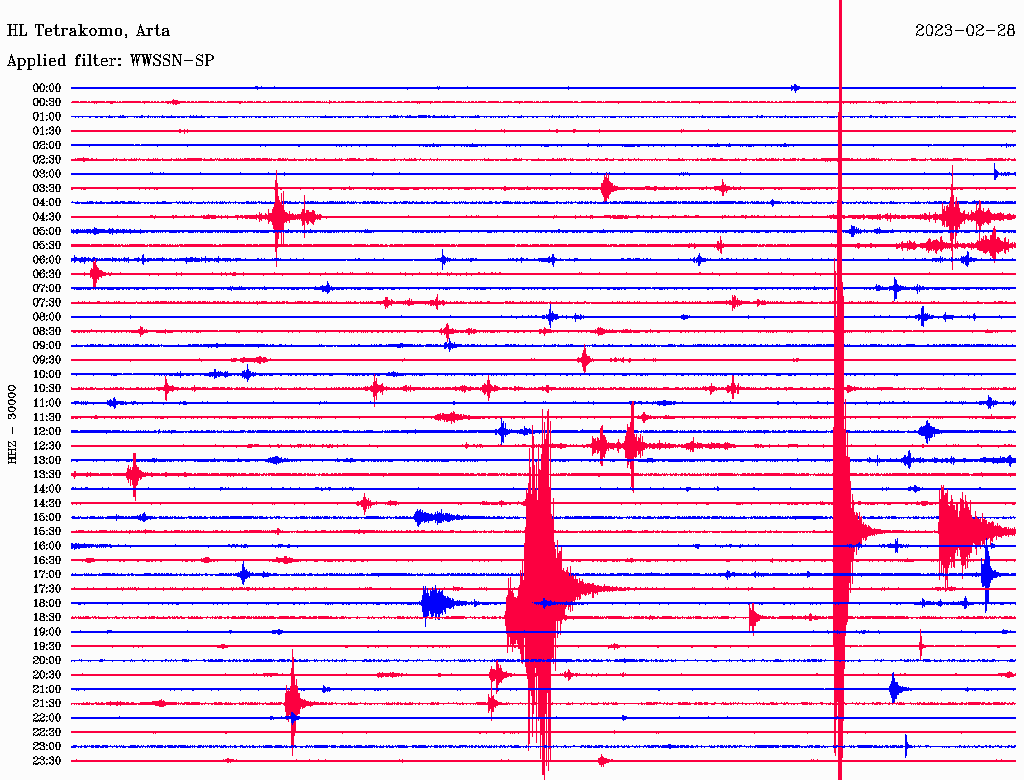

TETRHL234.8145 P17:44:21.83 1.31.0M
TETRHL234.8145 S17:44:46.25 -0.31.0M
GR121Y248.2106 P17:44:22.84 0.71.0M
GR121Y248.2106 S17:44:50.03 0.51.0M
MATEGE257.1259 P17:44:23.66 0.31.0M
MATEGE257.1259 S17:44:51.59 -0.11.0M

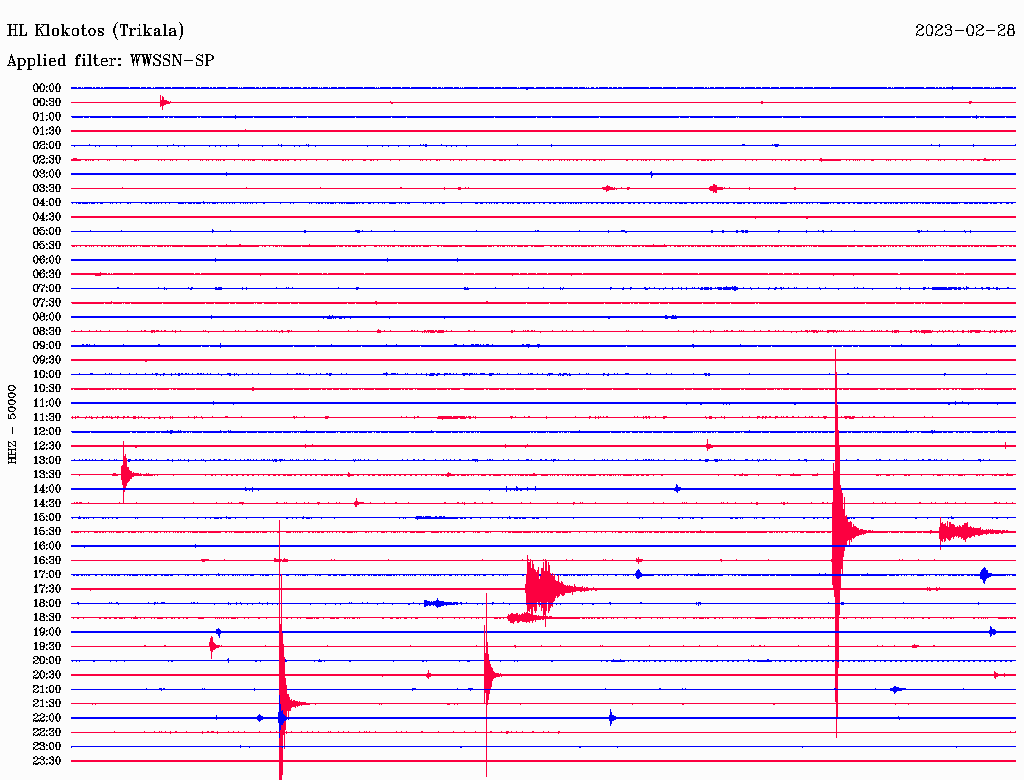

THLHL258.5131 P17:44:24.02 0.61.0M
THLHL258.5131 S17:44:51.74 0.01.0M

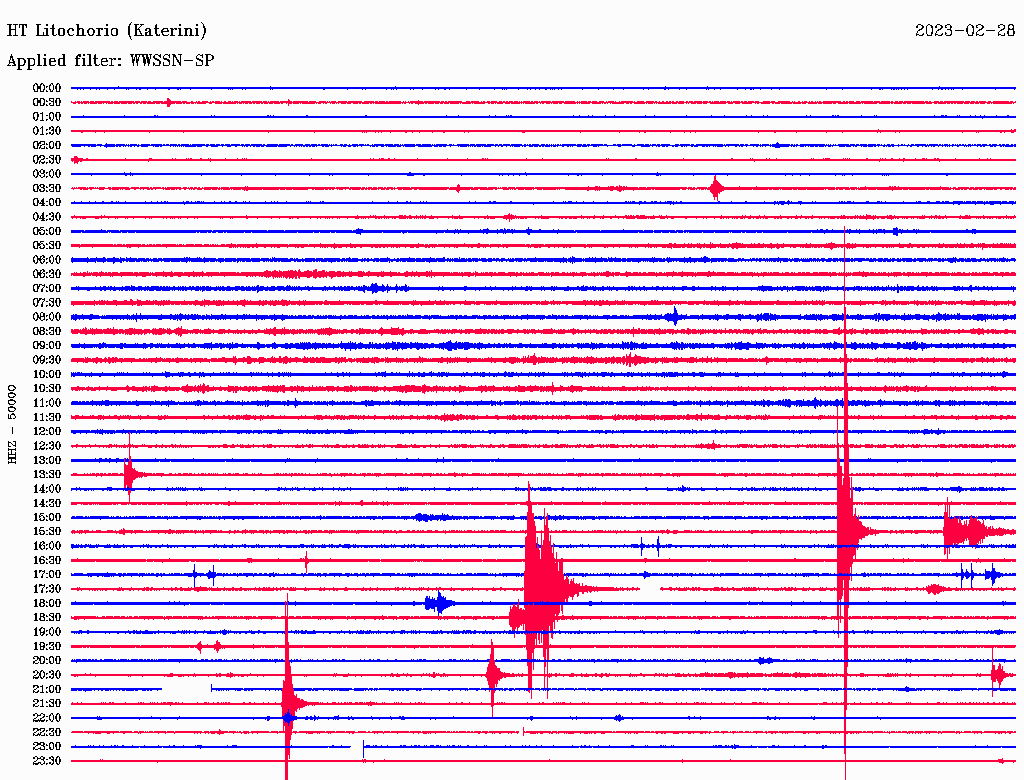

LITHT259.1115 P17:44:23.89 0.31.0M
LITHT259.1115 S17:44:51.94 -0.11.0M
TSLKHT263.9162 P17:44:23.95 -0.11.0M
TSLKHT263.9162 S17:44:53.24 0.41.0M
LKD2HT267.8162 P17:44:24.18 -0.41.0M
LKD2HT267.8162 S17:44:53.25 -0.61.0M

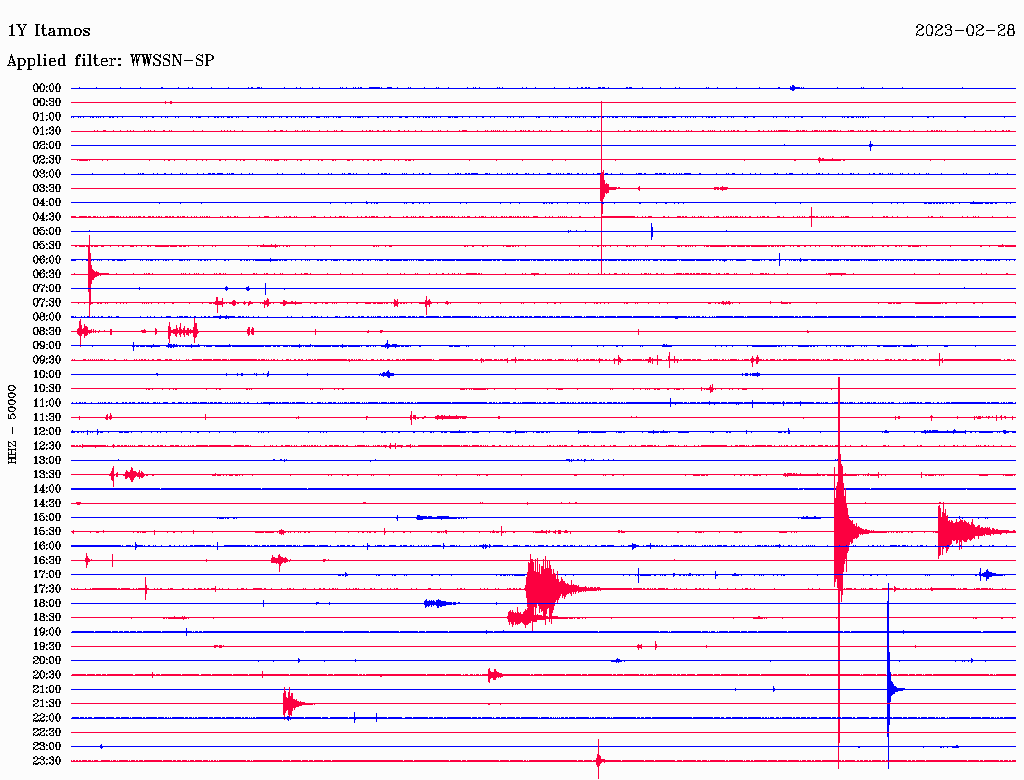

GR201Y268.9140 P17:44:26.12 1.21.0M
GR201Y268.9140 S17:44:54.23 0.01.0M

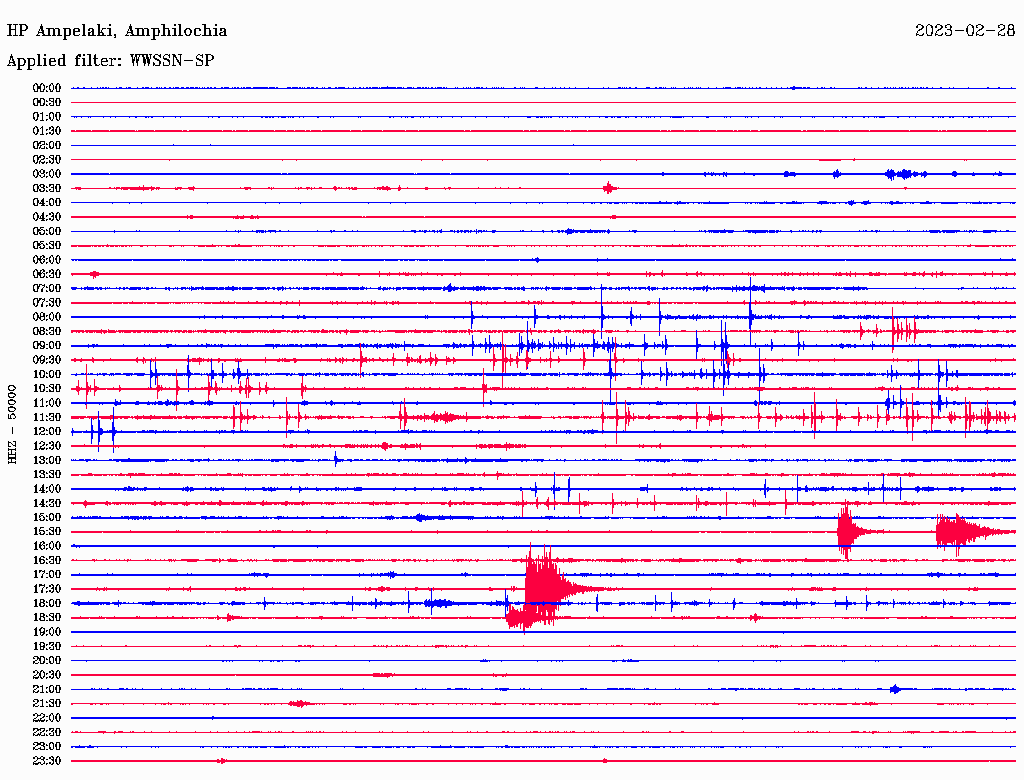

AMPLHP272.5152 P17:44:25.75 0.51.0M
AMPLHP272.5152 S17:44:54.89 0.01.0M
THEHT278.4100 P17:44:26.08 0.11.0M
THEHT278.4100 S17:44:56.55 0.21.0M

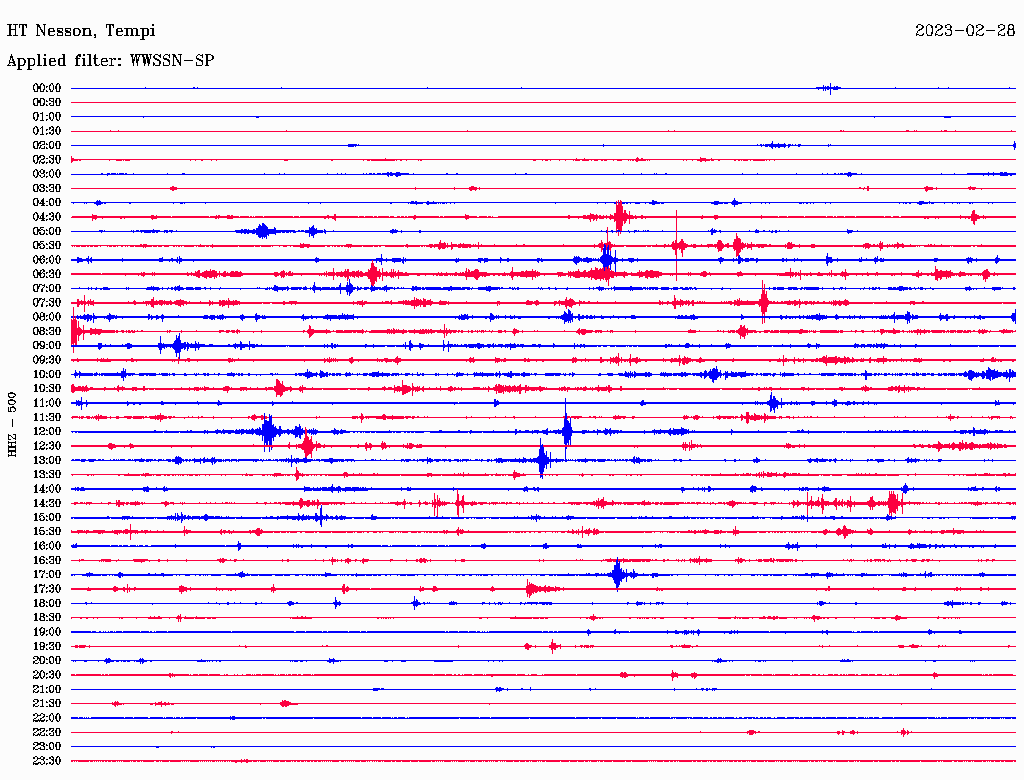

NESNHT283.4122 P17:44:27.16 0.51.0M
NESNHT283.4122 S17:44:57.15 -0.21.0M
EVGIHT285.7163 P17:44:26.17 -0.71.0M
EVGIHT285.7163 S17:44:57.29 -0.51.0M

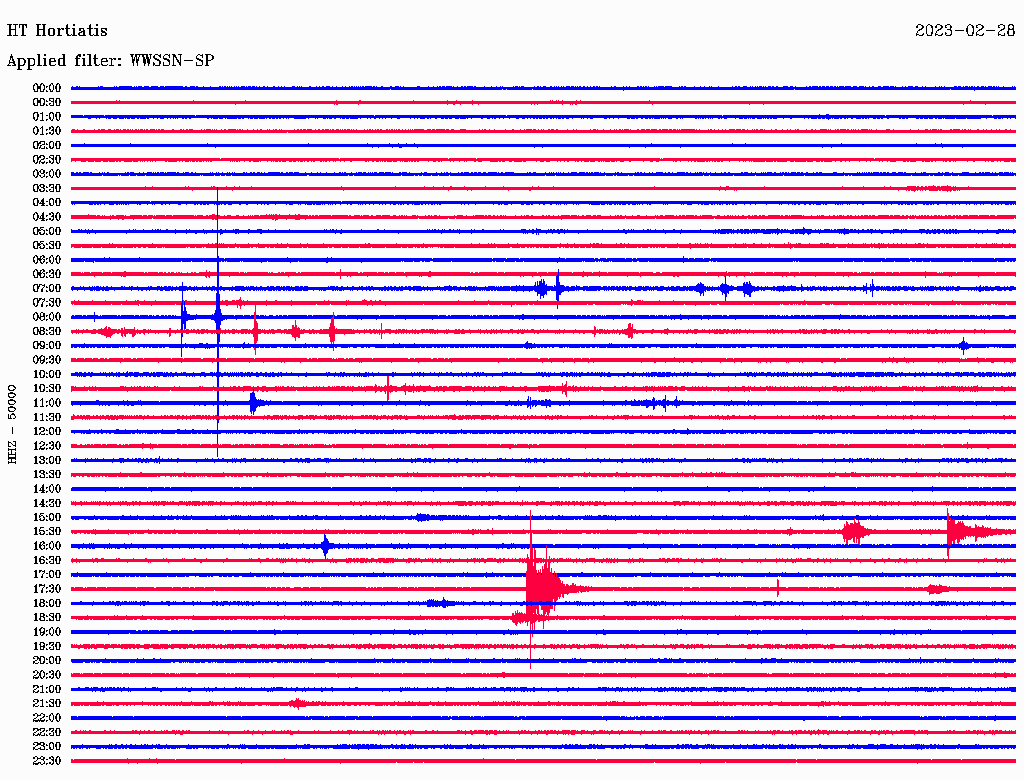

HORTHT290.4101 P17:44:27.52 -0.21.0M
HORTHT290.4101 S17:44:58.72 -0.61.0M
GR181Y292.6121 P17:44:27.99 0.01.0M
GR181Y292.6121 S17:44:59.28 -0.51.0M
EVRHL300.3143 P17:44:30.22 1.31.0M
EVRHL300.3143 S17:45:00.72 -0.71.0M
GR011Y300.7 86 P17:44:29.16 0.21.0M
GR011Y300.7 86 S17:45:01.16 -0.21.0M

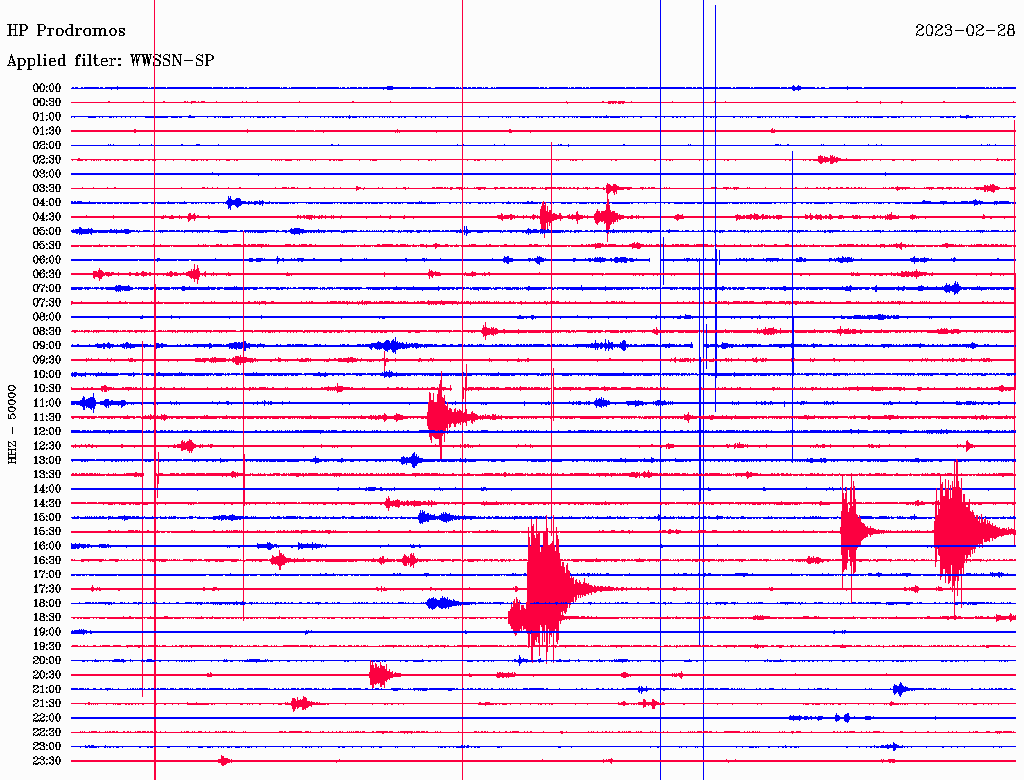

PDOHP303.8155 P17:44:28.79 -0.41.0M

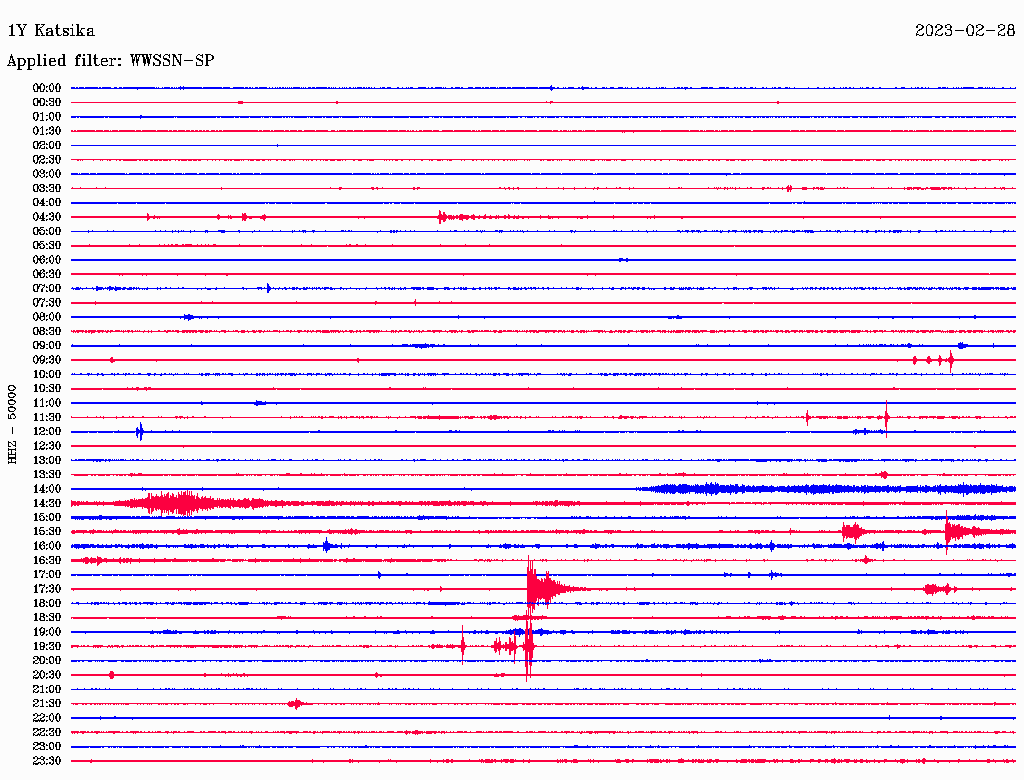

GR131Y304.3105 P17:44:28.91 -0.51.0M
GR131Y304.3105 S17:45:01.64 -0.61.0M
GR211Y304.9129 P17:44:29.56 0.11.0M
GR211Y304.9129 S17:45:02.12 -0.21.0M

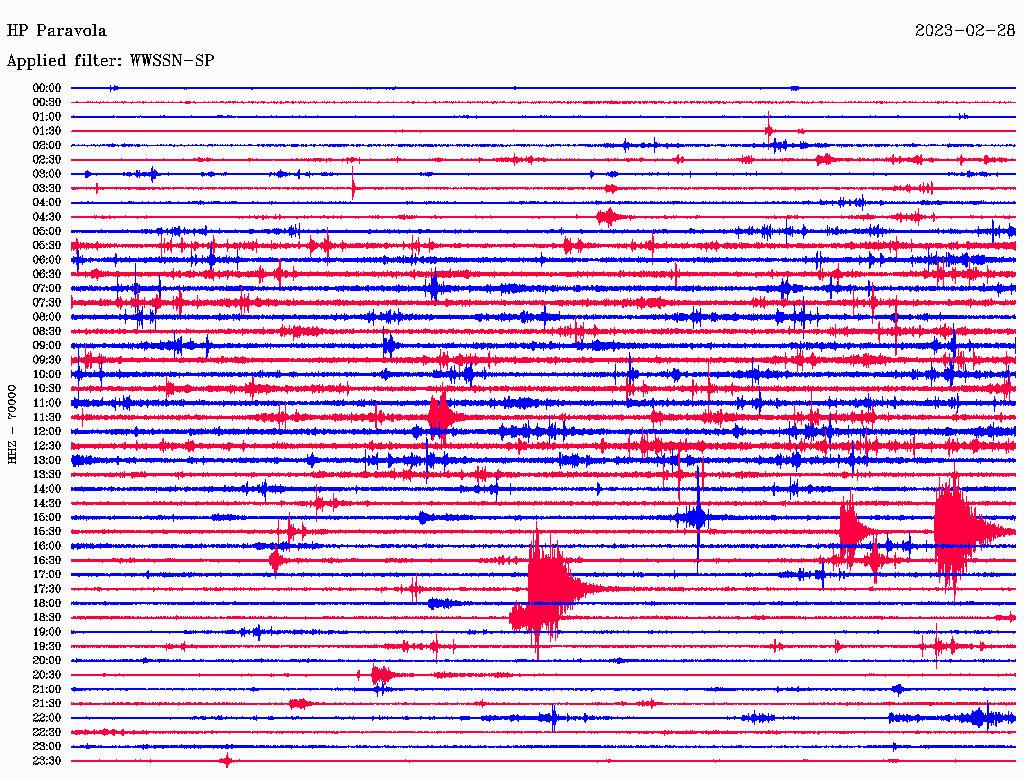

PVOHP315.3150 P17:44:31.06 0.41.0M
PVOHP315.3150 S17:45:04.00 -0.51.0M
AGGHT320.5136 P17:44:31.10 -0.31.0M
AGGHT320.5136 S17:45:05.46 -0.41.0M
PLGHL324.7104 P17:44:32.55 0.51.0M
PLGHL324.7104 S17:45:06.82 -0.11.0M

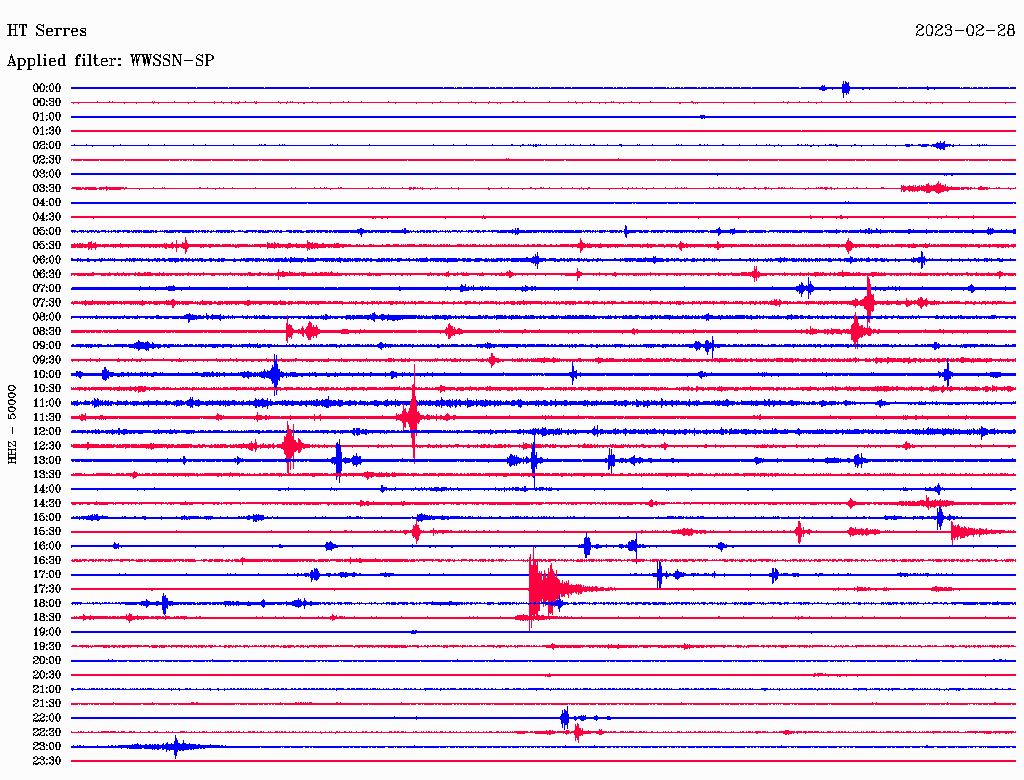

SRSHT324.9 90 P17:44:31.99 -0.21.0M
SRSHT324.9 90 S17:45:06.75 -0.41.0M

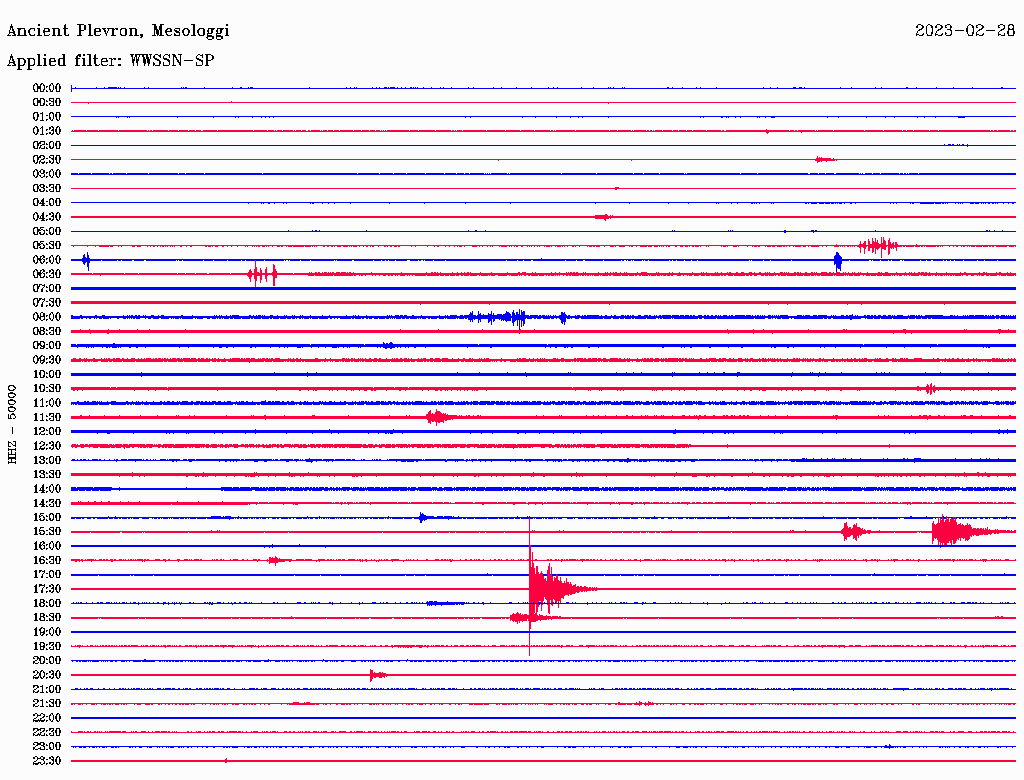

PLEVHP330.8154 P17:44:32.29 -0.31.0M
ANXHP335.3146 P17:44:34.26 0.91.0M

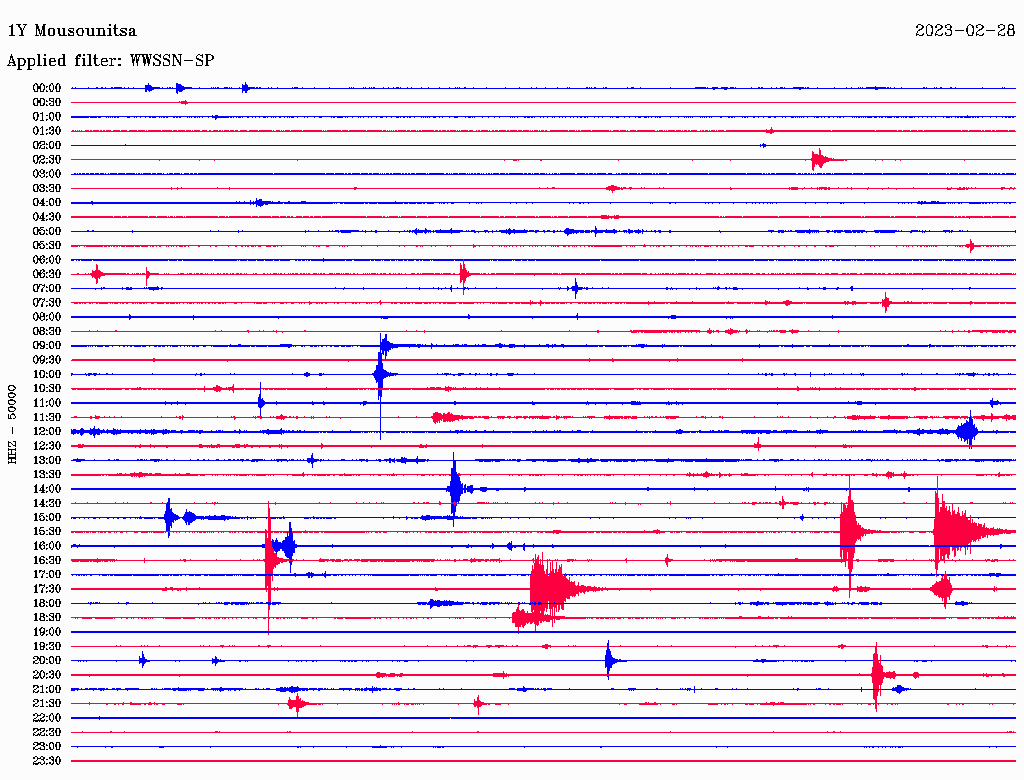

GR241Y340.6141 P17:44:34.32 0.31.0M
GR241Y340.6141 S17:45:09.68 -0.81.0M
MMBBS341.4 81 P17:44:34.28 0.01.0M
MMBBS341.4 81 S17:45:10.41 -0.31.0M

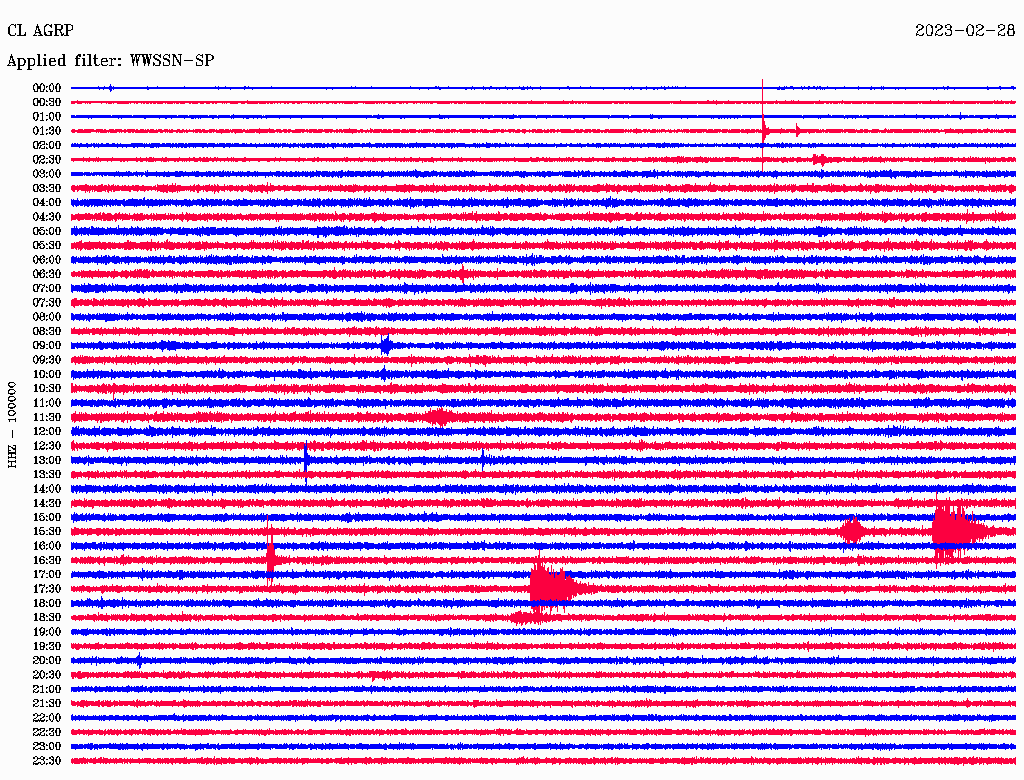

AGRPCL345.1150 P17:44:34.30 -0.21.0M
AGRPCL345.1150 S17:45:10.47 -0.81.0M
GR221Y345.8130 P17:44:34.48 -0.21.0M
GR221Y345.8130 S17:45:11.04 -0.51.0M
VVKHP346.4149 P17:44:35.05 0.31.0M
VVKHP346.4149 S17:45:11.33 -0.31.0M

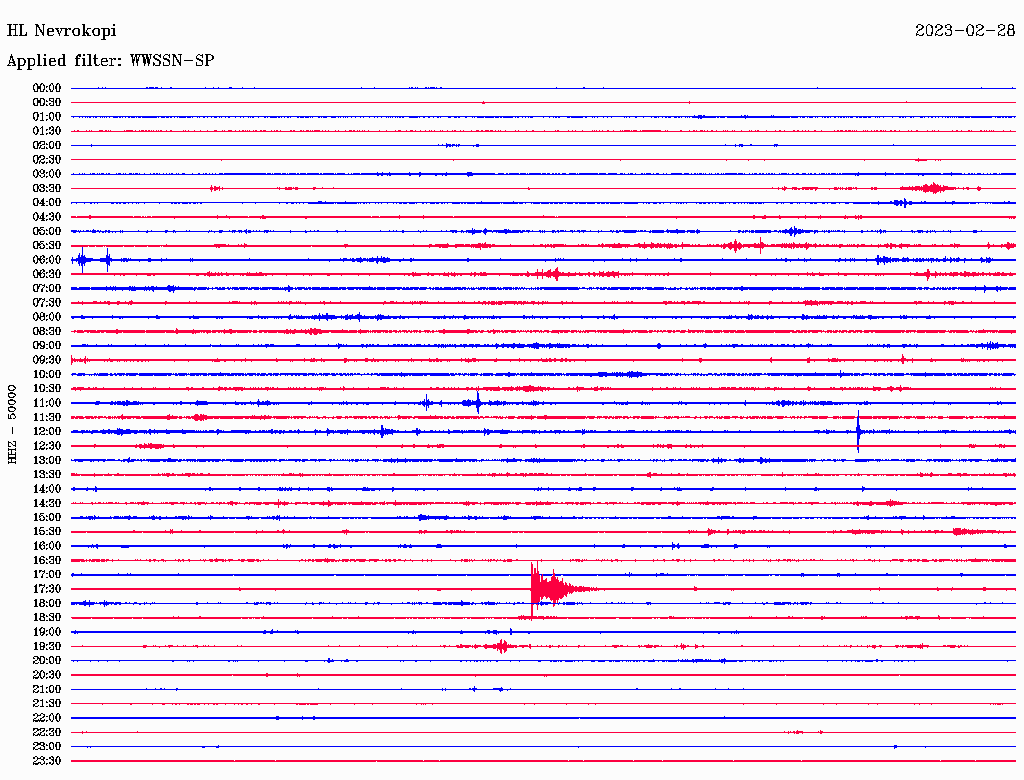

NVRHL349.0 85 P17:44:35.38 0.21.0M
NVRHL349.0 85 S17:45:11.75 -0.71.0M

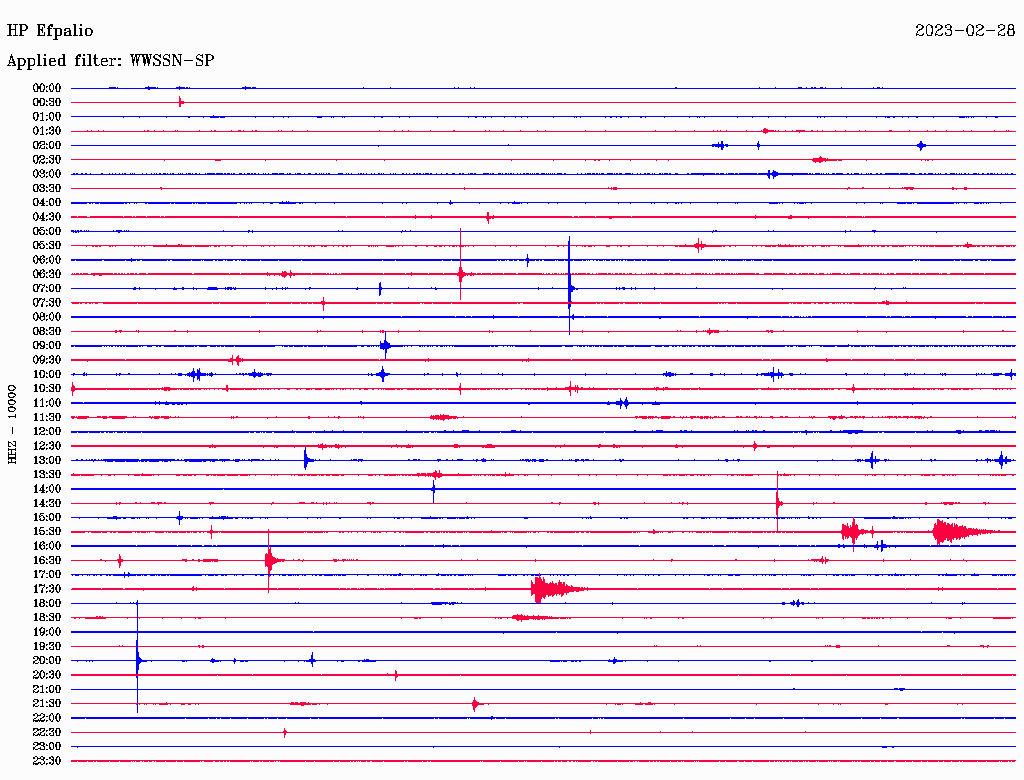

EFPHP350.2147 P17:44:35.51 0.41.0M
EFPHP350.2147 S17:45:11.85 -0.51.0M
CUCMN350.5250 P17:44:35.72 0.31.0M
CUCMN350.5250 S17:45:12.10 -0.71.0M
AXSHP351.5156 P17:44:34.60 -0.71.0M

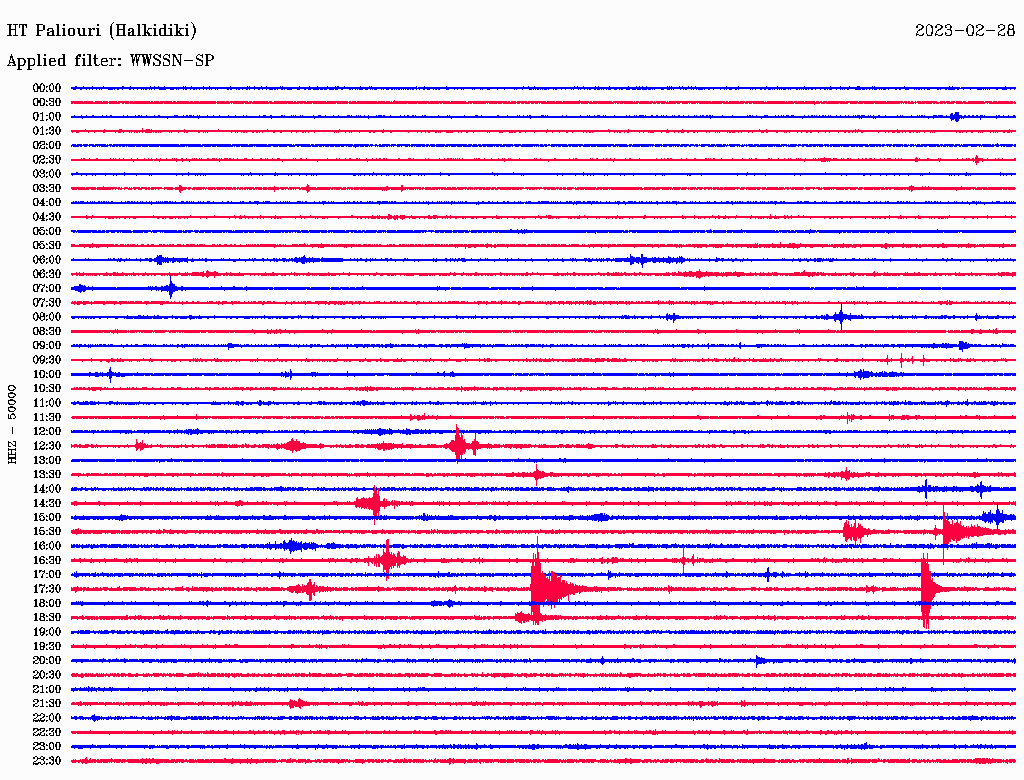

PAIGHT359.0111 P17:44:35.77 -0.61.0M
AXARHA360.2136 P17:44:36.87 0.41.0M
TRIZCL363.8146 P17:44:37.29 0.41.0M
TRIZCL363.8146 S17:45:14.80 -0.61.0M
RLSHL368.9156 P17:44:37.21 -0.31.0M
RLSHL368.9156 S17:45:16.07 -0.51.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2023edih
    Description
      region name: Albania
Origin:
    Date                   2023-02-28
    Time                  17:43:46.17
    Latitude              41.0847 deg  +/-      1 km
    Longitude             19.7073 deg  +/-      1 km
    Depth                      29 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.32 s
    Azimuthal gap             125 deg

2 Network magnitudes:
    MLv       4.01 +/- 0.12  43
    M         4.01           43 preferred

94 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    TIR   MN    0.3  24  P       17:43:53.17  -0.1 M  1.0  TIR
    TIR   MN    0.3  24  S       17:43:58.73   0.0 M  1.0  TIR
    GR14  1Y    1.4 151  P       17:44:09.64  -0.0 M  1.0  GR14
    GR14  1Y    1.4 151  S       17:44:27.42  -0.1 M  1.0  GR14
    KEK   HL    1.4 177  P       17:44:10.13   0.3 M  1.0  KEK
    KEK   HL    1.4 177  S       17:44:28.07   0.2 M  1.0  KEK
    GR15  1Y    1.5 138  P       17:44:12.02  -0.2 M  1.0  GR15
    GR15  1Y    1.5 138  S       17:44:32.07   0.0 M  1.0  GR15
    IGT   HT    1.6 163  P       17:44:13.91   0.5 M  1.0  IGT
    IGT   HT    1.6 163  S       17:44:34.38   0.3 M  1.0  IGT
    JAN   HL    1.7 149  P       17:44:15.10   0.9 M  1.0  JAN
    JAN   HL    1.7 149  S       17:44:35.62   0.2 M  1.0  JAN
    KPRO  HT    1.7 132  P       17:44:14.77   0.3 M  1.0  KPRO
    KPRO  HT    1.7 132  S       17:44:36.42   0.4 M  1.0  KPRO
    GR07  1Y    1.8 100  P       17:44:16.19   0.5 M  1.0  GR07
    GR07  1Y    1.8 100  S       17:44:38.26   0.2 M  1.0  GR07

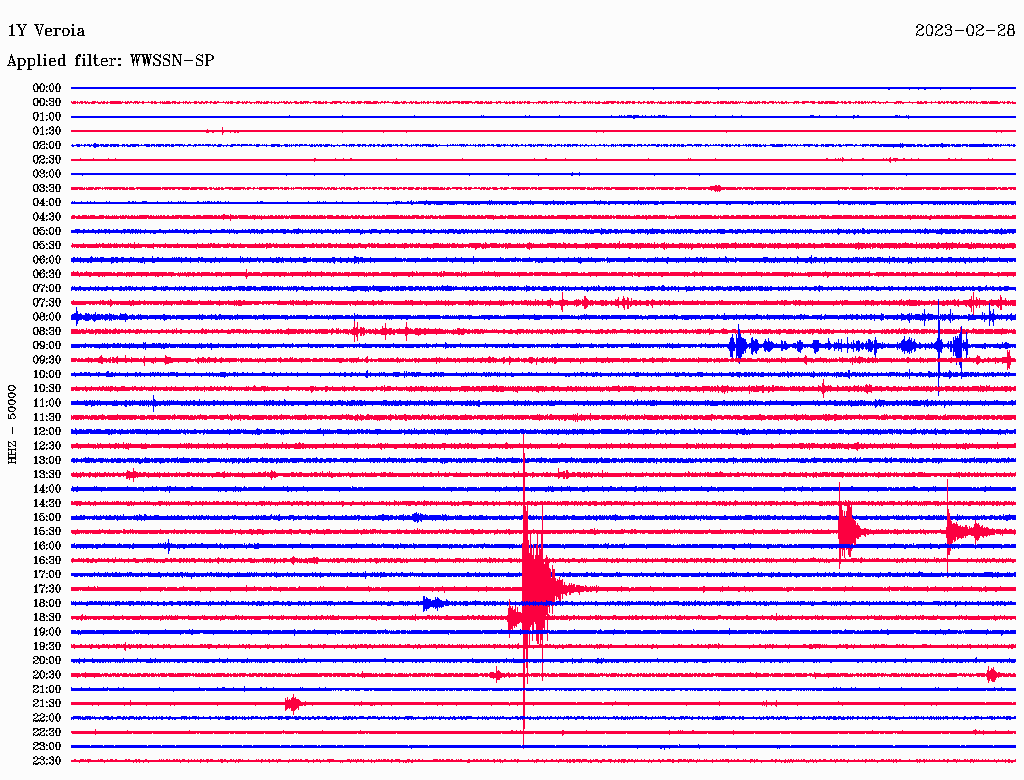

    GR11  1Y    2.0 107  P       17:44:18.84   0.5 M  1.0  GR11
    GR11  1Y    2.0 107  S       17:44:42.90   0.2 M  1.0  GR11
    GR16  1Y    2.0 122  P       17:44:19.68   0.8 M  1.0  GR16
    GR16  1Y    2.0 122  S       17:44:43.50  -0.1 M  1.0  GR16
    GR17  1Y    2.0 133  P       17:44:19.90   1.2 M  1.0  GR17
    GR17  1Y    2.0 133  S       17:44:43.50   0.0 M  1.0  GR17
    GRG   HT    2.0  94  P       17:44:19.92   0.5 M  1.0  GRG
    GRG   HT    2.0  94  S       17:44:44.77   0.1 M  1.0  GRG
    TETR  HL    2.1 145  P       17:44:21.83   1.3 M  1.0  TETR
    TETR  HL    2.1 145  S       17:44:46.25  -0.3 M  1.0  TETR

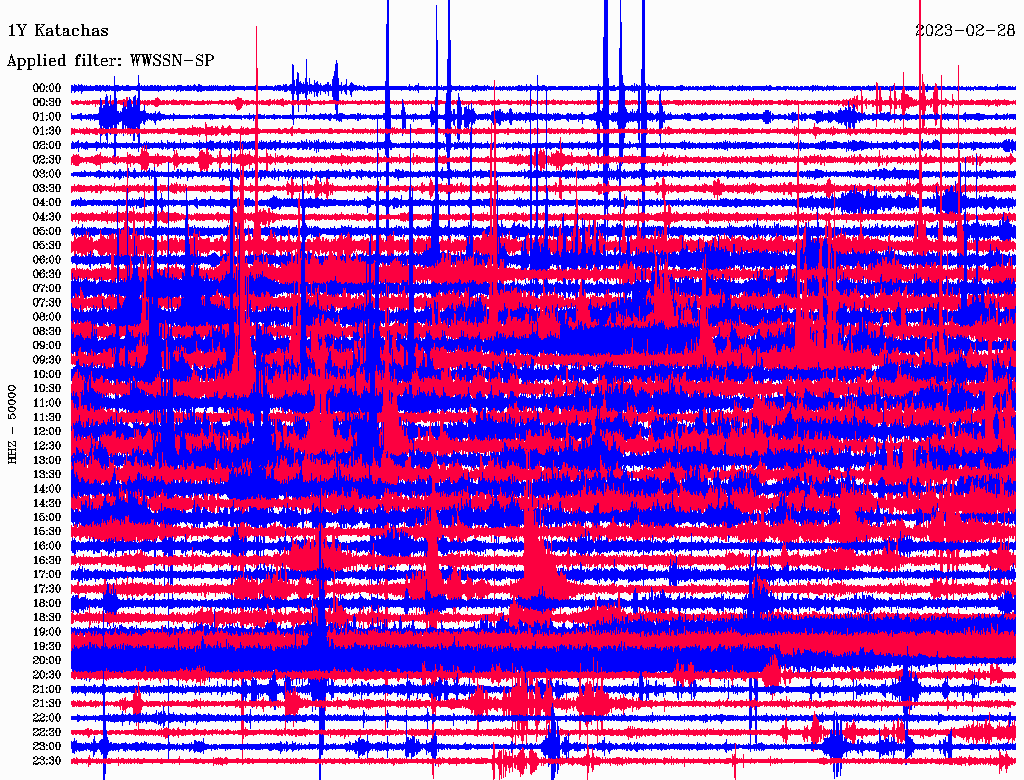

    GR12  1Y    2.2 106  P       17:44:22.84   0.7 M  1.0  GR12
    GR12  1Y    2.2 106  S       17:44:50.03   0.5 M  1.0  GR12
    MATE  GE    2.3 259  P       17:44:23.66   0.3 M  1.0  MATE
    MATE  GE    2.3 259  S       17:44:51.59  -0.1 M  1.0  MATE
    THL   HL    2.3 131  P       17:44:24.02   0.6 M  1.0  THL
    THL   HL    2.3 131  S       17:44:51.74   0.0 M  1.0  THL
    LIT   HT    2.3 115  P       17:44:23.89   0.3 M  1.0  LIT
    LIT   HT    2.3 115  S       17:44:51.94  -0.1 M  1.0  LIT
    TSLK  HT    2.4 162  P       17:44:23.95  -0.1 M  1.0  TSLK
    TSLK  HT    2.4 162  S       17:44:53.24   0.4 M  1.0  TSLK
    LKD2  HT    2.4 162  P       17:44:24.18  -0.4 M  1.0  LKD2
    LKD2  HT    2.4 162  S       17:44:53.25  -0.6 M  1.0  LKD2
    GR20  1Y    2.4 140  P       17:44:26.12   1.2 M  1.0  GR20
    GR20  1Y    2.4 140  S       17:44:54.23  -0.0 M  1.0  GR20
    AMPL  HP    2.5 152  P       17:44:25.75   0.5 M  1.0  AMPL
    AMPL  HP    2.5 152  S       17:44:54.89   0.0 M  1.0  AMPL
    THE   HT    2.5 100  P       17:44:26.08   0.1 M  1.0  THE
    THE   HT    2.5 100  S       17:44:56.55   0.2 M  1.0  THE
    NESN  HT    2.6 122  P       17:44:27.16   0.5 M  1.0  NESN
    NESN  HT    2.6 122  S       17:44:57.15  -0.2 M  1.0  NESN
    EVGI  HT    2.6 163  P       17:44:26.17  -0.7 M  1.0  EVGI
    EVGI  HT    2.6 163  S       17:44:57.29  -0.5 M  1.0  EVGI
    HORT  HT    2.6 101  P       17:44:27.52  -0.2 M  1.0  HORT
    HORT  HT    2.6 101  S       17:44:58.72  -0.6 M  1.0  HORT
    GR18  1Y    2.6 121  P       17:44:27.99   0.0 M  1.0  GR18
    GR18  1Y    2.6 121  S       17:44:59.28  -0.5 M  1.0  GR18

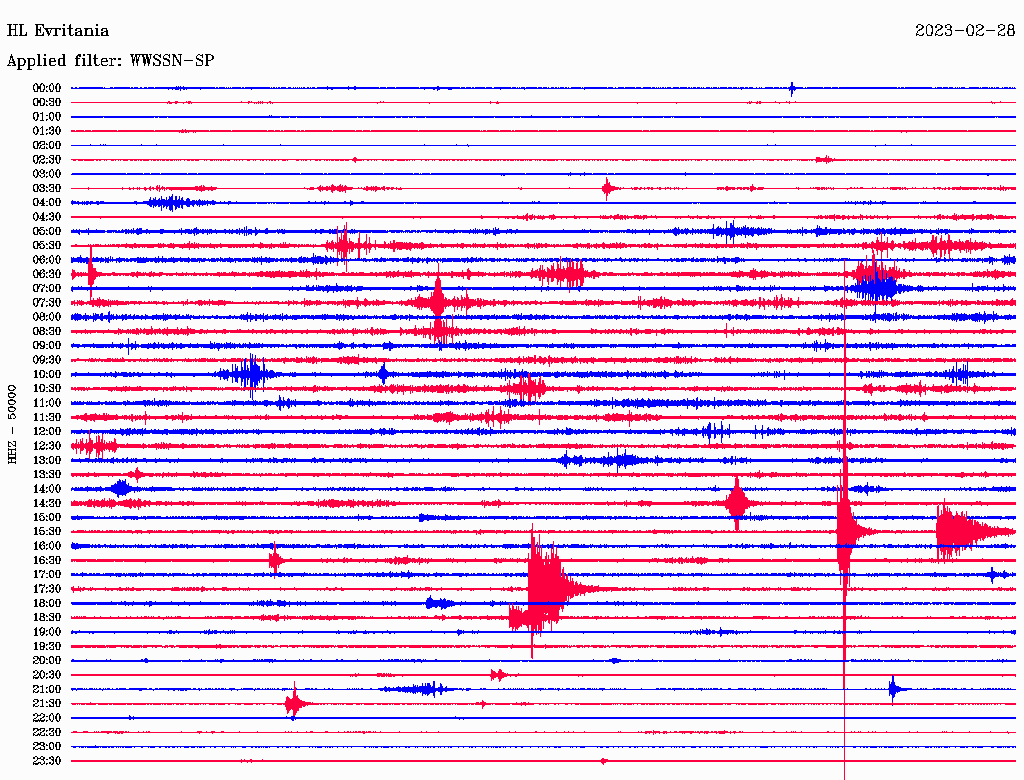

    EVR   HL    2.7 143  P       17:44:30.22   1.3 M  1.0  EVR
    EVR   HL    2.7 143  S       17:45:00.72  -0.7 M  1.0  EVR
    GR01  1Y    2.7  86  P       17:44:29.16   0.2 M  1.0  GR01
    GR01  1Y    2.7  86  S       17:45:01.16  -0.2 M  1.0  GR01
    PDO   HP    2.7 155  P       17:44:28.79  -0.4 M  1.0  PDO
    GR13  1Y    2.7 105  P       17:44:28.91  -0.5 M  1.0  GR13
    GR13  1Y    2.7 105  S       17:45:01.64  -0.6 M  1.0  GR13
    GR21  1Y    2.7 129  P       17:44:29.56   0.1 M  1.0  GR21
    GR21  1Y    2.7 129  S       17:45:02.12  -0.2 M  1.0  GR21
    PVO   HP    2.8 150  P       17:44:31.06   0.4 M  1.0  PVO
    PVO   HP    2.8 150  S       17:45:04.00  -0.5 M  1.0  PVO
    AGG   HT    2.9 136  P       17:44:31.10  -0.3 M  1.0  AGG
    AGG   HT    2.9 136  S       17:45:05.46  -0.4 M  1.0  AGG
    PLG   HL    2.9 104  P       17:44:32.55   0.5 M  1.0  PLG
    PLG   HL    2.9 104  S       17:45:06.82  -0.1 M  1.0  PLG
    SRS   HT    2.9  90  P       17:44:31.99  -0.2 M  1.0  SRS
    SRS   HT    2.9  90  S       17:45:06.75  -0.4 M  1.0  SRS
    PLEV  HP    3.0 154  P       17:44:32.29  -0.3 M  1.0  PLEV

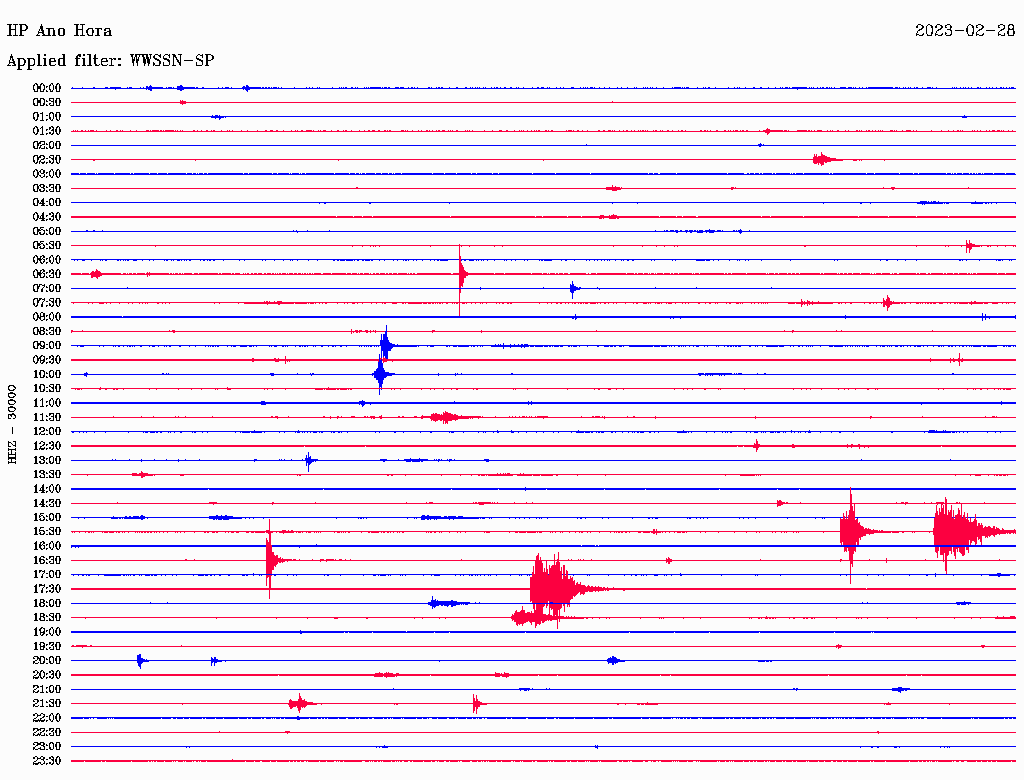

    ANX   HP    3.0 146  P       17:44:34.26   0.9 M  1.0  ANX
    GR24  1Y    3.1 141  P       17:44:34.32   0.3 M  1.0  GR24
    GR24  1Y    3.1 141  S       17:45:09.68  -0.8 M  1.0  GR24

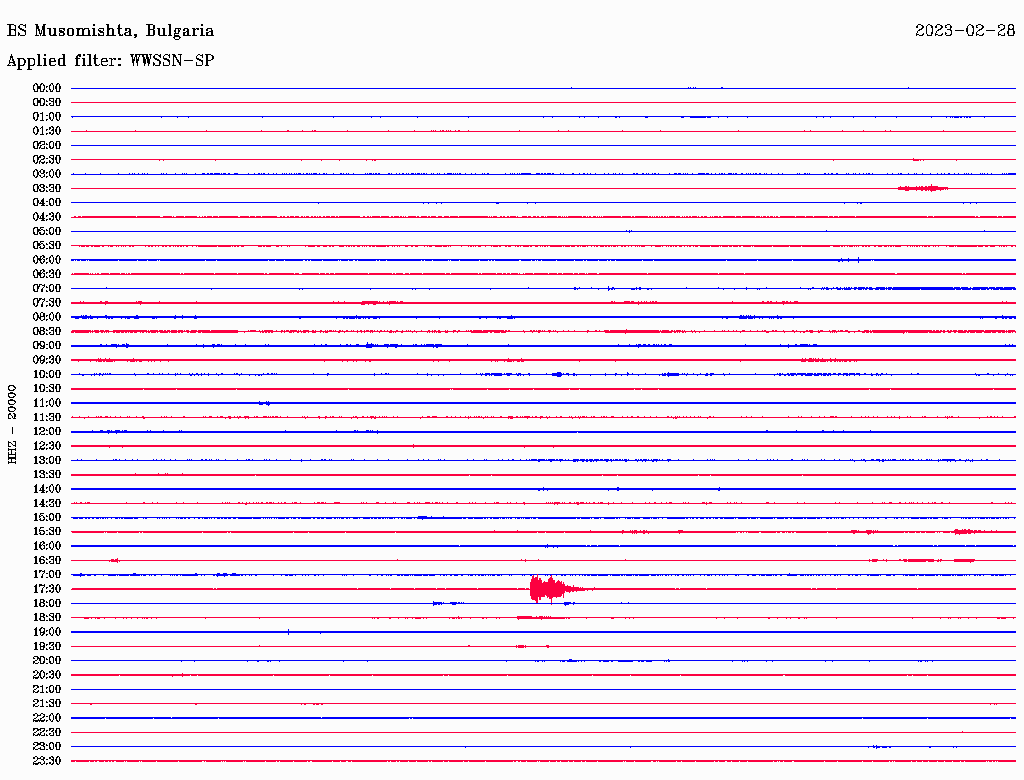

    MMB   BS    3.1  81  P       17:44:34.28   0.0 M  1.0  MMB
    MMB   BS    3.1  81  S       17:45:10.41  -0.3 M  1.0  MMB
    AGRP  CL    3.1 150  P       17:44:34.30  -0.2 M  1.0  AGRP
    AGRP  CL    3.1 150  S       17:45:10.47  -0.8 M  1.0  AGRP
    GR22  1Y    3.1 130  P       17:44:34.48  -0.2 M  1.0  GR22
    GR22  1Y    3.1 130  S       17:45:11.04  -0.5 M  1.0  GR22
    VVK   HP    3.1 149  P       17:44:35.05   0.3 M  1.0  VVK
    VVK   HP    3.1 149  S       17:45:11.33  -0.3 M  1.0  VVK
    NVR   HL    3.1  85  P       17:44:35.38   0.2 M  1.0  NVR
    NVR   HL    3.1  85  S       17:45:11.75  -0.7 M  1.0  NVR
    EFP   HP    3.2 147  P       17:44:35.51   0.4 M  1.0  EFP
    EFP   HP    3.2 147  S       17:45:11.85  -0.5 M  1.0  EFP
    AXS   HP    3.2 156  P       17:44:34.60  -0.7 M  1.0  AXS
    CUC   MN    3.2 250  P       17:44:35.72   0.3 M  1.0  CUC
    CUC   MN    3.2 250  S       17:45:12.10  -0.7 M  1.0  CUC
    PAIG  HT    3.2 111  P       17:44:35.77  -0.6 M  1.0  PAIG
    AXAR  HA    3.2 136  P       17:44:36.87   0.4 M  1.0  AXAR
    TRIZ  CL    3.3 146  P       17:44:37.29   0.4 M  1.0  TRIZ
    TRIZ  CL    3.3 146  S       17:45:14.80  -0.6 M  1.0  TRIZ
    RLS   HL    3.3 156  P       17:44:37.21  -0.3 M  1.0  RLS
    RLS   HL    3.3 156  S       17:45:16.07  -0.5 M  1.0  RLS

50 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    TIR   MN    0.3  24  MLv     3.94 -0.07    109.274
    GR14  1Y    1.4 151  MLv     4.18  0.17    13.2862
    KEK   HL    1.4 177  MLv     3.96 -0.05    14.9111
    GR15  1Y    1.5 138  MLv     3.96 -0.05    6.43211
    IGT   HT    1.6 163  MLv     4.10  0.09    7.86612
    JAN   HL    1.7 149  MLv     4.00 -0.01    7.77613
    KPRO  HT    1.7 132  MLv     4.02  0.02    6.09473
    GR07  1Y    1.8 100  MLv     3.85 -0.16    3.66113
    GR11  1Y    2.0 107  MLv     4.06  0.05    4.63553
    GR16  1Y    2.0 122  MLv     3.92 -0.09    3.26676
    GR17  1Y    2.0 133  MLv     4.04  0.03    4.25031
    GRG   HT    2.0  94  MLv     4.56  0.55    13.4055
    TETR  HL    2.1 145  MLv     4.18  0.18    5.12694
    GR12  1Y    2.2 106  MLv     3.93 -0.07     2.4673
    MATE  GE    2.3 259  MLv     3.76 -0.24    1.50625
    THL   HL    2.3 131  MLv     3.96 -0.04     1.4217
    LIT   HT    2.3 115  MLv     4.20  0.20    2.94351
    TSLK  HT    2.4 162  MLv     3.87 -0.14    1.79024
    LKD2  HT    2.4 162  MLv     3.95 -0.06    2.05057
    GR20  1Y    2.4 140  MLv     3.91 -0.10    1.83702
    AMPL  HP    2.5 152  MLv     4.08  0.07    2.59678
    THE   HT    2.5 100  MLv     3.83 -0.18     0.9053
    NESN  HT    2.6 122  MLv     4.21  0.20    3.09371
    EVGI  HT    2.6 163  MLv     4.08  0.08    2.27423
    HORT  HT    2.6 101  MLv     3.84 -0.17   0.827942
    GR18  1Y    2.6 121  MLv     3.92 -0.09    1.42351
    EVR   HL    2.7 143  MLv     4.16  0.15    2.26863
    GR01  1Y    2.7  86  MLv     3.90 -0.11     1.2521
    PDO   HP    2.7 155  MLv     4.05  0.04     1.7091
    GR13  1Y    2.7 105  MLv     3.55 -0.46   0.531476
    GR21  1Y    2.7 129  MLv     3.90 -0.11    1.18092
    PVO   HP    2.8 150  MLv     4.26  0.25    2.41835
    AGG   HT    2.9 136  MLv     4.18  0.17    1.47076
    PLG   HL    2.9 104  MLv     3.82 -0.18   0.796788
    SRS   HT    2.9  90  MLv     3.99 -0.01   0.822844
    PLEV  HP    3.0 154  MLv     4.02  0.01    1.17039
    ANX   HP    3.0 146  MLv     4.18  0.17      1.583
    GR24  1Y    3.1 141  MLv     4.02  0.01    1.03971
    MMB   BS    3.1  81  MLv     3.97 -0.04   0.917519
    AGRP  CL    3.1 150  MLv     4.22  0.22    1.57882
    GR22  1Y    3.1 130  MLv     3.92 -0.08   0.785564
    VVK   HP    3.1 149  MLv     3.58 -0.43    1.65258
    NVR   HL    3.1  85  MLv     3.97 -0.04   0.621105
    EFP   HP    3.2 147  MLv     3.84 -0.17   0.614969
    AXS   HP    3.2 156  MLv     3.93 -0.08   0.749619
    CUC   MN    3.2 250  MLv     3.76 -0.24    0.51687
    PAIG  HT    3.2 111  MLv     3.89 -0.12   0.474549
    AXAR  HA    3.2 136  MLv     3.75 -0.26    1.78572
    TRIZ  CL    3.3 146  MLv     3.93 -0.07   0.655696
    RLS   HL    3.3 156  MLv     4.03  0.02   0.762255
