Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2023-02-18 17:32:58 (GMT)
 Μέγεθος
 M 4.8
 Γεωγρ. Πλάτος
 35.7590° Β
 Γεωγρ. Μήκος
 25.4818° Α
 Εστιακό Βάθος
 21 χμ
 Αρ. αφίξεων
 93
 Επίκεντρο 57.8 χμ ΒΒΑ του Ηρακλείου
73.3 χμ Ν της Θήρας
292.2 χμ ΝΝΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Μηχ.Γέν.


  Μηχανισμός Γένεσης

Μηχ.Γεν. Παράταξη (°) Κλίση (°) Γων.Ολίσθ. (°) Σεισμ.Ροπή (dyn*cm)
24753-34 1.84E+23

Γεωγρ.Πλάτος (°Β) Γεωγρ.Μήκος (°Α) Βάθος (χμ) Μέγεθος Mw
35.761325.52087.04.8

Υπολογισμός εστιακών παραμέτρων

Κλικ εδώ για λεπτομέρειες μηχανισμού γένεσης

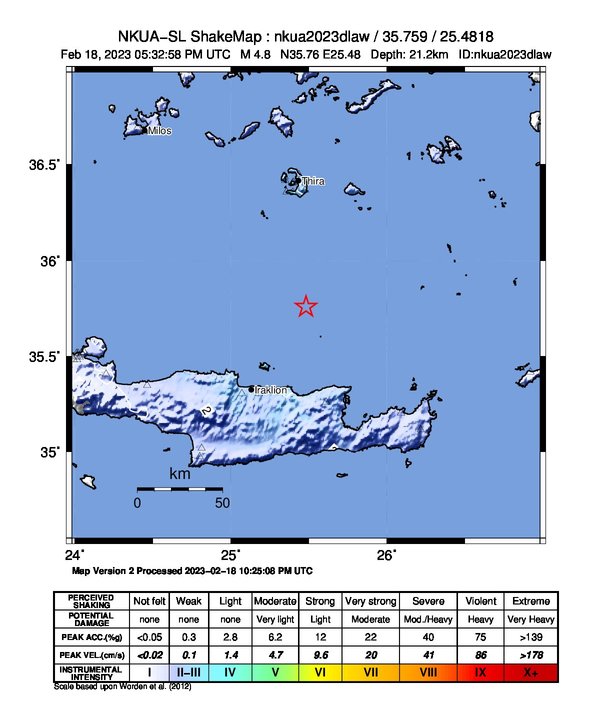

  Χάρτης εντάσεως

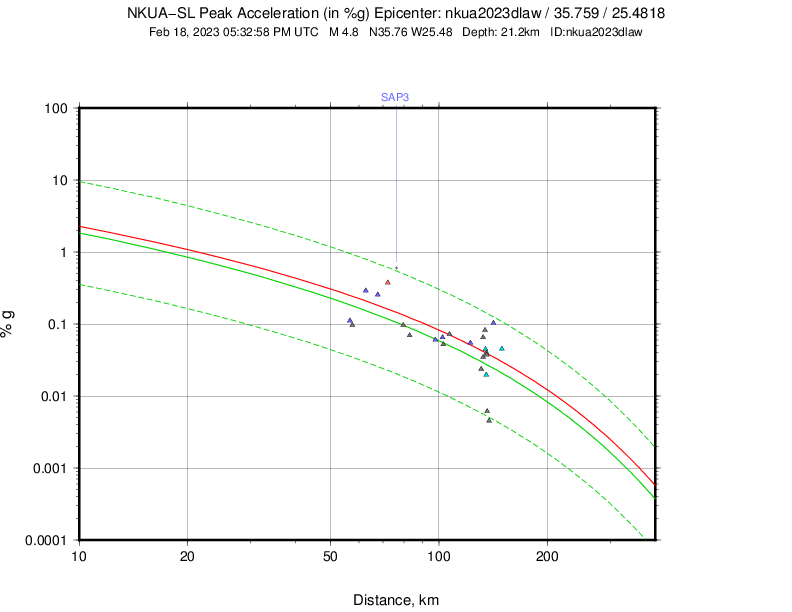

PGA

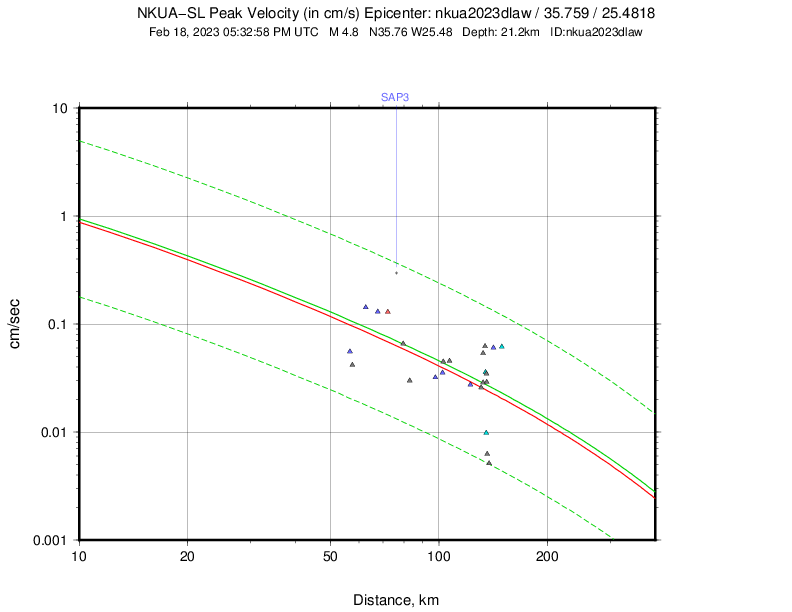

 PGV

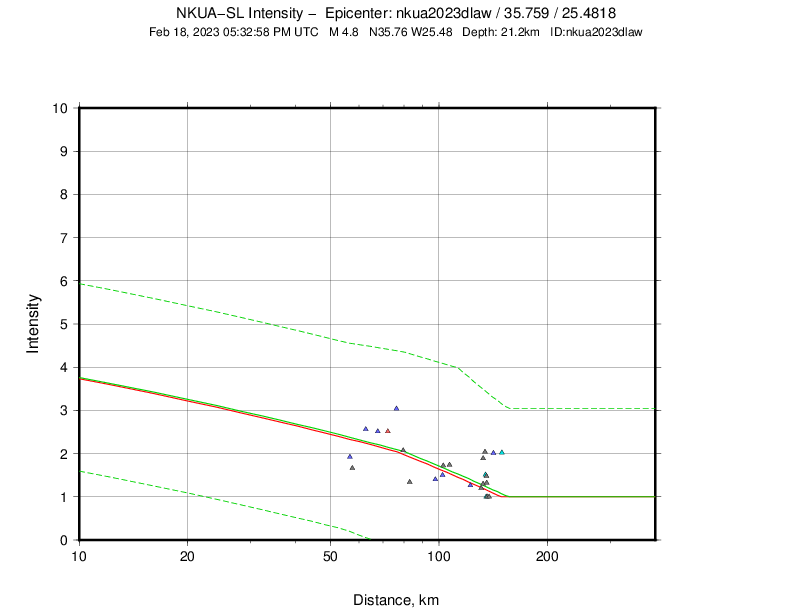

 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
NPSHL56.6168 P17:33:07.79 -0.61.0M
NPSHL56.6168 S17:33:16.18 0.11.0M

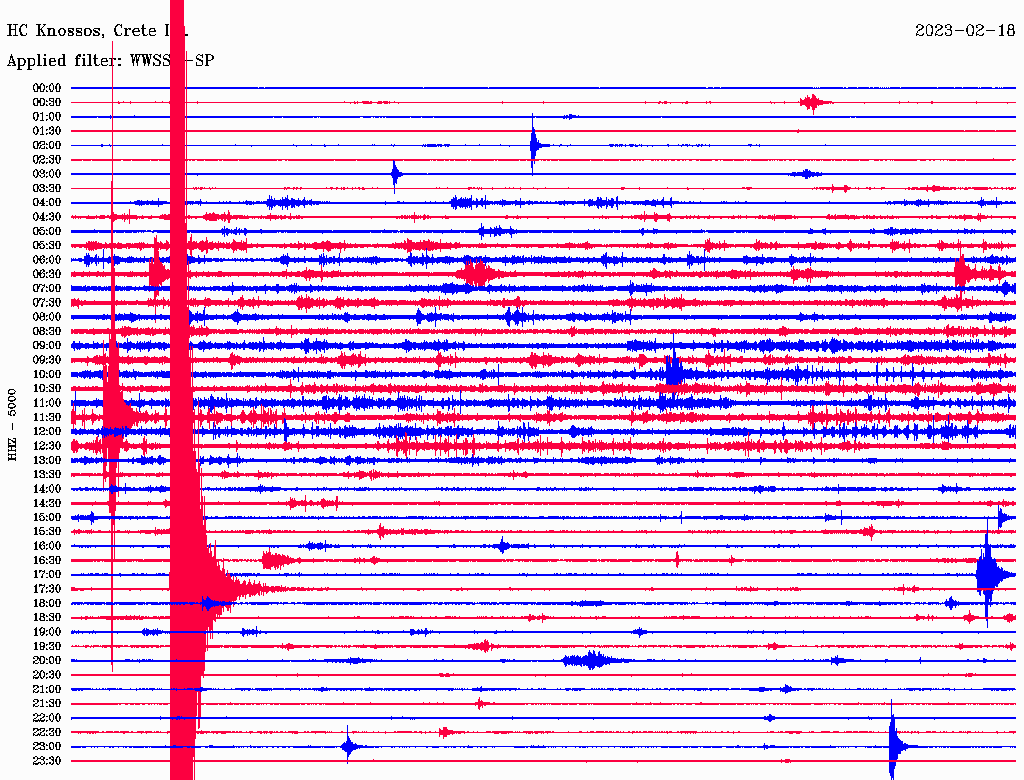

KNSSHC57.5208 P17:33:07.92 -0.61.0M
KNSSHC57.5208 S17:33:16.20 -0.11.0M

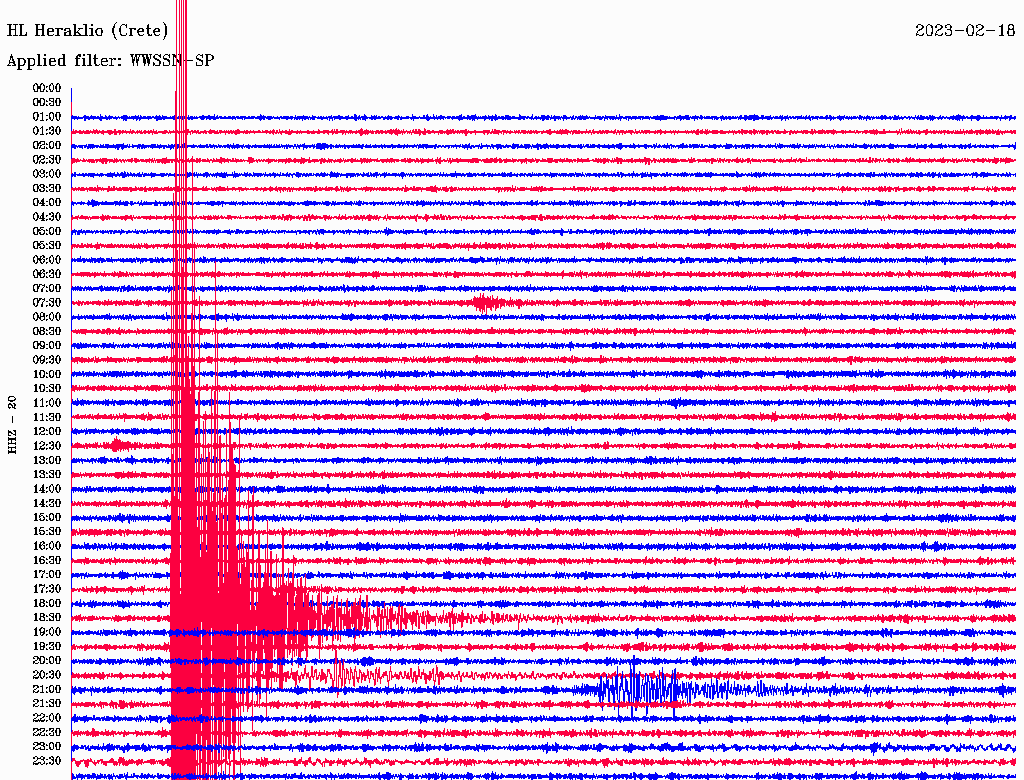

IACMHL62.6217 P17:33:08.82 -0.51.0M
IACMHL62.6217 S17:33:17.76 0.11.0M

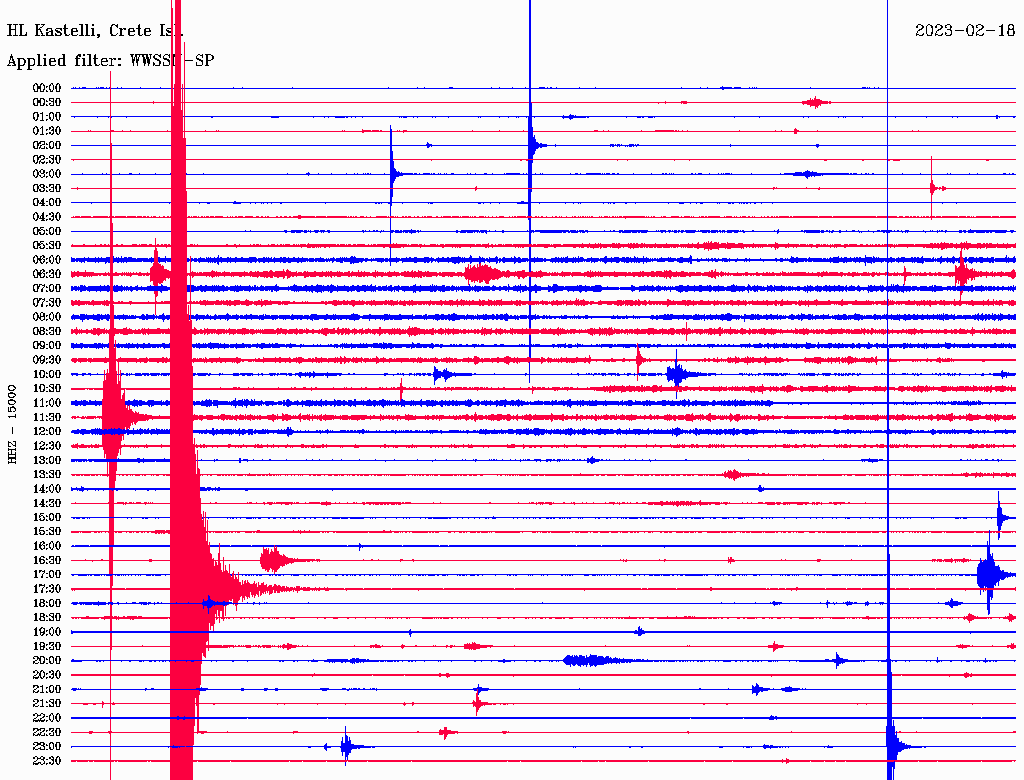

KSTEHL65.7192 P17:33:08.77 -1.01.0M
KSTEHL65.7192 S17:33:18.29 -0.21.0M

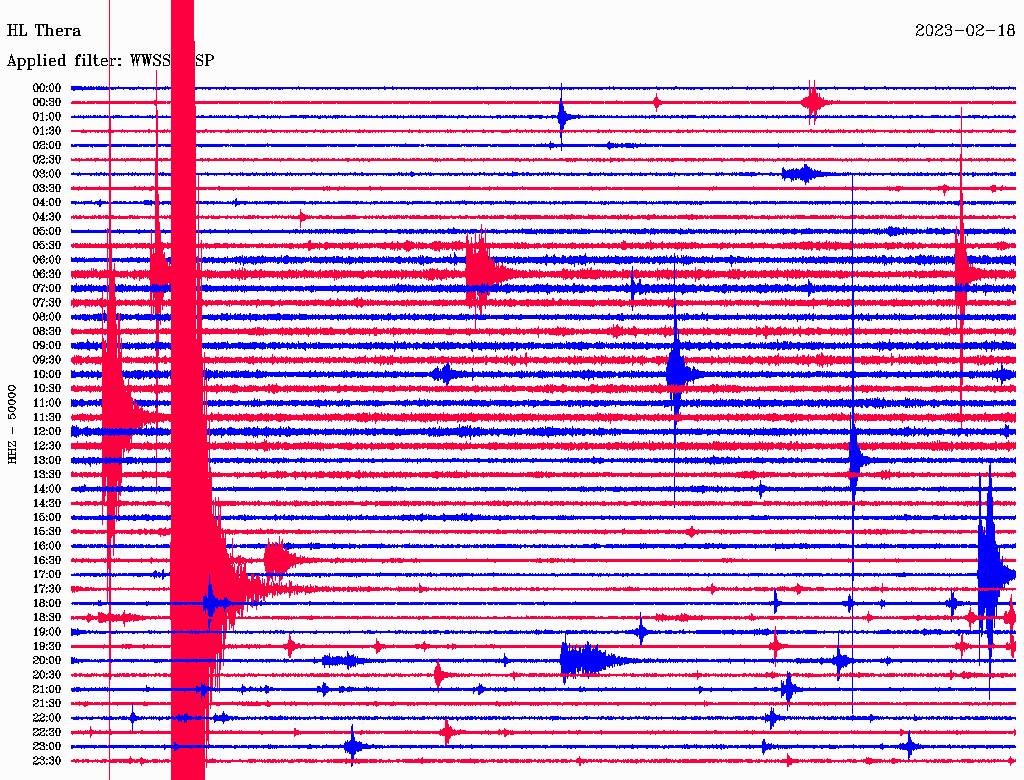

THERAHL67.6359 P17:33:09.98 -0.11.0M
THERAHL67.6359 S17:33:19.44 0.51.0M
SNT5HA72.1354 P17:33:10.63 -0.11.0M
SNT5HA72.1354 S17:33:20.53 0.41.0M

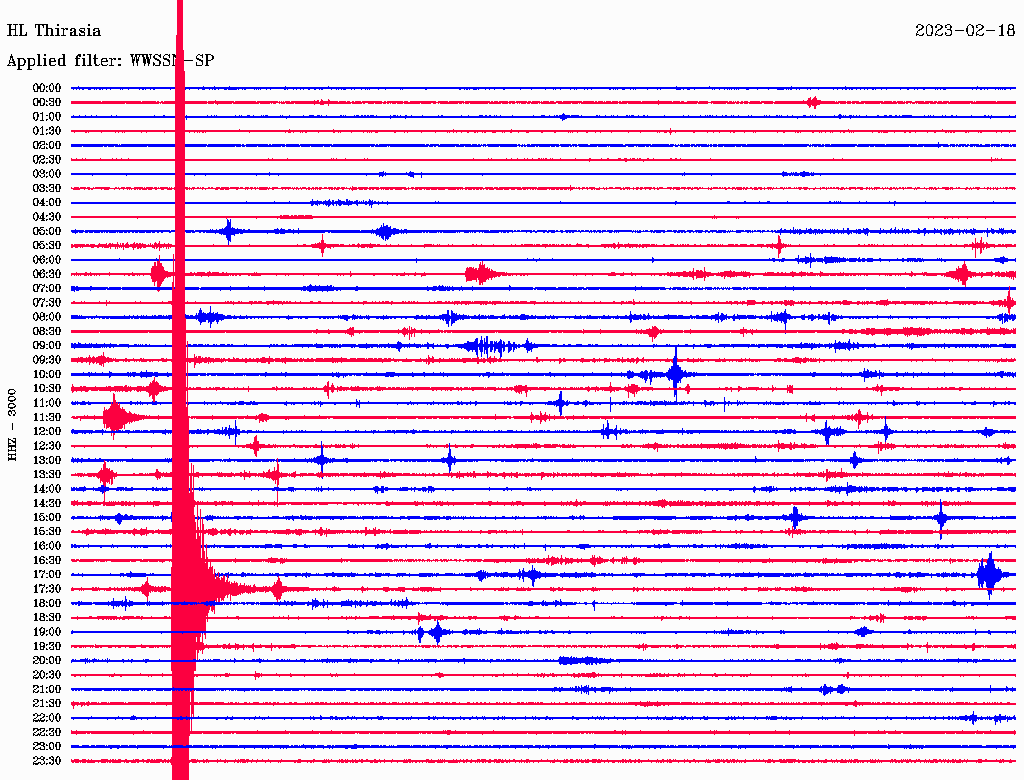

SAP3HL76.2351 P17:33:11.40 0.11.0M
SAP3HL76.2351 S17:33:21.69 0.41.0M
PFKSHC79.6181 P17:33:11.71 -0.21.0M
PFKSHC79.6181 S17:33:22.54 0.21.0M

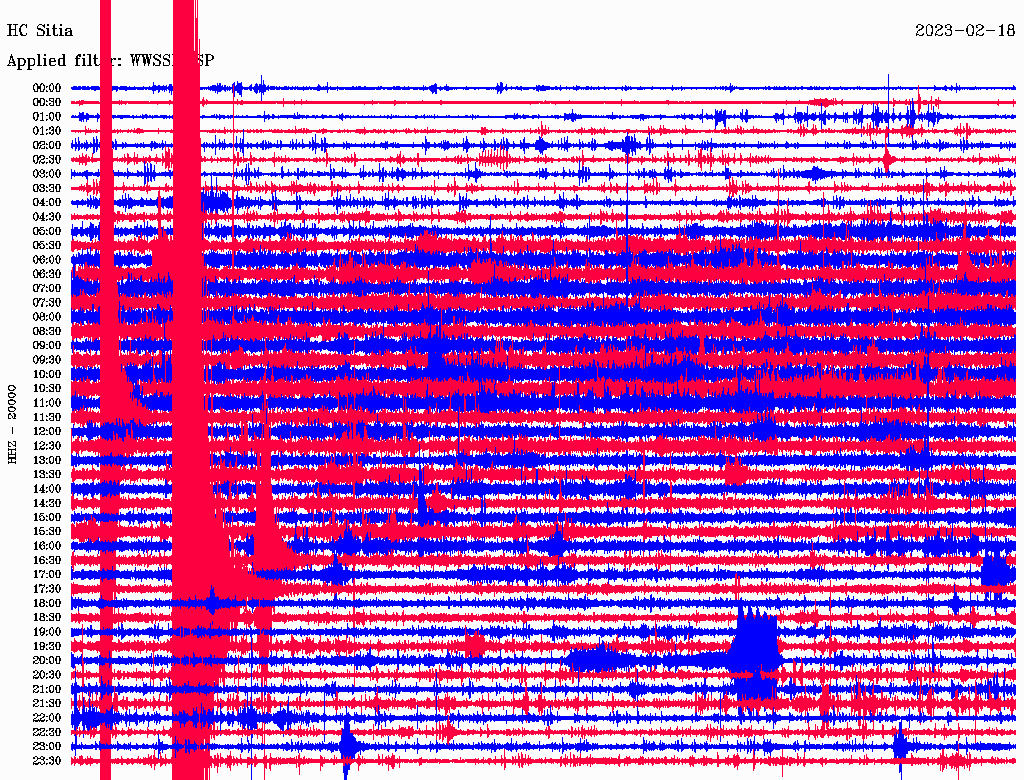

STIAHC82.9138 P17:33:12.54 0.21.0M
STIAHC82.9138 S17:33:23.60 0.51.0M

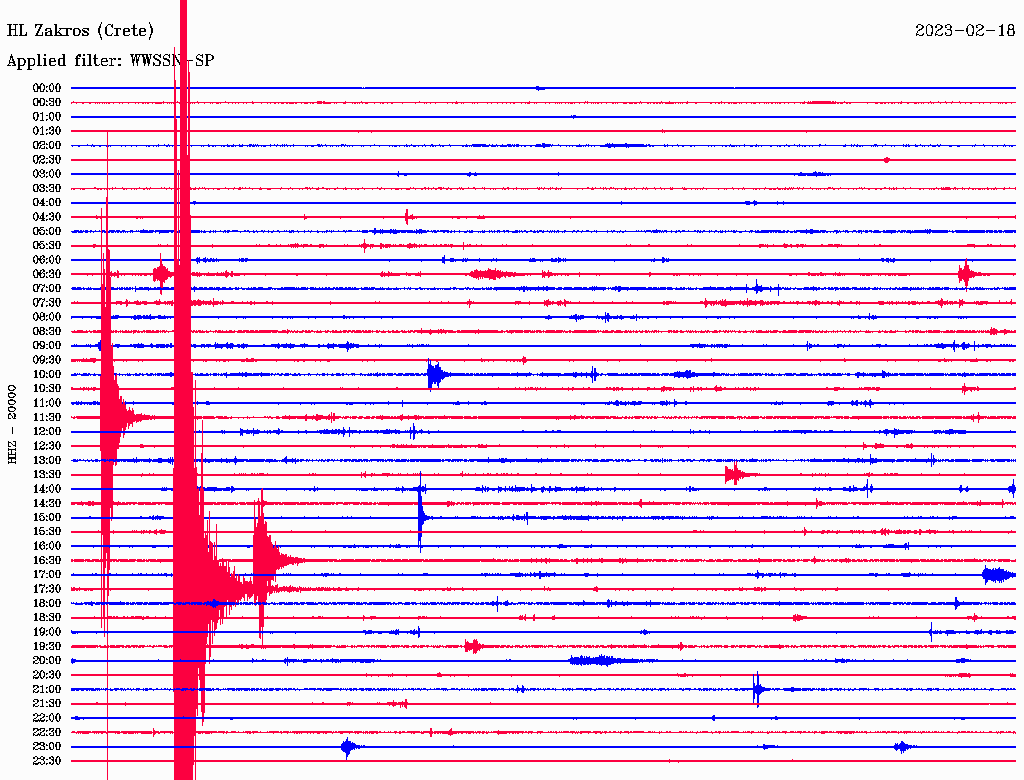

ZKRHL97.8137 P17:33:14.85 0.21.0M
ZKRHL97.8137 S17:33:27.42 0.31.0M

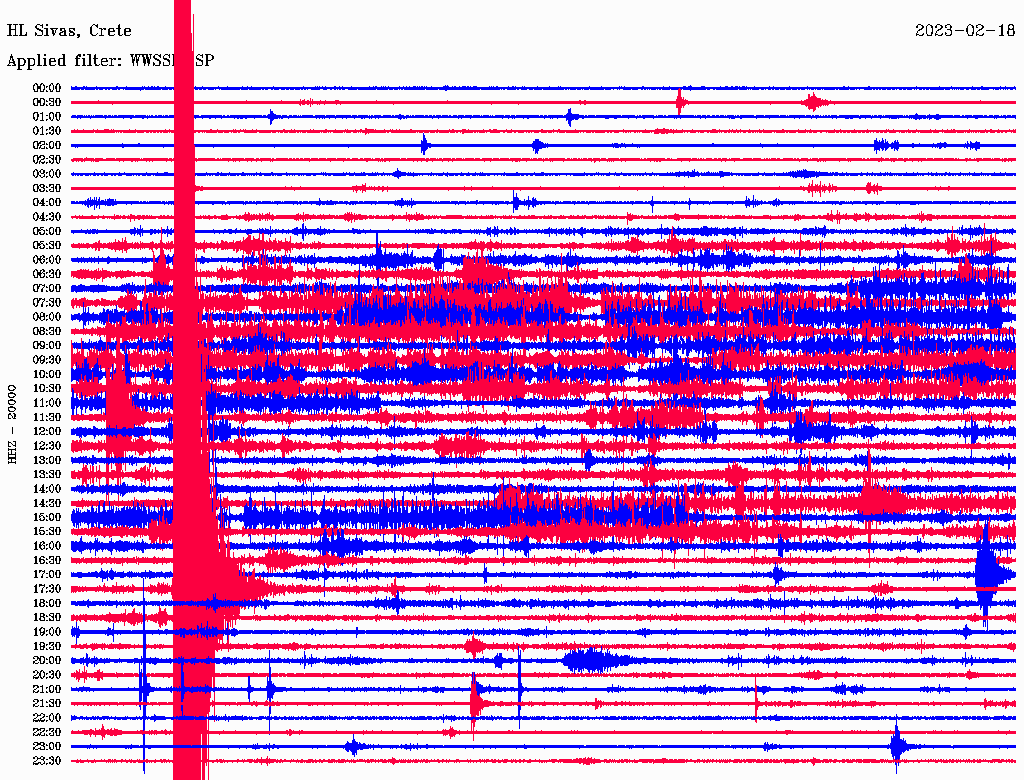

SIVAHL102.4216 P17:33:14.87 -0.51.0M
SIVAHL102.4216 S17:33:28.21 -0.11.0M
IPPLHC102.8244 P17:33:15.81 0.31.0M
IPPLHC102.8244 S17:33:28.92 0.41.0M

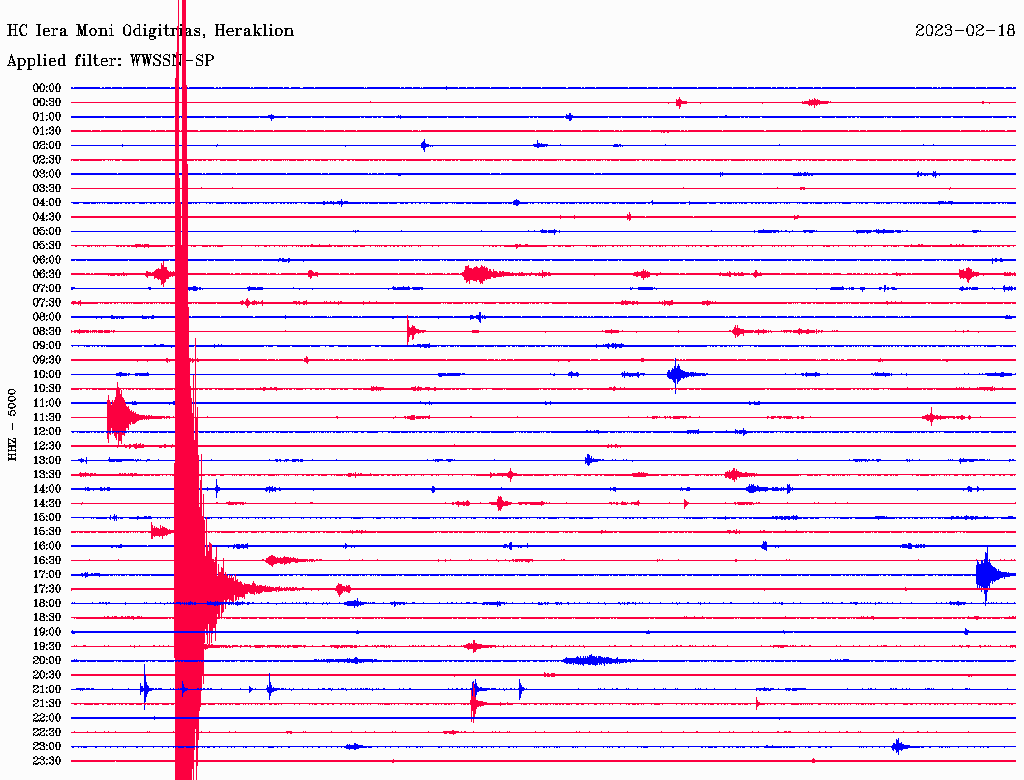

IMODHC107.1215 P17:33:16.25 0.11.0M
IMODHC107.1215 S17:33:29.64 0.01.0M

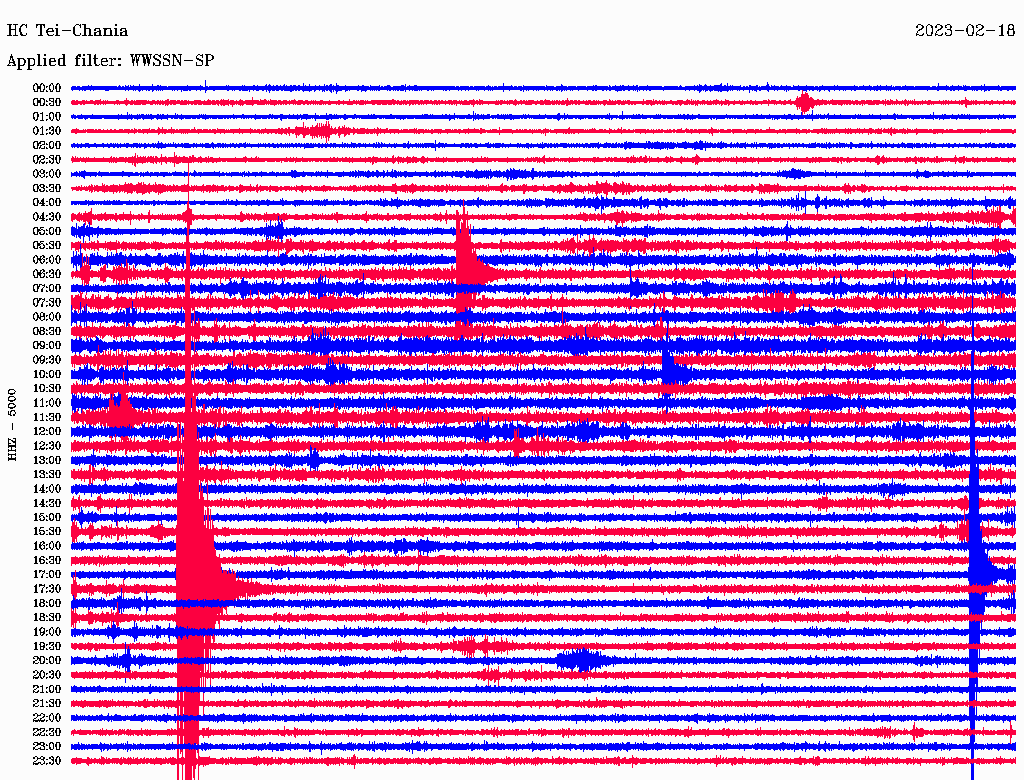

CHANHC132.7258 P17:33:20.00 -0.11.0M
CHANHC132.7258 S17:33:36.73 0.11.0M

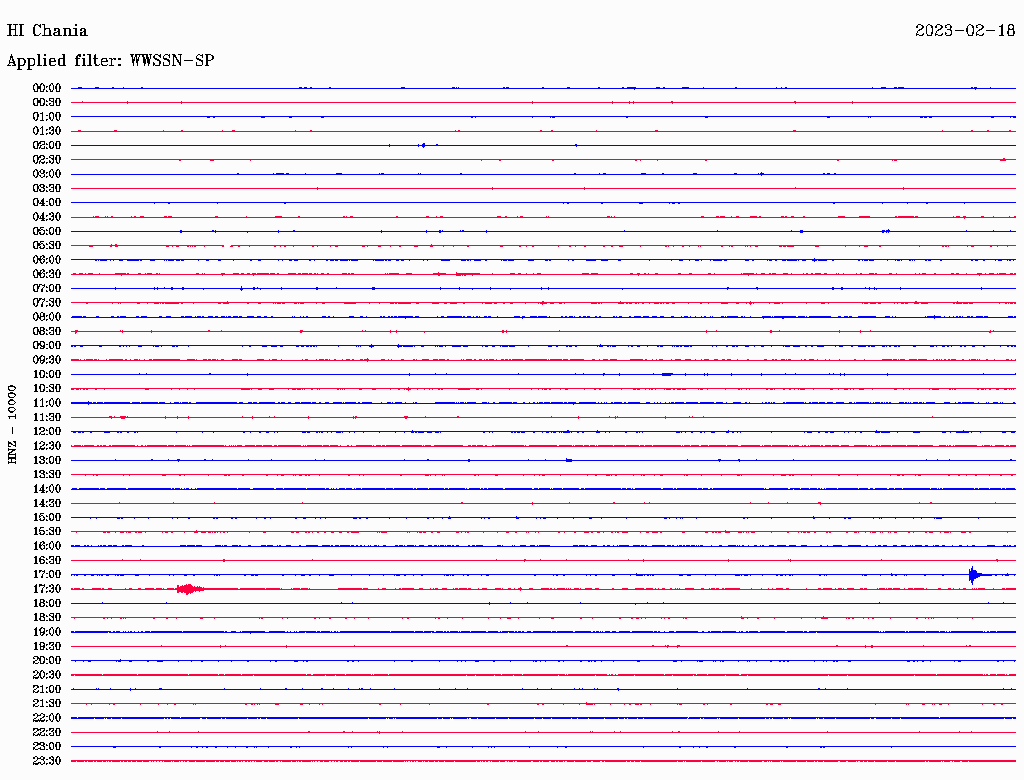

CH01HI134.7259 P17:33:20.20 -0.11.0M
CH01HI134.7259 S17:33:36.99 0.01.0M

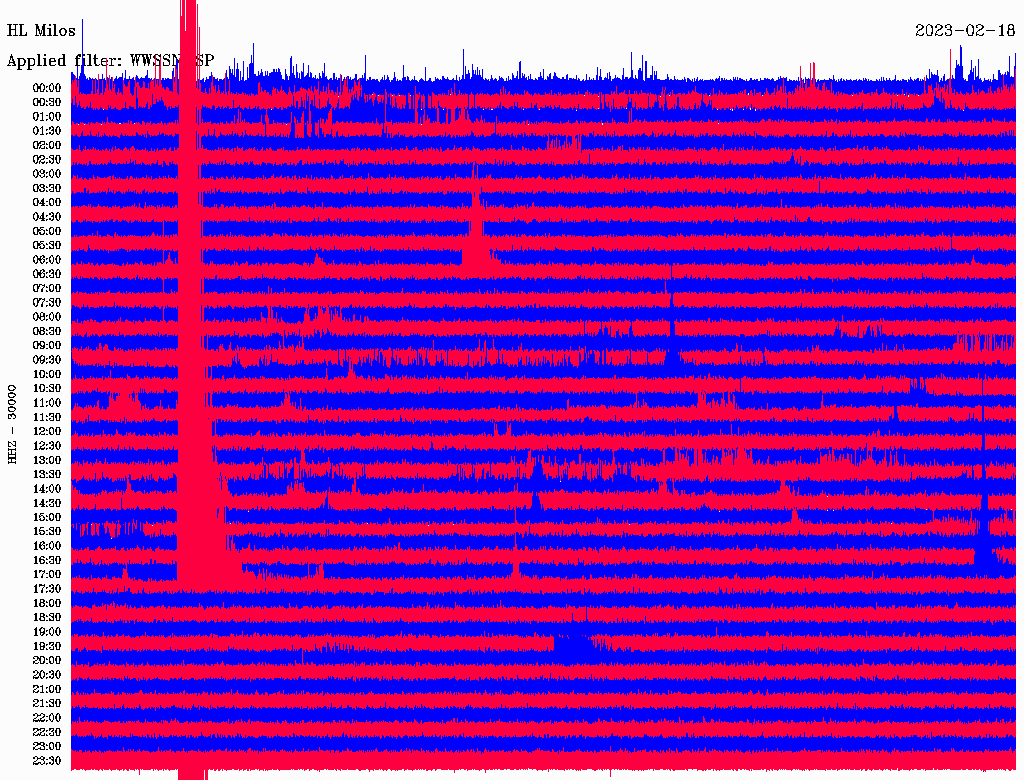

MHLOHL141.8317 P17:33:21.96 0.81.0M
MHLOHL141.8317 S17:33:38.81 0.21.0M
NAX1HI149.6356 P17:33:21.52 -0.61.0M
NAX1HI149.6356 S17:33:39.85 -0.41.0M

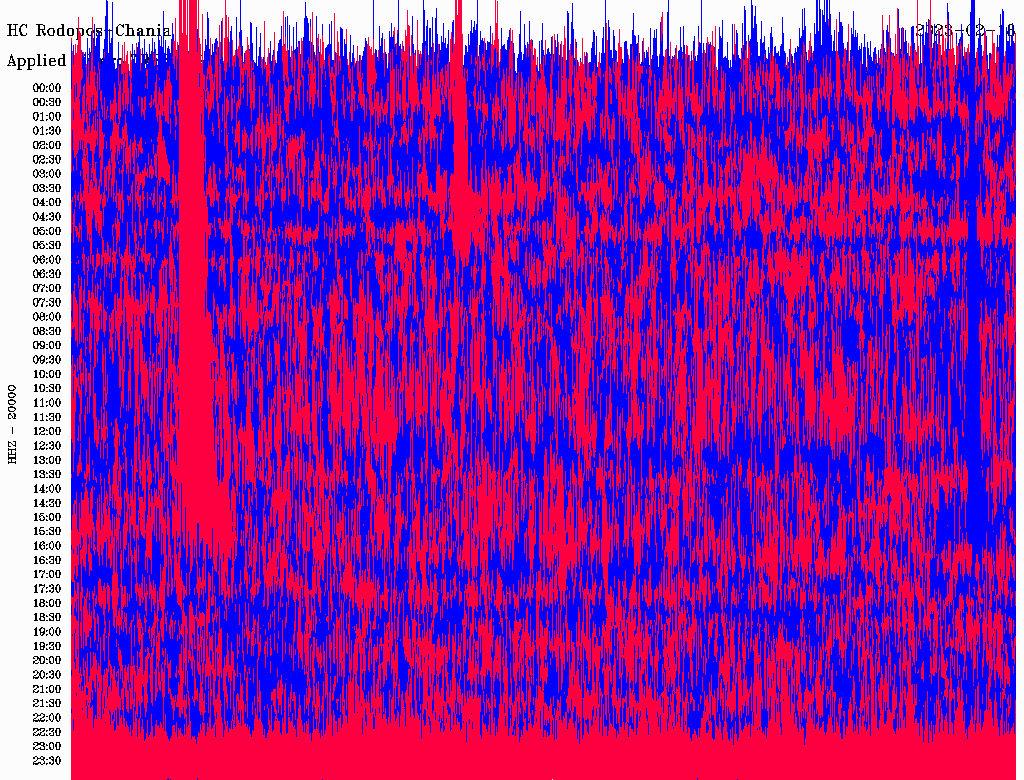

RODPHC157.3262 P17:33:23.46 0.21.0M
RODPHC157.3262 S17:33:42.12 -0.11.0M

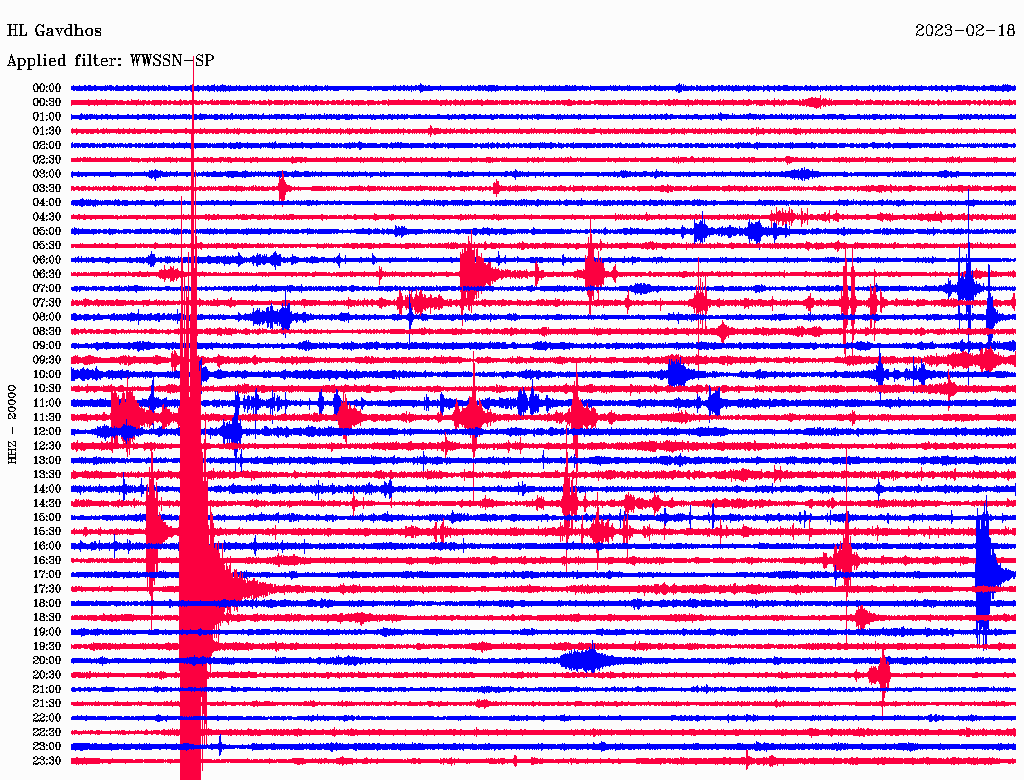

GVDHL162.7231 P17:33:24.85 1.01.0M
GVDHL162.7231 S17:33:43.28 -0.11.0M

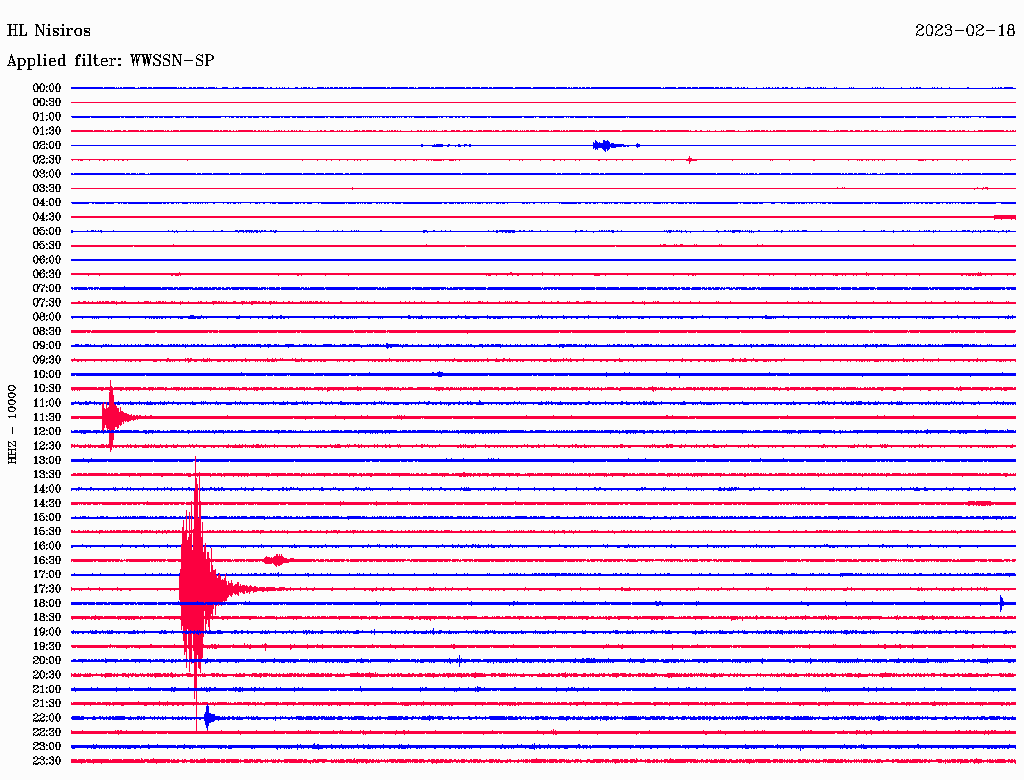

NISRHL175.7 58 P17:33:25.08 -0.51.0M
NISRHL175.7 58 S17:33:46.32 0.11.0M
NISR2HL177.1 59 P17:33:26.38 0.61.0M
NISR2HL177.1 59 S17:33:46.82 0.11.0M
ANKYHL197.0273 P17:33:27.86 -0.51.0M
ANKYHL197.0273 S17:33:51.37 0.21.0M

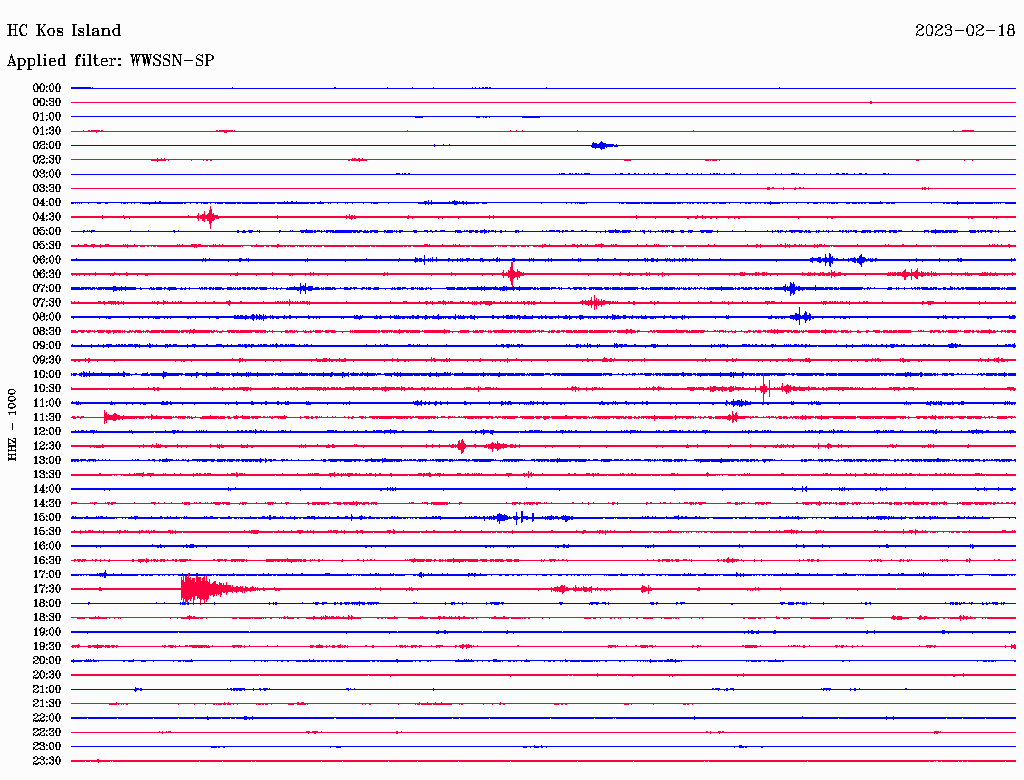

KOSPHC203.8 52 P17:33:29.09 -0.11.0M
KOSPHC203.8 52 S17:33:52.32 -0.31.0M
THNOHC214.7349 P17:33:30.82 0.31.0M
THNOHC214.7349 S17:33:55.05 0.11.0M
NPS1HI232.9291 P17:33:32.92 0.01.0M
NPS1HI232.9291 S17:33:59.38 0.21.0M

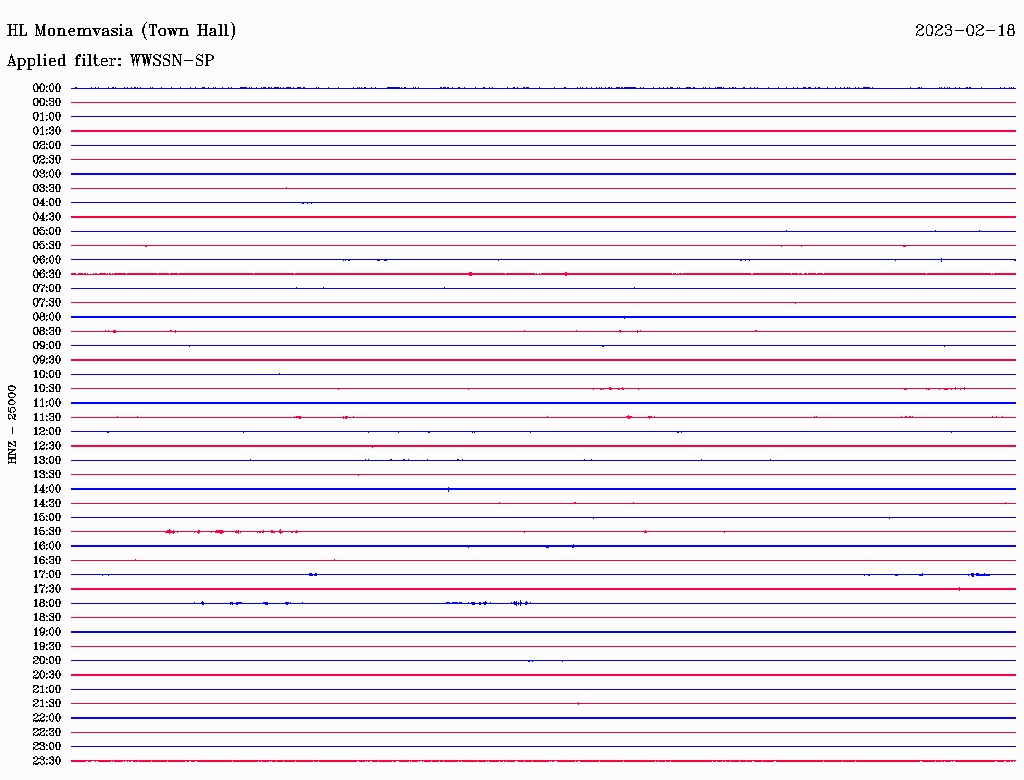

MNVAHL242.3295 P17:33:34.45 0.31.0M
MNVAHL242.3295 S17:34:01.45 0.11.0M

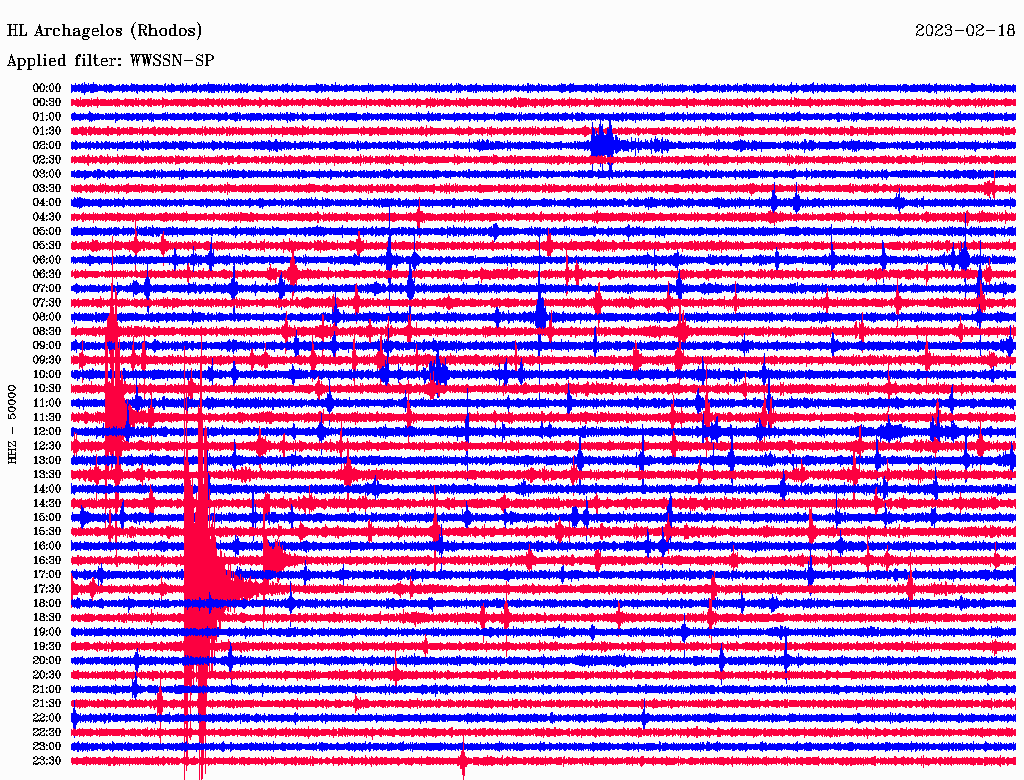

ARGHL242.8 78 P17:33:34.50 0.31.0M
ARGHL242.8 78 S17:34:01.28 -0.21.0M
SMGHL247.8 29 P17:33:33.95 -0.81.0M
SMGHL247.8 29 S17:34:02.38 -0.11.0M

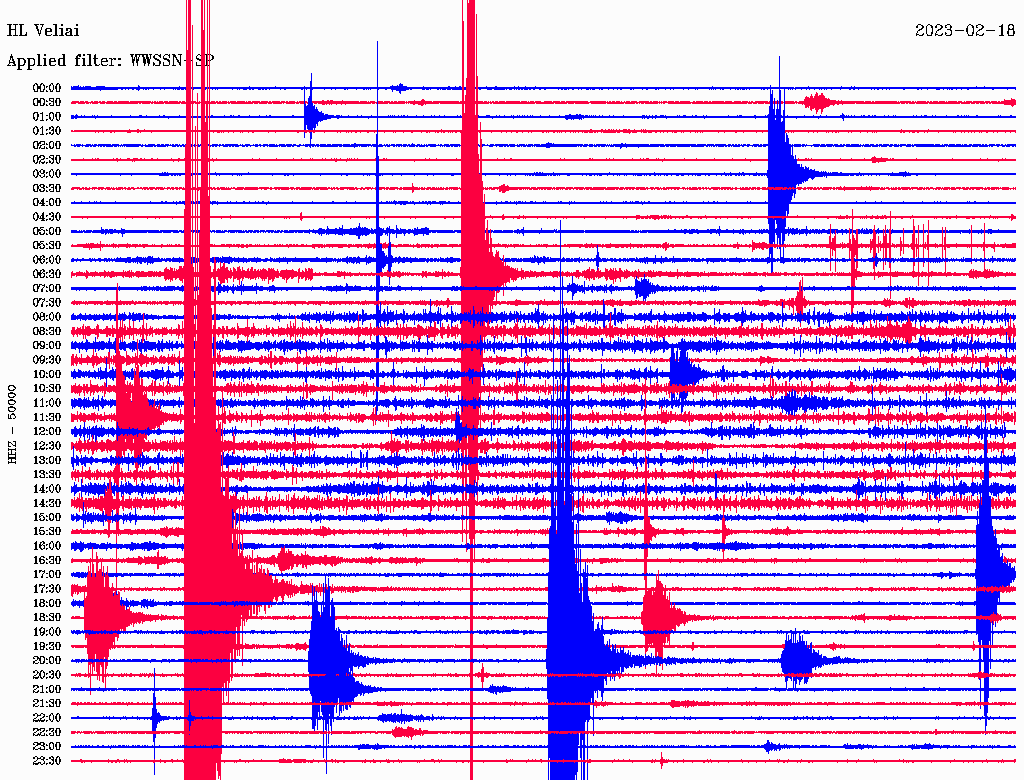

VLIHL251.1295 P17:33:35.28 0.01.0M
VLIHL251.1295 S17:34:03.33 0.01.0M

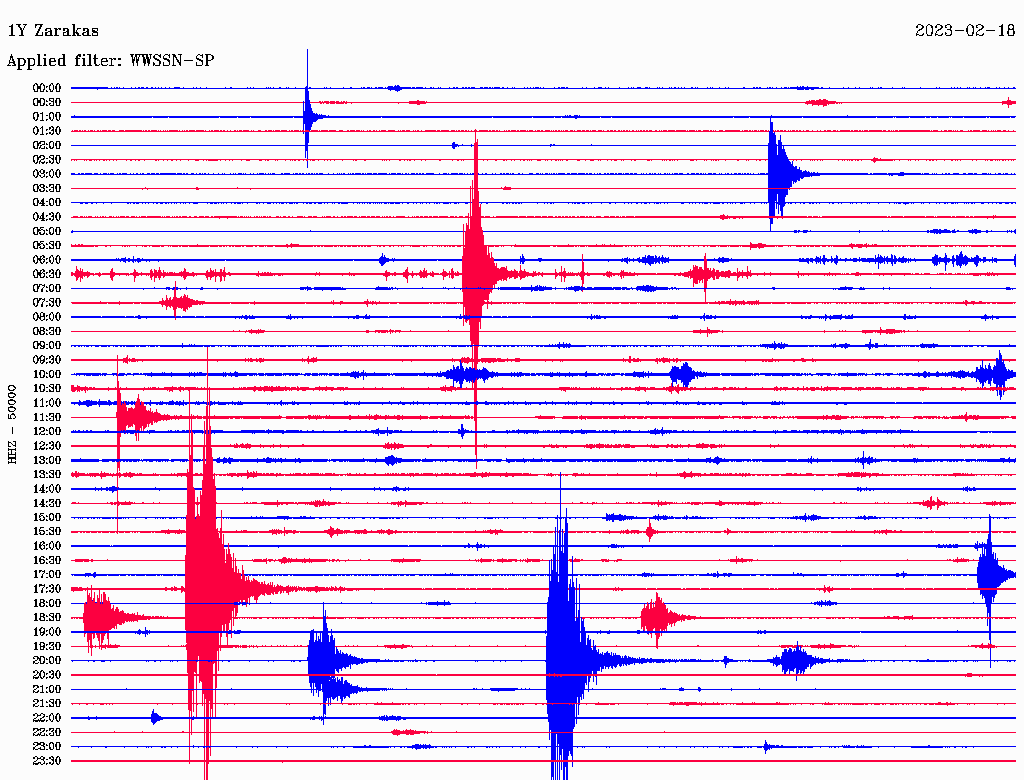

GR321Y260.6301 P17:33:36.64 0.21.0M
GR321Y260.6301 S17:34:05.29 -0.21.0M

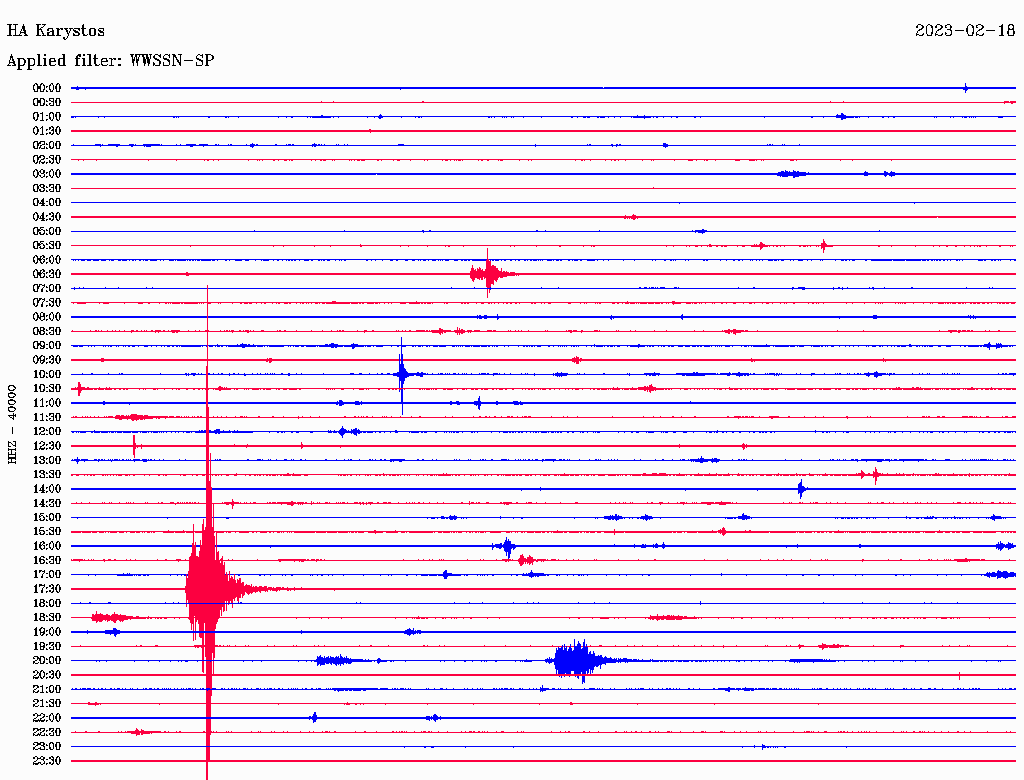

KARYHA269.3340 P17:33:37.79 0.31.0M
KARYHA269.3340 S17:34:07.26 0.01.0M

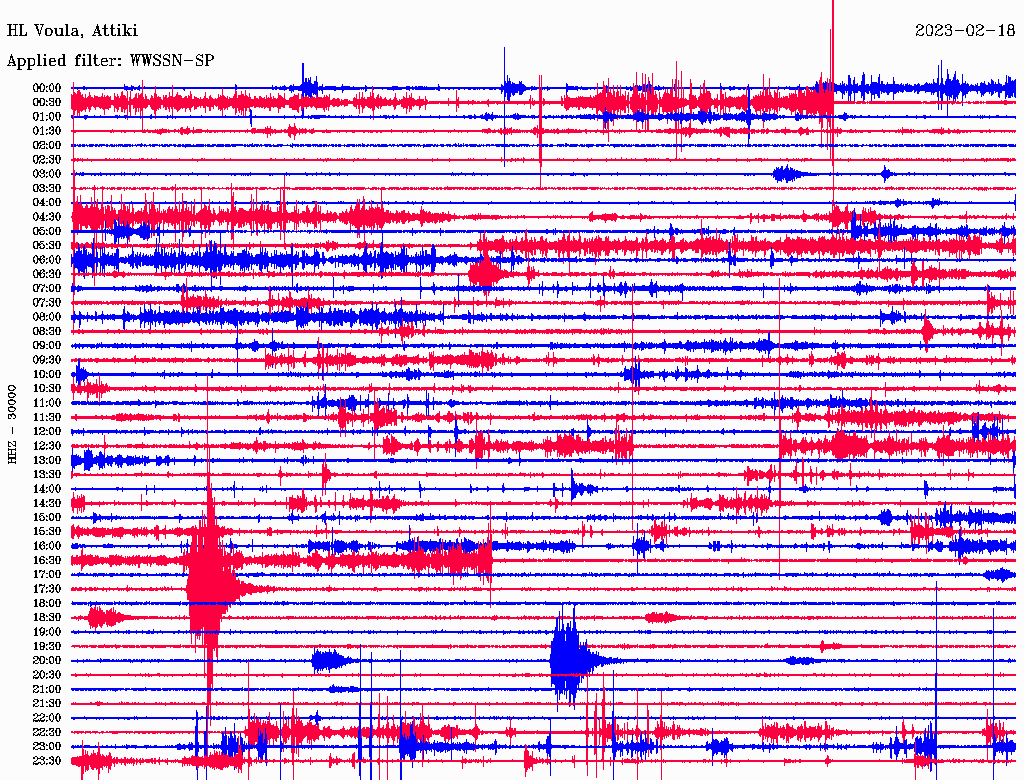

VLYHL277.0327 P17:33:39.23 0.71.0M
VLYHL277.0327 S17:34:09.04 -0.11.0M

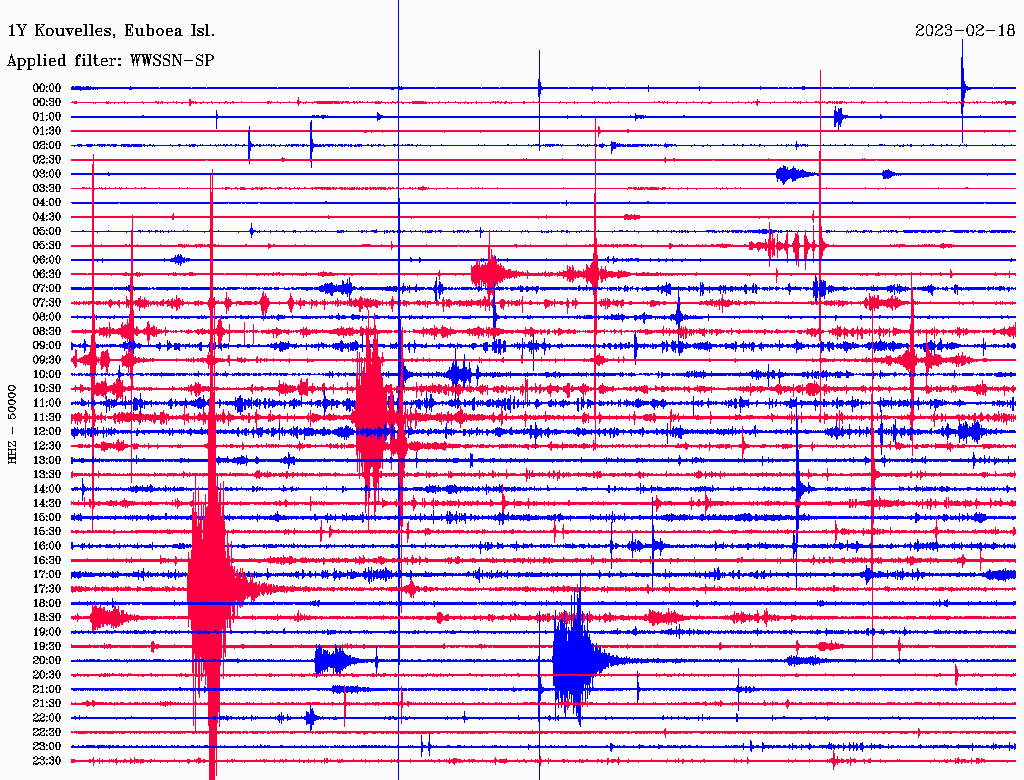

GR271Y291.4338 P17:33:40.68 0.41.0M
GR271Y291.4338 S17:34:12.05 -0.21.0M

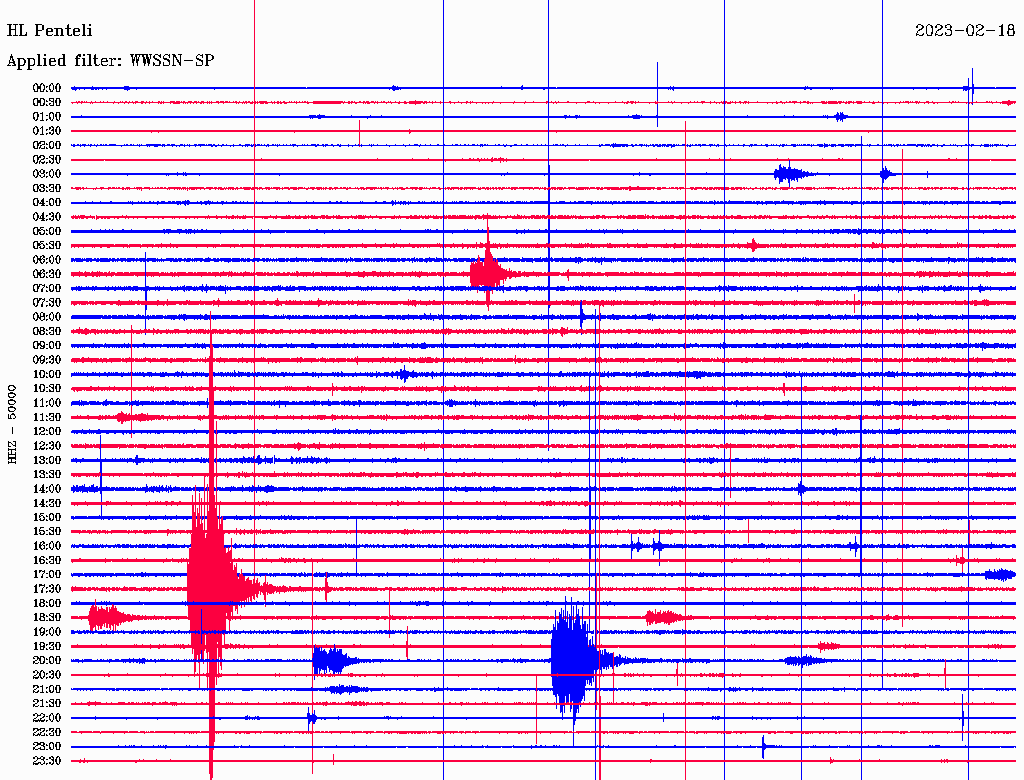

PTLHL292.3330 P17:33:40.69 0.21.0M
PTLHL292.3330 S17:34:12.01 -0.61.0M

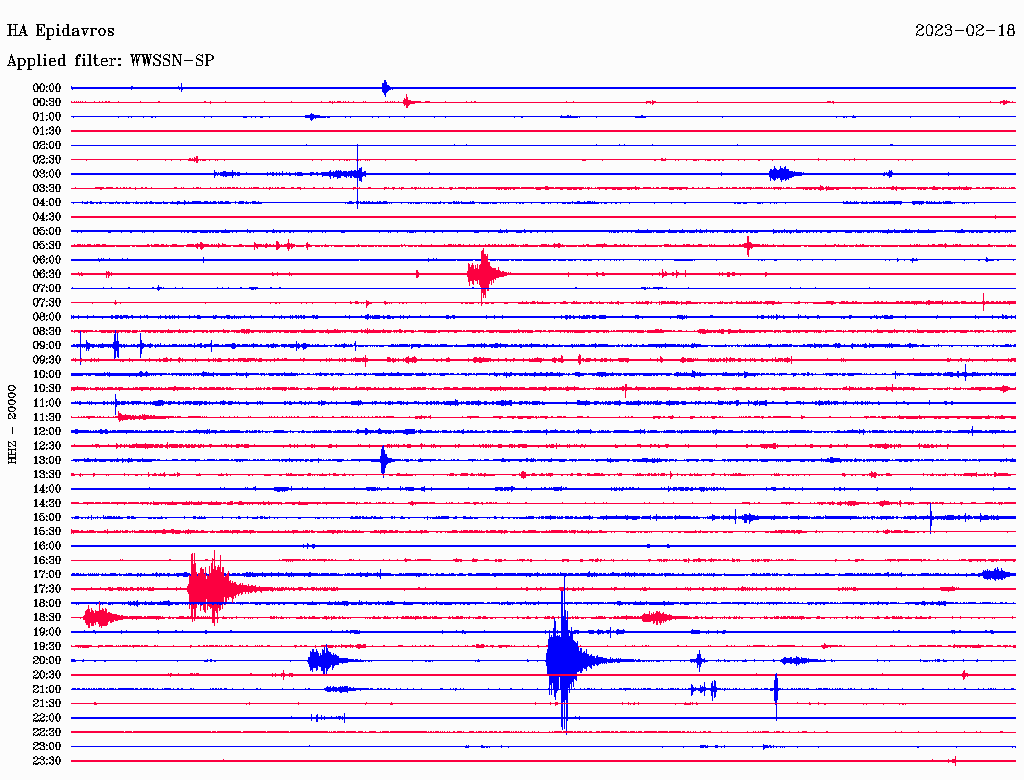

EPIDHA294.9314 P17:33:41.32 0.41.0M
EPIDHA294.9314 S17:34:13.00 -0.21.0M

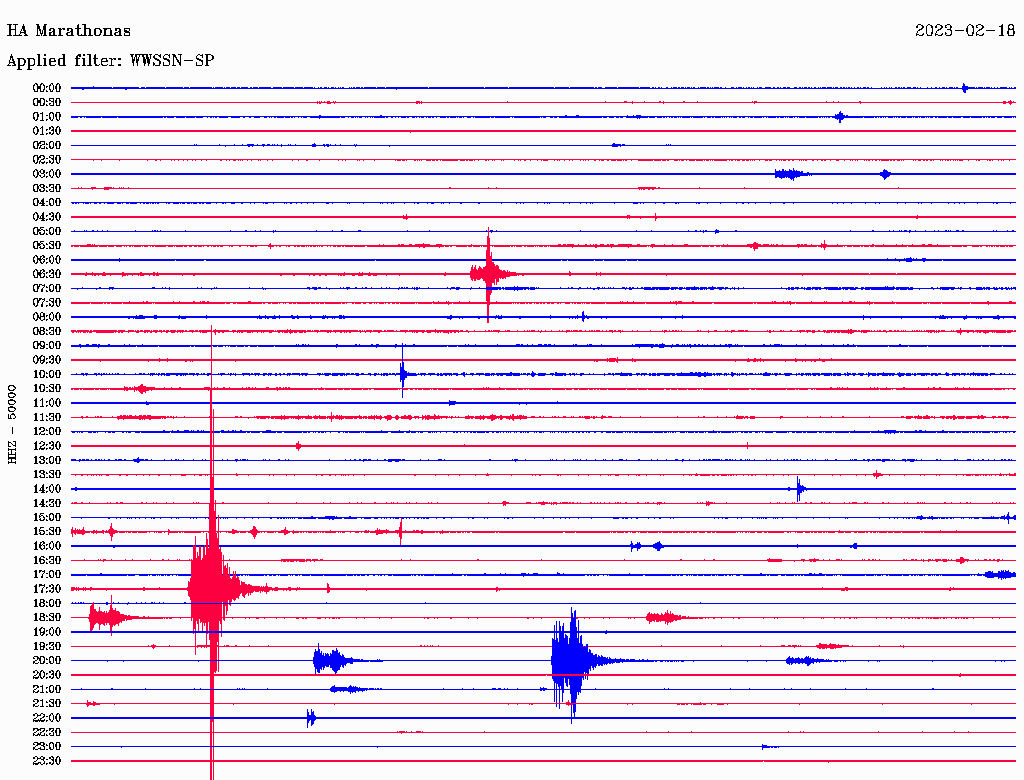

MRTHHA296.3332 P17:33:41.39 0.41.0M

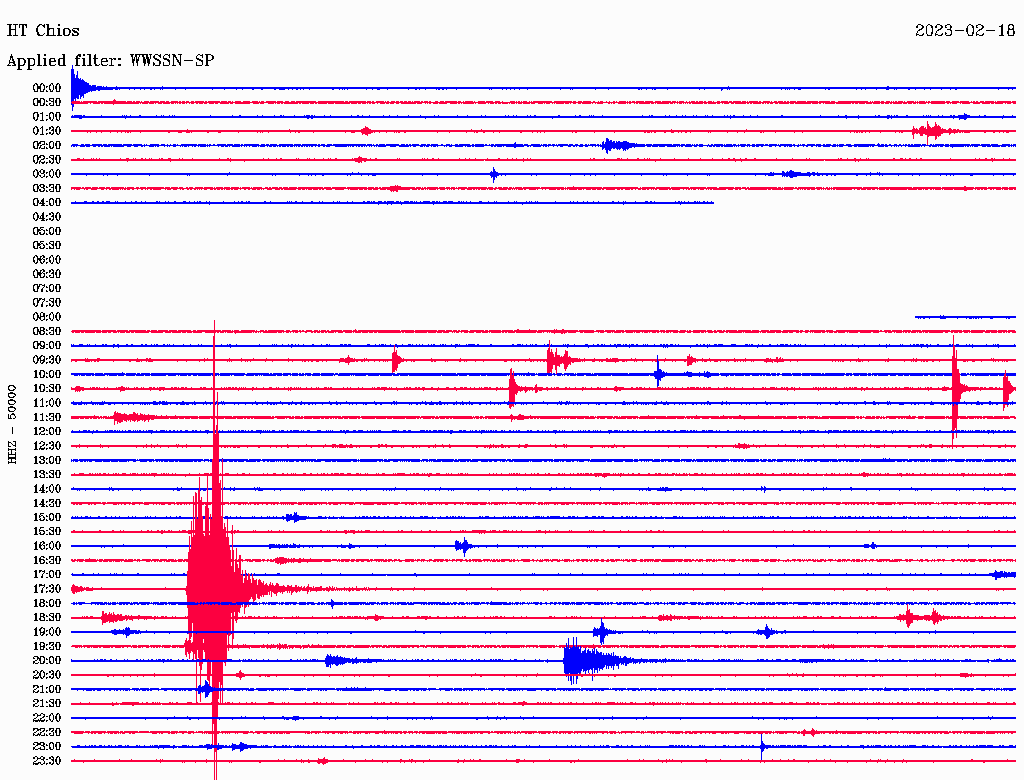

CHOSHT296.5 10 P17:33:40.22 -0.91.0M

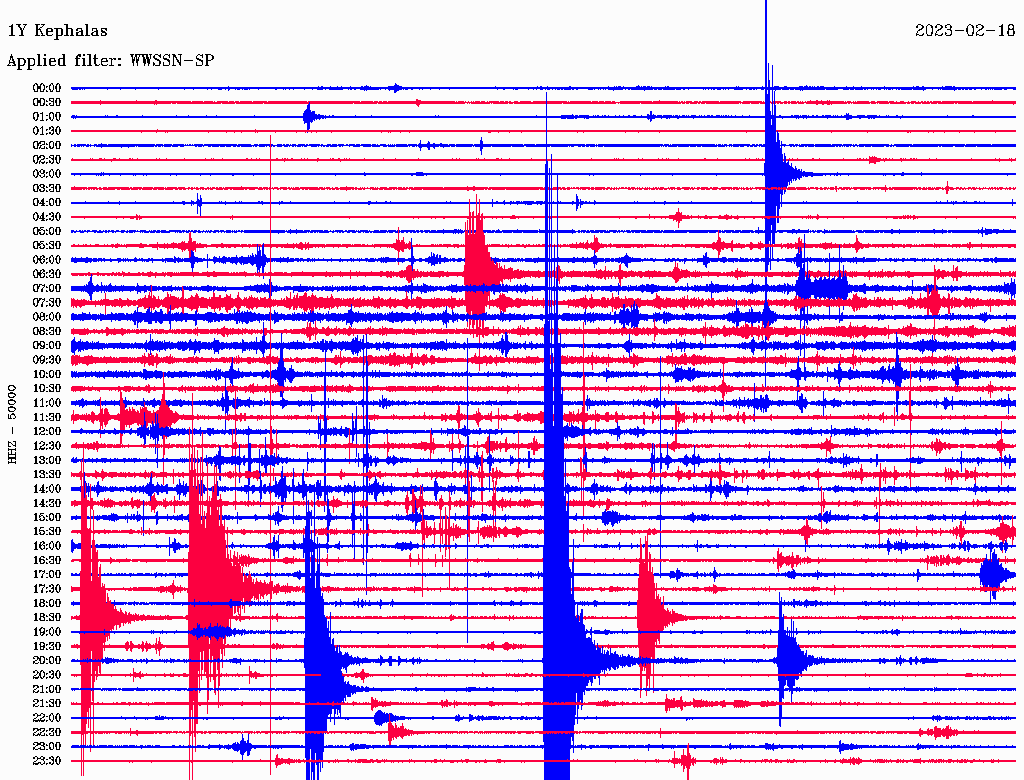

GR311Y300.5298 P17:33:42.23 0.61.0M
GR311Y300.5298 S17:34:14.74 0.21.0M
MDRAHA312.4325 P17:33:43.22 0.11.0M

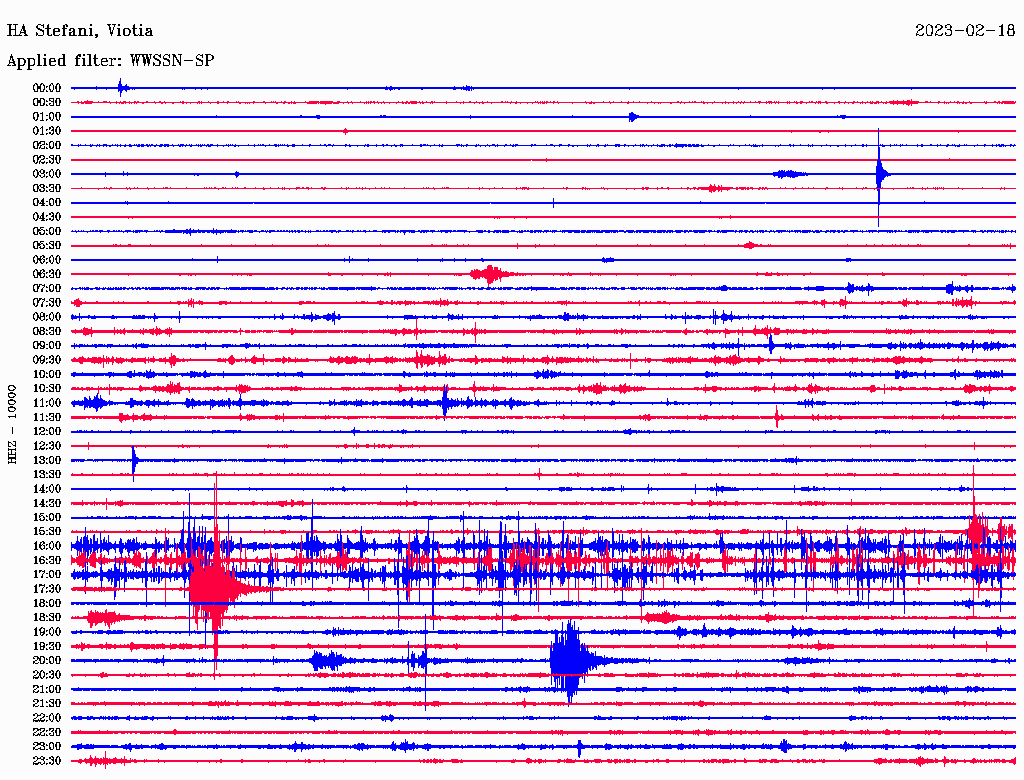

STFNHA319.2327 P17:33:44.48 0.51.0M

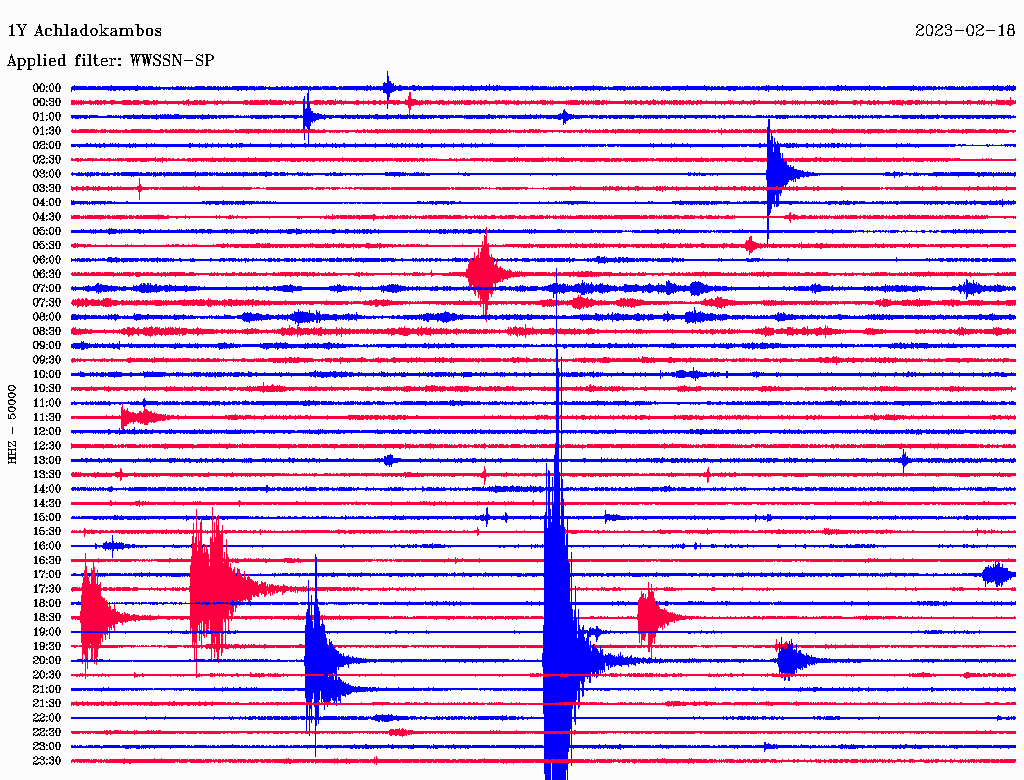

GR301Y324.9307 P17:33:45.61 0.91.0M
GR301Y324.9307 S17:34:20.38 0.31.0M

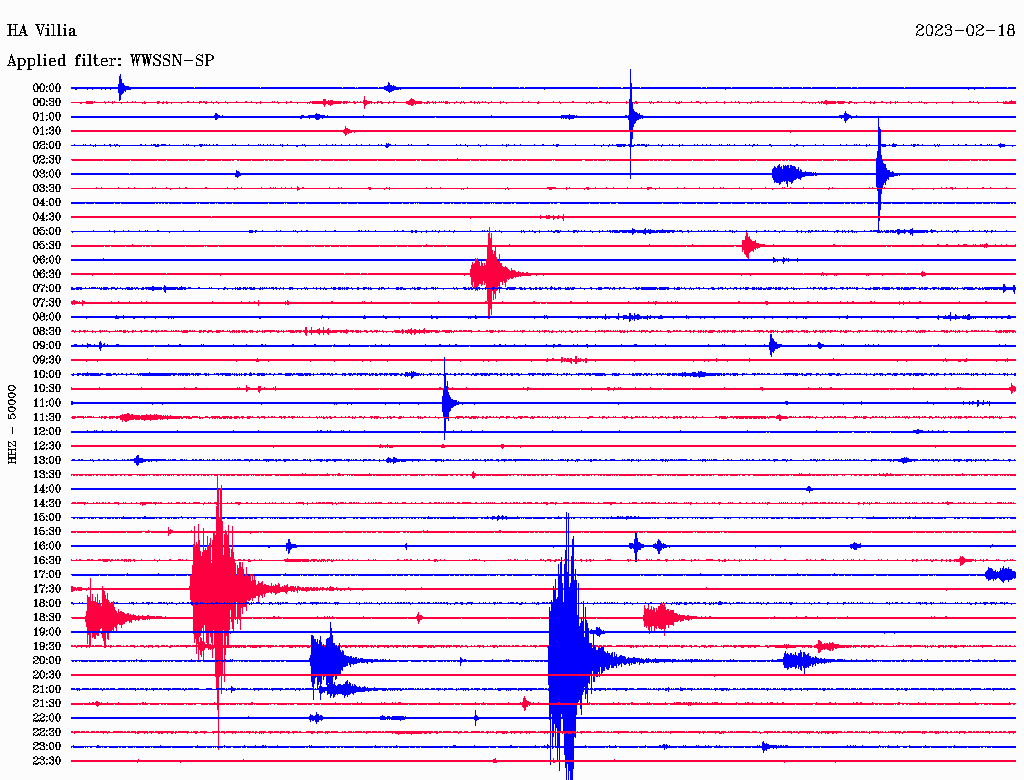

VILLHA329.7324 P17:33:45.44 0.11.0M
VILLHA329.7324 S17:34:21.05 -0.11.0M

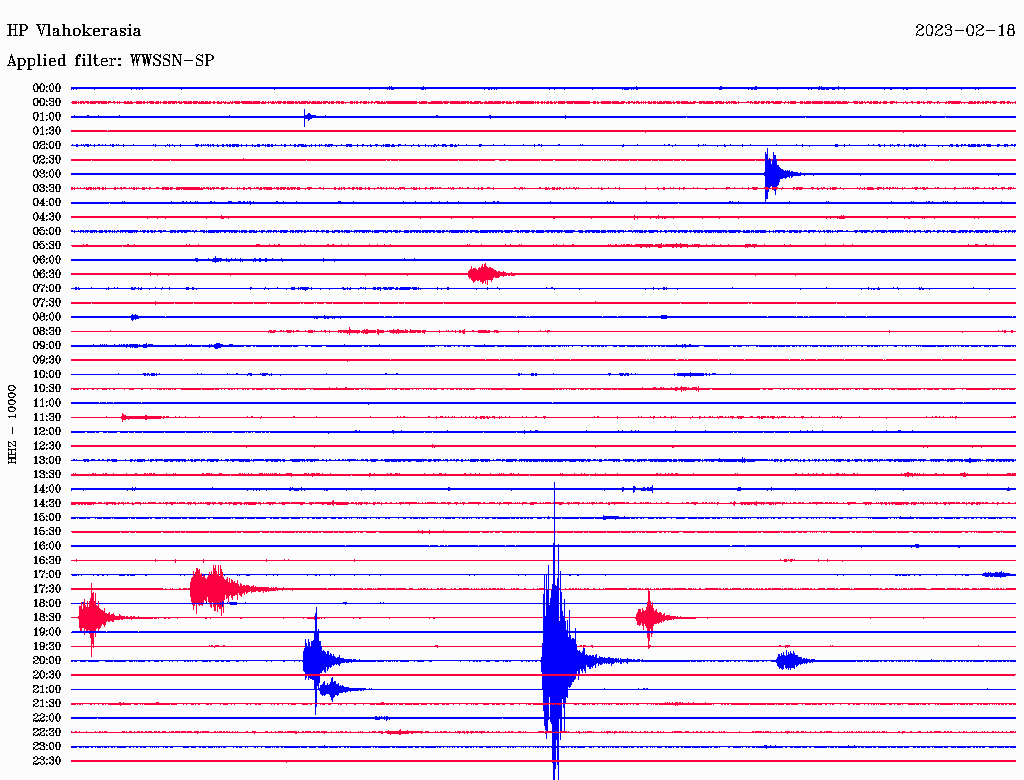

VLXHP329.9303 P17:33:46.05 0.51.0M
VLXHP329.9303 S17:34:21.00 -0.41.0M

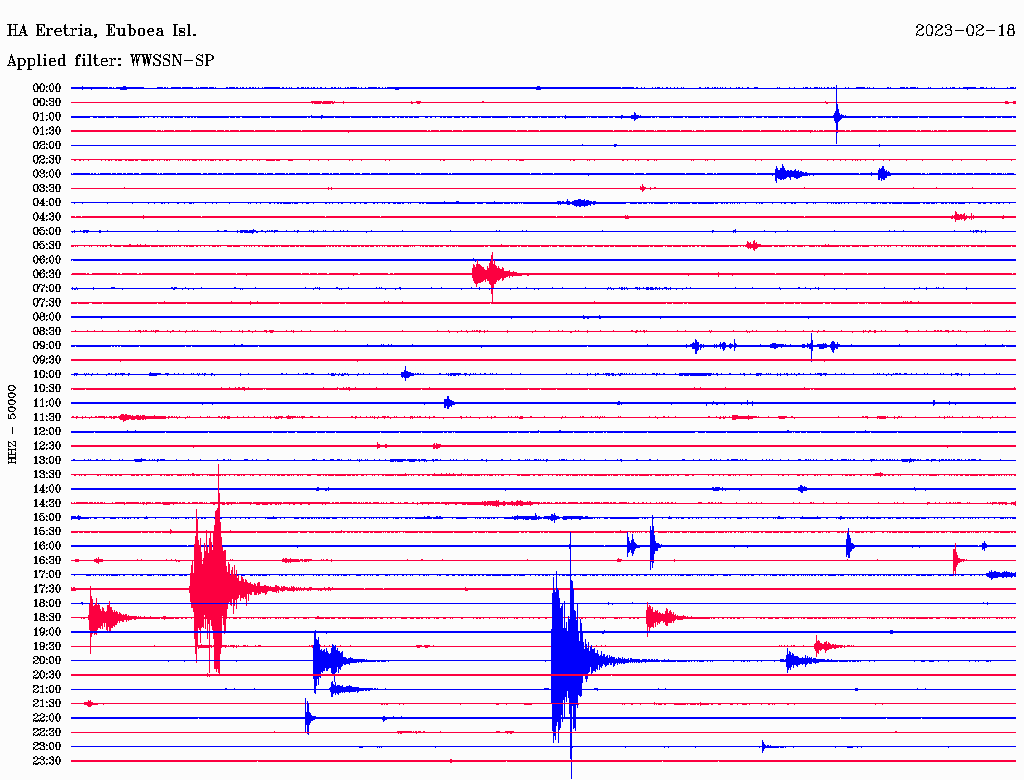

ERTRHA330.6333 P17:33:45.64 0.31.0M

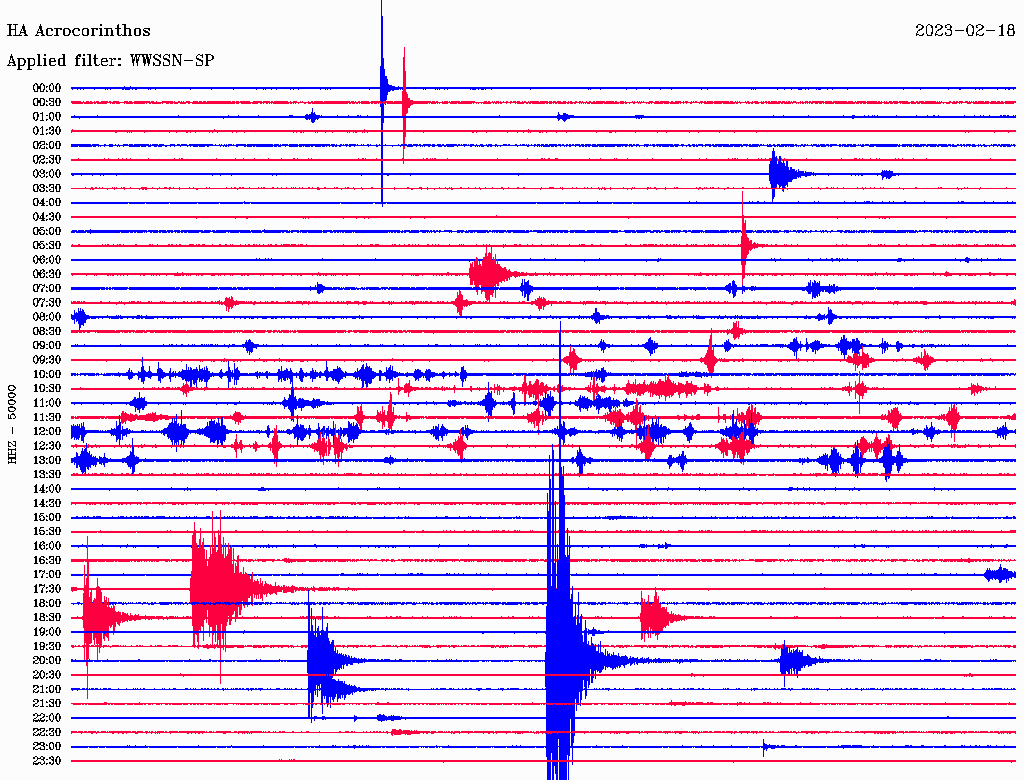

ACORHA332.0315 P17:33:46.17 0.51.0M
ACORHA332.0315 S17:34:22.09 0.51.0M

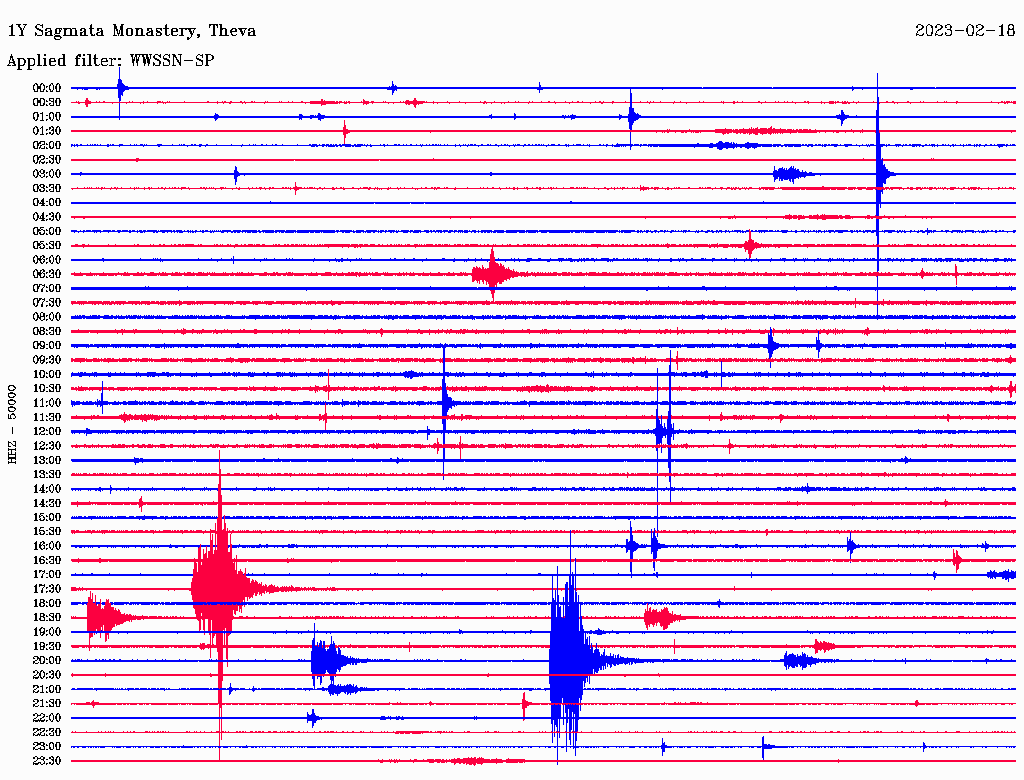

GR261Y346.4328 P17:33:47.47 0.01.0M

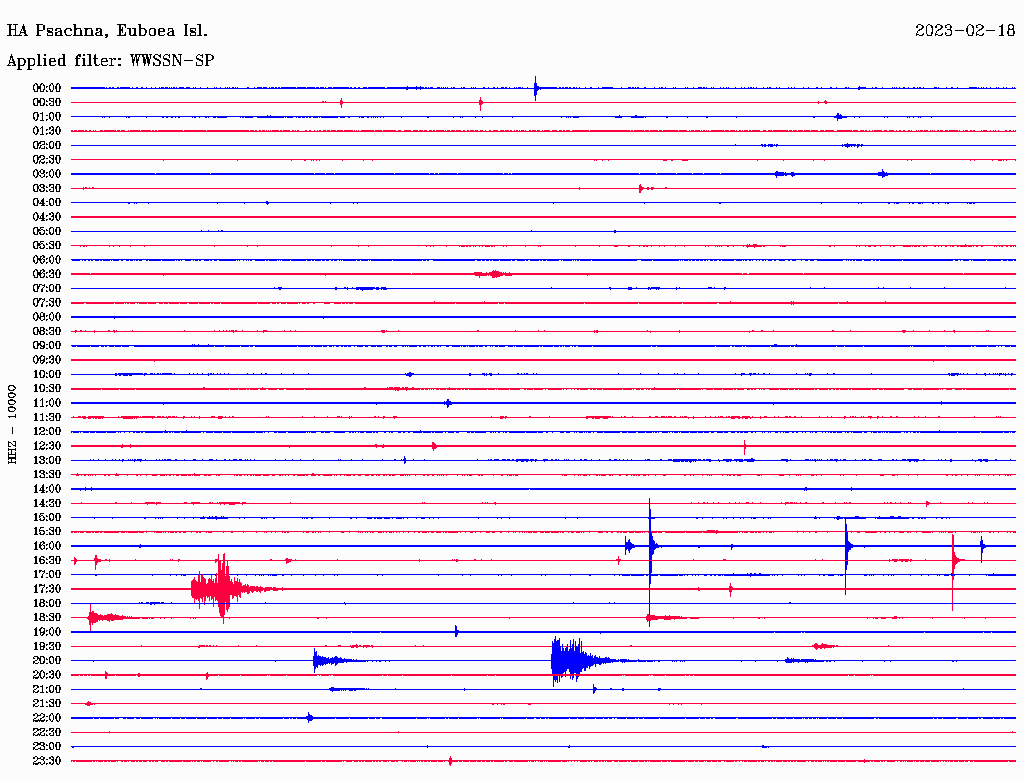

PSAHHA352.2332 P17:33:48.32 0.21.0M

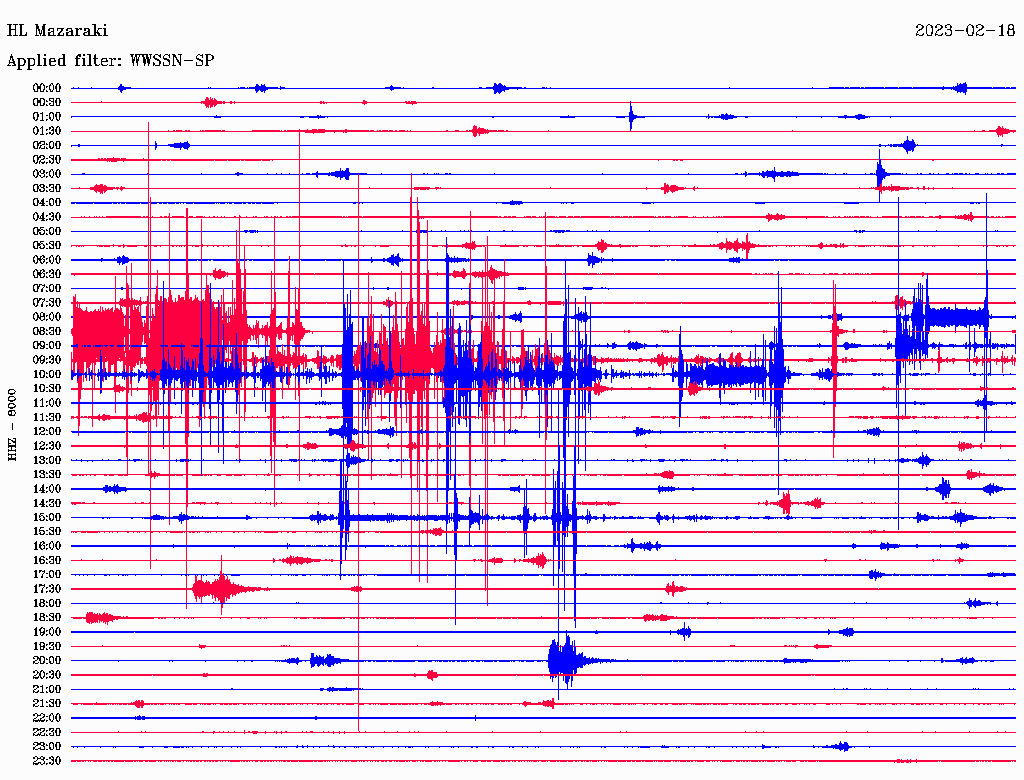

THI2HL353.6325 P17:33:48.87 0.51.0M
THI2HL353.6325 S17:34:26.20 -0.21.0M

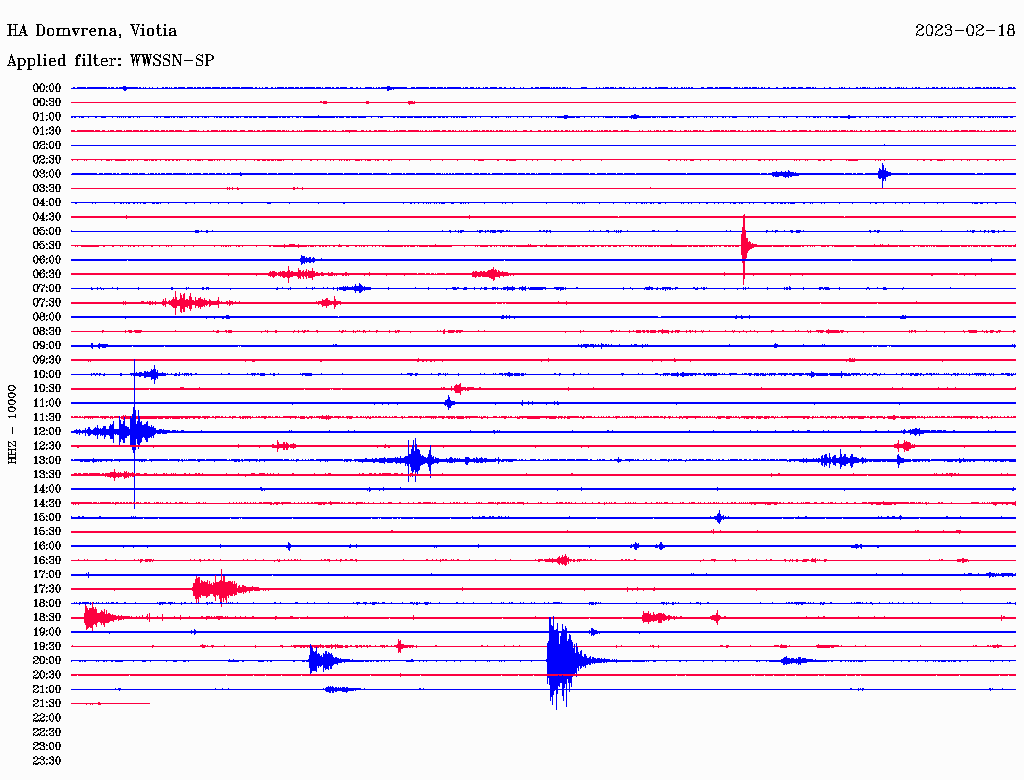

DOMVHA355.7321 P17:33:49.34 0.71.0M
DOMVHA355.7321 S17:34:26.35 -0.51.0M

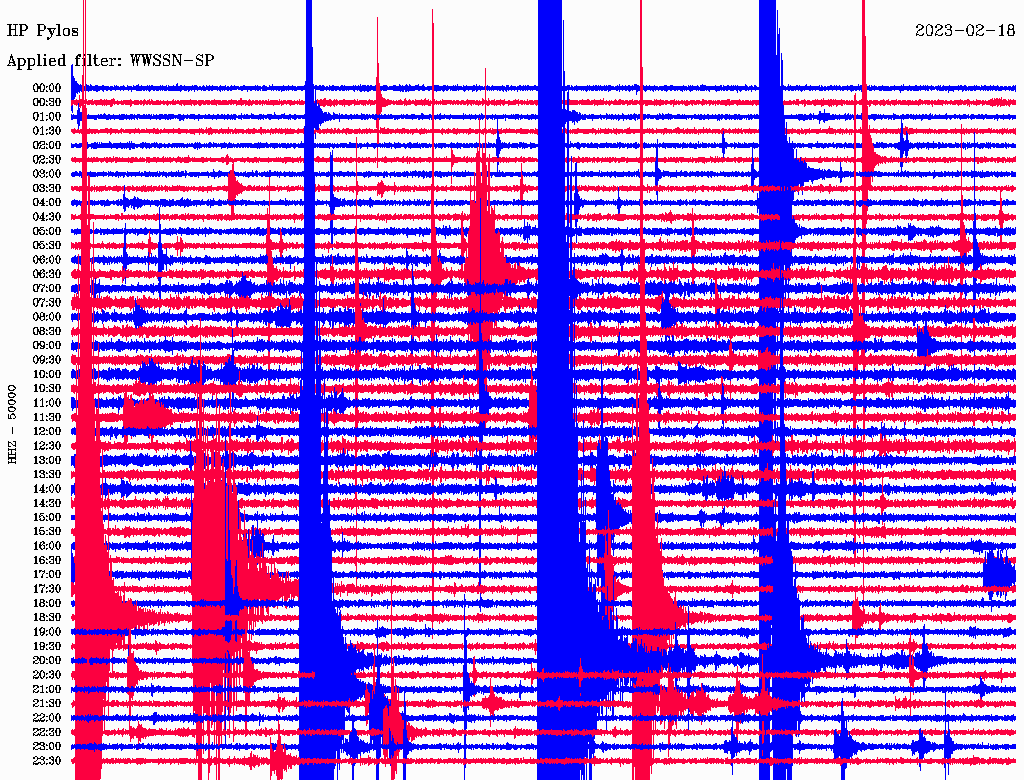

PYLHP358.0291 P17:33:49.53 0.51.0M
PYLHP358.0291 S17:34:26.92 -0.61.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2023dlaw
    Description
      region name: Crete, Greece
Origin:
    Date                   2023-02-18
    Time                  17:32:58.31
    Latitude              35.7590 deg  +/-      0 km
    Longitude             25.4818 deg  +/-      0 km
    Depth                      21 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.36 s
    Azimuthal gap              59 deg

2 Network magnitudes:
    MLv       4.78 +/- 0.14  38
    M         4.78           38 preferred

93 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    NPS   HL    0.5 168  P       17:33:07.79  -0.6 M  1.0  NPS
    NPS   HL    0.5 168  S       17:33:16.18   0.1 M  1.0  NPS
    KNSS  HC    0.5 208  P       17:33:07.92  -0.6 M  1.0  KNSS
    KNSS  HC    0.5 208  S       17:33:16.20  -0.1 M  1.0  KNSS
    IACM  HL    0.6 217  P       17:33:08.82  -0.5 M  1.0  IACM
    IACM  HL    0.6 217  S       17:33:17.76   0.1 M  1.0  IACM
    KSTE  HL    0.6 192  P       17:33:08.77  -1.0 M  1.0  KSTE
    KSTE  HL    0.6 192  S       17:33:18.29  -0.2 M  1.0  KSTE
    THERA HL    0.6 359  P       17:33:09.98  -0.1 M  1.0  THERA
    THERA HL    0.6 359  S       17:33:19.44   0.5 M  1.0  THERA
    SNT5  HA    0.6 354  P       17:33:10.63  -0.1 M  1.0  SNT5
    SNT5  HA    0.6 354  S       17:33:20.53   0.4 M  1.0  SNT5
    SAP3  HL    0.7 351  P       17:33:11.40   0.1 M  1.0  SAP3
    SAP3  HL    0.7 351  S       17:33:21.69   0.4 M  1.0  SAP3
    PFKS  HC    0.7 181  P       17:33:11.71  -0.2 M  1.0  PFKS
    PFKS  HC    0.7 181  S       17:33:22.54   0.2 M  1.0  PFKS
    STIA  HC    0.7 138  P       17:33:12.54   0.2 M  1.0  STIA
    STIA  HC    0.7 138  S       17:33:23.60   0.5 M  1.0  STIA
    ZKR   HL    0.9 137  P       17:33:14.85   0.2 M  1.0  ZKR
    ZKR   HL    0.9 137  S       17:33:27.42   0.3 M  1.0  ZKR
    SIVA  HL    0.9 216  P       17:33:14.87  -0.5 M  1.0  SIVA
    SIVA  HL    0.9 216  S       17:33:28.21  -0.1 M  1.0  SIVA
    IPPL  HC    0.9 244  P       17:33:15.81   0.3 M  1.0  IPPL
    IPPL  HC    0.9 244  S       17:33:28.92   0.4 M  1.0  IPPL
    IMOD  HC    1.0 215  P       17:33:16.25   0.1 M  1.0  IMOD
    IMOD  HC    1.0 215  S       17:33:29.64   0.0 M  1.0  IMOD
    CHAN  HC    1.2 258  P       17:33:20.00  -0.1 M  1.0  CHAN
    CHAN  HC    1.2 258  S       17:33:36.73   0.1 M  1.0  CHAN
    CH01  HI    1.2 259  P       17:33:20.20  -0.1 M  1.0  CH01
    CH01  HI    1.2 259  S       17:33:36.99  -0.0 M  1.0  CH01
    MHLO  HL    1.3 317  P       17:33:21.96   0.8 M  1.0  MHLO
    MHLO  HL    1.3 317  S       17:33:38.81   0.2 M  1.0  MHLO
    NAX1  HI    1.3 356  P       17:33:21.52  -0.6 M  1.0  NAX1
    NAX1  HI    1.3 356  S       17:33:39.85  -0.4 M  1.0  NAX1
    RODP  HC    1.4 262  P       17:33:23.46   0.2 M  1.0  RODP
    RODP  HC    1.4 262  S       17:33:42.12  -0.1 M  1.0  RODP
    GVD   HL    1.5 231  P       17:33:24.85   1.0 M  1.0  GVD
    GVD   HL    1.5 231  S       17:33:43.28  -0.1 M  1.0  GVD
    NISR  HL    1.6  58  P       17:33:25.08  -0.5 M  1.0  NISR
    NISR  HL    1.6  58  S       17:33:46.32   0.1 M  1.0  NISR
    NISR2 HL    1.6  59  P       17:33:26.38   0.6 M  1.0  NISR2
    NISR2 HL    1.6  59  S       17:33:46.82   0.1 M  1.0  NISR2
    ANKY  HL    1.8 273  P       17:33:27.86  -0.5 M  1.0  ANKY
    ANKY  HL    1.8 273  S       17:33:51.37   0.2 M  1.0  ANKY
    KOSP  HC    1.8  52  P       17:33:29.09  -0.1 M  1.0  KOSP
    KOSP  HC    1.8  52  S       17:33:52.32  -0.3 M  1.0  KOSP
    THNO  HC    1.9 349  P       17:33:30.82   0.3 M  1.0  THNO
    THNO  HC    1.9 349  S       17:33:55.05   0.1 M  1.0  THNO
    NPS1  HI    2.1 291  P       17:33:32.92   0.0 M  1.0  NPS1
    NPS1  HI    2.1 291  S       17:33:59.38   0.2 M  1.0  NPS1
    MNVA  HL    2.2 295  P       17:33:34.45   0.3 M  1.0  MNVA
    MNVA  HL    2.2 295  S       17:34:01.45   0.1 M  1.0  MNVA
    ARG   HL    2.2  78  P       17:33:34.50   0.3 M  1.0  ARG
    ARG   HL    2.2  78  S       17:34:01.28  -0.2 M  1.0  ARG
    SMG   HL    2.2  29  P       17:33:33.95  -0.8 M  1.0  SMG
    SMG   HL    2.2  29  S       17:34:02.38  -0.1 M  1.0  SMG
    VLI   HL    2.3 295  P       17:33:35.28   0.0 M  1.0  VLI
    VLI   HL    2.3 295  S       17:34:03.33  -0.0 M  1.0  VLI
    GR32  1Y    2.3 301  P       17:33:36.64   0.2 M  1.0  GR32
    GR32  1Y    2.3 301  S       17:34:05.29  -0.2 M  1.0  GR32
    KARY  HA    2.4 340  P       17:33:37.79   0.3 M  1.0  KARY
    KARY  HA    2.4 340  S       17:34:07.26  -0.0 M  1.0  KARY
    VLY   HL    2.5 327  P       17:33:39.23   0.7 M  1.0  VLY
    VLY   HL    2.5 327  S       17:34:09.04  -0.1 M  1.0  VLY
    GR27  1Y    2.6 338  P       17:33:40.68   0.4 M  1.0  GR27
    GR27  1Y    2.6 338  S       17:34:12.05  -0.2 M  1.0  GR27
    PTL   HL    2.6 330  P       17:33:40.69   0.2 M  1.0  PTL
    PTL   HL    2.6 330  S       17:34:12.01  -0.6 M  1.0  PTL
    EPID  HA    2.7 314  P       17:33:41.32   0.4 M  1.0  EPID
    EPID  HA    2.7 314  S       17:34:13.00  -0.2 M  1.0  EPID
    CHOS  HT    2.7  10  P       17:33:40.22  -0.9 M  1.0  CHOS
    MRTH  HA    2.7 332  P       17:33:41.39   0.4 M  1.0  MRTH
    GR31  1Y    2.7 298  P       17:33:42.23   0.6 M  1.0  GR31
    GR31  1Y    2.7 298  S       17:34:14.74   0.2 M  1.0  GR31
    MDRA  HA    2.8 325  P       17:33:43.22   0.1 M  1.0  MDRA
    STFN  HA    2.9 327  P       17:33:44.48   0.5 M  1.0  STFN
    GR30  1Y    2.9 307  P       17:33:45.61   0.9 M  1.0  GR30
    GR30  1Y    2.9 307  S       17:34:20.38   0.3 M  1.0  GR30
    VILL  HA    3.0 324  P       17:33:45.44   0.1 M  1.0  VILL
    VILL  HA    3.0 324  S       17:34:21.05  -0.1 M  1.0  VILL
    ERTR  HA    3.0 333  P       17:33:45.64   0.3 M  1.0  ERTR
    VLX   HP    3.0 303  P       17:33:46.05   0.5 M  1.0  VLX
    VLX   HP    3.0 303  S       17:34:21.00  -0.4 M  1.0  VLX
    ACOR  HA    3.0 315  P       17:33:46.17   0.5 M  1.0  ACOR
    ACOR  HA    3.0 315  S       17:34:22.09   0.5 M  1.0  ACOR
    GR26  1Y    3.1 328  P       17:33:47.47  -0.0 M  1.0  GR26
    PSAH  HA    3.2 332  P       17:33:48.32   0.2 M  1.0  PSAH
    THI2  HL    3.2 325  P       17:33:48.87   0.5 M  1.0  THI2
    THI2  HL    3.2 325  S       17:34:26.20  -0.2 M  1.0  THI2
    DOMV  HA    3.2 321  P       17:33:49.34   0.7 M  1.0  DOMV
    DOMV  HA    3.2 321  S       17:34:26.35  -0.5 M  1.0  DOMV
    PYL   HP    3.2 291  P       17:33:49.53   0.5 M  1.0  PYL
    PYL   HP    3.2 291  S       17:34:26.92  -0.6 M  1.0  PYL

50 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    NPS   HL    0.5 168  MLv     4.46 -0.32    87.6124
    KNSS  HC    0.5 208  MLv     5.02  0.25    308.068
    IACM  HL    0.6 217  MLv     4.80  0.03    346.689
    KSTE  HL    0.6 192  MLv     4.49 -0.28    73.1854
    THERA HL    0.6 359  MLv     5.02  0.24    241.547
    SNT5  HA    0.6 354  MLv     4.87  0.09    94.5802
    SAP3  HL    0.7 351  MLv     5.19  0.41    533.294
    PFKS  HC    0.7 181  MLv     4.51 -0.27    64.1896
    STIA  HC    0.7 138  MLv     4.73 -0.05    103.871
    ZKR   HL    0.9 137  MLv     4.48 -0.30    48.7834
    SIVA  HL    0.9 216  MLv     4.92  0.15    129.333
    IPPL  HC    0.9 244  MLv     4.83  0.06    104.447
    IMOD  HC    1.0 215  MLv     4.83  0.05    98.8776
    CHAN  HC    1.2 258  MLv     4.75 -0.03    121.589
    CH01  HI    1.2 259  MLv     4.99  0.21    103.618
    MHLO  HL    1.3 317  MLv     4.99  0.22    196.952
    NAX1  HI    1.3 356  MLv     4.91  0.13     72.779
    RODP  HC    1.4 262  MLv     4.63 -0.15    35.0052
    GVD   HL    1.5 231  MLv     4.64 -0.14     26.067
    NISR  HL    1.6  58  MLv     4.83  0.05    44.8999
    NISR2 HL    1.6  59  MLv     4.88  0.10    49.3812
    ANKY  HL    1.8 273  MLv     4.41 -0.37    13.4222
    KOSP  HC    1.8  52  MLv     4.77 -0.01    28.1108
    THNO  HC    1.9 349  MLv     4.83  0.06     28.886
    NPS1  HI    2.1 291  MLv     4.65 -0.13    15.2615
    MNVA  HL    2.2 295  MLv     4.61 -0.17    12.4972
    ARG   HL    2.2  78  MLv     4.53 -0.25    10.3202
    SMG   HL    2.2  29  MLv     4.54 -0.24    9.96871
    VLI   HL    2.3 295  MLv     4.82  0.04    23.6732
    GR32  1Y    2.3 301  MLv     4.52 -0.26    8.20026
    KARY  HA    2.4 340  MLv     5.28  0.50    43.2603
    VLY   HL    2.5 327  MLv     4.80  0.02    13.0708
    GR27  1Y    2.6 338  MLv     5.21  0.43    28.2364
    PTL   HL    2.6 330  MLv     4.94  0.16    14.9423
    EPID  HA    2.7 314  MLv     4.67 -0.10    7.93302
    CHOS  HT    2.7  10  MLv     4.69 -0.08    8.18639
    MRTH  HA    2.7 332  MLv     5.16  0.39    24.0786
    GR31  1Y    2.7 298  MLv     4.73 -0.05    8.43368
    MDRA  HA    2.8 325  MLv     4.50 -0.28    4.36477
    STFN  HA    2.9 327  MLv     4.80  0.02    7.97122
    GR30  1Y    2.9 307  MLv     4.75 -0.03    6.71931
    VILL  HA    3.0 324  MLv     4.80  0.02    7.05436
    ERTR  HA    3.0 333  MLv     4.79  0.01    6.89351
    VLX   HP    3.0 303  MLv     4.43 -0.34    3.04684
    ACOR  HA    3.0 315  MLv     4.81  0.04    7.15009
    GR26  1Y    3.1 328  MLv     5.02  0.24     9.7263
    PSAH  HA    3.2 332  MLv     4.80  0.02    5.43864
    THI2  HL    3.2 325  MLv     5.07  0.30    10.1781
    DOMV  HA    3.2 321  MLv     4.53 -0.24    2.85406
    PYL   HP    3.2 291  MLv     5.10  0.32    3.93373
