Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2023-02-03 12:44:13 (GMT)
 Μέγεθος
 M 4.0
 Γεωγρ. Πλάτος
 36.6538° Β
 Γεωγρ. Μήκος
 21.6093° Α
 Εστιακό Βάθος
 4 χμ
 Αρ. αφίξεων
 99
 Επίκεντρο 19.8 χμ ΝΝΔ της Μεθώνης
62.1 χμ ΝΔ της Καλαμάτας
239.0 χμ ΝΔ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Μηχ.Γέν.


  Μηχανισμός Γένεσης

Μηχ.Γεν. Παράταξη (°) Κλίση (°) Γων.Ολίσθ. (°) Σεισμ.Ροπή (dyn*cm)
3021482 1.22E+22

Γεωγρ.Πλάτος (°Β) Γεωγρ.Μήκος (°Α) Βάθος (χμ) Μέγεθος Mw
36.671121.62175.04.0

Υπολογισμός εστιακών παραμέτρων

Κλικ εδώ για λεπτομέρειες μηχανισμού γένεσης

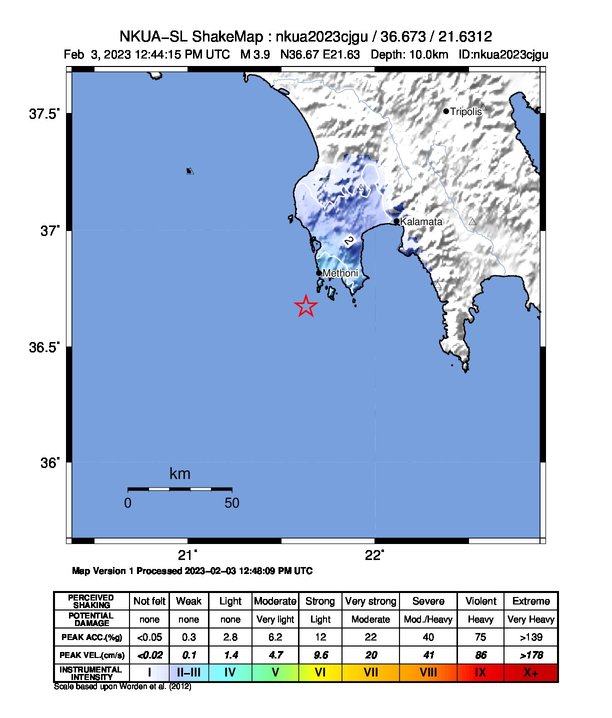

  Χάρτης εντάσεως

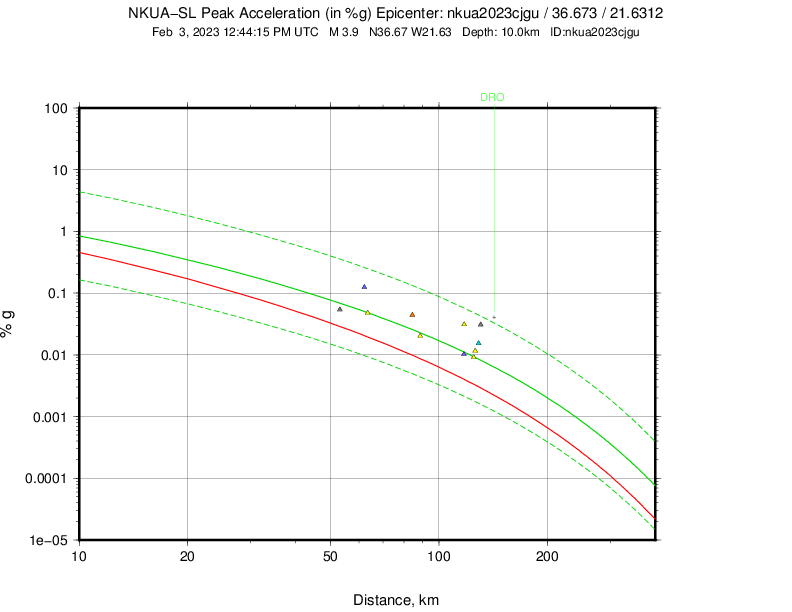

PGA

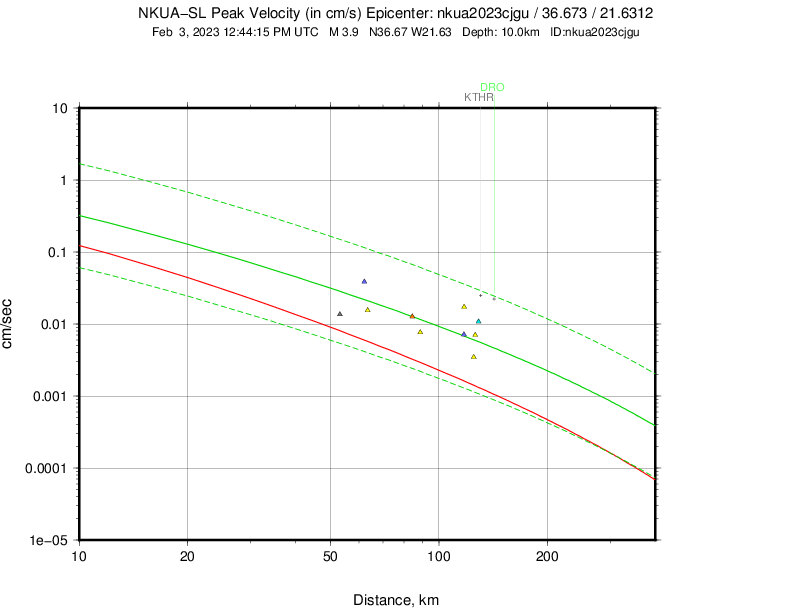

 PGV
 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

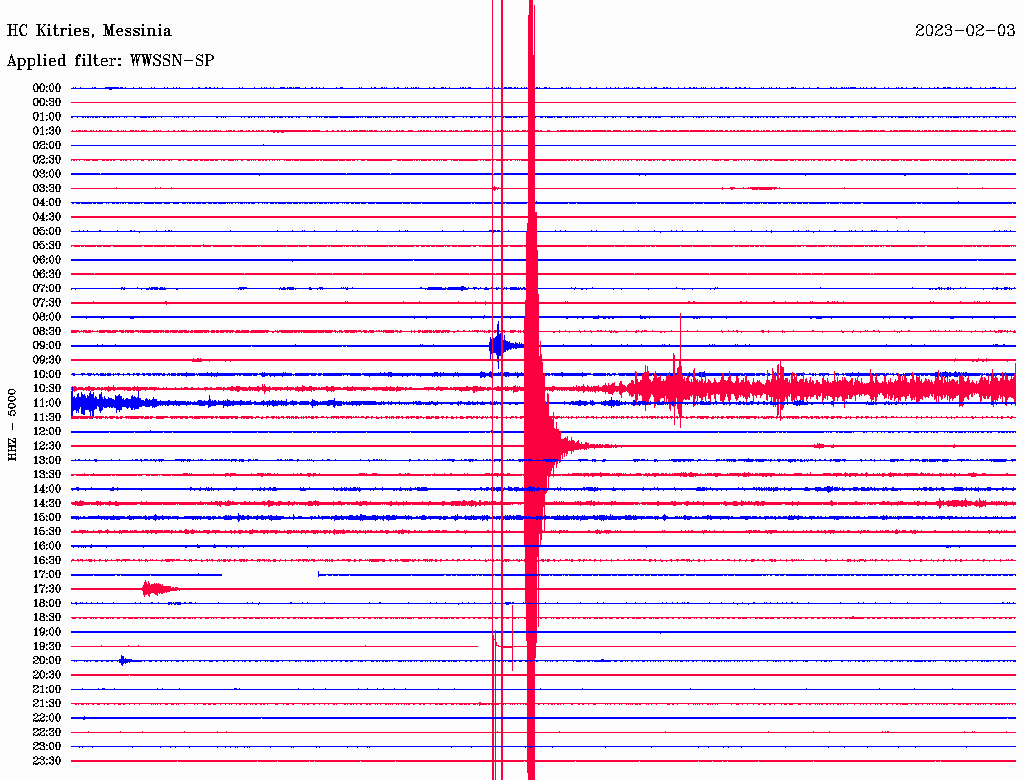

KTRSHC55.8 57 P12:44:22.97 0.01.0M
KTRSHC55.8 57 S12:44:30.26 -0.41.0M

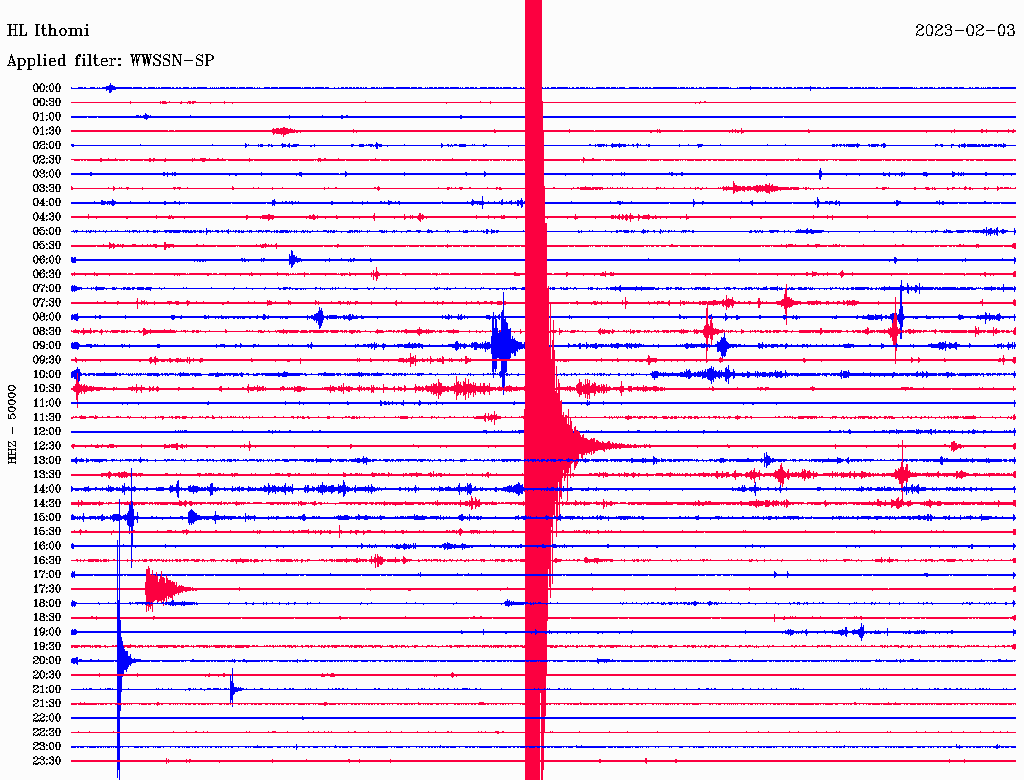

ITMHL64.8 26 P12:44:24.43 -0.11.0M
ITMHL64.8 26 S12:44:33.35 0.01.0M

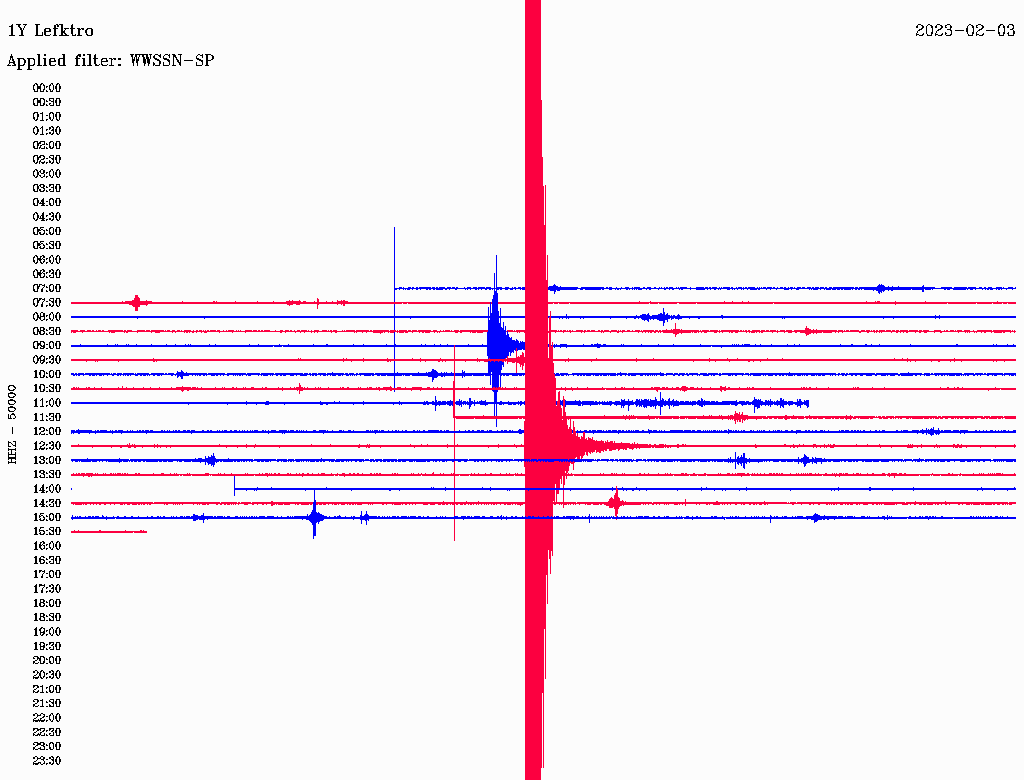

GR331Y65.7 79 P12:44:24.40 -0.31.0M
GR331Y65.7 79 S12:44:33.06 -0.61.0M
STRFHT84.4321 P12:44:27.59 -0.11.0M
STRFHT84.4321 S12:44:38.61 -0.41.0M
GR311Y91.5 63 P12:44:29.15 0.31.0M
GR311Y91.5 63 S12:44:40.47 -0.61.0M
VLIHL119.5 87 P12:44:33.42 0.11.0M
VLIHL119.5 87 S12:44:48.93 0.01.0M
GR291Y120.0 13 P12:44:33.41 0.01.0M
GR291Y120.0 13 S12:44:49.22 0.21.0M

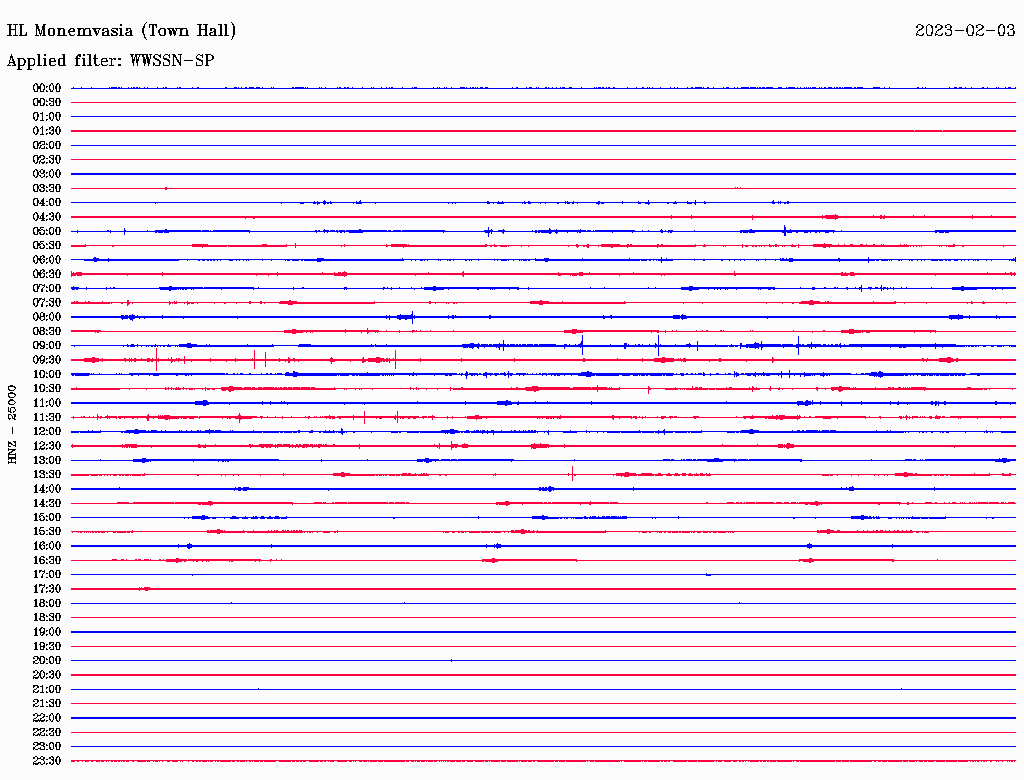

MNVAHL127.4 88 P12:44:34.92 0.31.0M
MNVAHL127.4 88 S12:44:51.39 0.31.0M

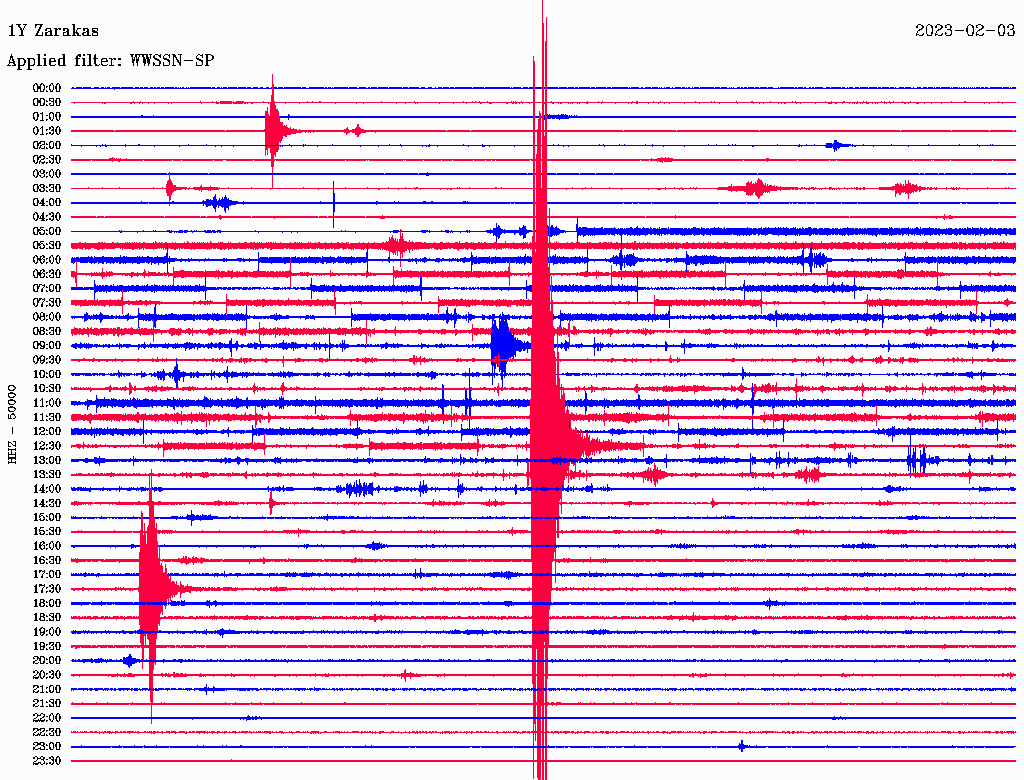

GR321Y127.6 74 P12:44:34.29 -0.31.0M
GR321Y127.6 74 S12:44:51.38 0.31.0M
GR301Y129.2 42 P12:44:34.85 0.01.0M
GR301Y129.2 42 S12:44:51.46 -0.11.0M

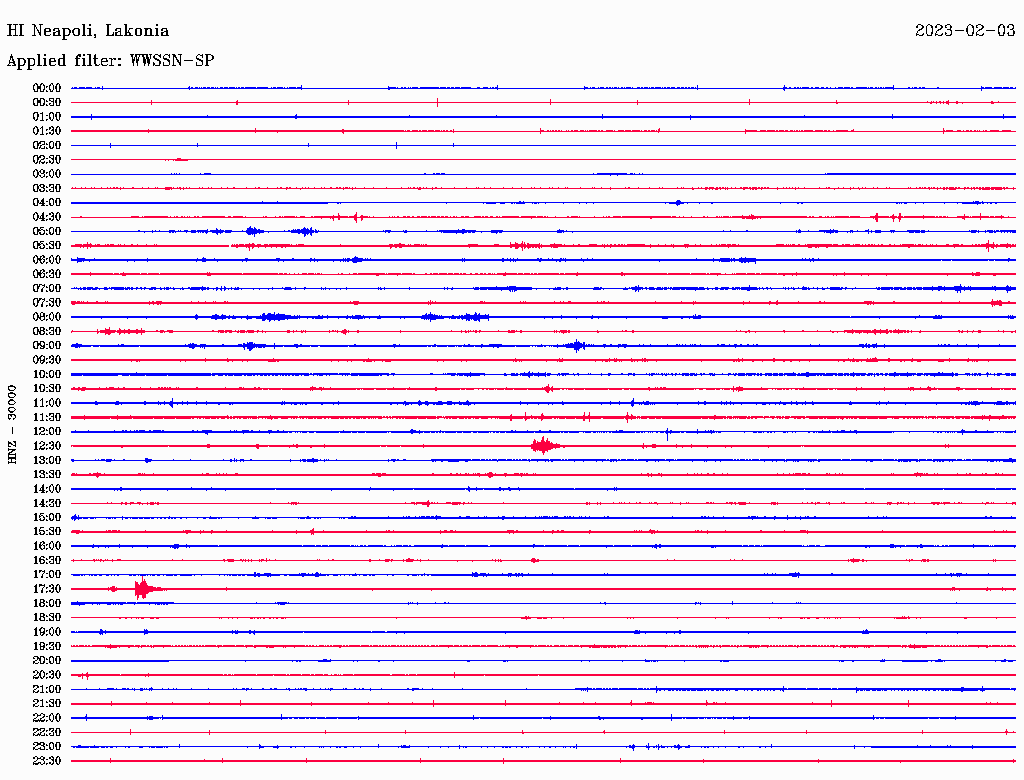

NPS1HI130.7 97 P12:44:35.31 0.21.0M
NPS1HI130.7 97 S12:44:52.84 0.91.0M

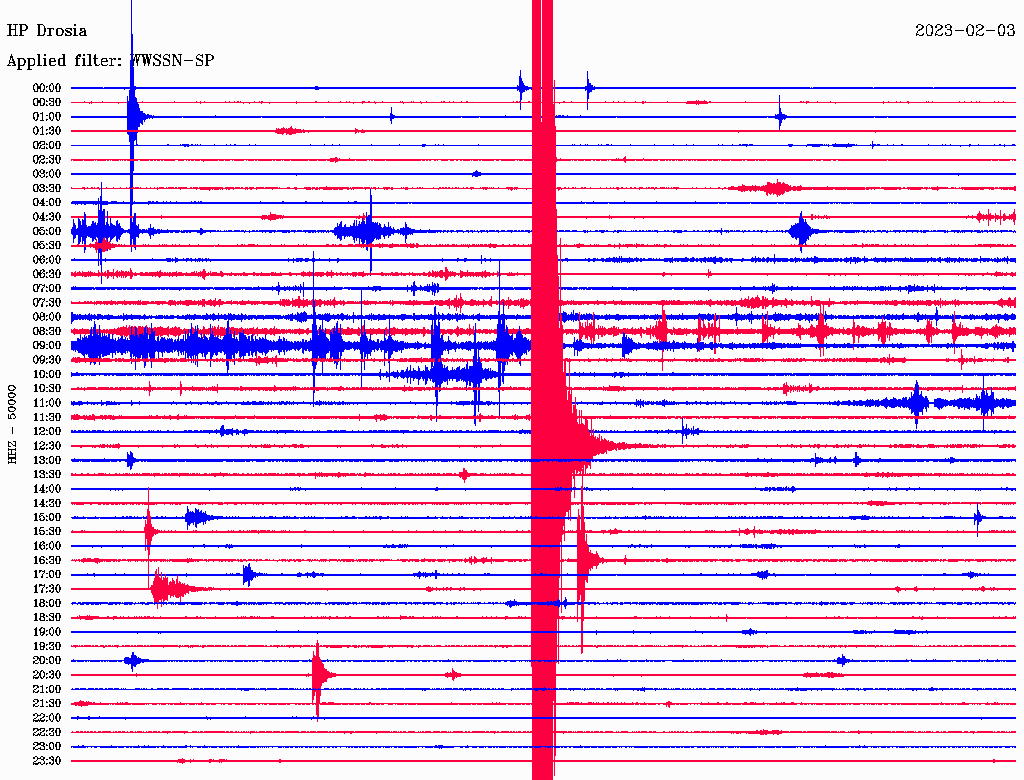

DROHP144.7 4 P12:44:36.85 -0.31.0M
DROHP144.7 4 S12:44:56.63 1.01.0M

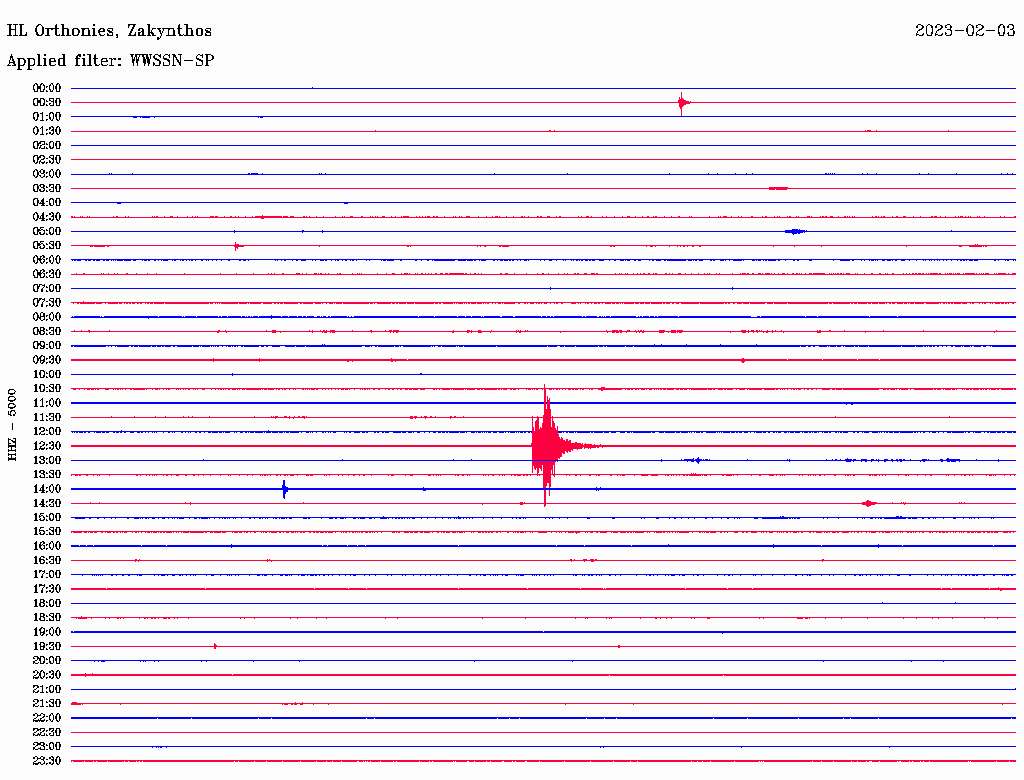

ORTHHL155.7329 P12:44:37.94 -1.01.0M
ORTHHL155.7329 S12:44:59.32 0.61.0M

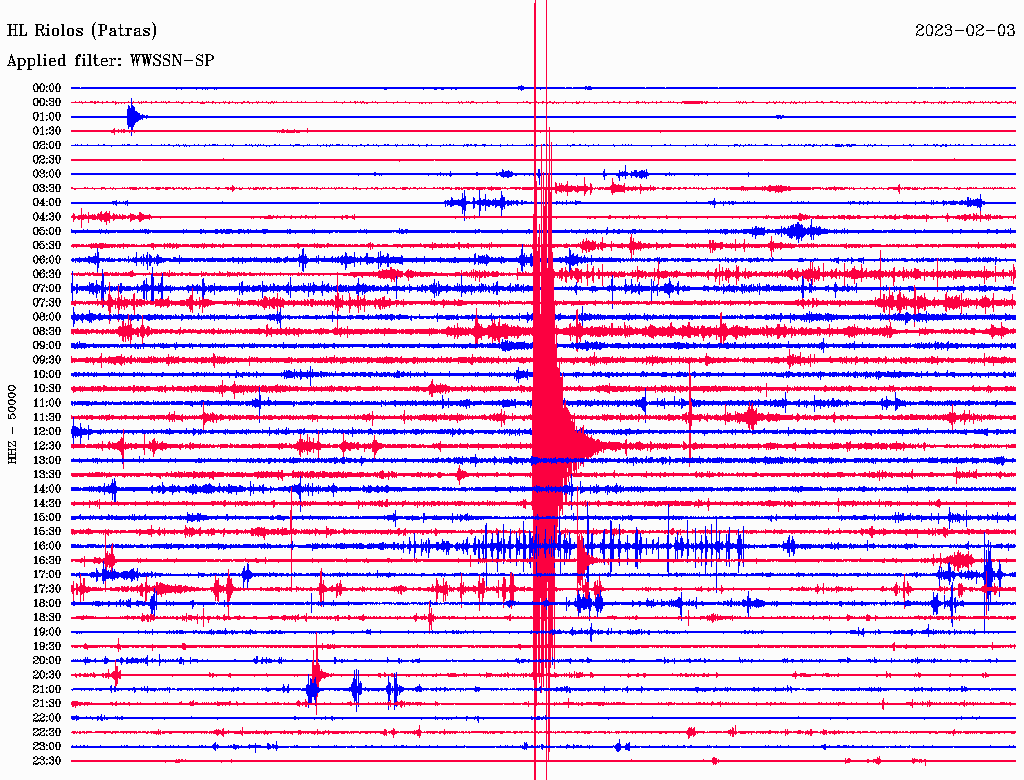

RLSHL156.4355 P12:44:38.76 -0.21.0M
RLSHL156.4355 S12:44:59.57 0.81.0M

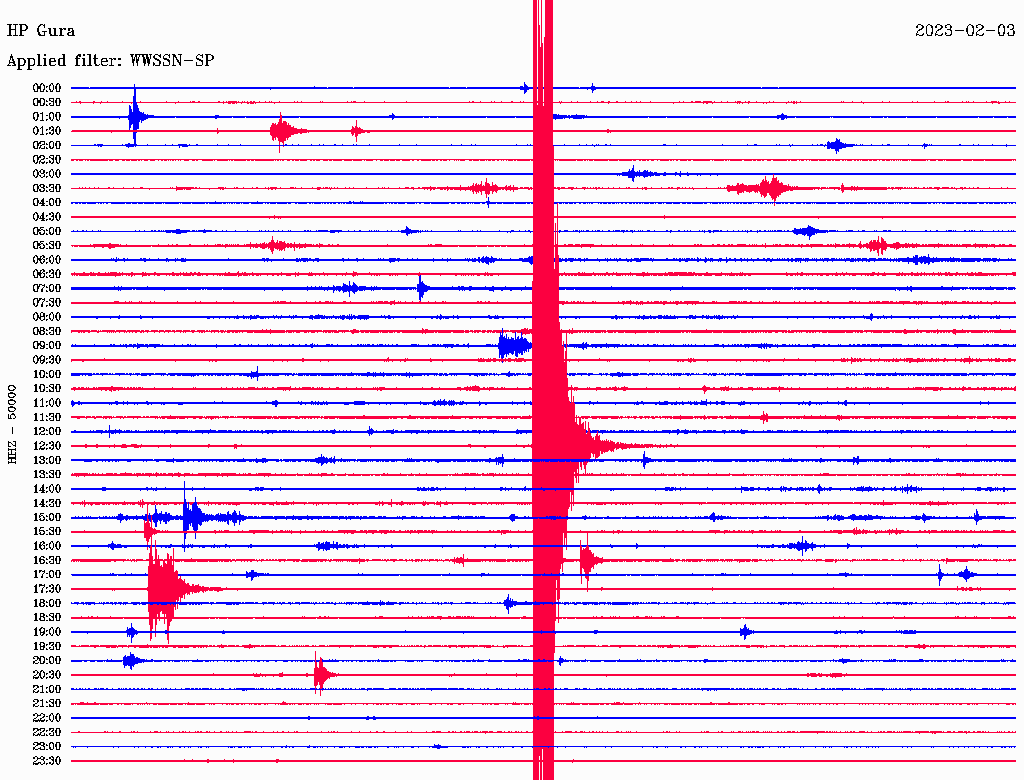

GURHP156.7 25 P12:44:39.17 0.01.0M
GURHP156.7 25 S12:44:59.64 0.51.0M

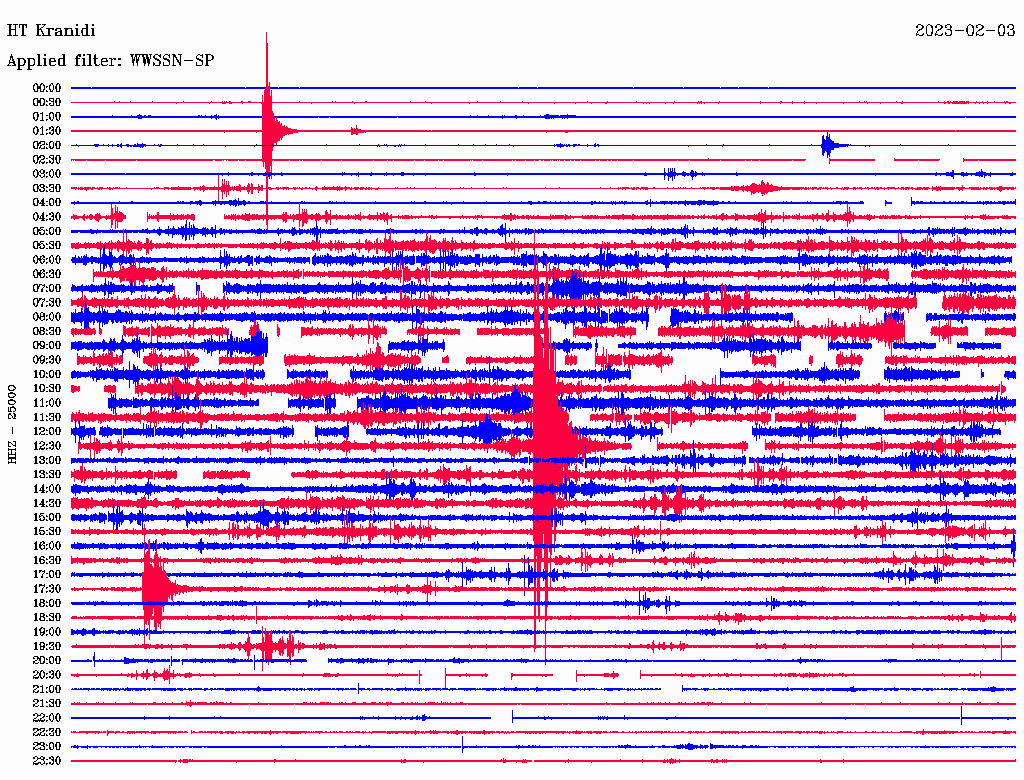

KRNDHT159.0 59 P12:44:39.99 0.61.0M
KRNDHT159.0 59 S12:45:00.06 0.51.0M

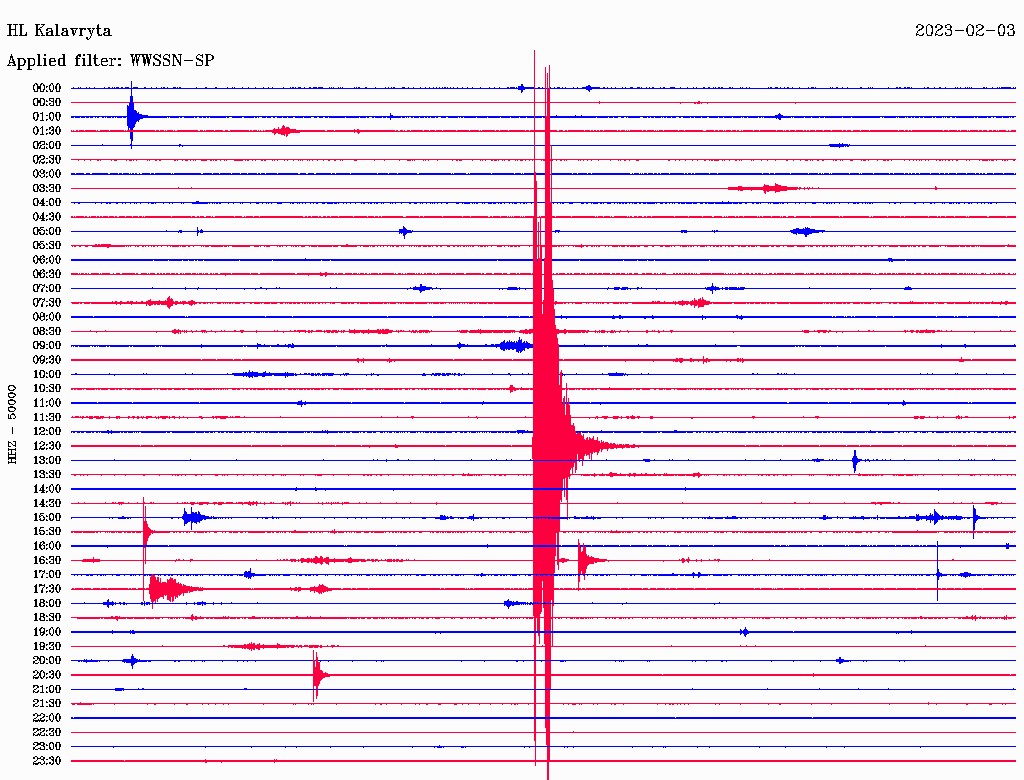

KLVHL161.8 17 P12:44:39.47 -0.41.0M
KLVHL161.8 17 S12:45:00.66 0.31.0M
EPIDHA171.2 52 P12:44:41.67 0.31.0M
EPIDHA171.2 52 S12:45:03.00 0.01.0M
AXSHP172.7353 P12:44:41.52 0.11.0M
AXSHP172.7353 S12:45:03.22 0.01.0M
RTZLHT174.6335 P12:44:40.85 -0.91.0M
RTZLHT174.6335 S12:45:03.68 0.01.0M
ANKYHL175.1120 P12:44:42.32 0.51.0M
ANKYHL175.1120 S12:45:03.18 -0.71.0M

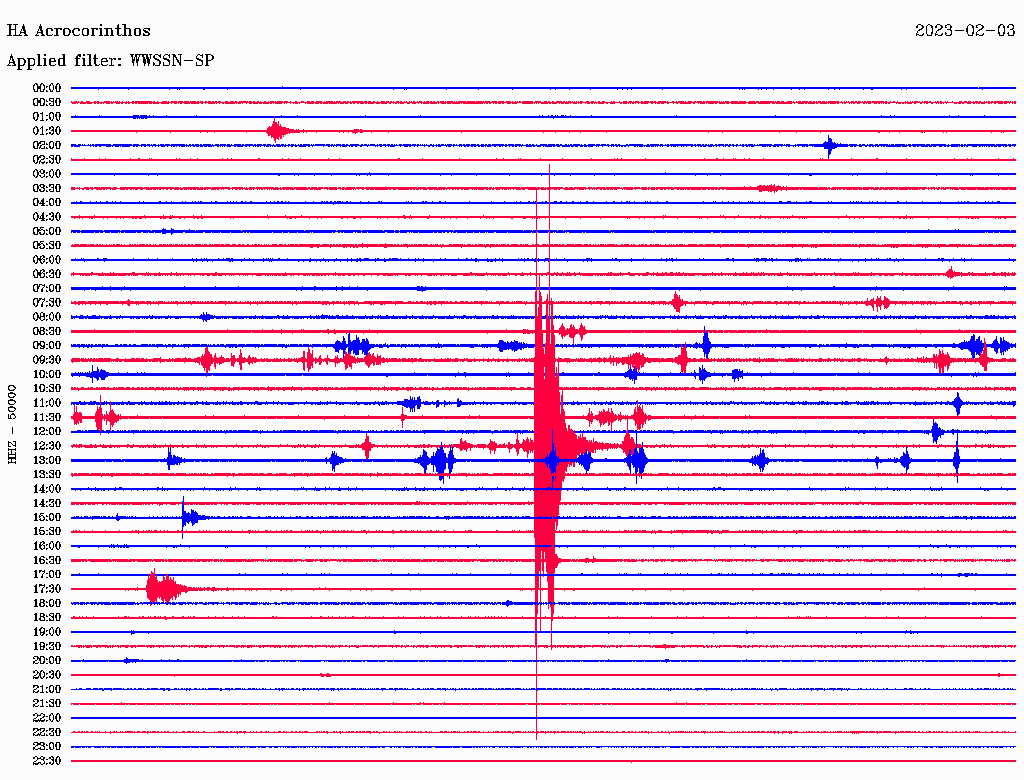

ACORHA177.0 39 P12:44:42.38 0.31.0M
ACORHA177.0 39 S12:45:03.87 -0.41.0M
LAKAHA179.4 11 P12:44:42.75 0.41.0M
LAKAHA179.4 11 S12:45:04.55 -0.21.0M

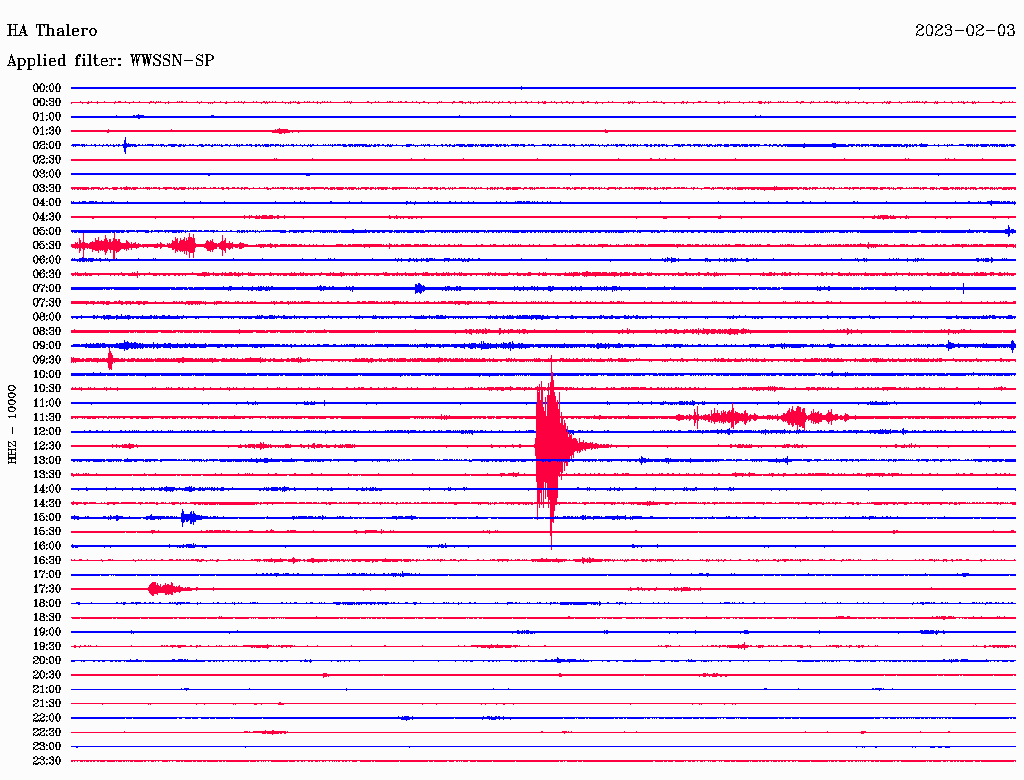

THALHA179.7 31 P12:44:42.94 0.61.0M
THALHA179.7 31 S12:45:04.58 -0.21.0M

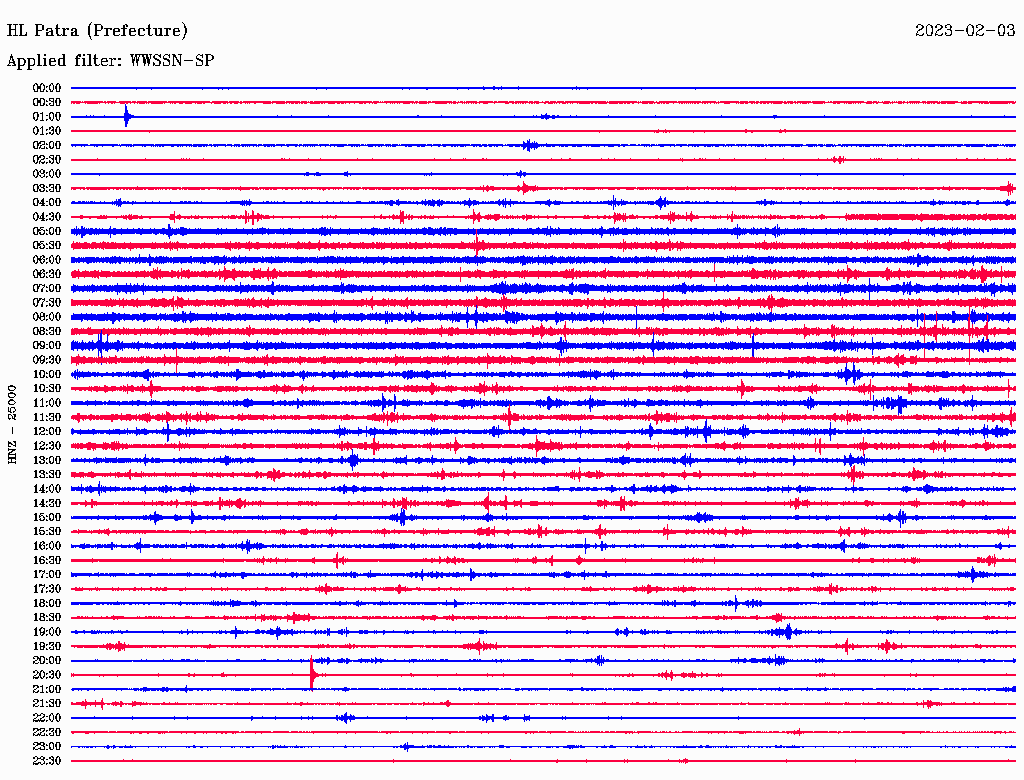

PATCHL180.1 4 P12:44:42.84 0.51.0M
PATCHL180.1 4 S12:45:04.73 -0.11.0M
TEMECL181.1 14 P12:44:43.22 0.71.0M
TEMECL181.1 14 S12:45:04.95 -0.11.0M

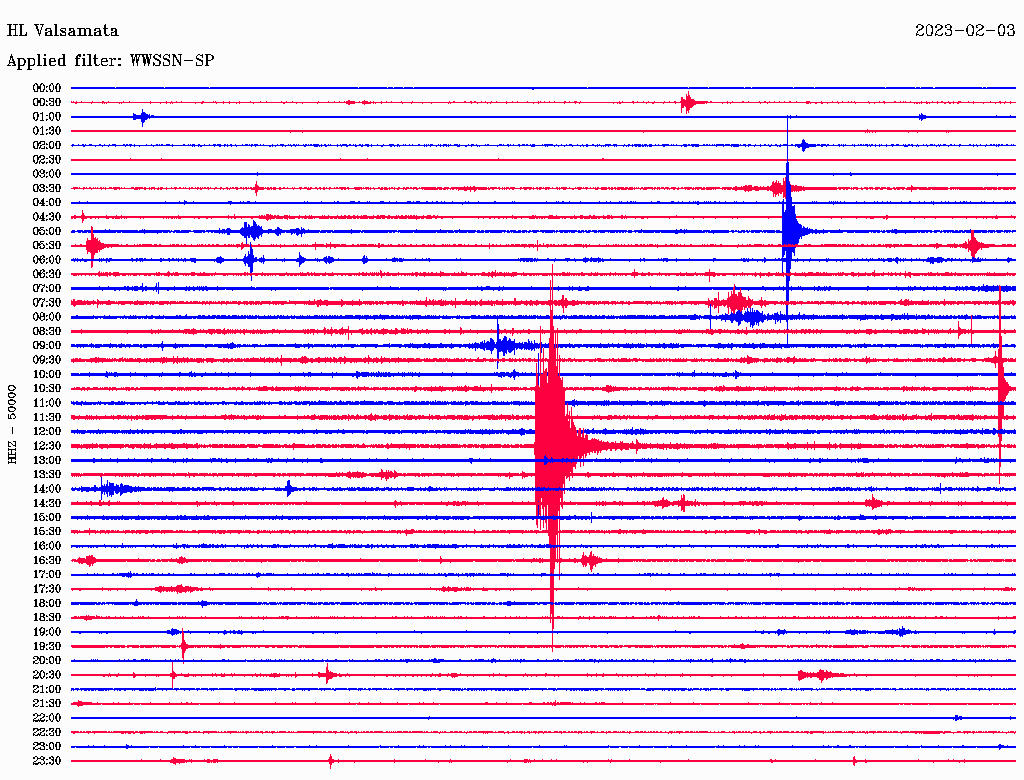

VLSHL191.8332 P12:44:43.22 -0.81.0M
VLSHL191.8332 S12:45:07.28 -0.31.0M

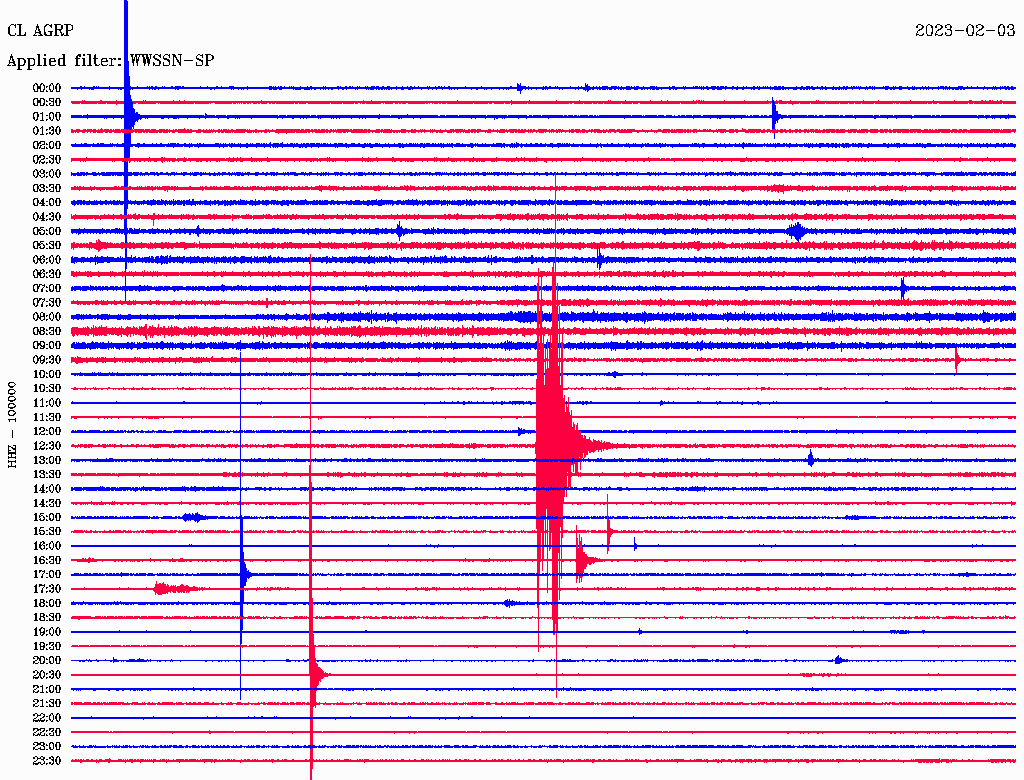

AGRPCL194.0 3 P12:44:45.02 0.81.0M
AGRPCL194.0 3 S12:45:07.96 -0.11.0M
TRIZCL194.7 12 P12:44:44.83 0.61.0M
TRIZCL194.7 12 S12:45:07.86 -0.21.0M

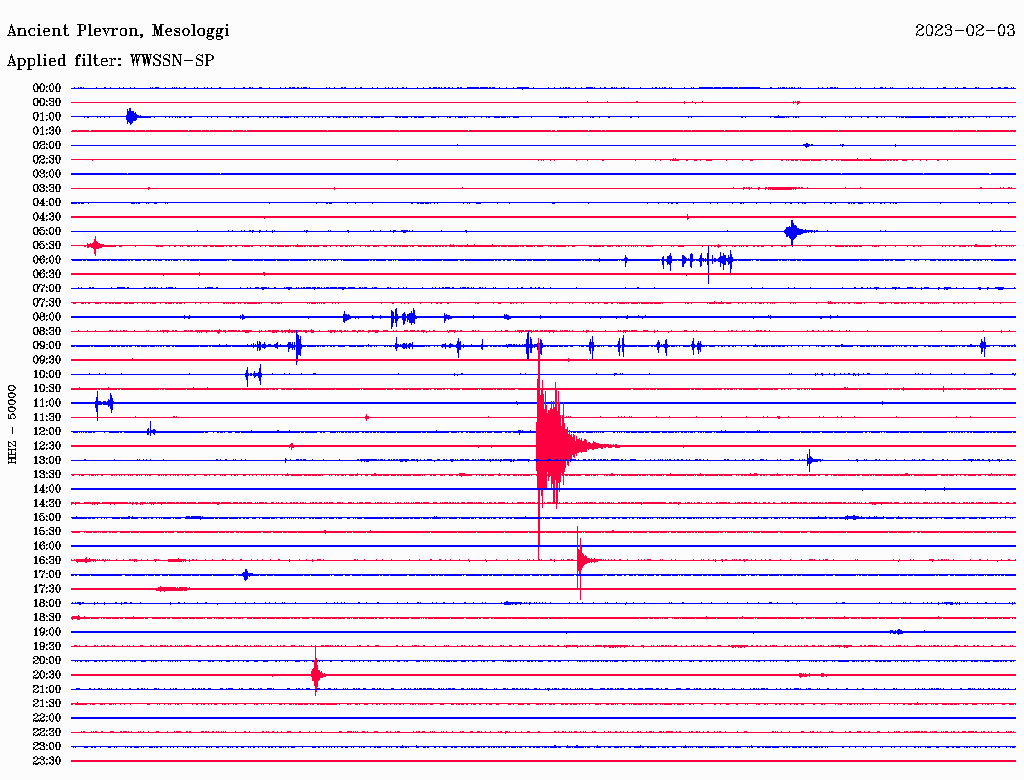

PLEVHP196.4355 P12:44:45.41 0.91.0M
PLEVHP196.4355 S12:45:08.24 -0.31.0M
VVKHP197.4 5 P12:44:45.53 0.81.0M
KALEHA198.8 14 P12:44:45.85 0.91.0M
KALEHA198.8 14 S12:45:09.14 -0.11.0M
DMLNHT207.2328 P12:44:45.23 -0.71.0M

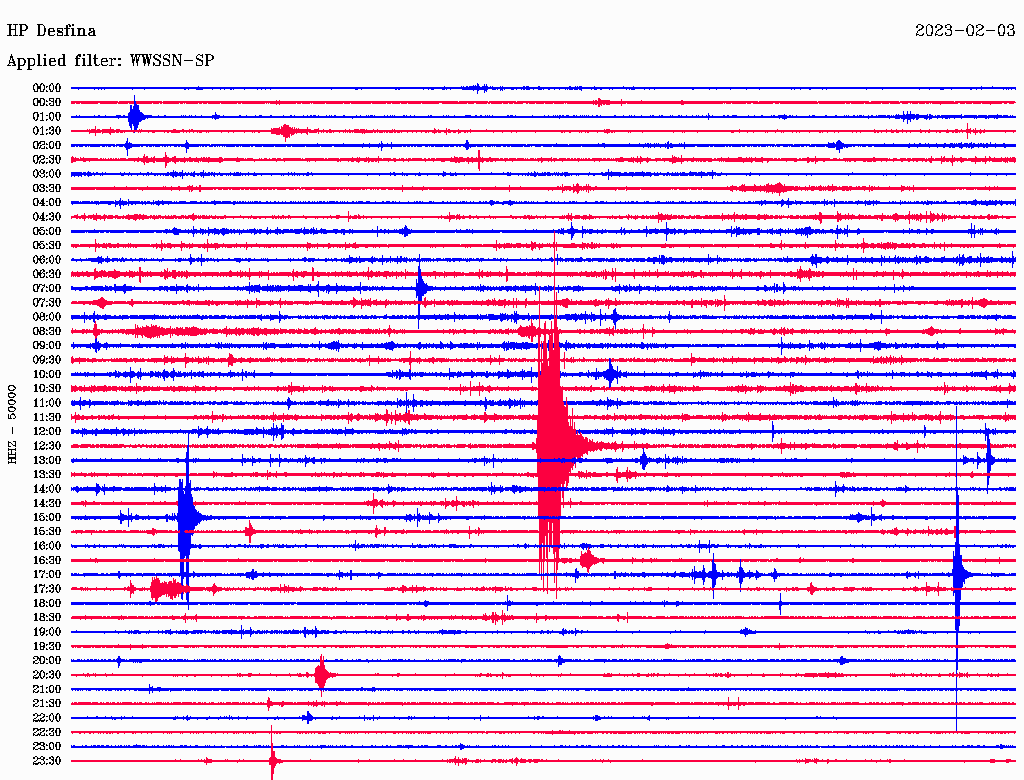

DSFHP211.5 23 P12:44:46.48 -0.11.0M
ATHRHA212.8330 P12:44:46.26 -0.41.0M
DOMVHA215.4 34 P12:44:47.03 0.11.0M
DOMVHA215.4 34 S12:45:13.36 0.51.0M
DLFAHL217.4 21 P12:44:46.89 -0.41.0M
DLFAHL217.4 21 S12:45:13.18 -0.21.0M
VILLHA225.4 42 P12:44:47.56 -0.81.0M
VILLHA225.4 42 S12:45:15.15 -0.11.0M

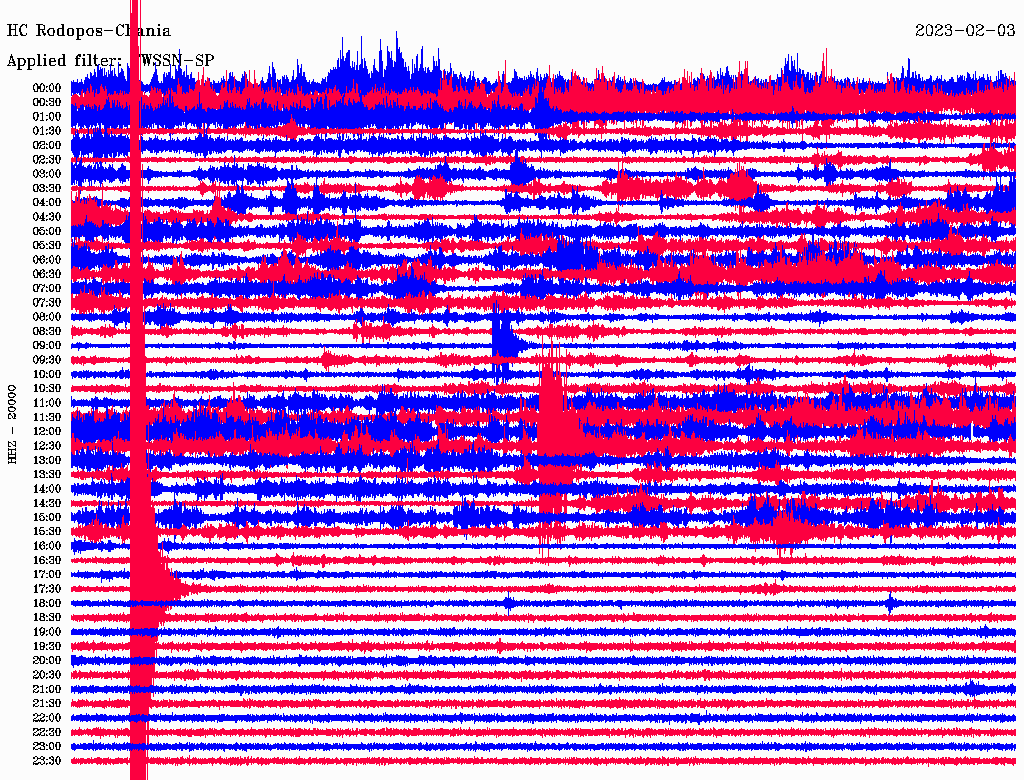

RODPHC228.1122 P12:44:48.93 0.31.0M
RODPHC228.1122 S12:45:15.94 0.11.0M
GR241Y232.1 13 P12:44:49.62 0.41.0M
EVGIHT234.3339 P12:44:49.48 0.11.0M

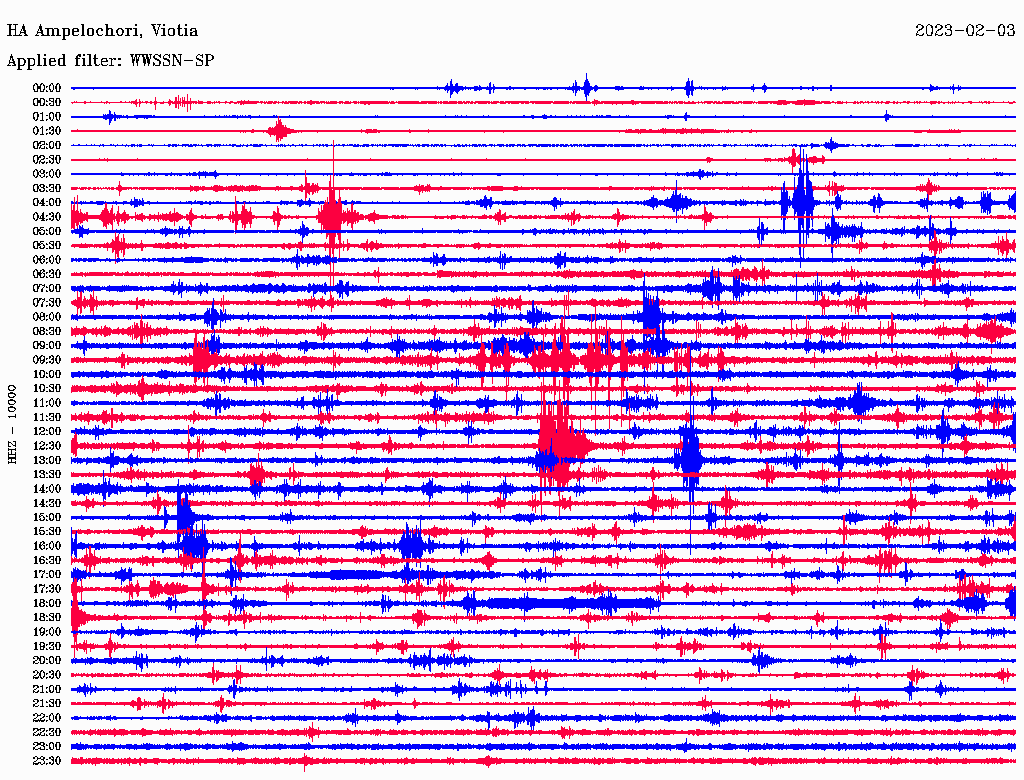

AMPEHA234.5 39 P12:44:49.08 -0.41.0M
AMPEHA234.5 39 S12:45:17.87 0.61.0M
VLYHL234.8 56 P12:44:48.83 -0.71.0M

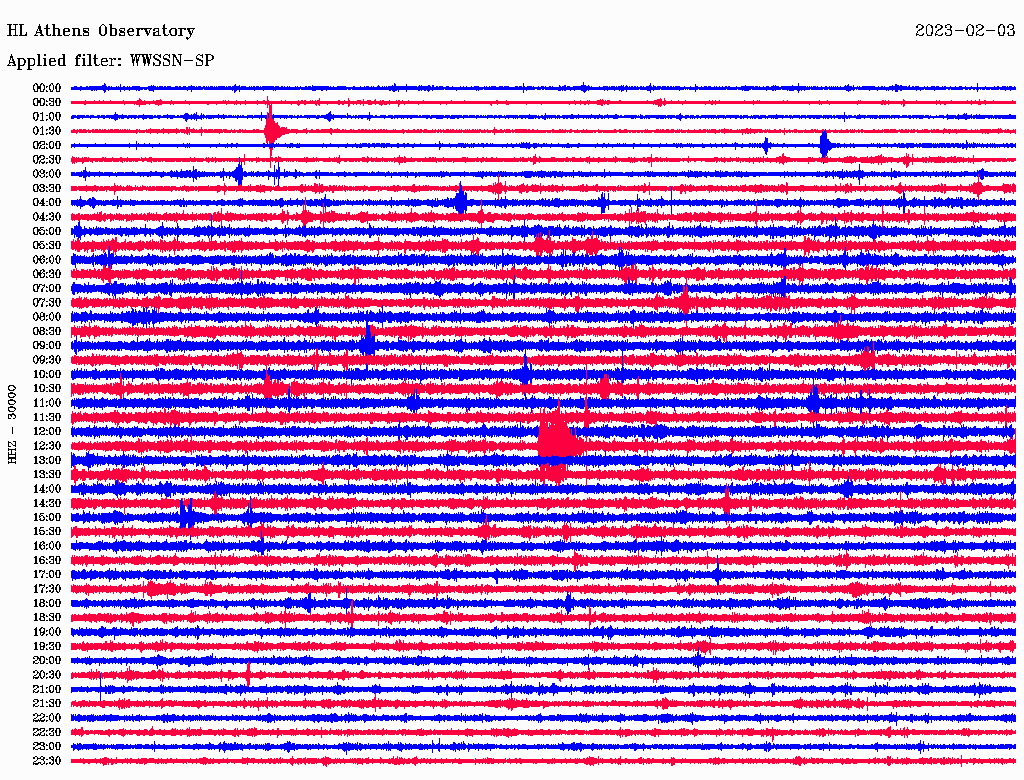

ATHHL237.3 52 P12:44:49.13 -0.71.0M

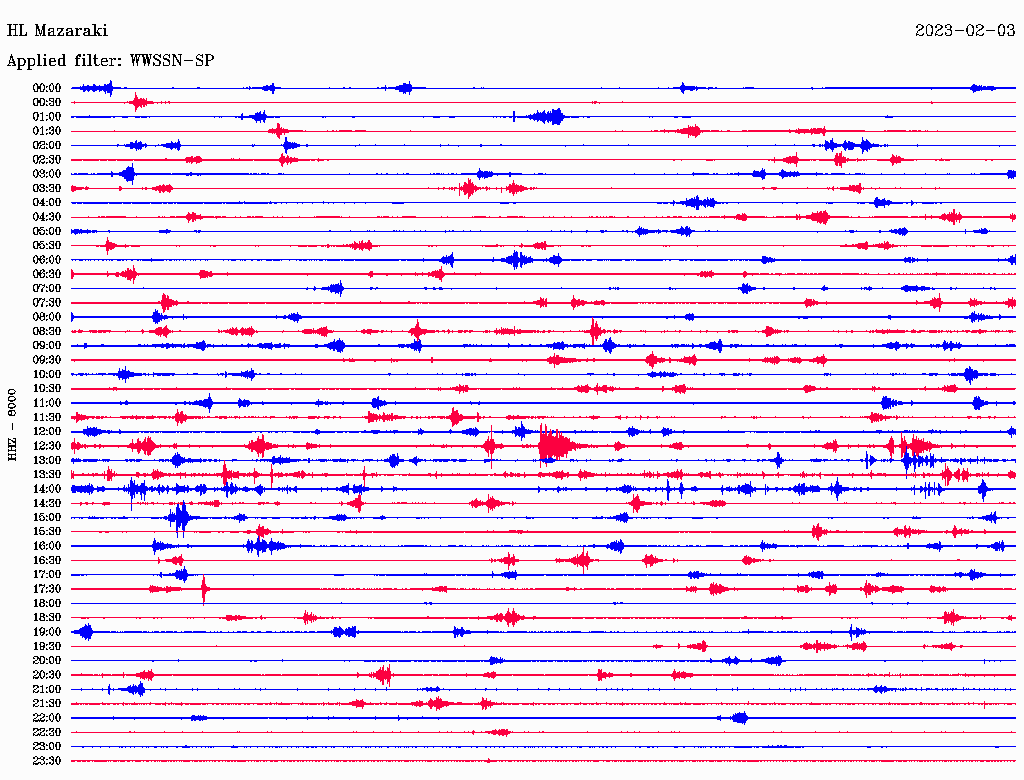

THI2HL237.7 37 P12:44:49.60 -0.21.0M
THI2HL237.7 37 S12:45:17.87 -0.11.0M
NYDRHT242.6341 P12:44:50.53 0.11.0M
MHLOHL249.1 89 P12:44:50.92 -0.51.0M
MHLOHL249.1 89 S12:45:20.68 0.11.0M

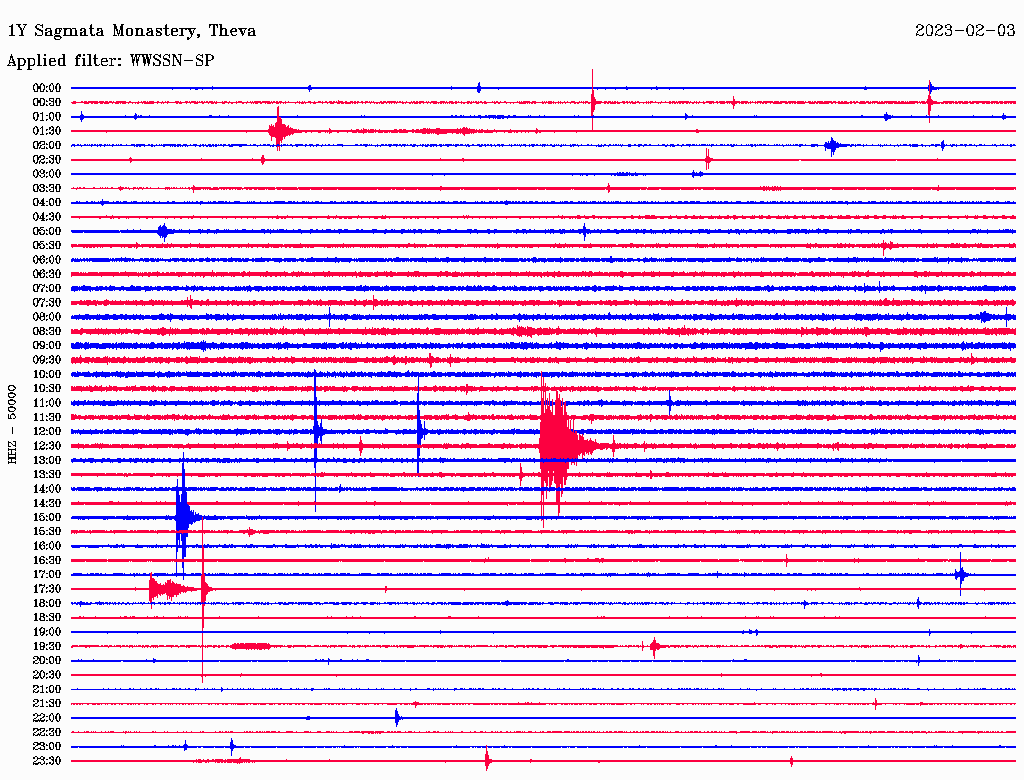

GR261Y250.9 39 P12:44:51.39 -0.21.0M
GR261Y250.9 39 S12:45:20.71 -0.31.0M

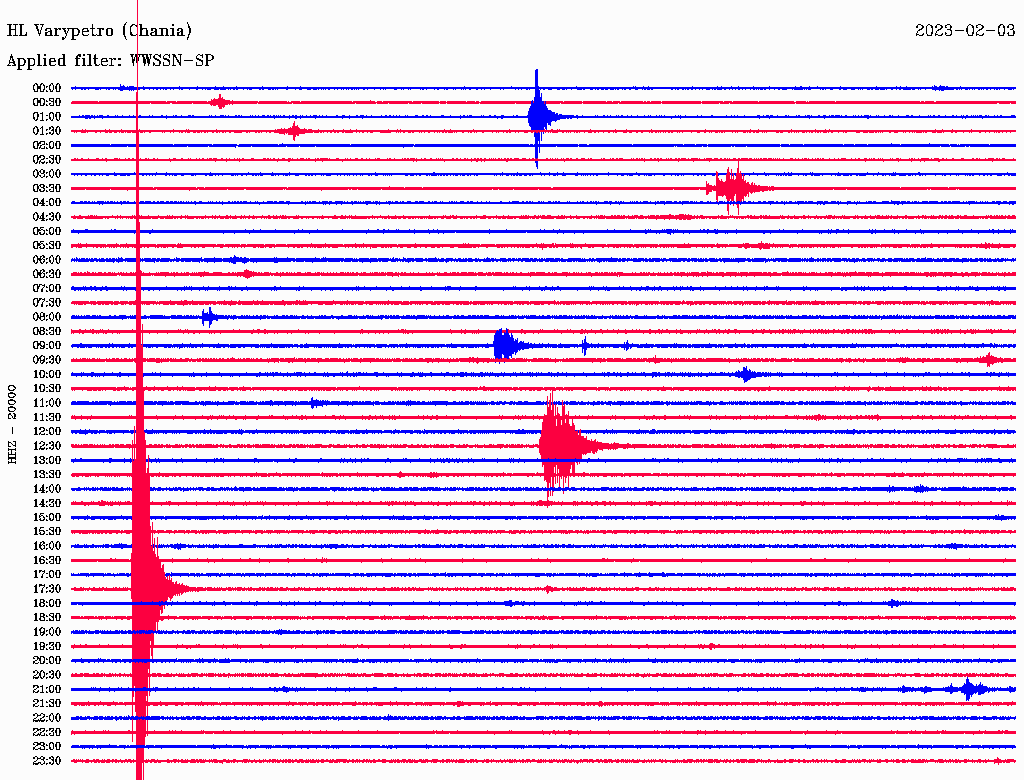

IMMVHL251.1122 P12:44:51.31 -0.31.0M
IMMVHL251.1122 S12:45:21.18 0.11.0M

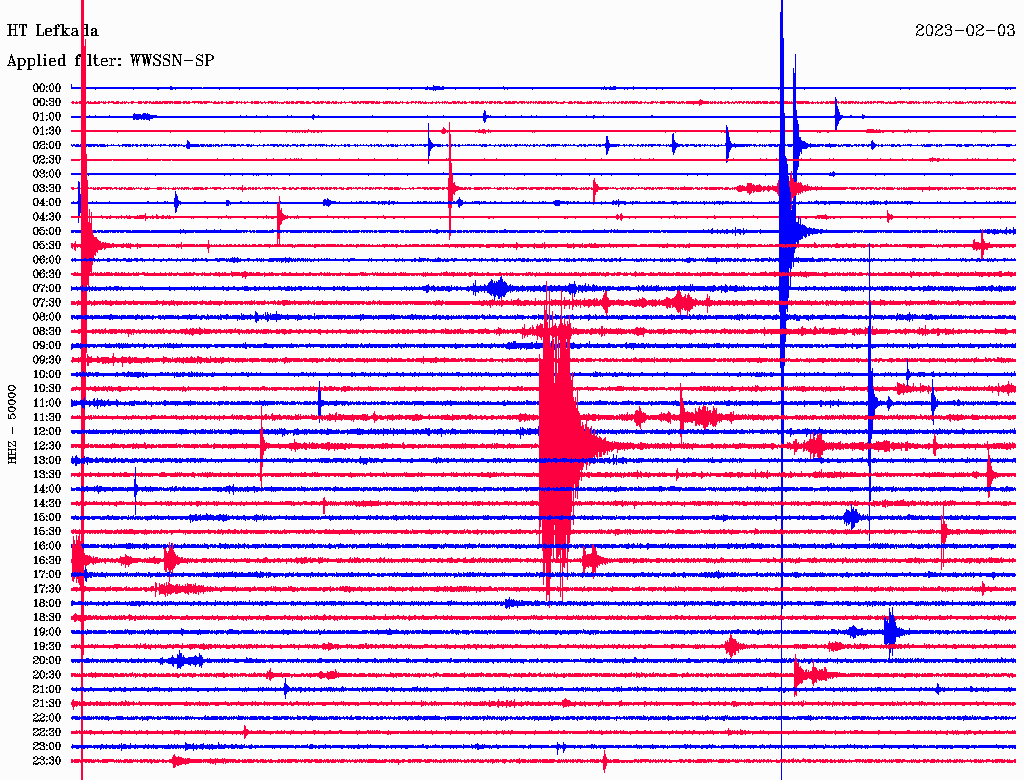

LKD2HT251.7341 P12:44:52.04 0.41.0M
AXARHA252.4 22 P12:44:52.50 0.81.0M
PTLHL252.4 52 P12:44:50.88 -0.91.0M
LKRHL253.4 29 P12:44:51.24 -0.61.0M

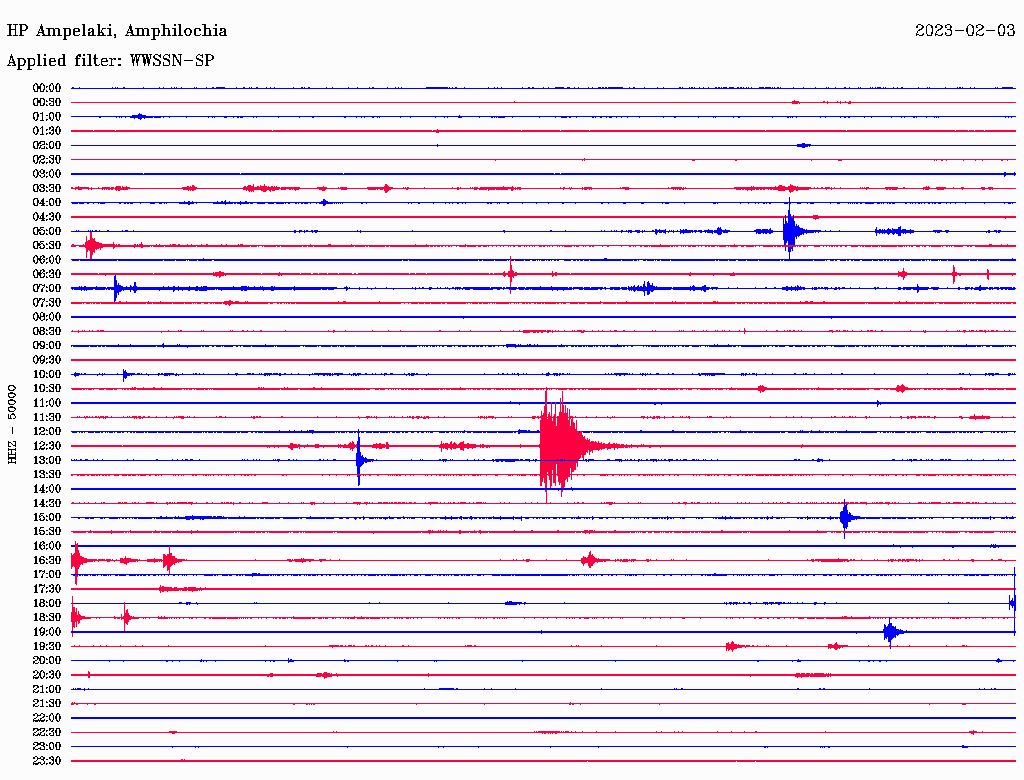

AMPLHP254.6352 P12:44:52.89 0.91.0M
AMPLHP254.6352 S12:45:21.74 0.11.0M

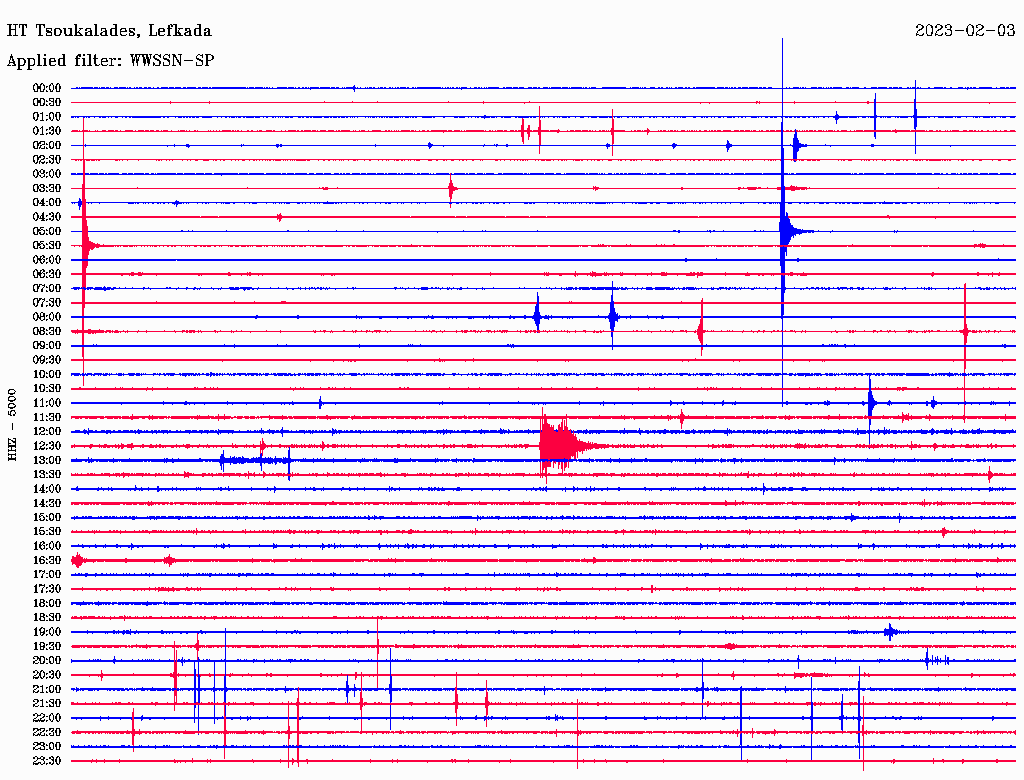

TSLKHT255.6341 P12:44:52.52 0.41.0M
TSLKHT255.6341 S12:45:21.73 -0.21.0M

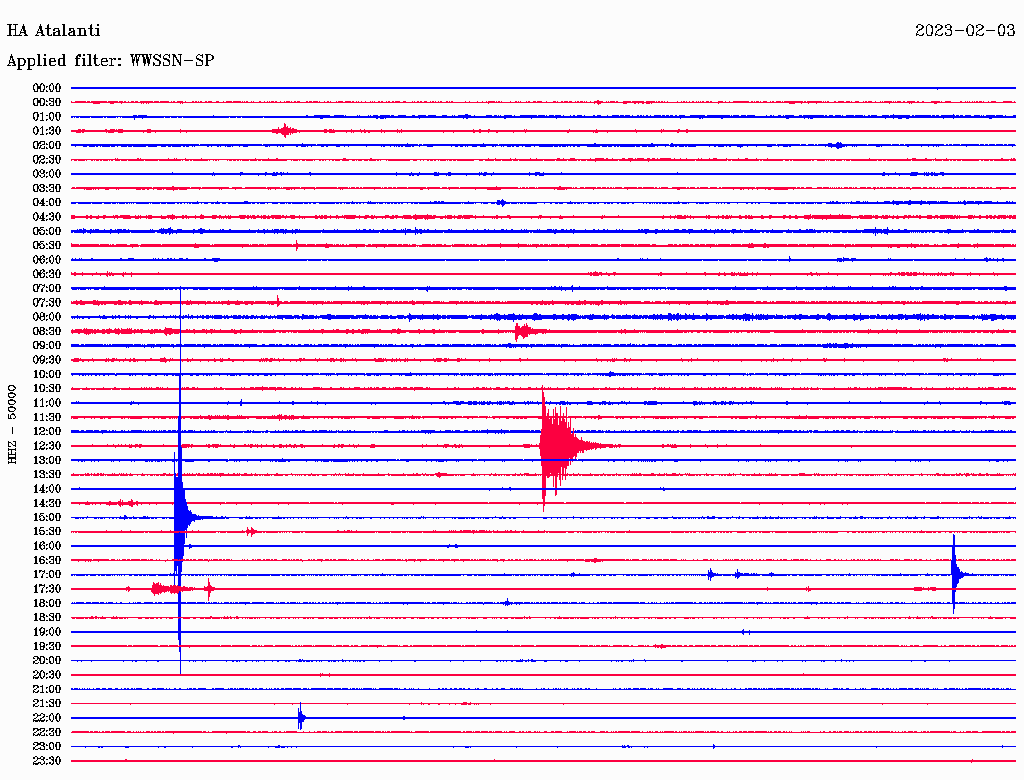

ATALHA258.5 29 P12:44:52.22 -0.31.0M
ATALHA258.5 29 S12:45:22.37 -0.21.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2023cjgu
    Description
      region name: Southern Greece
Origin:
    Date                   2023-02-03
    Time                  12:44:12.90
    Latitude              36.6538 deg  +/-      1 km
    Longitude             21.6093 deg  +/-      1 km
    Depth                       4 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.44 s
    Azimuthal gap             199 deg

2 Network magnitudes:
    MLv       3.98 +/- 0.14  47
    M         3.98           47 preferred

99 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    KTRS  HC    0.5  57  P       12:44:22.97  -0.0 M  1.0  KTRS
    KTRS  HC    0.5  57  S       12:44:30.26  -0.4 M  1.0  KTRS
    ITM   HL    0.6  26  P       12:44:24.43  -0.1 M  1.0  ITM
    ITM   HL    0.6  26  S       12:44:33.35   0.0 M  1.0  ITM
    GR33  1Y    0.6  79  P       12:44:24.40  -0.3 M  1.0  GR33
    GR33  1Y    0.6  79  S       12:44:33.06  -0.6 M  1.0  GR33

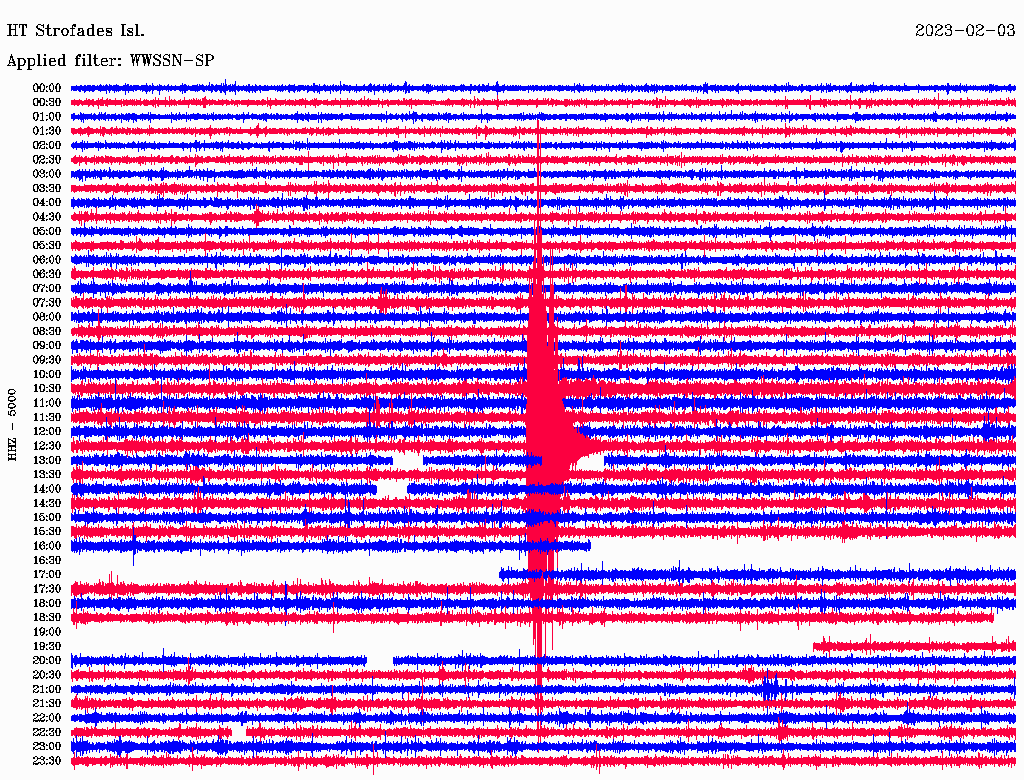

    STRF  HT    0.8 321  P       12:44:27.59  -0.1 M  1.0  STRF
    STRF  HT    0.8 321  S       12:44:38.61  -0.4 M  1.0  STRF

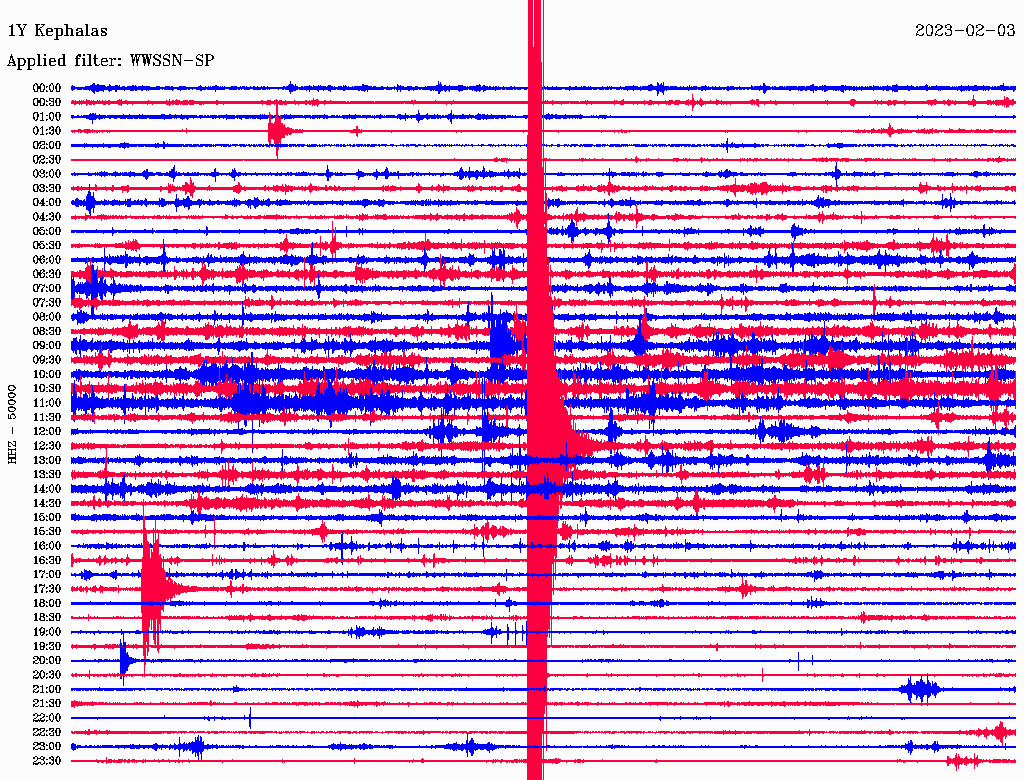

    GR31  1Y    0.8  63  P       12:44:29.15   0.3 M  1.0  GR31
    GR31  1Y    0.8  63  S       12:44:40.47  -0.6 M  1.0  GR31
    GR29  1Y    1.1  13  P       12:44:33.41   0.0 M  1.0  GR29
    GR29  1Y    1.1  13  S       12:44:49.22   0.2 M  1.0  GR29

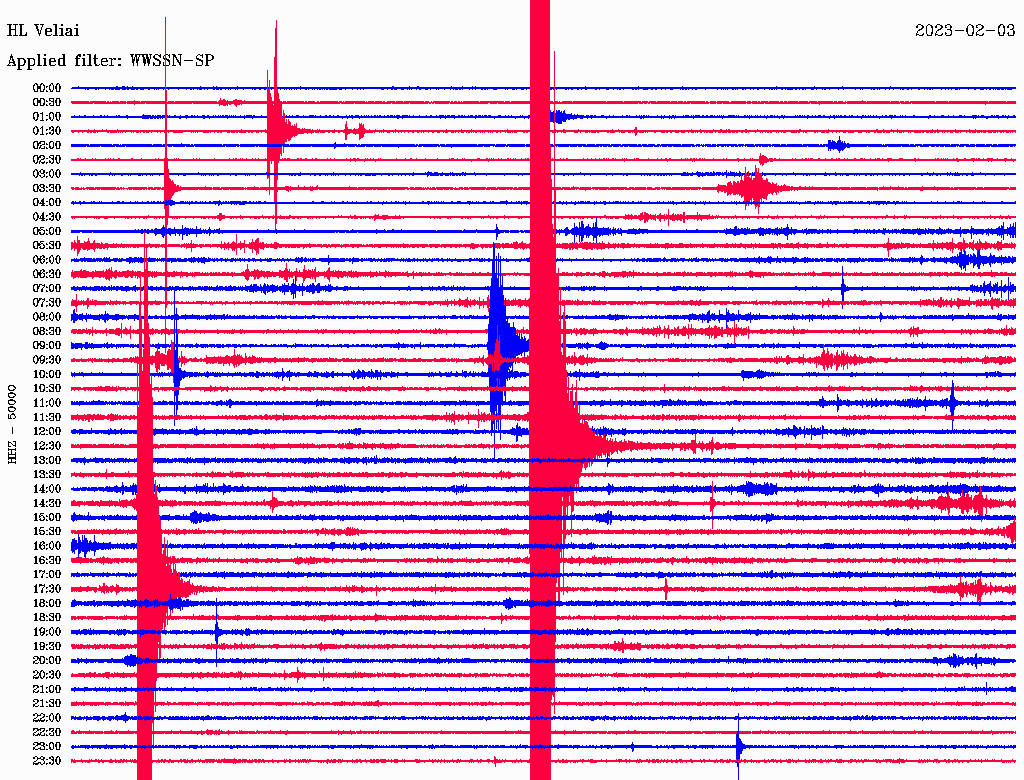

    VLI   HL    1.1  87  P       12:44:33.42   0.1 M  1.0  VLI
    VLI   HL    1.1  87  S       12:44:48.93   0.0 M  1.0  VLI
    MNVA  HL    1.1  88  P       12:44:34.92   0.3 M  1.0  MNVA
    MNVA  HL    1.1  88  S       12:44:51.39   0.3 M  1.0  MNVA
    GR32  1Y    1.1  74  P       12:44:34.29  -0.3 M  1.0  GR32
    GR32  1Y    1.1  74  S       12:44:51.38   0.3 M  1.0  GR32
    GR30  1Y    1.2  42  P       12:44:34.85  -0.0 M  1.0  GR30
    GR30  1Y    1.2  42  S       12:44:51.46  -0.1 M  1.0  GR30
    NPS1  HI    1.2  97  P       12:44:35.31   0.2 M  1.0  NPS1
    NPS1  HI    1.2  97  S       12:44:52.84   0.9 M  1.0  NPS1
    DRO   HP    1.3   4  P       12:44:36.85  -0.3 M  1.0  DRO
    DRO   HP    1.3   4  S       12:44:56.63   1.0 M  1.0  DRO
    ORTH  HL    1.4 329  P       12:44:37.94  -1.0 M  1.0  ORTH
    ORTH  HL    1.4 329  S       12:44:59.32   0.6 M  1.0  ORTH
    RLS   HL    1.4 355  P       12:44:38.76  -0.2 M  1.0  RLS
    RLS   HL    1.4 355  S       12:44:59.57   0.8 M  1.0  RLS
    GUR   HP    1.4  25  P       12:44:39.17   0.0 M  1.0  GUR
    GUR   HP    1.4  25  S       12:44:59.64   0.5 M  1.0  GUR
    KRND  HT    1.4  59  P       12:44:39.99   0.6 M  1.0  KRND
    KRND  HT    1.4  59  S       12:45:00.06   0.5 M  1.0  KRND
    KLV   HL    1.5  17  P       12:44:39.47  -0.4 M  1.0  KLV
    KLV   HL    1.5  17  S       12:45:00.66   0.3 M  1.0  KLV

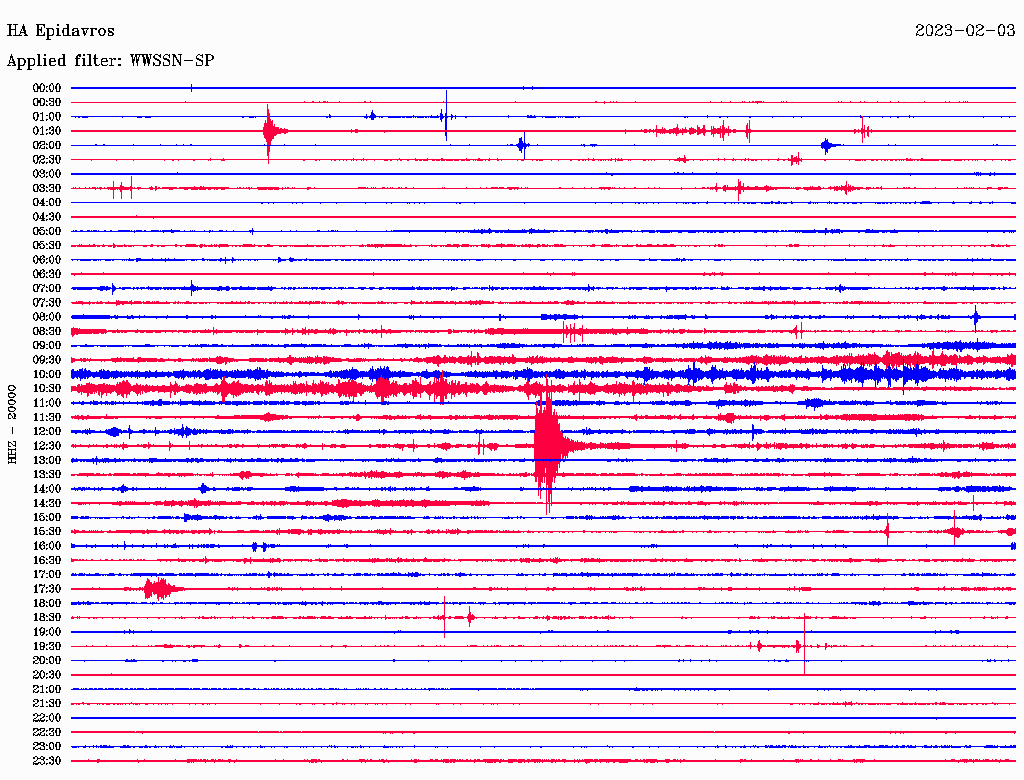

    EPID  HA    1.5  52  P       12:44:41.67   0.3 M  1.0  EPID
    EPID  HA    1.5  52  S       12:45:03.00   0.0 M  1.0  EPID
    AXS   HP    1.6 353  P       12:44:41.52   0.1 M  1.0  AXS
    AXS   HP    1.6 353  S       12:45:03.22   0.0 M  1.0  AXS
    RTZL  HT    1.6 335  P       12:44:40.85  -0.9 M  1.0  RTZL
    RTZL  HT    1.6 335  S       12:45:03.68   0.0 M  1.0  RTZL
    ANKY  HL    1.6 120  P       12:44:42.32   0.5 M  1.0  ANKY
    ANKY  HL    1.6 120  S       12:45:03.18  -0.7 M  1.0  ANKY
    ACOR  HA    1.6  39  P       12:44:42.38   0.3 M  1.0  ACOR
    ACOR  HA    1.6  39  S       12:45:03.87  -0.4 M  1.0  ACOR
    LAKA  HA    1.6  11  P       12:44:42.75   0.4 M  1.0  LAKA
    LAKA  HA    1.6  11  S       12:45:04.55  -0.2 M  1.0  LAKA
    THAL  HA    1.6  31  P       12:44:42.94   0.6 M  1.0  THAL
    THAL  HA    1.6  31  S       12:45:04.58  -0.2 M  1.0  THAL
    PATC  HL    1.6   4  P       12:44:42.84   0.5 M  1.0  PATC
    PATC  HL    1.6   4  S       12:45:04.73  -0.1 M  1.0  PATC
    TEME  CL    1.6  14  P       12:44:43.22   0.7 M  1.0  TEME
    TEME  CL    1.6  14  S       12:45:04.95  -0.1 M  1.0  TEME
    VLS   HL    1.7 332  P       12:44:43.22  -0.8 M  1.0  VLS
    VLS   HL    1.7 332  S       12:45:07.28  -0.3 M  1.0  VLS
    AGRP  CL    1.7   3  P       12:44:45.02   0.8 M  1.0  AGRP
    AGRP  CL    1.7   3  S       12:45:07.96  -0.1 M  1.0  AGRP

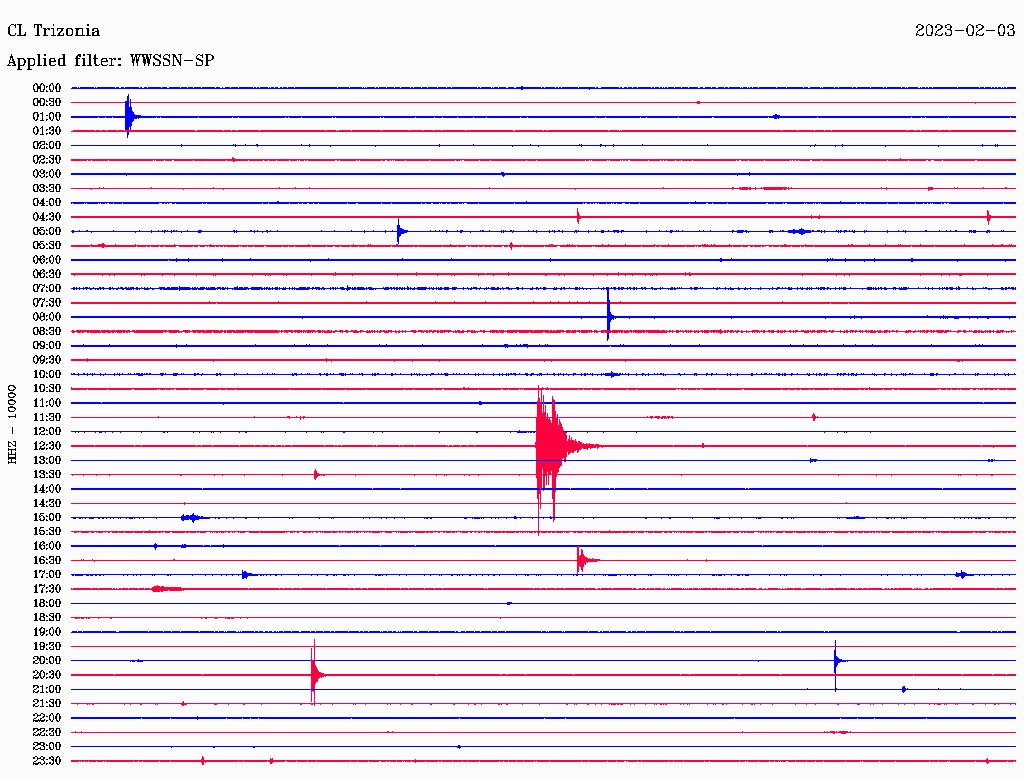

    TRIZ  CL    1.7  12  P       12:44:44.83   0.6 M  1.0  TRIZ
    TRIZ  CL    1.7  12  S       12:45:07.86  -0.2 M  1.0  TRIZ
    PLEV  HP    1.8 355  P       12:44:45.41   0.9 M  1.0  PLEV
    PLEV  HP    1.8 355  S       12:45:08.24  -0.3 M  1.0  PLEV
    VVK   HP    1.8   5  P       12:44:45.53   0.8 M  1.0  VVK
    KALE  HA    1.8  14  P       12:44:45.85   0.9 M  1.0  KALE
    KALE  HA    1.8  14  S       12:45:09.14  -0.1 M  1.0  KALE
    DMLN  HT    1.9 328  P       12:44:45.23  -0.7 M  1.0  DMLN
    DSF   HP    1.9  23  P       12:44:46.48  -0.1 M  1.0  DSF

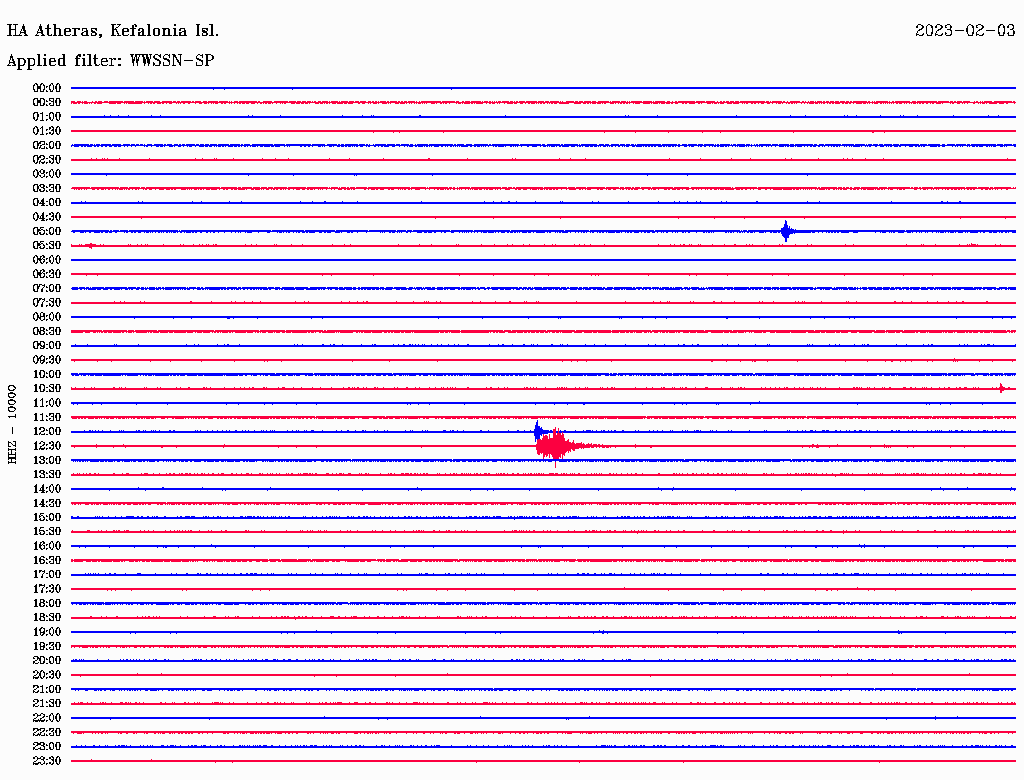

    ATHR  HA    1.9 330  P       12:44:46.26  -0.4 M  1.0  ATHR
    DOMV  HA    1.9  34  P       12:44:47.03   0.1 M  1.0  DOMV
    DOMV  HA    1.9  34  S       12:45:13.36   0.5 M  1.0  DOMV
    DLFA  HL    2.0  21  P       12:44:46.89  -0.4 M  1.0  DLFA
    DLFA  HL    2.0  21  S       12:45:13.18  -0.2 M  1.0  DLFA
    VILL  HA    2.0  42  P       12:44:47.56  -0.8 M  1.0  VILL
    VILL  HA    2.0  42  S       12:45:15.15  -0.1 M  1.0  VILL
    RODP  HC    2.1 122  P       12:44:48.93   0.3 M  1.0  RODP
    RODP  HC    2.1 122  S       12:45:15.94   0.1 M  1.0  RODP
    GR24  1Y    2.1  13  P       12:44:49.62   0.4 M  1.0  GR24
    EVGI  HT    2.1 339  P       12:44:49.48   0.1 M  1.0  EVGI
    AMPE  HA    2.1  39  P       12:44:49.08  -0.4 M  1.0  AMPE
    AMPE  HA    2.1  39  S       12:45:17.87   0.6 M  1.0  AMPE
    VLY   HL    2.1  56  P       12:44:48.83  -0.7 M  1.0  VLY
    ATH   HL    2.1  52  P       12:44:49.13  -0.7 M  1.0  ATH
    THI2  HL    2.1  37  P       12:44:49.60  -0.2 M  1.0  THI2
    THI2  HL    2.1  37  S       12:45:17.87  -0.1 M  1.0  THI2
    NYDR  HT    2.2 341  P       12:44:50.53   0.1 M  1.0  NYDR
    MHLO  HL    2.2  89  P       12:44:50.92  -0.5 M  1.0  MHLO
    MHLO  HL    2.2  89  S       12:45:20.68   0.1 M  1.0  MHLO
    GR26  1Y    2.3  39  P       12:44:51.39  -0.2 M  1.0  GR26
    GR26  1Y    2.3  39  S       12:45:20.71  -0.3 M  1.0  GR26
    IMMV  HL    2.3 122  P       12:44:51.31  -0.3 M  1.0  IMMV
    IMMV  HL    2.3 122  S       12:45:21.18   0.1 M  1.0  IMMV
    LKD2  HT    2.3 341  P       12:44:52.04   0.4 M  1.0  LKD2
    AXAR  HA    2.3  22  P       12:44:52.50   0.8 M  1.0  AXAR

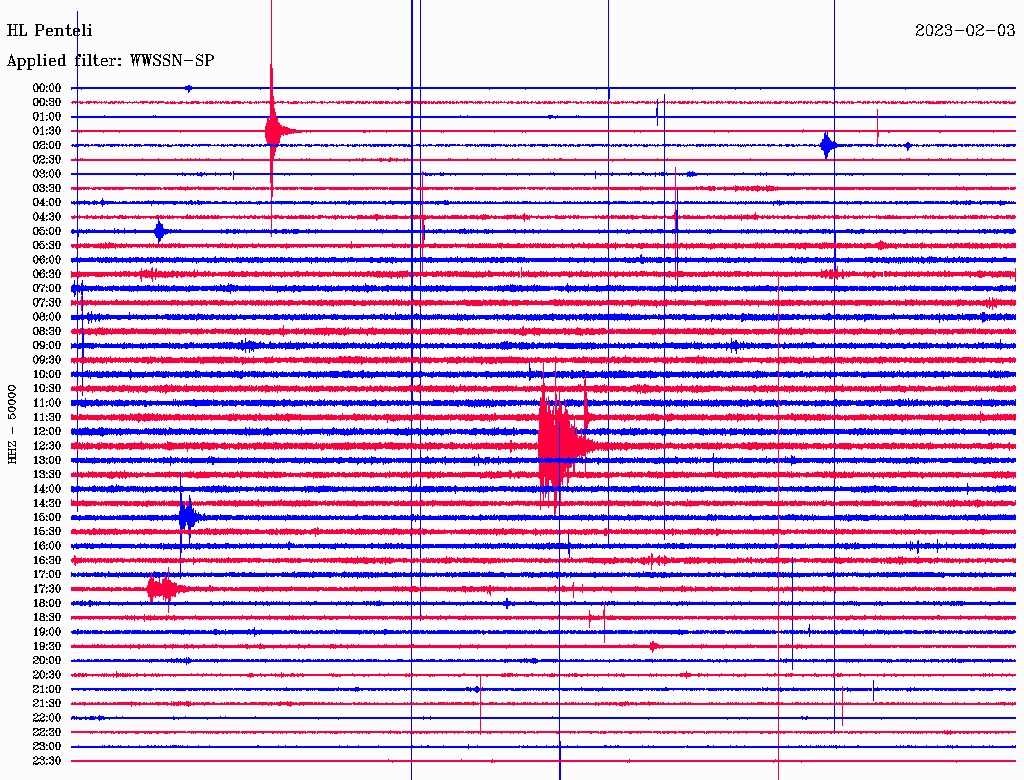

    PTL   HL    2.3  52  P       12:44:50.88  -0.9 M  1.0  PTL
    LKR   HL    2.3  29  P       12:44:51.24  -0.6 M  1.0  LKR
    AMPL  HP    2.3 352  P       12:44:52.89   0.9 M  1.0  AMPL
    AMPL  HP    2.3 352  S       12:45:21.74   0.1 M  1.0  AMPL
    TSLK  HT    2.3 341  P       12:44:52.52   0.4 M  1.0  TSLK
    TSLK  HT    2.3 341  S       12:45:21.73  -0.2 M  1.0  TSLK
    ATAL  HA    2.3  29  P       12:44:52.22  -0.3 M  1.0  ATAL
    ATAL  HA    2.3  29  S       12:45:22.37  -0.2 M  1.0  ATAL

56 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    KTRS  HC    0.5  57  MLv     3.77 -0.20    19.0649
    ITM   HL    0.6  26  MLv     4.19  0.21     37.011
    GR33  1Y    0.6  79  MLv     3.88 -0.10    18.0227
    STRF  HT    0.8 321  MLv     4.30  0.32    37.9661
    GR31  1Y    0.8  63  MLv     3.98  0.00    16.7531
    GR29  1Y    1.1  13  MLv     4.60  0.62    50.3226
    VLI   HL    1.1  87  MLv     3.96 -0.02    15.0019
    MNVA  HL    1.1  88  MLv     3.69 -0.29    5.65456
    GR32  1Y    1.1  74  MLv     3.89 -0.09    9.03309
    GR30  1Y    1.2  42  MLv     4.08  0.10    13.4845
    NPS1  HI    1.2  97  MLv     4.06  0.08    12.9118
    DRO   HP    1.3   4  MLv     4.09  0.11    24.5794
    ORTH  HL    1.4 329  MLv     3.84 -0.14    5.81928
    RLS   HL    1.4 355  MLv     3.93 -0.05    7.00461
    GUR   HP    1.4  25  MLv     4.30  0.32    16.4293
    KRND  HT    1.4  59  MLv     3.77 -0.21    4.69648
    KLV   HL    1.5  17  MLv     4.17  0.19     8.6616
    EPID  HA    1.5  52  MLv     3.98  0.00    6.72539
    AXS   HP    1.6 353  MLv     3.75 -0.23    3.86484
    RTZL  HT    1.6 335  MLv     3.75 -0.23    3.80438
    ANKY  HL    1.6 120  MLv     3.89 -0.09    5.16308
    ACOR  HA    1.6  39  MLv     4.02  0.04    6.88476
    LAKA  HA    1.6  11  MLv     3.82 -0.16    4.20541
    THAL  HA    1.6  31  MLv     4.14  0.16    15.6925
    PATC  HL    1.6   4  MLv     4.64  0.66    27.6037
    TEME  CL    1.6  14  MLv     4.16  0.18    2.99875
    VLS   HL    1.7 332  MLv     3.77 -0.21    3.27456
    AGRP  CL    1.7   3  MLv     3.99  0.02    5.31219
    TRIZ  CL    1.7  12  MLv     3.96 -0.02    4.84978
    PLEV  HP    1.8 355  MLv     3.76 -0.22    3.01689
    VVK   HP    1.8   5  MLv     3.40 -0.58    6.07455
    KALE  HA    1.8  14  MLv     4.00  0.02    5.05139
    DMLN  HT    1.9 328  MLv     4.01  0.03    6.42416
    DSF   HP    1.9  23  MLv     3.78 -0.20    2.65421
    ATHR  HA    1.9 330  MLv     3.69 -0.29    2.11834
    DOMV  HA    1.9  34  MLv     3.56 -0.42    1.52064
    DLFA  HL    2.0  21  MLv     3.87 -0.11    3.03838
    VILL  HA    2.0  42  MLv     3.96 -0.02    3.40779
    RODP  HC    2.1 122  MLv     3.85 -0.13    2.57256
    GR24  1Y    2.1  13  MLv     4.10  0.12    4.41376
    EVGI  HT    2.1 339  MLv     4.00  0.02    3.36105
    AMPE  HA    2.1  39  MLv     3.86 -0.12    2.42715
    VLY   HL    2.1  56  MLv     3.85 -0.13    2.35689
    ATH   HL    2.1  52  MLv     3.96 -0.02    2.96348
    THI2  HL    2.1  37  MLv     4.11  0.13    4.20514
    NYDR  HT    2.2 341  MLv     3.90 -0.08     1.7587
    MHLO  HL    2.2  89  MLv     4.11  0.13    7.41971
    GR26  1Y    2.3  39  MLv     3.90 -0.08    2.24132
    IMMV  HL    2.3 122  MLv     3.94 -0.04    2.42243
    LKD2  HT    2.3 341  MLv     4.14  0.16     3.8116
    AXAR  HA    2.3  22  MLv     3.73 -0.25     5.8056
    PTL   HL    2.3  52  MLv     3.93 -0.05    2.31161
    LKR   HL    2.3  29  MLv     4.21  0.23    2.37046
    AMPL  HP    2.3 352  MLv     4.00  0.02    2.67123
    TSLK  HT    2.3 341  MLv     3.97 -0.00    2.49785
    ATAL  HA    2.3  29  MLv     3.87 -0.11    1.90957
