Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2023-02-01 10:53:21 (GMT)
 Μέγεθος
 M 4.1
 Γεωγρ. Πλάτος
 40.1032° Β
 Γεωγρ. Μήκος
 22.7340° Α
 Εστιακό Βάθος
 22 χμ
 Αρ. αφίξεων
 99
 Επίκεντρο 27.2 χμ ΝΑ της Κατερίνης
58.3 χμ ΒΒΑ της Λάρισας
251.0 χμ ΒΒΔ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Μηχ.Γέν.


  Μηχανισμός Γένεσης

Μηχ.Γεν. Παράταξη (°) Κλίση (°) Γων.Ολίσθ. (°) Σεισμ.Ροπή (dyn*cm)
29356-94 1.69E+22

Γεωγρ.Πλάτος (°Β) Γεωγρ.Μήκος (°Α) Βάθος (χμ) Μέγεθος Mw
40.094722.72269.04.1

Υπολογισμός εστιακών παραμέτρων

Κλικ εδώ για λεπτομέρειες μηχανισμού γένεσης

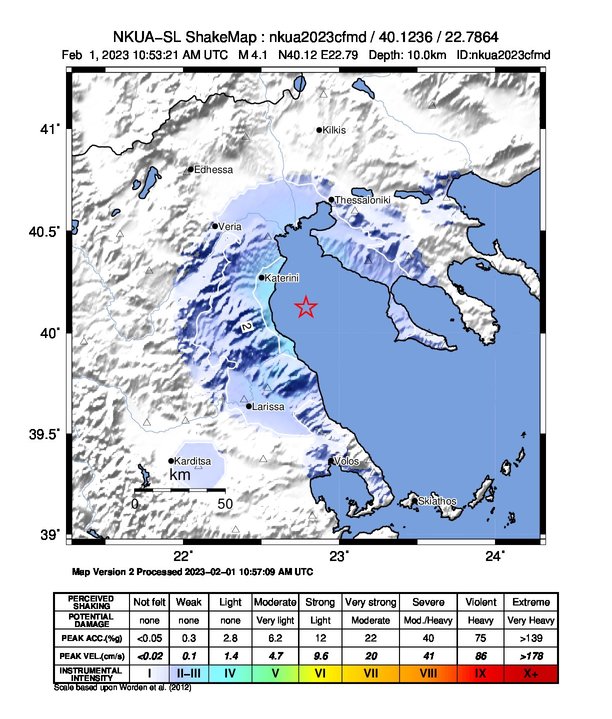

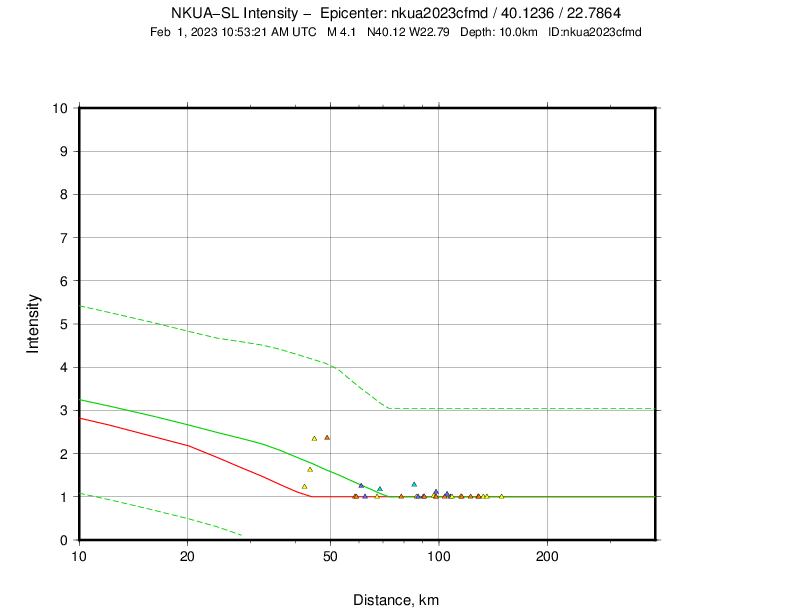

  Χάρτης εντάσεως

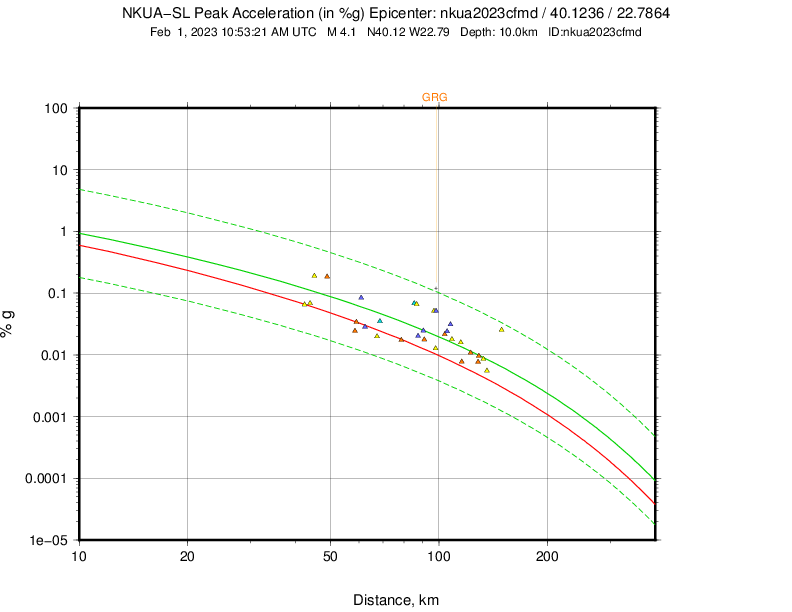

PGA

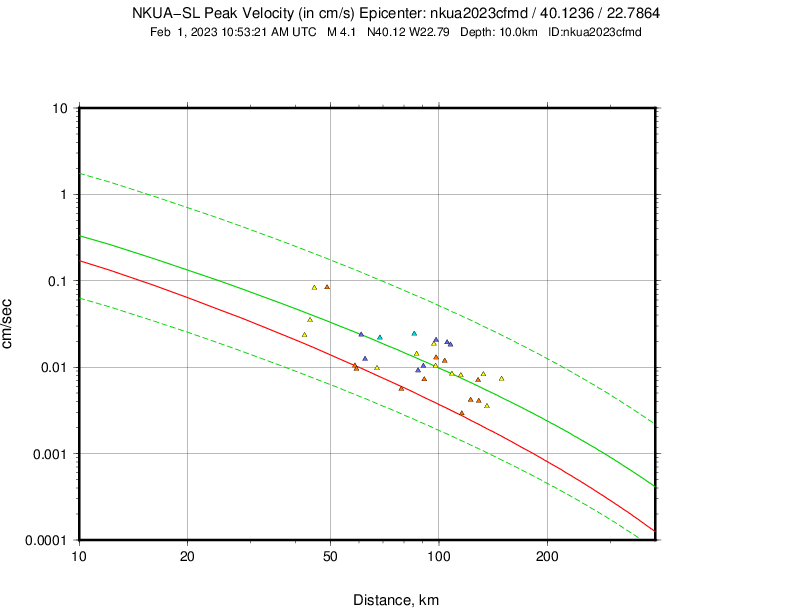

 PGV
 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

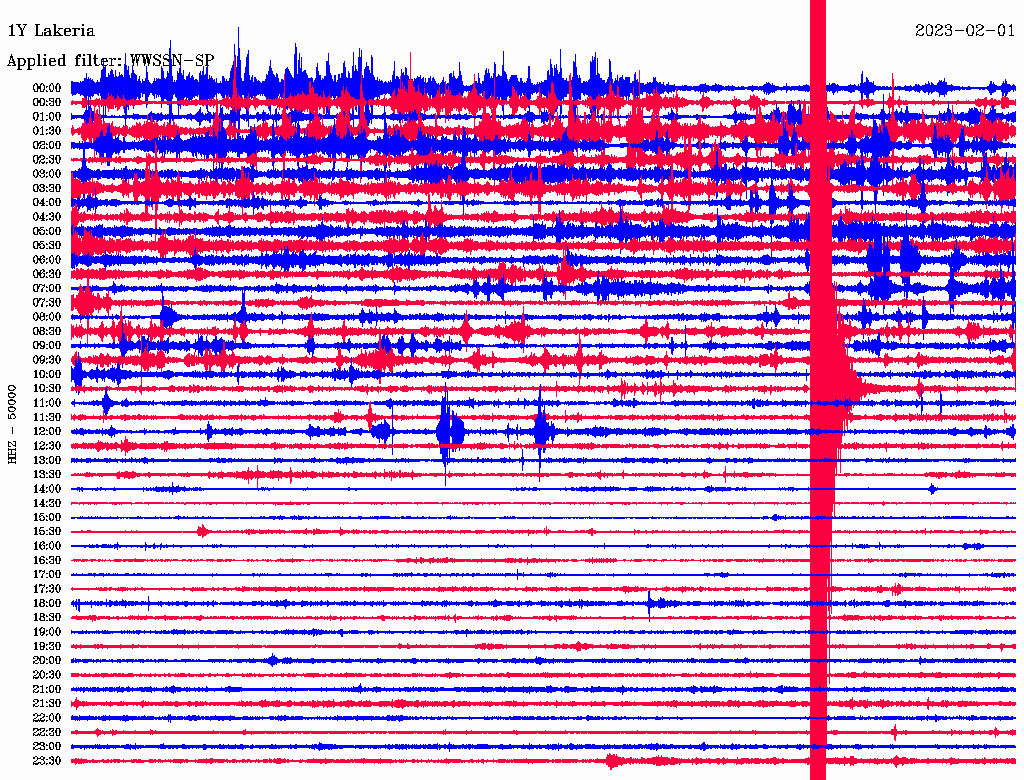

GR181Y42.1188 P10:53:28.25 -0.91.0M
GR181Y42.1188 S10:53:34.56 -0.71.0M

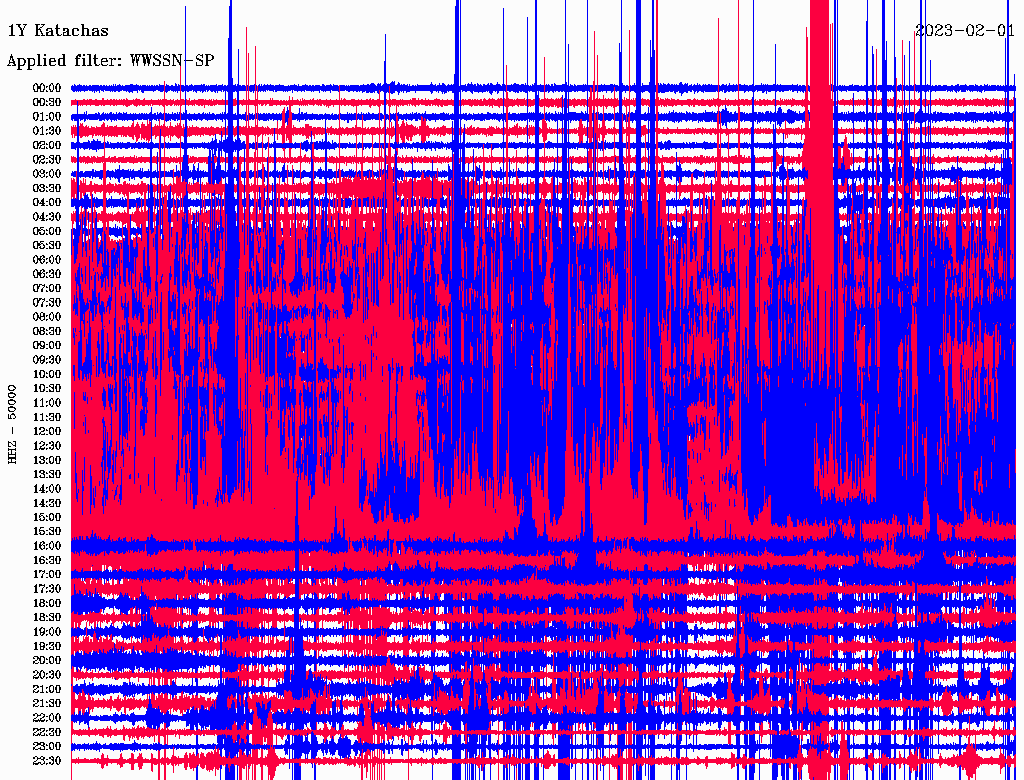

GR121Y44.0338 P10:53:29.51 0.31.0M
GR121Y44.0338 S10:53:35.76 0.21.0M
NESNHT45.0202 P10:53:28.91 -0.51.0M
NESNHT45.0202 S10:53:35.30 -0.51.0M
GR131Y47.3 54 P10:53:30.09 0.31.0M
GR131Y47.3 54 S10:53:36.79 0.41.0M

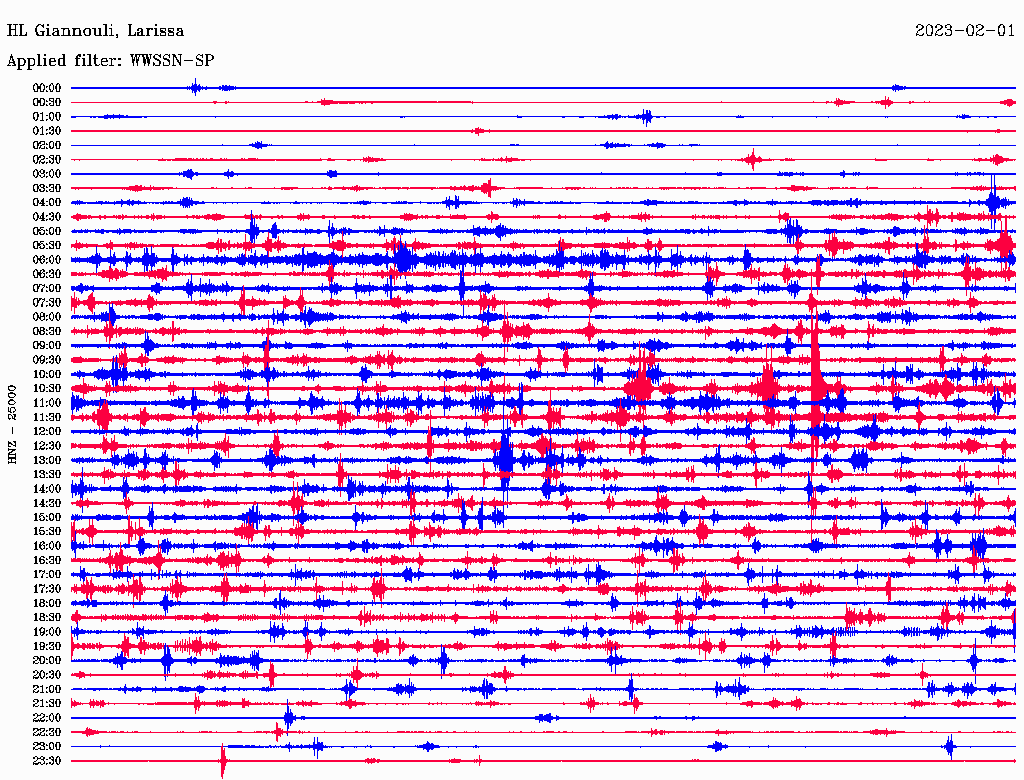

GINAHL56.6211 P10:53:30.69 -0.41.0M
GINAHL56.6211 S10:53:38.63 -0.11.0M

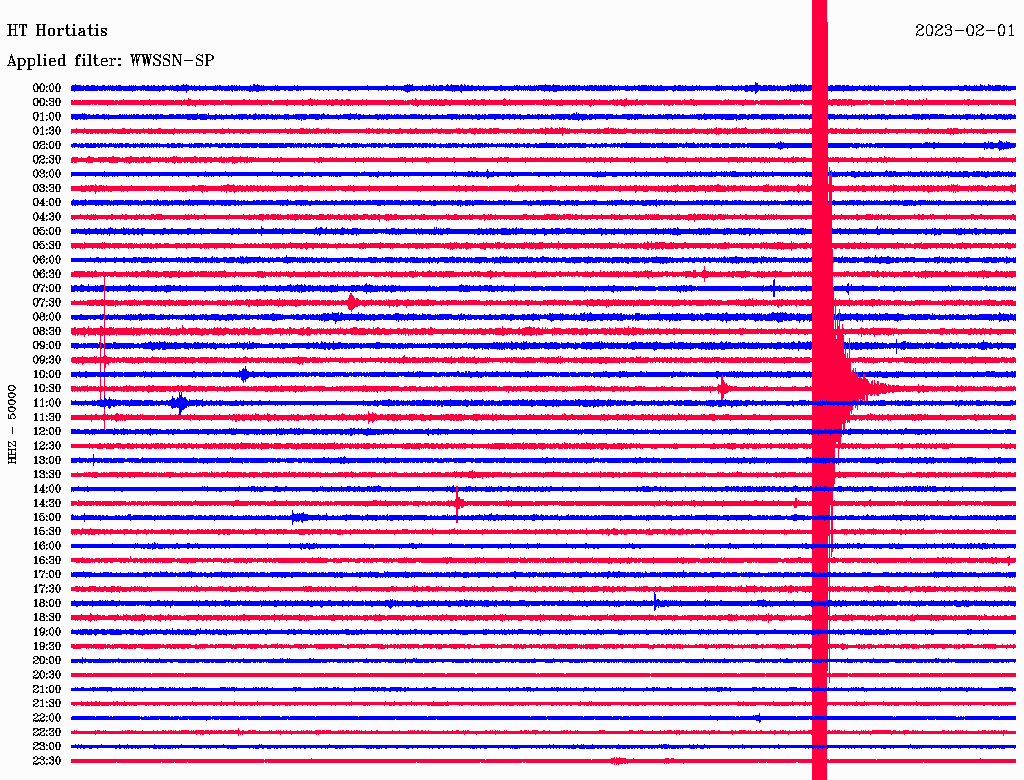

HORTHT63.1 29 P10:53:32.26 0.11.0M
HORTHT63.1 29 S10:53:40.22 -0.51.0M
GR111Y65.6315 P10:53:32.00 -0.51.0M
GR111Y65.6315 S10:53:41.06 -0.21.0M
PLGHL67.2 64 P10:53:33.18 0.31.0M
PLGHL67.2 64 S10:53:41.96 0.21.0M

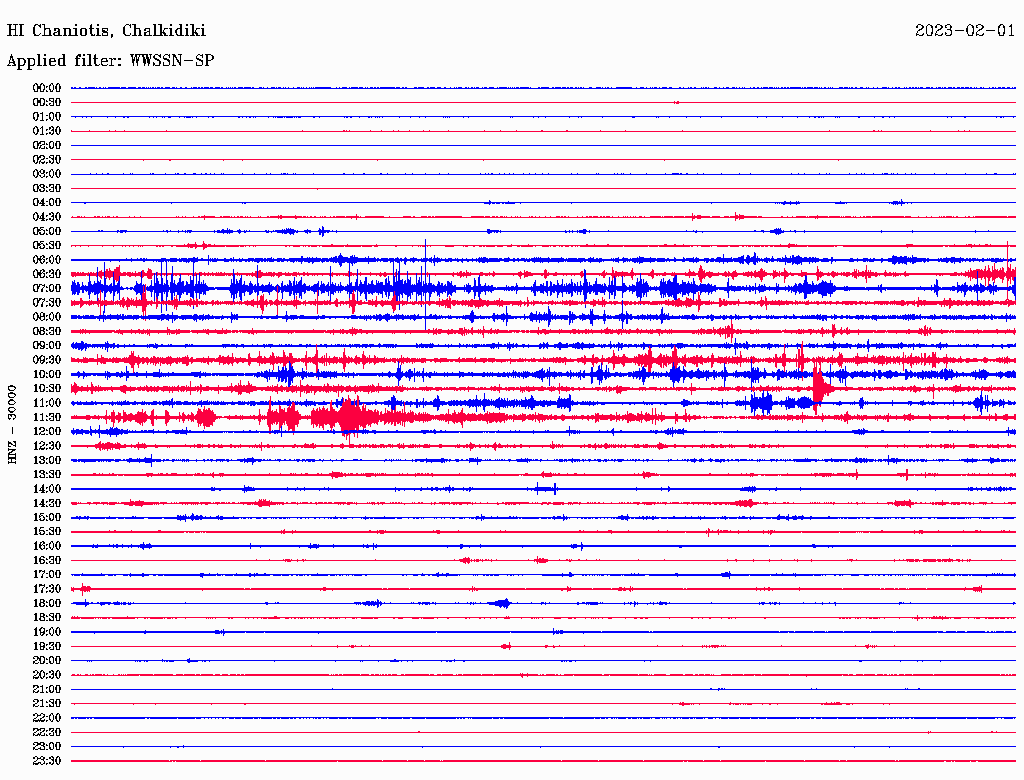

PLN1HI72.5 99 P10:53:33.94 0.41.0M
PLN1HI72.5 99 S10:53:43.32 0.31.0M
PAIGHT82.4103 P10:53:35.49 0.41.0M
PAIGHT82.4103 S10:53:45.85 0.11.0M
GR211Y83.4193 P10:53:34.66 -0.51.0M
GR211Y83.4193 S10:53:46.07 0.11.0M

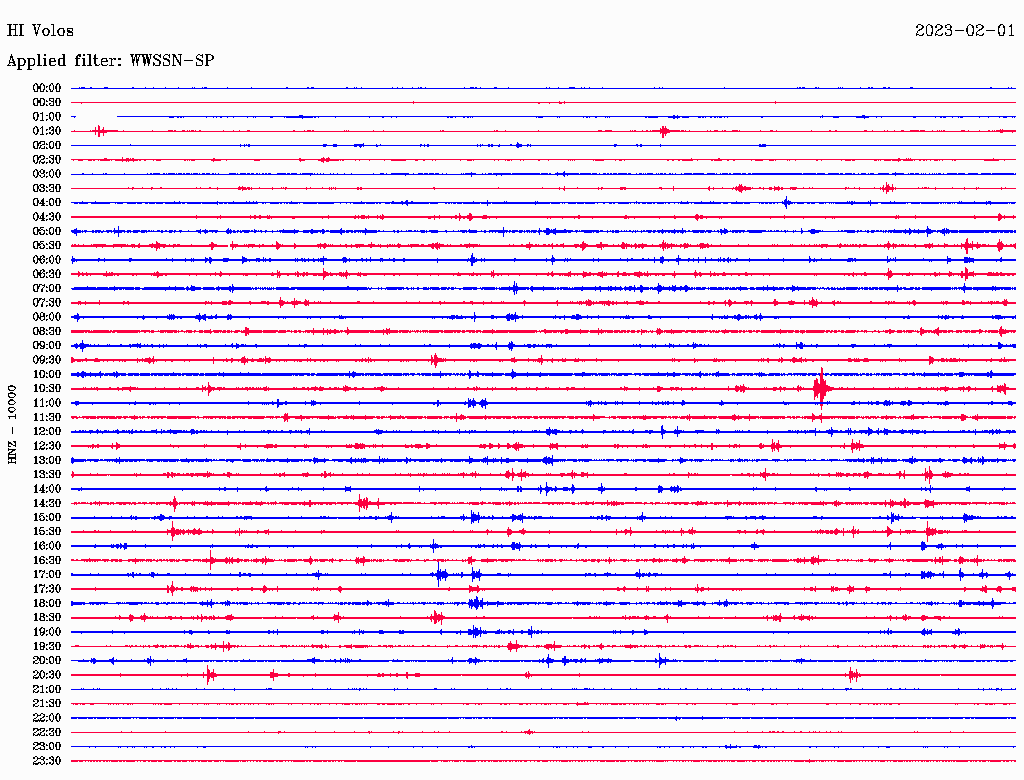

VOL2HI84.0167 P10:53:35.36 0.11.0M
VOL2HI84.0167 S10:53:46.28 0.21.0M
THLHL85.8226 P10:53:34.83 -0.71.0M
THLHL85.8226 S10:53:46.33 -0.31.0M
GR071Y96.9321 P10:53:37.24 -0.11.0M

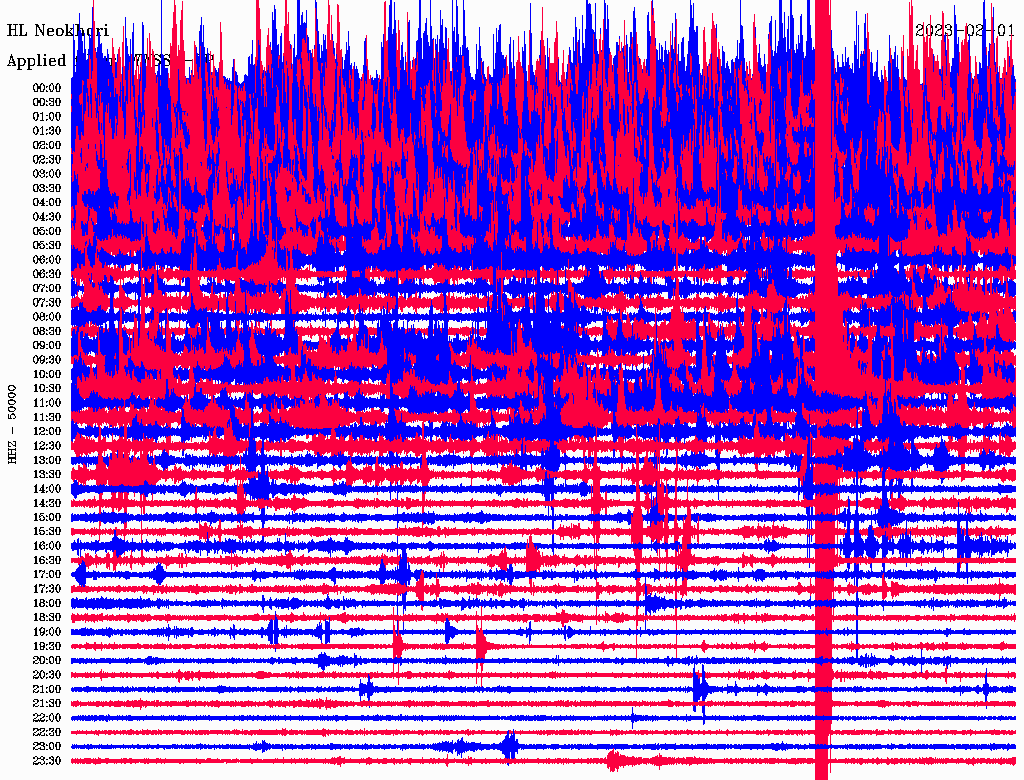

NEOHL98.0155 P10:53:37.99 0.61.0M
NEOHL98.0155 S10:53:49.80 -0.11.0M

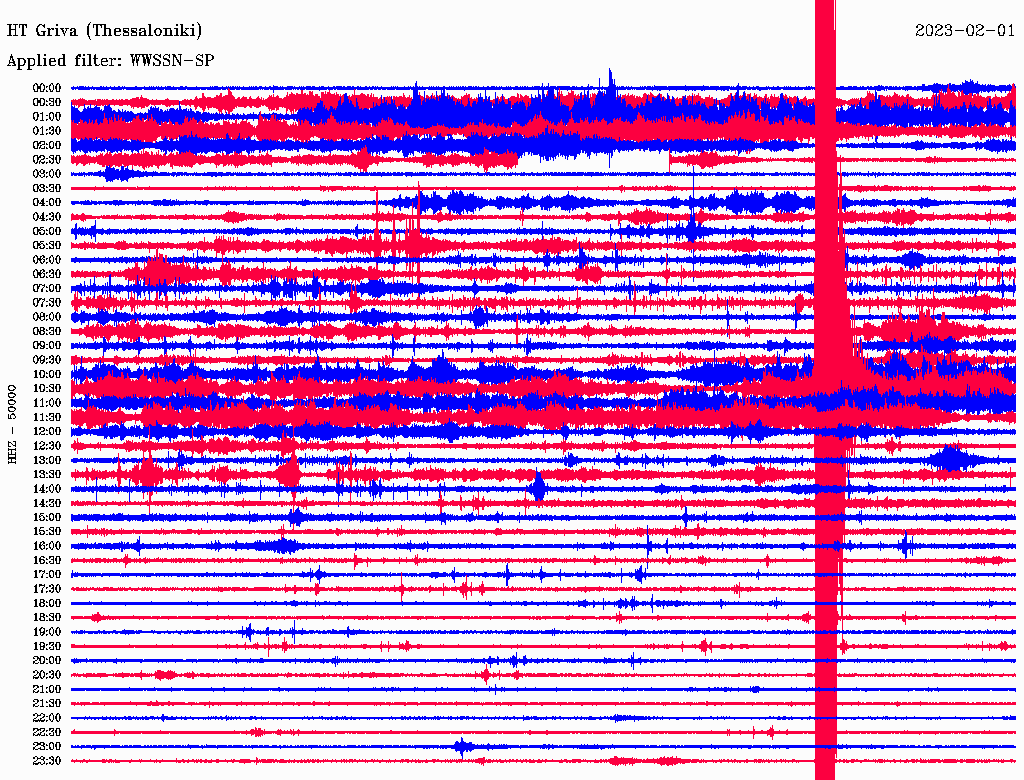

GRGHT98.8343 P10:53:37.29 -0.31.0M
GRGHT98.8343 S10:53:50.18 -0.11.0M
SOFAHL101.1213 P10:53:38.09 0.21.0M
GR091Y101.8 53 P10:53:38.84 0.81.0M

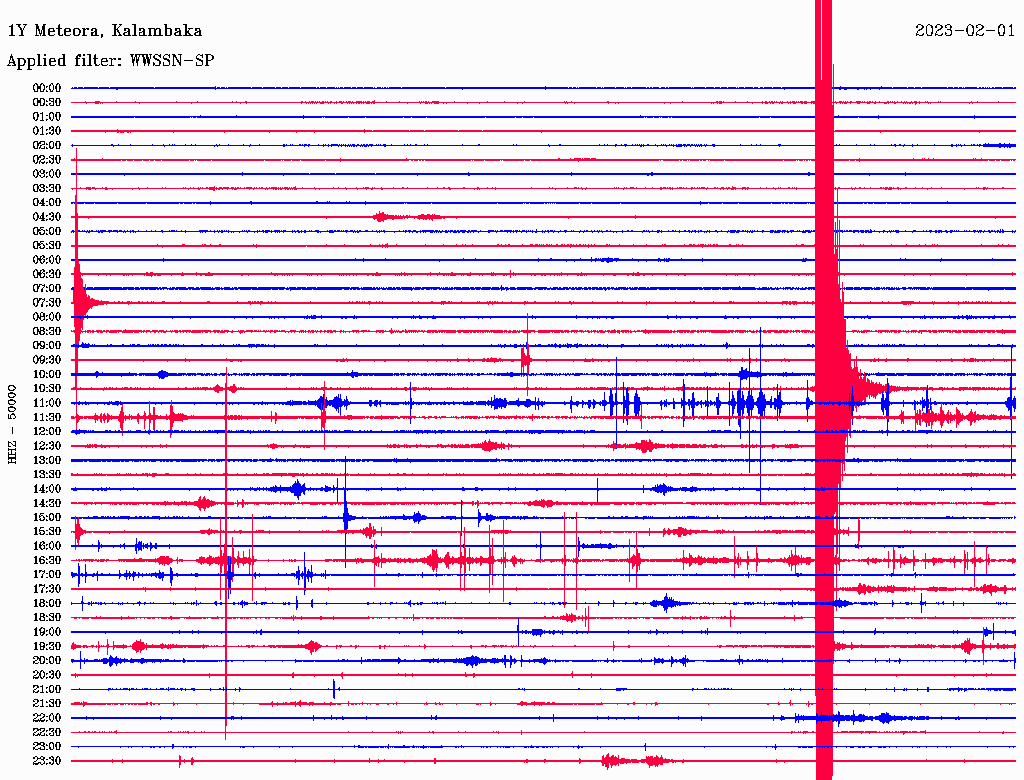

GR171Y102.7246 P10:53:38.54 0.31.0M
GR171Y102.7246 S10:53:51.51 0.21.0M

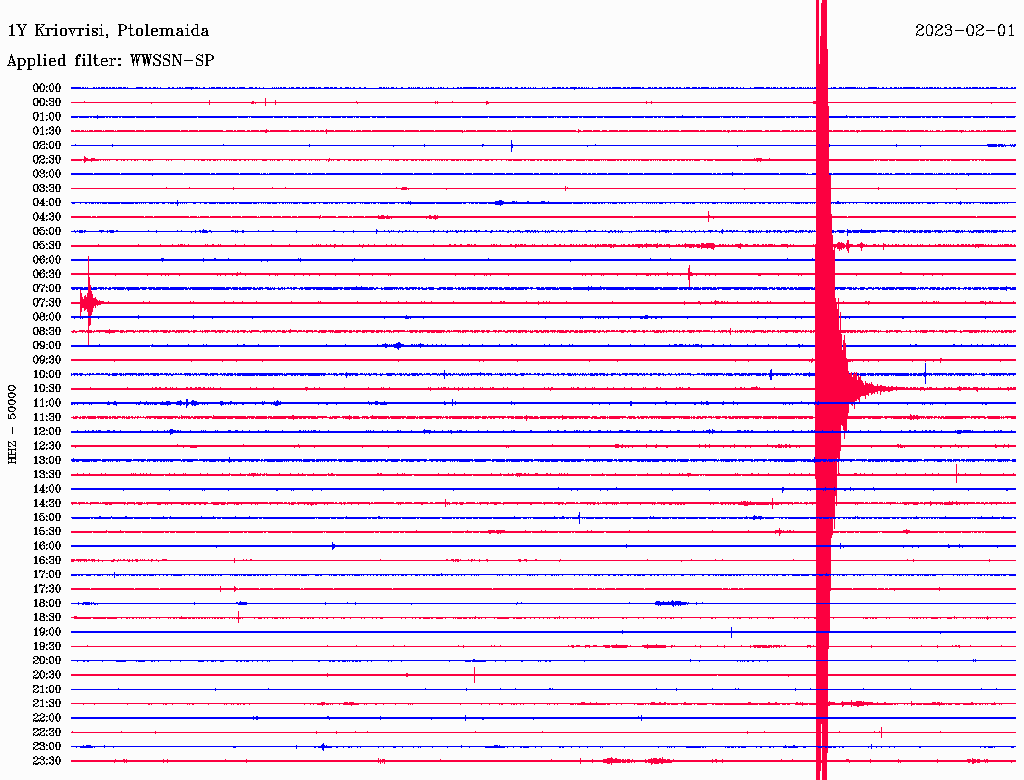

GR101Y105.5294 P10:53:38.44 -0.21.0M
GR101Y105.5294 S10:53:52.08 0.01.0M

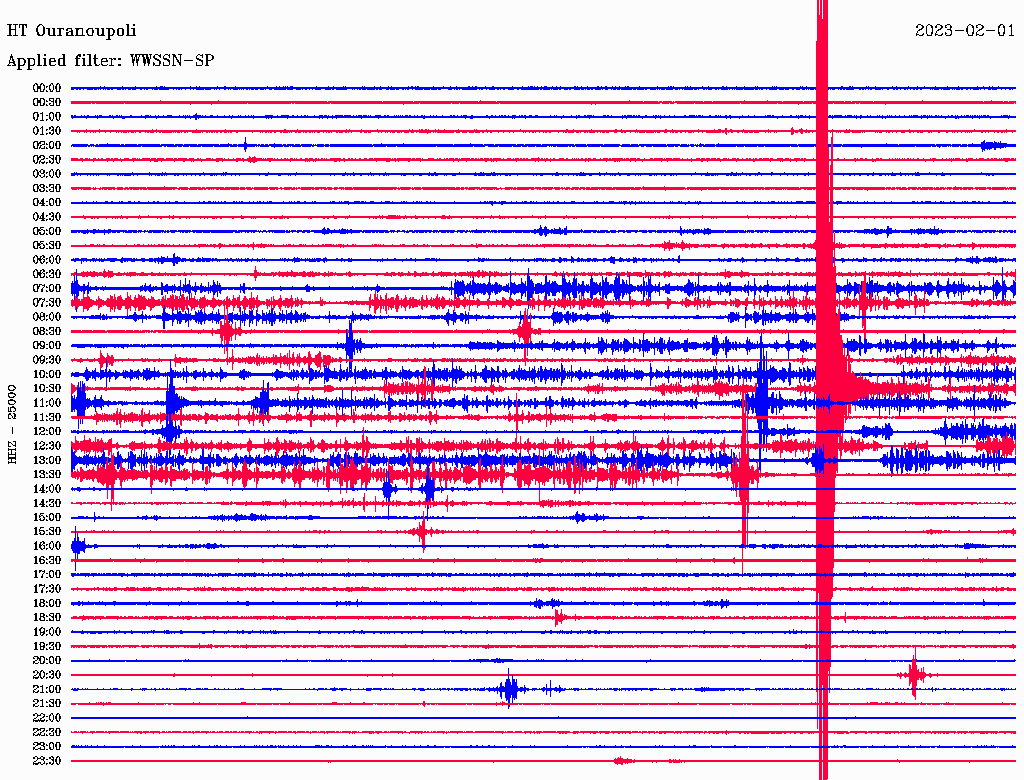

OURHT109.0 76 P10:53:39.62 0.51.0M
OURHT109.0 76 S10:53:52.76 -0.11.0M
GR221Y113.0176 P10:53:39.61 -0.11.0M
GR221Y113.0176 S10:53:53.92 0.01.0M

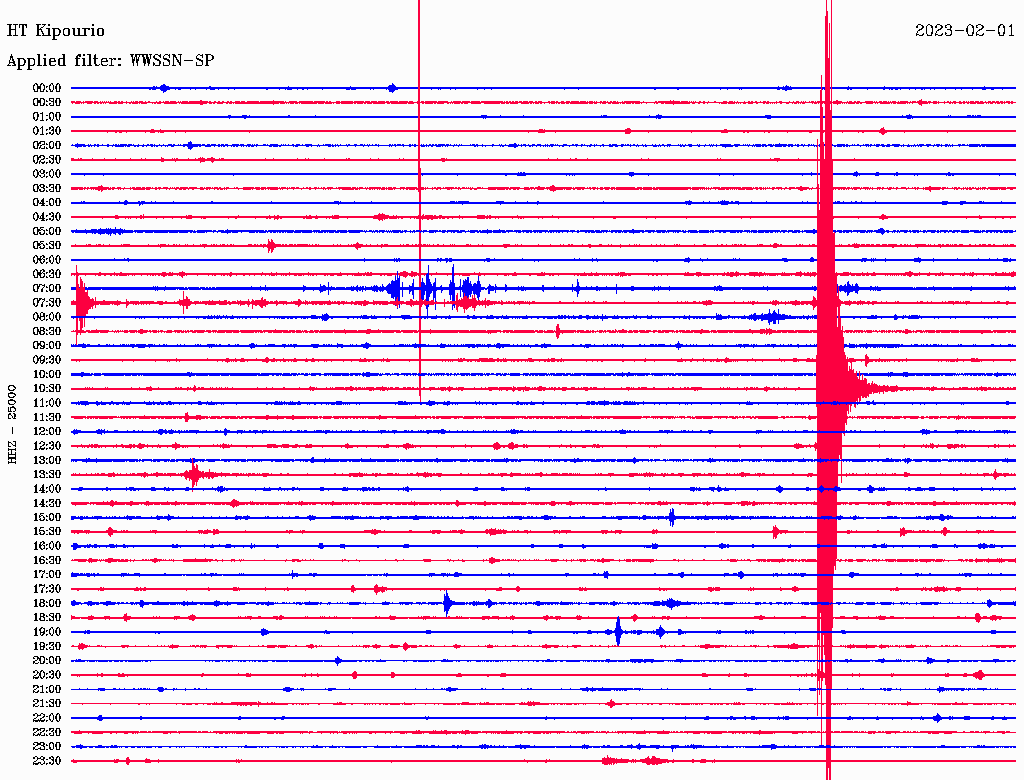

KPROHT117.9262 P10:53:40.52 -0.11.0M
KPROHT117.9262 S10:53:55.42 -0.11.0M

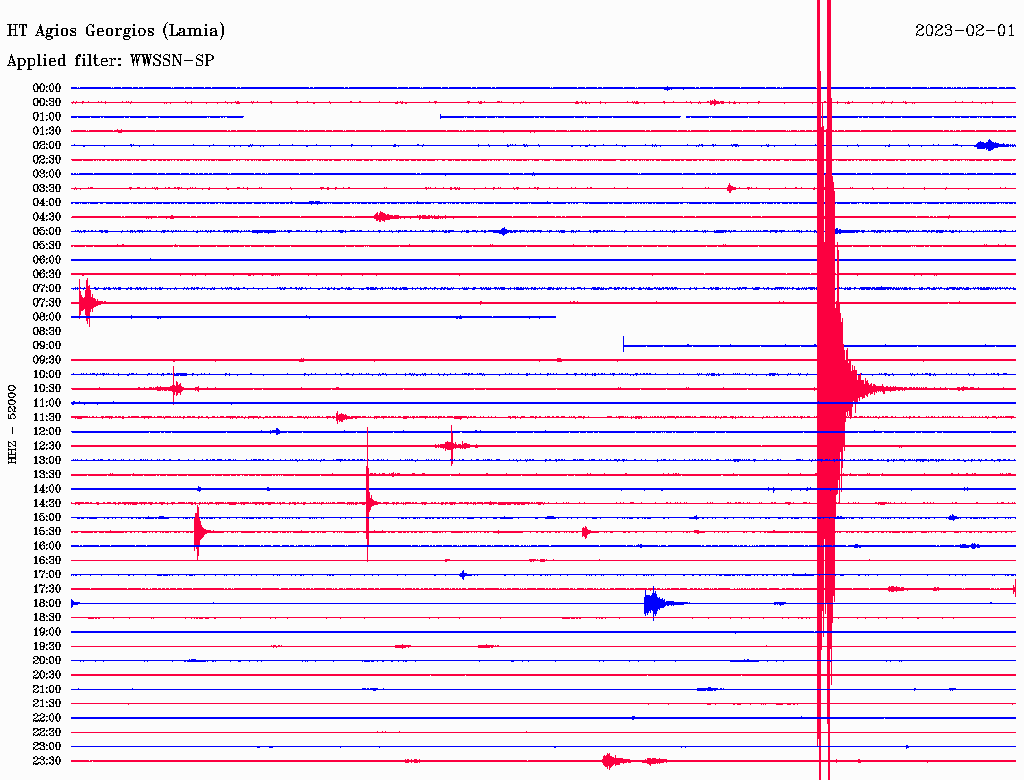

AGGHT125.1196 P10:53:41.61 0.01.0M
AGGHT125.1196 S10:53:57.16 -0.11.0M
GR201Y128.3221 P10:53:42.56 0.41.0M
GR201Y128.3221 S10:53:58.22 0.01.0M

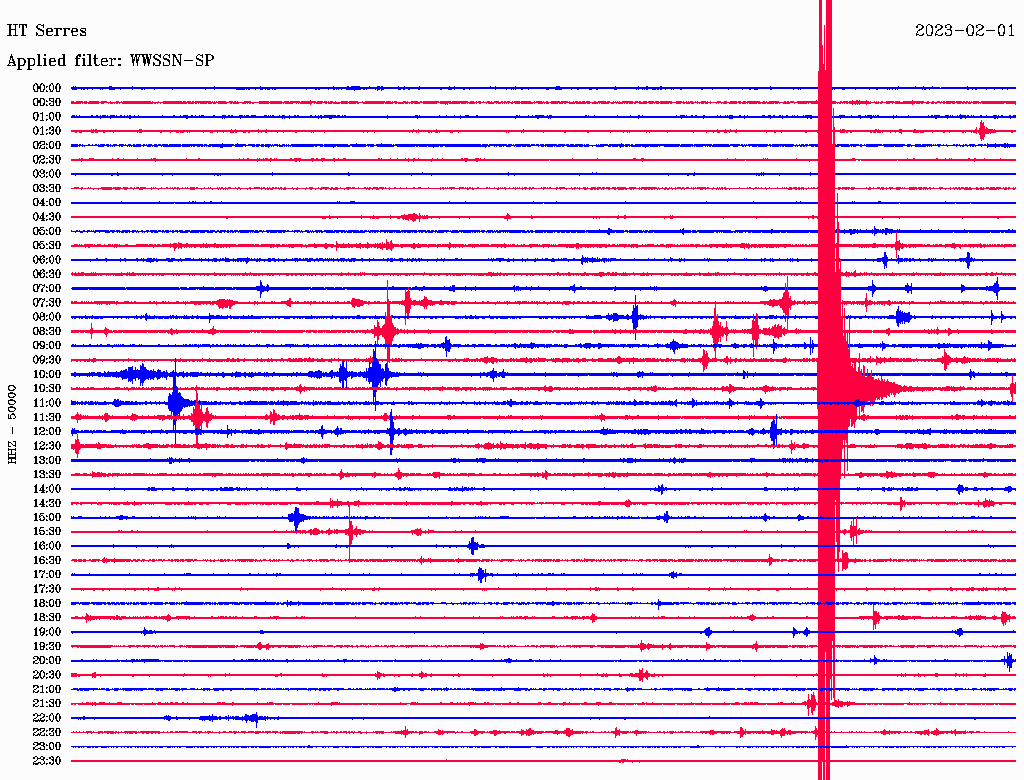

SRSHT132.9 33 P10:53:42.81 0.01.0M
SRSHT132.9 33 S10:53:59.17 -0.21.0M

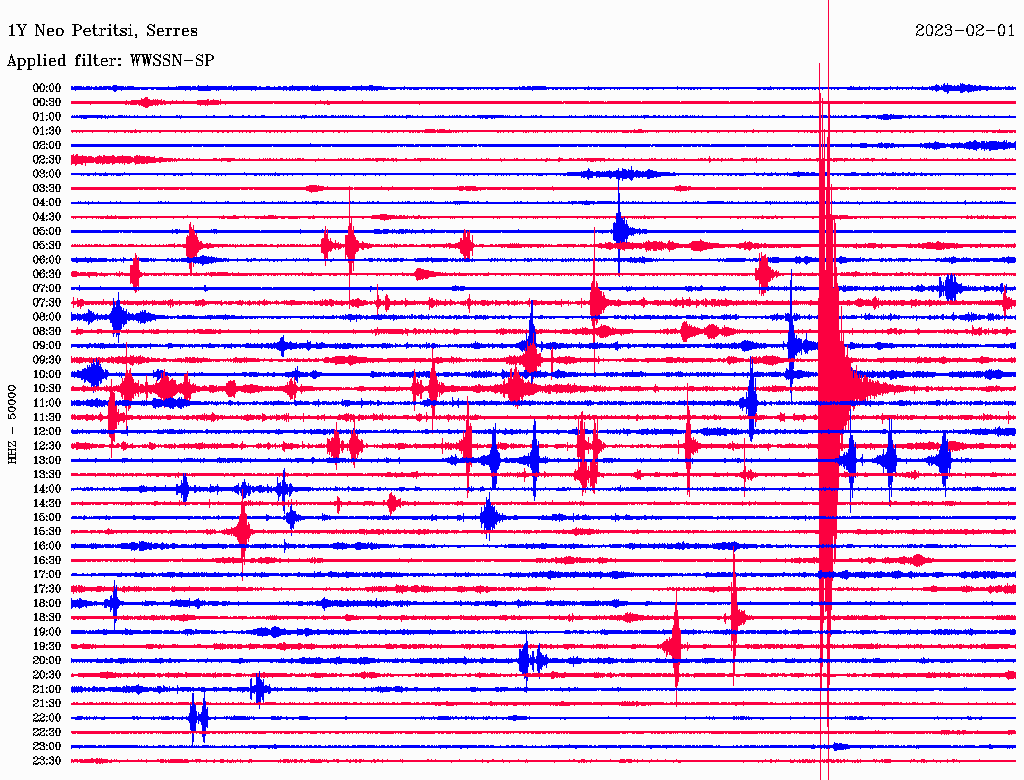

GR011Y139.6 20 P10:53:43.90 0.31.0M

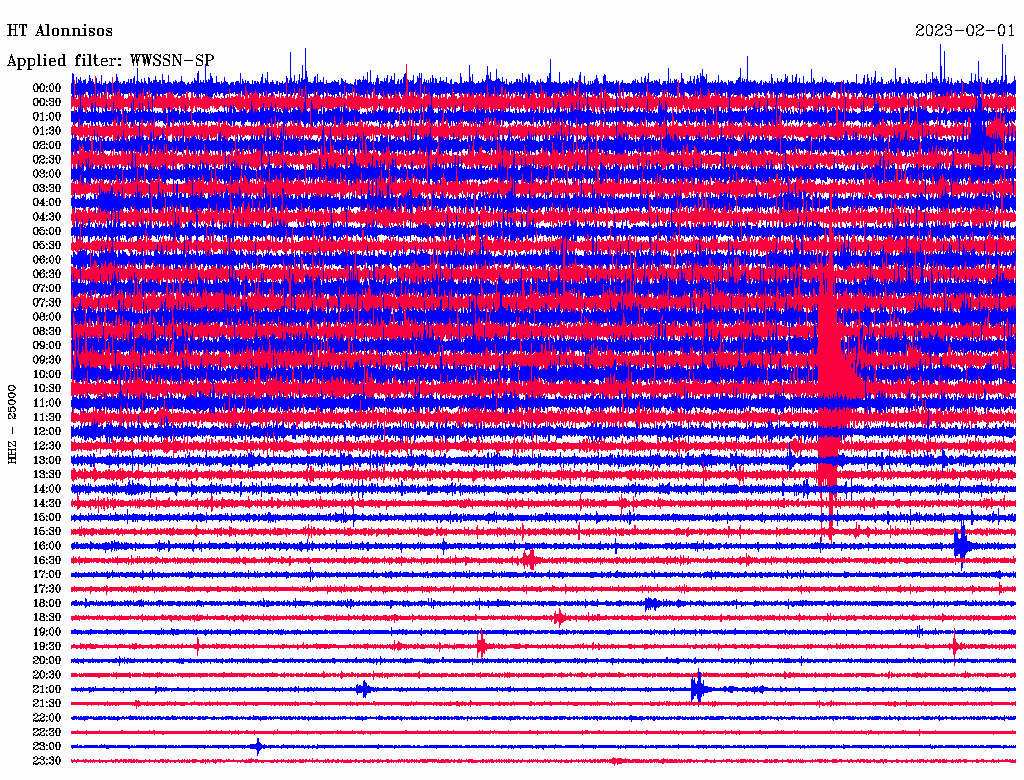

AOS2HT142.5138 P10:53:43.35 -0.61.0M
AOS2HT142.5138 S10:54:01.37 0.01.0M
GR151Y144.8263 P10:53:44.92 0.51.0M

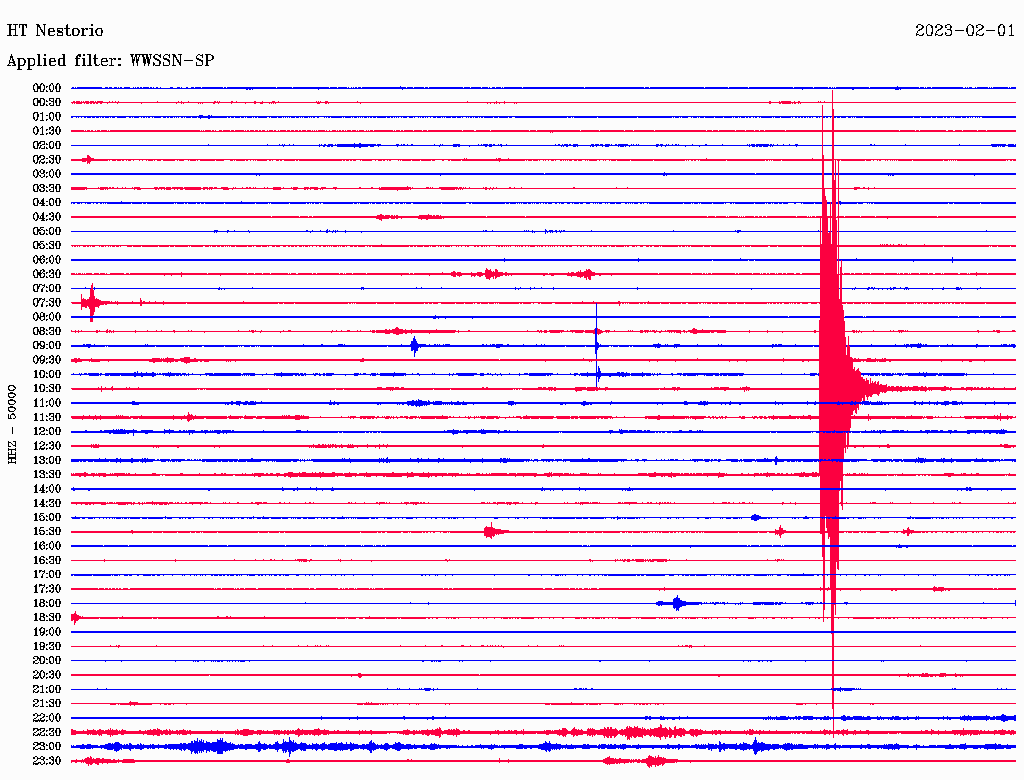

NESTHT147.1284 P10:53:45.22 0.51.0M
AXARHA148.8182 P10:53:45.19 0.41.0M
AXARHA148.8182 S10:54:02.76 -0.11.0M

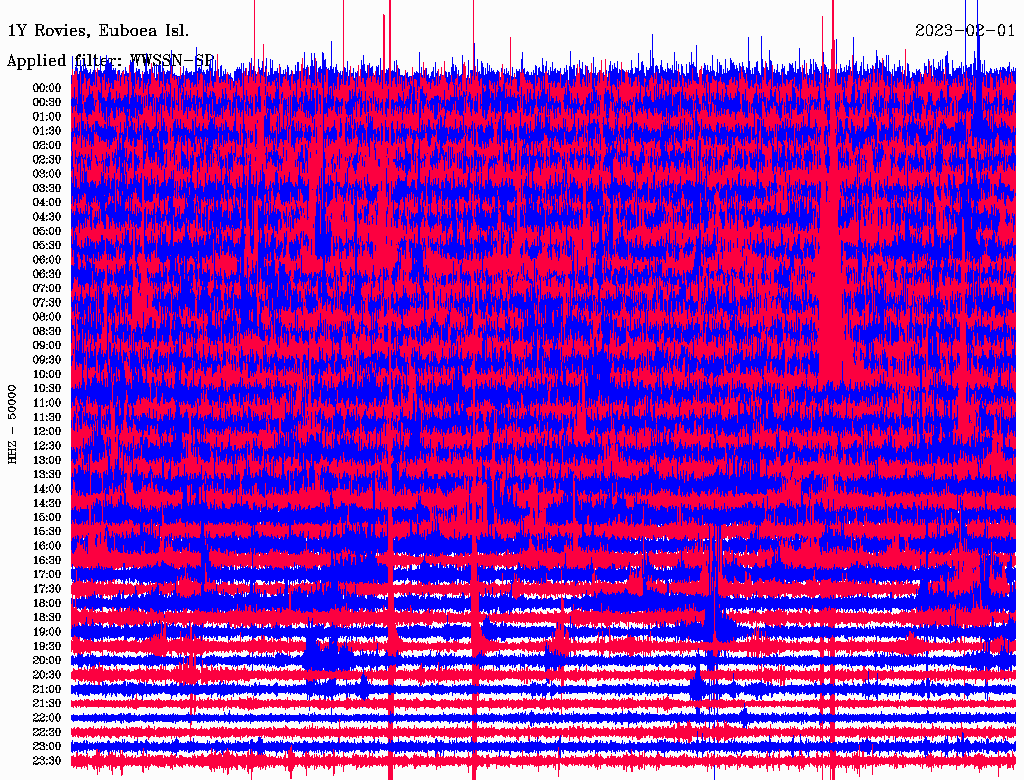

GR231Y150.2164 P10:53:45.13 0.21.0M
GR231Y150.2164 S10:54:02.96 -0.11.0M
TETRHL150.6236 P10:53:45.49 0.31.0M
TETRHL150.6236 S10:54:03.19 -0.31.0M
PRMDHP153.7246 P10:53:46.45 0.91.0M
PRMDHP153.7246 S10:54:03.89 -0.31.0M

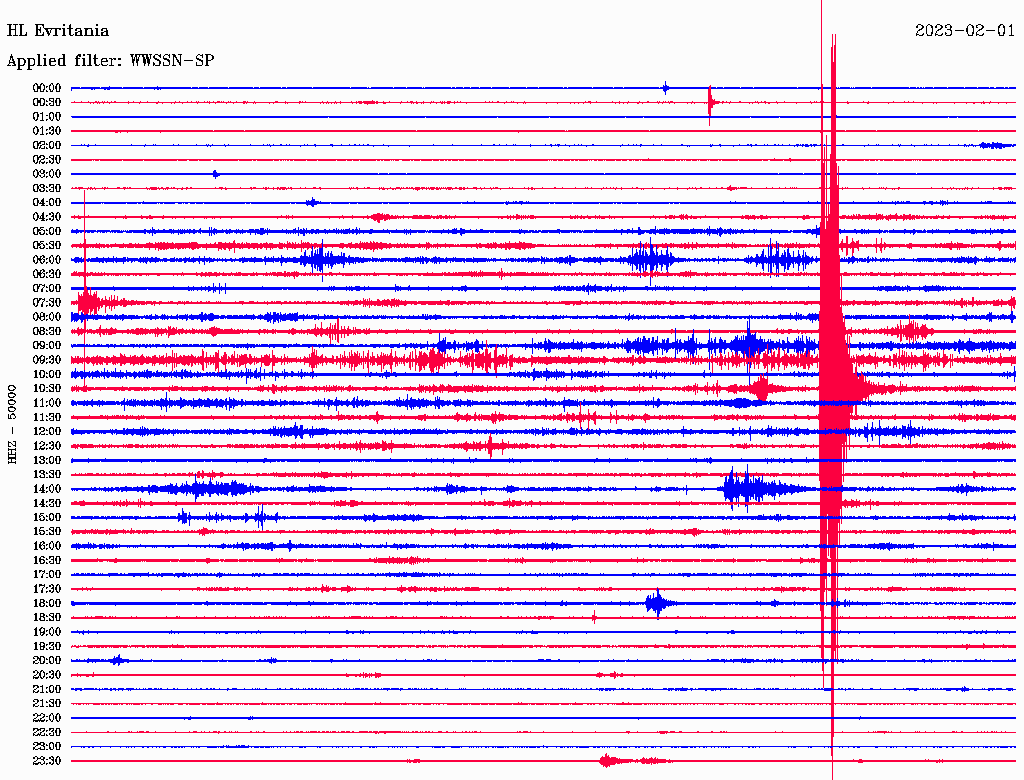

EVRHL153.9211 P10:53:45.80 0.21.0M

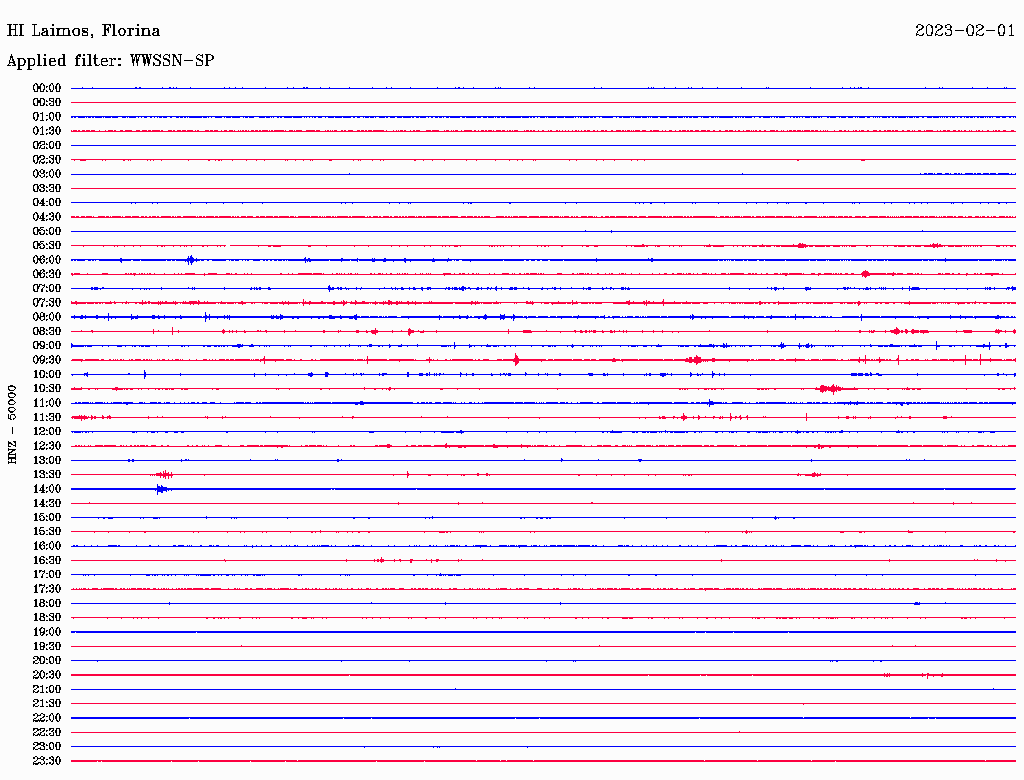

LMS2HI157.4301 P10:53:46.05 0.01.0M

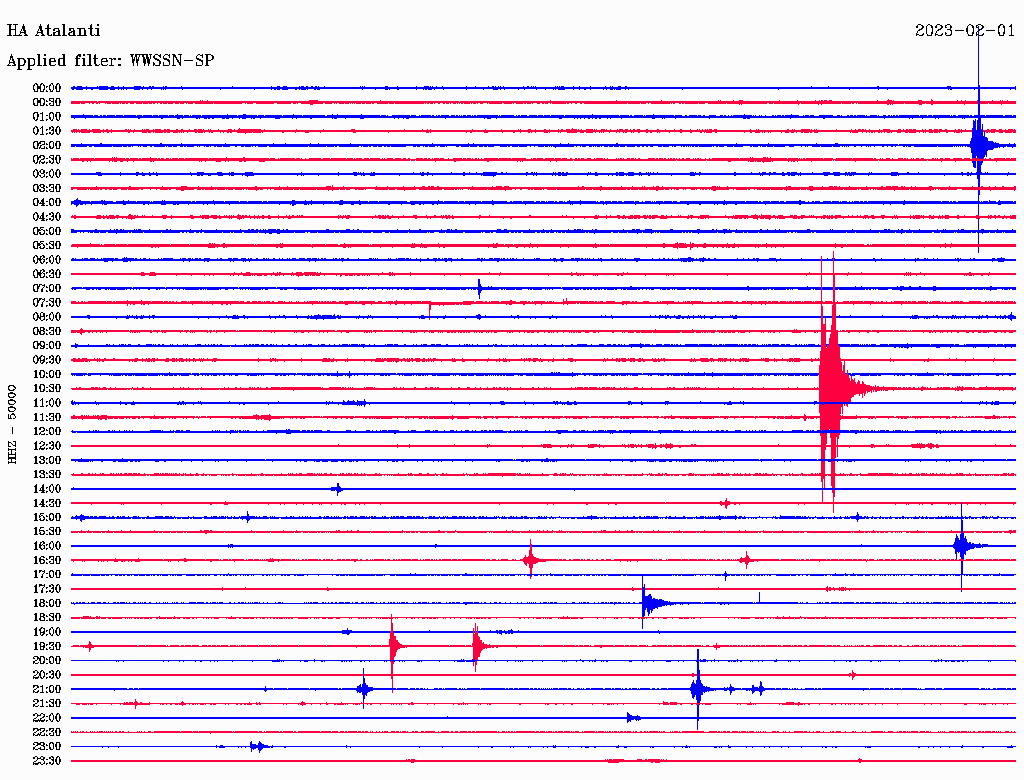

ATALHA158.8171 P10:53:45.83 -0.21.0M

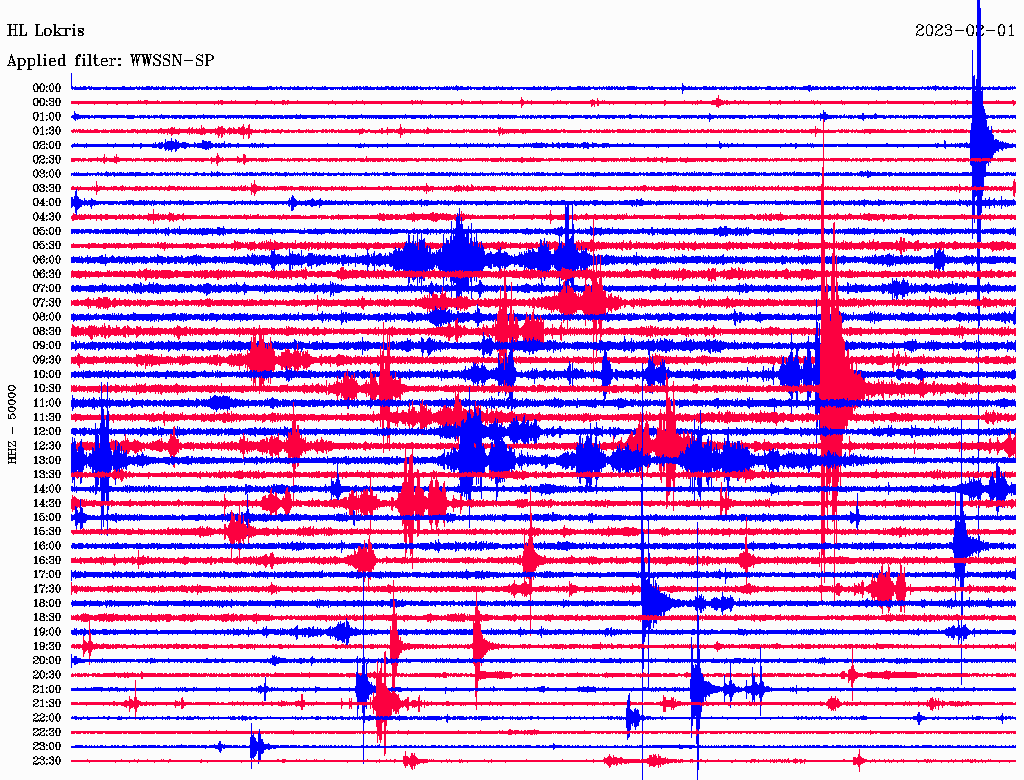

LKRHL163.2172 P10:53:46.70 0.11.0M
GR241Y164.0196 P10:53:47.00 0.21.0M
KVLAHL167.6 57 P10:53:46.60 -0.61.0M
KVLAHL167.6 57 S10:54:06.68 -0.41.0M
NVRHL168.1 35 P10:53:47.42 0.11.0M
NVRHL168.1 35 S10:54:07.11 -0.21.0M

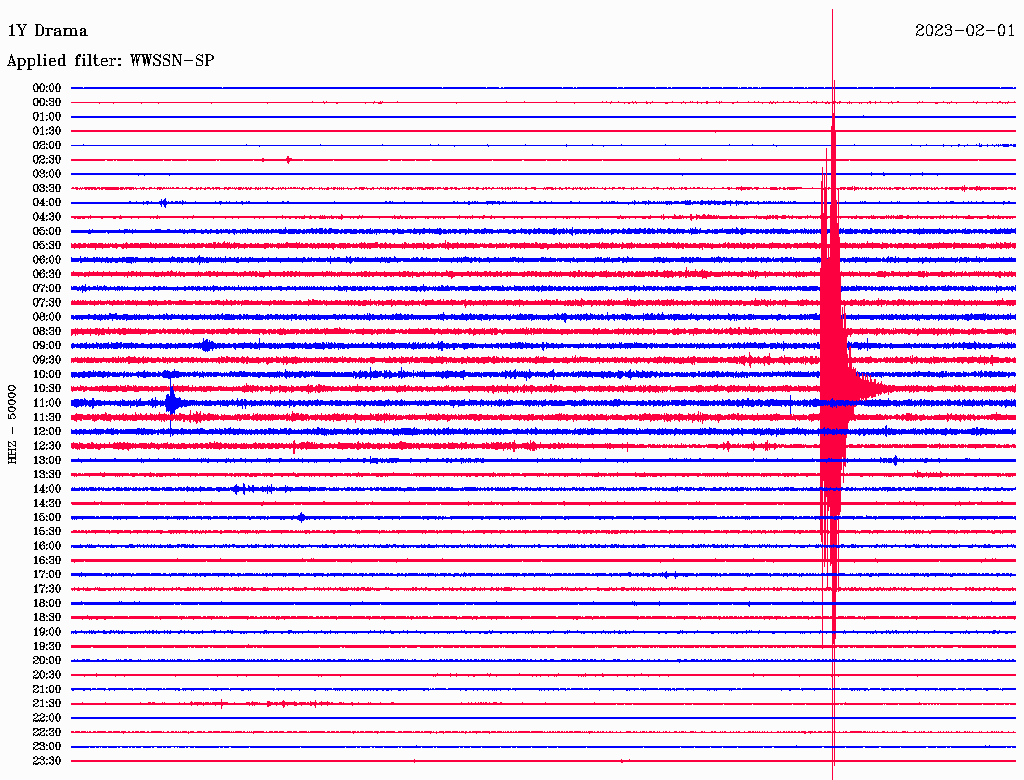

GR021Y168.2 46 P10:53:47.32 0.11.0M
GR021Y168.2 46 S10:54:06.83 -0.41.0M
JANHL168.4253 P10:53:48.03 0.71.0M

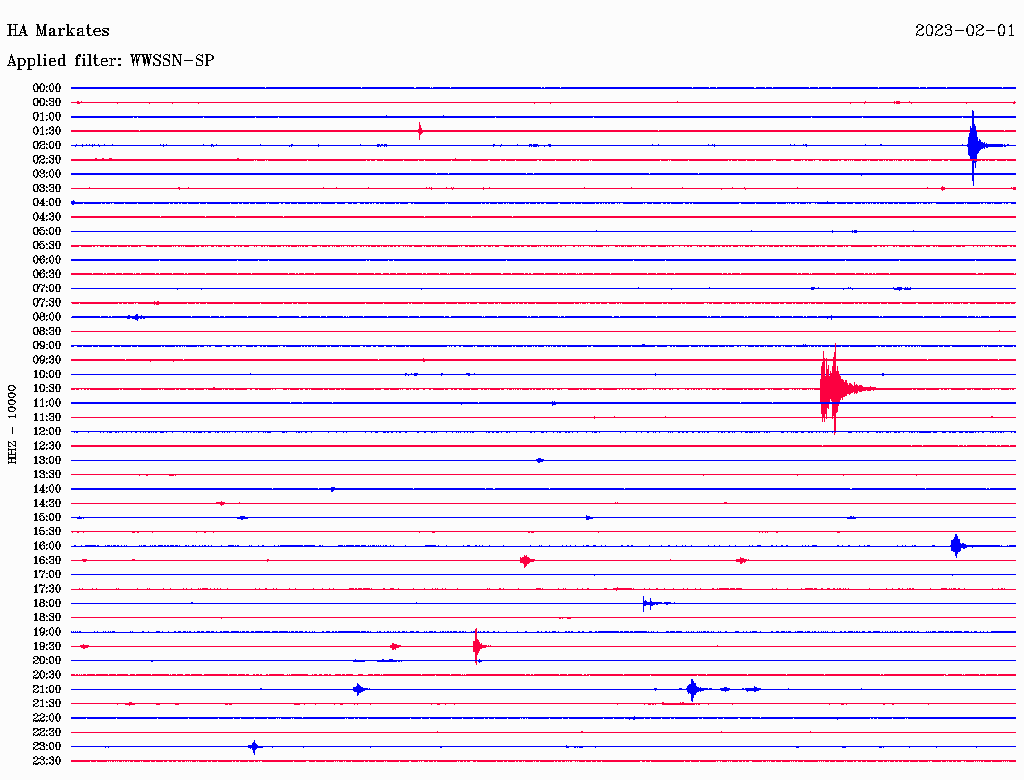

MRKAHA171.9155 P10:53:47.57 -0.21.0M
MRKAHA171.9155 S10:54:08.26 0.21.0M

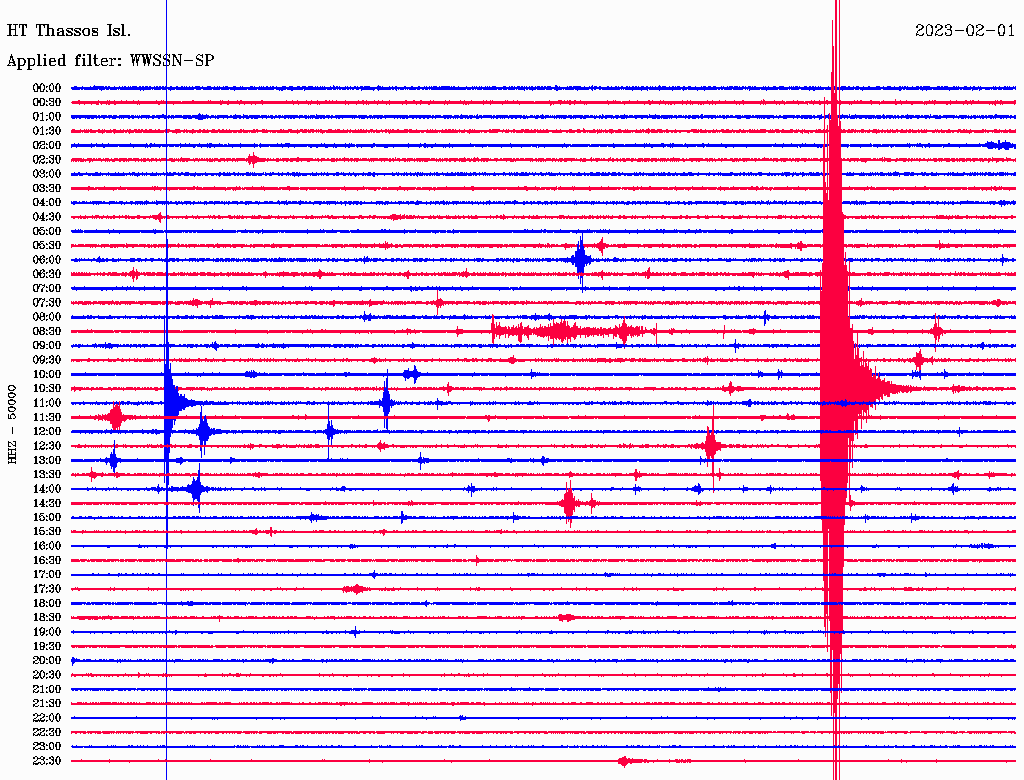

THASHT177.3 72 P10:53:47.70 -0.81.0M
KAVAHT179.9 57 P10:53:48.19 -0.61.0M
KAVAHT179.9 57 S10:54:09.93 0.01.0M

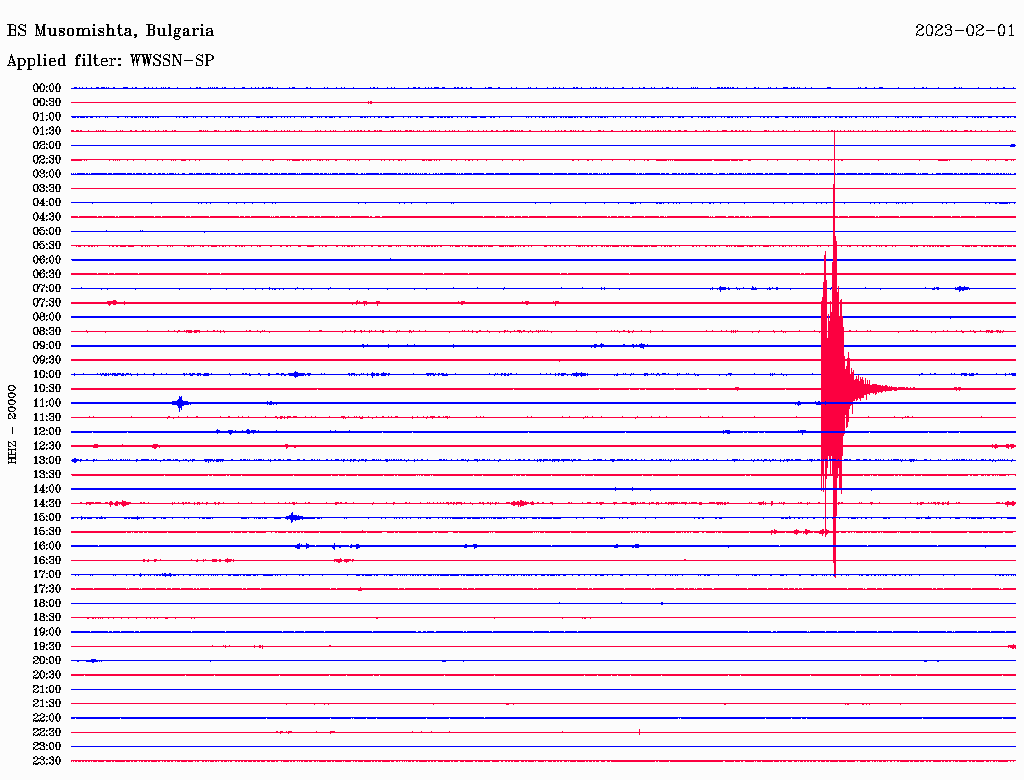

MMBBS181.9 28 P10:53:49.21 0.11.0M
MMBBS181.9 28 S10:54:10.55 0.21.0M
ANXHP181.9203 P10:53:49.41 0.31.0M
AMPLHP185.1225 P10:53:50.01 0.61.0M
PSAHHA187.8155 P10:53:49.69 -0.11.0M
DSFHP189.0185 P10:53:49.96 0.01.0M
PVOHP195.2212 P10:53:51.60 0.91.0M

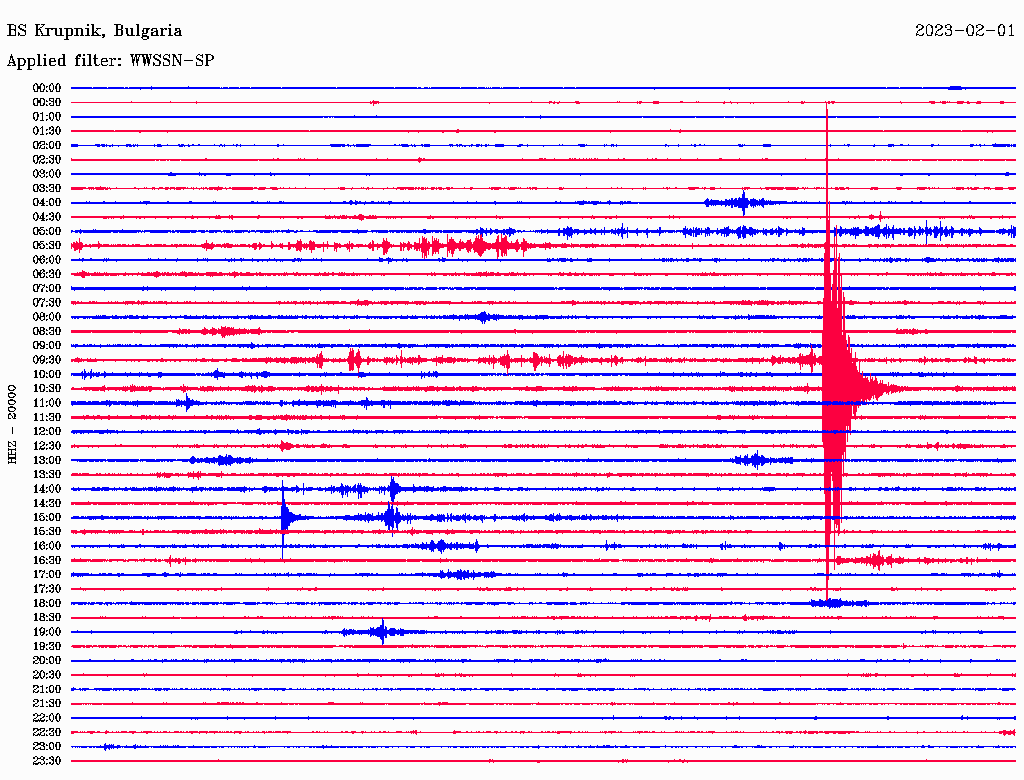

KKBBS196.1 10 P10:53:50.92 0.11.0M

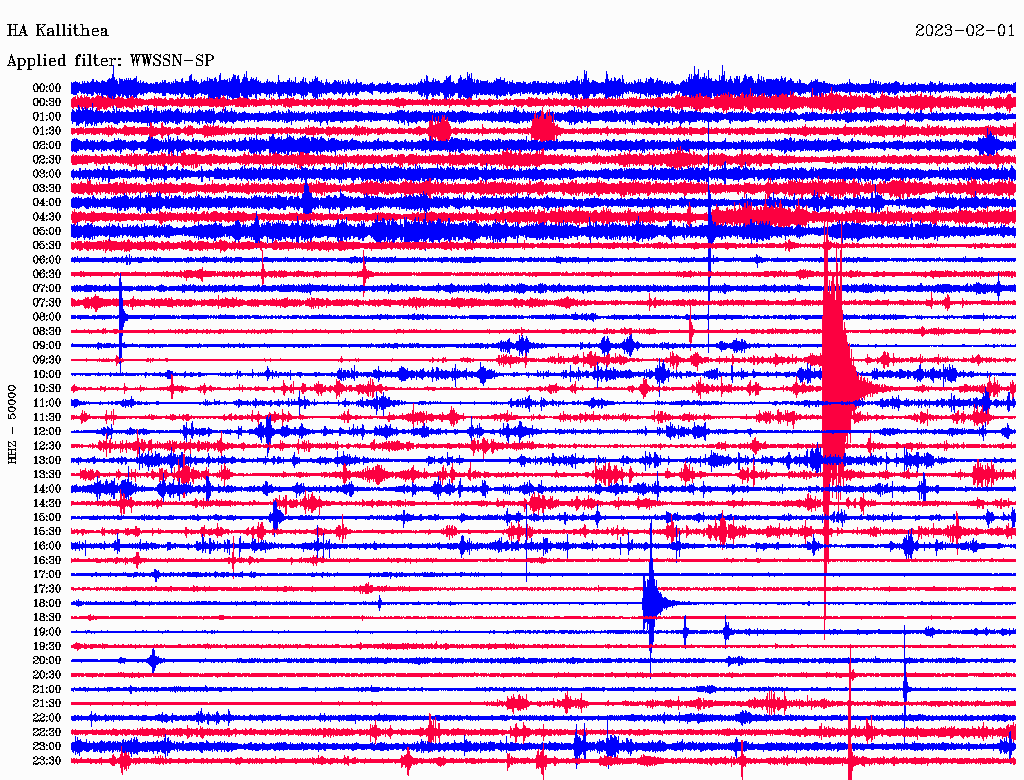

KALEHA197.1195 P10:53:51.24 0.21.0M

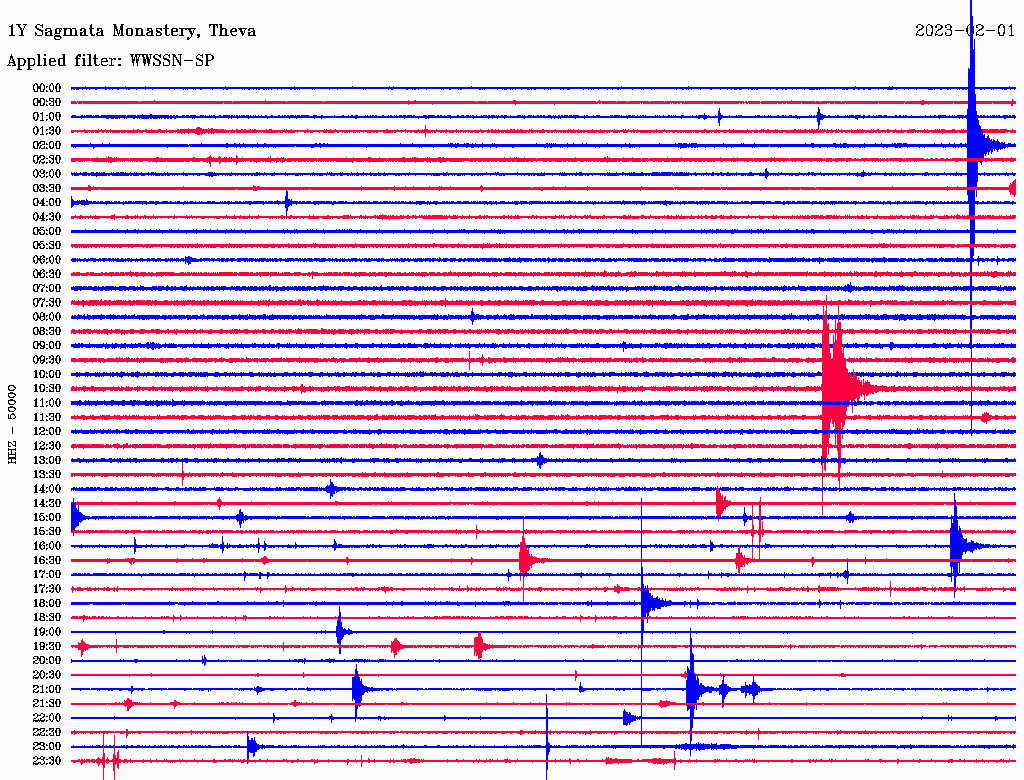

GR261Y198.1163 P10:53:50.69 -0.51.0M

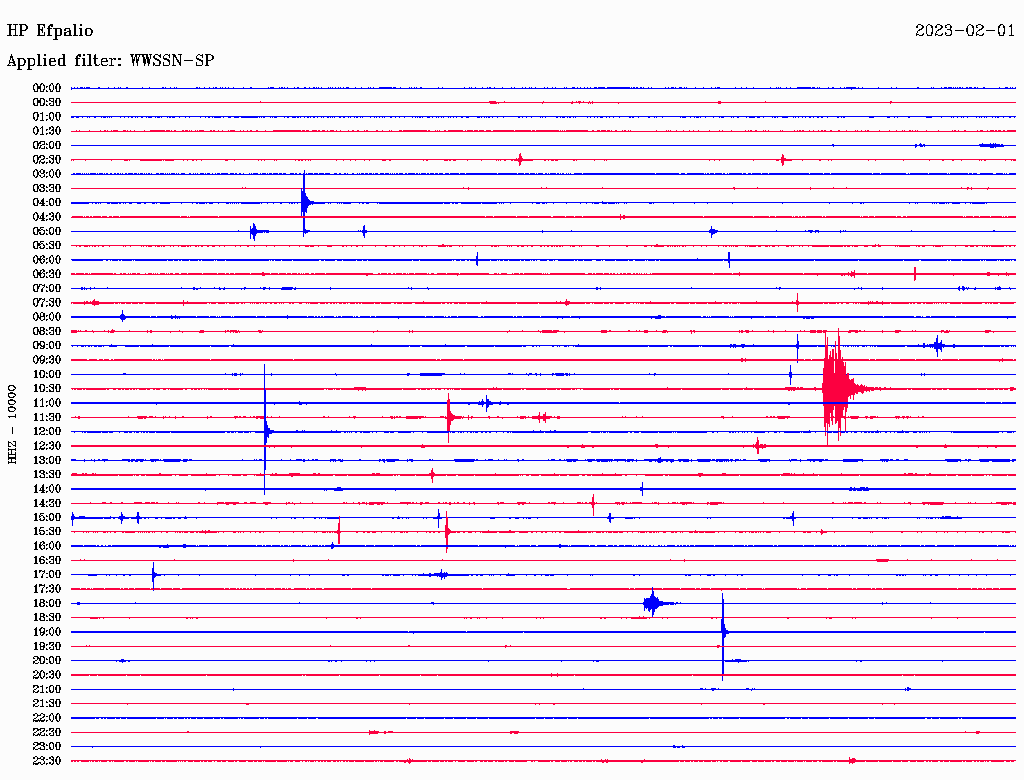

EFPHP199.6201 P10:53:51.67 0.41.0M
TRIZCL201.4196 P10:53:51.75 0.31.0M
VVKHP203.1203 P10:53:52.10 0.31.0M

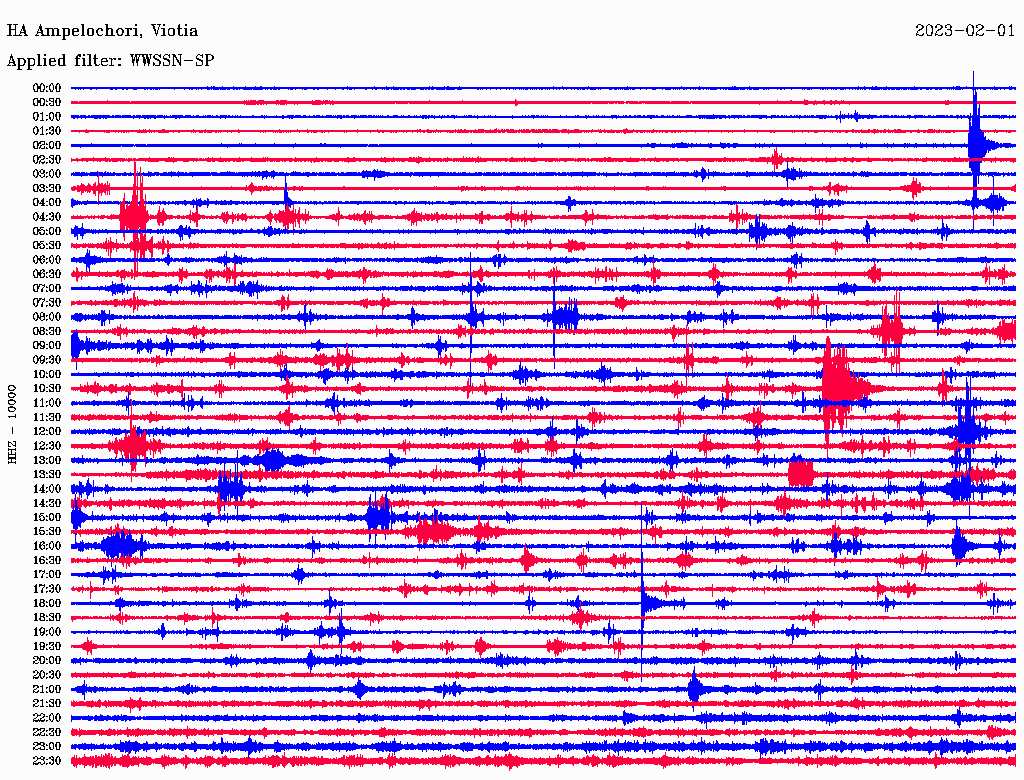

AMPEHA205.6167 P10:53:51.94 -0.11.0M

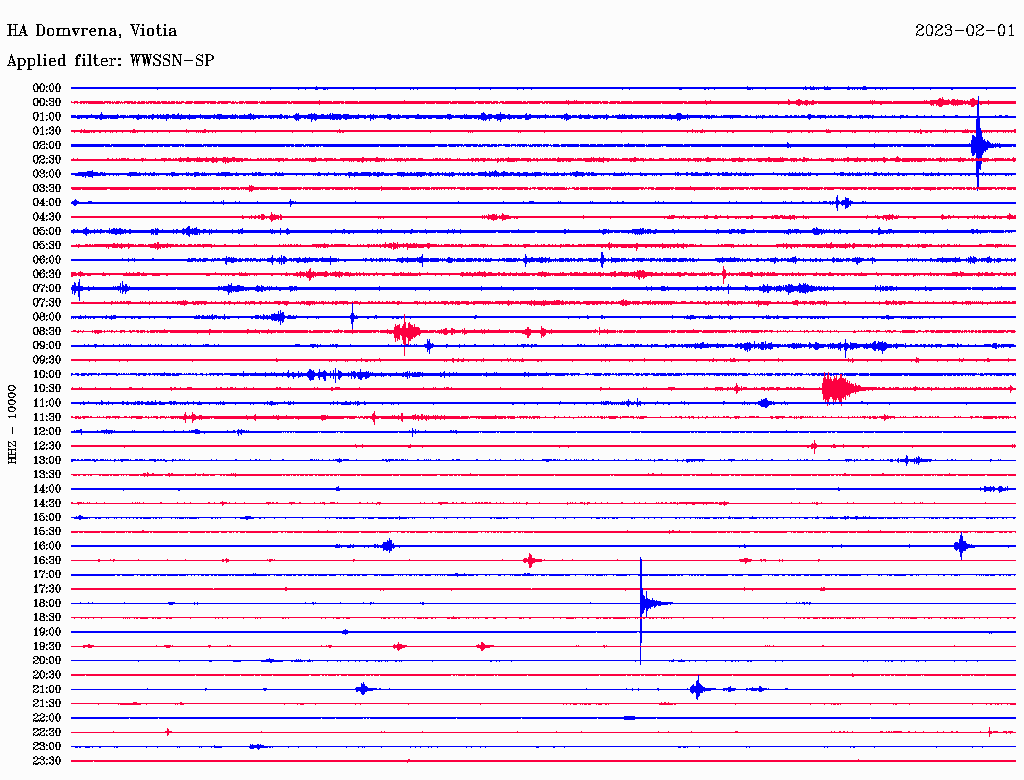

DOMVHA206.4174 P10:53:51.73 -0.41.0M

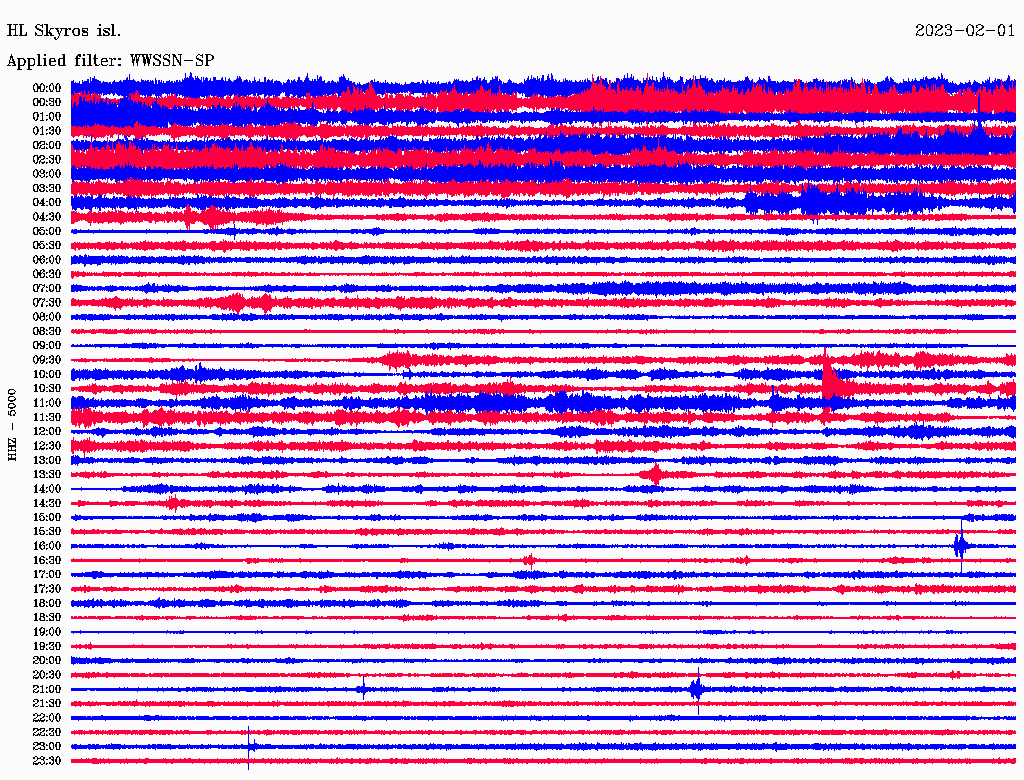

SKYHL206.5131 P10:53:51.89 -0.31.0M

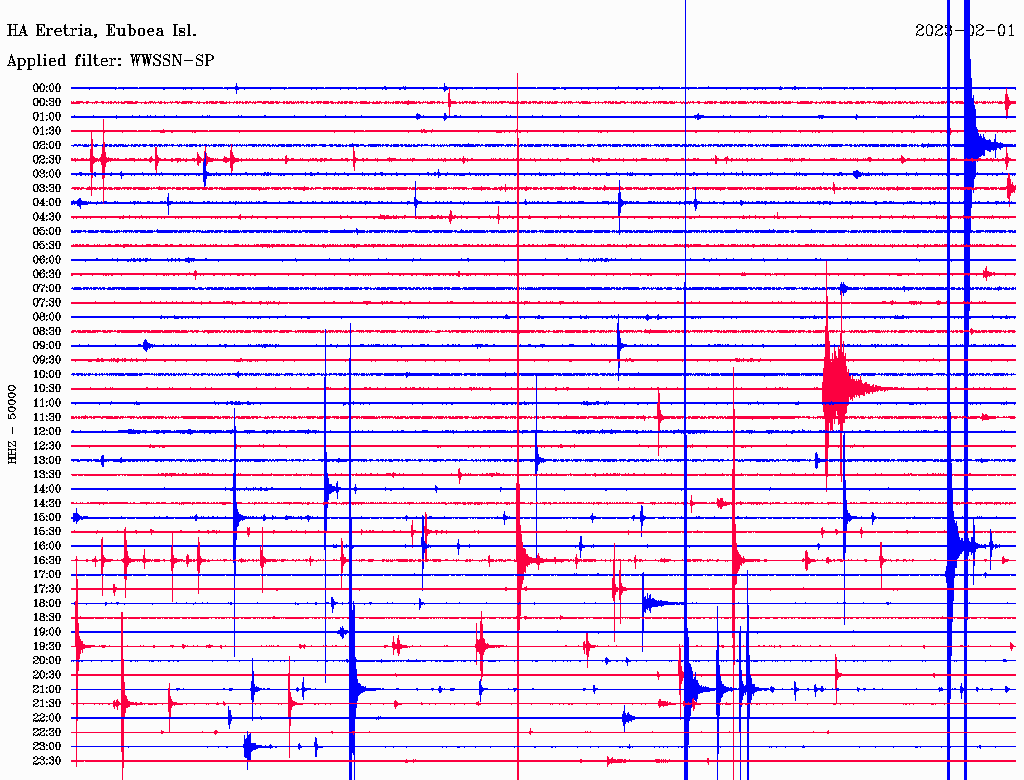

ERTRHA209.3154 P10:53:52.39 -0.11.0M
LIAHL209.6 96 P10:53:52.24 -0.41.0M
LIAHL209.6 96 S10:54:16.13 -0.51.0M
GR031Y215.4 57 P10:53:52.85 -0.51.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2023cfmd
    Description
      region name: Greece
Origin:
    Date                   2023-02-01
    Time                  10:53:21.03
    Latitude              40.1032 deg  +/-      0 km
    Longitude             22.7340 deg  +/-      0 km
    Depth                      22 km   +/-    0 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.34 s
    Azimuthal gap              28 deg

2 Network magnitudes:
    MLv       4.07 +/- 0.23  57
    M         4.07           57 preferred

99 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    GR18  1Y    0.4 188  P       10:53:28.25  -0.9 M  1.0  GR18
    GR18  1Y    0.4 188  S       10:53:34.56  -0.7 M  1.0  GR18
    GR12  1Y    0.4 338  P       10:53:29.51   0.3 M  1.0  GR12
    GR12  1Y    0.4 338  S       10:53:35.76   0.2 M  1.0  GR12

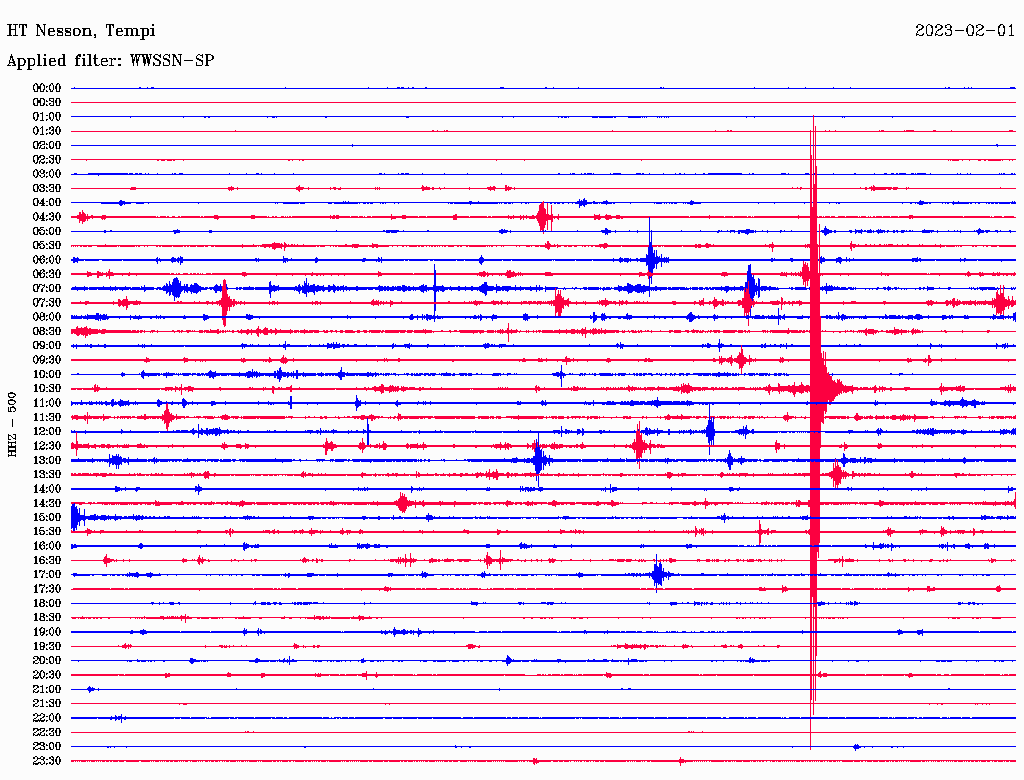

    NESN  HT    0.4 202  P       10:53:28.91  -0.5 M  1.0  NESN
    NESN  HT    0.4 202  S       10:53:35.30  -0.5 M  1.0  NESN

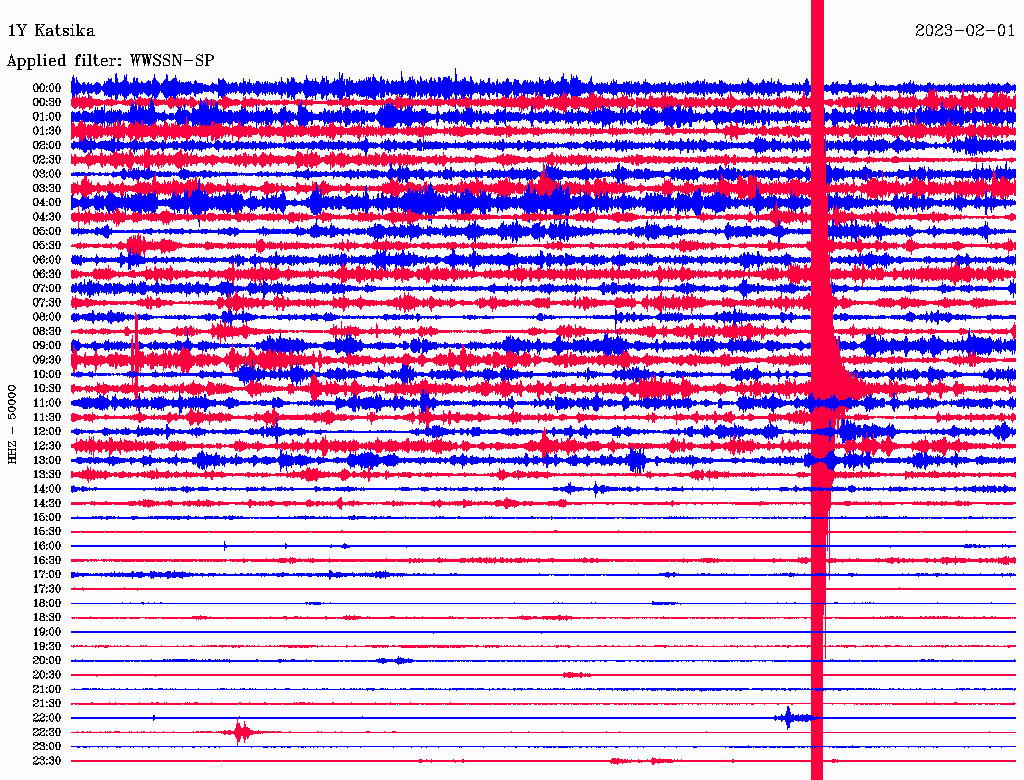

    GR13  1Y    0.4  54  P       10:53:30.09   0.3 M  1.0  GR13
    GR13  1Y    0.4  54  S       10:53:36.79   0.4 M  1.0  GR13
    GINA  HL    0.5 211  P       10:53:30.69  -0.4 M  1.0  GINA
    GINA  HL    0.5 211  S       10:53:38.63  -0.1 M  1.0  GINA
    HORT  HT    0.6  29  P       10:53:32.26   0.1 M  1.0  HORT
    HORT  HT    0.6  29  S       10:53:40.22  -0.5 M  1.0  HORT
    GR11  1Y    0.6 315  P       10:53:32.00  -0.5 M  1.0  GR11
    GR11  1Y    0.6 315  S       10:53:41.06  -0.2 M  1.0  GR11
    PLG   HL    0.6  64  P       10:53:33.18   0.3 M  1.0  PLG
    PLG   HL    0.6  64  S       10:53:41.96   0.2 M  1.0  PLG
    PLN1  HI    0.7  99  P       10:53:33.94   0.4 M  1.0  PLN1
    PLN1  HI    0.7  99  S       10:53:43.32   0.3 M  1.0  PLN1

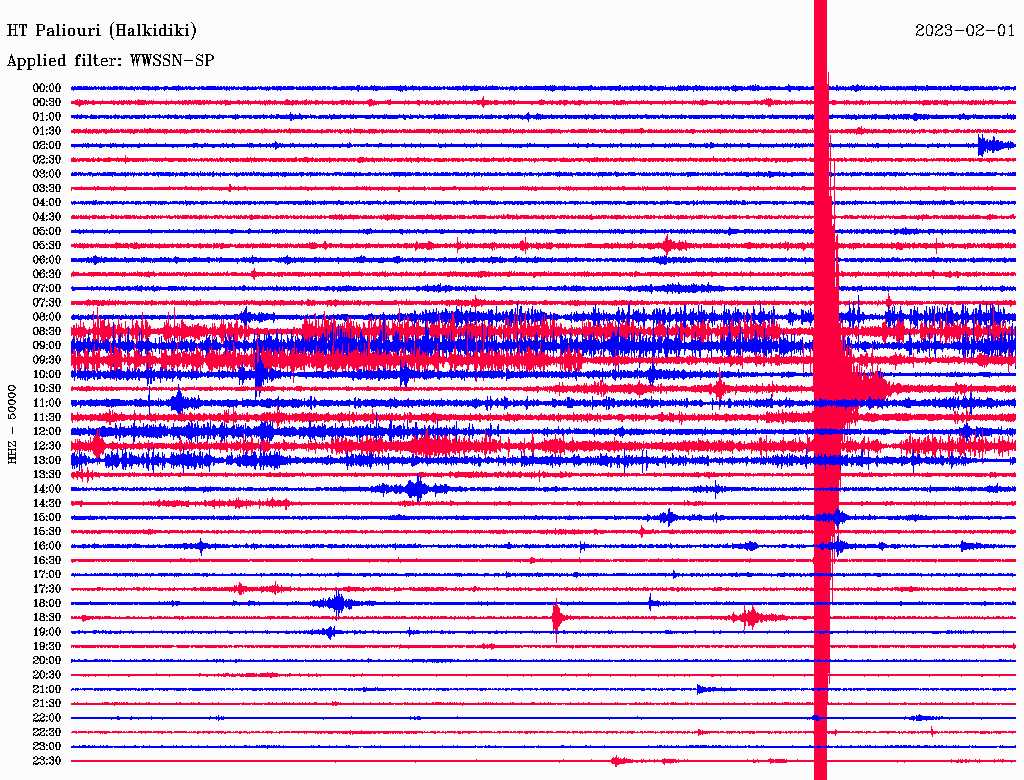

    PAIG  HT    0.7 103  P       10:53:35.49   0.4 M  1.0  PAIG
    PAIG  HT    0.7 103  S       10:53:45.85   0.1 M  1.0  PAIG

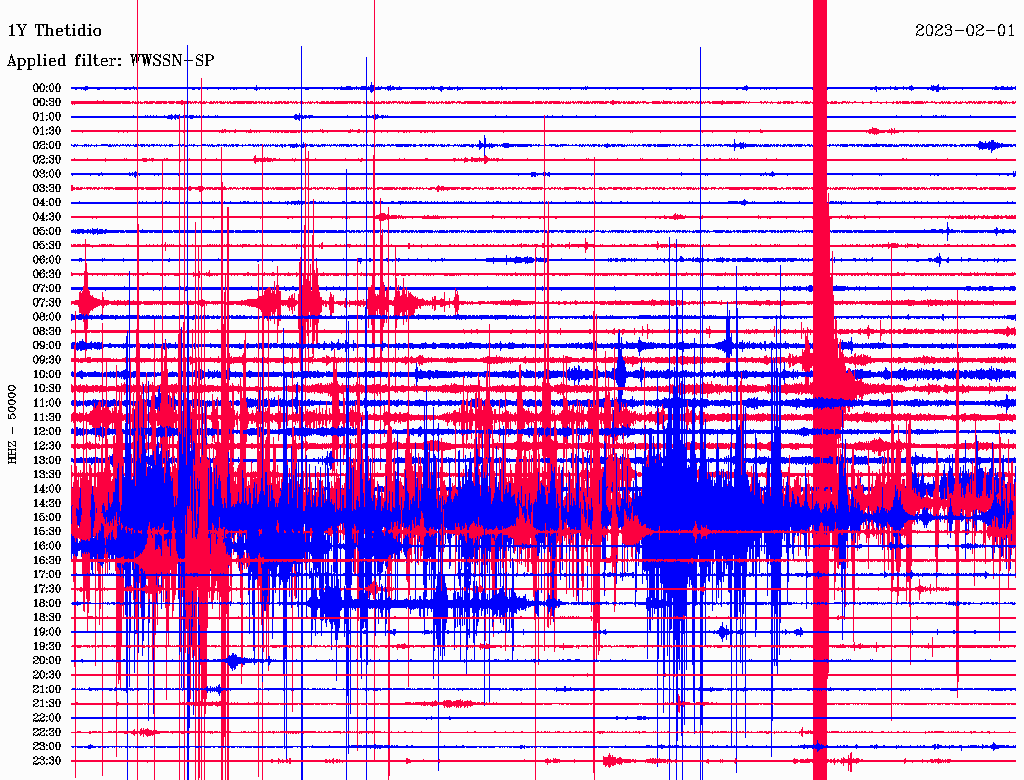

    GR21  1Y    0.7 193  P       10:53:34.66  -0.5 M  1.0  GR21
    GR21  1Y    0.7 193  S       10:53:46.07   0.1 M  1.0  GR21
    VOL2  HI    0.8 167  P       10:53:35.36   0.1 M  1.0  VOL2
    VOL2  HI    0.8 167  S       10:53:46.28   0.2 M  1.0  VOL2

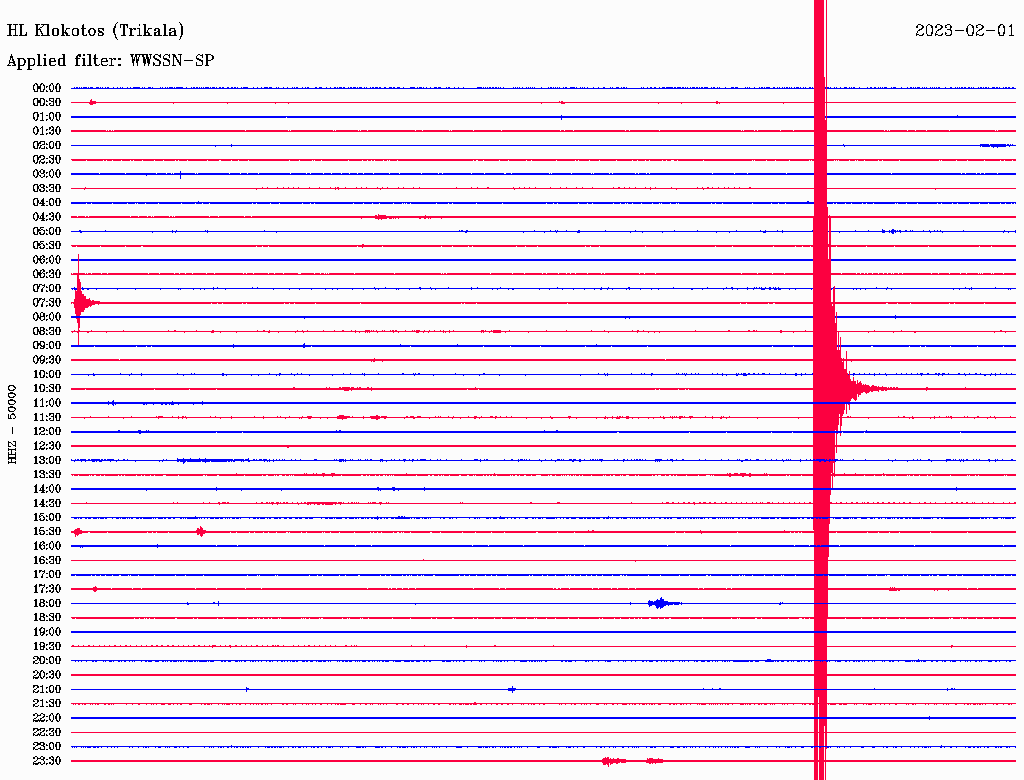

    THL   HL    0.8 226  P       10:53:34.83  -0.7 M  1.0  THL
    THL   HL    0.8 226  S       10:53:46.33  -0.3 M  1.0  THL

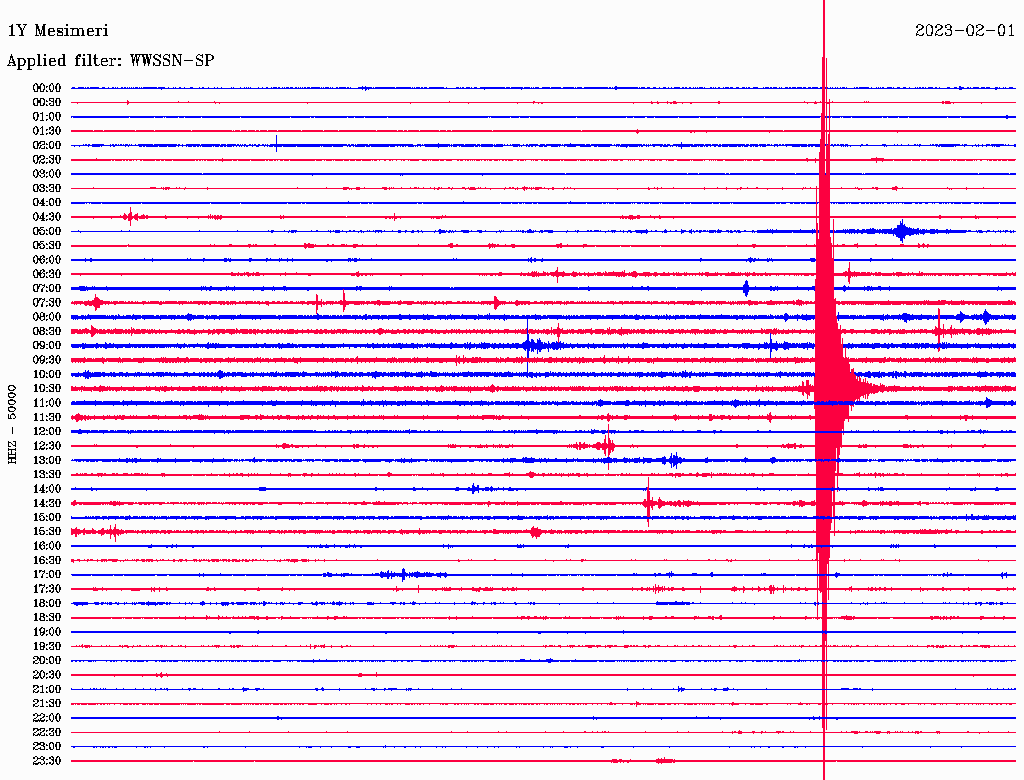

    GR07  1Y    0.9 321  P       10:53:37.24  -0.1 M  1.0  GR07
    NEO   HL    0.9 155  P       10:53:37.99   0.6 M  1.0  NEO
    NEO   HL    0.9 155  S       10:53:49.80  -0.1 M  1.0  NEO
    GRG   HT    0.9 343  P       10:53:37.29  -0.3 M  1.0  GRG
    GRG   HT    0.9 343  S       10:53:50.18  -0.1 M  1.0  GRG

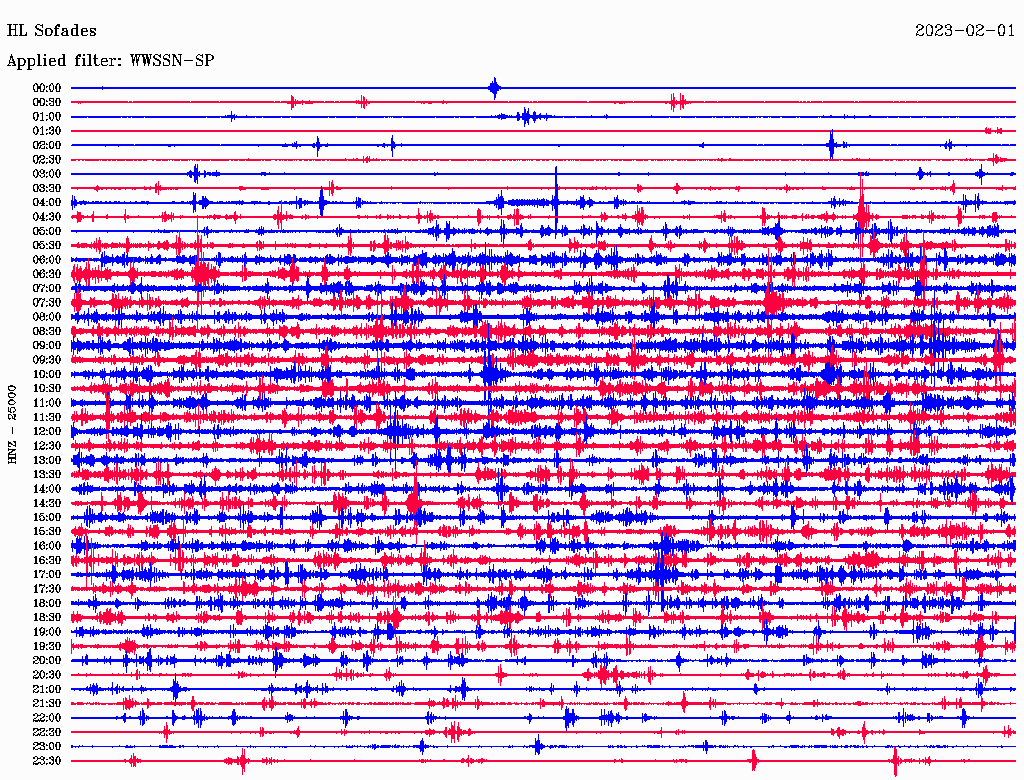

    SOFA  HL    0.9 213  P       10:53:38.09   0.2 M  1.0  SOFA
    GR09  1Y    0.9  53  P       10:53:38.84   0.8 M  1.0  GR09
    GR17  1Y    0.9 246  P       10:53:38.54   0.3 M  1.0  GR17
    GR17  1Y    0.9 246  S       10:53:51.51   0.2 M  1.0  GR17
    GR10  1Y    1.0 294  P       10:53:38.44  -0.2 M  1.0  GR10
    GR10  1Y    1.0 294  S       10:53:52.08  -0.0 M  1.0  GR10
    OUR   HT    1.0  76  P       10:53:39.62   0.5 M  1.0  OUR
    OUR   HT    1.0  76  S       10:53:52.76  -0.1 M  1.0  OUR

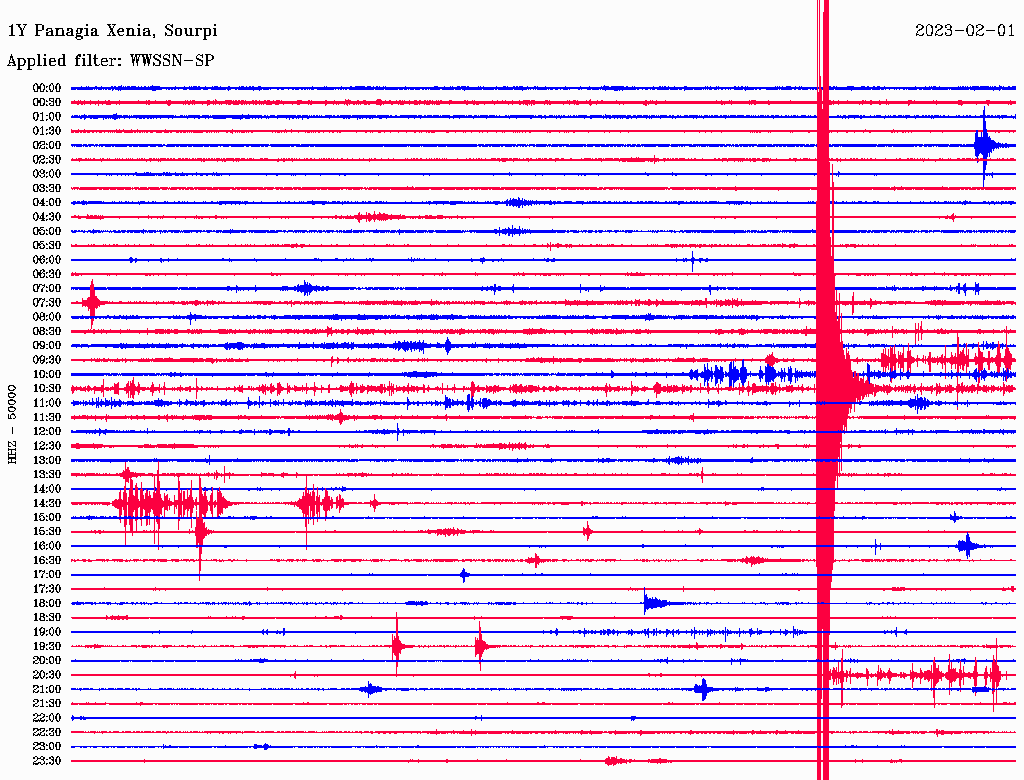

    GR22  1Y    1.0 176  P       10:53:39.61  -0.1 M  1.0  GR22
    GR22  1Y    1.0 176  S       10:53:53.92  -0.0 M  1.0  GR22
    KPRO  HT    1.1 262  P       10:53:40.52  -0.1 M  1.0  KPRO
    KPRO  HT    1.1 262  S       10:53:55.42  -0.1 M  1.0  KPRO
    AGG   HT    1.1 196  P       10:53:41.61  -0.0 M  1.0  AGG
    AGG   HT    1.1 196  S       10:53:57.16  -0.1 M  1.0  AGG
    GR20  1Y    1.2 221  P       10:53:42.56   0.4 M  1.0  GR20
    GR20  1Y    1.2 221  S       10:53:58.22  -0.0 M  1.0  GR20
    SRS   HT    1.2  33  P       10:53:42.81   0.0 M  1.0  SRS
    SRS   HT    1.2  33  S       10:53:59.17  -0.2 M  1.0  SRS
    GR01  1Y    1.3  20  P       10:53:43.90   0.3 M  1.0  GR01
    AOS2  HT    1.3 138  P       10:53:43.35  -0.6 M  1.0  AOS2
    AOS2  HT    1.3 138  S       10:54:01.37  -0.0 M  1.0  AOS2
    GR15  1Y    1.3 263  P       10:53:44.92   0.5 M  1.0  GR15
    NEST  HT    1.3 284  P       10:53:45.22   0.5 M  1.0  NEST
    AXAR  HA    1.3 182  P       10:53:45.19   0.4 M  1.0  AXAR
    AXAR  HA    1.3 182  S       10:54:02.76  -0.1 M  1.0  AXAR
    GR23  1Y    1.3 164  P       10:53:45.13   0.2 M  1.0  GR23
    GR23  1Y    1.3 164  S       10:54:02.96  -0.1 M  1.0  GR23

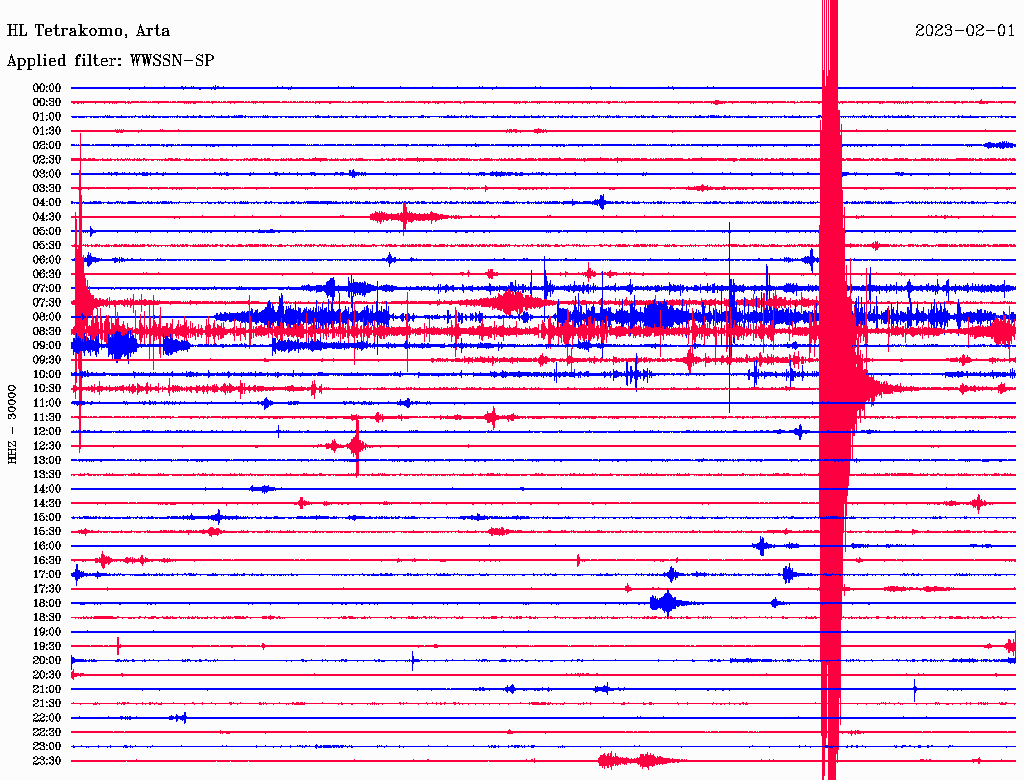

    TETR  HL    1.4 236  P       10:53:45.49   0.3 M  1.0  TETR
    TETR  HL    1.4 236  S       10:54:03.19  -0.3 M  1.0  TETR
    EVR   HL    1.4 211  P       10:53:45.80   0.2 M  1.0  EVR
    PRMD  HP    1.4 246  P       10:53:46.45   0.9 M  1.0  PRMD
    PRMD  HP    1.4 246  S       10:54:03.89  -0.3 M  1.0  PRMD
    LMS2  HI    1.4 301  P       10:53:46.05   0.0 M  1.0  LMS2
    ATAL  HA    1.4 171  P       10:53:45.83  -0.2 M  1.0  ATAL
    LKR   HL    1.5 172  P       10:53:46.70   0.1 M  1.0  LKR

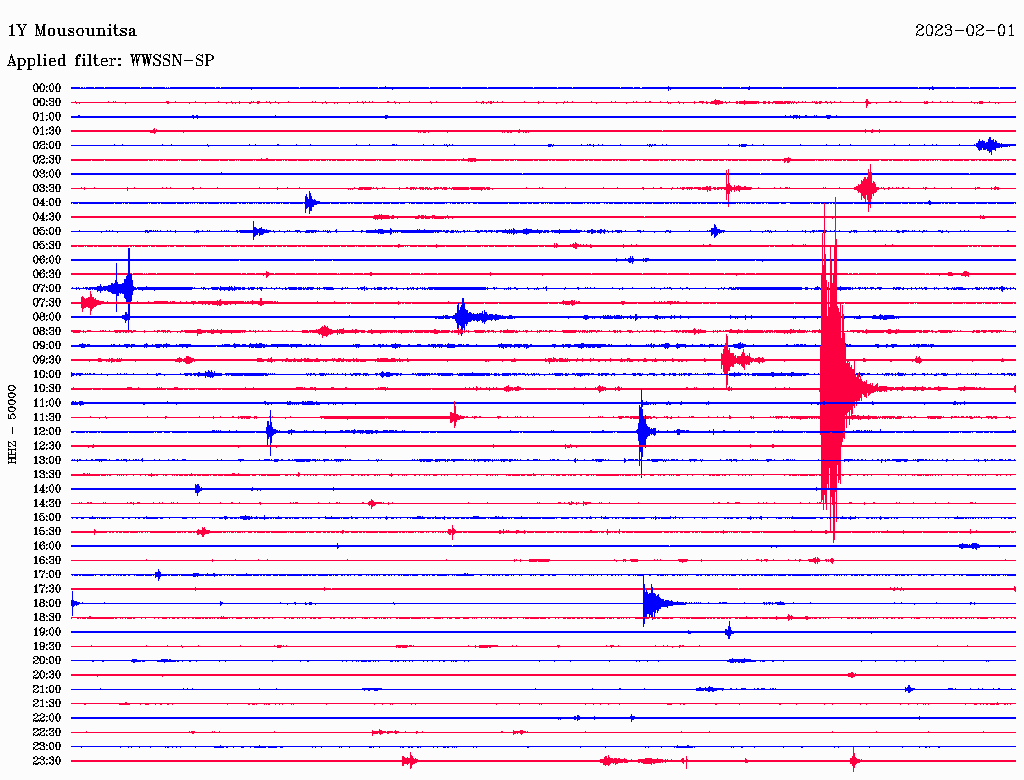

    GR24  1Y    1.5 196  P       10:53:47.00   0.2 M  1.0  GR24

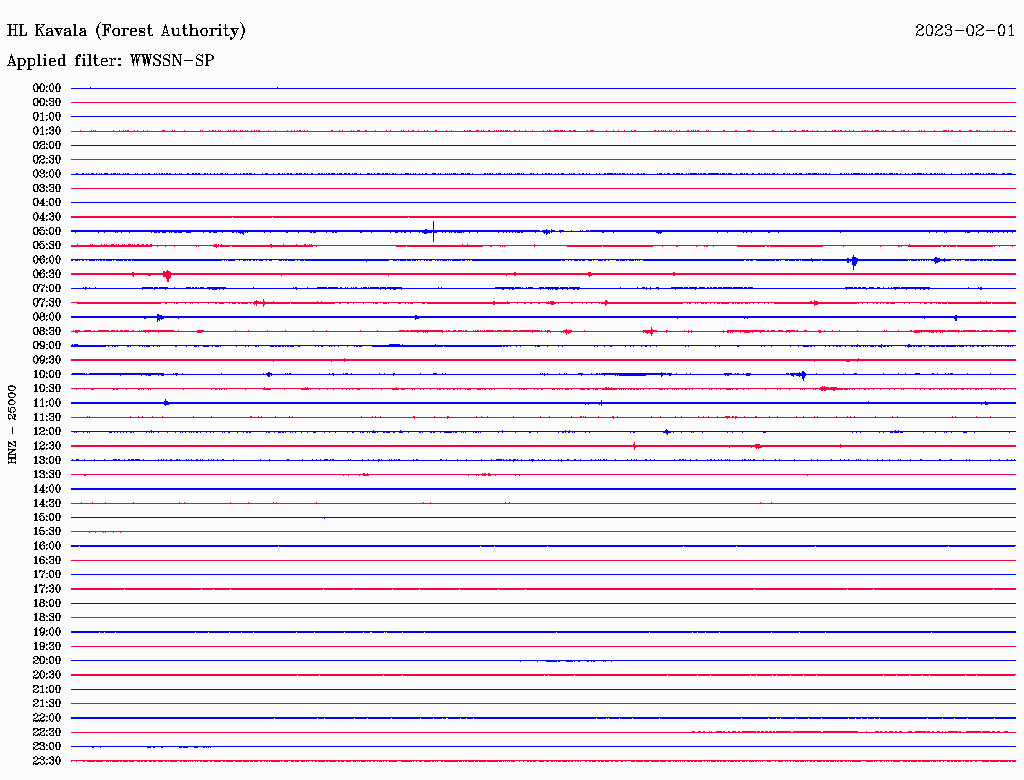

    KVLA  HL    1.5  57  P       10:53:46.60  -0.6 M  1.0  KVLA
    KVLA  HL    1.5  57  S       10:54:06.68  -0.4 M  1.0  KVLA
    NVR   HL    1.5  35  P       10:53:47.42   0.1 M  1.0  NVR
    NVR   HL    1.5  35  S       10:54:07.11  -0.2 M  1.0  NVR
    GR02  1Y    1.5  46  P       10:53:47.32   0.1 M  1.0  GR02
    GR02  1Y    1.5  46  S       10:54:06.83  -0.4 M  1.0  GR02
    JAN   HL    1.5 253  P       10:53:48.03   0.7 M  1.0  JAN
    MRKA  HA    1.5 155  P       10:53:47.57  -0.2 M  1.0  MRKA
    MRKA  HA    1.5 155  S       10:54:08.26   0.2 M  1.0  MRKA
    THAS  HT    1.6  72  P       10:53:47.70  -0.8 M  1.0  THAS

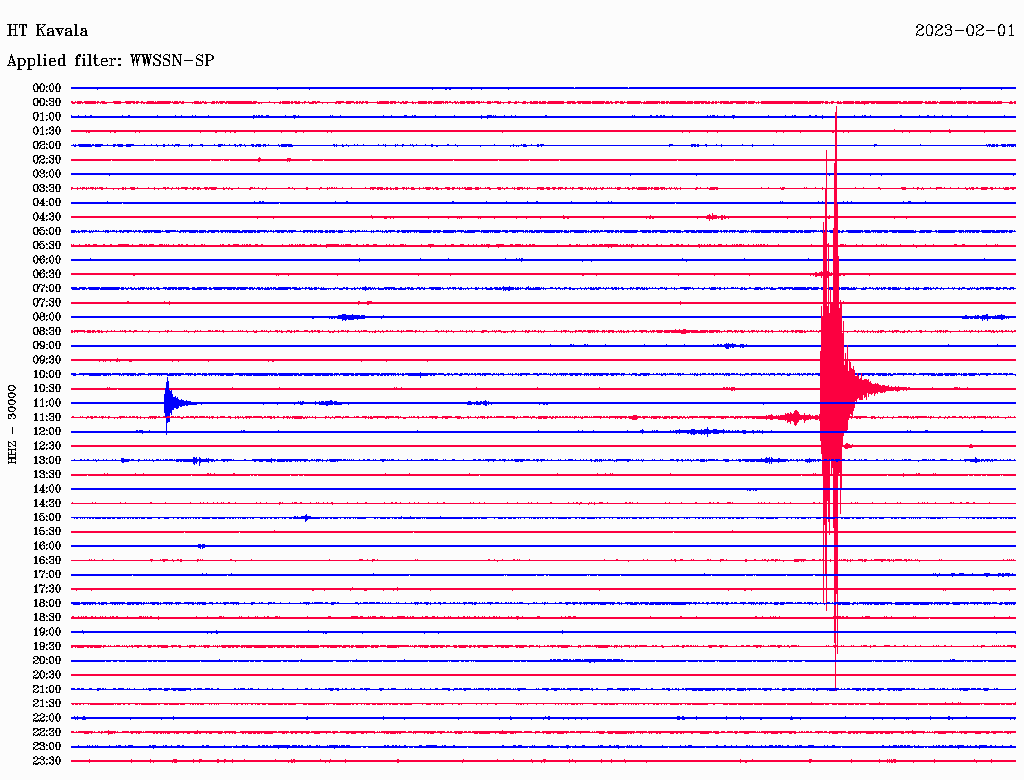

    KAVA  HT    1.6  57  P       10:53:48.19  -0.6 M  1.0  KAVA
    KAVA  HT    1.6  57  S       10:54:09.93  -0.0 M  1.0  KAVA
    ANX   HP    1.6 203  P       10:53:49.41   0.3 M  1.0  ANX
    MMB   BS    1.6  28  P       10:53:49.21   0.1 M  1.0  MMB
    MMB   BS    1.6  28  S       10:54:10.55   0.2 M  1.0  MMB
    AMPL  HP    1.7 225  P       10:53:50.01   0.6 M  1.0  AMPL

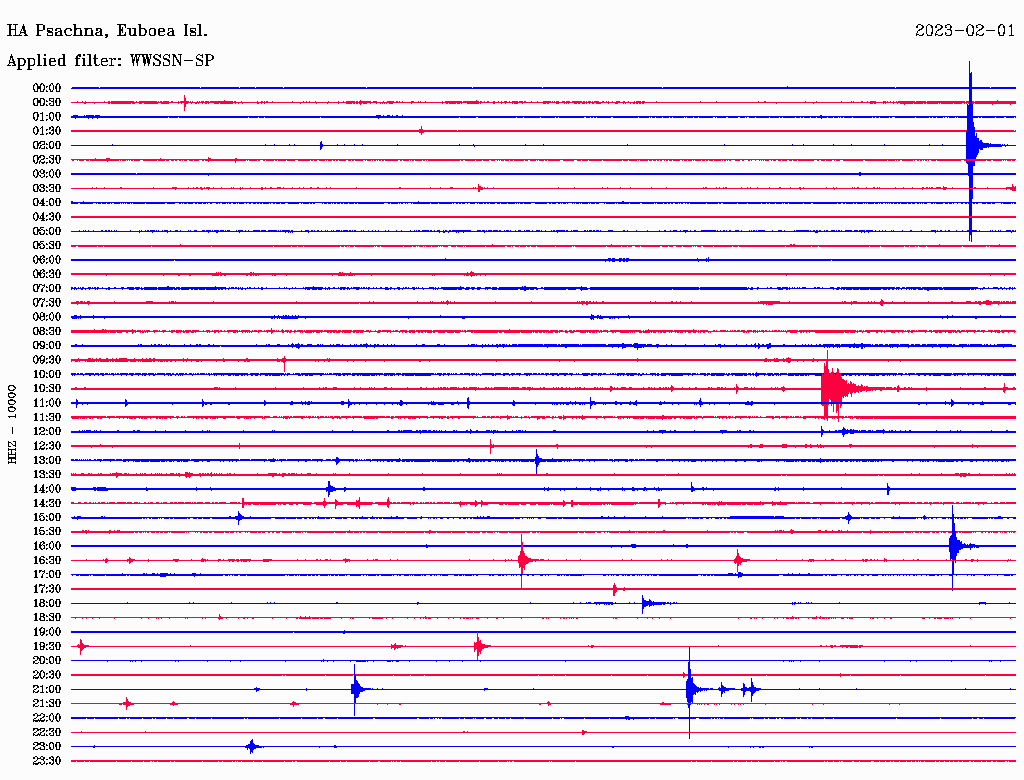

    PSAH  HA    1.7 155  P       10:53:49.69  -0.1 M  1.0  PSAH
    DSF   HP    1.7 185  P       10:53:49.96  -0.0 M  1.0  DSF
    PVO   HP    1.8 212  P       10:53:51.60   0.9 M  1.0  PVO
    KKB   BS    1.8  10  P       10:53:50.92   0.1 M  1.0  KKB
    KALE  HA    1.8 195  P       10:53:51.24   0.2 M  1.0  KALE
    GR26  1Y    1.8 163  P       10:53:50.69  -0.5 M  1.0  GR26
    EFP   HP    1.8 201  P       10:53:51.67   0.4 M  1.0  EFP
    TRIZ  CL    1.8 196  P       10:53:51.75   0.3 M  1.0  TRIZ
    VVK   HP    1.8 203  P       10:53:52.10   0.3 M  1.0  VVK
    AMPE  HA    1.8 167  P       10:53:51.94  -0.1 M  1.0  AMPE
    DOMV  HA    1.9 174  P       10:53:51.73  -0.4 M  1.0  DOMV
    SKY   HL    1.9 131  P       10:53:51.89  -0.3 M  1.0  SKY
    ERTR  HA    1.9 154  P       10:53:52.39  -0.1 M  1.0  ERTR

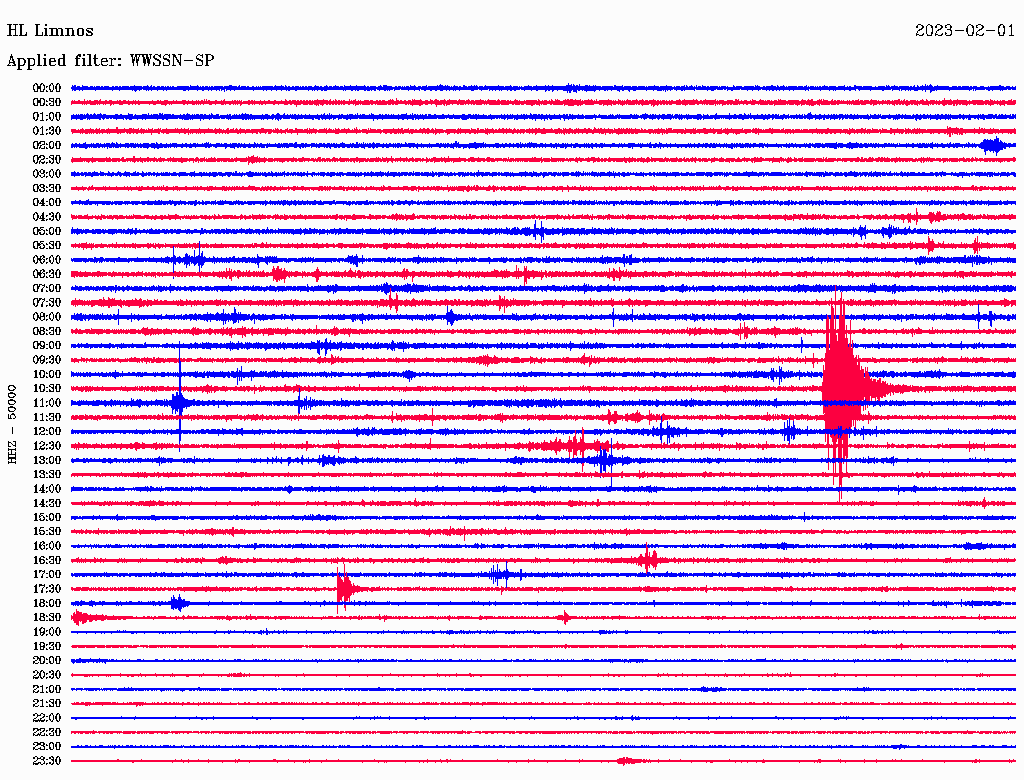

    LIA   HL    1.9  96  P       10:53:52.24  -0.4 M  1.0  LIA
    LIA   HL    1.9  96  S       10:54:16.13  -0.5 M  1.0  LIA

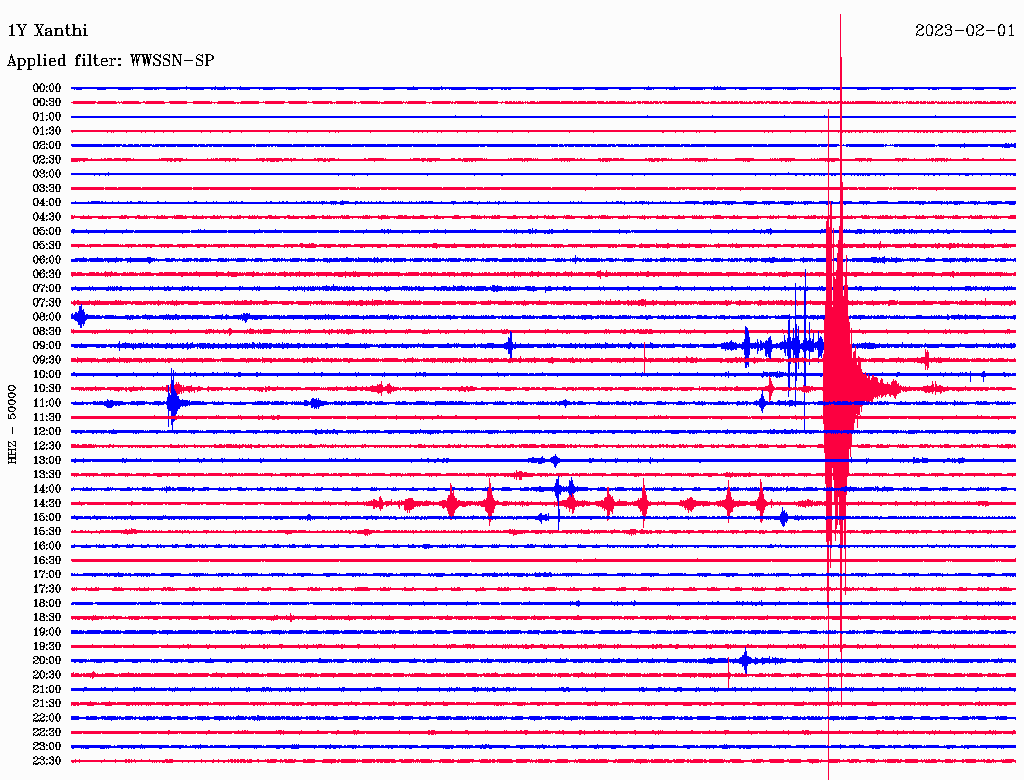

    GR03  1Y    1.9  57  P       10:53:52.85  -0.5 M  1.0  GR03

64 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    GR18  1Y    0.4 188  MLv     3.98 -0.09    66.9566
    GR12  1Y    0.4 338  MLv     4.01 -0.06    64.7557
    NESN  HT    0.4 202  MLv     4.42  0.35    155.289
    GR13  1Y    0.4  54  MLv     3.76 -0.30    30.4239
    GINA  HL    0.5 211  MLv     4.38  0.32    74.0021
    HORT  HT    0.6  29  MLv     4.33  0.26    34.7373
    GR11  1Y    0.6 315  MLv     4.18  0.11    35.3843
    PLG   HL    0.6  64  MLv     4.03 -0.04    24.5878
    PLN1  HI    0.7  99  MLv     4.13  0.06    29.4808
    PAIG  HT    0.7 103  MLv     3.97 -0.09    14.1643
    GR21  1Y    0.7 193  MLv     4.09  0.03     23.842
    VOL2  HI    0.8 167  MLv     4.34  0.27    41.3674
    THL   HL    0.8 226  MLv     4.70  0.63    56.1812
    GR07  1Y    0.9 321  MLv     3.95 -0.12    14.5709
    NEO   HL    0.9 155  MLv     4.23  0.16    38.1097
    GRG   HT    0.9 343  MLv     4.17  0.10    23.6729
    SOFA  HL    0.9 213  MLv     4.36  0.29    35.8697
    GR09  1Y    0.9  53  MLv     4.46  0.39    44.9445
    GR17  1Y    0.9 246  MLv     4.42  0.36    40.9182
    GR10  1Y    1.0 294  MLv     4.10  0.03    18.5689
    OUR   HT    1.0  76  MLv     4.21  0.14    23.0623
    GR22  1Y    1.0 176  MLv     4.03 -0.04     14.689
    KPRO  HT    1.1 262  MLv     4.16  0.09    18.5833
    AGG   HT    1.1 196  MLv     4.50  0.43    29.2013
    GR20  1Y    1.2 221  MLv     3.80 -0.27    7.23322
    SRS   HT    1.2  33  MLv     4.05 -0.01    8.63035
    GR01  1Y    1.3  20  MLv     3.91 -0.16    8.15175
    AOS2  HT    1.3 138  MLv     3.76 -0.30    5.65473
    GR15  1Y    1.3 263  MLv     3.98 -0.08     9.1493
    NEST  HT    1.3 284  MLv     3.98 -0.08    8.86556
    AXAR  HA    1.3 182  MLv     3.51 -0.56    11.6438
    GR23  1Y    1.3 164  MLv     4.43  0.36    24.0807
    TETR  HL    1.4 236  MLv     4.41  0.34    22.6624
    EVR   HL    1.4 211  MLv     4.16  0.10    12.4478
    PRMD  HP    1.4 246  MLv     4.37  0.31    20.1575
    LMS2  HI    1.4 301  MLv     3.74 -0.32    4.54247
    ATAL  HA    1.4 171  MLv     3.52 -0.55    2.66333
    LKR   HL    1.5 172  MLv     3.89 -0.17    3.22271
    GR24  1Y    1.5 196  MLv     3.76 -0.31    4.34943
    KVLA  HL    1.5  57  MLv     4.28  0.22    13.9865
    NVR   HL    1.5  35  MLv     4.21  0.15    8.80395
    GR02  1Y    1.5  46  MLv     4.02 -0.04    7.64769
    JAN   HL    1.5 253  MLv     3.75 -0.32    5.34145
    MRKA  HA    1.5 155  MLv     3.90 -0.17    5.47778
    THAS  HT    1.6  72  MLv     3.88 -0.19    4.91156
    KAVA  HT    1.6  57  MLv     4.10  0.03    16.6165
    ANX   HP    1.6 203  MLv     4.15  0.08    8.70613
    MMB   BS    1.6  28  MLv     4.03 -0.04    6.59978
    AMPL  HP    1.7 225  MLv     4.14  0.07    8.22211
    PSAH  HA    1.7 155  MLv     3.87 -0.20    4.29379
    DSF   HP    1.7 185  MLv     3.74 -0.33    3.12091
    PVO   HP    1.8 212  MLv     4.03 -0.04    5.64111
    KKB   BS    1.8  10  MLv     4.06 -0.00    6.05604
    KALE  HA    1.8 195  MLv     3.94 -0.12    4.56265
    GR26  1Y    1.8 163  MLv     3.79 -0.28    3.16769
    EFP   HP    1.8 201  MLv     3.65 -0.41    2.26717
    TRIZ  CL    1.8 196  MLv     3.71 -0.36    2.53003
    VVK   HP    1.8 203  MLv     3.27 -0.80    4.19313
    AMPE  HA    1.8 167  MLv     3.79 -0.28    2.89503
    DOMV  HA    1.9 174  MLv     3.38 -0.69    1.11323
    SKY   HL    1.9 131  MLv     3.50 -0.57    2.42421
    ERTR  HA    1.9 154  MLv     3.96 -0.11    4.08757
    LIA   HL    1.9  96  MLv     3.53 -0.54    3.00837
    GR03  1Y    1.9  57  MLv     4.36  0.29    9.59965
