Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2023-01-19 02:22:28 (GMT)
 Μέγεθος
 M 4.3
 Γεωγρ. Πλάτος
 39.4483° Β
 Γεωγρ. Μήκος
 25.8482° Α
 Εστιακό Βάθος
 23 χμ
 Αρ. αφίξεων
 58
 Επίκεντρο 46.6 χμ ΒΔ της Μυτιλήνης
73.0 χμ ΝΑ της Λήμνου
245.4 χμ ΒΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Μηχ.Γέν.


  Μηχανισμός Γένεσης

Μηχ.Γεν. Παράταξη (°) Κλίση (°) Γων.Ολίσθ. (°) Σεισμ.Ροπή (dyn*cm)
31350-77 4.24E+22

Γεωγρ.Πλάτος (°Β) Γεωγρ.Μήκος (°Α) Βάθος (χμ) Μέγεθος Mw
39.453925.87469.04.4

Υπολογισμός εστιακών παραμέτρων

Κλικ εδώ για λεπτομέρειες μηχανισμού γένεσης

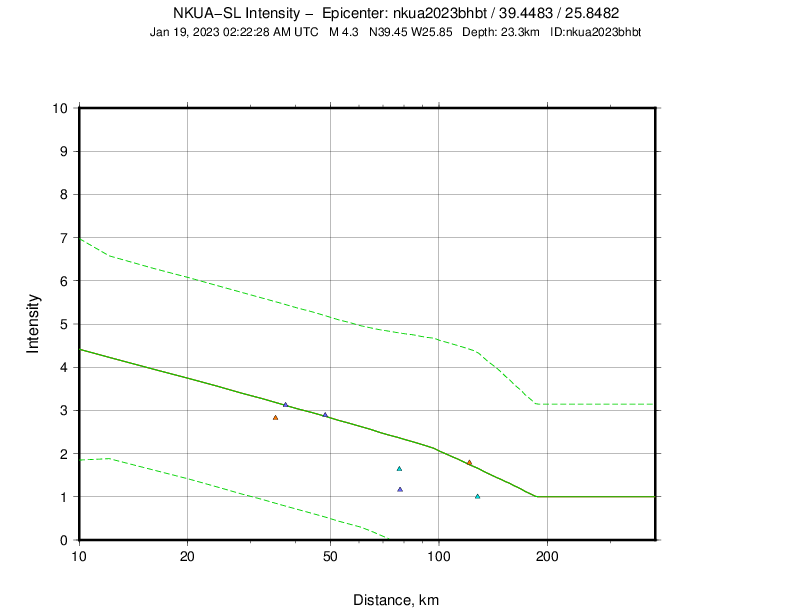

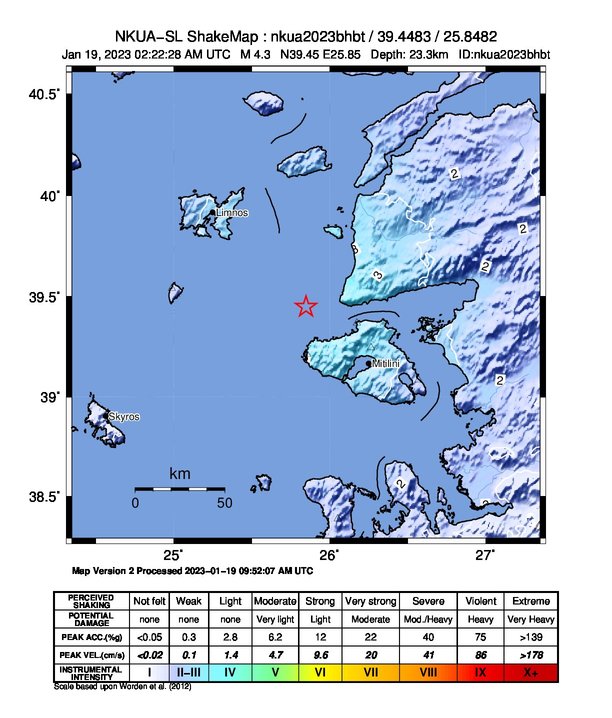

  Χάρτης εντάσεως


PGA

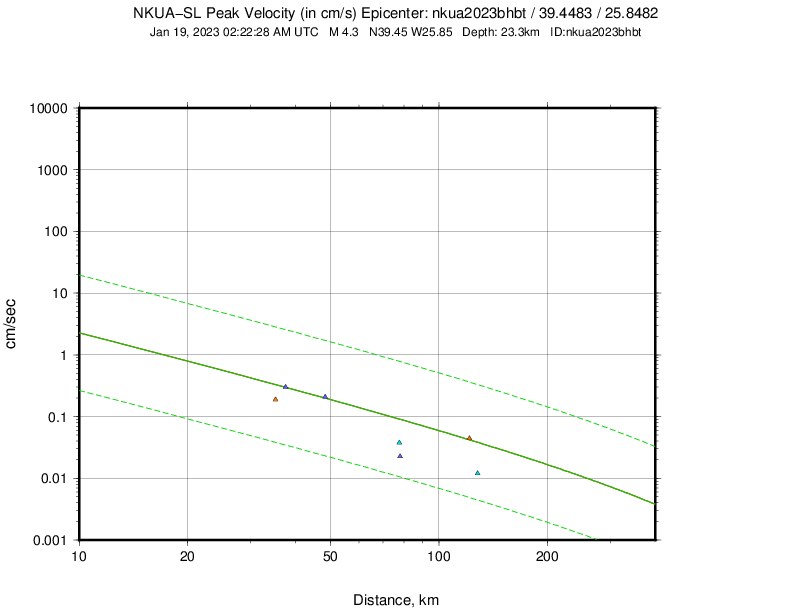

 PGV
 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

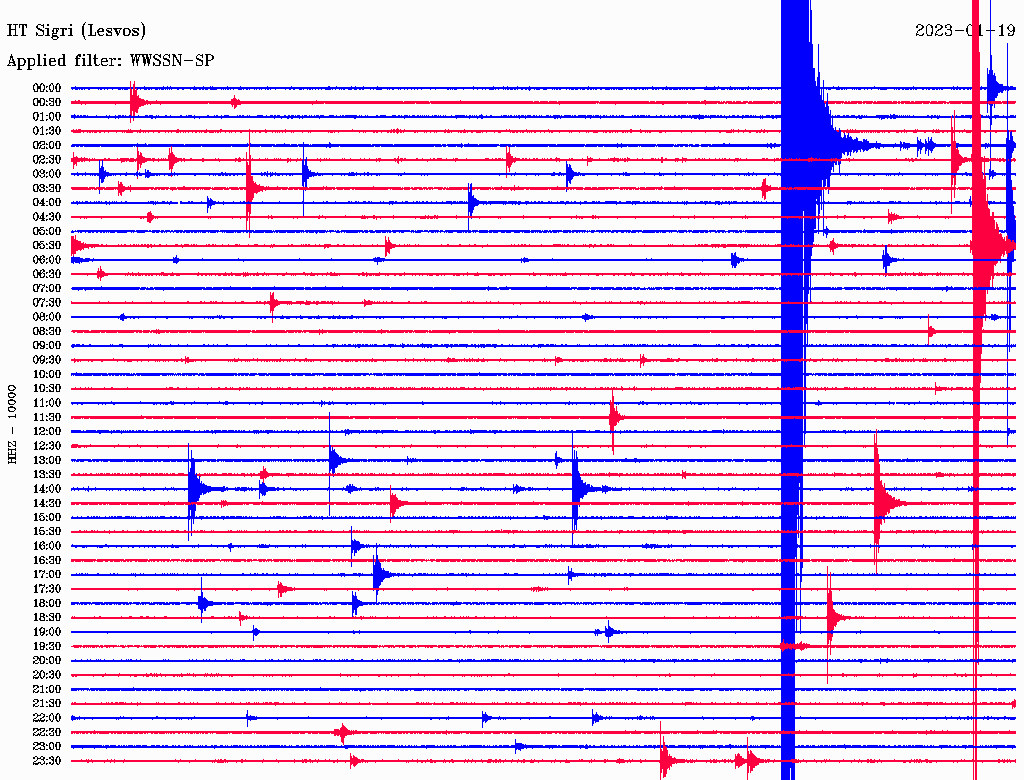

SIGRHT26.3179 P02:22:33.98 -0.11.0M
SIGRHT26.3179 S02:22:38.36 -0.21.0M

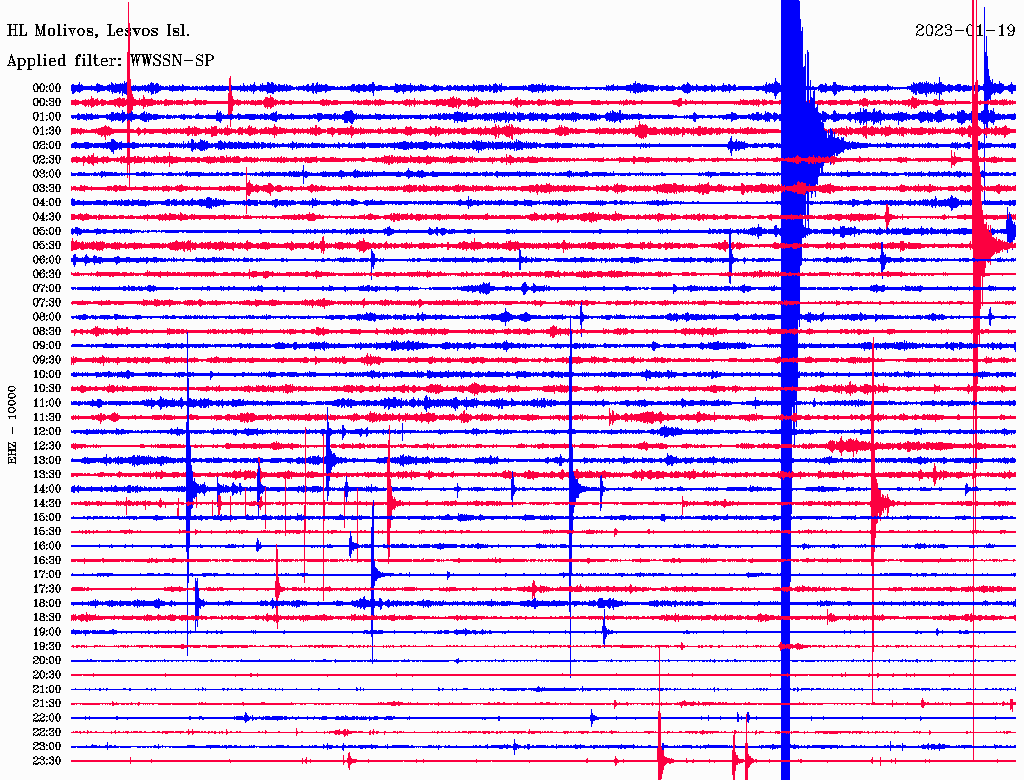

LESV2HL29.4108 P02:22:34.08 -0.41.0M
LESV2HL29.4108 S02:22:38.51 -0.81.0M
PRKHL42.3122 P02:22:36.34 0.11.0M
PRKHL42.3122 S02:22:42.30 -0.11.0M
MYT1HI74.1123 P02:22:41.48 0.51.0M
MYT1HI74.1123 S02:22:50.92 0.31.0M
EFSAHL74.5278 P02:22:41.93 0.91.0M
EFSAHL74.5278 S02:22:51.08 0.31.0M

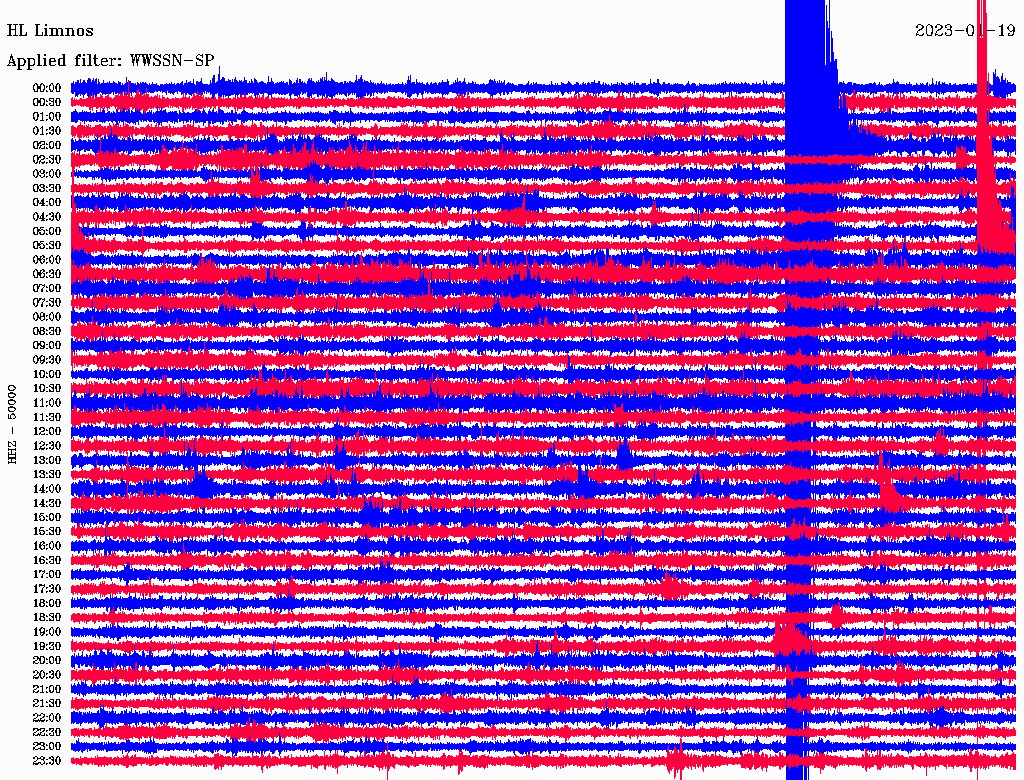

LIAHL75.9311 P02:22:41.74 0.51.0M
LIAHL75.9311 S02:22:51.40 0.31.0M
CHOSHT119.3172 P02:22:48.58 0.71.0M
CHOSHT119.3172 S02:23:02.84 -0.11.0M
SKY1HI126.1241 P02:22:49.26 0.41.0M
SKY1HI126.1241 S02:23:04.48 -0.11.0M
THASHT160.7323 P02:22:53.36 0.11.0M
THASHT160.7323 S02:23:12.12 -0.31.0M
AOS2HT175.7259 P02:22:55.65 0.41.0M
AOS2HT175.7259 S02:23:15.56 -0.31.0M
GR041Y186.2336 P02:22:56.61 0.11.0M
GR041Y186.2336 S02:23:17.43 -0.71.0M

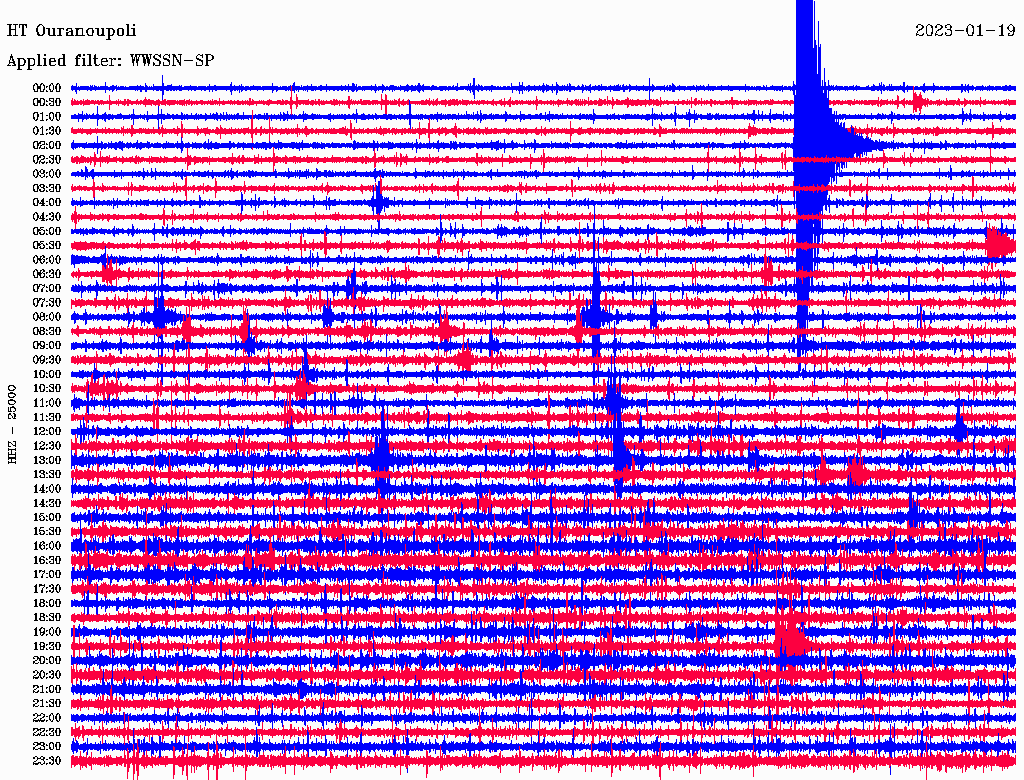

OURHT187.2302 P02:22:57.13 0.41.0M
OURHT187.2302 S02:23:18.18 -0.31.0M
RDOHL190.5352 P02:22:57.36 0.31.0M
RDOHL190.5352 S02:23:19.14 0.11.0M
PAIGHT193.5286 P02:22:57.78 0.21.0M
PAIGHT193.5286 S02:23:20.27 0.31.0M
KRL1HI198.4158 P02:22:58.36 0.31.0M
KRL1HI198.4158 S02:23:21.00 0.21.0M
GR271Y198.5225 P02:22:58.13 0.01.0M

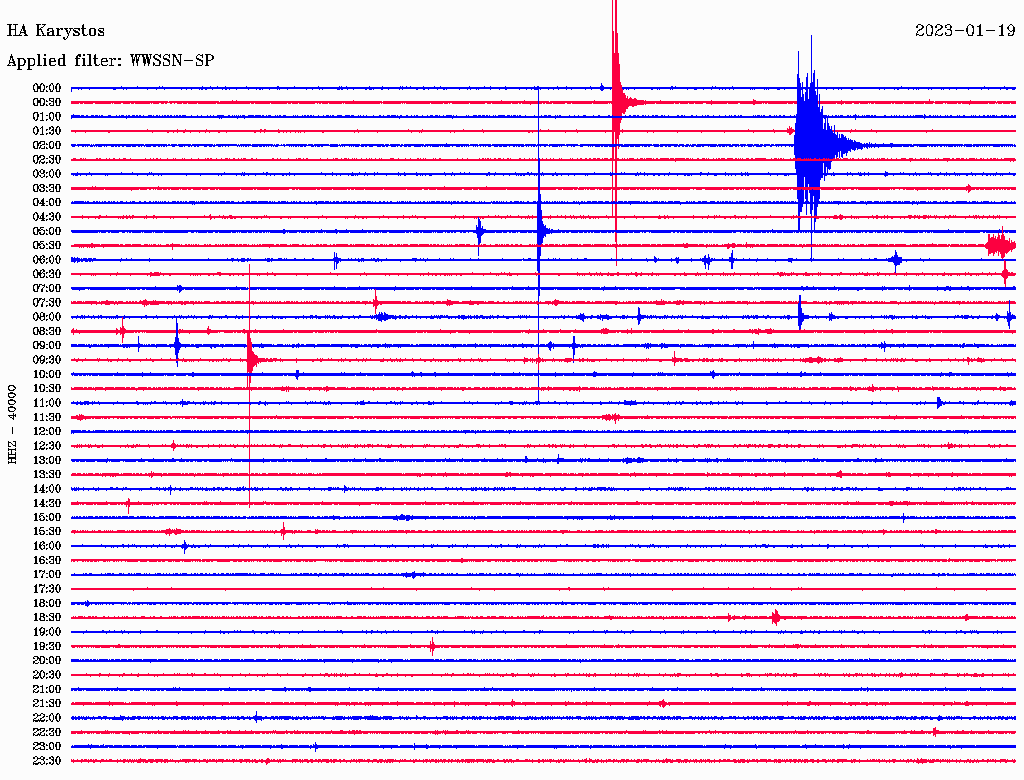

KARYHA199.4218 P02:22:58.25 0.01.0M
KARYHA199.4218 S02:23:20.65 -0.51.0M

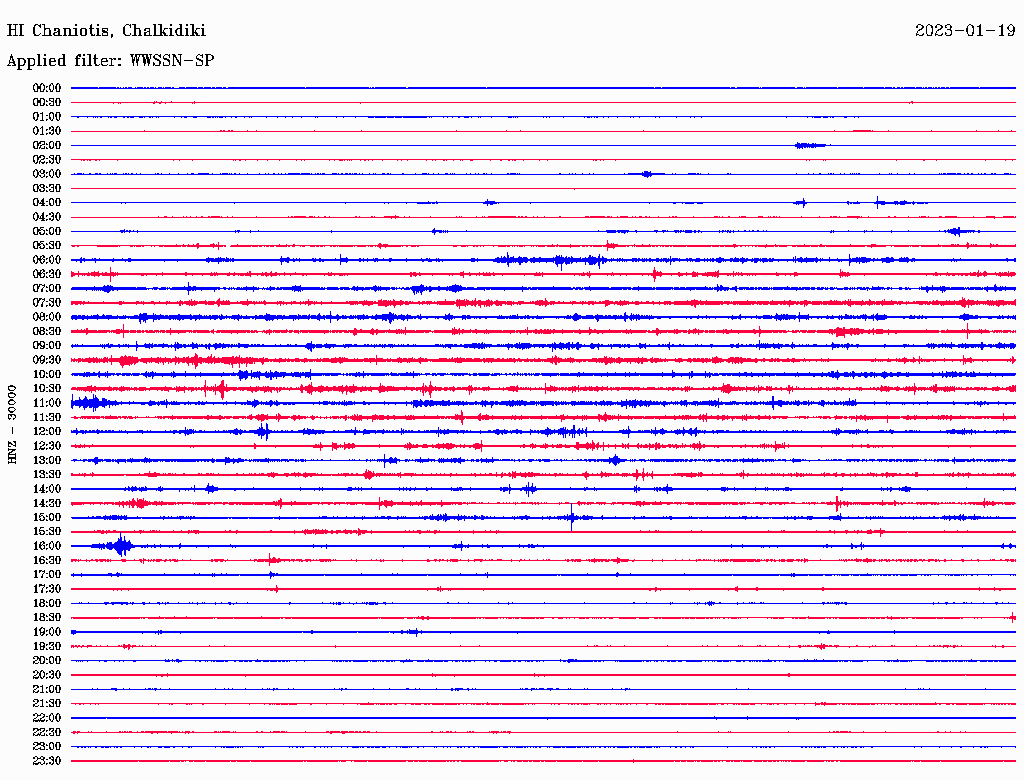

PLN1HI203.8287 P02:22:58.93 0.11.0M
PLN1HI203.8287 S02:23:21.67 -0.51.0M

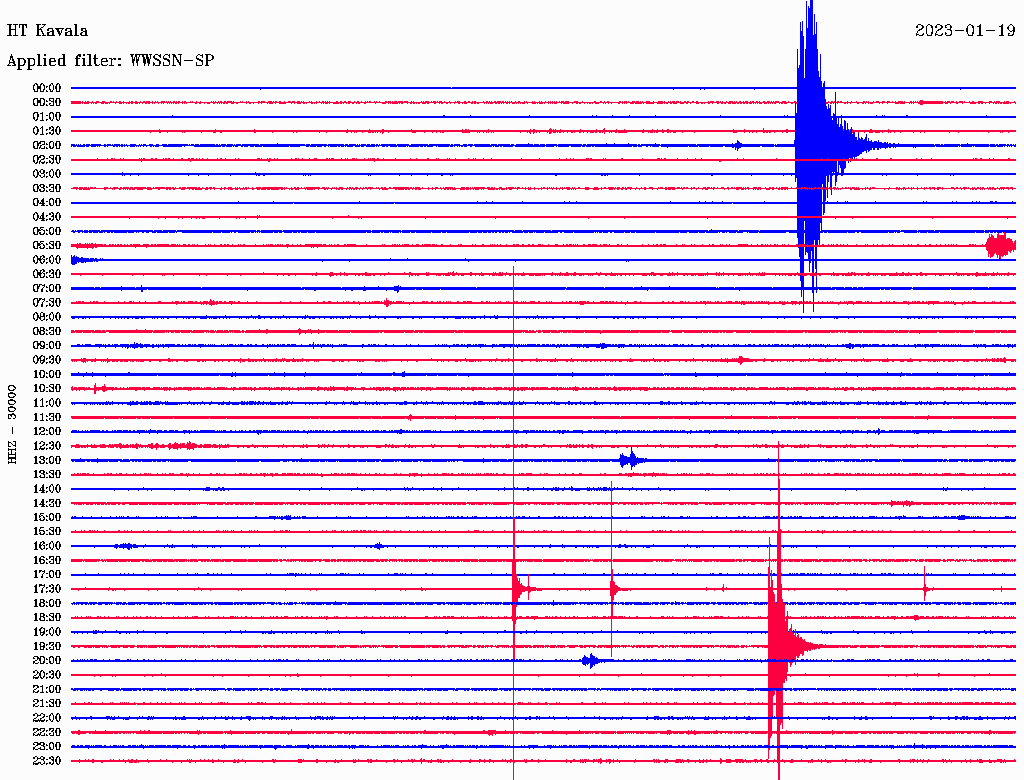

KAVAHT205.9327 P02:22:59.18 0.11.0M
KAVAHT205.9327 S02:23:22.40 -0.21.0M

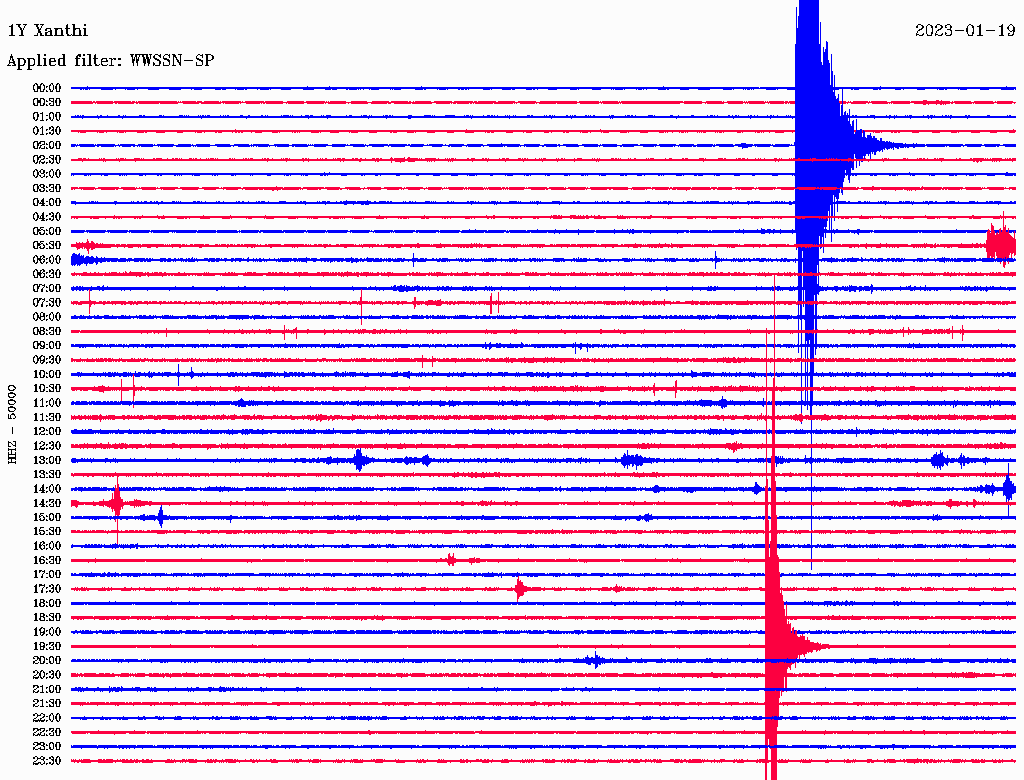

GR031Y206.2337 P02:22:59.42 0.31.0M

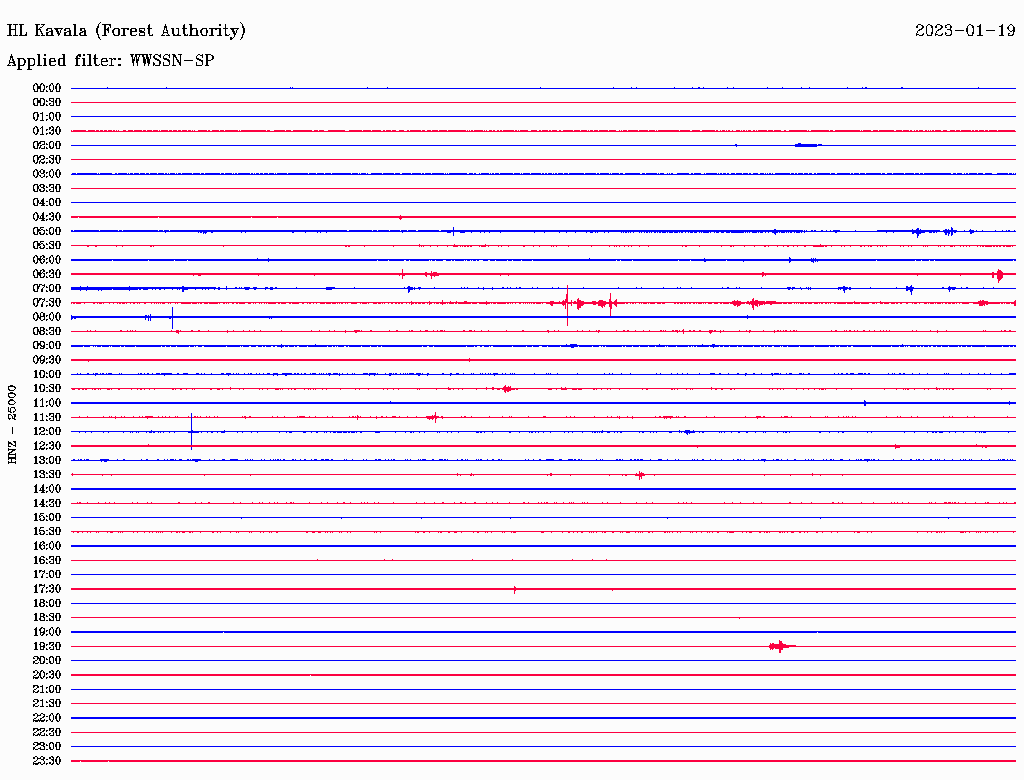

KVLAHL206.9323 P02:22:59.29 0.11.0M
KVLAHL206.9323 S02:23:22.67 -0.21.0M

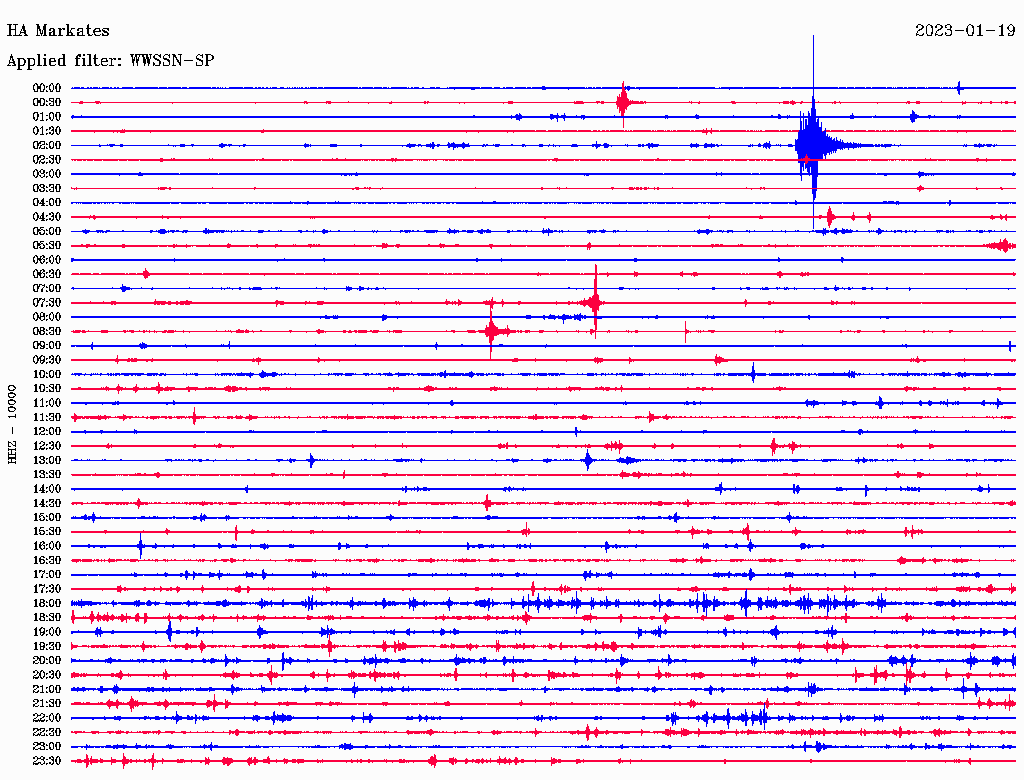

MRKAHA212.0247 P02:22:59.97 0.01.0M
MRKAHA212.0247 S02:23:24.73 0.61.0M
SMGHL212.2156 P02:22:59.97 0.11.0M
SMGHL212.2156 S02:23:24.19 0.21.0M
ERTRHA212.6237 P02:22:59.91 -0.11.0M
ERTRHA212.6237 S02:23:23.86 -0.31.0M

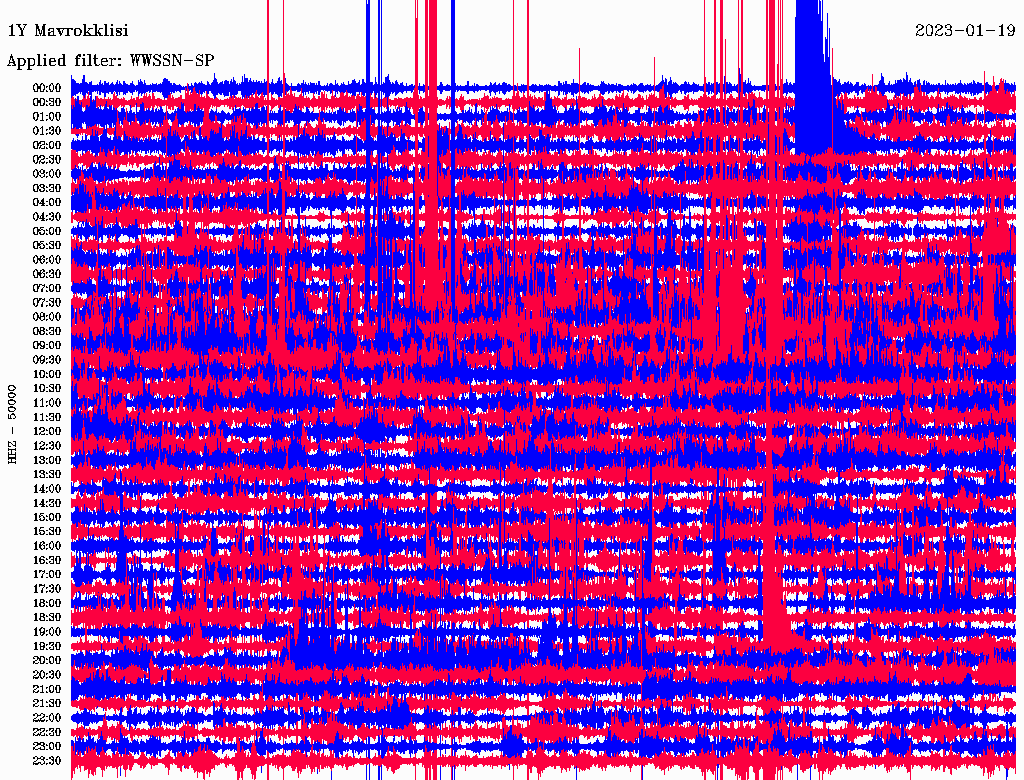

GR061Y213.3 10 P02:23:00.02 0.01.0M
GR061Y213.3 10 S02:23:24.07 -0.21.0M
PSAHHA213.8243 P02:23:00.19 0.01.0M
PSAHHA213.8243 S02:23:24.11 -0.41.0M

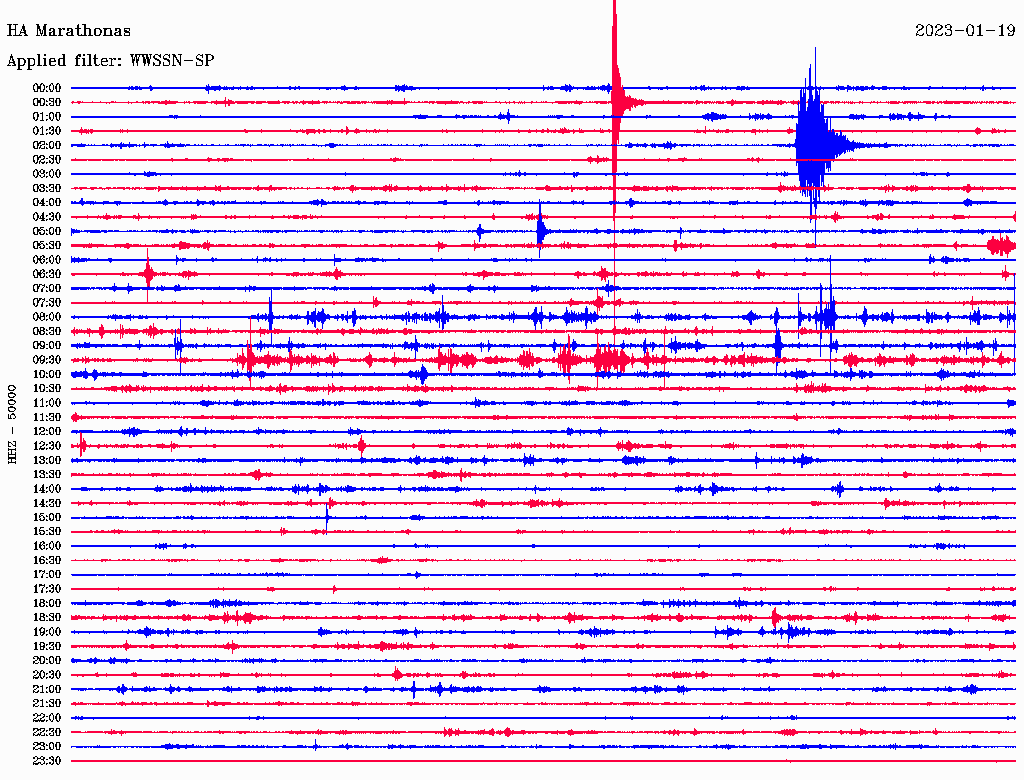

MRTHHA221.5228 P02:23:01.04 -0.11.0M
MRTHHA221.5228 S02:23:25.71 -0.51.0M
PLGHL229.3297 P02:23:02.74 0.51.0M
PLGHL229.3297 S02:23:27.90 -0.21.0M
KDZBS246.4350 P02:23:04.30 0.01.0M
KDZBS246.4350 S02:23:31.70 0.01.0M

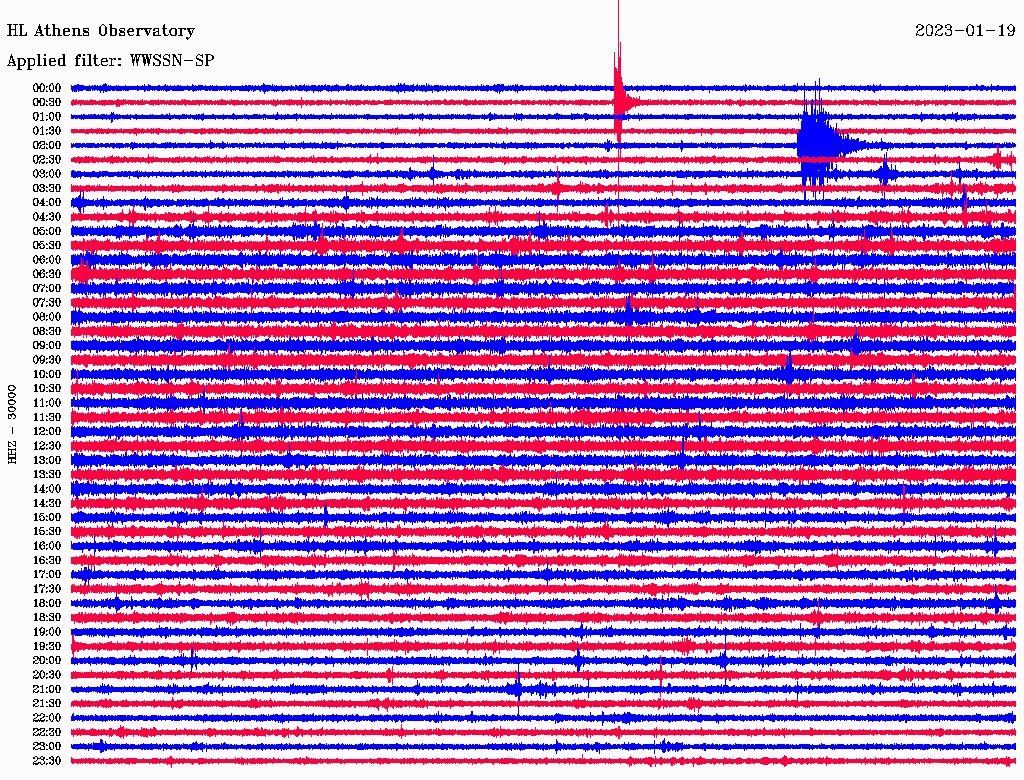

ATHHL247.1229 P02:23:04.32 -0.11.0M
ATHHL247.1229 S02:23:31.93 0.01.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2023bhbt
    Description
      region name: Aegean Sea
Origin:
    Date                   2023-01-19
    Time                  02:22:28.17
    Latitude              39.4483 deg  +/-      0 km
    Longitude             25.8482 deg  +/-      0 km
    Depth                      23 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.32 s
    Azimuthal gap              98 deg

2 Network magnitudes:
    MLv       4.35 +/- 0.13  23
    M         4.35           23 preferred

58 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    SIGR  HT    0.2 179  P       02:22:33.98  -0.1 M  1.0  SIGR
    SIGR  HT    0.2 179  S       02:22:38.36  -0.2 M  1.0  SIGR
    LESV2 HL    0.3 108  P       02:22:34.08  -0.4 M  1.0  LESV2
    LESV2 HL    0.3 108  S       02:22:38.51  -0.8 M  1.0  LESV2

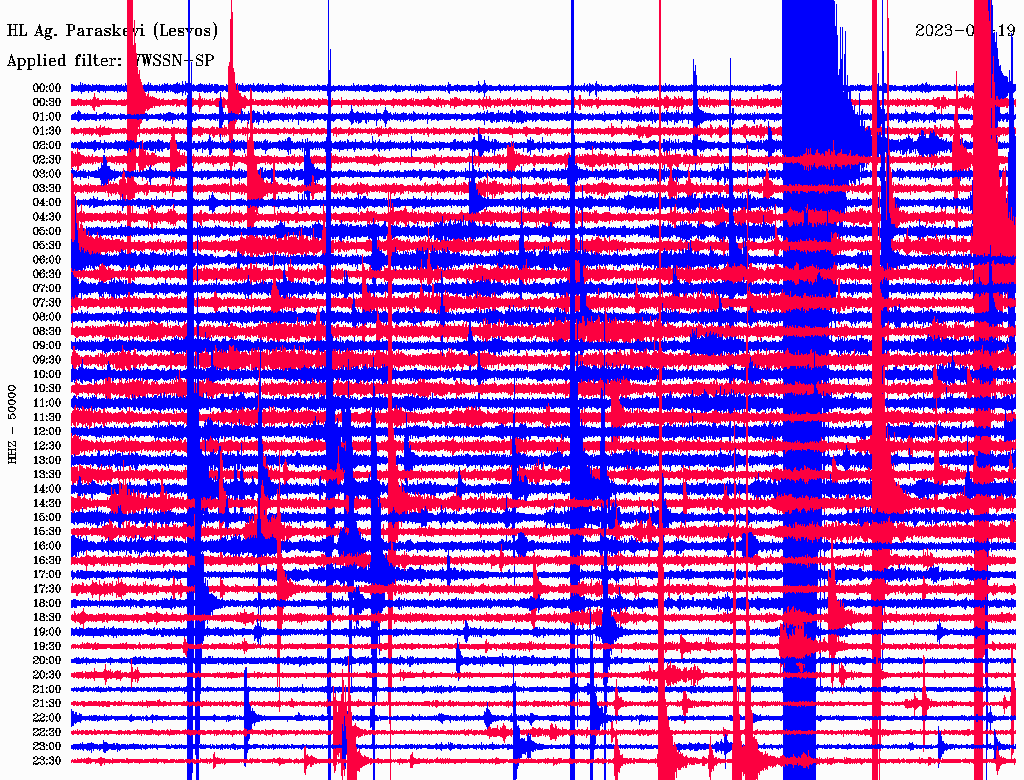

    PRK   HL    0.4 122  P       02:22:36.34   0.1 M  1.0  PRK
    PRK   HL    0.4 122  S       02:22:42.30  -0.1 M  1.0  PRK
    MYT1  HI    0.7 123  P       02:22:41.48   0.5 M  1.0  MYT1
    MYT1  HI    0.7 123  S       02:22:50.92   0.3 M  1.0  MYT1

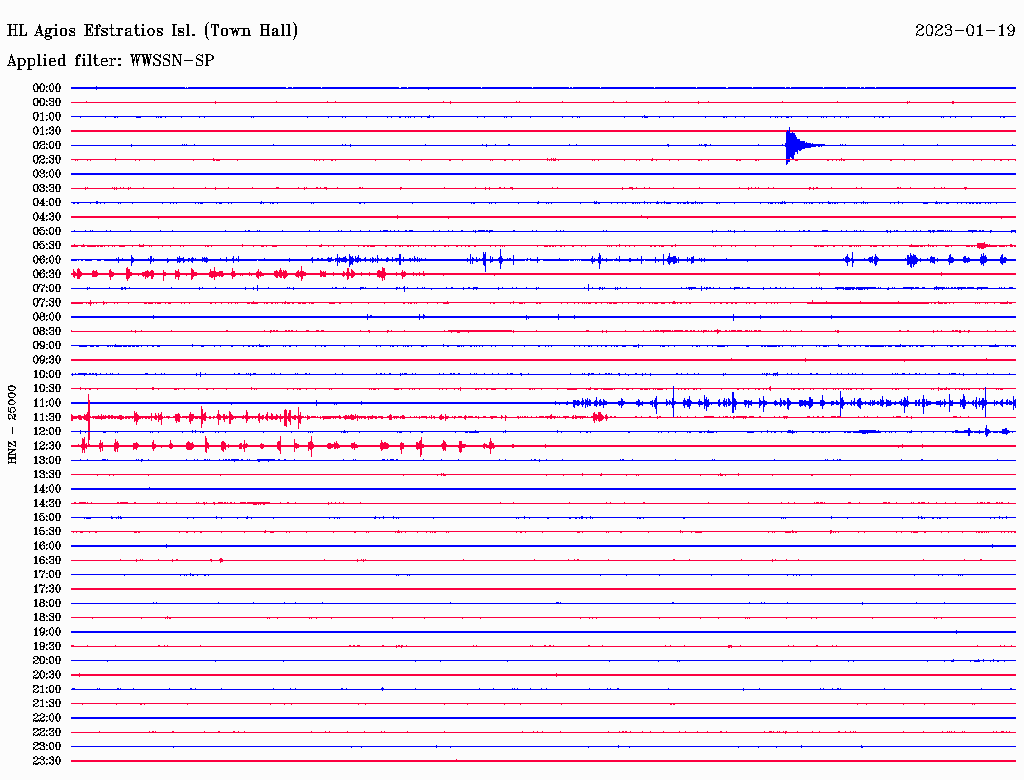

    EFSA  HL    0.7 278  P       02:22:41.93   0.9 M  1.0  EFSA
    EFSA  HL    0.7 278  S       02:22:51.08   0.3 M  1.0  EFSA
    LIA   HL    0.7 311  P       02:22:41.74   0.5 M  1.0  LIA
    LIA   HL    0.7 311  S       02:22:51.40   0.3 M  1.0  LIA

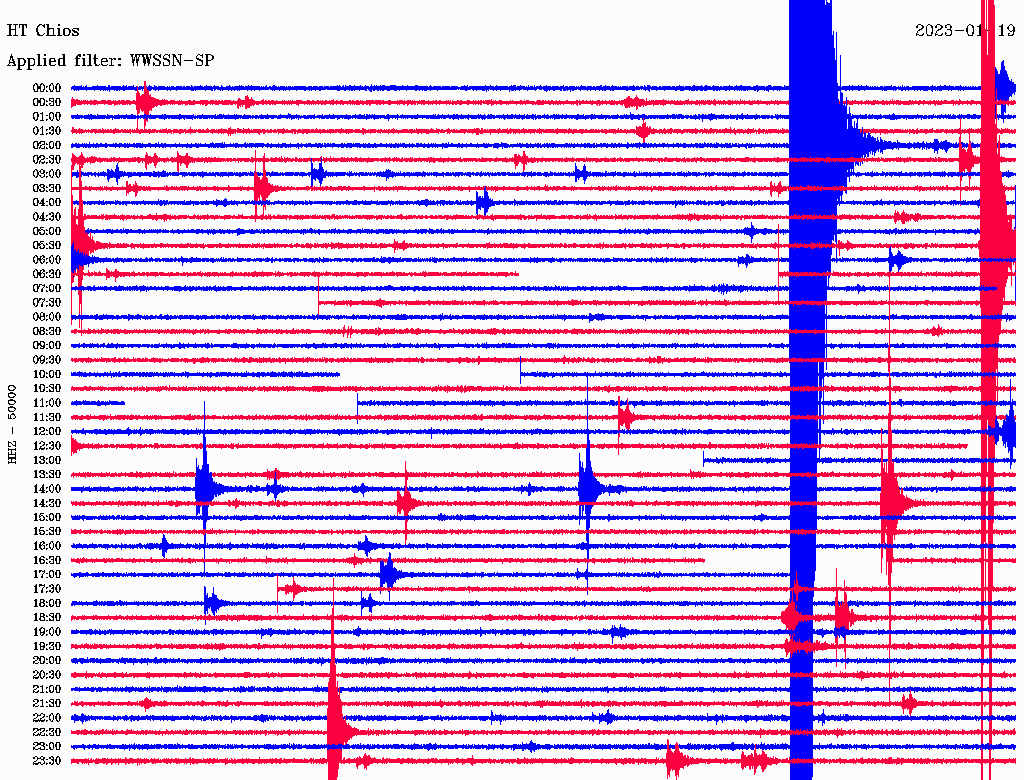

    CHOS  HT    1.1 172  P       02:22:48.58   0.7 M  1.0  CHOS
    CHOS  HT    1.1 172  S       02:23:02.84  -0.1 M  1.0  CHOS

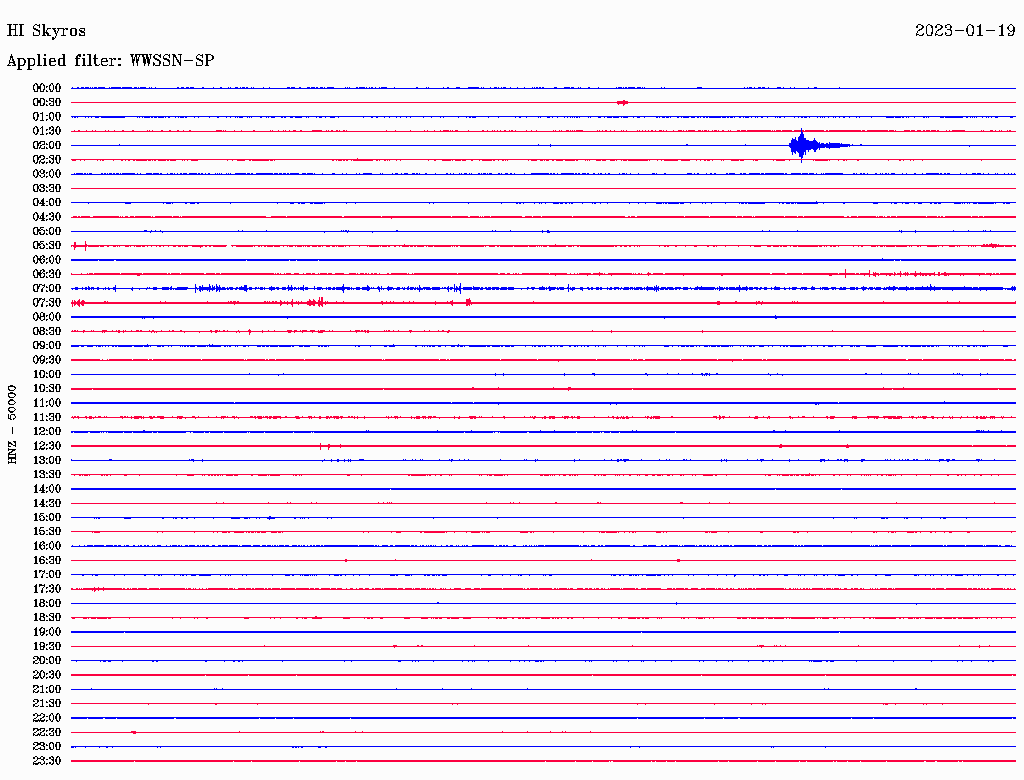

    SKY1  HI    1.1 241  P       02:22:49.26   0.4 M  1.0  SKY1
    SKY1  HI    1.1 241  S       02:23:04.48  -0.1 M  1.0  SKY1

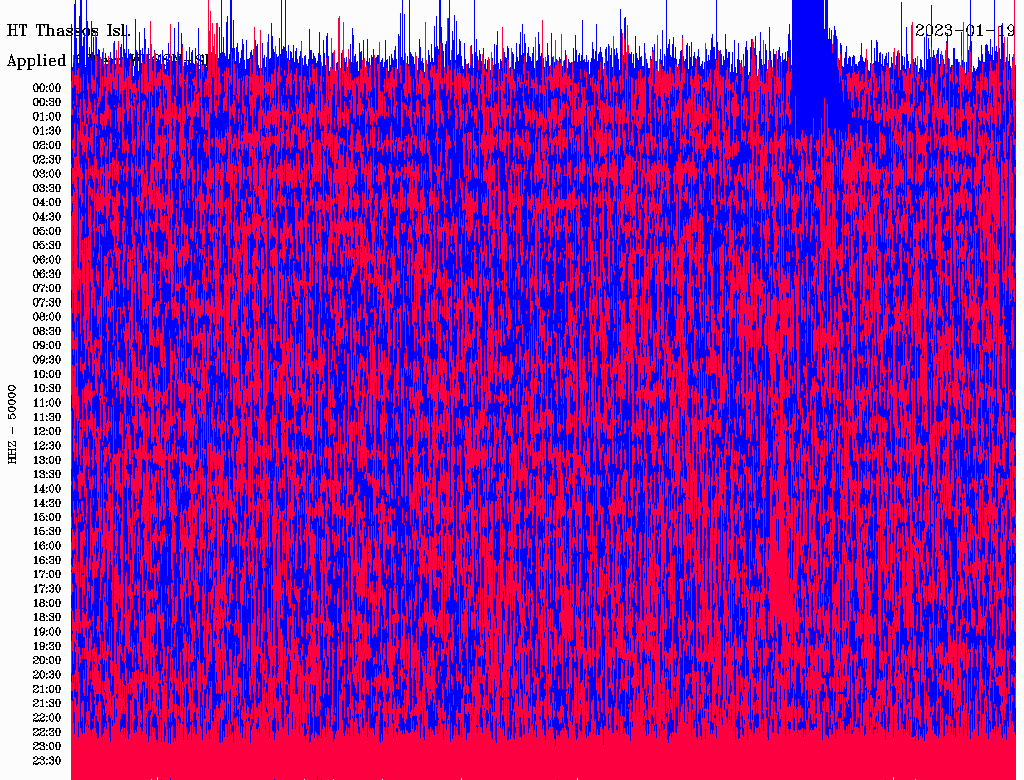

    THAS  HT    1.4 323  P       02:22:53.36   0.1 M  1.0  THAS
    THAS  HT    1.4 323  S       02:23:12.12  -0.3 M  1.0  THAS

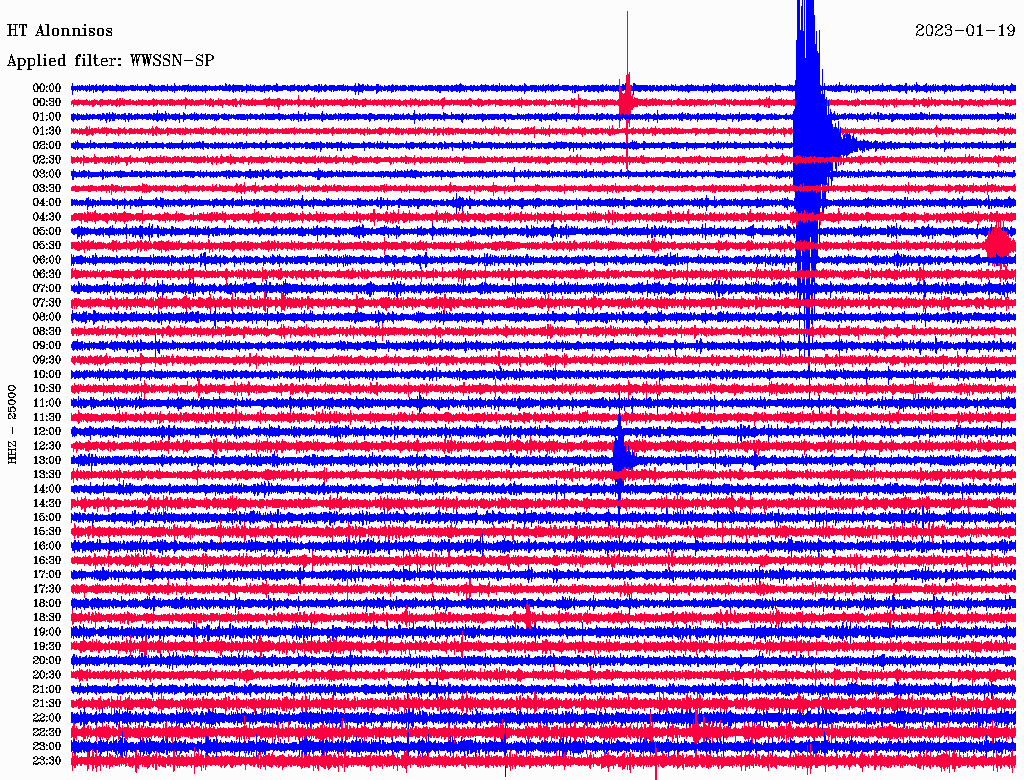

    AOS2  HT    1.6 259  P       02:22:55.65   0.4 M  1.0  AOS2
    AOS2  HT    1.6 259  S       02:23:15.56  -0.3 M  1.0  AOS2

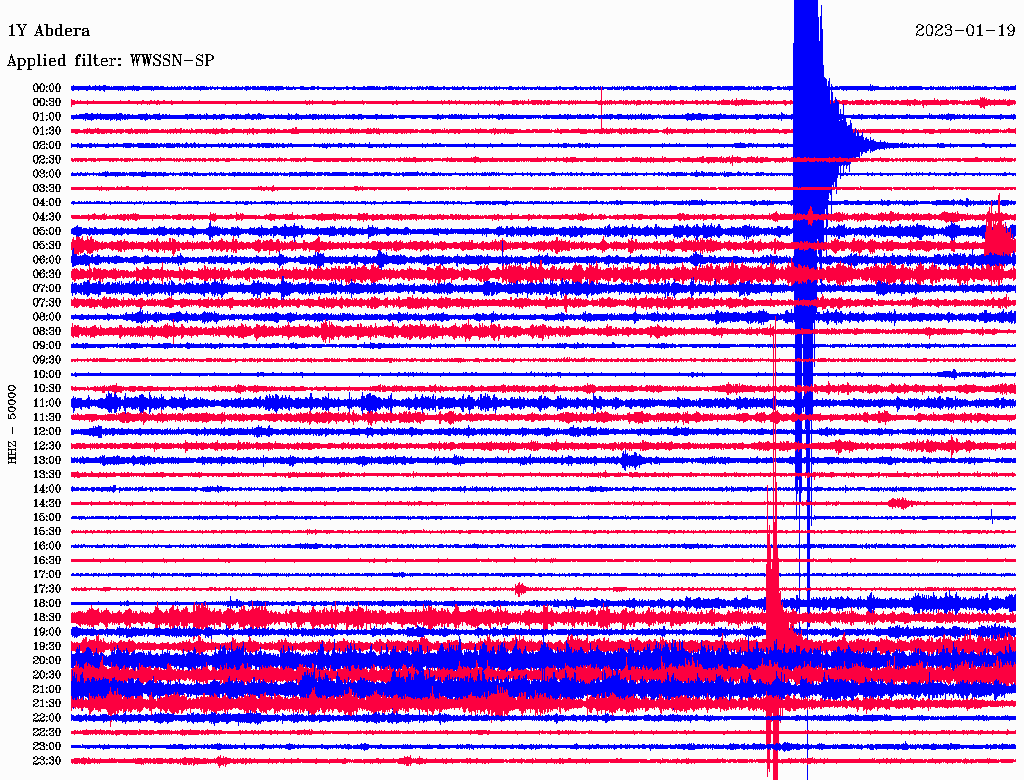

    GR04  1Y    1.7 336  P       02:22:56.61   0.1 M  1.0  GR04
    GR04  1Y    1.7 336  S       02:23:17.43  -0.7 M  1.0  GR04
    OUR   HT    1.7 302  P       02:22:57.13   0.4 M  1.0  OUR
    OUR   HT    1.7 302  S       02:23:18.18  -0.3 M  1.0  OUR

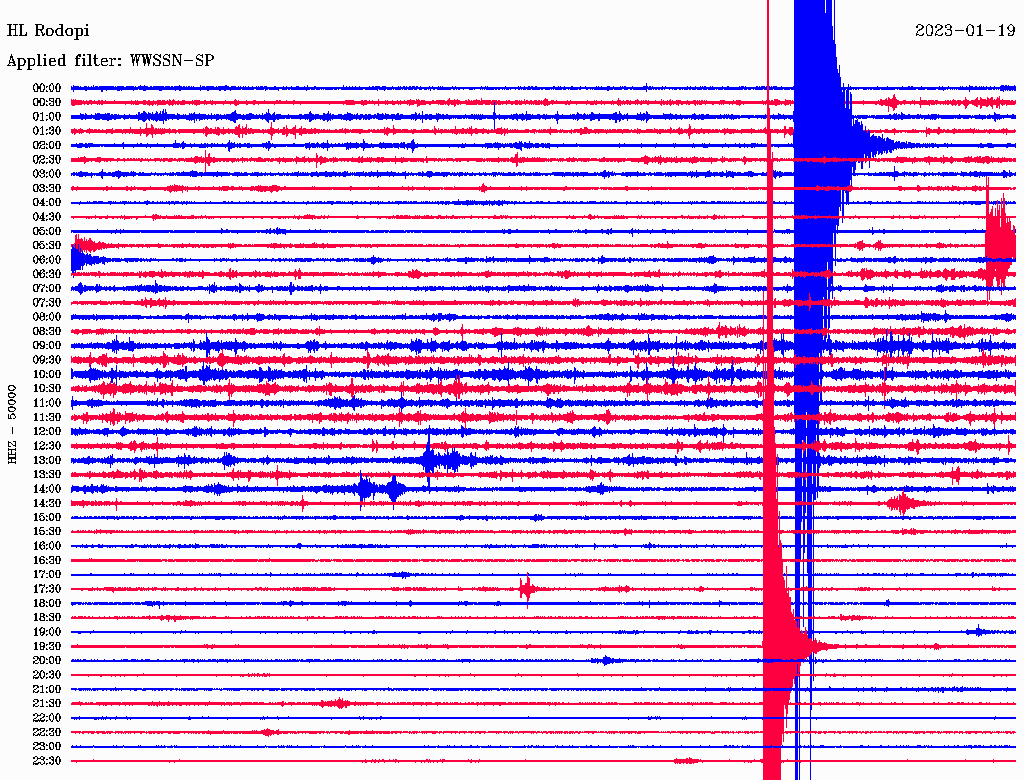

    RDO   HL    1.7 352  P       02:22:57.36   0.3 M  1.0  RDO
    RDO   HL    1.7 352  S       02:23:19.14   0.1 M  1.0  RDO

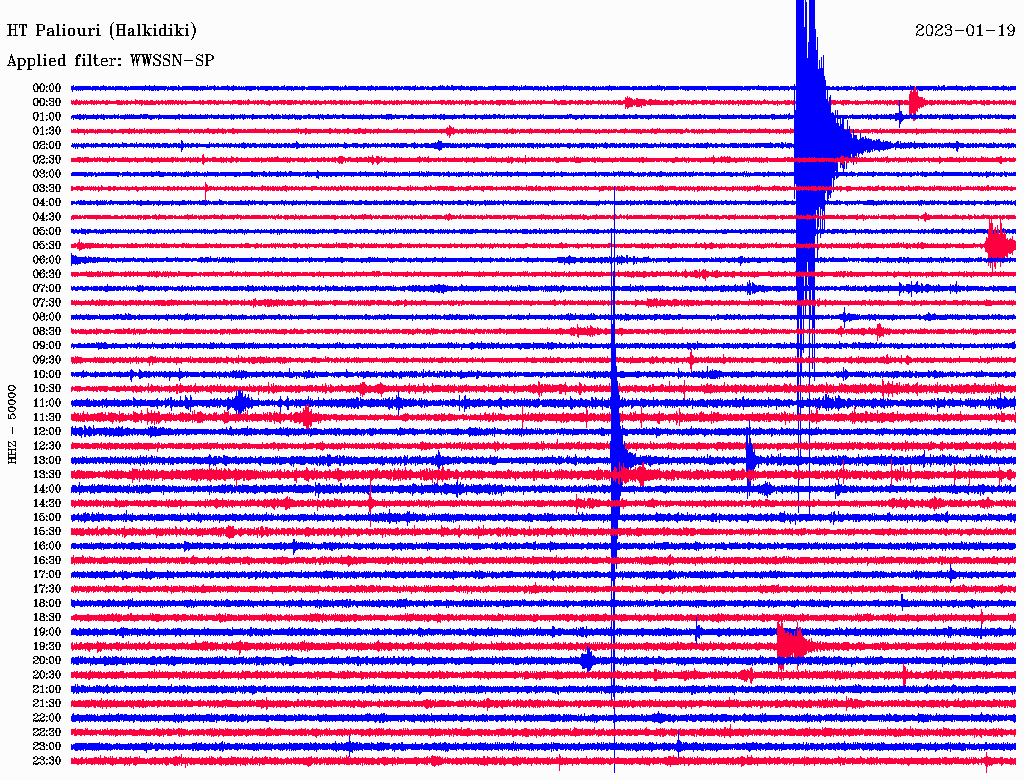

    PAIG  HT    1.7 286  P       02:22:57.78   0.2 M  1.0  PAIG
    PAIG  HT    1.7 286  S       02:23:20.27   0.3 M  1.0  PAIG

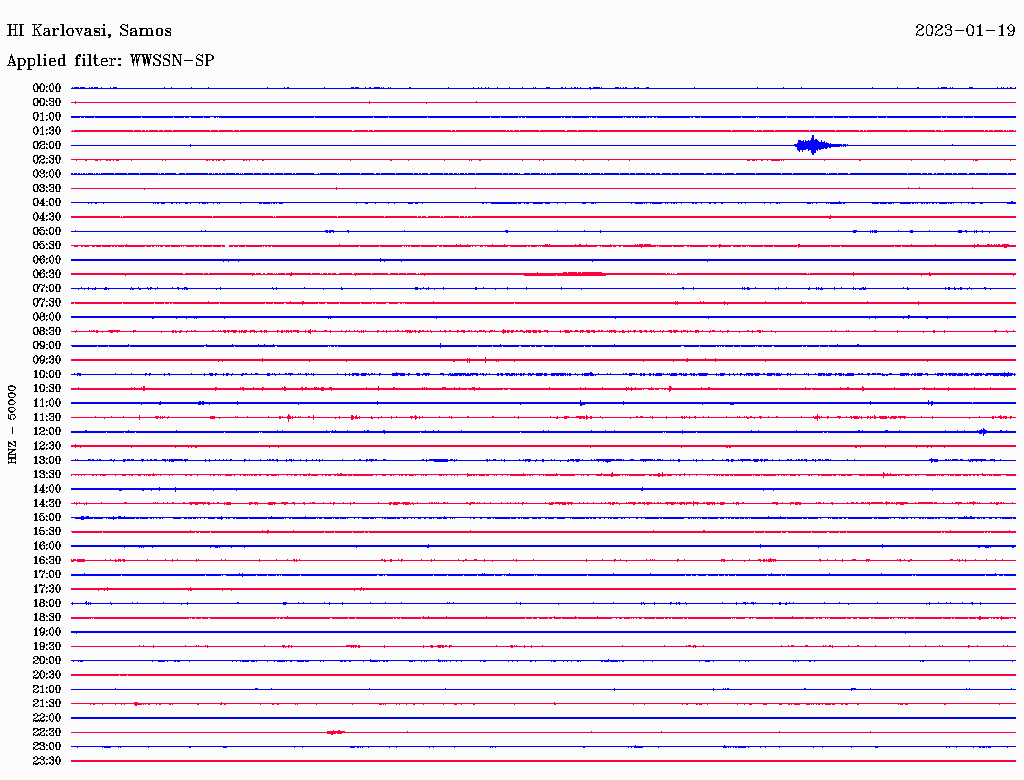

    KRL1  HI    1.8 158  P       02:22:58.36   0.3 M  1.0  KRL1
    KRL1  HI    1.8 158  S       02:23:21.00   0.2 M  1.0  KRL1

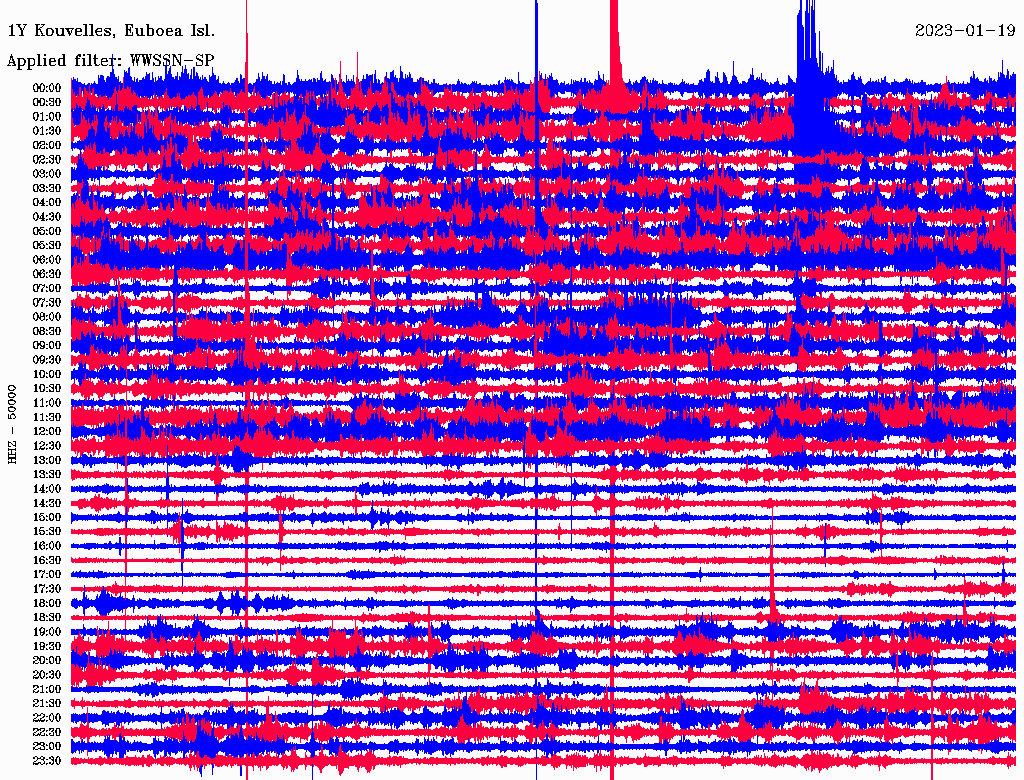

    GR27  1Y    1.8 225  P       02:22:58.13  -0.0 M  1.0  GR27
    KARY  HA    1.8 218  P       02:22:58.25  -0.0 M  1.0  KARY
    KARY  HA    1.8 218  S       02:23:20.65  -0.5 M  1.0  KARY
    PLN1  HI    1.8 287  P       02:22:58.93   0.1 M  1.0  PLN1
    PLN1  HI    1.8 287  S       02:23:21.67  -0.5 M  1.0  PLN1
    GR03  1Y    1.9 337  P       02:22:59.42   0.3 M  1.0  GR03
    KAVA  HT    1.9 327  P       02:22:59.18   0.1 M  1.0  KAVA
    KAVA  HT    1.9 327  S       02:23:22.40  -0.2 M  1.0  KAVA
    KVLA  HL    1.9 323  P       02:22:59.29   0.1 M  1.0  KVLA
    KVLA  HL    1.9 323  S       02:23:22.67  -0.2 M  1.0  KVLA

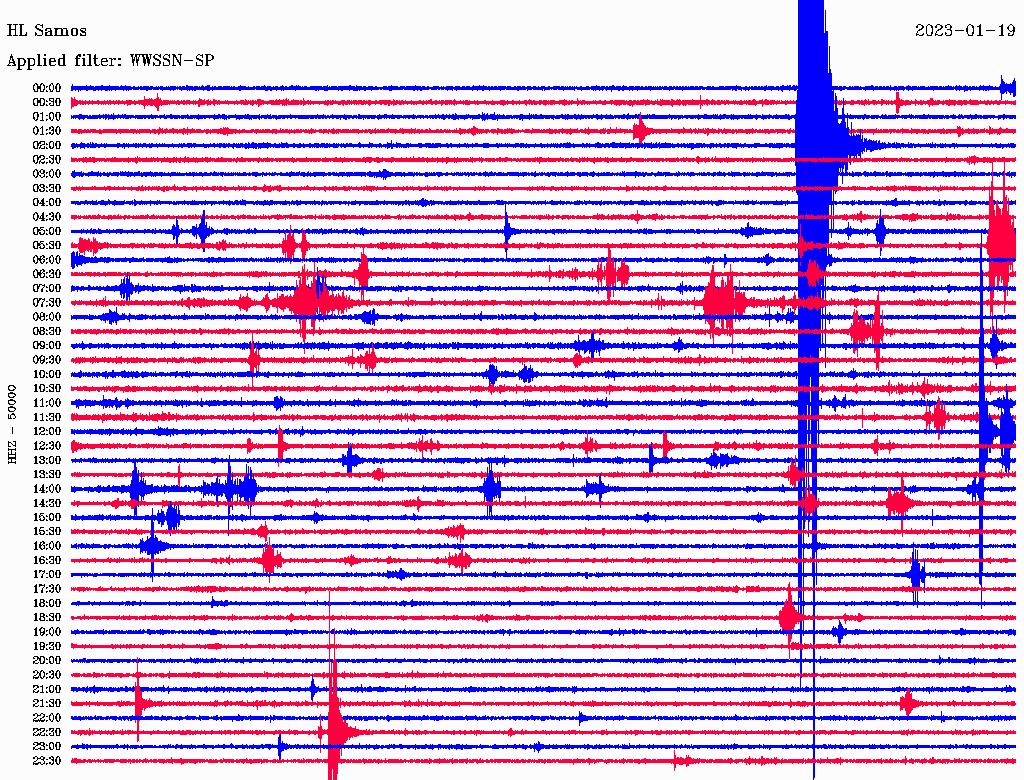

    SMG   HL    1.9 156  P       02:22:59.97   0.1 M  1.0  SMG
    SMG   HL    1.9 156  S       02:23:24.19   0.2 M  1.0  SMG
    MRKA  HA    1.9 247  P       02:22:59.97  -0.0 M  1.0  MRKA
    MRKA  HA    1.9 247  S       02:23:24.73   0.6 M  1.0  MRKA
    ERTR  HA    1.9 237  P       02:22:59.91  -0.1 M  1.0  ERTR
    ERTR  HA    1.9 237  S       02:23:23.86  -0.3 M  1.0  ERTR
    GR06  1Y    1.9  10  P       02:23:00.02  -0.0 M  1.0  GR06
    GR06  1Y    1.9  10  S       02:23:24.07  -0.2 M  1.0  GR06

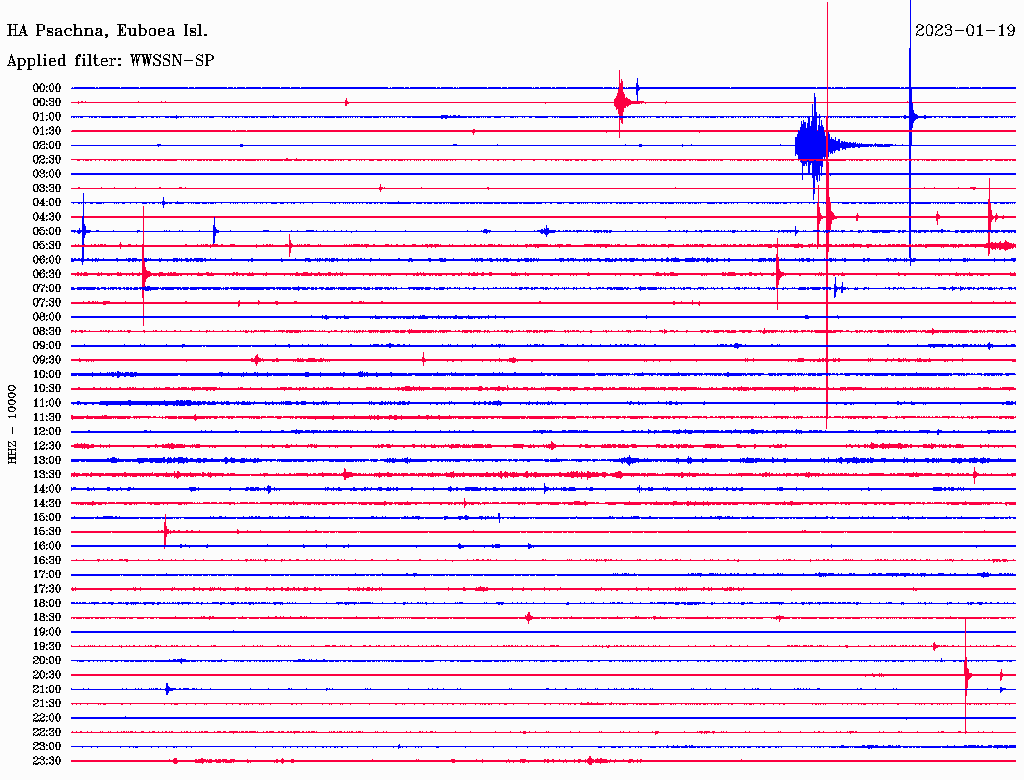

    PSAH  HA    1.9 243  P       02:23:00.19   0.0 M  1.0  PSAH
    PSAH  HA    1.9 243  S       02:23:24.11  -0.4 M  1.0  PSAH
    MRTH  HA    2.0 228  P       02:23:01.04  -0.1 M  1.0  MRTH
    MRTH  HA    2.0 228  S       02:23:25.71  -0.5 M  1.0  MRTH

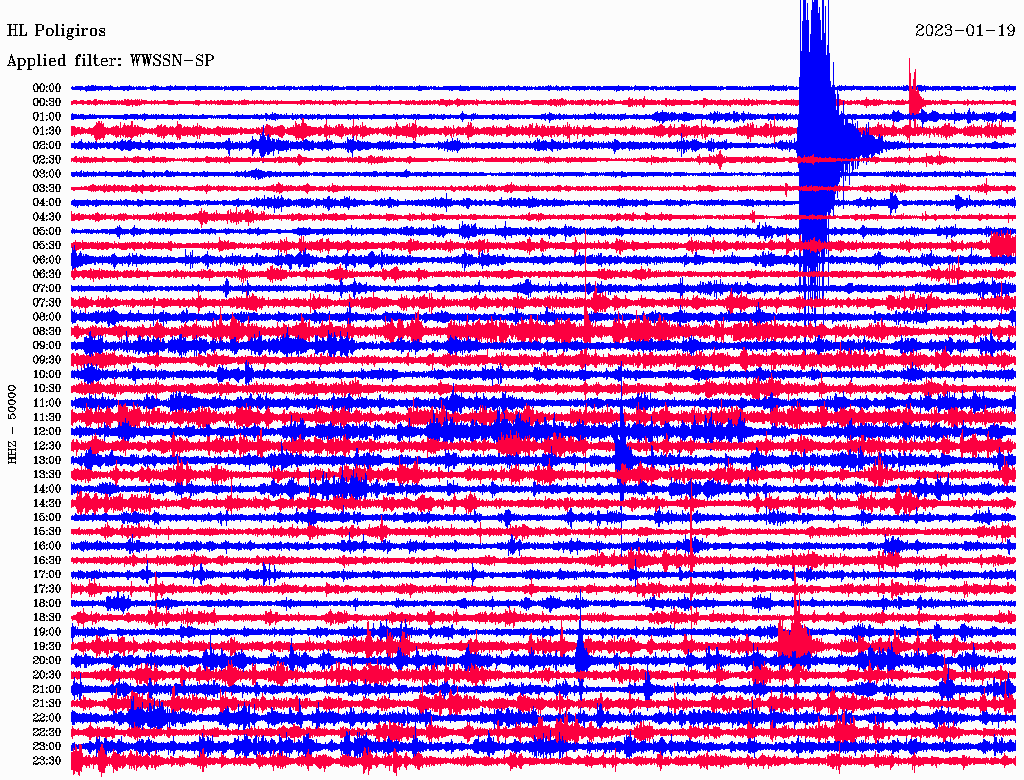

    PLG   HL    2.1 297  P       02:23:02.74   0.5 M  1.0  PLG
    PLG   HL    2.1 297  S       02:23:27.90  -0.2 M  1.0  PLG

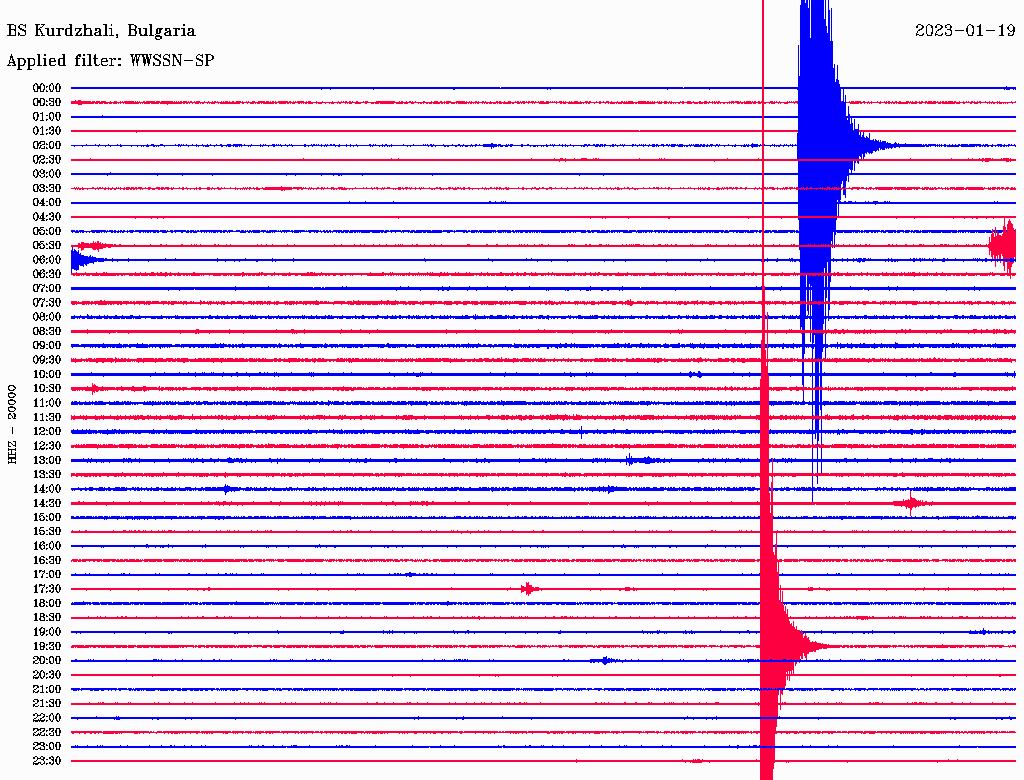

    KDZ   BS    2.2 350  P       02:23:04.30   0.0 M  1.0  KDZ
    KDZ   BS    2.2 350  S       02:23:31.70  -0.0 M  1.0  KDZ
    ATH   HL    2.2 229  P       02:23:04.32  -0.1 M  1.0  ATH
    ATH   HL    2.2 229  S       02:23:31.93   0.0 M  1.0  ATH

30 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    SIGR  HT    0.2 179  MLv     4.28 -0.07    329.234
    LESV2 HL    0.3 108  MLv     4.51  0.16    472.819
    PRK   HL    0.4 122  MLv     4.92  0.57    574.418
    MYT1  HI    0.7 123  MLv     4.66  0.31    97.9701
    EFSA  HL    0.7 278  MLv     4.47  0.12    62.5419
    LIA   HL    0.7 311  MLv     4.16 -0.19    60.0937
    CHOS  HT    1.1 172  MLv     4.81  0.46    81.0828
    SKY1  HI    1.1 241  MLv     4.32 -0.03    24.3317
    THAS  HT    1.4 323  MLv     4.48  0.13    23.8106
    AOS2  HT    1.6 259  MLv     4.34 -0.01    14.4246
    GR04  1Y    1.7 336  MLv     4.19 -0.15    9.17853
    OUR   HT    1.7 302  MLv     4.19 -0.16    9.02864
    RDO   HL    1.7 352  MLv     4.55  0.21    13.5442
    PAIG  HT    1.7 286  MLv     4.35  0.00     9.3432
    KRL1  HI    1.8 158  MLv     4.70  0.35     25.418
    GR27  1Y    1.8 225  MLv     4.22 -0.12    8.55513
    KARY  HA    1.8 218  MLv     4.25 -0.10      8.923
    PLN1  HI    1.8 287  MLv     4.22 -0.13    7.98282
    GR03  1Y    1.9 337  MLv     4.26 -0.08    8.57048
    KAVA  HT    1.9 327  MLv     4.02 -0.33    10.2374
    KVLA  HL    1.9 323  MLv     4.37  0.02    10.7806
    SMG   HL    1.9 156  MLv     4.57  0.22    16.2075
    MRKA  HA    1.9 247  MLv     4.55  0.20    15.4084
    ERTR  HA    1.9 237  MLv     4.36  0.01     9.8515
    GR06  1Y    1.9  10  MLv     4.62  0.28    18.0773
    PSAH  HA    1.9 243  MLv     4.24 -0.11    7.37707
    MRTH  HA    2.0 228  MLv     4.26 -0.08    7.20945
    PLG   HL    2.1 297  MLv     4.01 -0.34    3.66323
    KDZ   BS    2.2 350  MLv     4.52  0.18    9.82212
    ATH   HL    2.2 229  MLv     4.33 -0.01    6.30977
