Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2023-01-15 21:37:20 (GMT)
 Μέγεθος
 M 4.8
 Γεωγρ. Πλάτος
 41.6453° Β
 Γεωγρ. Μήκος
 19.9427° Α
 Εστιακό Βάθος
 10 χμ
 Αρ. αφίξεων
 62
 Επίκεντρο 155.1 χμ ΒΔ της Φλώρινας
167.5 χμ ΒΔ της Καστοριάς
520.1 χμ ΒΔ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Μηχ.Γέν.


  Μηχανισμός Γένεσης

Μηχ.Γεν. Παράταξη (°) Κλίση (°) Γων.Ολίσθ. (°) Σεισμ.Ροπή (dyn*cm)
25663-54 1.21E+23

Γεωγρ.Πλάτος (°Β) Γεωγρ.Μήκος (°Α) Βάθος (χμ) Μέγεθος Mw
41.585419.99238.04.7

Υπολογισμός εστιακών παραμέτρων

Κλικ εδώ για λεπτομέρειες μηχανισμού γένεσης

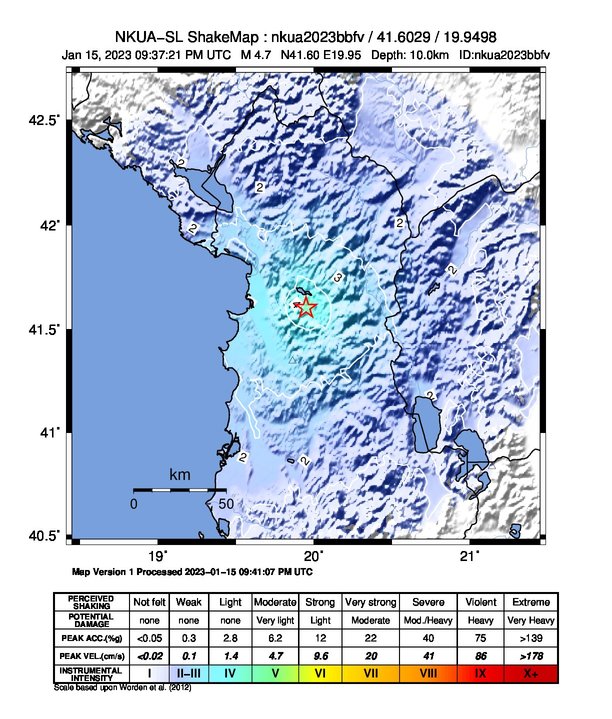

  Χάρτης εντάσεως

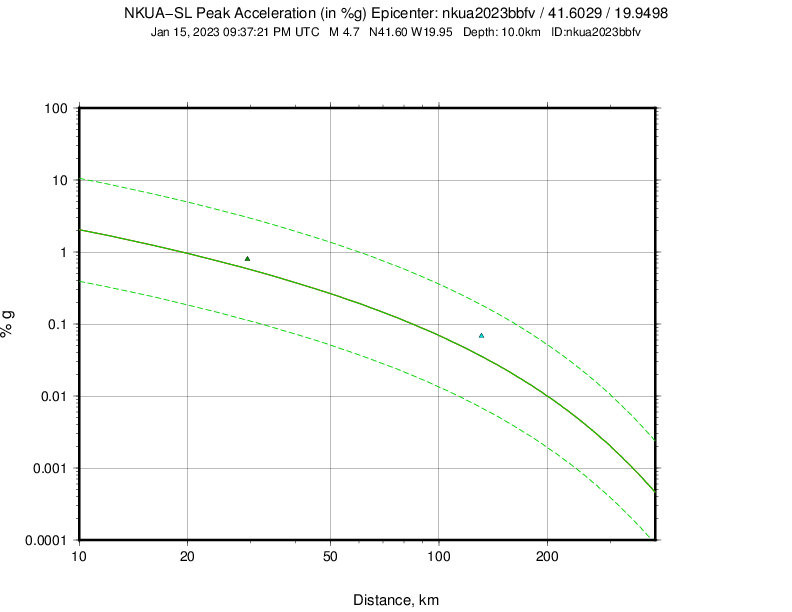

PGA

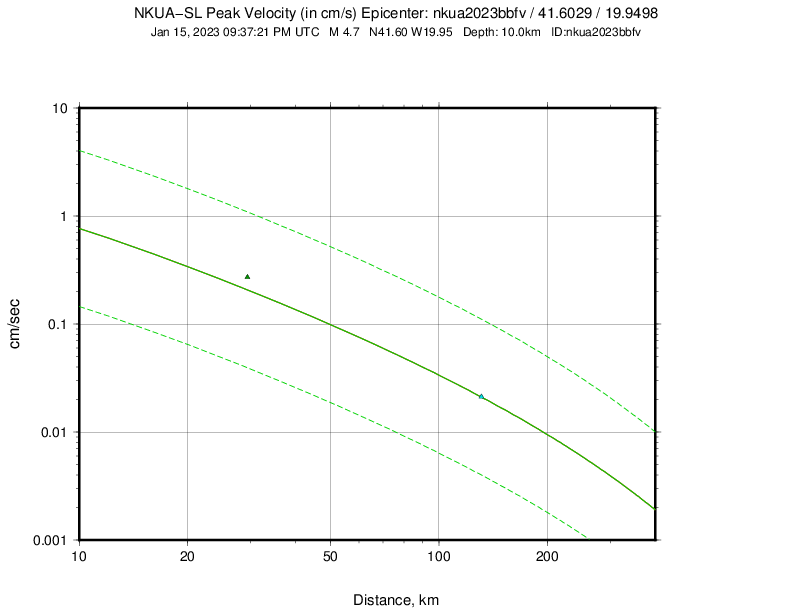

 PGV

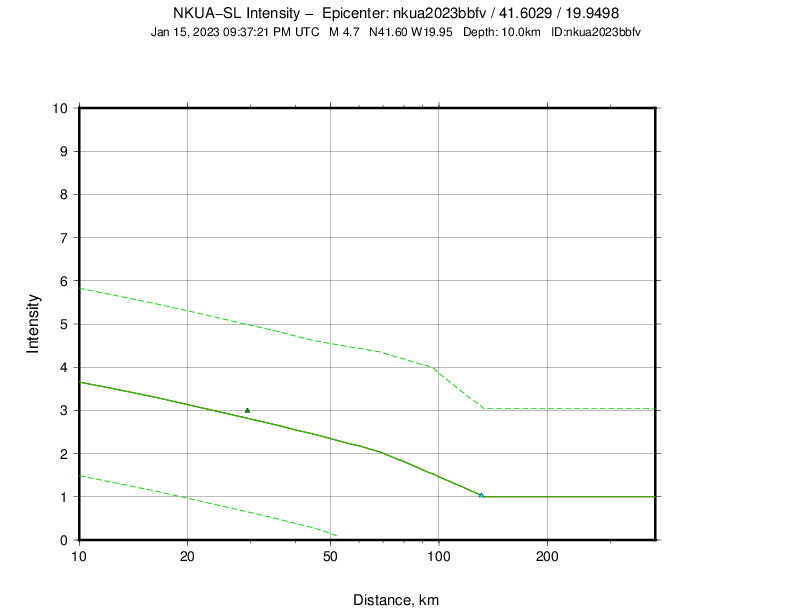

 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)

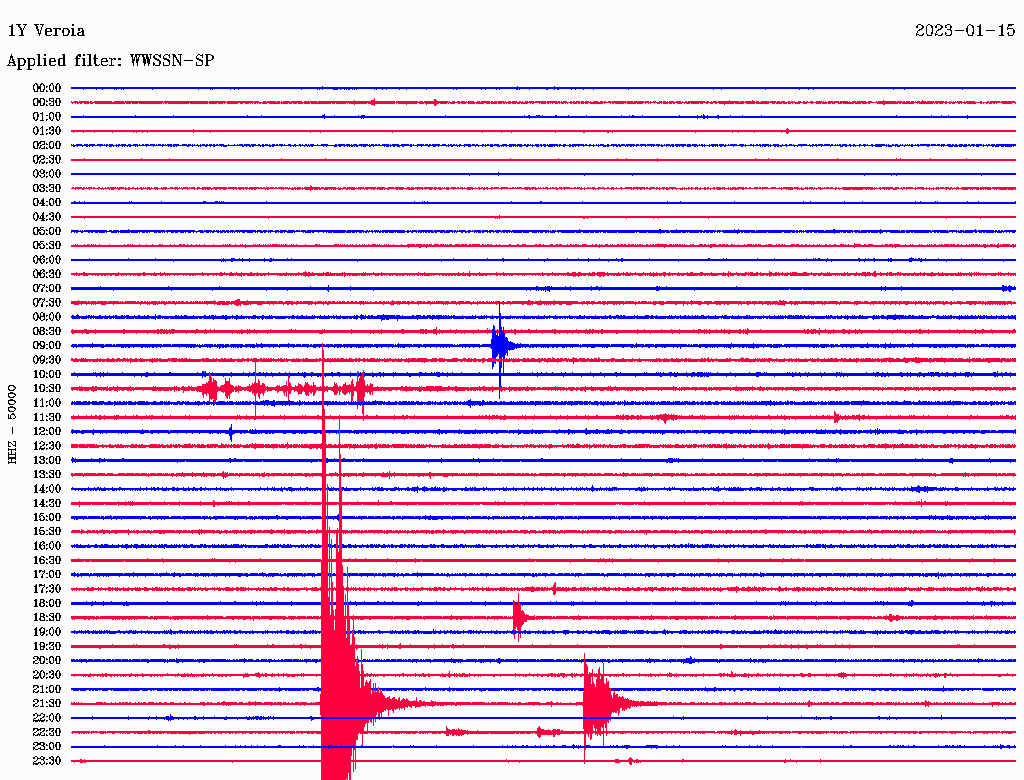

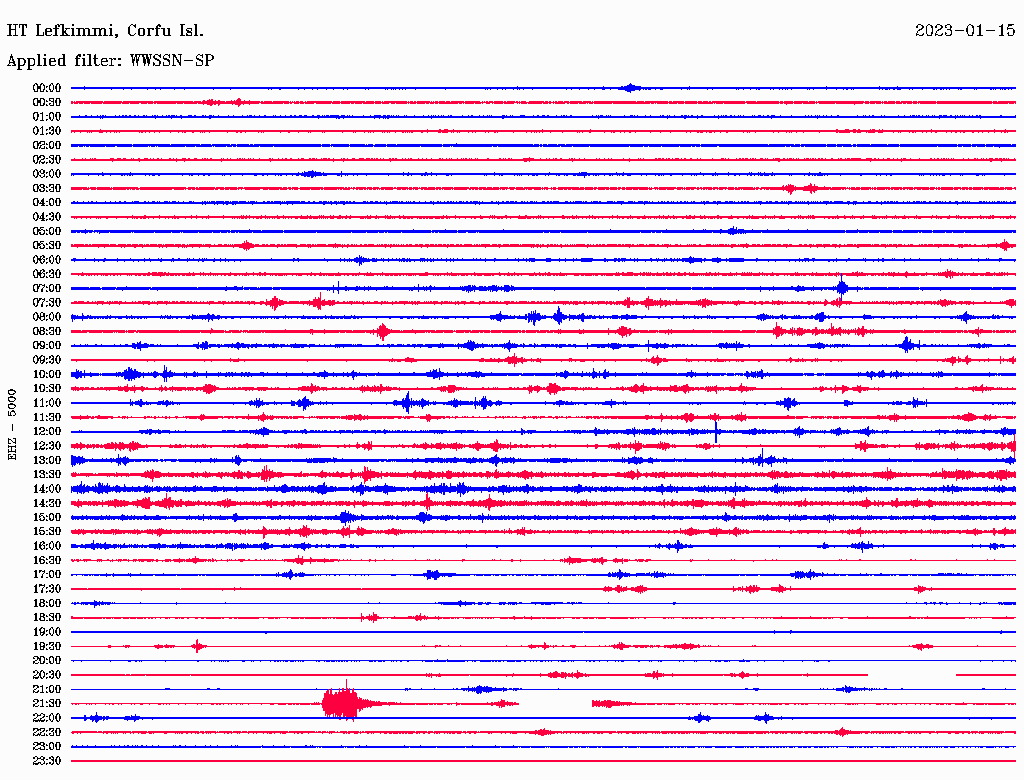

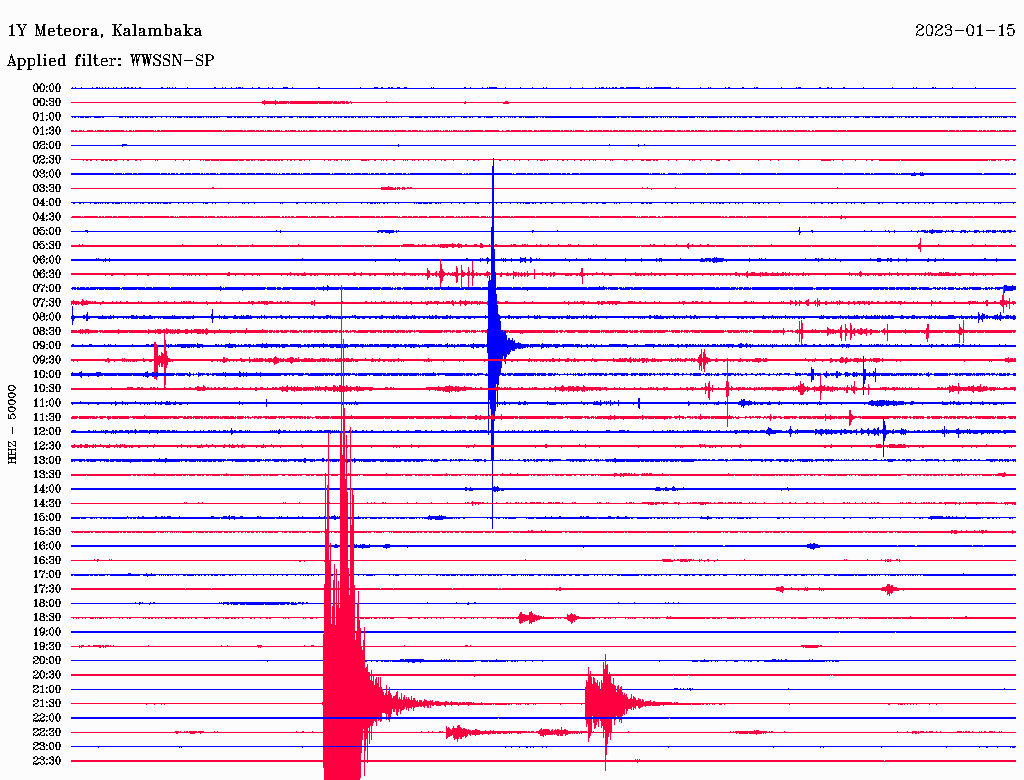

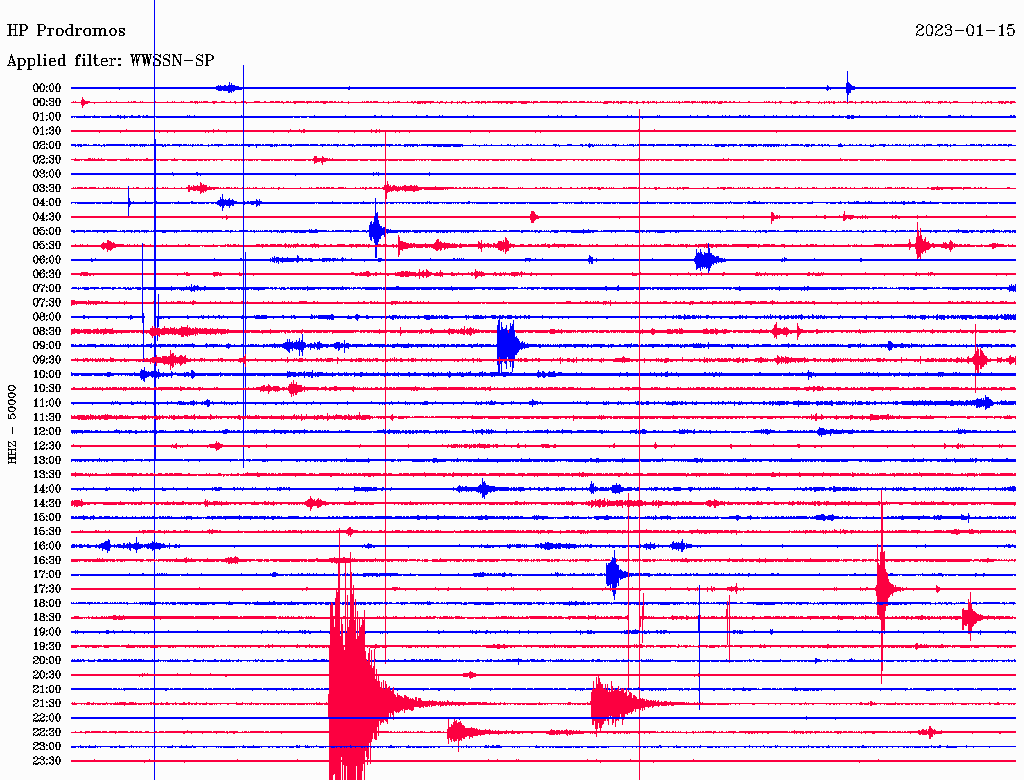

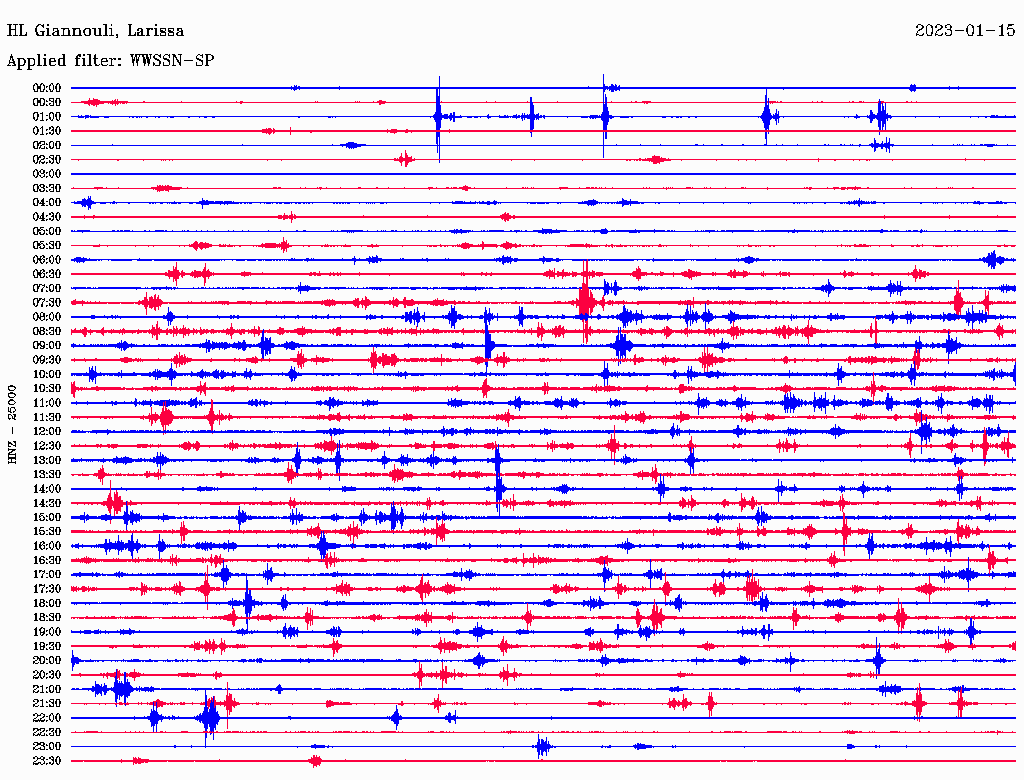

  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
TIRMN33.8191 P21:37:25.49 -1.01.0M
TIRMN33.8191 S21:37:30.85 -0.41.0M
NESTHT165.3146 P21:37:46.09 -1.21.0M
NESTHT165.3146 S21:38:06.58 -1.31.0M
GR101Y189.4133 P21:37:49.15 -1.21.0M
GR071Y198.4119 P21:37:51.25 -0.21.0M
GR071Y198.4119 S21:38:16.13 0.91.0M
GR141Y201.3165 P21:37:52.00 0.21.0M
GR141Y201.3165 S21:38:16.50 0.71.0M
GR151Y211.1154 P21:37:53.61 0.51.0M
GR151Y211.1154 S21:38:18.57 0.41.0M
KEKHL215.3183 P21:37:52.97 -0.51.0M
KEKHL215.3183 S21:38:19.42 0.61.0M
KRK1HI225.3180 P21:37:54.82 0.11.0M
KRK1HI225.3180 S21:38:21.62 0.61.0M
GR111Y225.9123 P21:37:54.90 -0.11.0M
GR111Y225.9123 S21:38:21.79 0.41.0M
LFKMHT244.7178 P21:37:57.63 0.41.0M
LFKMHT244.7178 S21:38:25.67 0.31.0M
GR171Y255.8146 P21:37:59.23 0.51.0M
GR171Y255.8146 S21:38:28.92 0.81.0M
KKBBS265.2 85 P21:38:00.76 0.71.0M
KKBBS265.2 85 S21:38:30.81 0.41.0M
THEHT276.9114 P21:38:00.62 -0.91.0M
THEHT276.9114 S21:38:33.21 0.31.0M
GR011Y281.8 98 P21:38:02.03 -0.11.0M
HORTHT288.9114 P21:38:02.17 -1.01.0M
HORTHT288.9114 S21:38:36.61 0.81.0M
TYRNHT289.0138 P21:38:02.67 -0.31.0M
TYRNHT289.0138 S21:38:36.02 0.51.0M
THLHL290.0143 P21:38:02.85 -0.31.0M
THLHL290.0143 S21:38:35.90 0.21.0M
ART2HI291.7162 P21:38:03.56 0.31.0M
ART2HI291.7162 S21:38:35.98 -0.11.0M
MATEGE292.9248 P21:38:04.24 0.61.0M
MATEGE292.9248 S21:38:37.61 1.01.0M
GINAHL301.4137 P21:38:04.63 0.11.0M
GINAHL301.4137 S21:38:37.32 -1.01.0M
NESNHT305.7134 P21:38:05.58 0.41.0M
NESNHT305.7134 S21:38:39.83 0.51.0M
GR131Y307.8118 P21:38:04.37 -1.11.0M
GR131Y307.8118 S21:38:40.11 0.21.0M
SRSHT309.7101 P21:38:05.25 -0.61.0M
SRSHT309.7101 S21:38:40.94 0.41.0M
GR181Y313.4133 P21:38:05.92 -0.41.0M
GR181Y313.4133 S21:38:41.33 0.01.0M
MMBBS316.7 92 P21:38:06.94 0.21.0M
MMBBS316.7 92 S21:38:42.94 0.81.0M
TSLKHT319.4169 P21:38:05.93 -0.91.0M
TSLKHT319.4169 S21:38:42.34 0.11.0M
AMPLHP321.4160 P21:38:06.99 -0.11.0M
AMPLHP321.4160 S21:38:42.87 0.11.0M
LKD2HT323.4169 P21:38:06.08 -1.31.0M
PLGHL326.1116 P21:38:07.58 -0.31.0M
PLGHL326.1116 S21:38:44.72 0.61.0M
NVRHL328.3 96 P21:38:08.24 0.01.0M
GR091Y332.1109 P21:38:08.46 -0.11.0M
GR091Y332.1109 S21:38:46.12 0.81.0M
GR211Y333.3139 P21:38:07.96 -0.81.0M
GR211Y333.3139 S21:38:45.65 0.11.0M
PDOHP354.8163 P21:38:10.43 -1.01.0M
PDOHP354.8163 S21:38:50.42 0.11.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2023bbfv
    Description
      region name: Albania
Origin:
    Date                   2023-01-15
    Time                  21:37:20.19
    Latitude              41.6453 deg  +/-      1 km
    Longitude             19.9427 deg  +/-      1 km
    Depth                      10 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.63 s
    Azimuthal gap             197 deg

2 Network magnitudes:
    MLv       4.78 +/- 0.16  26
    M         4.78           26 preferred

62 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    TIR   MN    0.3 191  P       21:37:25.49  -1.0 M  1.0  TIR
    TIR   MN    0.3 191  S       21:37:30.85  -0.4 M  1.0  TIR
    NEST  HT    1.5 146  P       21:37:46.09  -1.2 M  1.0  NEST
    NEST  HT    1.5 146  S       21:38:06.58  -1.3 M  1.0  NEST
    GR10  1Y    1.7 133  P       21:37:49.15  -1.2 M  1.0  GR10
    GR07  1Y    1.8 119  P       21:37:51.25  -0.2 M  1.0  GR07
    GR07  1Y    1.8 119  S       21:38:16.13   0.9 M  1.0  GR07
    GR14  1Y    1.8 165  P       21:37:52.00   0.2 M  1.0  GR14
    GR14  1Y    1.8 165  S       21:38:16.50   0.7 M  1.0  GR14
    GR15  1Y    1.9 154  P       21:37:53.61   0.5 M  1.0  GR15
    GR15  1Y    1.9 154  S       21:38:18.57   0.4 M  1.0  GR15
    KEK   HL    1.9 183  P       21:37:52.97  -0.5 M  1.0  KEK
    KEK   HL    1.9 183  S       21:38:19.42   0.6 M  1.0  KEK
    KRK1  HI    2.0 180  P       21:37:54.82   0.1 M  1.0  KRK1
    KRK1  HI    2.0 180  S       21:38:21.62   0.6 M  1.0  KRK1
    GR11  1Y    2.0 123  P       21:37:54.90  -0.1 M  1.0  GR11
    GR11  1Y    2.0 123  S       21:38:21.79   0.4 M  1.0  GR11
    LFKM  HT    2.2 178  P       21:37:57.63   0.4 M  1.0  LFKM
    LFKM  HT    2.2 178  S       21:38:25.67   0.3 M  1.0  LFKM
    GR17  1Y    2.3 146  P       21:37:59.23   0.5 M  1.0  GR17
    GR17  1Y    2.3 146  S       21:38:28.92   0.8 M  1.0  GR17
    KKB   BS    2.4  85  P       21:38:00.76   0.7 M  1.0  KKB
    KKB   BS    2.4  85  S       21:38:30.81   0.4 M  1.0  KKB
    THE   HT    2.5 114  P       21:38:00.62  -0.9 M  1.0  THE
    THE   HT    2.5 114  S       21:38:33.21   0.3 M  1.0  THE
    GR01  1Y    2.5  98  P       21:38:02.03  -0.1 M  1.0  GR01
    TYRN  HT    2.6 138  P       21:38:02.67  -0.3 M  1.0  TYRN
    TYRN  HT    2.6 138  S       21:38:36.02   0.5 M  1.0  TYRN
    HORT  HT    2.6 114  P       21:38:02.17  -1.0 M  1.0  HORT
    HORT  HT    2.6 114  S       21:38:36.61   0.8 M  1.0  HORT
    THL   HL    2.6 143  P       21:38:02.85  -0.3 M  1.0  THL
    THL   HL    2.6 143  S       21:38:35.90   0.2 M  1.0  THL
    ART2  HI    2.6 162  P       21:38:03.56   0.3 M  1.0  ART2
    ART2  HI    2.6 162  S       21:38:35.98  -0.1 M  1.0  ART2
    MATE  GE    2.6 248  P       21:38:04.24   0.6 M  1.0  MATE
    MATE  GE    2.6 248  S       21:38:37.61   1.0 M  1.0  MATE
    GINA  HL    2.7 137  P       21:38:04.63   0.1 M  1.0  GINA
    GINA  HL    2.7 137  S       21:38:37.32  -1.0 M  1.0  GINA
    NESN  HT    2.8 134  P       21:38:05.58   0.4 M  1.0  NESN
    NESN  HT    2.8 134  S       21:38:39.83   0.5 M  1.0  NESN
    GR13  1Y    2.8 118  P       21:38:04.37  -1.1 M  1.0  GR13
    GR13  1Y    2.8 118  S       21:38:40.11   0.2 M  1.0  GR13
    SRS   HT    2.8 101  P       21:38:05.25  -0.6 M  1.0  SRS
    SRS   HT    2.8 101  S       21:38:40.94   0.4 M  1.0  SRS
    GR18  1Y    2.8 133  P       21:38:05.92  -0.4 M  1.0  GR18
    GR18  1Y    2.8 133  S       21:38:41.33   0.0 M  1.0  GR18
    MMB   BS    2.9  92  P       21:38:06.94   0.2 M  1.0  MMB
    MMB   BS    2.9  92  S       21:38:42.94   0.8 M  1.0  MMB
    TSLK  HT    2.9 169  P       21:38:05.93  -0.9 M  1.0  TSLK
    TSLK  HT    2.9 169  S       21:38:42.34   0.1 M  1.0  TSLK
    AMPL  HP    2.9 160  P       21:38:06.99  -0.1 M  1.0  AMPL
    AMPL  HP    2.9 160  S       21:38:42.87   0.1 M  1.0  AMPL
    LKD2  HT    2.9 169  P       21:38:06.08  -1.3 M  1.0  LKD2
    PLG   HL    2.9 116  P       21:38:07.58  -0.3 M  1.0  PLG
    PLG   HL    2.9 116  S       21:38:44.72   0.6 M  1.0  PLG
    NVR   HL    3.0  96  P       21:38:08.24   0.0 M  1.0  NVR
    GR09  1Y    3.0 109  P       21:38:08.46  -0.1 M  1.0  GR09
    GR09  1Y    3.0 109  S       21:38:46.12   0.8 M  1.0  GR09
    GR21  1Y    3.0 139  P       21:38:07.96  -0.8 M  1.0  GR21
    GR21  1Y    3.0 139  S       21:38:45.65   0.1 M  1.0  GR21
    PDO   HP    3.2 163  P       21:38:10.43  -1.0 M  1.0  PDO
    PDO   HP    3.2 163  S       21:38:50.42   0.1 M  1.0  PDO

33 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    TIR   MN    0.3 191  MLv     4.81  0.03    729.159
    NEST  HT    1.5 146  MLv     4.76 -0.02    43.0075
    GR10  1Y    1.7 133  MLv     4.54 -0.24    19.6956
    GR07  1Y    1.8 119  MLv     4.59 -0.18    19.9965
    GR14  1Y    1.8 165  MLv     4.82  0.04    32.4305
    GR15  1Y    1.9 154  MLv     5.00  0.22    43.8863
    KEK   HL    1.9 183  MLv     4.43 -0.35    21.5023
    KRK1  HI    2.0 180  MLv     4.60 -0.17    15.0895
    GR11  1Y    2.0 123  MLv     4.77 -0.01    22.0335
    LFKM  HT    2.2 178  MLv     3.14 -1.64   0.415535
    GR17  1Y    2.3 146  MLv     5.05  0.27    29.3274
    KKB   BS    2.4  85  MLv     4.57 -0.21    8.83583
    THE   HT    2.5 114  MLv     4.60 -0.17    5.48812
    GR01  1Y    2.5  98  MLv     4.54 -0.24    6.82467
    TYRN  HT    2.6 138  MLv     4.89  0.11    10.7618
    HORT  HT    2.6 114  MLv     4.51 -0.27    3.92691
    THL   HL    2.6 143  MLv     5.00  0.22    10.6221
    ART2  HI    2.6 162  MLv     4.77 -0.00    10.3562
    MATE  GE    2.6 248  MLv     4.54 -0.24    5.98901
    GINA  HL    2.7 137  MLv     5.23  0.45    26.3191
    NESN  HT    2.8 134  MLv     4.97  0.20    13.9592
    GR13  1Y    2.8 118  MLv     4.36 -0.42    3.34371
    SRS   HT    2.8 101  MLv     4.68 -0.10    4.76253
    GR18  1Y    2.8 133  MLv     4.79  0.02     8.4503
    MMB   BS    2.9  92  MLv     4.68 -0.10    6.24836
    TSLK  HT    2.9 169  MLv     4.63 -0.14    5.45242
    AMPL  HP    2.9 160  MLv     5.32  0.54    25.7212
    LKD2  HT    2.9 169  MLv     4.82  0.04    7.99134
    PLG   HL    2.9 116  MLv     4.82  0.04    7.72195
    NVR   HL    3.0  96  MLv     4.83  0.06     5.7827
    GR09  1Y    3.0 109  MLv     4.71 -0.07    5.59845
    GR21  1Y    3.0 139  MLv     4.87  0.09     7.9842
    PDO   HP    3.2 163  MLv     5.11  0.33    10.8215
