Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2023-01-14 12:43:15 (GMT)
 Μέγεθος
 M 3.8
 Γεωγρ. Πλάτος
 34.8465° Β
 Γεωγρ. Μήκος
 24.0157° Α
 Εστιακό Βάθος
 15 χμ
 Αρ. αφίξεων
 61
 Επίκεντρο 71.0 χμ ΝΔ του Ρεθύμνου
74.0 χμ Ν των Χανίων
349.7 χμ Ν της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Μηχ.Γέν.


  Μηχανισμός Γένεσης

Μηχ.Γεν. Παράταξη (°) Κλίση (°) Γων.Ολίσθ. (°) Σεισμ.Ροπή (dyn*cm)
33814136 5.58E+21

Γεωγρ.Πλάτος (°Β) Γεωγρ.Μήκος (°Α) Βάθος (χμ) Μέγεθος Mw
34.977024.05675.03.8

Υπολογισμός εστιακών παραμέτρων

Κλικ εδώ για λεπτομέρειες μηχανισμού γένεσης

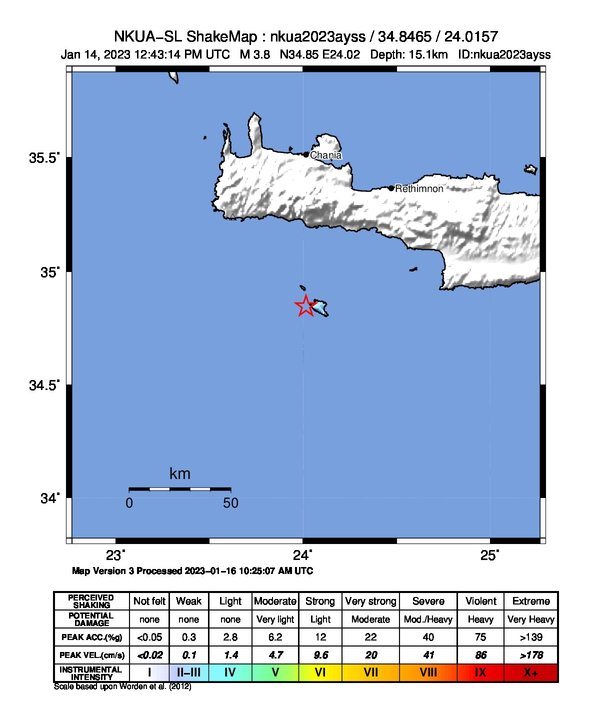

  Χάρτης εντάσεως


PGA

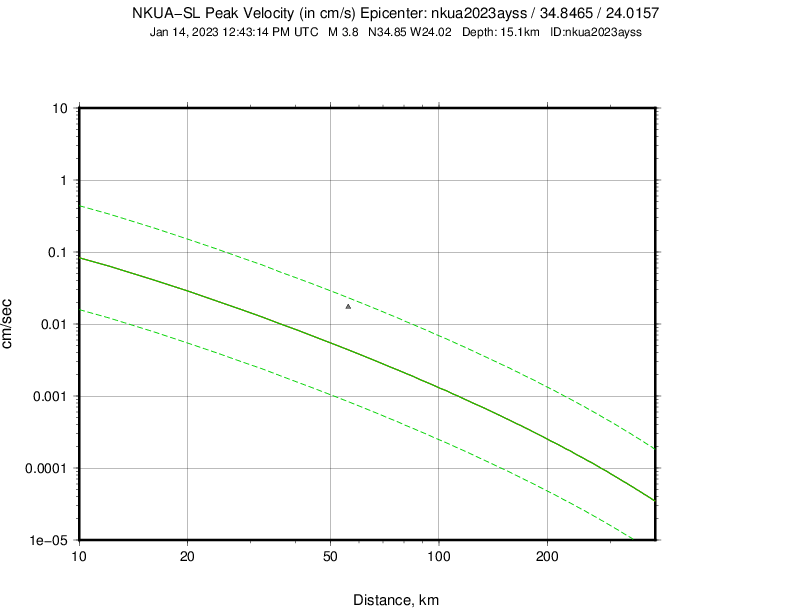

 PGV

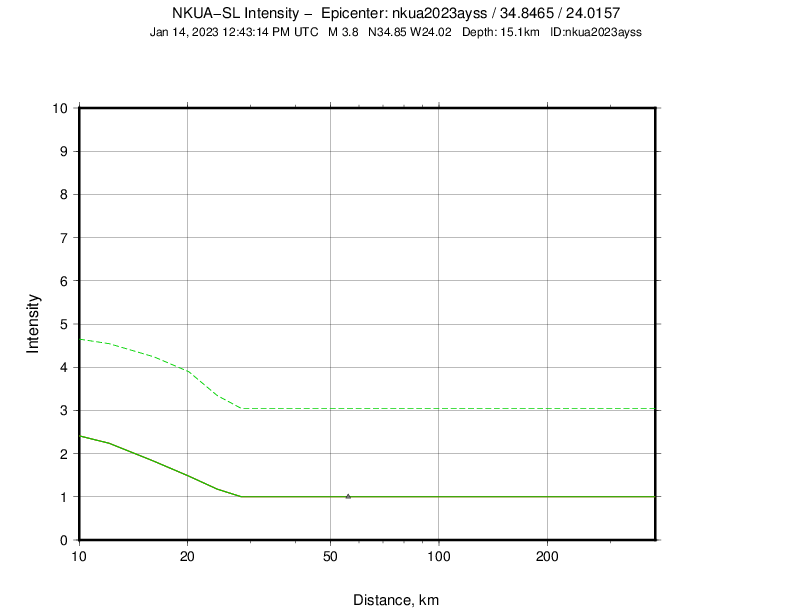

 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
GVDSHC4.0102 P12:43:17.26 -0.41.0M
GVDSHC4.0102 S12:43:20.18 0.31.0M
IMMVHL68.4357 P12:43:25.95 -0.81.0M
IMMVHL68.4357 S12:43:36.45 0.81.0M
IPPLHC69.1 36 P12:43:26.67 -0.21.0M
IMODHC72.8 79 P12:43:26.87 -0.61.0M
IMODHC72.8 79 S12:43:37.83 0.81.0M
CH01HI74.6 0 P12:43:27.66 0.01.0M

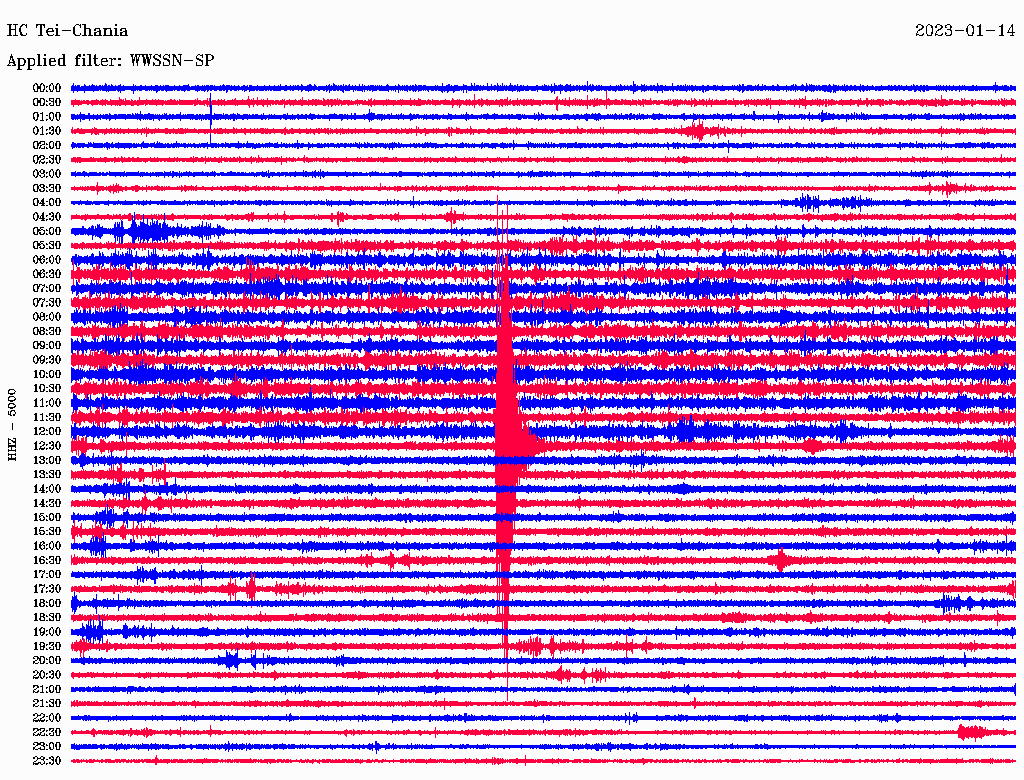

CHANHC74.9 2 P12:43:27.43 -0.21.0M
RODPHC82.8343 P12:43:28.43 -0.51.0M
RODPHC82.8343 S12:43:40.43 0.81.0M
KNSSHC117.6 64 P12:43:34.38 0.01.0M
KNSSHC117.6 64 S12:43:48.98 -0.21.0M
KSTEHL125.9 73 P12:43:34.67 -1.01.0M
KSTEHL125.9 73 S12:43:51.75 0.31.0M
ANKYHL130.7330 P12:43:37.06 0.81.0M
PFKSHC134.6 81 P12:43:37.02 0.01.0M
NPSHL152.3 72 P12:43:39.98 0.31.0M
NPSHL152.3 72 S12:43:59.08 0.51.0M
ZKRHL202.8 82 P12:43:46.62 0.41.0M
ZKRHL202.8 82 S12:44:09.78 -0.21.0M
SNT5HA213.4 36 P12:43:47.83 0.41.0M
SNT5HA213.4 36 S12:44:11.86 -0.31.0M
SAP3HL213.7 34 P12:43:47.62 0.11.0M

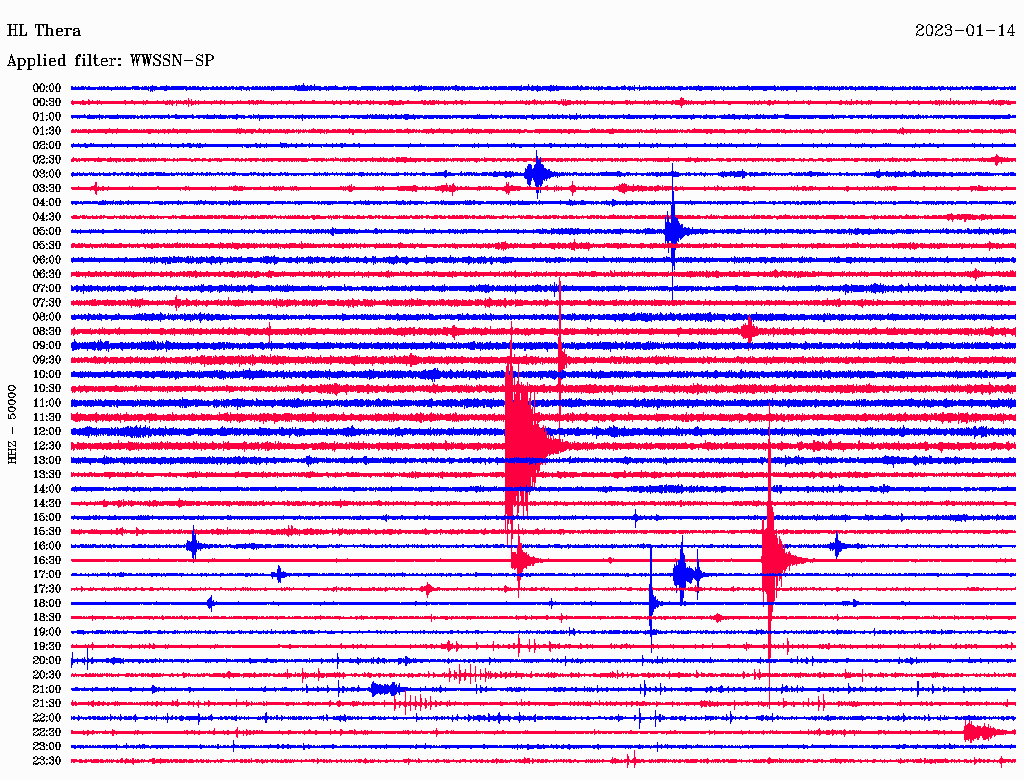

THERAHL214.5 38 P12:43:47.44 -0.21.0M
THERAHL214.5 38 S12:44:12.64 0.11.0M
VLIHL229.3335 P12:43:50.48 1.01.0M
VLIHL229.3335 S12:44:16.55 0.81.0M
GR321Y253.3338 P12:43:52.71 0.21.0M
GR321Y253.3338 S12:44:21.00 -0.21.0M
SERIHA260.8 9 P12:43:52.88 -0.71.0M
SERIHA260.8 9 S12:44:22.74 -0.21.0M
GR331Y261.5324 P12:43:54.91 1.21.0M
GR331Y261.5324 S12:44:23.45 0.31.0M
GR311Y277.9331 P12:43:56.79 1.01.0M
GR311Y277.9331 S12:44:27.06 0.21.0M
KTRSHC286.6324 P12:43:57.10 0.31.0M
KTRSHC286.6324 S12:44:29.51 0.81.0M
VLXHP316.8332 P12:44:01.50 0.71.0M
VLXHP316.8332 S12:44:35.77 0.01.0M
EPIDHA318.1345 P12:44:00.67 -0.21.0M
EPIDHA318.1345 S12:44:35.80 -0.11.0M
GR301Y324.3336 P12:44:01.32 -0.41.0M
THNOHC325.0 16 P12:44:00.81 -0.91.0M
THNOHC325.0 16 S12:44:36.70 -0.71.0M
VLYHL334.8357 P12:44:02.05 -0.91.0M
VLYHL334.8357 S12:44:39.43 -0.11.0M
ACORHA353.7343 P12:44:04.52 -0.91.0M
ACORHA353.7343 S12:44:43.72 -0.11.0M
PTLHL356.2358 P12:44:04.70 -1.01.0M
PTLHL356.2358 S12:44:43.75 -0.71.0M
KARYHA356.2 6 P12:44:04.73 -1.01.0M
KARYHA356.2 6 S12:44:43.47 -0.91.0M
LOUTHA361.5345 P12:44:05.77 -0.71.0M
LOUTHA361.5345 S12:44:44.66 -0.91.0M
MRTHHA364.3359 P12:44:05.69 -1.11.0M
MRTHHA364.3359 S12:44:45.82 -0.31.0M

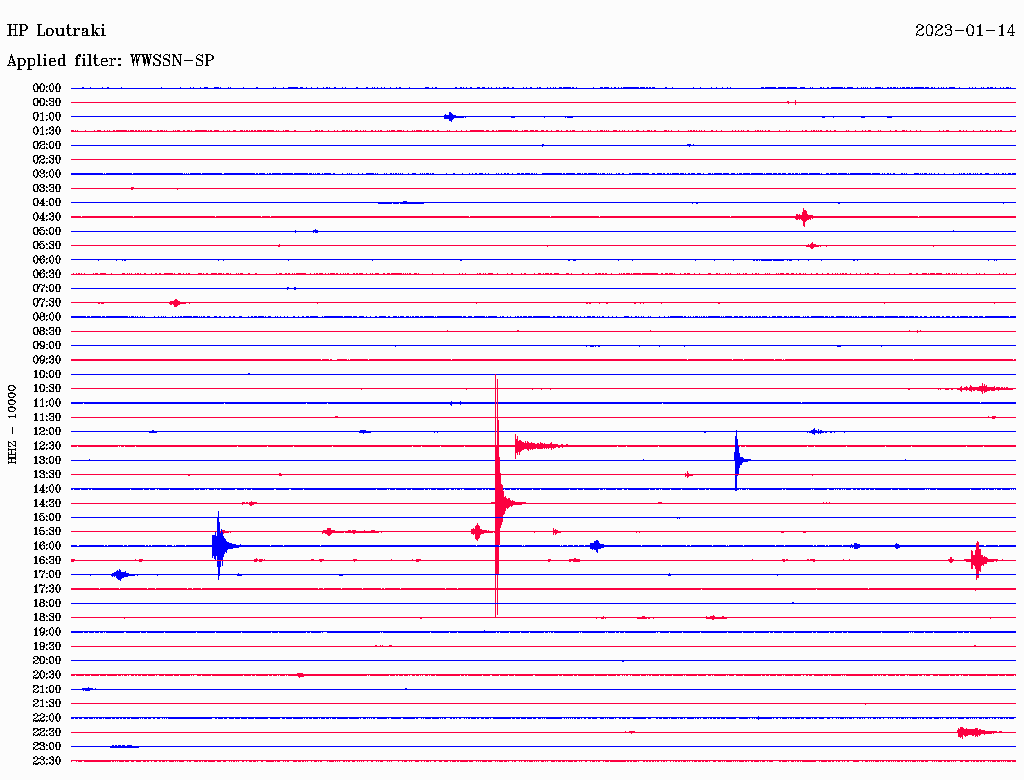

LTKHP365.4345 P12:44:06.13 -0.81.0M
LTKHP365.4345 S12:44:46.38 -0.11.0M
GR271Y371.4 3 P12:44:06.53 -1.11.0M
GR271Y371.4 3 S12:44:47.04 -0.71.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2023ayss
    Description
      region name: Crete, Greece
Origin:
    Date                   2023-01-14
    Time                  12:43:14.88
    Latitude              34.8465 deg  +/-      1 km
    Longitude             24.0157 deg  +/-      1 km
    Depth                      15 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.51 s
    Azimuthal gap             221 deg

2 Network magnitudes:
    MLv       3.78 +/- 0.24  28
    M         3.78           28 preferred

61 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta

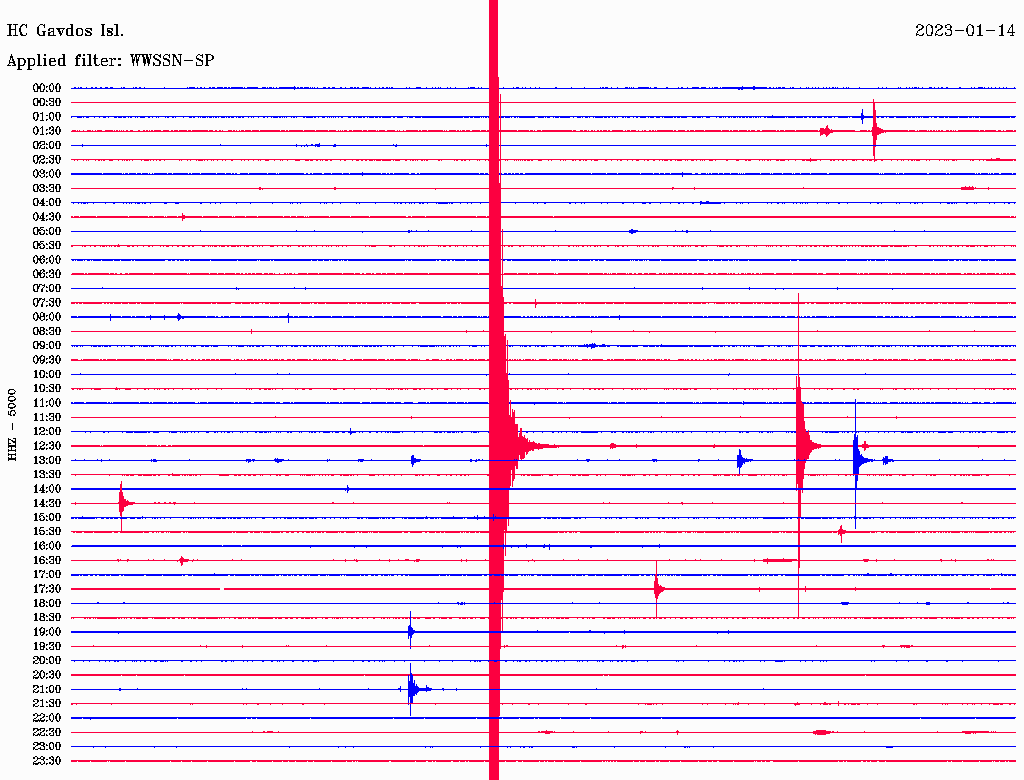

    GVDS  HC    0.0 102  P       12:43:17.26  -0.4 M  1.0  GVDS
    GVDS  HC    0.0 102  S       12:43:20.18   0.3 M  1.0  GVDS

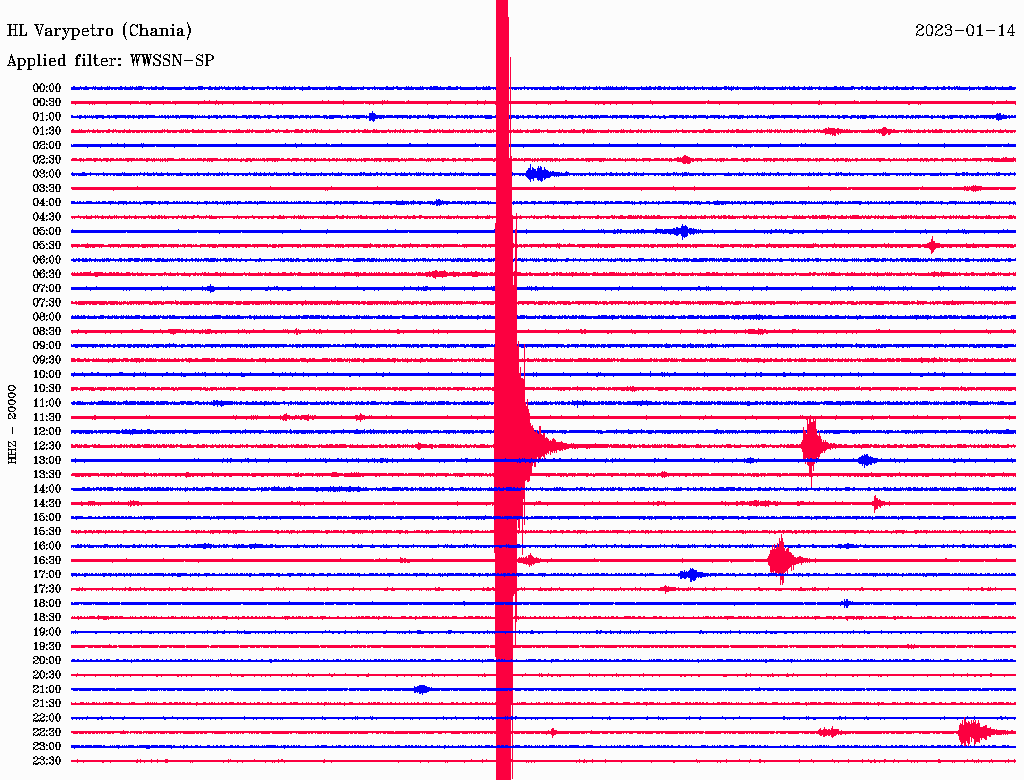

    IMMV  HL    0.6 357  P       12:43:25.95  -0.8 M  1.0  IMMV
    IMMV  HL    0.6 357  S       12:43:36.45   0.8 M  1.0  IMMV

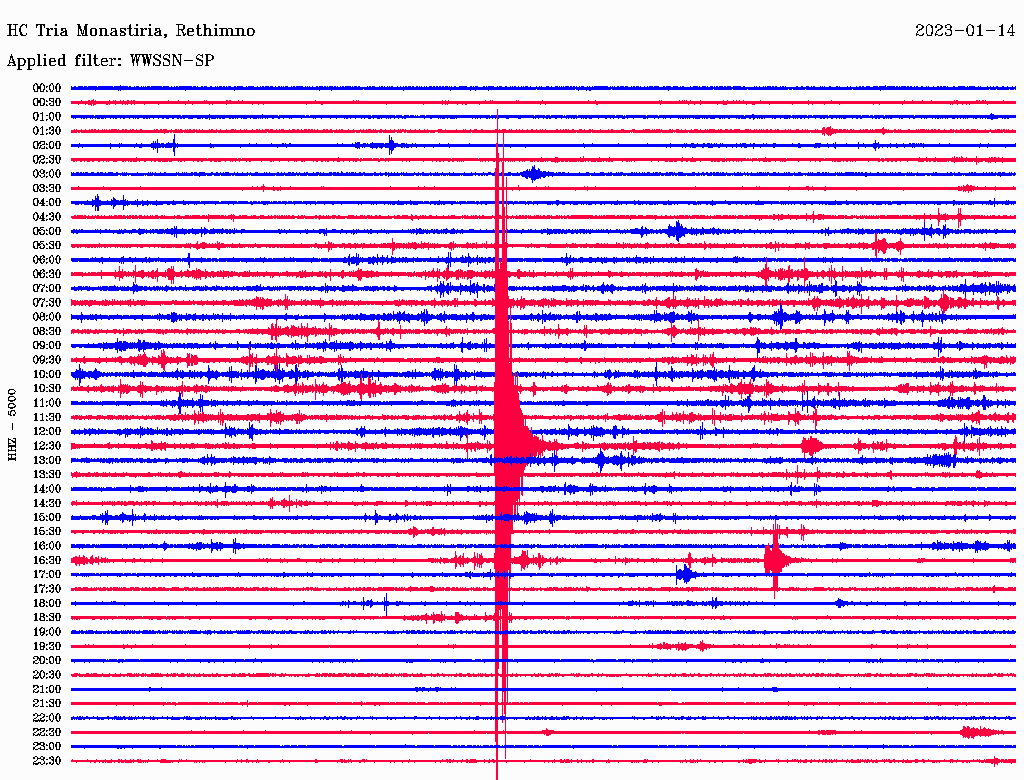

    IPPL  HC    0.6  36  P       12:43:26.67  -0.2 M  1.0  IPPL

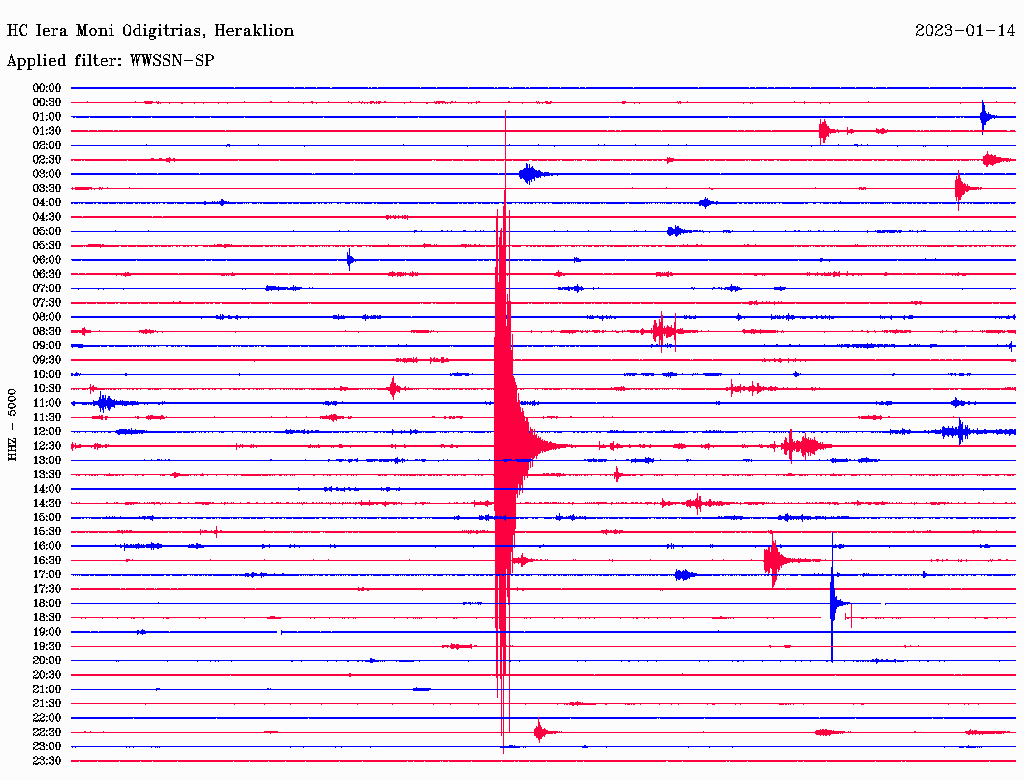

    IMOD  HC    0.7  79  P       12:43:26.87  -0.6 M  1.0  IMOD
    IMOD  HC    0.7  79  S       12:43:37.83   0.8 M  1.0  IMOD

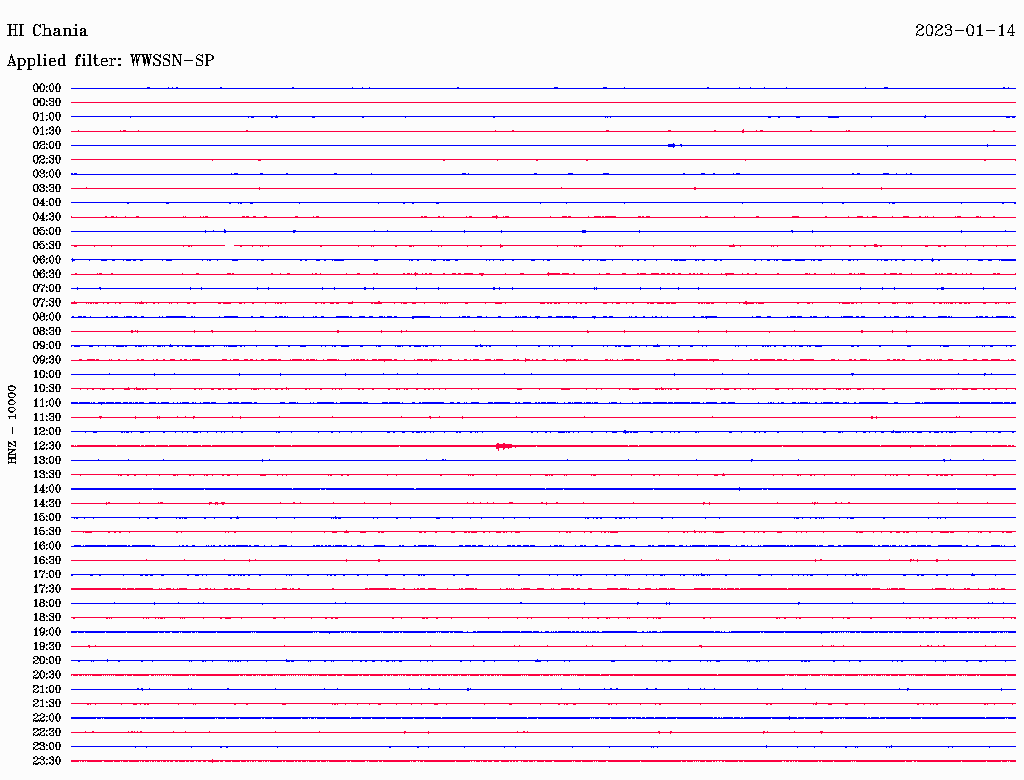

    CH01  HI    0.7   0  P       12:43:27.66   0.0 M  1.0  CH01
    CHAN  HC    0.7   2  P       12:43:27.43  -0.2 M  1.0  CHAN

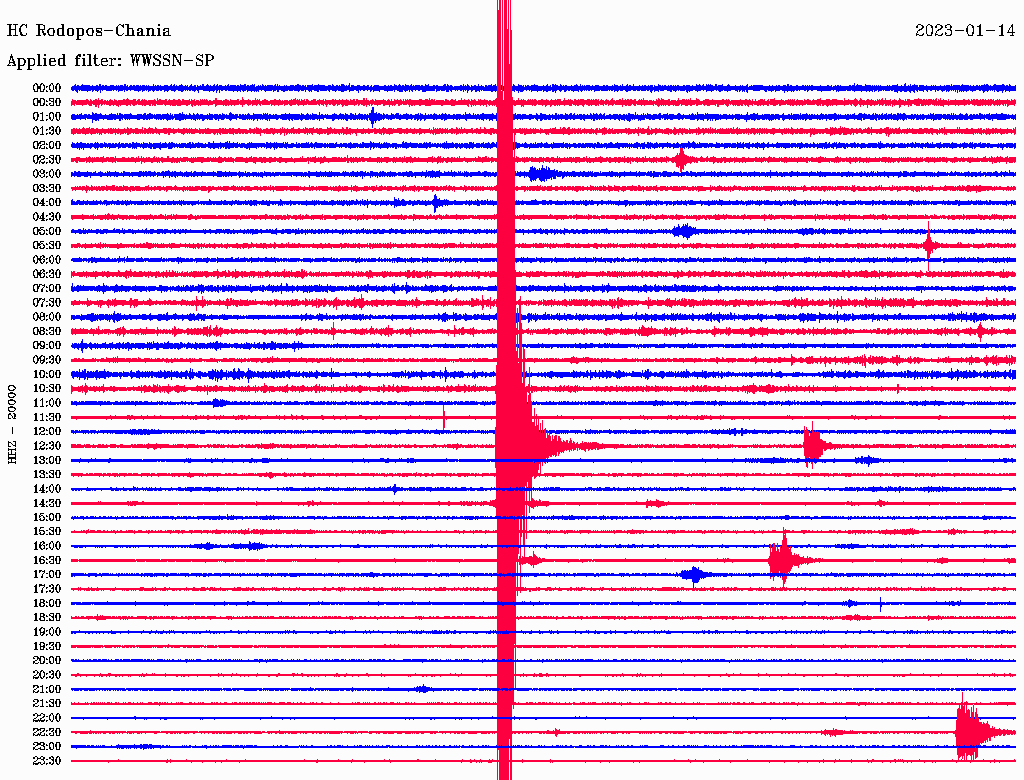

    RODP  HC    0.7 343  P       12:43:28.43  -0.5 M  1.0  RODP
    RODP  HC    0.7 343  S       12:43:40.43   0.8 M  1.0  RODP

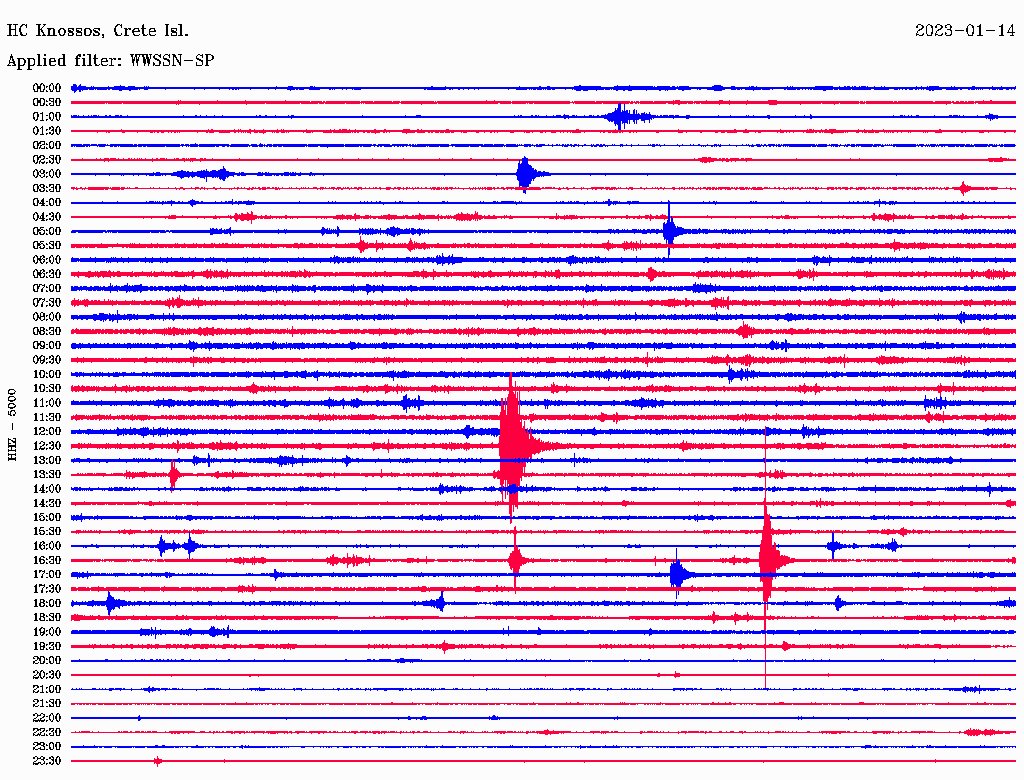

    KNSS  HC    1.1  64  P       12:43:34.38   0.0 M  1.0  KNSS
    KNSS  HC    1.1  64  S       12:43:48.98  -0.2 M  1.0  KNSS

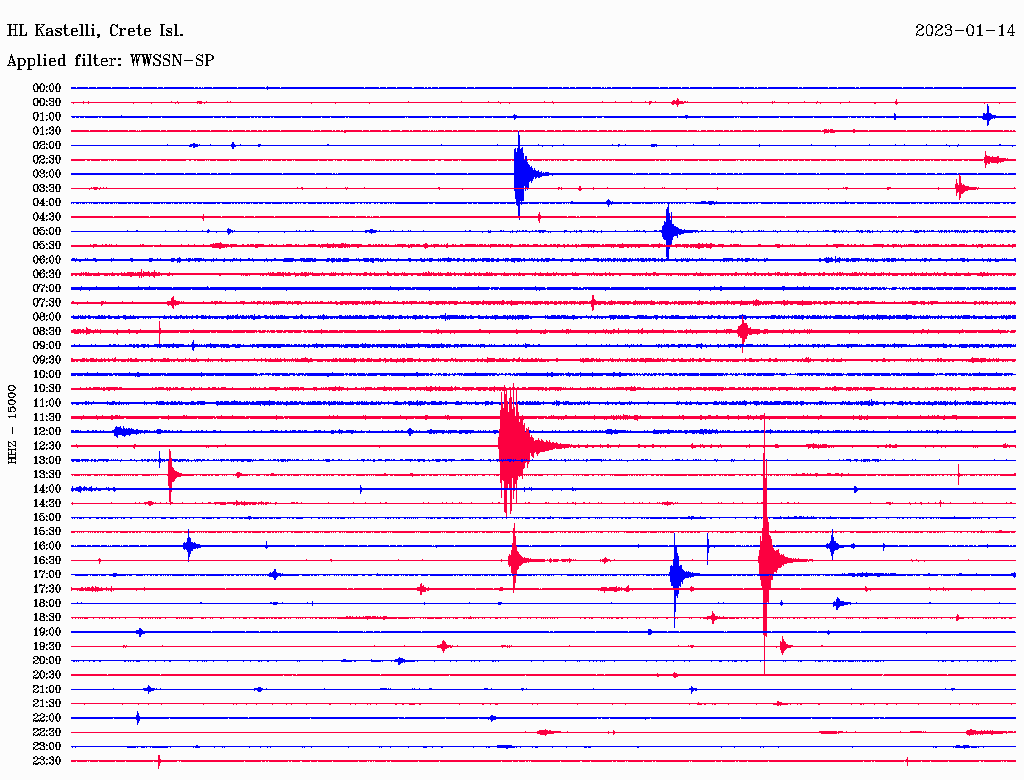

    KSTE  HL    1.1  73  P       12:43:34.67  -1.0 M  1.0  KSTE
    KSTE  HL    1.1  73  S       12:43:51.75   0.3 M  1.0  KSTE

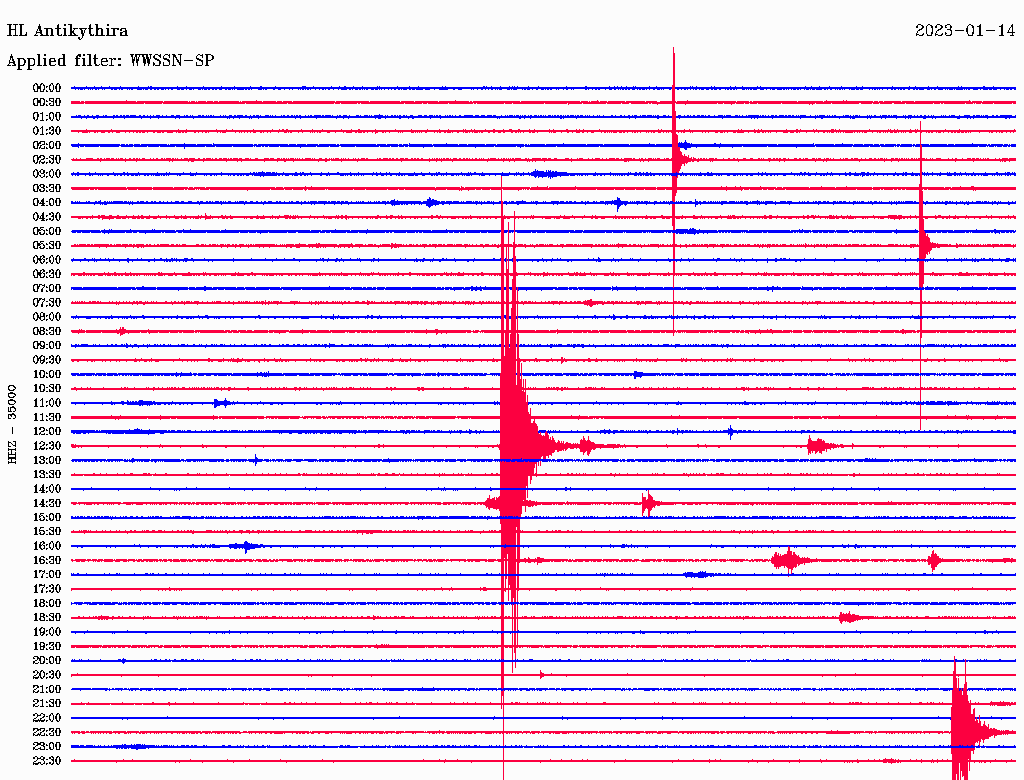

    ANKY  HL    1.2 330  P       12:43:37.06   0.8 M  1.0  ANKY
    PFKS  HC    1.2  81  P       12:43:37.02  -0.0 M  1.0  PFKS

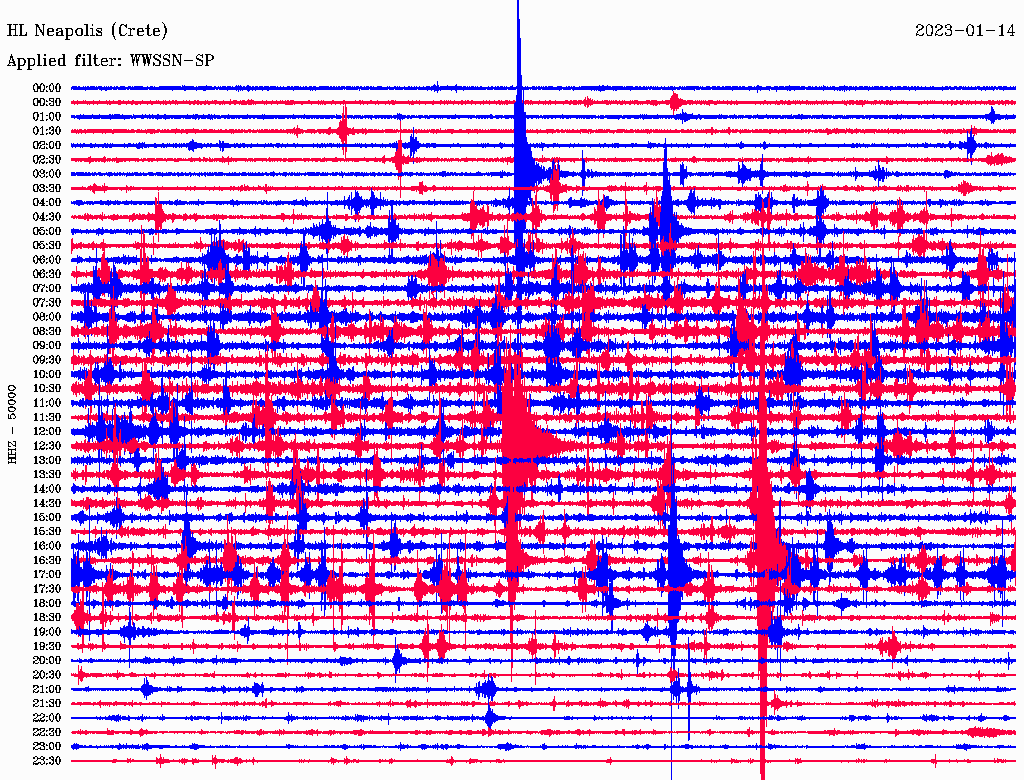

    NPS   HL    1.4  72  P       12:43:39.98   0.3 M  1.0  NPS
    NPS   HL    1.4  72  S       12:43:59.08   0.5 M  1.0  NPS

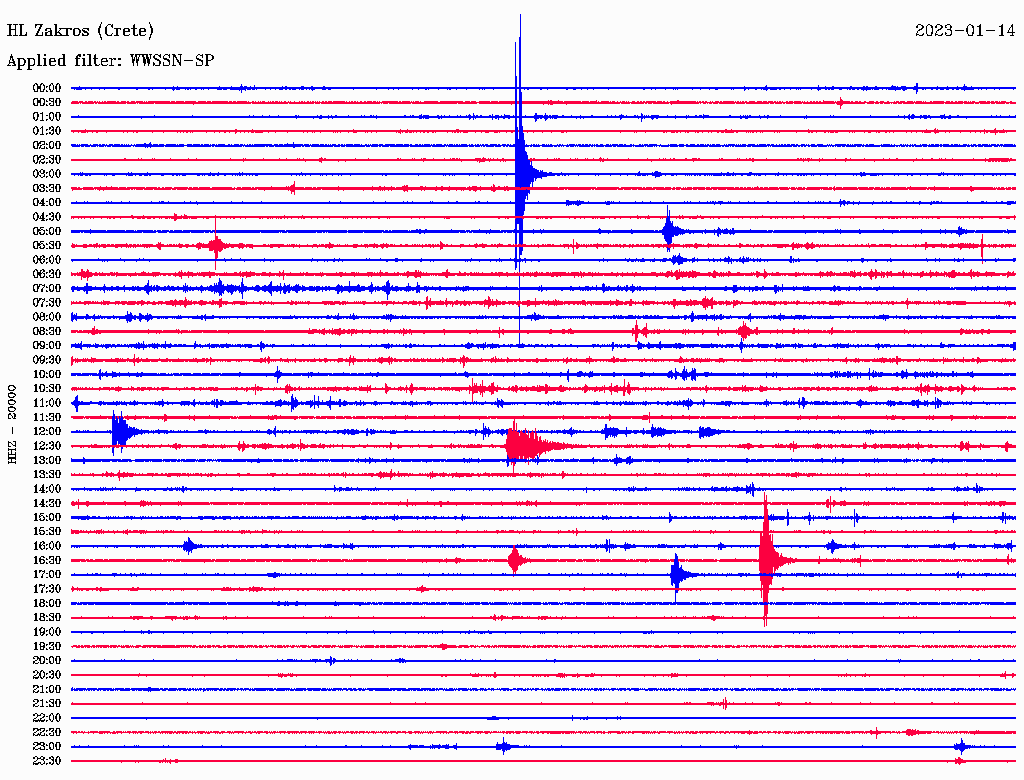

    ZKR   HL    1.8  82  P       12:43:46.62   0.4 M  1.0  ZKR
    ZKR   HL    1.8  82  S       12:44:09.78  -0.2 M  1.0  ZKR

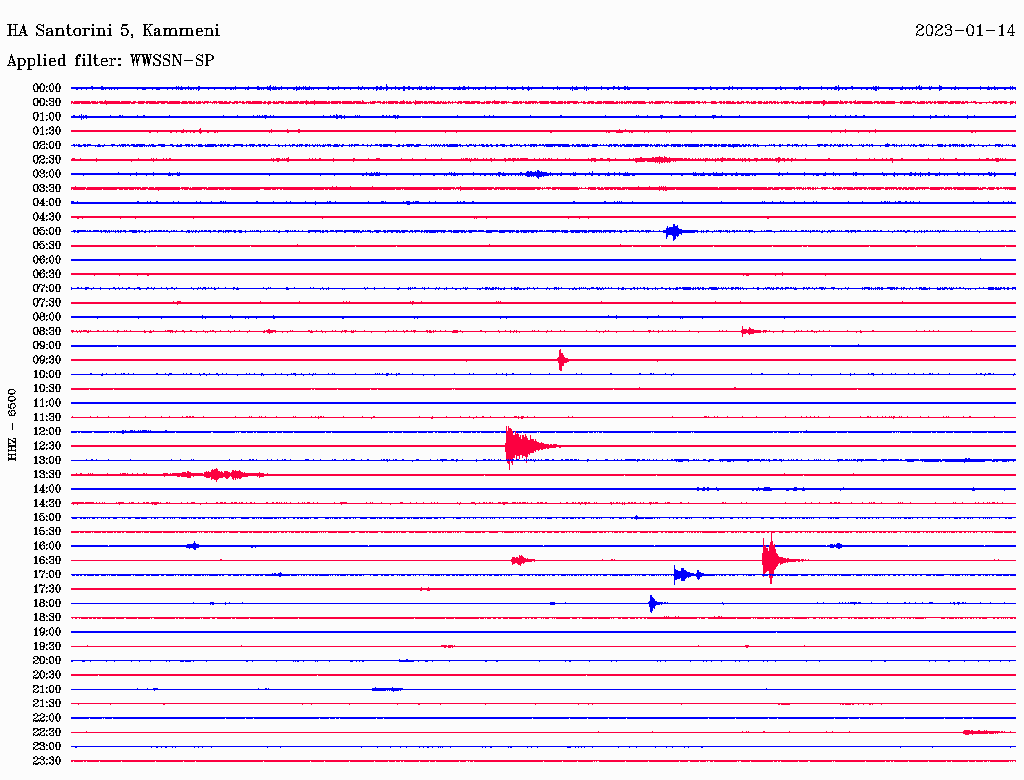

    SNT5  HA    1.9  36  P       12:43:47.83   0.4 M  1.0  SNT5
    SNT5  HA    1.9  36  S       12:44:11.86  -0.3 M  1.0  SNT5

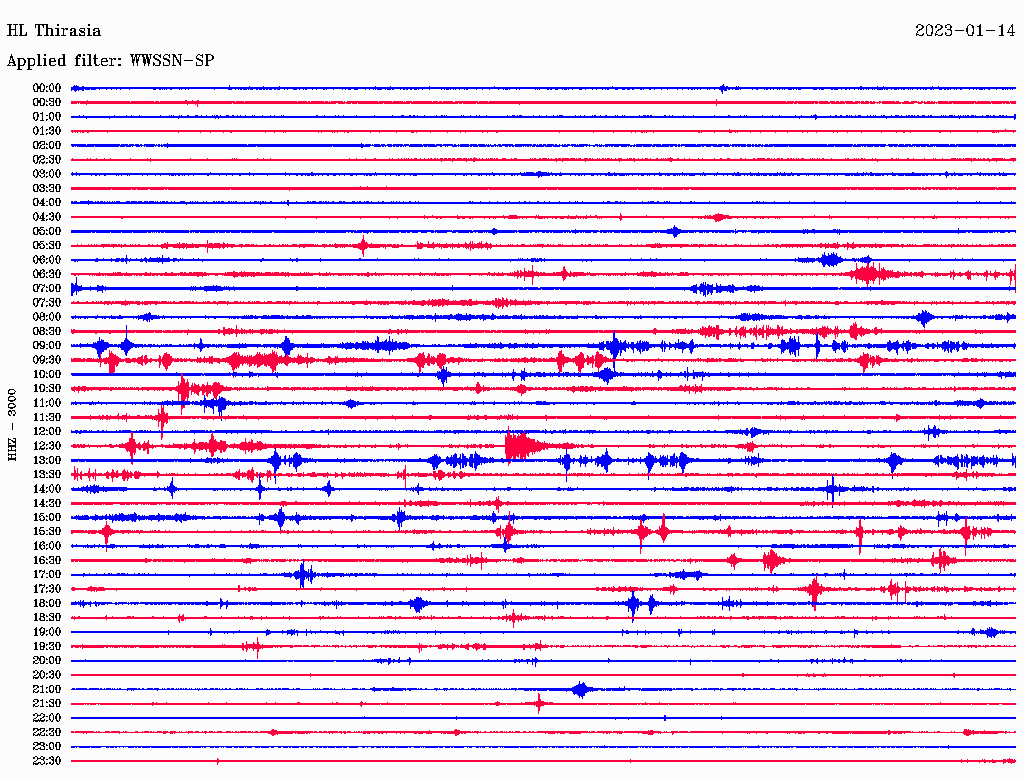

    SAP3  HL    1.9  34  P       12:43:47.62   0.1 M  1.0  SAP3
    THERA HL    1.9  38  P       12:43:47.44  -0.2 M  1.0  THERA
    THERA HL    1.9  38  S       12:44:12.64   0.1 M  1.0  THERA

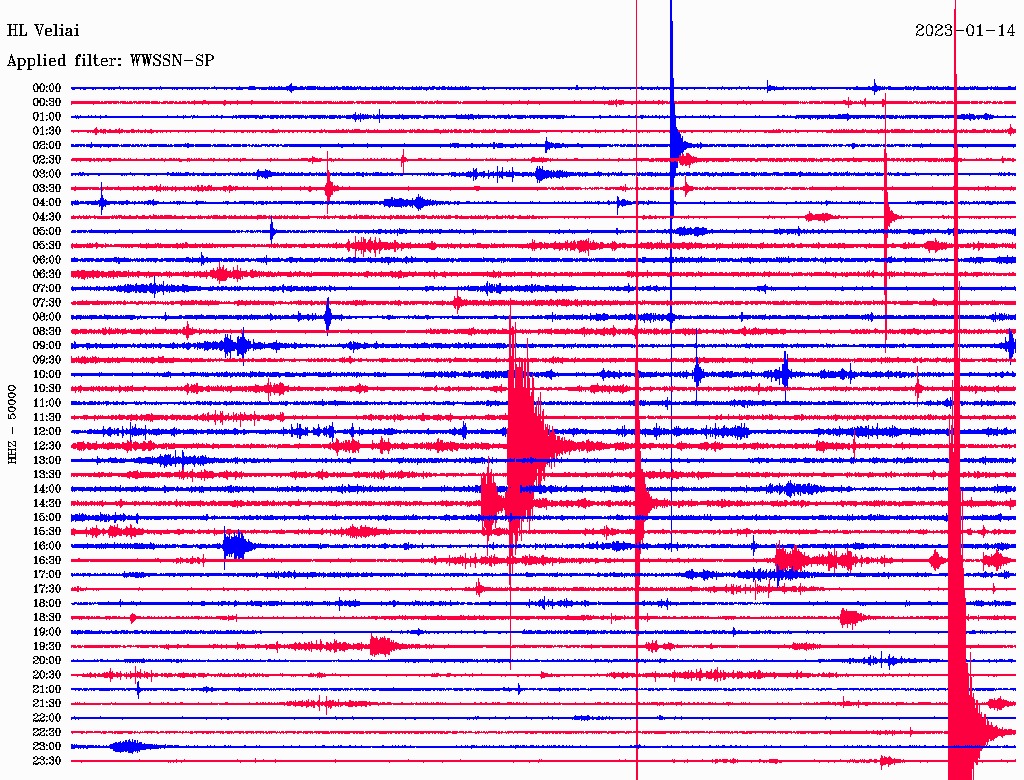

    VLI   HL    2.1 335  P       12:43:50.48   1.0 M  1.0  VLI
    VLI   HL    2.1 335  S       12:44:16.55   0.8 M  1.0  VLI

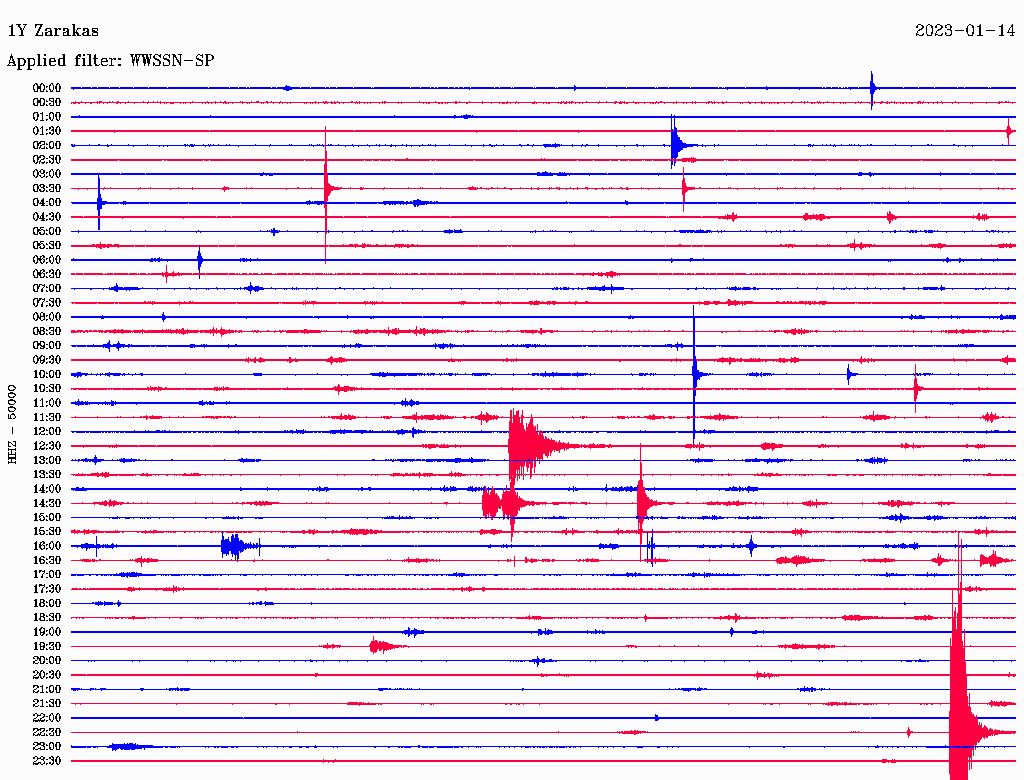

    GR32  1Y    2.3 338  P       12:43:52.71   0.2 M  1.0  GR32
    GR32  1Y    2.3 338  S       12:44:21.00  -0.2 M  1.0  GR32

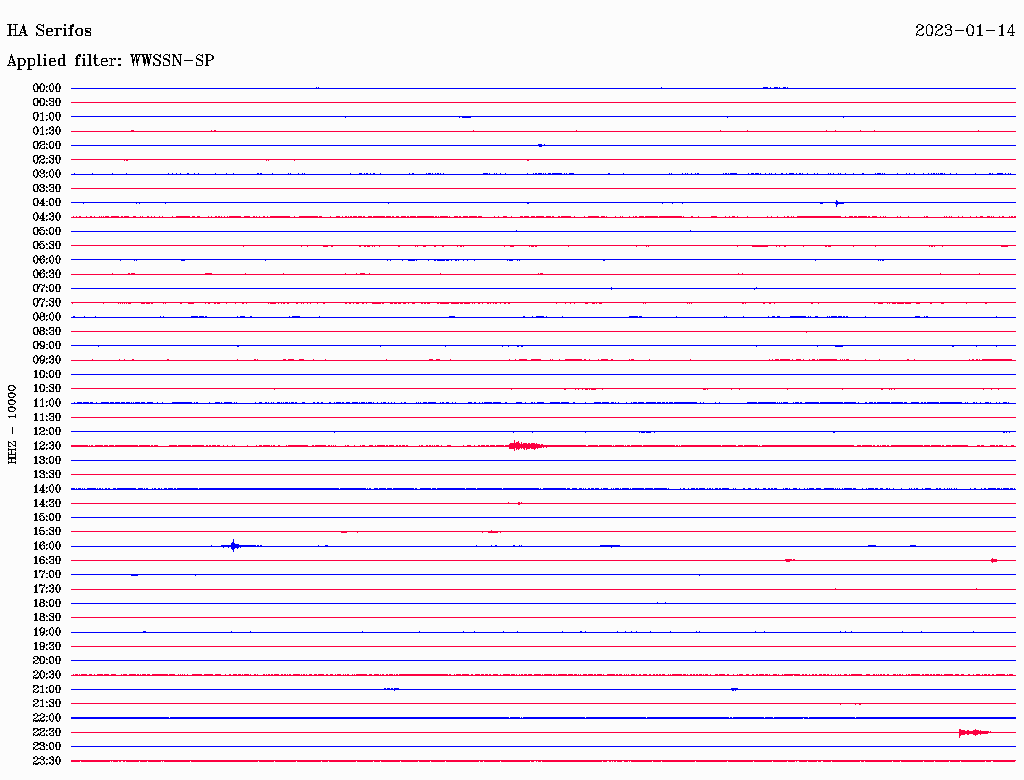

    SERI  HA    2.3   9  P       12:43:52.88  -0.7 M  1.0  SERI
    SERI  HA    2.3   9  S       12:44:22.74  -0.2 M  1.0  SERI
    GR33  1Y    2.4 324  P       12:43:54.91   1.2 M  1.0  GR33
    GR33  1Y    2.4 324  S       12:44:23.45   0.3 M  1.0  GR33

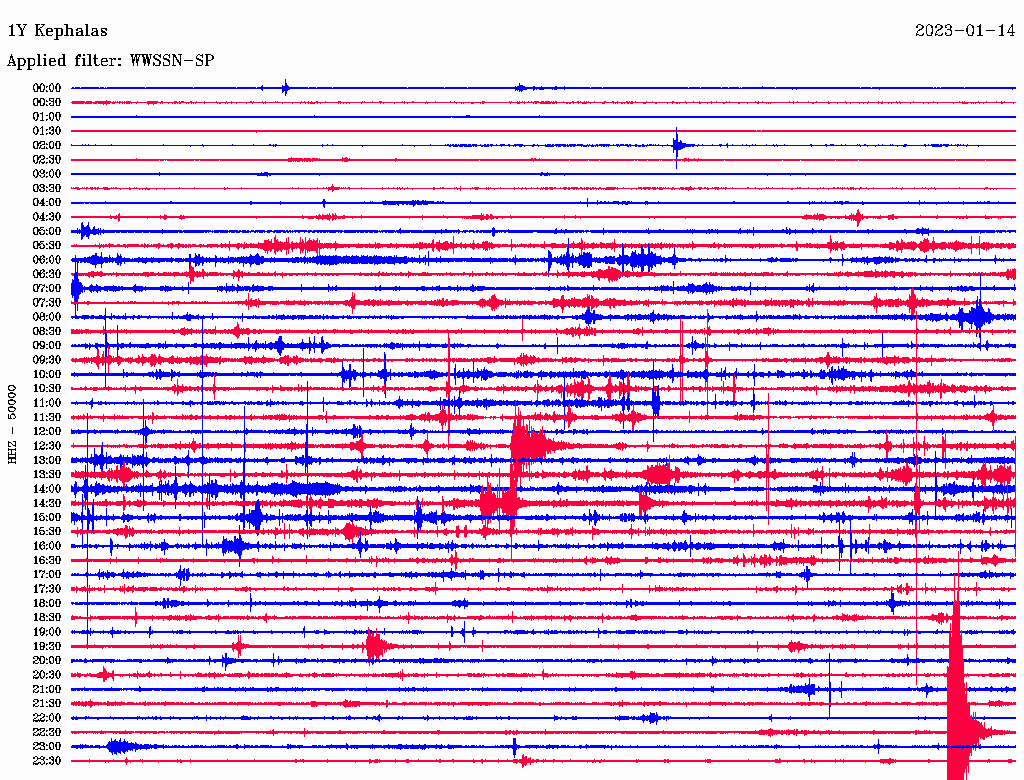

    GR31  1Y    2.5 331  P       12:43:56.79   1.0 M  1.0  GR31
    GR31  1Y    2.5 331  S       12:44:27.06   0.2 M  1.0  GR31

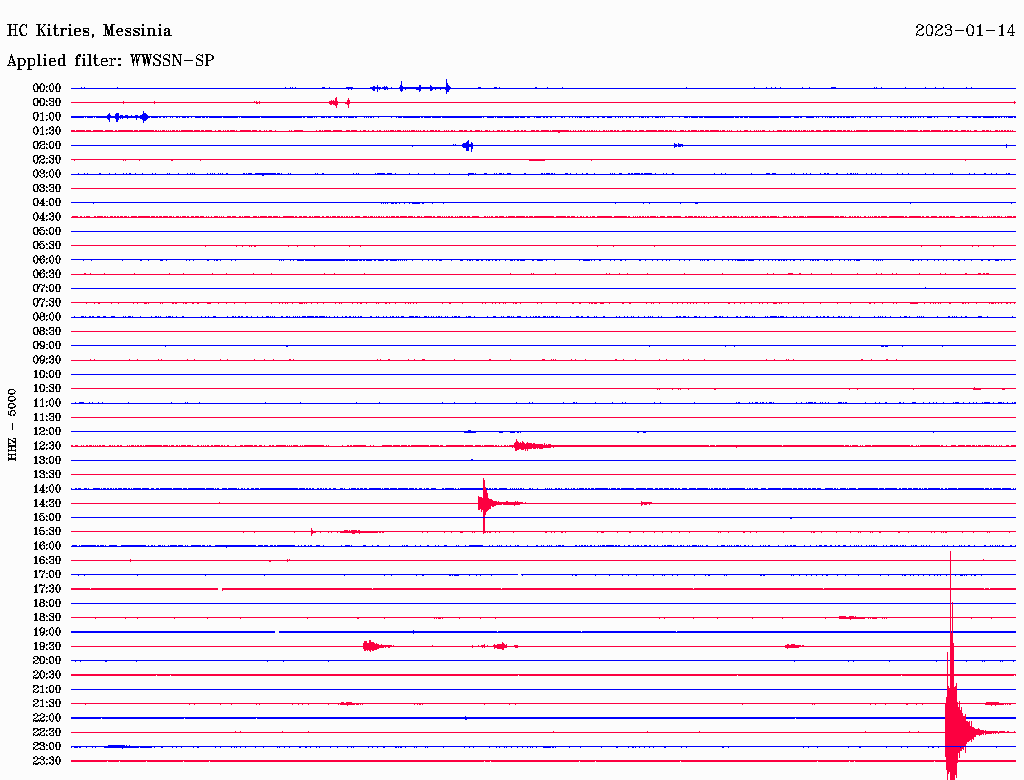

    KTRS  HC    2.6 324  P       12:43:57.10   0.3 M  1.0  KTRS
    KTRS  HC    2.6 324  S       12:44:29.51   0.8 M  1.0  KTRS

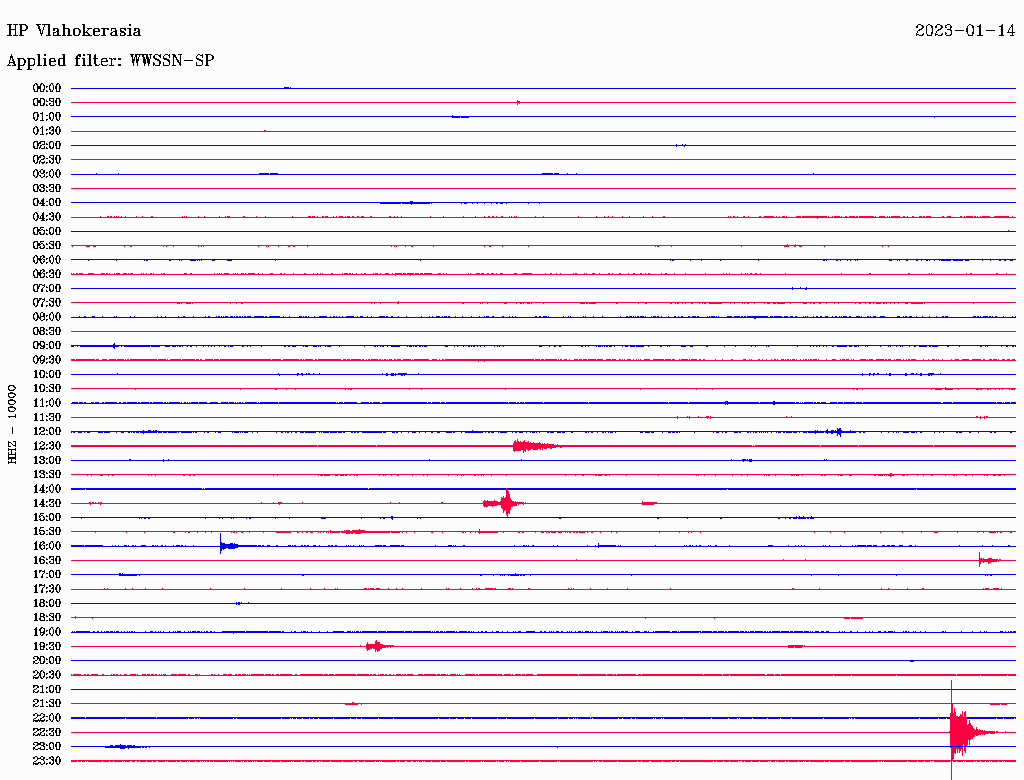

    VLX   HP    2.8 332  P       12:44:01.50   0.7 M  1.0  VLX
    VLX   HP    2.8 332  S       12:44:35.77   0.0 M  1.0  VLX

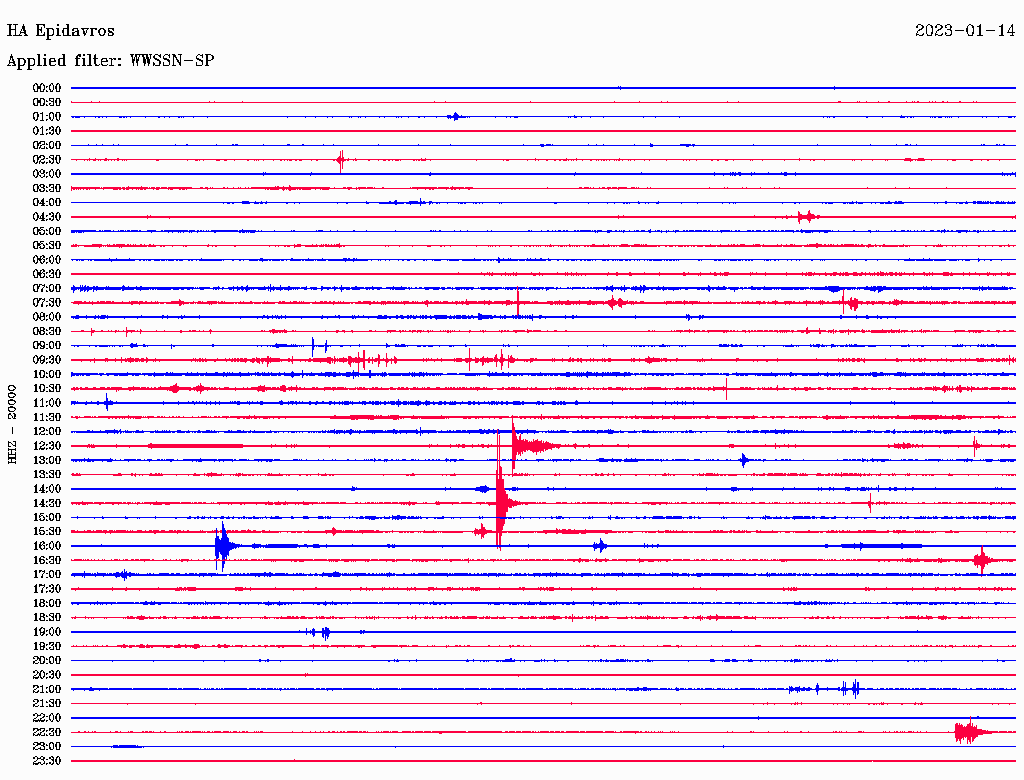

    EPID  HA    2.9 345  P       12:44:00.67  -0.2 M  1.0  EPID
    EPID  HA    2.9 345  S       12:44:35.80  -0.1 M  1.0  EPID

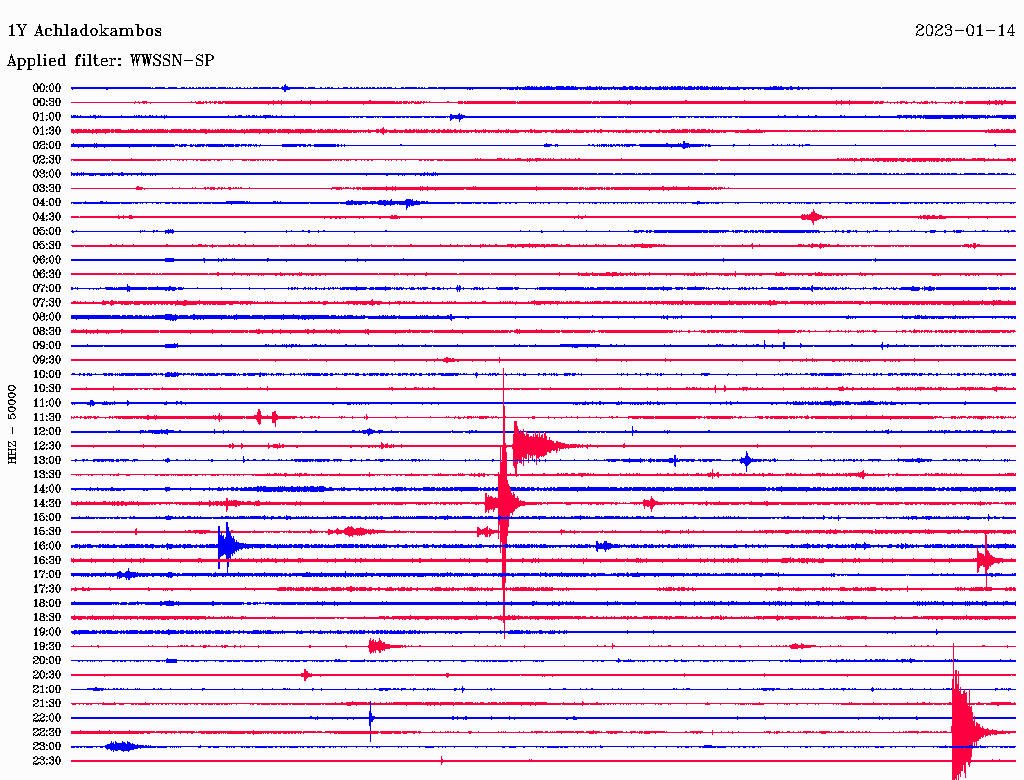

    GR30  1Y    2.9 336  P       12:44:01.32  -0.4 M  1.0  GR30

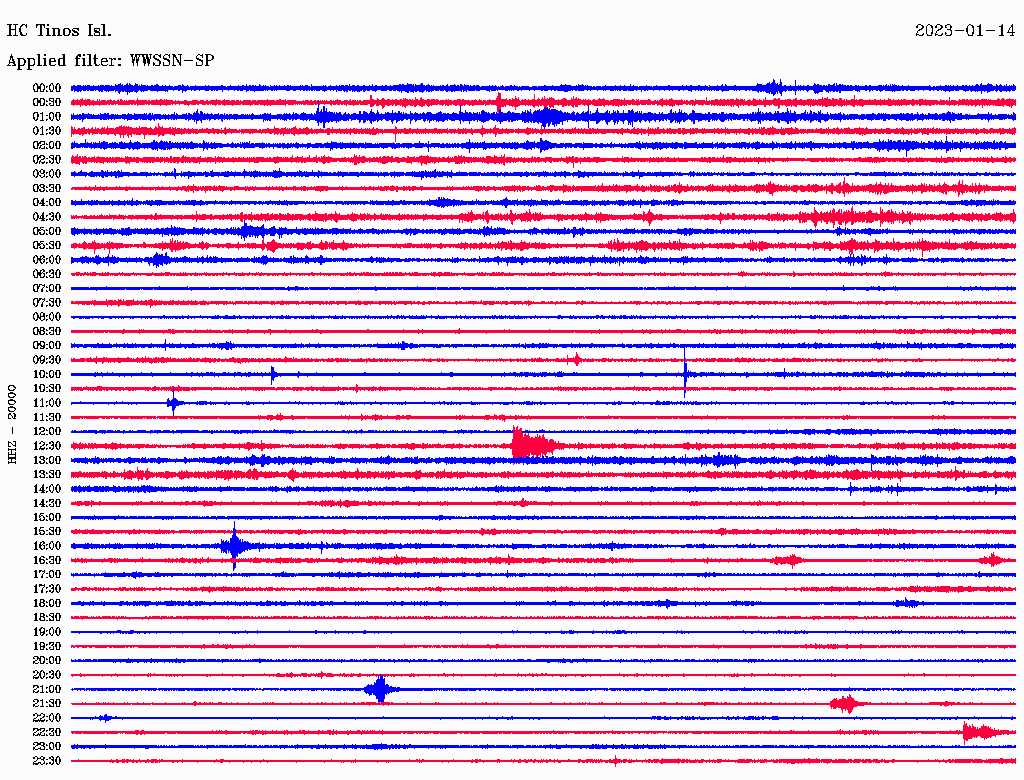

    THNO  HC    2.9  16  P       12:44:00.81  -0.9 M  1.0  THNO
    THNO  HC    2.9  16  S       12:44:36.70  -0.7 M  1.0  THNO

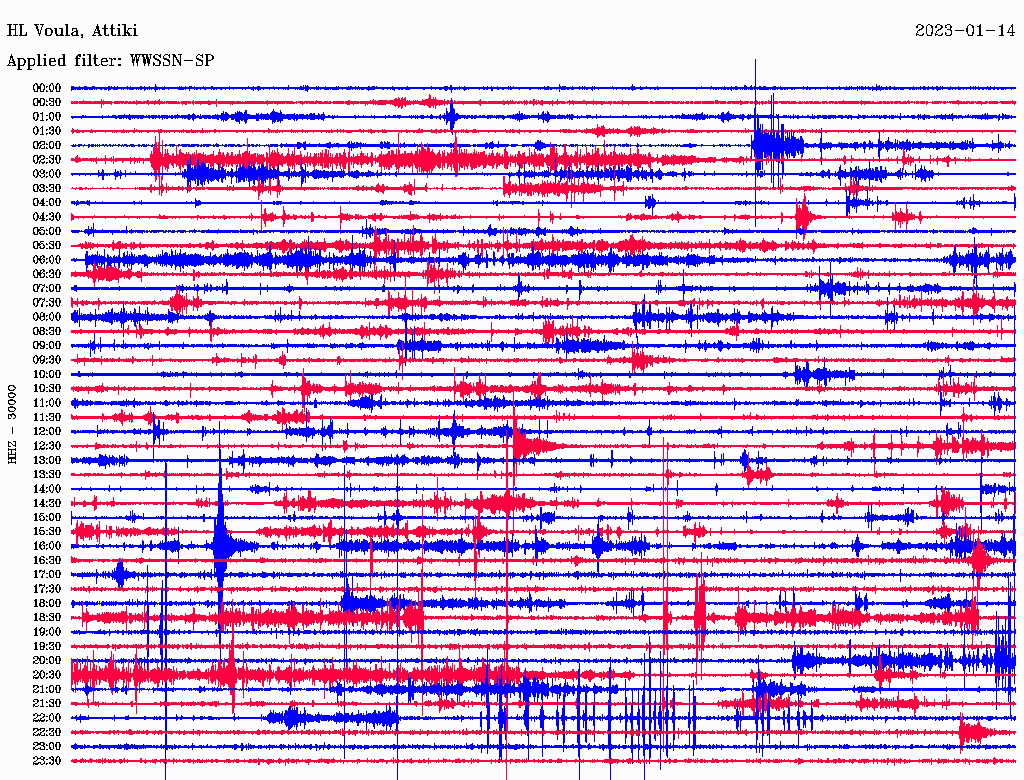

    VLY   HL    3.0 357  P       12:44:02.05  -0.9 M  1.0  VLY
    VLY   HL    3.0 357  S       12:44:39.43  -0.1 M  1.0  VLY

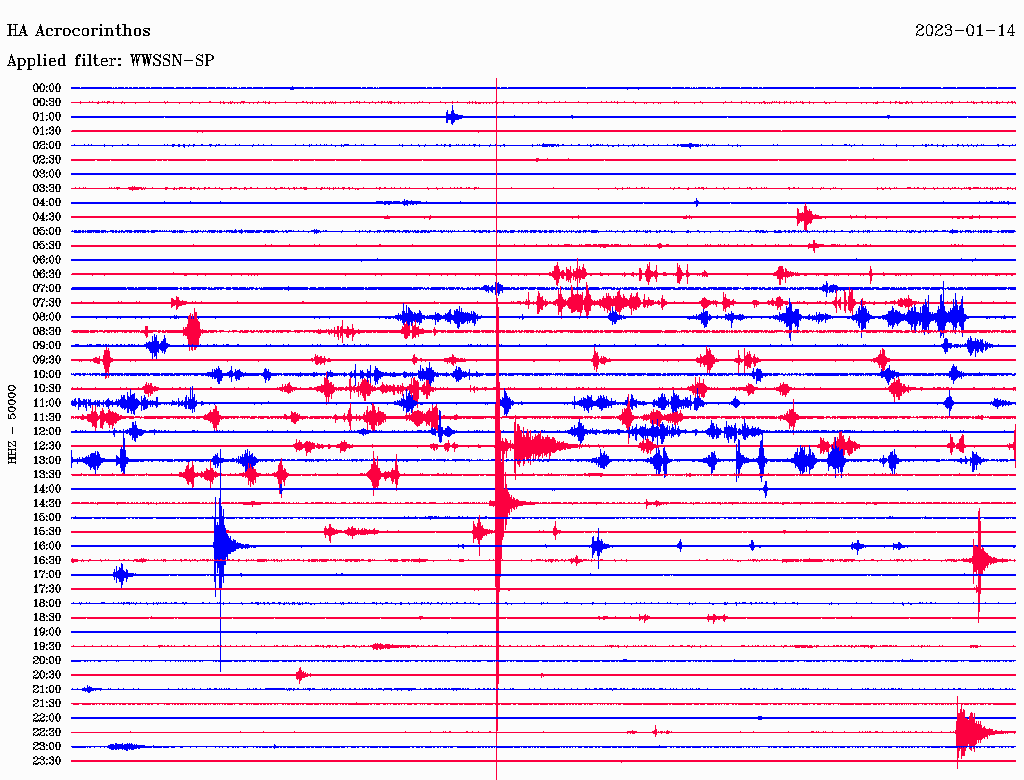

    ACOR  HA    3.2 343  P       12:44:04.52  -0.9 M  1.0  ACOR
    ACOR  HA    3.2 343  S       12:44:43.72  -0.1 M  1.0  ACOR

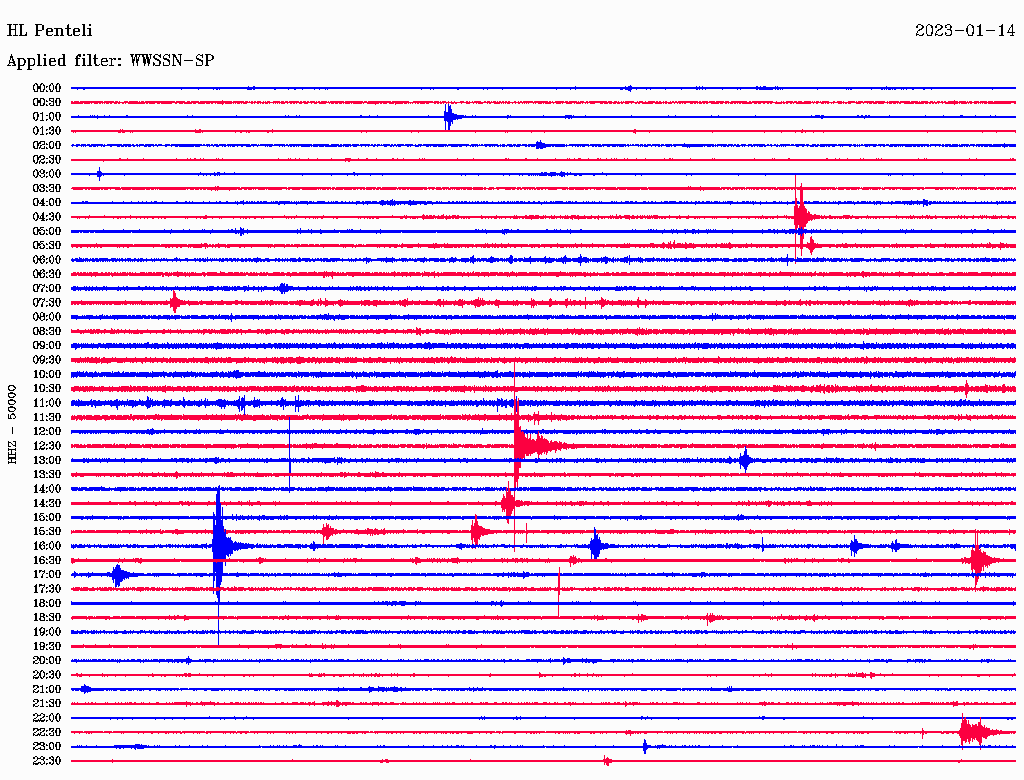

    PTL   HL    3.2 358  P       12:44:04.70  -1.0 M  1.0  PTL
    PTL   HL    3.2 358  S       12:44:43.75  -0.7 M  1.0  PTL

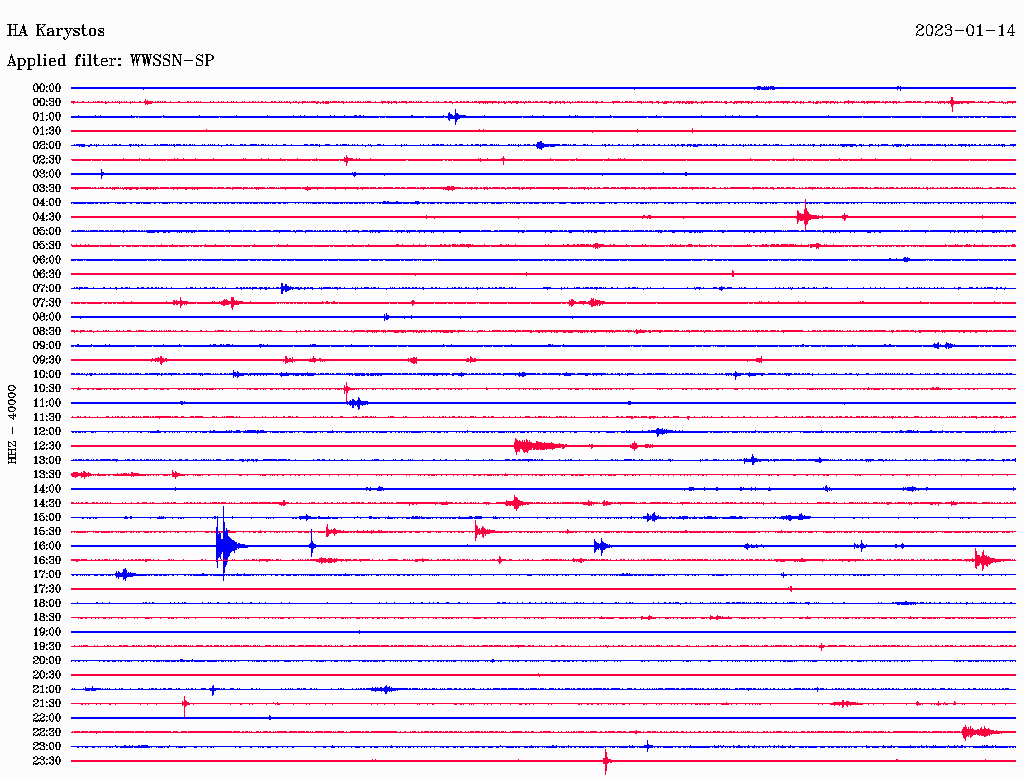

    KARY  HA    3.2   6  P       12:44:04.73  -1.0 M  1.0  KARY
    KARY  HA    3.2   6  S       12:44:43.47  -0.9 M  1.0  KARY

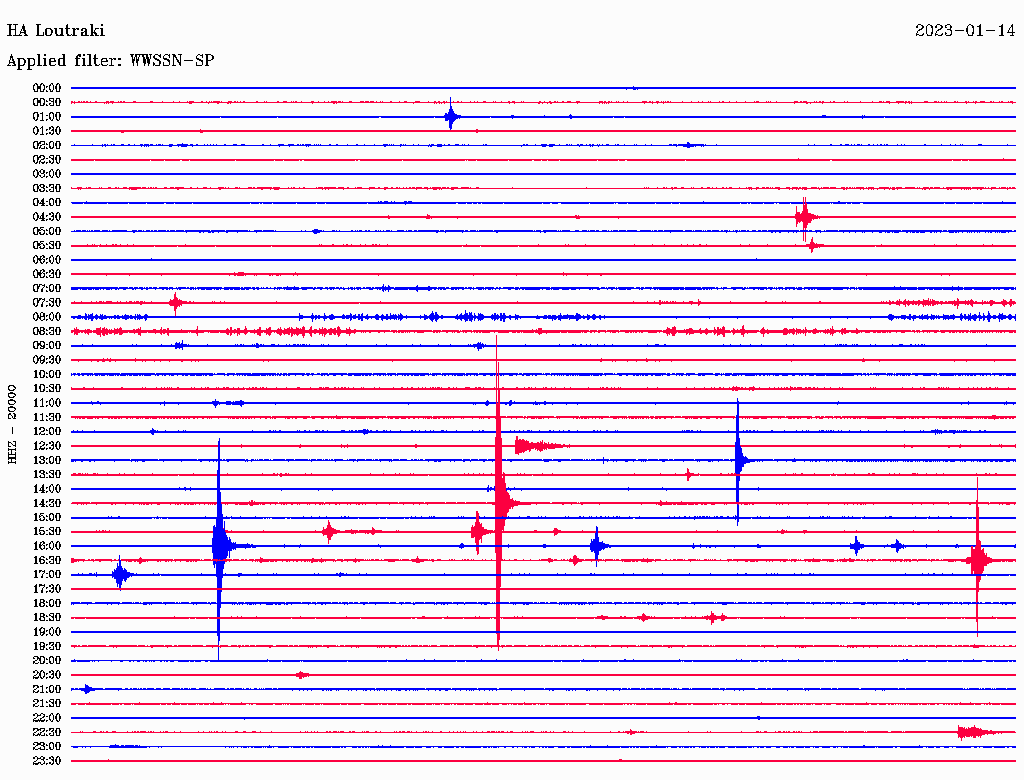

    LOUT  HA    3.2 345  P       12:44:05.77  -0.7 M  1.0  LOUT
    LOUT  HA    3.2 345  S       12:44:44.66  -0.9 M  1.0  LOUT

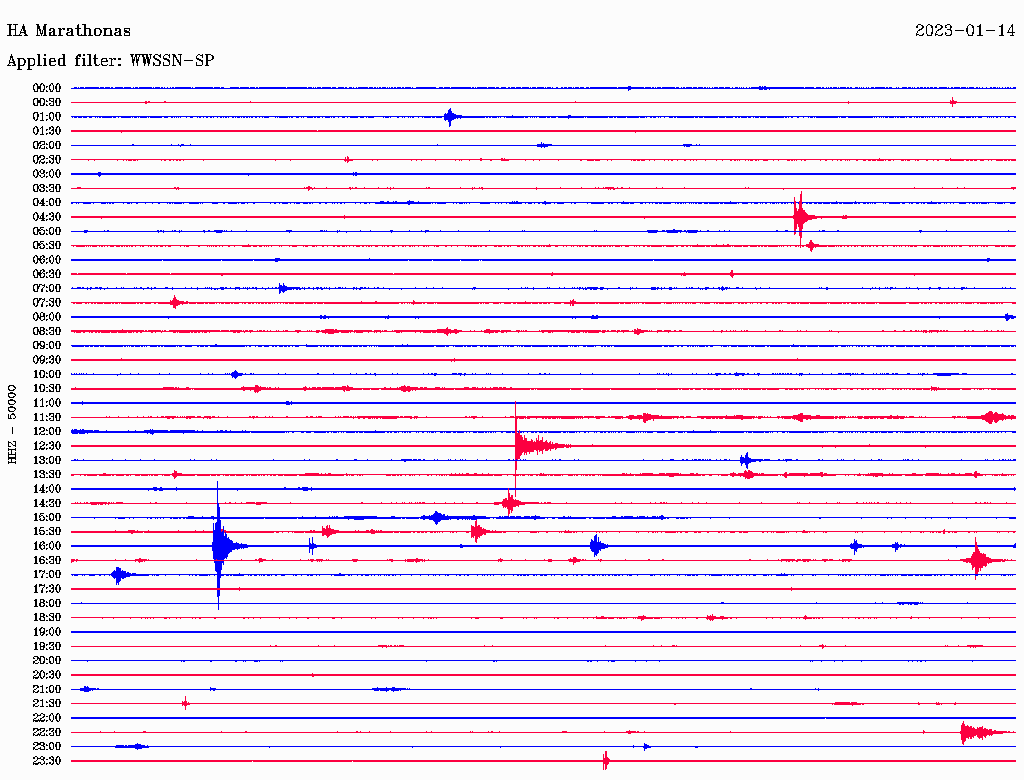

    MRTH  HA    3.3 359  P       12:44:05.69  -1.1 M  1.0  MRTH
    MRTH  HA    3.3 359  S       12:44:45.82  -0.3 M  1.0  MRTH
    LTK   HP    3.3 345  P       12:44:06.13  -0.8 M  1.0  LTK
    LTK   HP    3.3 345  S       12:44:46.38  -0.1 M  1.0  LTK

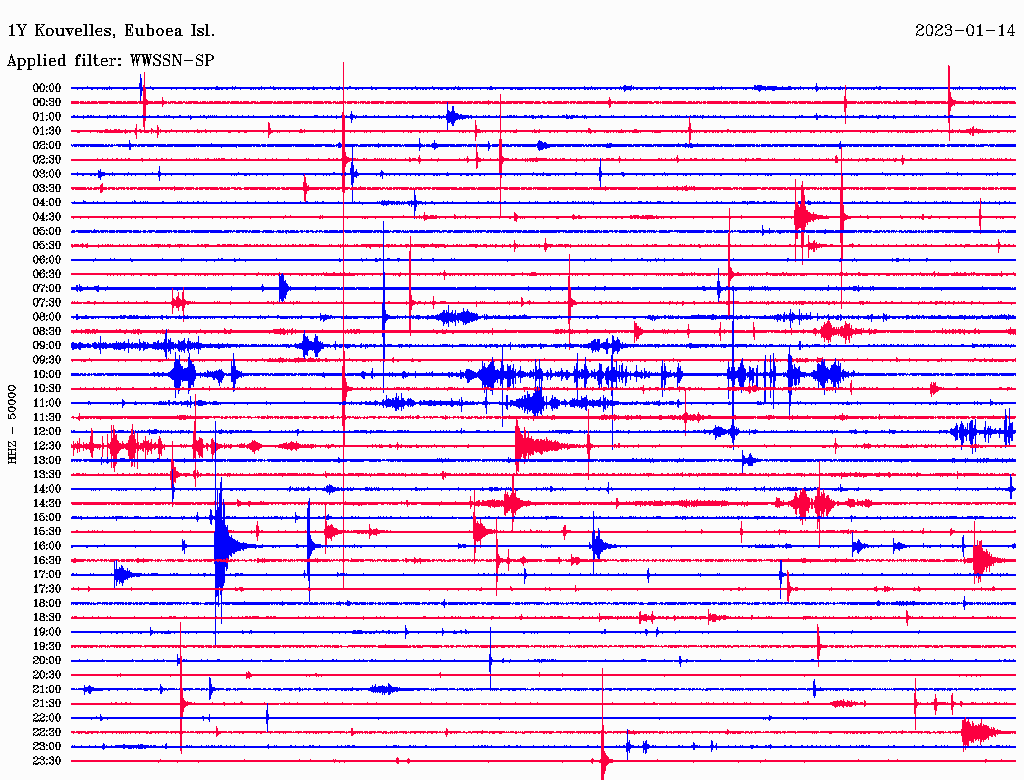

    GR27  1Y    3.3   3  P       12:44:06.53  -1.1 M  1.0  GR27
    GR27  1Y    3.3   3  S       12:44:47.04  -0.7 M  1.0  GR27

34 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    GVDS  HC    0.0 102  MLv     3.87  0.10    472.357
    IMMV  HL    0.6 357  MLv     4.11  0.33     29.435
    IPPL  HC    0.6  36  MLv     3.90  0.12    17.9831
    IMOD  HC    0.7  79  MLv     3.90  0.12    17.2447
    CH01  HI    0.7   0  MLv     3.98  0.20    20.2284
    CHAN  HC    0.7   2  MLv     3.90  0.12    33.6534
    RODP  HC    0.7 343  MLv     3.74 -0.04    10.6869
    KNSS  HC    1.1  64  MLv     3.58 -0.20     4.9246
    KSTE  HL    1.1  73  MLv     3.51 -0.27    3.79057
    ANKY  HL    1.2 330  MLv     3.60 -0.18    4.42863
    PFKS  HC    1.2  81  MLv     3.54 -0.24    3.68576
    NPS   HL    1.4  72  MLv     3.46 -0.32    2.49562
    ZKR   HL    1.8  82  MLv     3.52 -0.26    1.61648
    SNT5  HA    1.9  36  MLv     3.77 -0.00    1.50694
    SAP3  HL    1.9  34  MLv     3.97  0.19    6.66604
    THERA HL    1.9  38  MLv     3.44 -0.34    1.16488
    VLI   HL    2.1 335  MLv     3.68 -0.10    2.20677
    GR32  1Y    2.3 338  MLv     3.48 -0.30   0.825622
    SERI  HA    2.3   9  MLv     3.37 -0.41   0.586396
    GR33  1Y    2.4 324  MLv     3.43 -0.35   0.666924
    GR31  1Y    2.5 331  MLv     3.65 -0.13   0.905191
    KTRS  HC    2.6 324  MLv     3.71 -0.07   0.940415
    VLX   HP    2.8 332  MLv     3.35 -0.43   0.292086
    EPID  HA    2.9 345  MLv     4.01  0.23    1.30653
    GR30  1Y    2.9 336  MLv     3.59 -0.19   0.463994
    THNO  HC    2.9  16  MLv     3.44 -0.34   0.326371
    VLY   HL    3.0 357  MLv     4.25  0.48    1.90944
    ACOR  HA    3.2 343  MLv     3.73 -0.05   0.462515
    PTL   HL    3.2 358  MLv     4.37  0.59    1.93843
    KARY  HA    3.2   6  MLv     3.58 -0.19   0.319028
    LOUT  HA    3.2 345  MLv     4.02  0.24   0.818239
    MRTH  HA    3.3 359  MLv     4.60  0.82     3.0345
    LTK   HP    3.3 345  MLv     3.58 -0.20     1.0801
    GR27  1Y    3.3   3  MLv     3.79  0.01   0.433165
