Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2023-01-10 18:11:11 (GMT)
 Μέγεθος
 M 4.2
 Γεωγρ. Πλάτος
 35.5522° Β
 Γεωγρ. Μήκος
 25.8138° Α
 Εστιακό Βάθος
 19 χμ
 Αρ. αφίξεων
 42
 Επίκεντρο 66.9 χμ ΑΒΑ του Ηρακλείου
102.0 χμ ΝΝΑ της Θήρας
327.7 χμ ΝΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Μηχ.Γέν.


  Μηχανισμός Γένεσης

Μηχ.Γεν. Παράταξη (°) Κλίση (°) Γων.Ολίσθ. (°) Σεισμ.Ροπή (dyn*cm)
23170-22 5.08E+22

Γεωγρ.Πλάτος (°Β) Γεωγρ.Μήκος (°Α) Βάθος (χμ) Μέγεθος Mw
35.556325.82145.04.4

Υπολογισμός εστιακών παραμέτρων

Κλικ εδώ για λεπτομέρειες μηχανισμού γένεσης

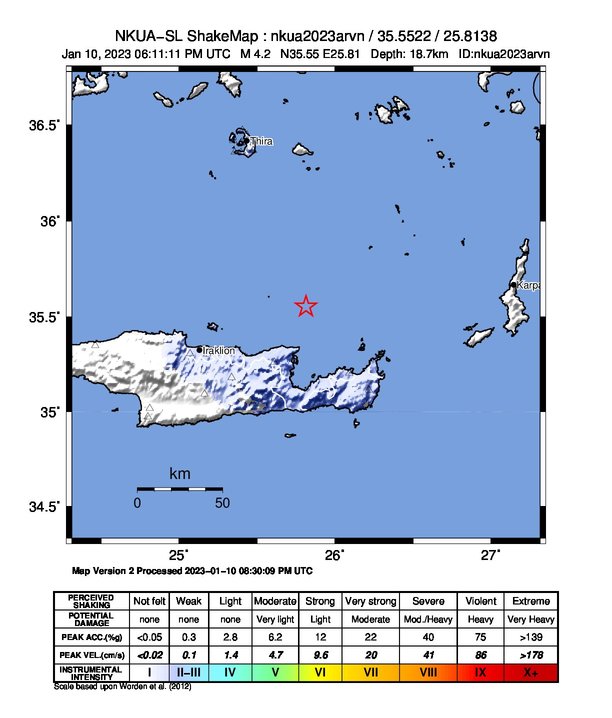

  Χάρτης εντάσεως

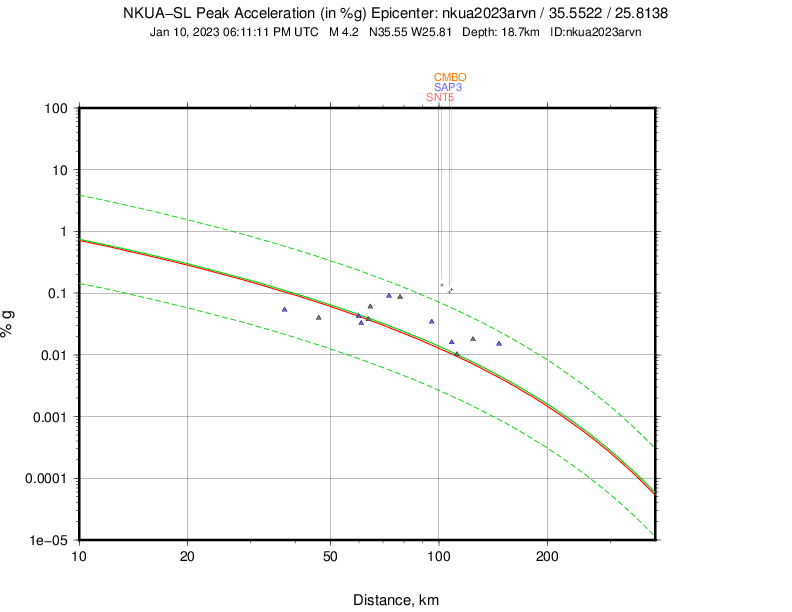

PGA

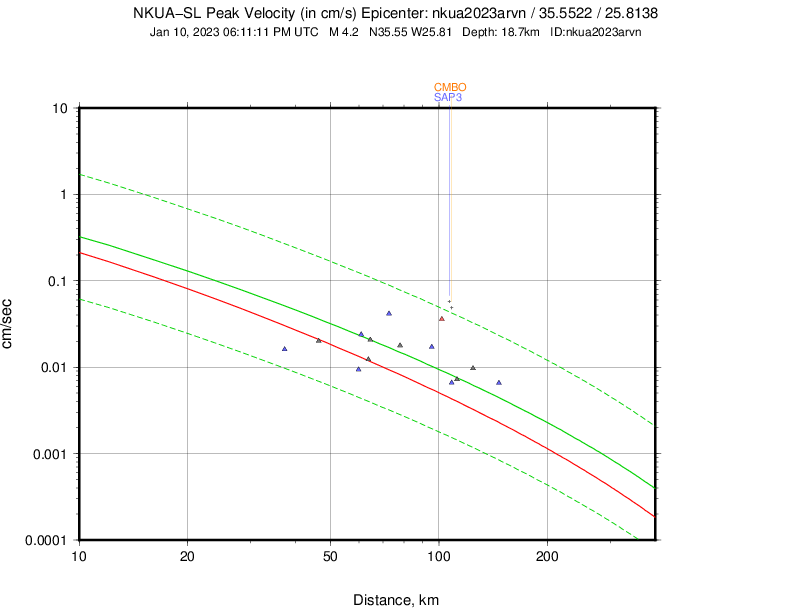

 PGV

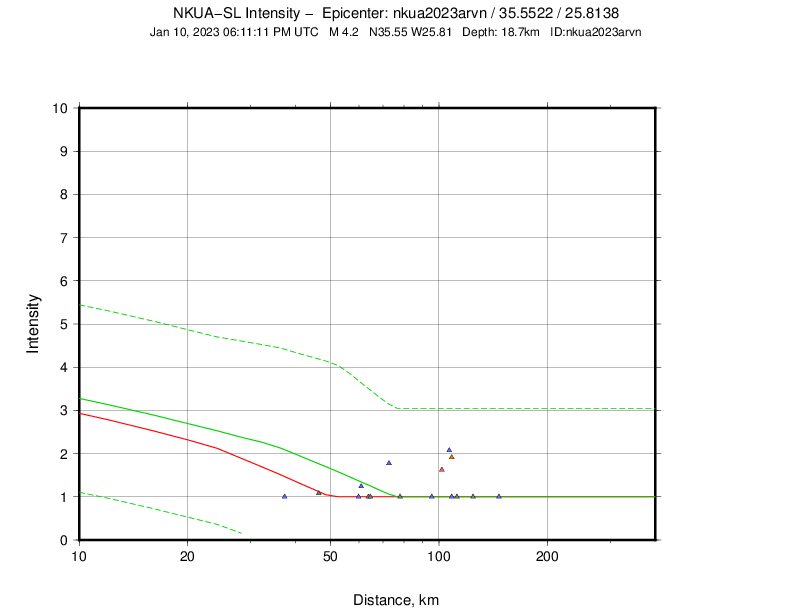

 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

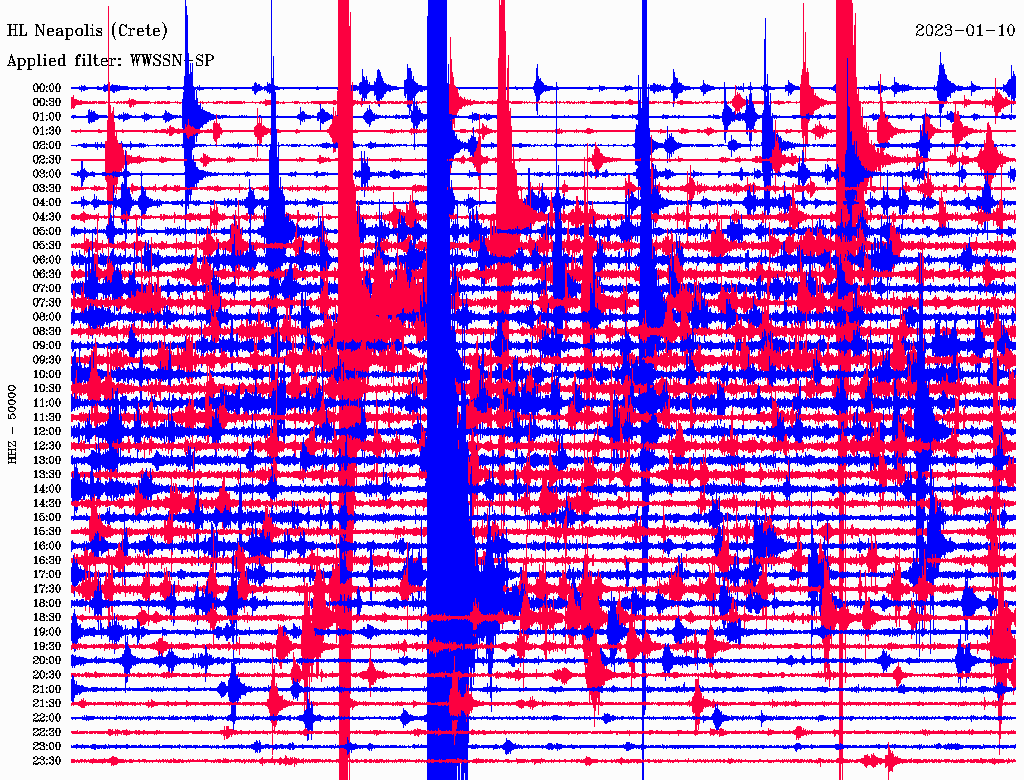

NPSHL37.2210 P18:11:18.15 -0.51.0M
NPSHL37.2210 S18:11:23.94 -0.11.0M

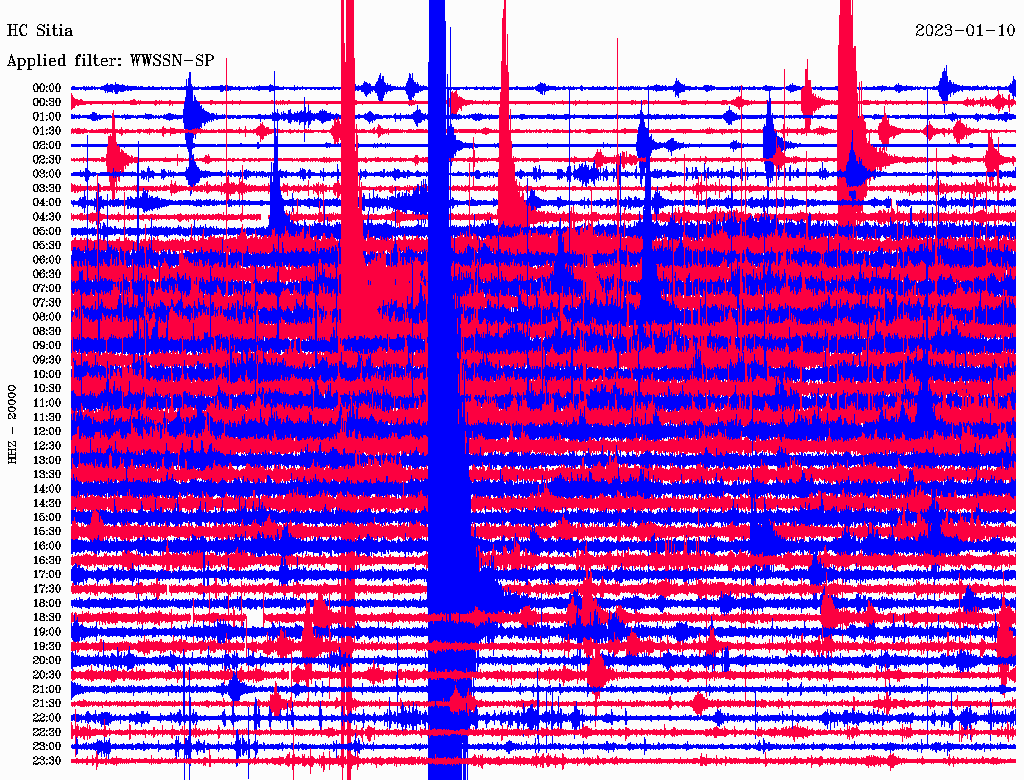

STIAHC46.3147 P18:11:19.87 -0.11.0M
STIAHC46.3147 S18:11:26.49 0.11.0M
KSTEHL59.8226 P18:11:20.90 -1.11.0M
KSTEHL59.8226 S18:11:29.77 -0.31.0M

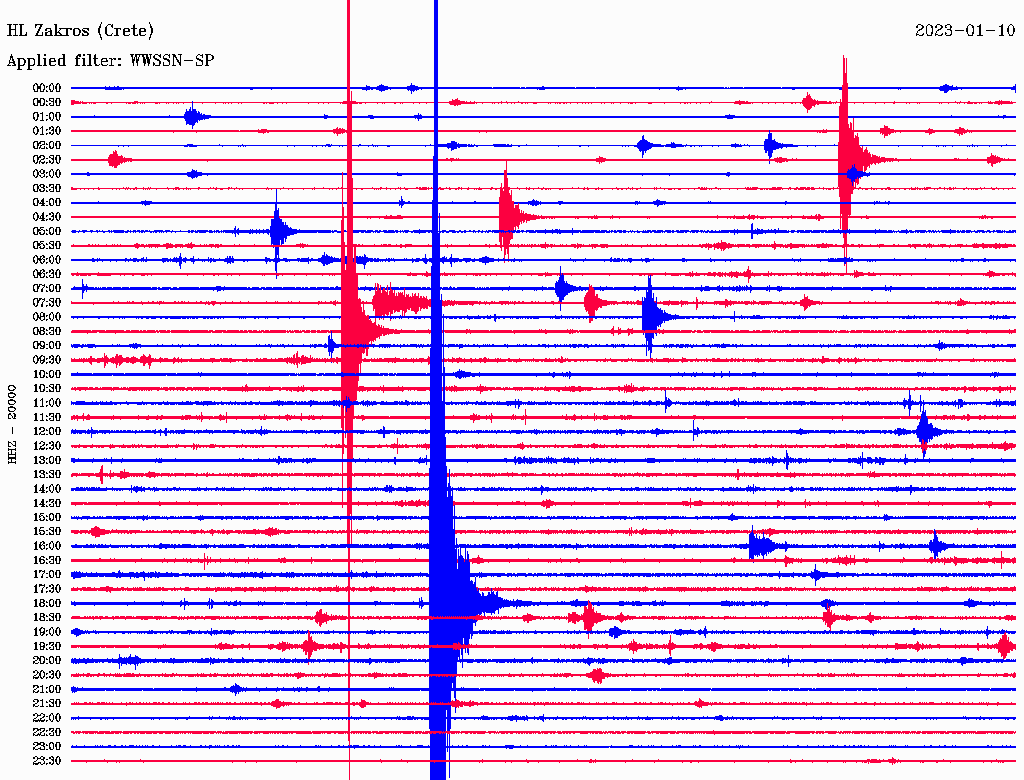

ZKRHL60.9143 P18:11:22.06 -0.11.0M
ZKRHL60.9143 S18:11:30.34 0.11.0M

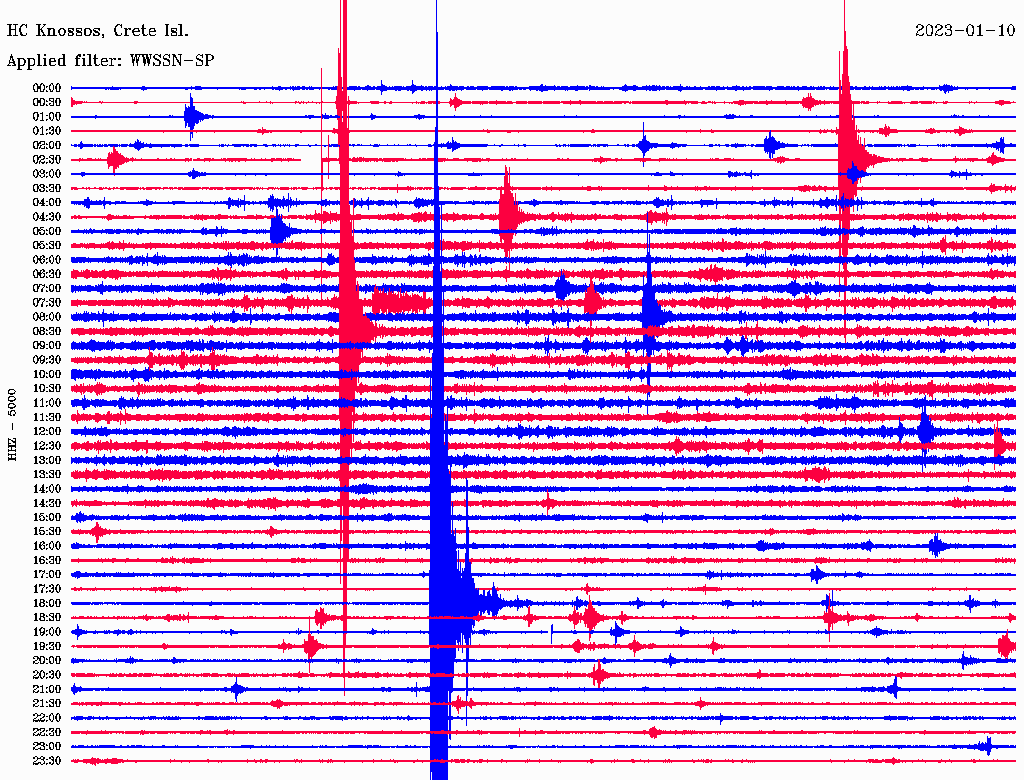

KNSSHC63.7244 P18:11:22.43 -0.21.0M
KNSSHC63.7244 S18:11:30.98 -0.11.0M

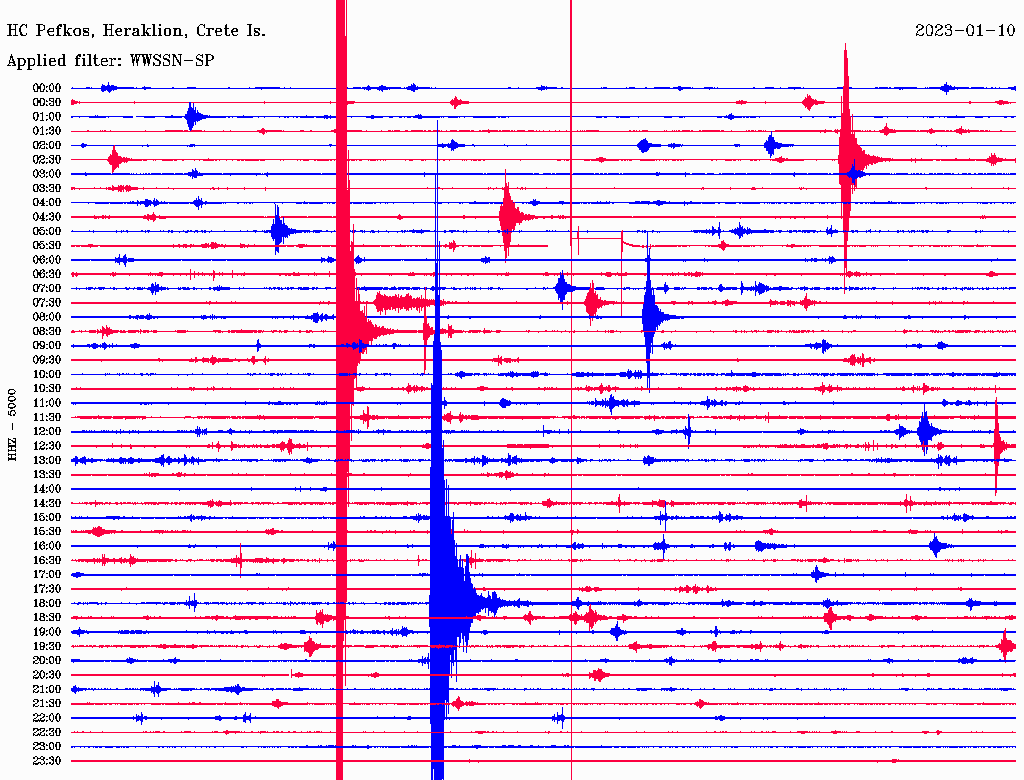

PFKSHC64.5209 P18:11:22.69 -0.11.0M
PFKSHC64.5209 S18:11:31.63 0.21.0M

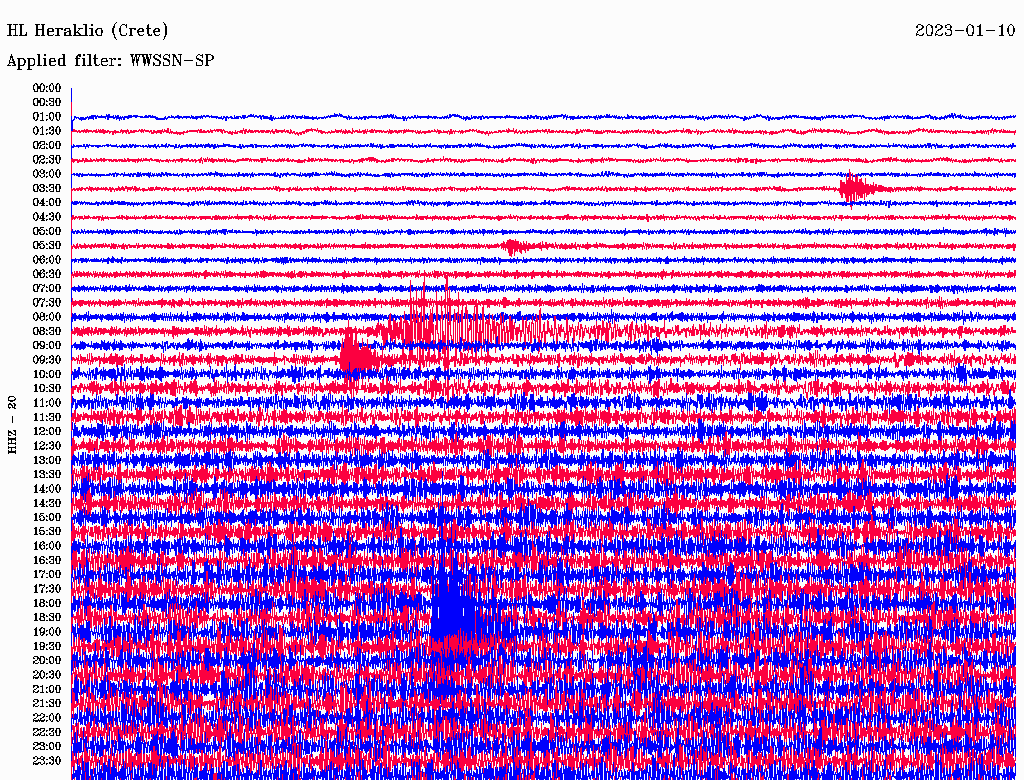

IACMHL72.7248 P18:11:24.28 0.31.0M
IACMHL72.7248 S18:11:33.71 0.21.0M
TEFLHC78.0229 P18:11:25.46 0.61.0M
TEFLHC78.0229 S18:11:35.44 0.51.0M

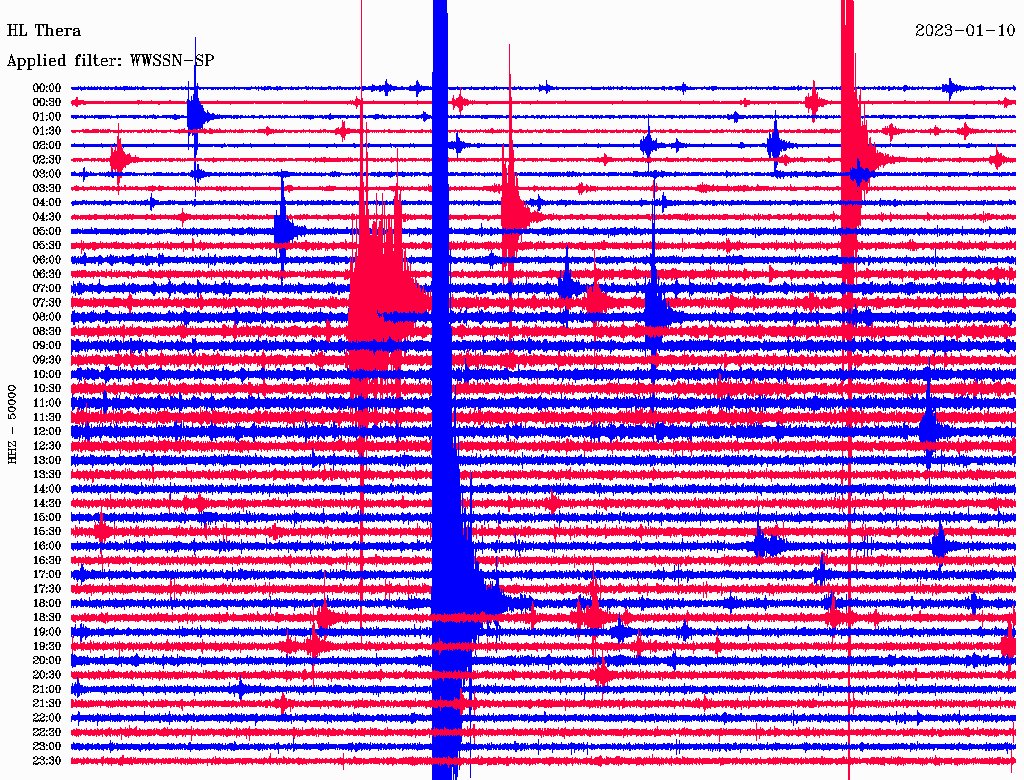

THERAHL95.6341 P18:11:27.30 -0.21.0M
THERAHL95.6341 S18:11:39.92 0.31.0M

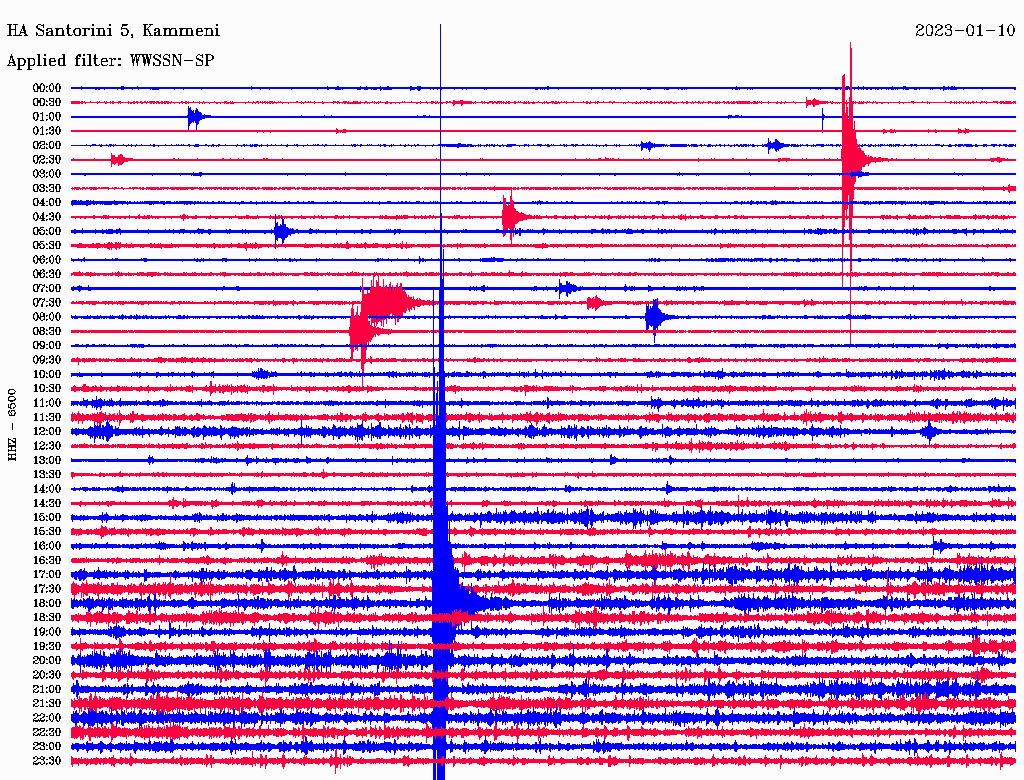

SNT5HA101.9338 P18:11:28.42 0.01.0M
SNT5HA101.9338 S18:11:41.94 0.61.0M

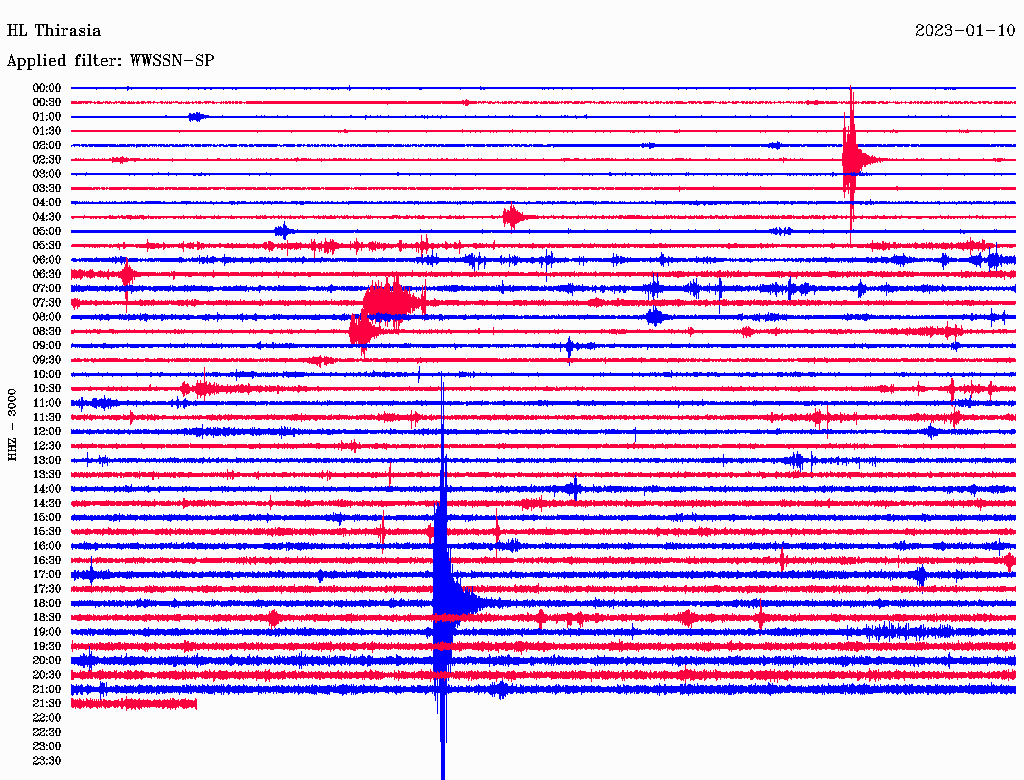

SAP3HL106.9337 P18:11:28.55 -0.71.0M
SAP3HL106.9337 S18:11:42.74 0.11.0M

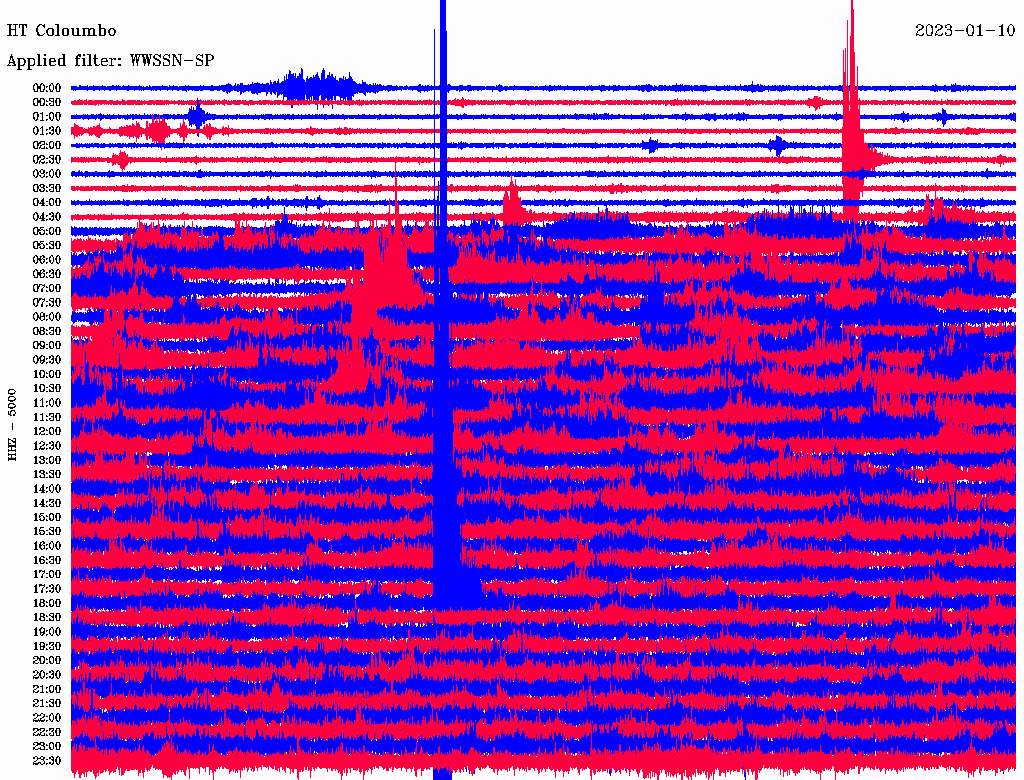

CMBOHT108.6340 P18:11:29.14 -0.31.0M
CMBOHT108.6340 S18:11:42.87 -0.21.0M
SIVAHL108.6237 P18:11:29.29 -0.21.0M
SIVAHL108.6237 S18:11:43.43 0.21.0M

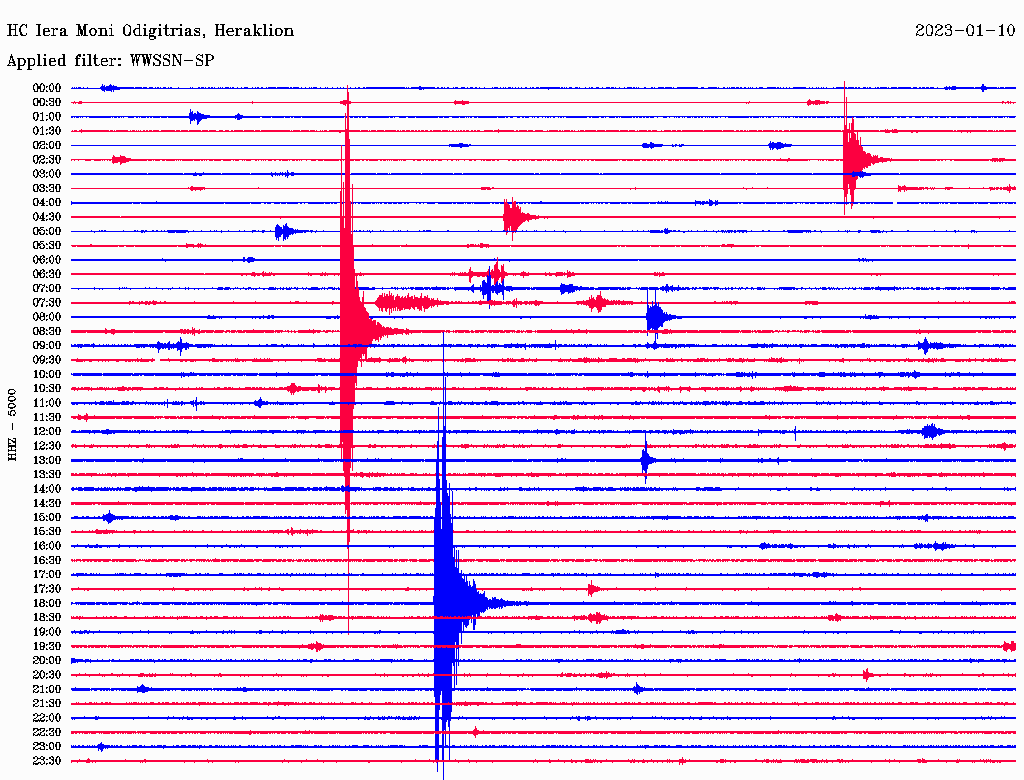

IMODHC112.4235 P18:11:31.11 1.01.0M
IMODHC112.4235 S18:11:44.16 -0.11.0M

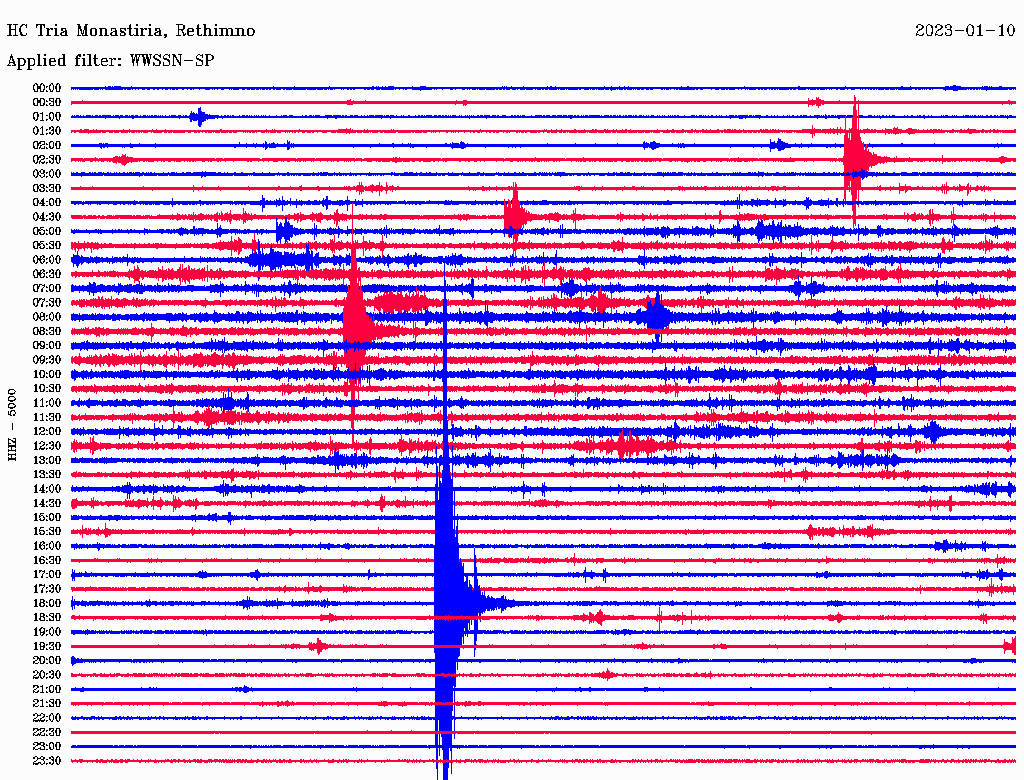

IPPLHC124.4260 P18:11:31.67 -0.31.0M
IPPLHC124.4260 S18:11:47.67 0.11.0M

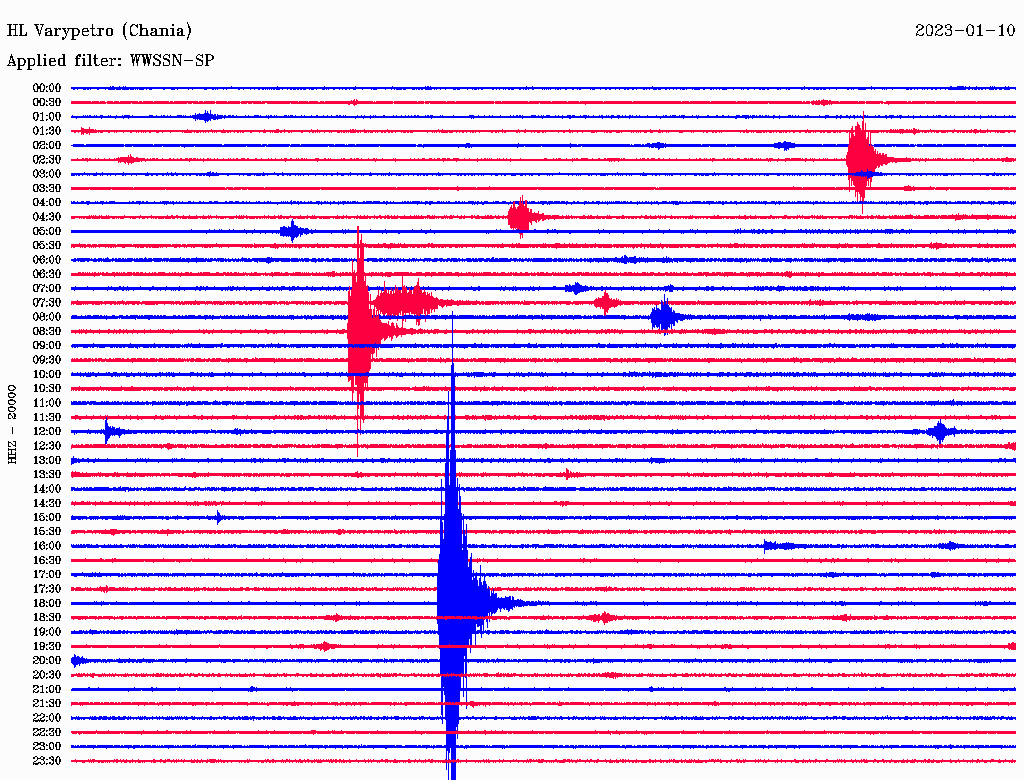

IMMVHL166.2267 P18:11:37.59 -0.21.0M
IMMVHL166.2267 S18:11:57.87 0.11.0M

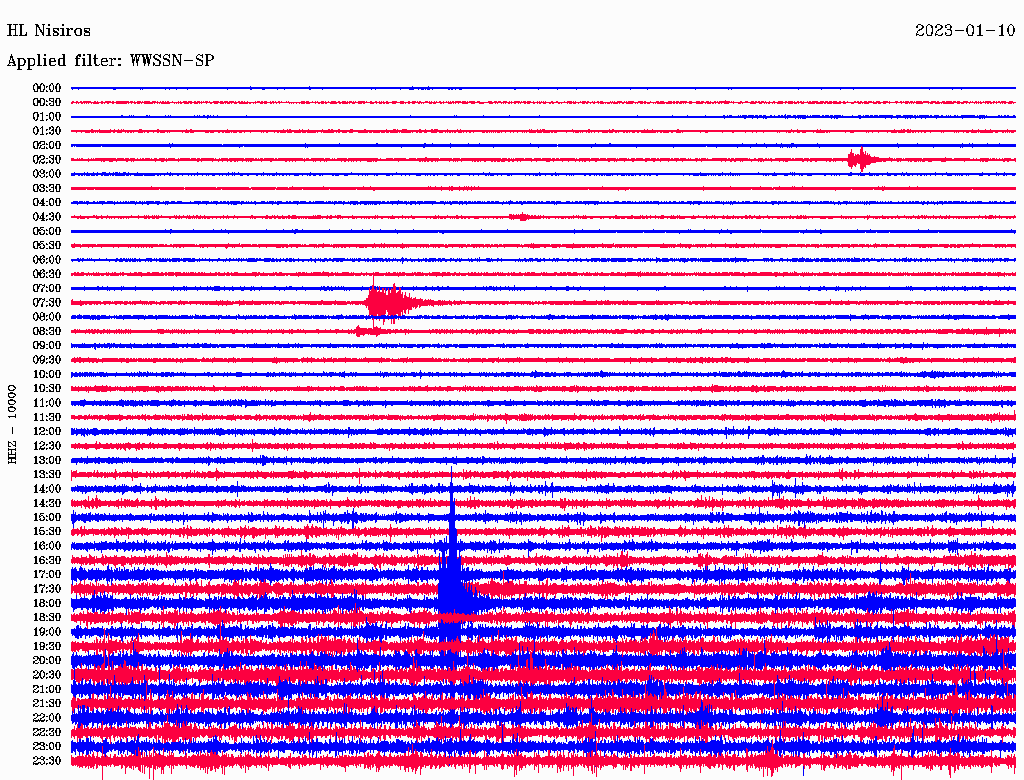

NISRHL166.9 45 P18:11:38.07 0.31.0M
NISRHL166.9 45 S18:11:58.54 0.71.0M
NAX1HI176.7347 P18:11:38.66 -0.31.0M
NAX1HI176.7347 S18:11:59.21 -0.71.0M

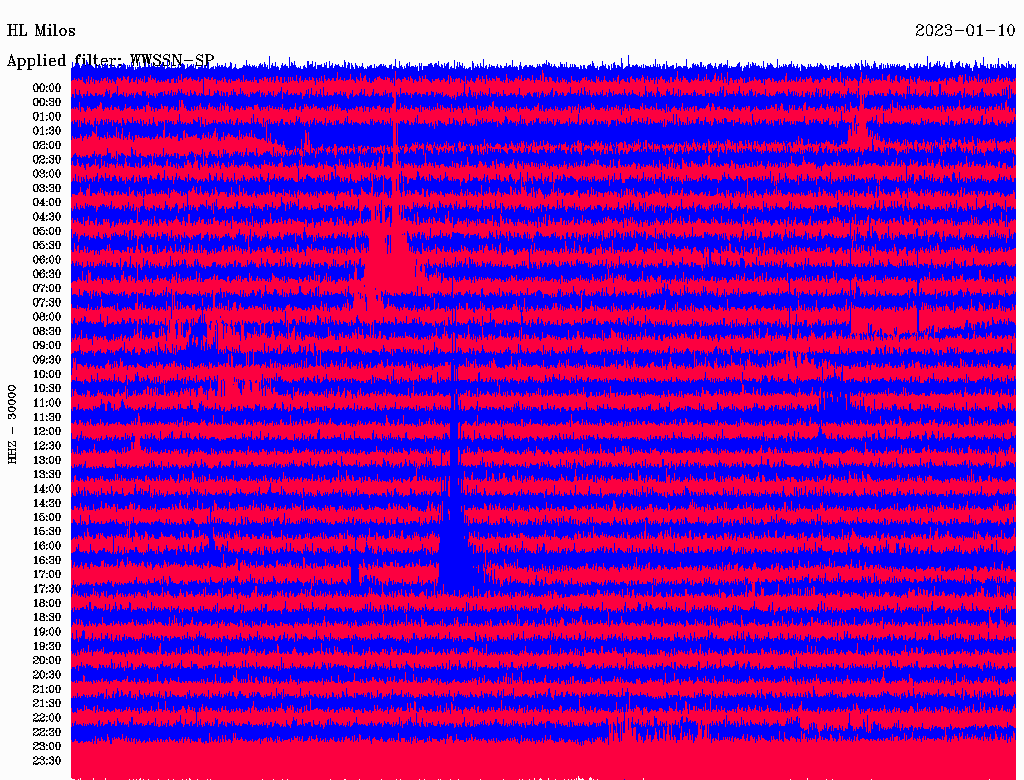

MHLOHL179.1315 P18:11:40.12 0.71.0M
MHLOHL179.1315 S18:12:01.10 0.51.0M

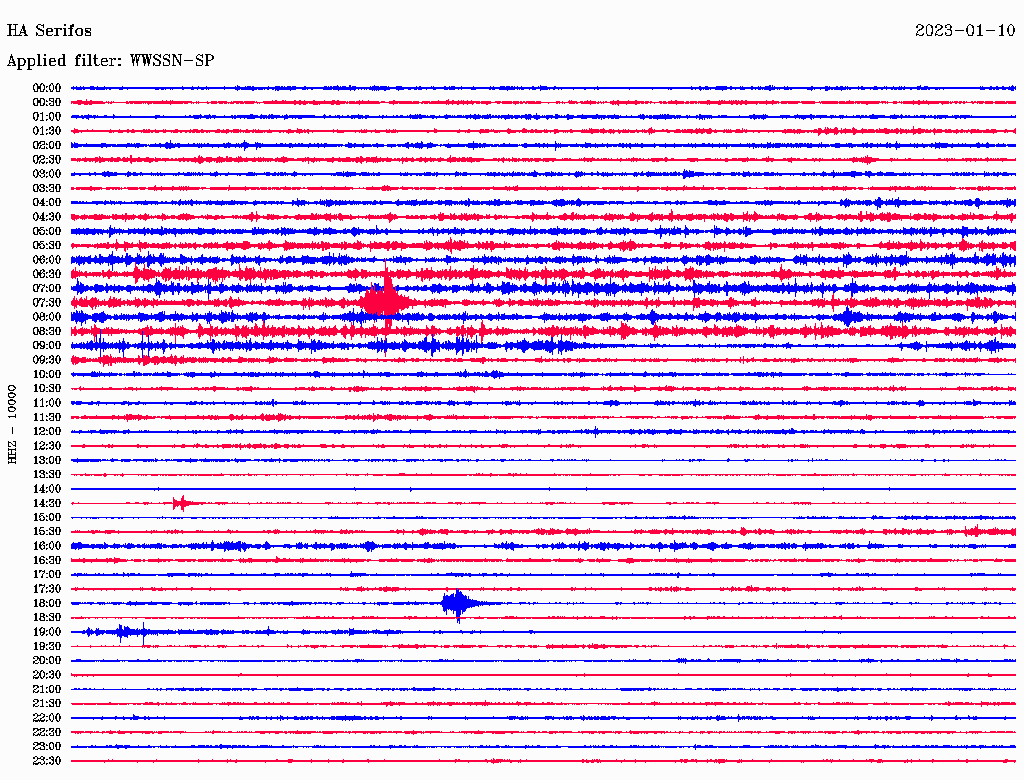

SERIHA214.8326 P18:11:43.55 -0.41.0M
SERIHA214.8326 S18:12:08.08 -0.61.0M

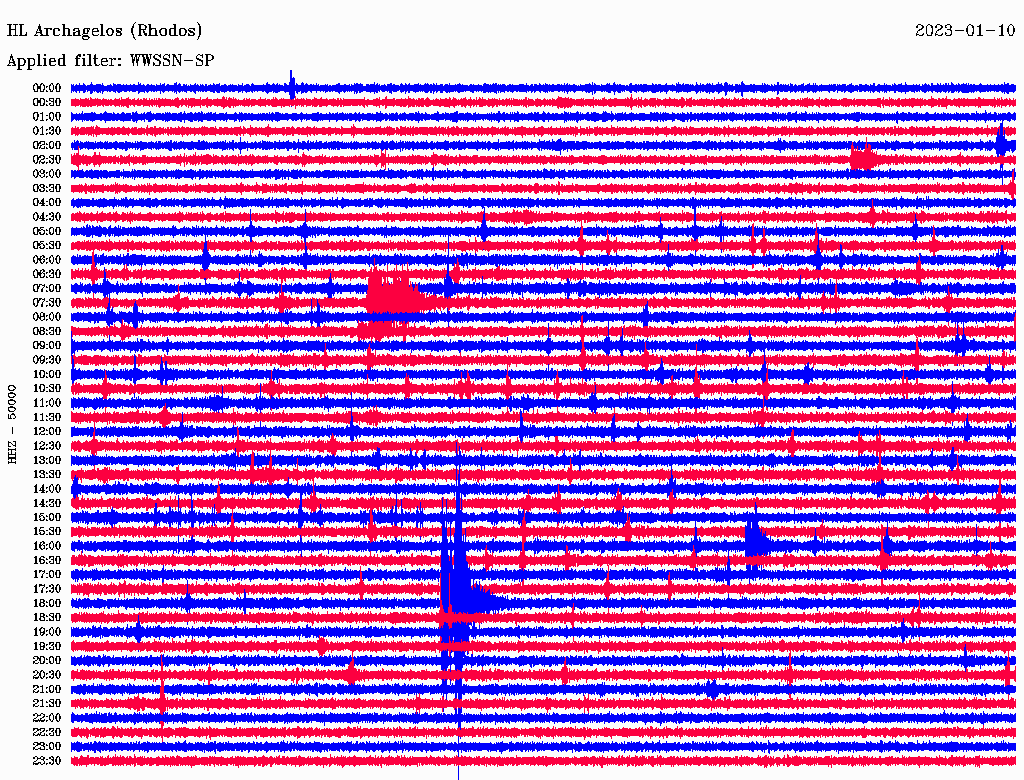

ARGHL220.5 71 P18:11:44.33 -0.41.0M
ARGHL220.5 71 S18:12:09.60 -0.41.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2023arvn
    Description
      region name: Crete, Greece
Origin:
    Date                   2023-01-10
    Time                  18:11:11.49
    Latitude              35.5522 deg  +/-      0 km
    Longitude             25.8138 deg  +/-      0 km
    Depth                      19 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.37 s
    Azimuthal gap              72 deg

2 Network magnitudes:
    MLv       4.16 +/- 0.19  17
    M         4.16           17 preferred

42 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    NPS   HL    0.3 210  P       18:11:18.15  -0.5 M  1.0  NPS
    NPS   HL    0.3 210  S       18:11:23.94  -0.1 M  1.0  NPS
    STIA  HC    0.4 147  P       18:11:19.87  -0.1 M  1.0  STIA
    STIA  HC    0.4 147  S       18:11:26.49   0.1 M  1.0  STIA
    KSTE  HL    0.5 226  P       18:11:20.90  -1.1 M  1.0  KSTE
    KSTE  HL    0.5 226  S       18:11:29.77  -0.3 M  1.0  KSTE
    ZKR   HL    0.5 143  P       18:11:22.06  -0.1 M  1.0  ZKR
    ZKR   HL    0.5 143  S       18:11:30.34   0.1 M  1.0  ZKR
    KNSS  HC    0.6 244  P       18:11:22.43  -0.2 M  1.0  KNSS
    KNSS  HC    0.6 244  S       18:11:30.98  -0.1 M  1.0  KNSS
    PFKS  HC    0.6 209  P       18:11:22.69  -0.1 M  1.0  PFKS
    PFKS  HC    0.6 209  S       18:11:31.63   0.2 M  1.0  PFKS
    IACM  HL    0.7 248  P       18:11:24.28   0.3 M  1.0  IACM
    IACM  HL    0.7 248  S       18:11:33.71   0.2 M  1.0  IACM
    TEFL  HC    0.7 229  P       18:11:25.46   0.6 M  1.0  TEFL
    TEFL  HC    0.7 229  S       18:11:35.44   0.5 M  1.0  TEFL
    THERA HL    0.9 341  P       18:11:27.30  -0.2 M  1.0  THERA
    THERA HL    0.9 341  S       18:11:39.92   0.3 M  1.0  THERA
    SNT5  HA    0.9 338  P       18:11:28.42  -0.0 M  1.0  SNT5
    SNT5  HA    0.9 338  S       18:11:41.94   0.6 M  1.0  SNT5
    SAP3  HL    1.0 337  P       18:11:28.55  -0.7 M  1.0  SAP3
    SAP3  HL    1.0 337  S       18:11:42.74   0.1 M  1.0  SAP3
    CMBO  HT    1.0 340  P       18:11:29.14  -0.3 M  1.0  CMBO
    CMBO  HT    1.0 340  S       18:11:42.87  -0.2 M  1.0  CMBO
    SIVA  HL    1.0 237  P       18:11:29.29  -0.2 M  1.0  SIVA
    SIVA  HL    1.0 237  S       18:11:43.43   0.2 M  1.0  SIVA
    IMOD  HC    1.0 235  P       18:11:31.11   1.0 M  1.0  IMOD
    IMOD  HC    1.0 235  S       18:11:44.16  -0.1 M  1.0  IMOD
    IPPL  HC    1.1 260  P       18:11:31.67  -0.3 M  1.0  IPPL
    IPPL  HC    1.1 260  S       18:11:47.67   0.1 M  1.0  IPPL
    IMMV  HL    1.5 267  P       18:11:37.59  -0.2 M  1.0  IMMV
    IMMV  HL    1.5 267  S       18:11:57.87   0.1 M  1.0  IMMV
    NISR  HL    1.5  45  P       18:11:38.07   0.3 M  1.0  NISR
    NISR  HL    1.5  45  S       18:11:58.54   0.7 M  1.0  NISR
    NAX1  HI    1.6 347  P       18:11:38.66  -0.3 M  1.0  NAX1
    NAX1  HI    1.6 347  S       18:11:59.21  -0.7 M  1.0  NAX1
    MHLO  HL    1.6 315  P       18:11:40.12   0.7 M  1.0  MHLO
    MHLO  HL    1.6 315  S       18:12:01.10   0.5 M  1.0  MHLO
    SERI  HA    1.9 326  P       18:11:43.55  -0.4 M  1.0  SERI
    SERI  HA    1.9 326  S       18:12:08.08  -0.6 M  1.0  SERI
    ARG   HL    2.0  71  P       18:11:44.33  -0.4 M  1.0  ARG
    ARG   HL    2.0  71  S       18:12:09.60  -0.4 M  1.0  ARG

21 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    NPS   HL    0.3 210  MLv     3.65 -0.51    42.0405
    STIA  HC    0.4 147  MLv     3.90 -0.26    43.7061
    KSTE  HL    0.5 226  MLv     3.80 -0.37    15.8669
    ZKR   HL    0.5 143  MLv     4.14 -0.02    34.6396
    KNSS  HC    0.6 244  MLv     3.96 -0.20    22.0034
    PFKS  HC    0.6 209  MLv     4.04 -0.12    26.4105
    IACM  HL    0.7 248  MLv     4.20  0.04    77.6518
    TEFL  HC    0.7 229  MLv     4.11 -0.06     26.099
    THERA HL    0.9 341  MLv     4.36  0.20    38.4411
    SNT5  HA    0.9 338  MLv     4.41  0.25    23.6736
    SAP3  HL    1.0 337  MLv     4.51  0.35    79.0927
    CMBO  HT    1.0 340  MLv     4.78  0.62    87.3024
    SIVA  HL    1.0 237  MLv     4.00 -0.16    14.4957
    IMOD  HC    1.0 235  MLv     3.96 -0.20    12.6037
    IPPL  HC    1.1 260  MLv     4.28  0.12    23.0006
    IMMV  HL    1.5 267  MLv     4.04 -0.13    8.04125
    NISR  HL    1.5  45  MLv     4.40  0.23    18.2689
    NAX1  HI    1.6 347  MLv     3.94 -0.22    5.76456
    MHLO  HL    1.6 315  MLv     4.19  0.03    20.3633
    SERI  HA    1.9 326  MLv     3.79 -0.37     2.5992
    ARG   HL    2.0  71  MLv     4.30  0.14    7.99246
