Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2023-01-09 10:56:35 (GMT)
 Μέγεθος
 M 3.8
 Γεωγρ. Πλάτος
 39.3237° Β
 Γεωγρ. Μήκος
 26.2066° Α
 Εστιακό Βάθος
 13 χμ
 Αρ. αφίξεων
 41
 Επίκεντρο 17.9 χμ ΒΒΔ της Μυτιλήνης
105.2 χμ ΝΑ της Λήμνου
261.4 χμ ΒΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Μηχ.Γέν.


  Μηχανισμός Γένεσης

Μηχ.Γεν. Παράταξη (°) Κλίση (°) Γων.Ολίσθ. (°) Σεισμ.Ροπή (dyn*cm)
6679-154 1.74E+22

Γεωγρ.Πλάτος (°Β) Γεωγρ.Μήκος (°Α) Βάθος (χμ) Μέγεθος Mw
39.338126.23407.04.1

Υπολογισμός εστιακών παραμέτρων

Κλικ εδώ για λεπτομέρειες μηχανισμού γένεσης

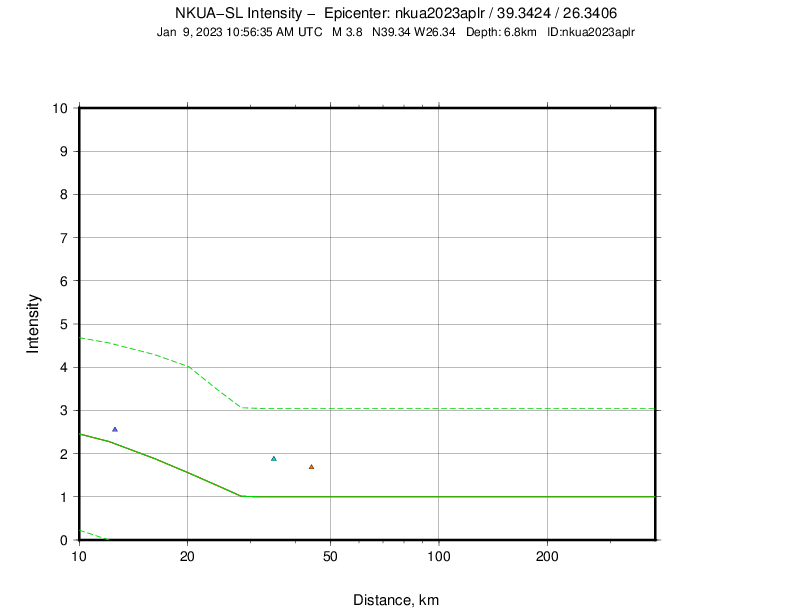

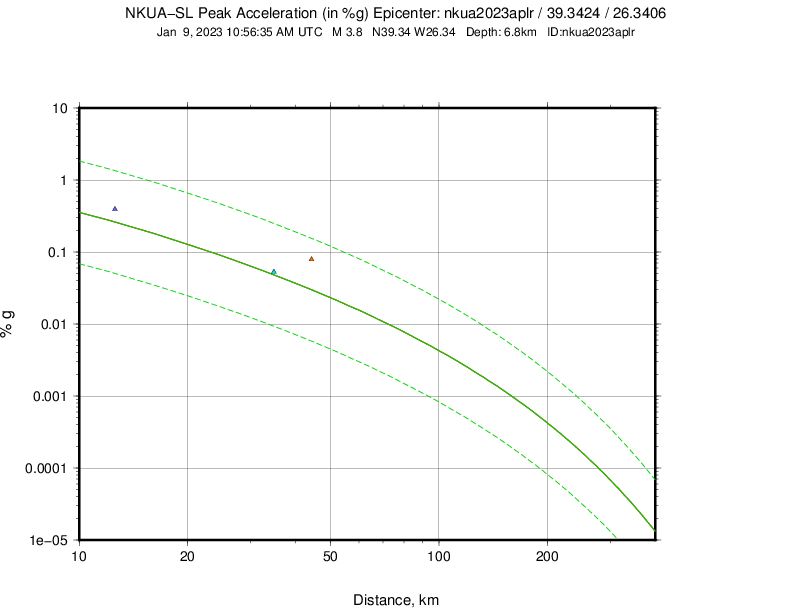

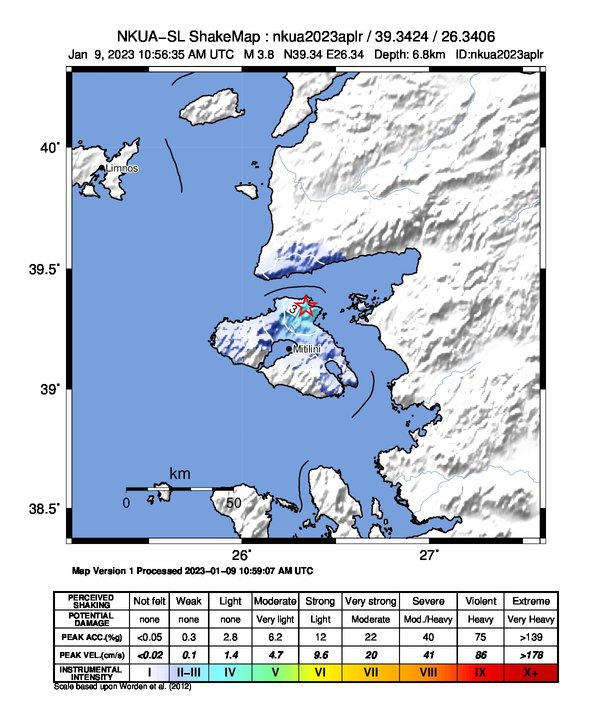

  Χάρτης εντάσεως


PGA
 PGV
 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

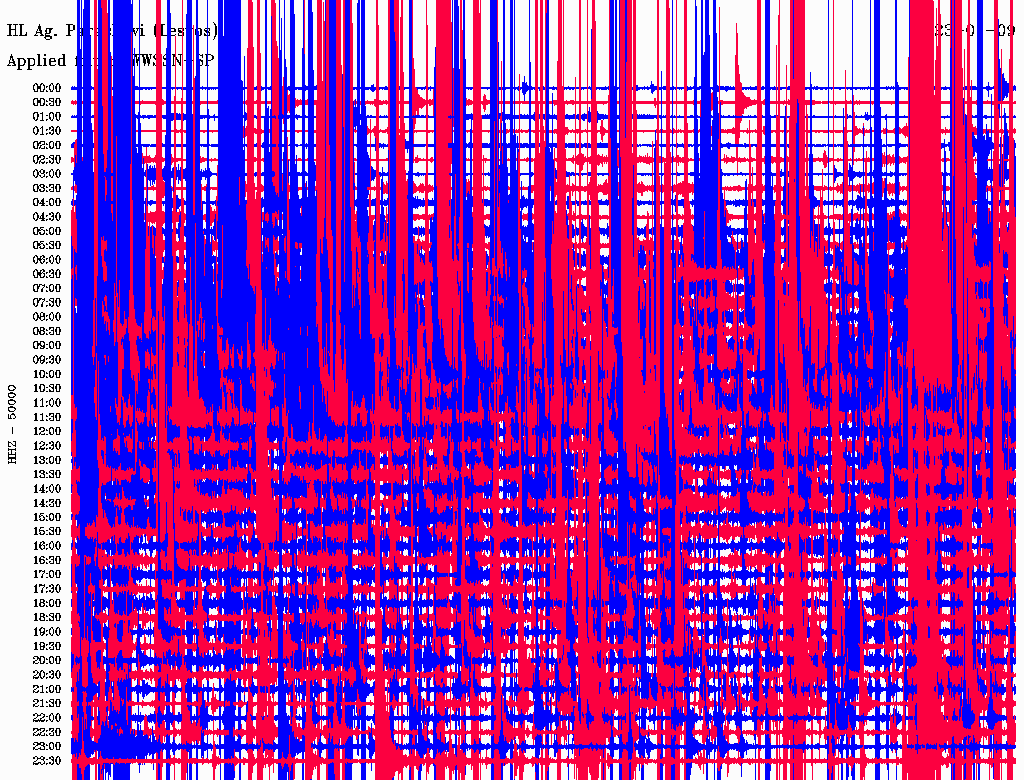

PRKHL10.0150 P10:56:38.47 -0.31.0M
PRKHL10.0150 S10:56:40.82 -0.61.0M

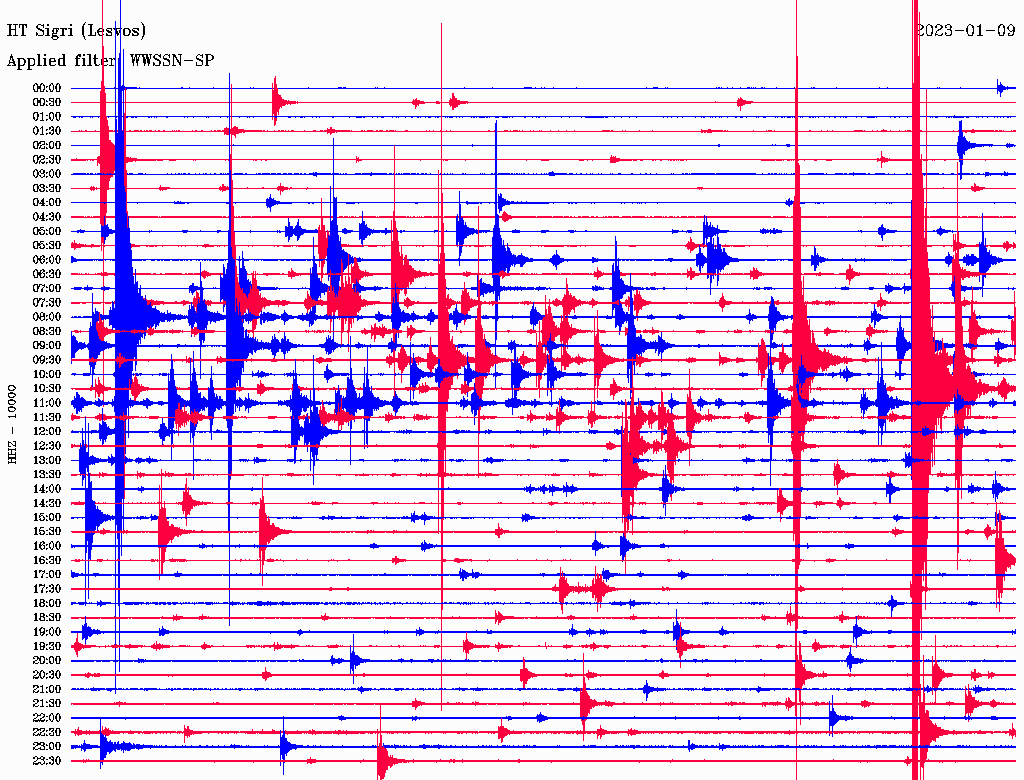

SIGRHT32.7248 P10:56:42.49 0.31.0M
SIGRHT32.7248 S10:56:46.97 -0.51.0M
MYT1HI41.0130 P10:56:43.05 -0.41.0M
MYT1HI41.0130 S10:56:49.16 -0.41.0M
EFSAHL107.3283 P10:56:54.14 0.61.0M
EFSAHL107.3283 S10:57:07.63 0.61.0M

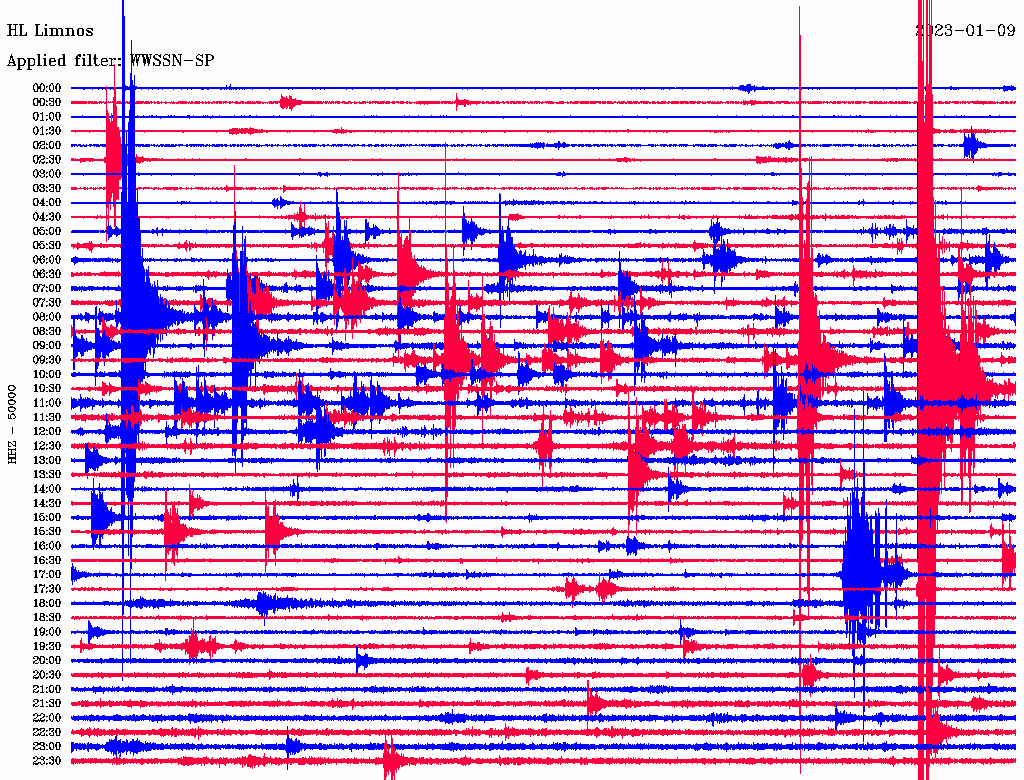

LIAHL108.6306 P10:56:54.01 0.31.0M
LIAHL108.6306 S10:57:07.38 0.01.0M

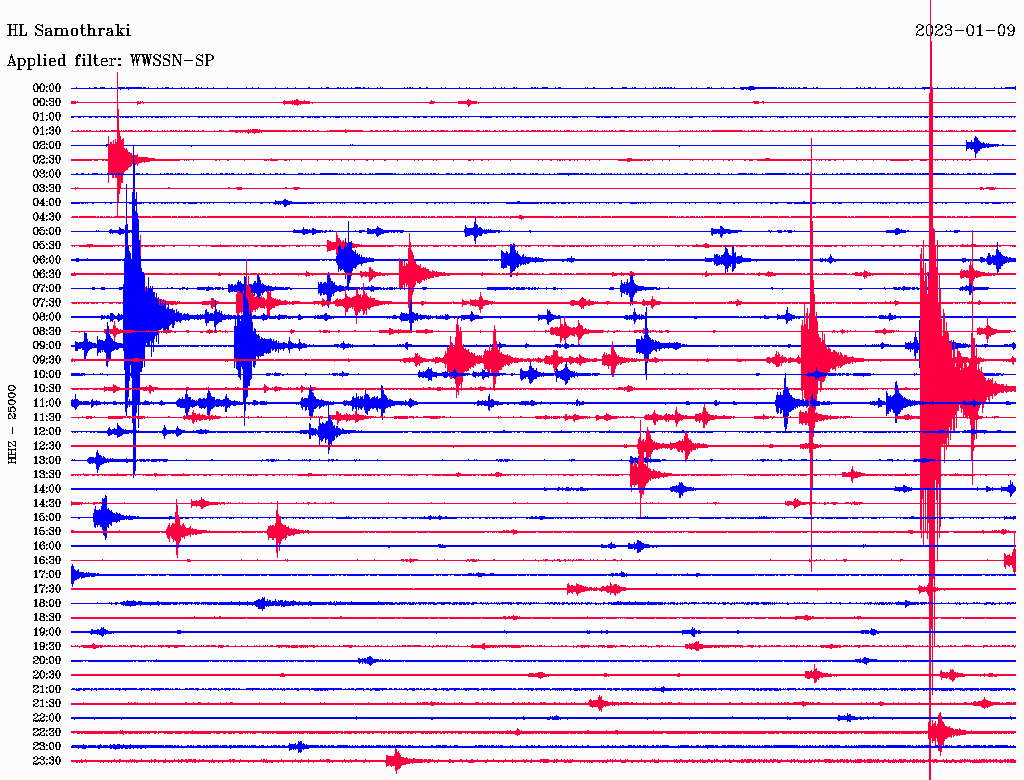

SMTHHL140.0336 P10:56:58.16 0.31.0M
SMTHHL140.0336 S10:57:15.33 0.41.0M

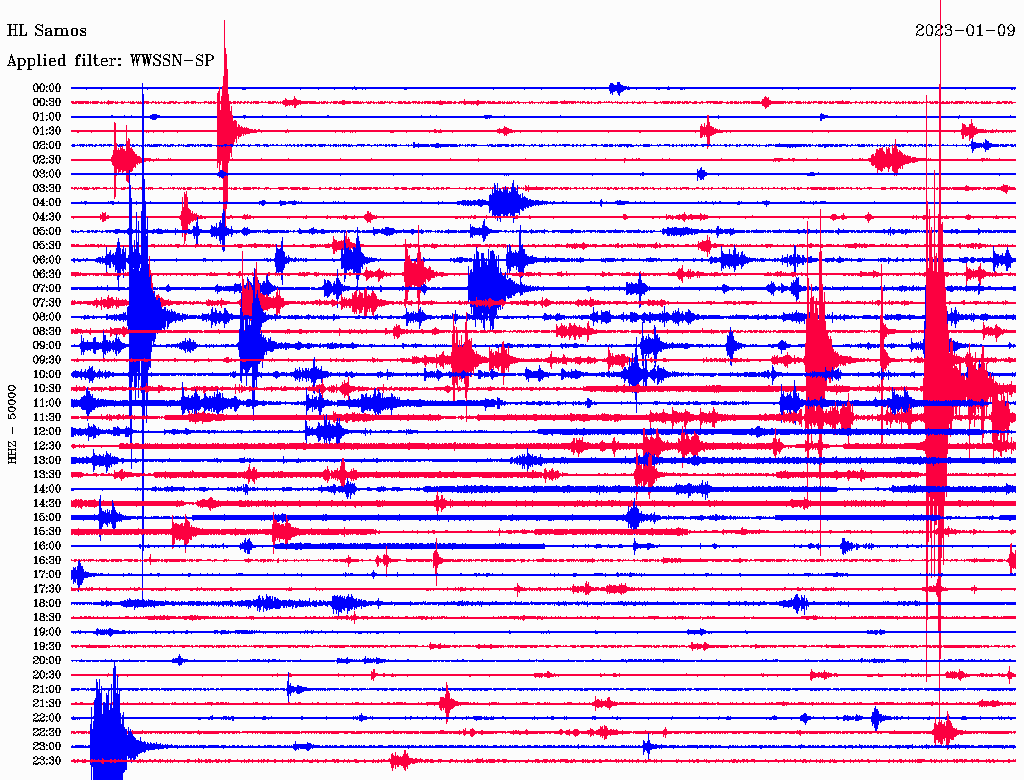

SMGHL188.3163 P10:57:04.47 0.31.0M
SMGHL188.3163 S10:57:27.10 0.81.0M
THASHT190.8319 P10:57:04.54 0.11.0M
THASHT190.8319 S10:57:26.68 -0.31.0M

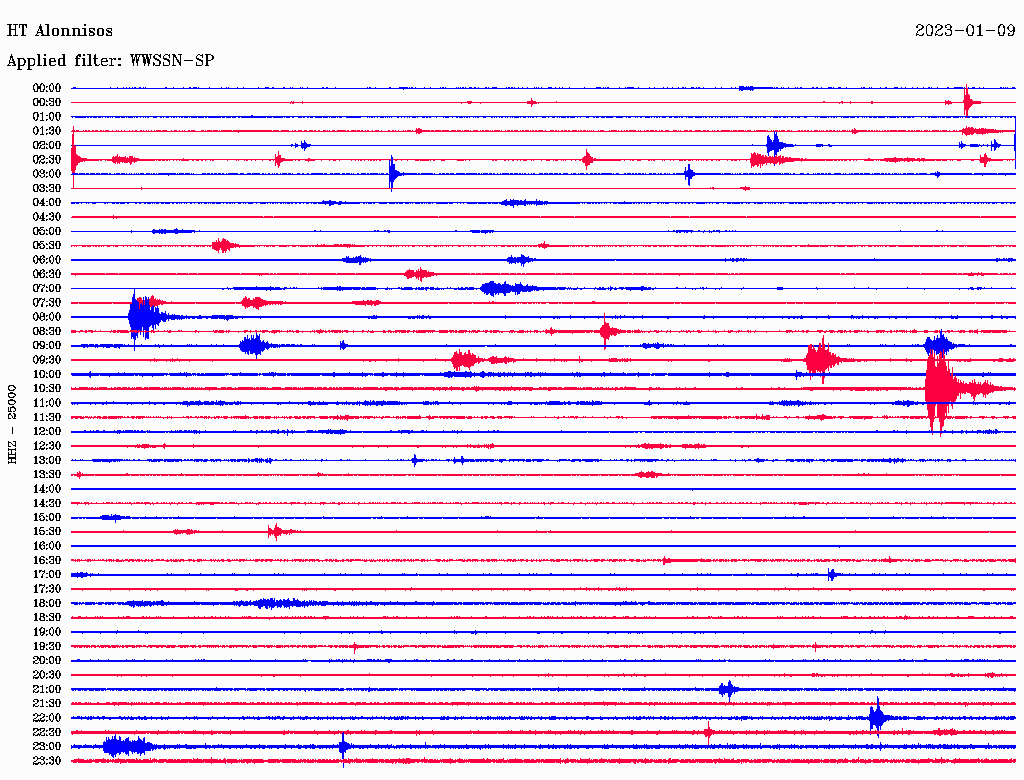

AOS2HT204.4265 P10:57:07.04 0.71.0M
AOS2HT204.4265 S10:57:30.03 -0.21.0M

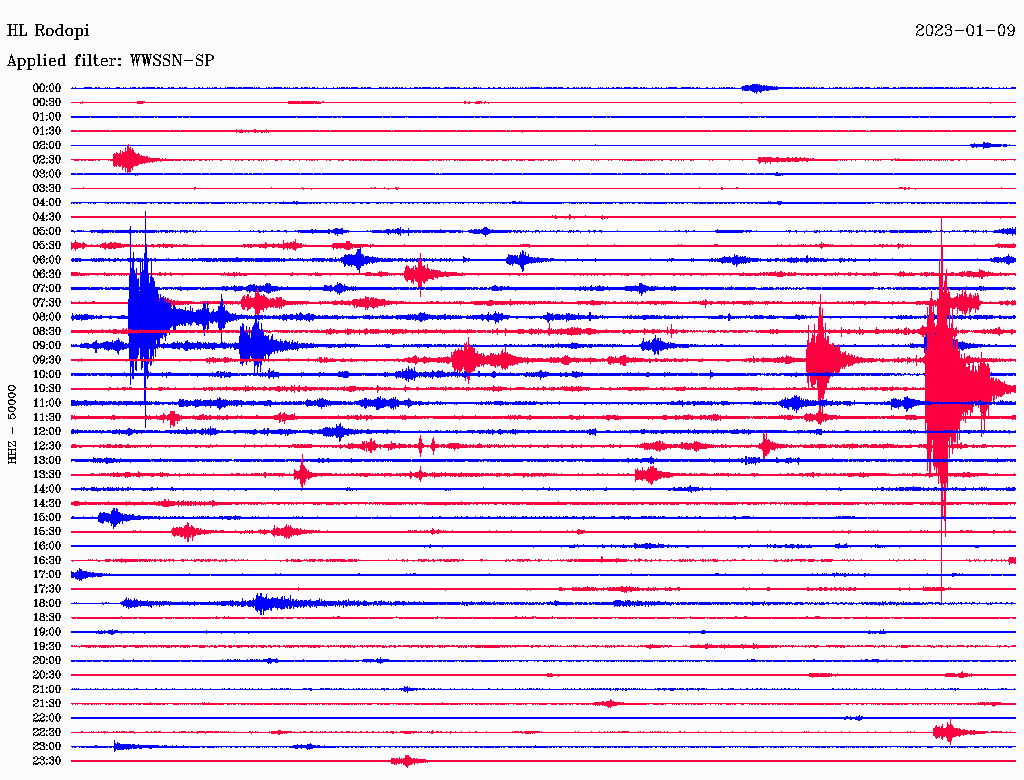

RDOHL210.4344 P10:57:07.26 0.31.0M
RDOHL210.4344 S10:57:30.82 -0.61.0M

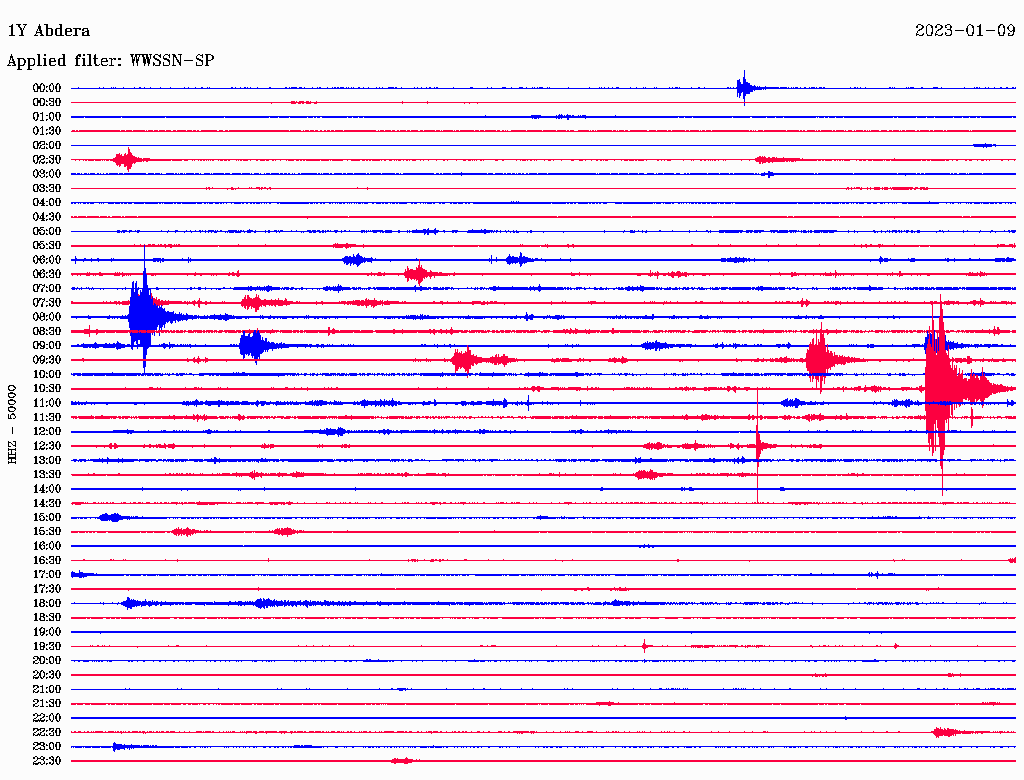

GR041Y212.3330 P10:57:07.40 0.21.0M
GR041Y212.3330 S10:57:31.47 -0.41.0M
GR271Y213.0234 P10:57:07.57 0.21.0M
GR271Y213.0234 S10:57:31.93 -0.21.0M

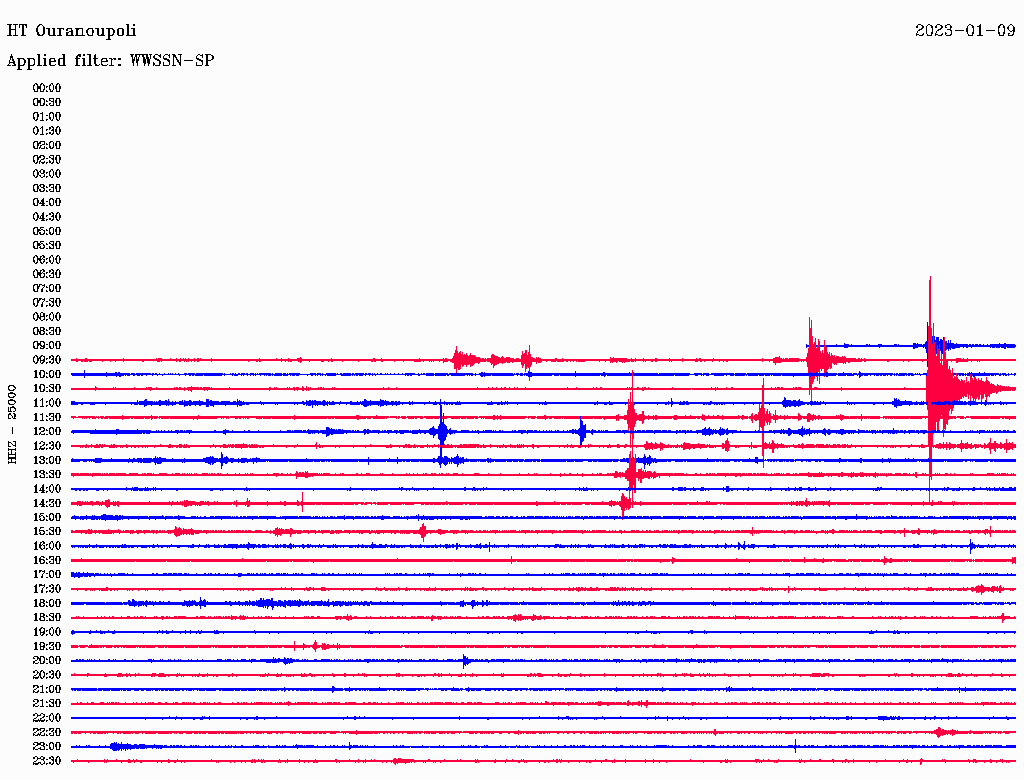

OURHT220.7301 P10:57:09.09 0.71.0M
OURHT220.7301 S10:57:33.72 -0.21.0M

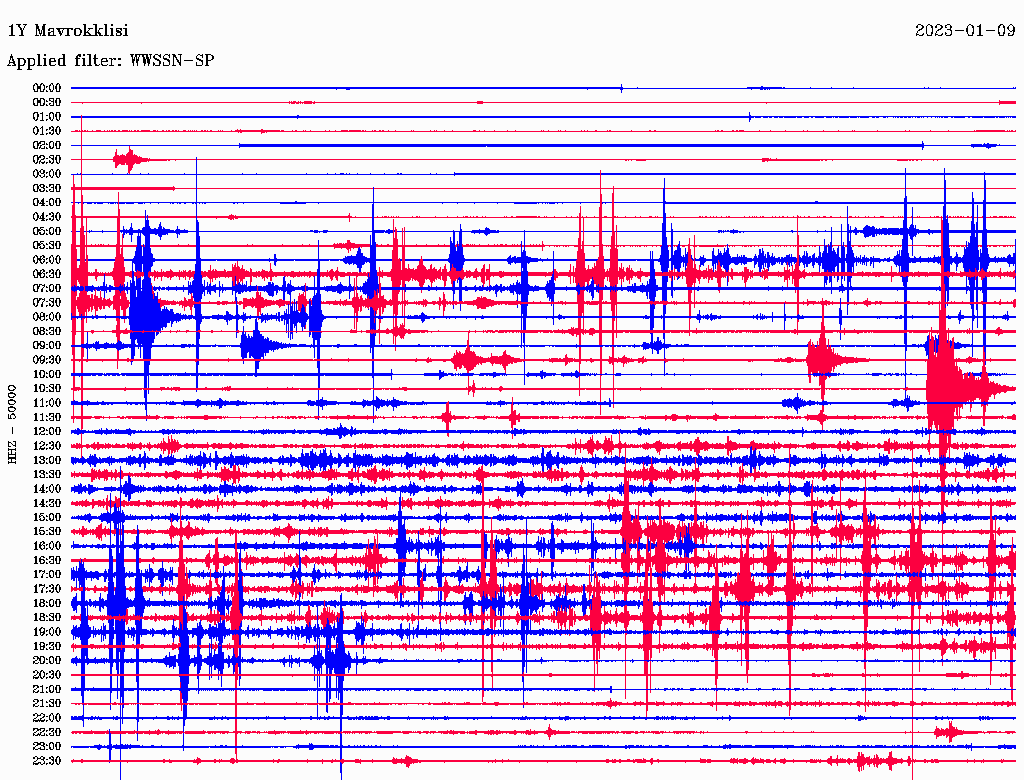

GR061Y224.1 1 P10:57:08.96 0.31.0M
GR061Y224.1 1 S10:57:33.76 -0.81.0M
PAIGHT227.1288 P10:57:09.68 0.51.0M
PAIGHT227.1288 S10:57:34.45 -0.91.0M
GR031Y232.1331 P10:57:09.91 0.21.0M
GR031Y232.1331 S10:57:36.06 -0.31.0M

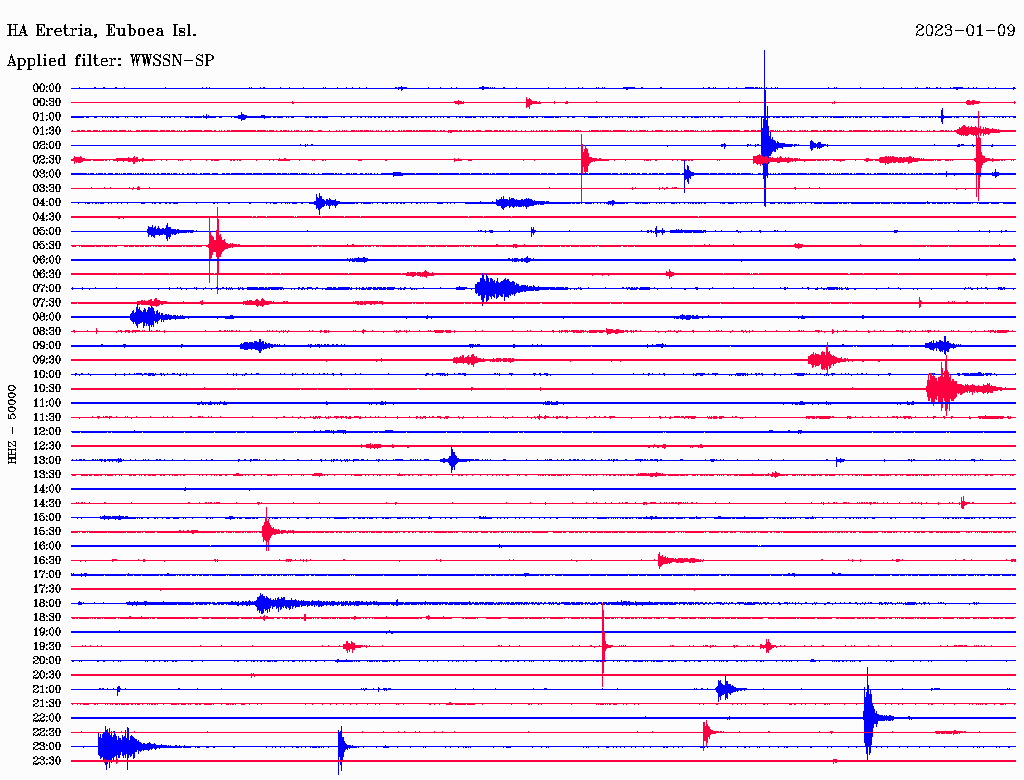

ERTRHA233.0245 P10:57:10.37 0.51.0M
ERTRHA233.0245 S10:57:36.32 -0.41.0M
KAVAHT235.0323 P10:57:10.24 0.21.0M
KAVAHT235.0323 S10:57:36.55 -0.51.0M

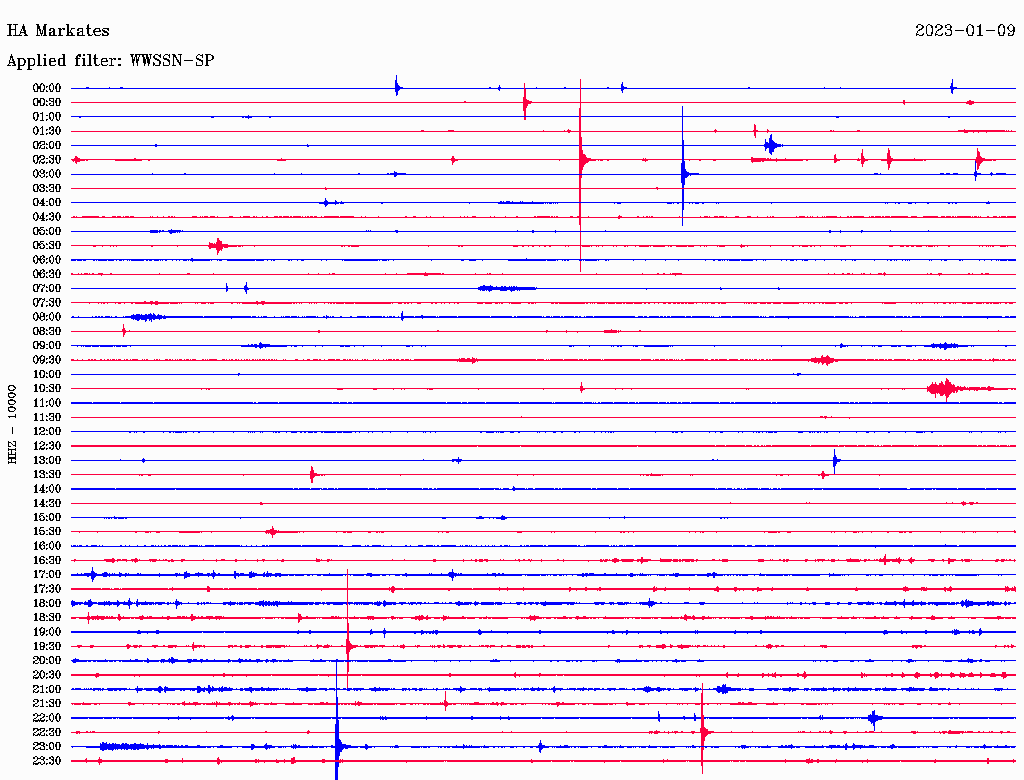

MRKAHA236.6254 P10:57:10.79 0.51.0M
MRKAHA236.6254 S10:57:36.87 -0.61.0M
KVLAHL236.9320 P10:57:10.56 0.21.0M
MRTHHA237.6237 P10:57:10.43 0.01.0M
MRTHHA237.6237 S10:57:36.99 -0.71.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2023aplr
    Type                   earthquake
    Description
      region name: Turkey
Origin:
    Date                   2023-01-09
    Time                  10:56:35.02  +/-    0.2 s
    Latitude              39.3237 deg  +/-      1 km
    Longitude             26.2066 deg  +/-      2 km
    Depth                      13 km   +/-    2 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.46 s
    Azimuthal gap             129 deg

2 Network magnitudes:
    MLv       3.75 +/- 0.13  17
    M         3.75           17 preferred

41 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    PRK   HL    0.1 150  P       10:56:38.47  -0.3 M  1.0  PRK
    PRK   HL    0.1 150  S       10:56:40.82  -0.6 M  1.0  PRK
    SIGR  HT    0.3 248  P       10:56:42.49   0.3 M  1.0  SIGR
    SIGR  HT    0.3 248  S       10:56:46.97  -0.5 M  1.0  SIGR

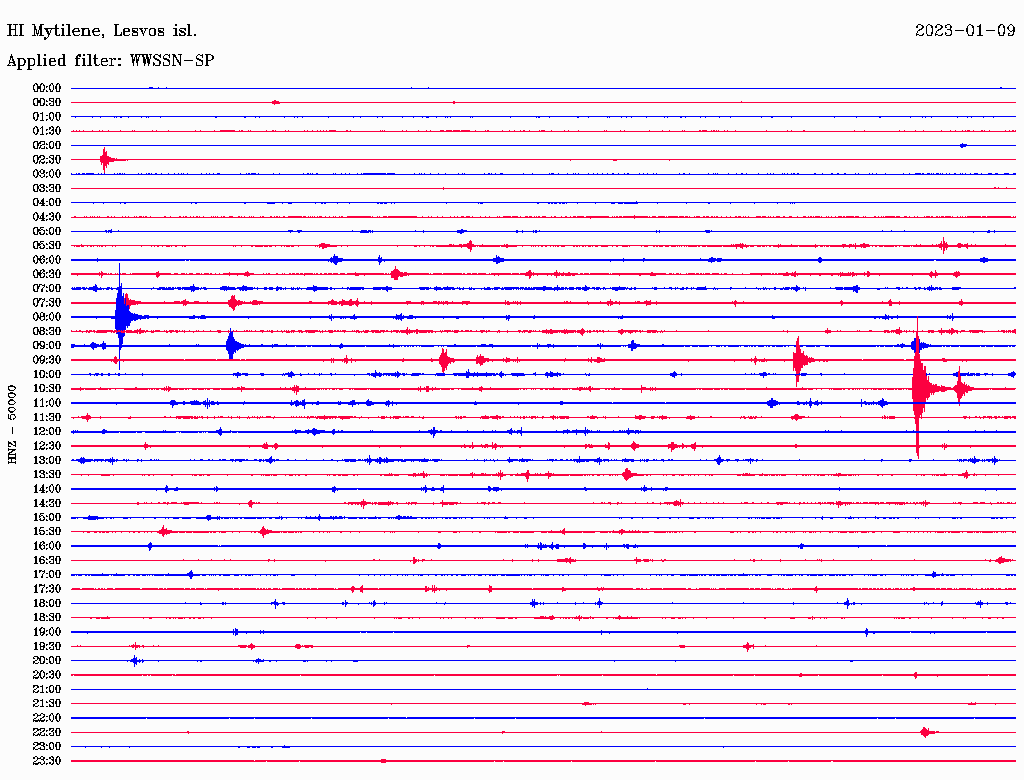

    MYT1  HI    0.4 130  P       10:56:43.05  -0.4 M  1.0  MYT1
    MYT1  HI    0.4 130  S       10:56:49.16  -0.4 M  1.0  MYT1
    EFSA  HL    1.0 283  P       10:56:54.14   0.6 M  1.0  EFSA
    EFSA  HL    1.0 283  S       10:57:07.63   0.6 M  1.0  EFSA
    LIA   HL    1.0 306  P       10:56:54.01   0.3 M  1.0  LIA
    LIA   HL    1.0 306  S       10:57:07.38   0.0 M  1.0  LIA
    SMTH  HL    1.3 336  P       10:56:58.16   0.3 M  1.0  SMTH
    SMTH  HL    1.3 336  S       10:57:15.33   0.4 M  1.0  SMTH
    SMG   HL    1.7 163  P       10:57:04.47   0.3 M  1.0  SMG
    SMG   HL    1.7 163  S       10:57:27.10   0.8 M  1.0  SMG

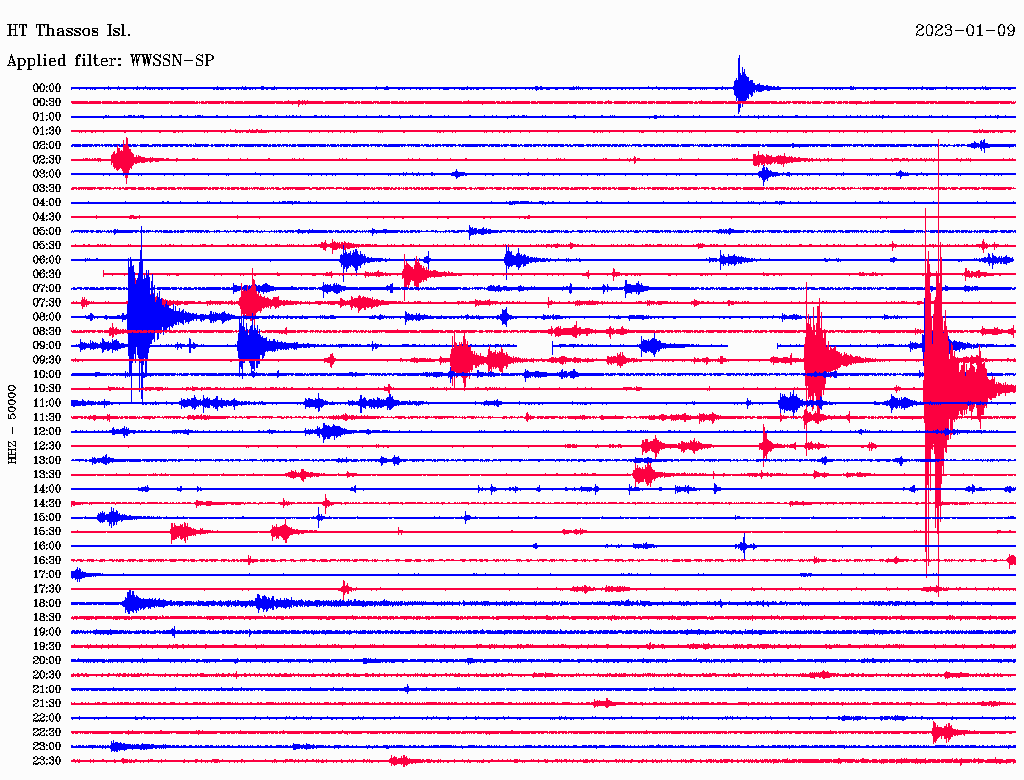

    THAS  HT    1.7 319  P       10:57:04.54   0.1 M  1.0  THAS
    THAS  HT    1.7 319  S       10:57:26.68  -0.3 M  1.0  THAS
    AOS2  HT    1.8 265  P       10:57:07.04   0.7 M  1.0  AOS2
    AOS2  HT    1.8 265  S       10:57:30.03  -0.2 M  1.0  AOS2
    RDO   HL    1.9 344  P       10:57:07.26   0.3 M  1.0  RDO
    RDO   HL    1.9 344  S       10:57:30.82  -0.6 M  1.0  RDO
    GR04  1Y    1.9 330  P       10:57:07.40   0.2 M  1.0  GR04
    GR04  1Y    1.9 330  S       10:57:31.47  -0.4 M  1.0  GR04

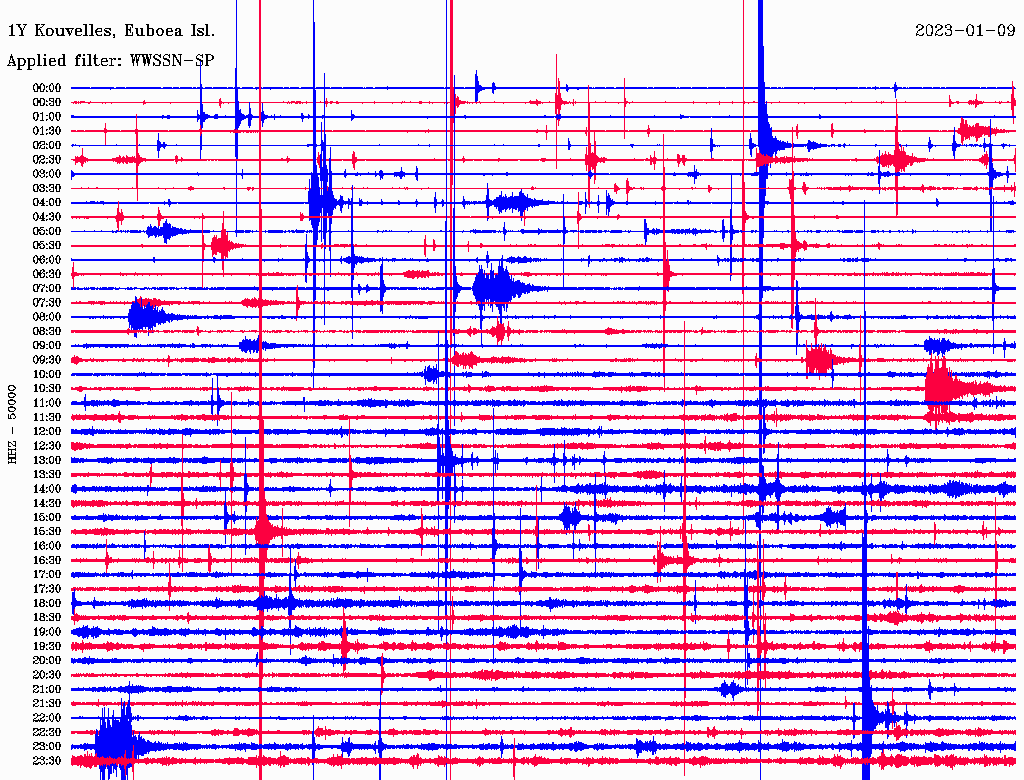

    GR27  1Y    1.9 234  P       10:57:07.57   0.2 M  1.0  GR27
    GR27  1Y    1.9 234  S       10:57:31.93  -0.2 M  1.0  GR27
    OUR   HT    2.0 301  P       10:57:09.09   0.7 M  1.0  OUR
    OUR   HT    2.0 301  S       10:57:33.72  -0.2 M  1.0  OUR
    GR06  1Y    2.0   1  P       10:57:08.96   0.3 M  1.0  GR06
    GR06  1Y    2.0   1  S       10:57:33.76  -0.8 M  1.0  GR06
    PAIG  HT    2.0 288  P       10:57:09.68   0.5 M  1.0  PAIG
    PAIG  HT    2.0 288  S       10:57:34.45  -0.9 M  1.0  PAIG

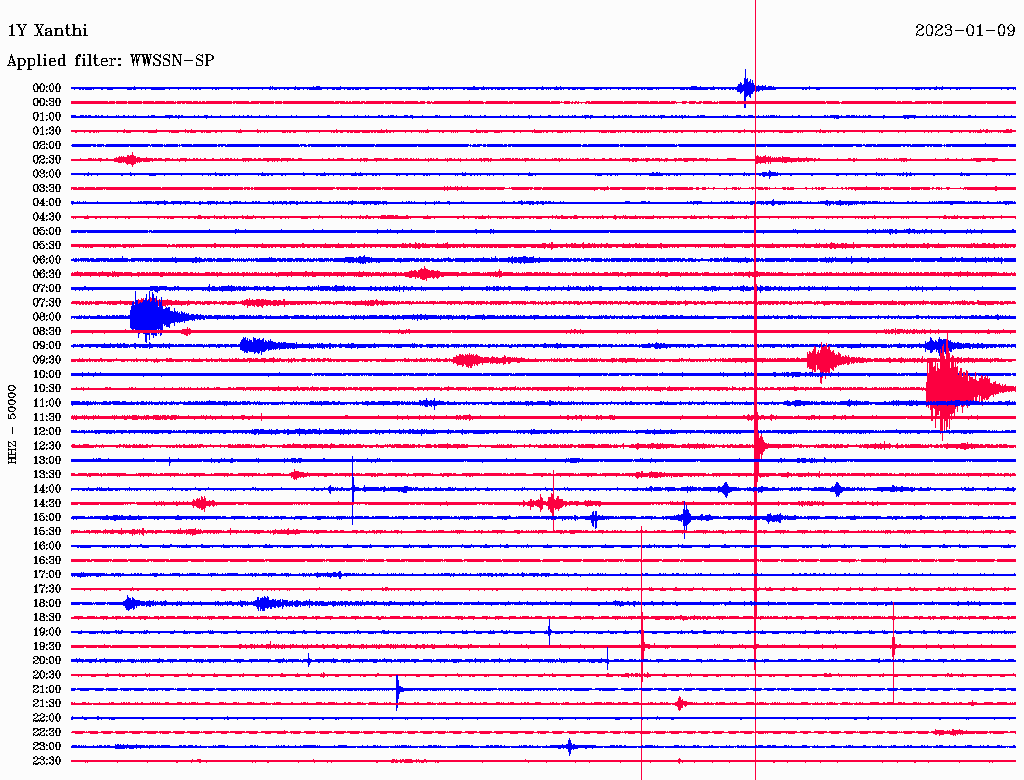

    GR03  1Y    2.1 331  P       10:57:09.91   0.2 M  1.0  GR03
    GR03  1Y    2.1 331  S       10:57:36.06  -0.3 M  1.0  GR03
    ERTR  HA    2.1 245  P       10:57:10.37   0.5 M  1.0  ERTR
    ERTR  HA    2.1 245  S       10:57:36.32  -0.4 M  1.0  ERTR

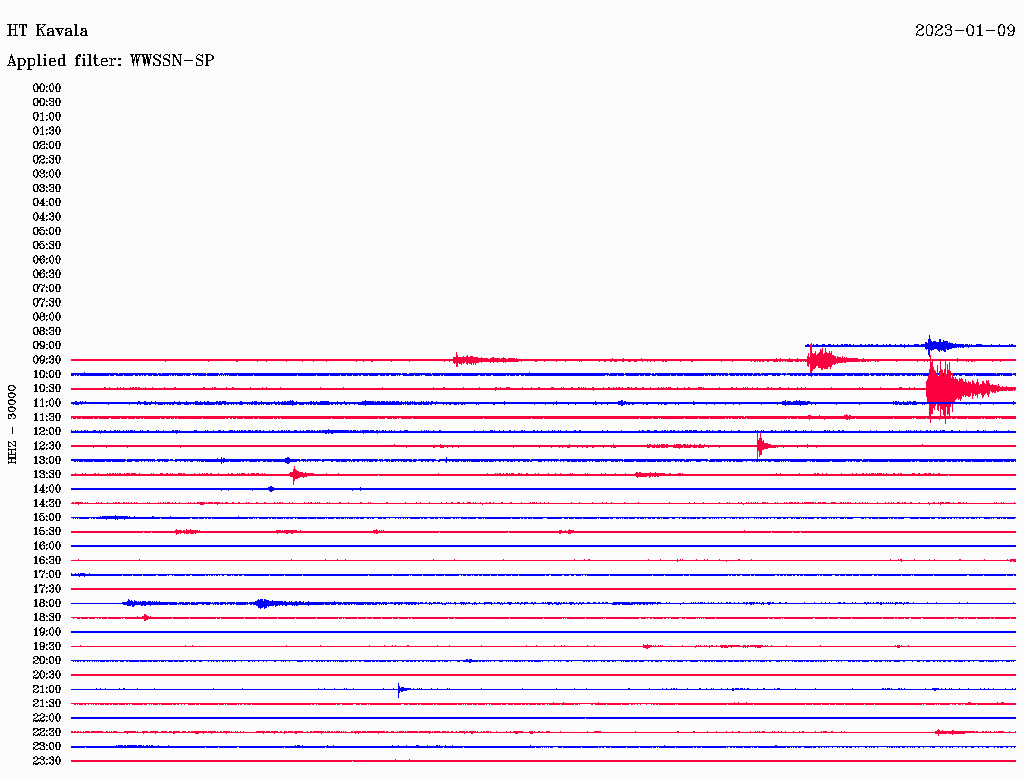

    KAVA  HT    2.1 323  P       10:57:10.24   0.2 M  1.0  KAVA
    KAVA  HT    2.1 323  S       10:57:36.55  -0.5 M  1.0  KAVA

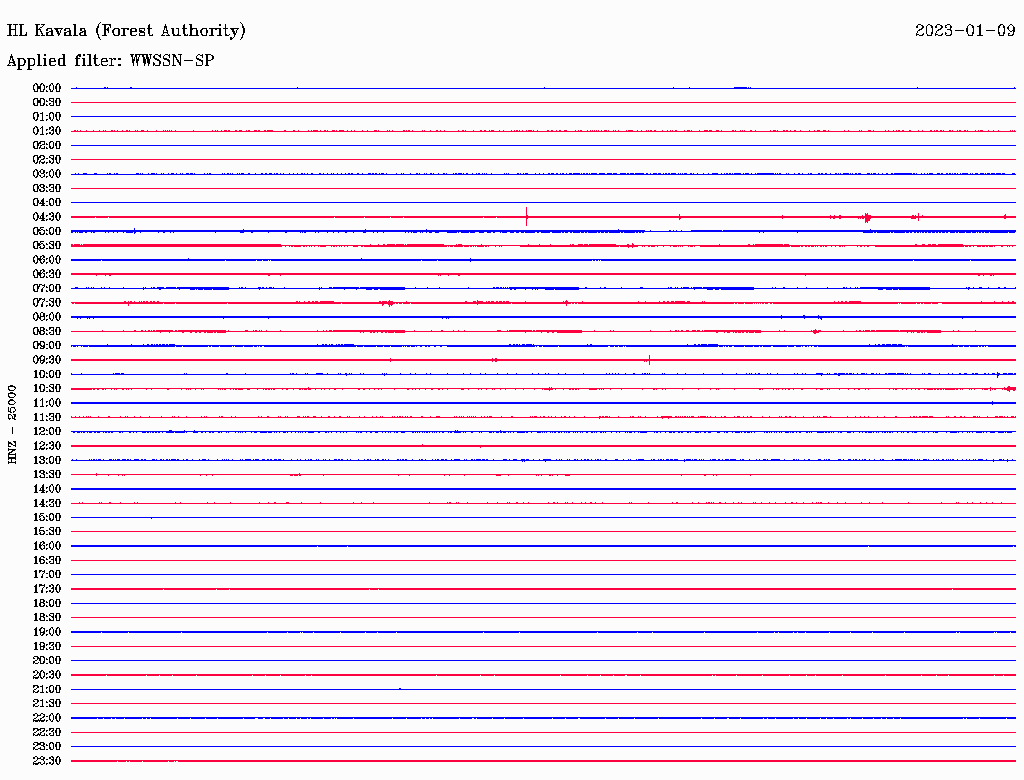

    KVLA  HL    2.1 320  P       10:57:10.56   0.2 M  1.0  KVLA
    MRKA  HA    2.1 254  P       10:57:10.79   0.5 M  1.0  MRKA
    MRKA  HA    2.1 254  S       10:57:36.87  -0.6 M  1.0  MRKA

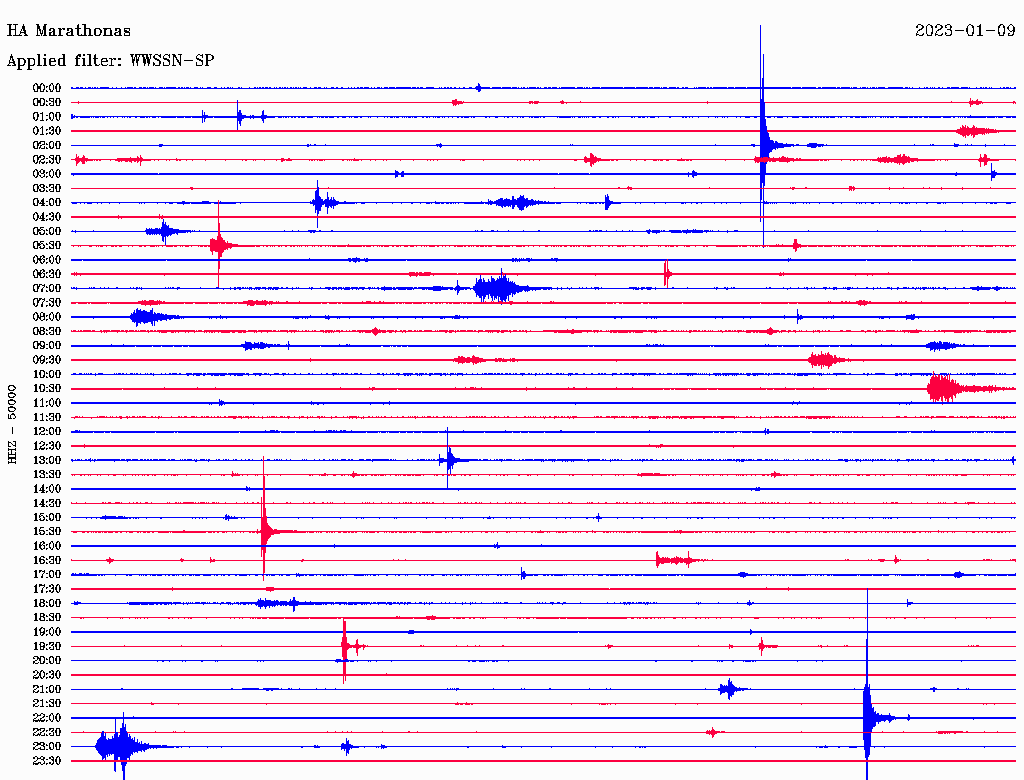

    MRTH  HA    2.1 237  P       10:57:10.43  -0.0 M  1.0  MRTH
    MRTH  HA    2.1 237  S       10:57:36.99  -0.7 M  1.0  MRTH

21 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    PRK   HL    0.1 150  MLv     3.89  0.14     346.17
    SIGR  HT    0.3 248  MLv     3.56 -0.19    44.2963
    MYT1  HI    0.4 130  MLv     4.00  0.24    74.3325
    EFSA  HL    1.0 283  MLv     3.79  0.03     8.9386
    LIA   HL    1.0 306  MLv     3.36 -0.40    6.52556
    SMTH  HL    1.3 336  MLv     4.27  0.52    12.0666
    SMG   HL    1.7 163  MLv     4.19  0.44    8.90289
    THAS  HT    1.7 319  MLv     3.73 -0.03    2.97129
    AOS2  HT    1.8 265  MLv     3.64 -0.11    2.10024
    RDO   HL    1.9 344  MLv     3.96  0.20    2.74148
    GR04  1Y    1.9 330  MLv     3.70 -0.06    2.17107
    GR27  1Y    1.9 234  MLv     3.70 -0.06    2.15044
    OUR   HT    2.0 301  MLv     3.63 -0.12    1.70173
    GR06  1Y    2.0   1  MLv     4.11  0.35    4.88252
    PAIG  HT    2.0 288  MLv     3.80  0.05    1.78621
    GR03  1Y    2.1 331  MLv     3.62 -0.14     1.4416
    ERTR  HA    2.1 245  MLv     3.73 -0.02    1.85487
    KAVA  HT    2.1 323  MLv     3.39 -0.36    1.72863
    KVLA  HL    2.1 320  MLv     3.65 -0.11    1.46094
    MRKA  HA    2.1 254  MLv     3.80  0.04    2.06262
    MRTH  HA    2.1 237  MLv     3.63 -0.13    1.37464
