Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2023-01-07 01:52:58 (GMT)
 Μέγεθος
 M 4.9
 Γεωγρ. Πλάτος
 39.3293° Β
 Γεωγρ. Μήκος
 26.2627° Α
 Εστιακό Βάθος
 12 χμ
 Αρ. αφίξεων
 105
 Επίκεντρο 18.1 χμ Β της Μυτιλήνης
107.5 χμ Β της Χίου
265.8 χμ ΒΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Μηχ.Γέν.


  Μηχανισμός Γένεσης

Μηχ.Γεν. Παράταξη (°) Κλίση (°) Γων.Ολίσθ. (°) Σεισμ.Ροπή (dyn*cm)
6468-173 2.09E+23

Γεωγρ.Πλάτος (°Β) Γεωγρ.Μήκος (°Α) Βάθος (χμ) Μέγεθος Mw
39.339926.256010.04.8

Υπολογισμός εστιακών παραμέτρων

Κλικ εδώ για λεπτομέρειες μηχανισμού γένεσης

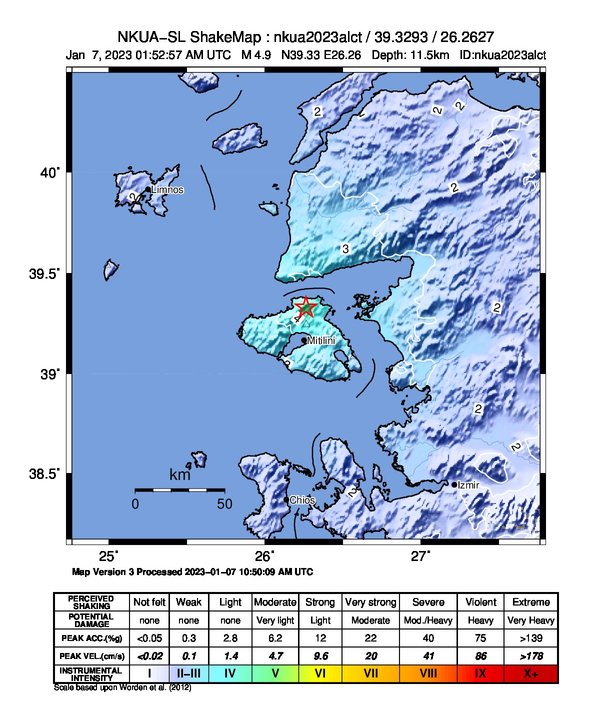

  Χάρτης εντάσεως

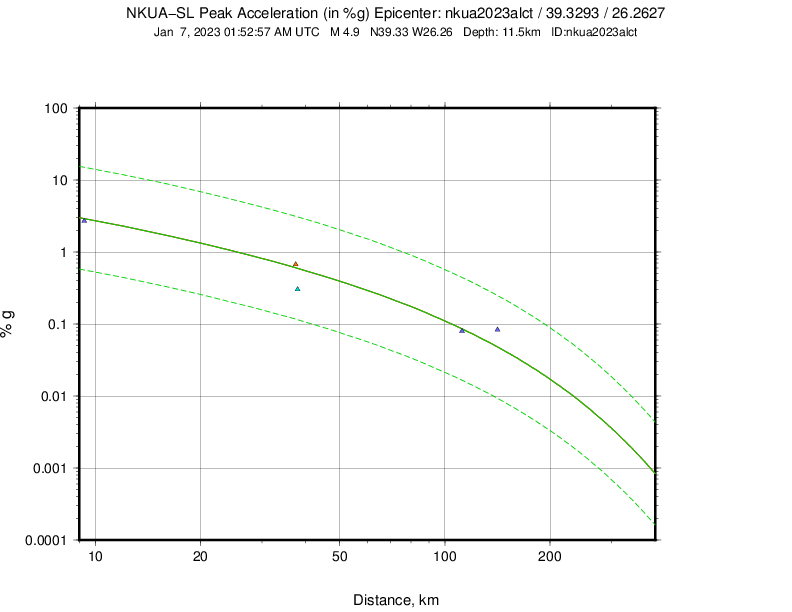

PGA

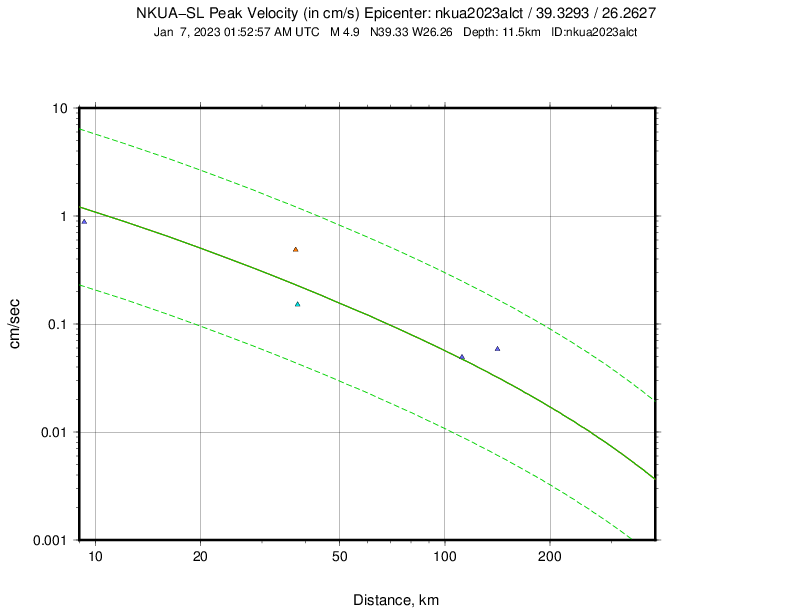

 PGV
 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
PRKHL9.3179 P01:53:01.45 0.41.0M
PRKHL9.3179 S01:53:03.78 0.21.0M
SIGRHT37.4250 P01:53:05.35 -0.11.0M
SIGRHT37.4250 S01:53:10.27 -0.81.0M
MYT1HI37.9136 P01:53:05.96 0.51.0M
MYT1HI37.9136 S01:53:11.53 0.31.0M
EFSAHL111.9282 P01:53:17.25 0.31.0M
EFSAHL111.9282 S01:53:31.73 0.81.0M
LIAHL112.2305 P01:53:16.99 0.11.0M
LIAHL112.2305 S01:53:31.19 0.21.0M
SMTHHL141.5334 P01:53:20.88 0.11.0M
SMTHHL141.5334 S01:53:38.25 0.21.0M
SKYHL156.0252 P01:53:22.75 0.01.0M
SKYHL156.0252 S01:53:42.05 0.41.0M
KRL1HI174.9167 P01:53:25.44 0.31.0M
KRL1HI174.9167 S01:53:46.52 0.51.0M
SMGHL187.5164 P01:53:26.90 0.11.0M

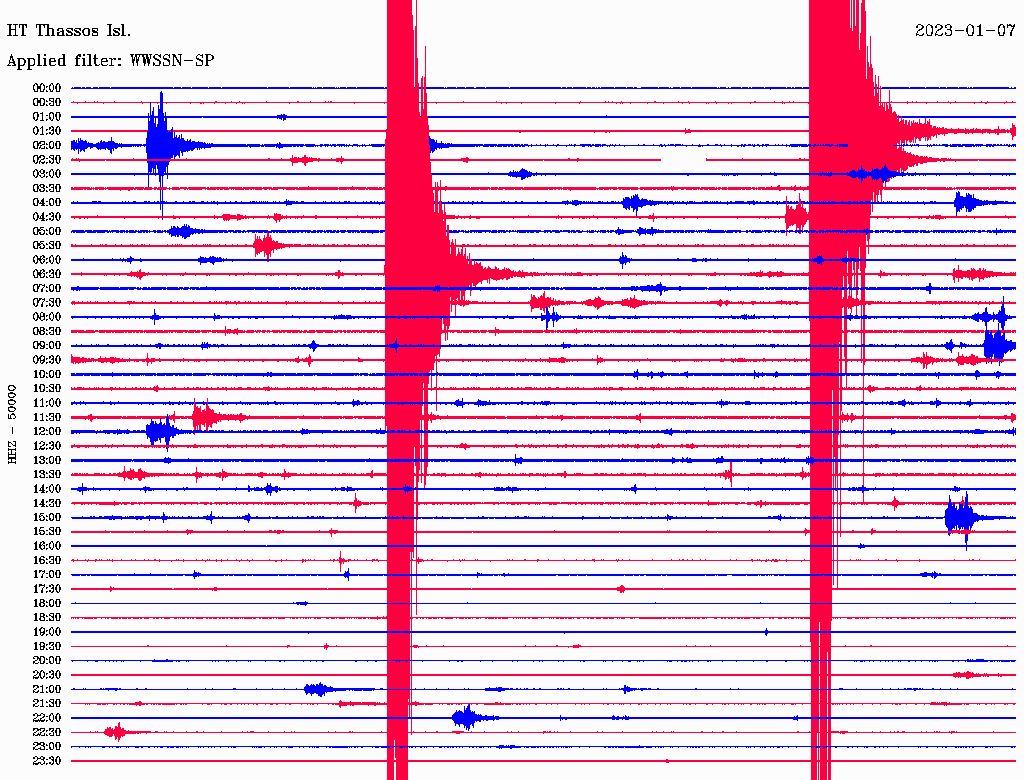

THASHT193.5318 P01:53:27.02 -0.61.0M
AOS2HT209.3265 P01:53:29.49 -0.21.0M
RDOHL211.1343 P01:53:29.90 0.11.0M
GR041Y214.2329 P01:53:29.93 -0.31.0M
KARYHA214.3228 P01:53:29.96 -0.31.0M
THNOHC215.3211 P01:53:29.82 -0.61.0M

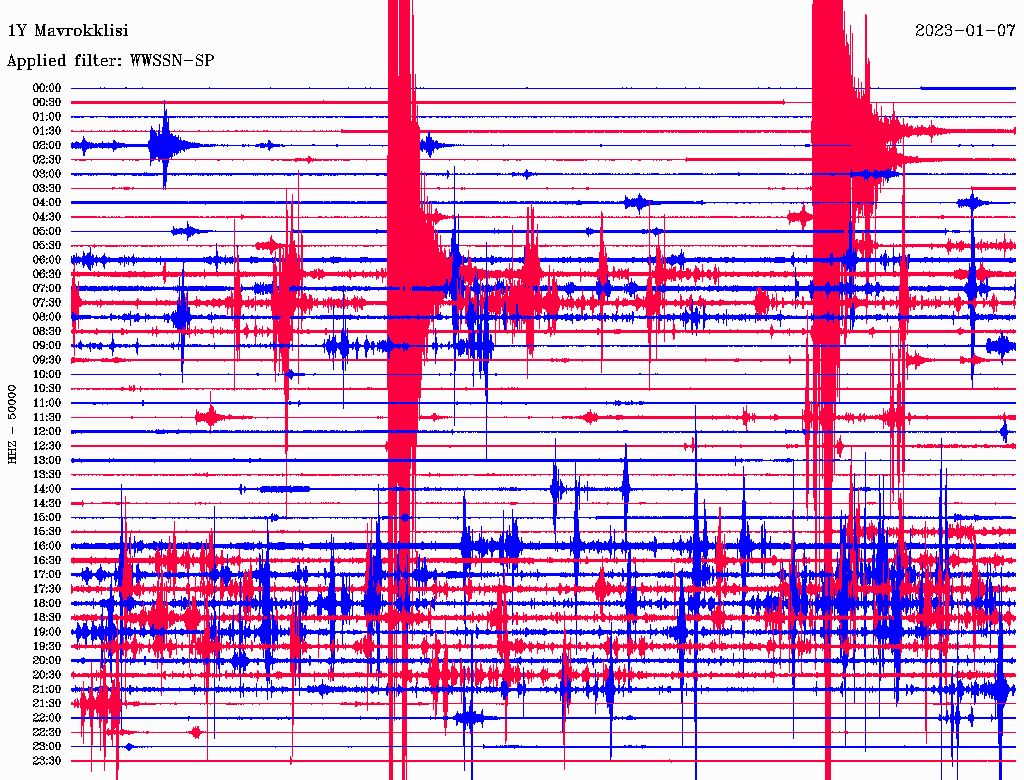

GR061Y223.5 0 P01:53:31.34 -0.11.0M
GR061Y223.5 0 S01:53:56.90 -0.41.0M
GR031Y233.9330 P01:53:32.70 0.01.0M
ERTRHA237.7245 P01:53:32.76 -0.51.0M
KVLAHL239.6319 P01:53:32.93 -0.51.0M

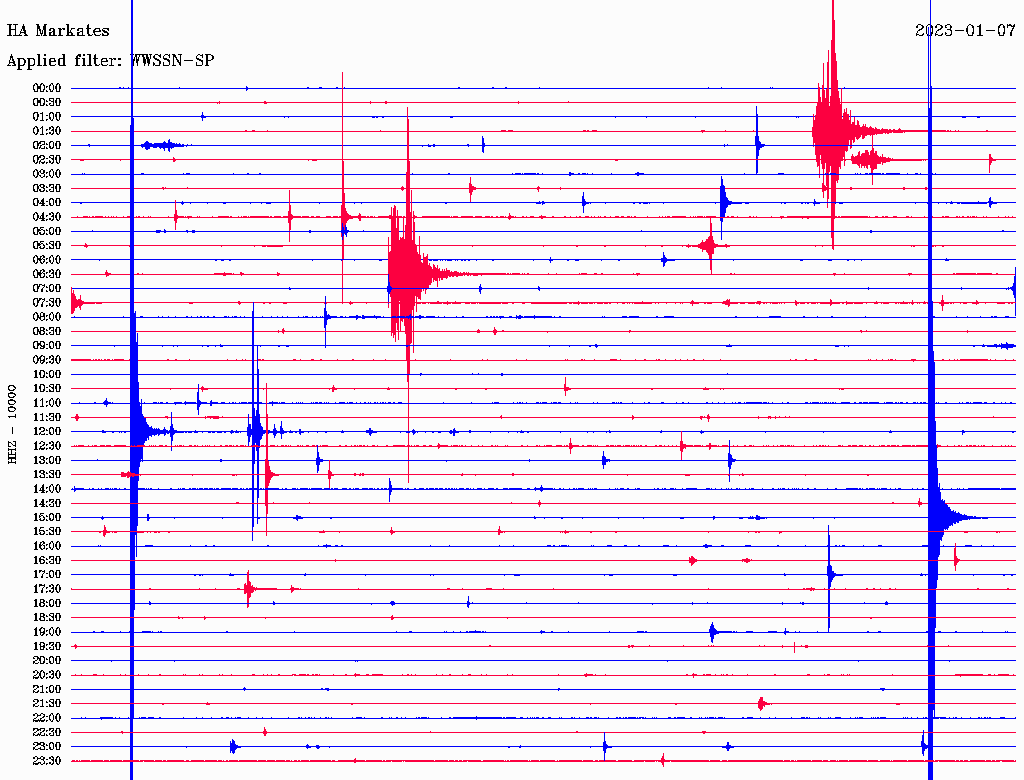

MRKAHA241.4254 P01:53:33.26 -0.51.0M
MRKAHA241.4254 S01:54:00.92 -0.61.0M
PLN1HI241.8289 P01:53:33.32 -0.41.0M
PLN1HI241.8289 S01:54:01.88 0.31.0M
MRTHHA242.0237 P01:53:33.32 -0.51.0M

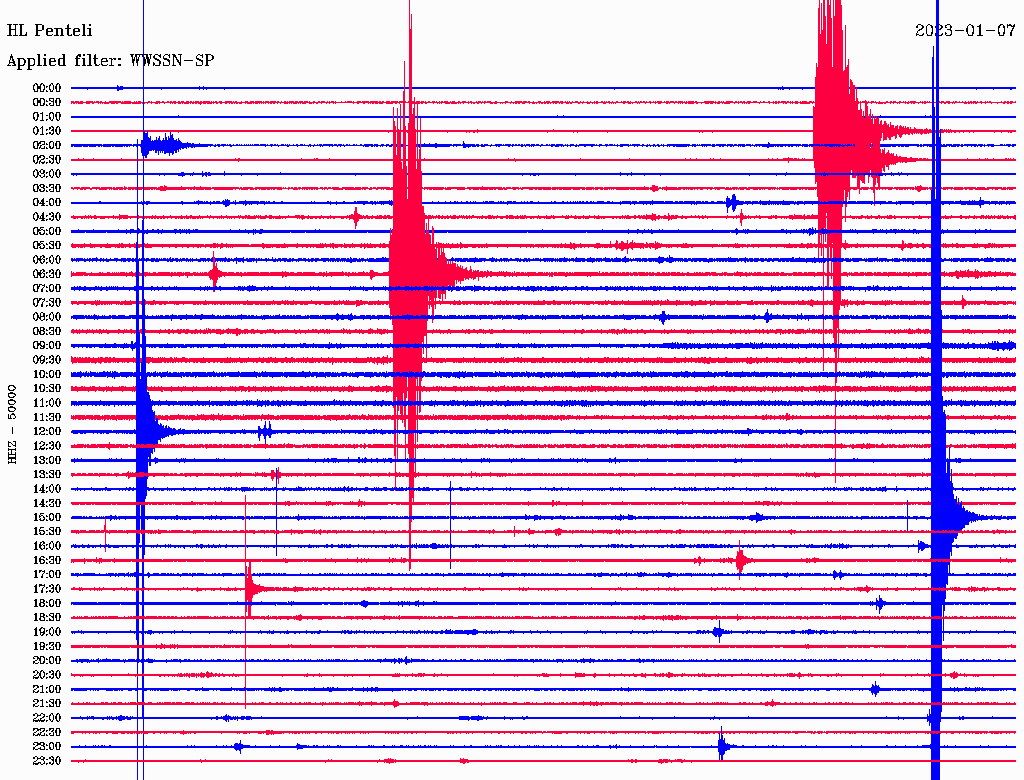

PTLHL252.3236 P01:53:34.52 -0.51.0M
PTLHL252.3236 S01:54:04.17 0.31.0M
APEHL259.1195 P01:53:35.47 -0.31.0M
APEHL259.1195 S01:54:04.85 -0.41.0M
NAX1HI259.6198 P01:53:36.13 0.31.0M
NAX1HI259.6198 S01:54:05.32 0.01.0M

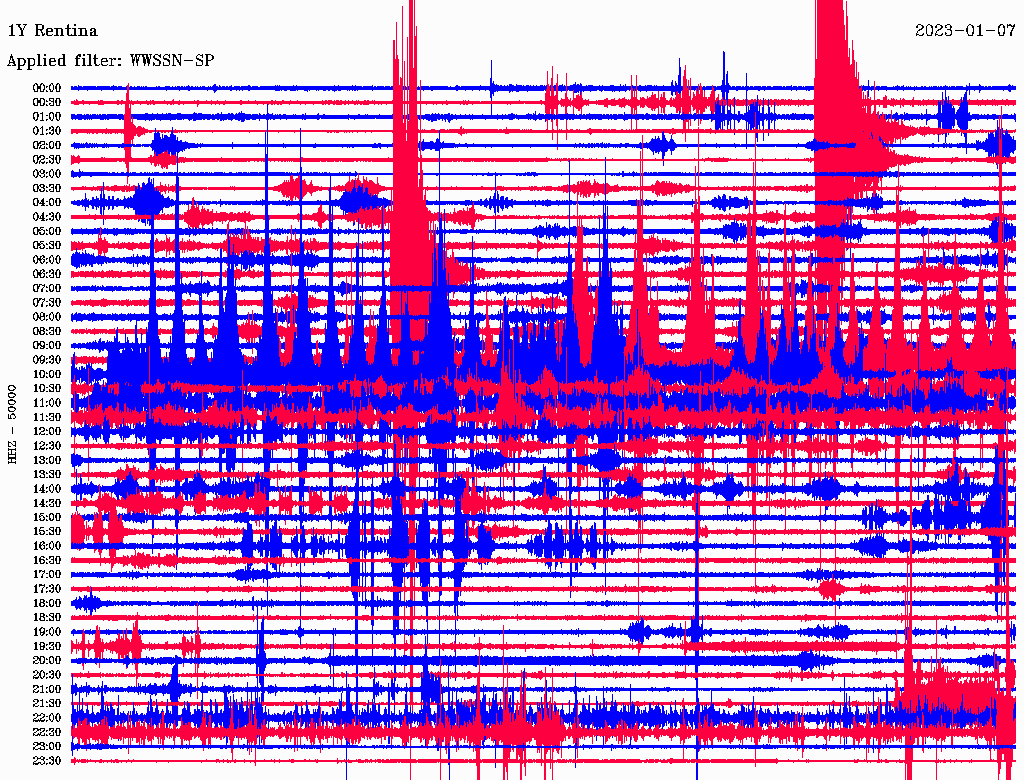

GR091Y264.6305 P01:53:36.67 0.11.0M
PLGHL267.1297 P01:53:37.26 0.41.0M
KDZBS267.5343 P01:53:36.80 0.01.0M

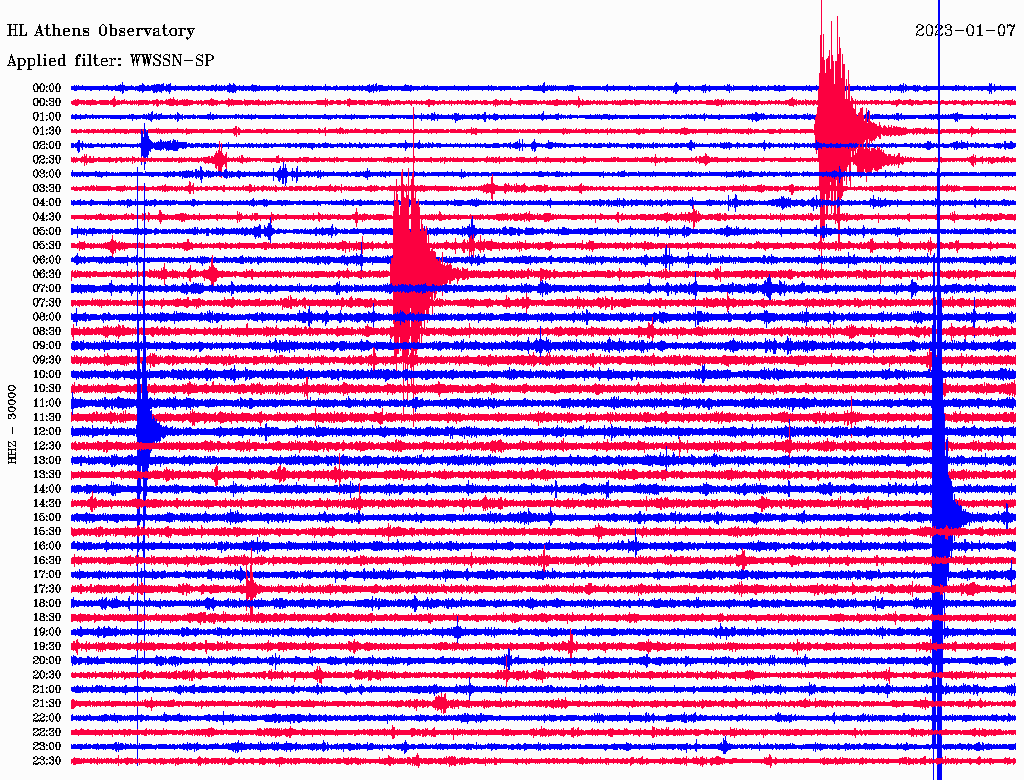

ATHHL267.5237 P01:53:36.91 0.01.0M
ATHHL267.5237 S01:54:07.79 0.61.0M
GR261Y267.7248 P01:53:36.50 -0.51.0M
GR261Y267.7248 S01:54:07.52 0.21.0M

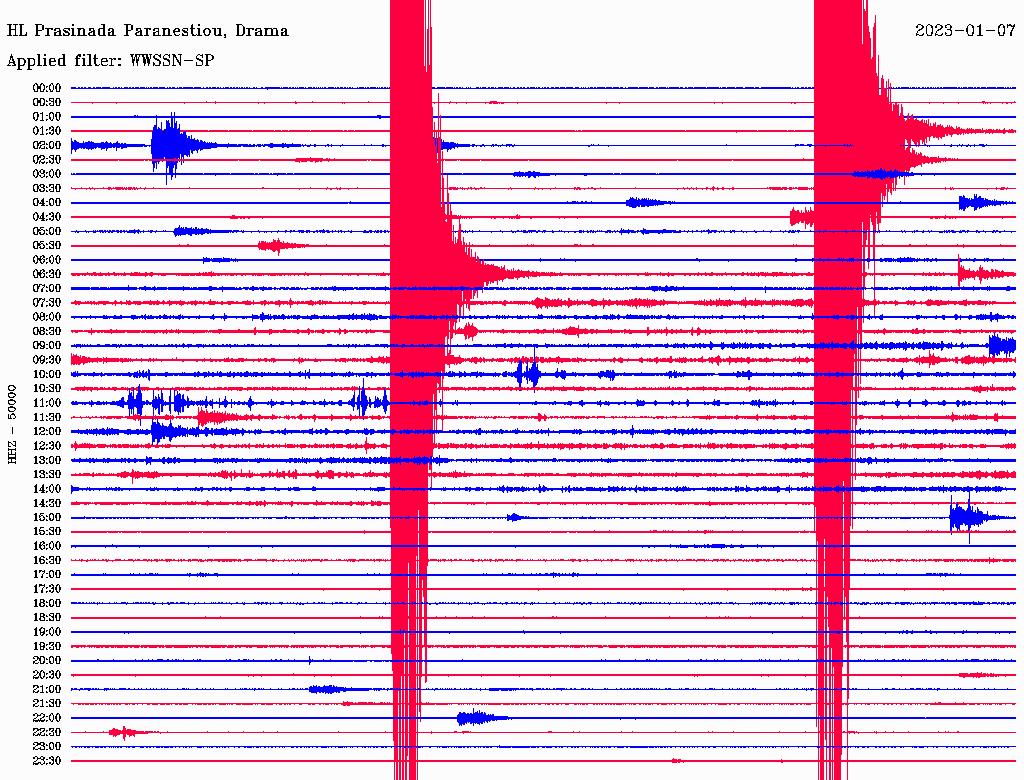

PRASHL267.7328 P01:53:36.92 0.01.0M
STFNHA268.3242 P01:53:36.89 -0.21.0M
THI1HL269.5248 P01:53:36.83 -0.41.0M

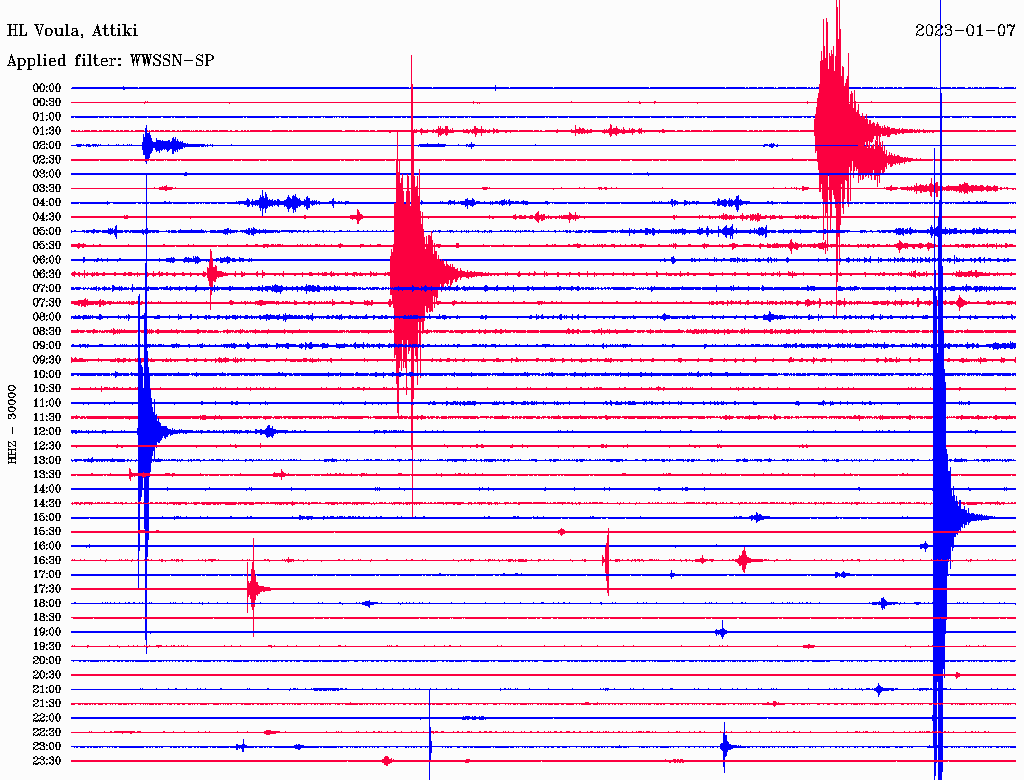

VLYHL270.2233 P01:53:36.84 -0.41.0M
VLYHL270.2233 S01:54:07.35 -0.51.0M

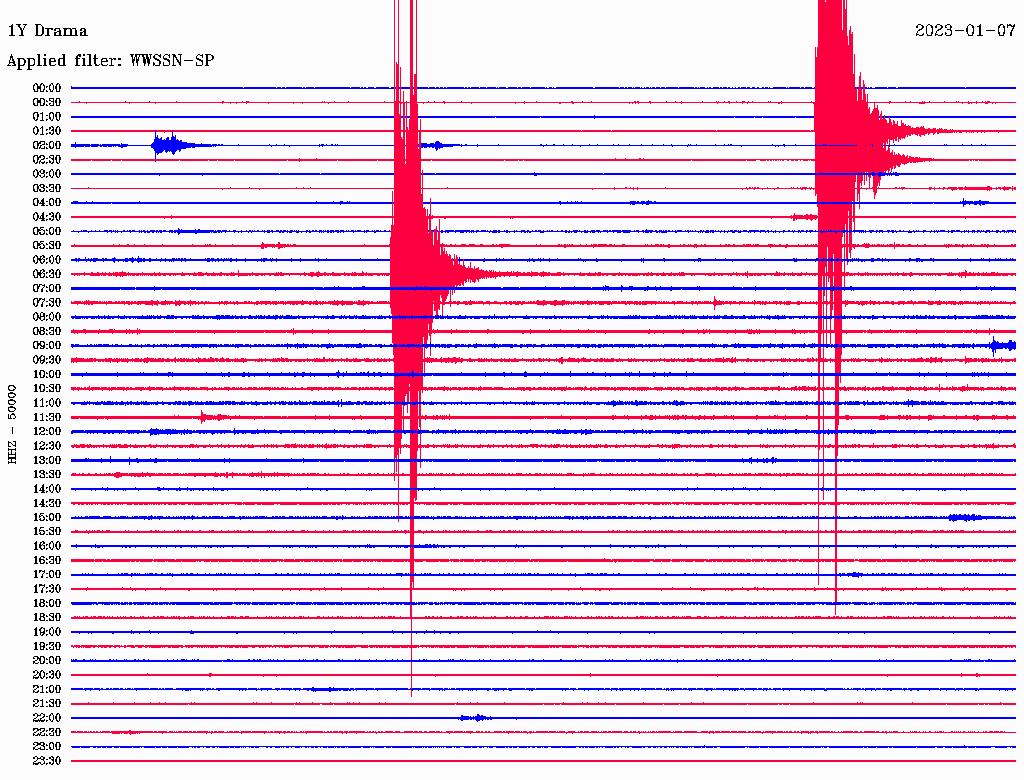

GR021Y270.7319 P01:53:37.25 0.01.0M

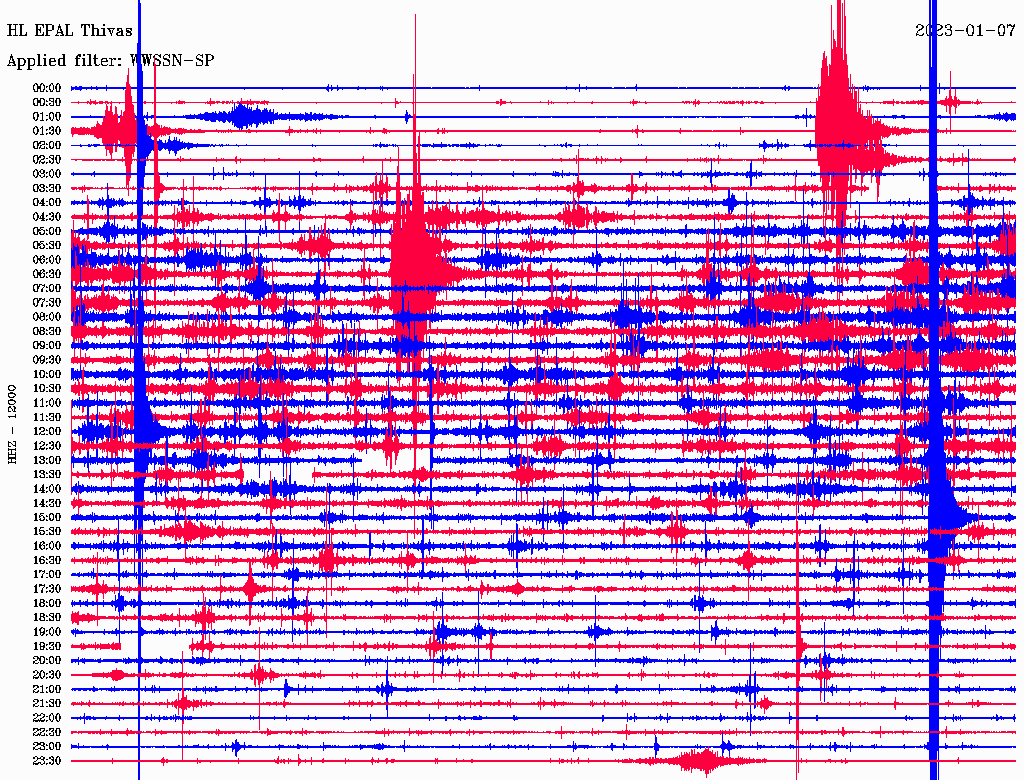

THVAHL276.8247 P01:53:37.77 -0.31.0M
THVAHL276.8247 S01:54:10.18 0.81.0M
THIVHA278.5247 P01:53:38.20 -0.11.0M
THIVHA278.5247 S01:54:10.66 0.91.0M
MDRAHA280.7241 P01:53:38.59 0.01.0M
MDRAHA280.7241 S01:54:10.56 0.41.0M
AMPEHA283.4247 P01:53:38.86 -0.11.0M
AMPEHA283.4247 S01:54:11.24 0.41.0M
THI2HL284.9249 P01:53:38.68 -0.41.0M
THI2HL284.9249 S01:54:11.10 0.01.0M
GR131Y286.2294 P01:53:39.38 0.11.0M
KOSPHC286.4161 P01:53:39.65 0.51.0M
SERIHA286.7213 P01:53:38.59 -0.71.0M
SERIHA286.7213 S01:54:12.16 0.71.0M

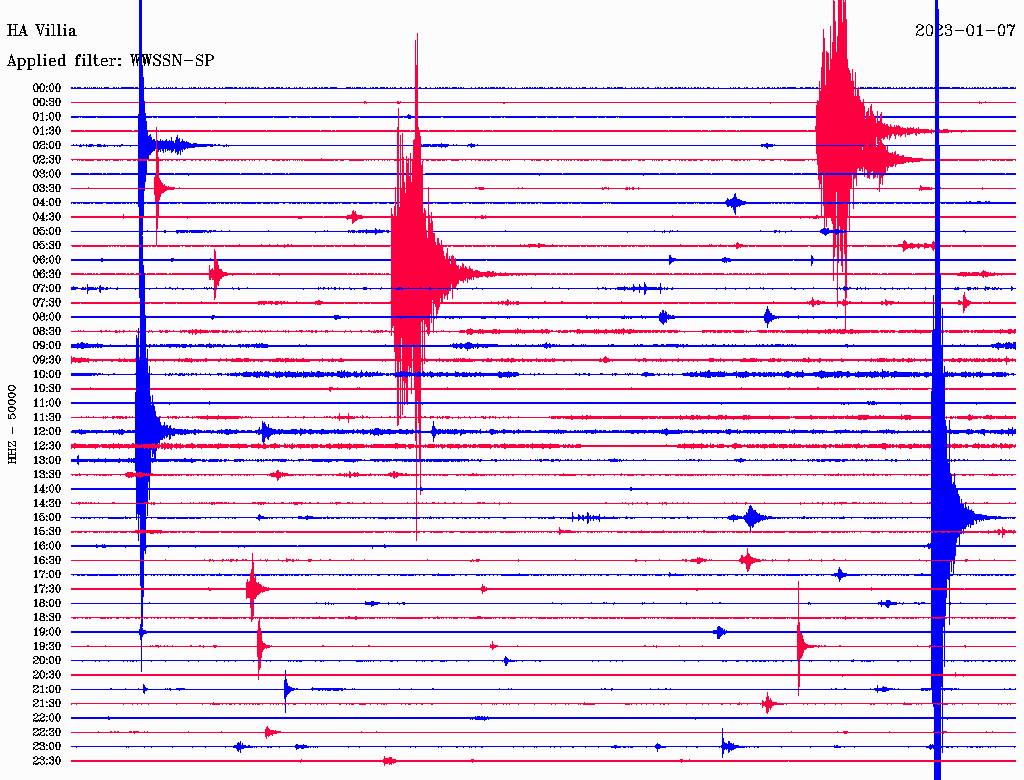

VILLHA286.8244 P01:53:39.02 -0.31.0M
VILLHA286.8244 S01:54:10.39 -1.21.0M
ATALHA288.9257 P01:53:39.34 -0.31.0M
LKRHL292.0256 P01:53:39.53 -0.51.0M

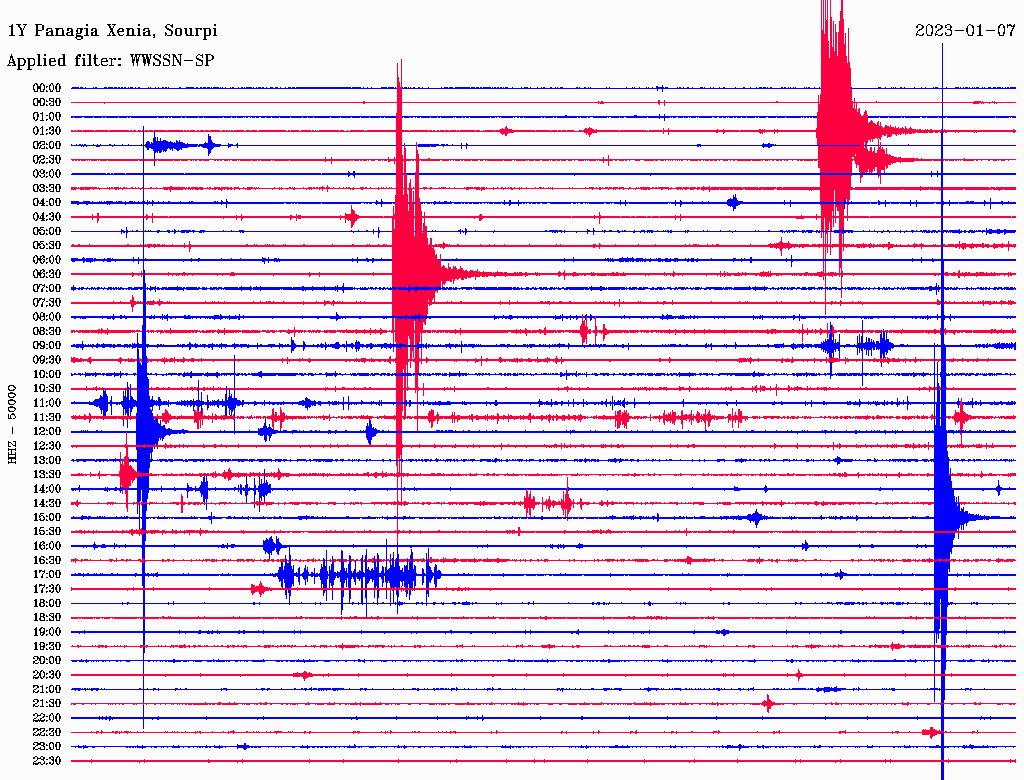

GR221Y297.2266 P01:53:40.52 -0.11.0M
SRSHT301.4312 P01:53:40.97 -0.11.0M
SRSHT301.4312 S01:54:15.20 0.61.0M
NVRHL302.8319 P01:53:41.28 0.01.0M
NVRHL302.8319 S01:54:14.44 -0.61.0M
HORTHT304.2299 P01:53:42.09 0.61.0M
DOMVHA308.5248 P01:53:41.91 -0.11.0M
DOMVHA308.5248 S01:54:15.71 -0.71.0M
GR181Y311.4279 P01:53:42.76 0.31.0M
THEHT316.3298 P01:53:43.43 0.41.0M

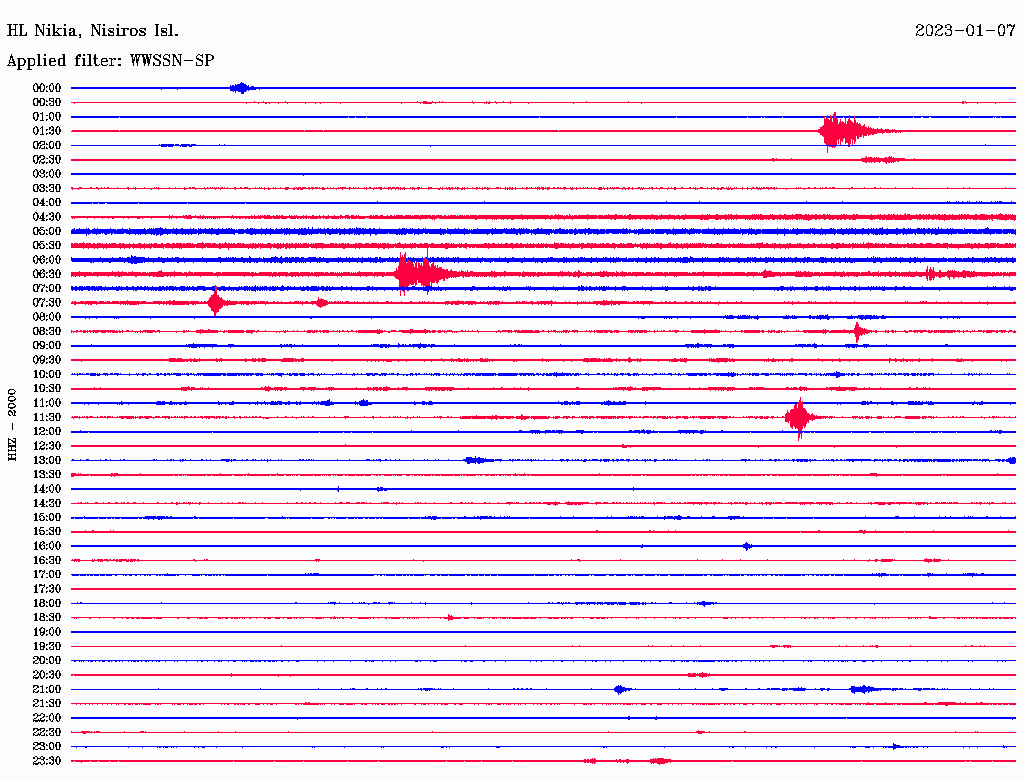

NISR2HL316.6165 P01:53:43.51 0.61.0M
AXARHA317.4260 P01:53:43.28 0.11.0M
LTKHP320.8244 P01:53:43.38 -0.21.0M
LTKHP320.8244 S01:54:19.13 0.01.0M
LOUTHA322.1244 P01:53:43.56 -0.11.0M
NESNHT322.3279 P01:53:44.27 0.51.0M
NESNHT322.3279 S01:54:20.27 0.71.0M
GR211Y322.4272 P01:53:43.97 0.21.0M
MMBBS325.6320 P01:53:44.48 0.41.0M
CMBOHT326.6194 P01:53:43.82 -0.31.0M
CMBOHT326.6194 S01:54:20.87 0.71.0M
SAP3HL331.7194 P01:53:44.44 -0.31.0M

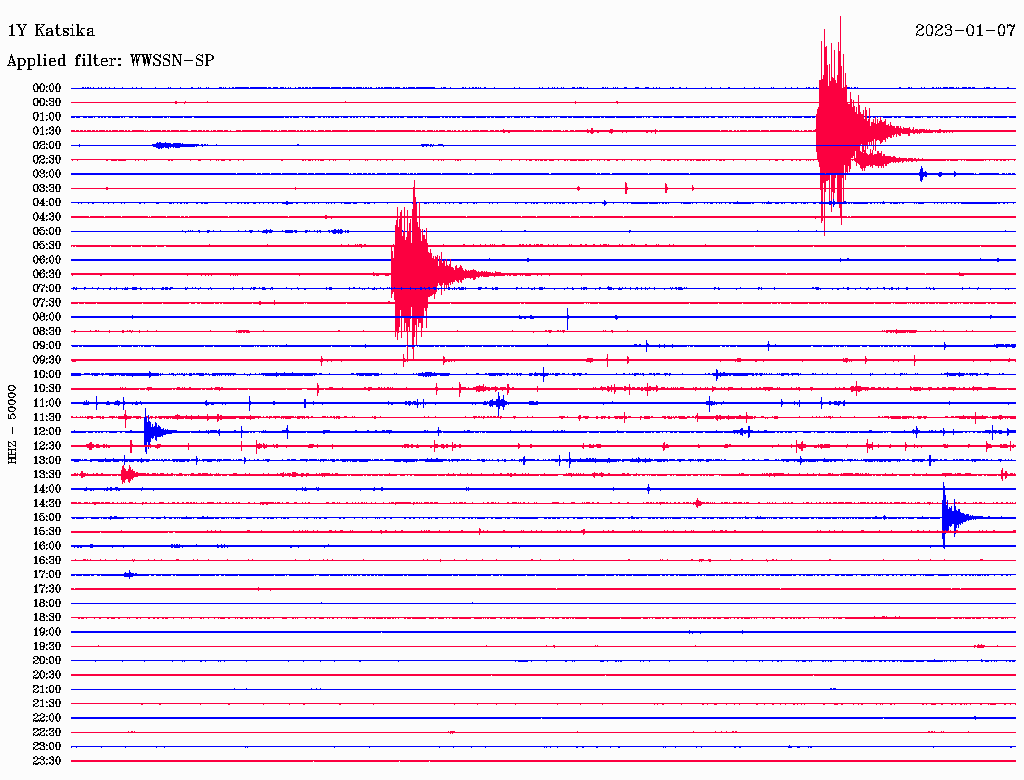

GR011Y332.9312 P01:53:45.25 0.21.0M
EPIDHA333.5236 P01:53:44.72 -0.41.0M
LITHT333.9286 P01:53:45.36 0.21.0M
SNT5HA334.1193 P01:53:44.80 -0.31.0M

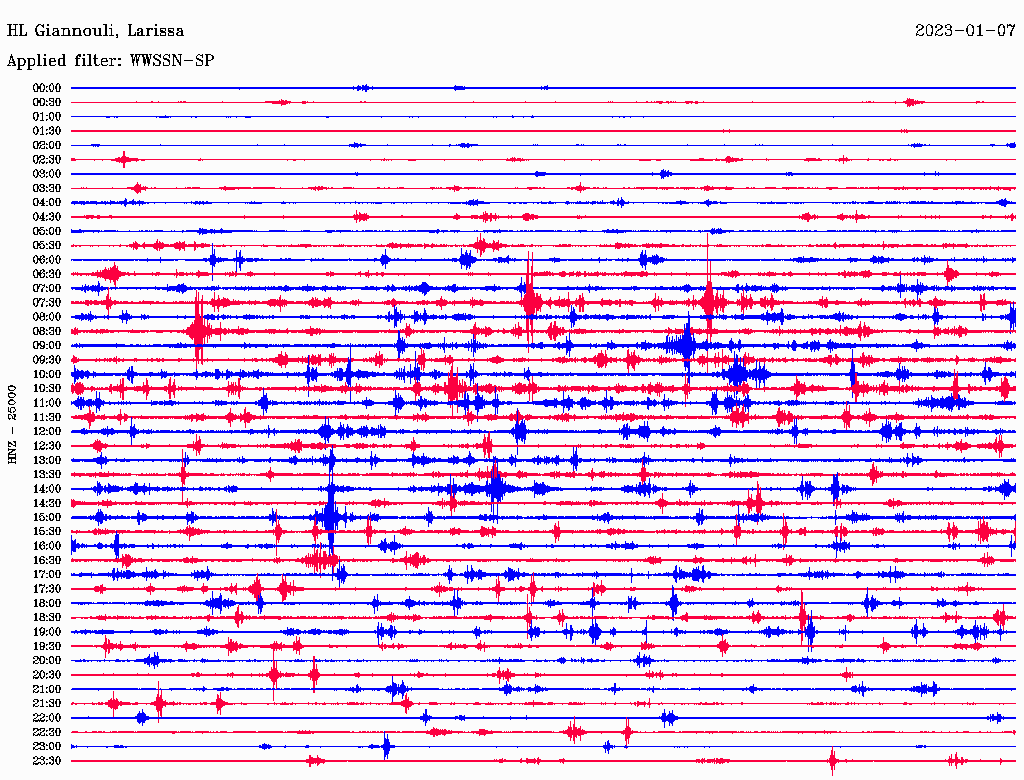

GINAHL334.5278 P01:53:44.61 -0.71.0M
ACORHA335.4243 P01:53:45.28 -0.11.0M
THERAHL336.6192 P01:53:44.87 -0.51.0M
DSFHP339.1254 P01:53:45.60 -0.21.0M

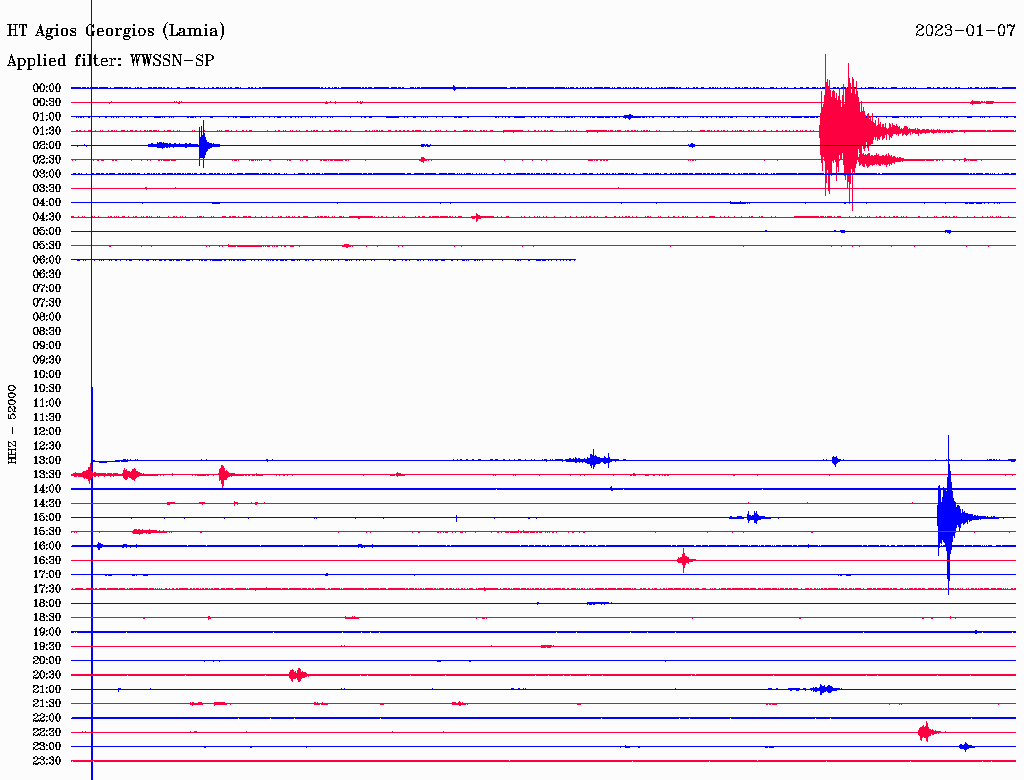

AGGHT340.2265 P01:53:46.22 0.21.0M
AGGHT340.2265 S01:54:23.91 0.41.0M
GR121Y341.8293 P01:53:46.96 0.81.0M
THALHA343.9246 P01:53:46.61 0.21.0M
THALHA343.9246 S01:54:24.57 0.31.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2023alct
    Description
      region name: Turkey
Origin:
    Date                   2023-01-07
    Time                  01:52:57.67  +/-    0.2 s
    Latitude              39.3293 deg  +/-      1 km
    Longitude             26.2627 deg  +/-      1 km
    Depth                      12 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.42 s
    Azimuthal gap             135 deg

2 Network magnitudes:
    MLv       4.88 +/- 0.19  61
    M         4.88           61 preferred

105 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    PRK   HL    0.1 179  P       01:53:01.45   0.4 M  1.0  PRK
    PRK   HL    0.1 179  S       01:53:03.78   0.2 M  1.0  PRK
    SIGR  HT    0.3 250  P       01:53:05.35  -0.1 M  1.0  SIGR
    SIGR  HT    0.3 250  S       01:53:10.27  -0.8 M  1.0  SIGR
    MYT1  HI    0.3 136  P       01:53:05.96   0.5 M  1.0  MYT1
    MYT1  HI    0.3 136  S       01:53:11.53   0.3 M  1.0  MYT1
    EFSA  HL    1.0 282  P       01:53:17.25   0.3 M  1.0  EFSA
    EFSA  HL    1.0 282  S       01:53:31.73   0.8 M  1.0  EFSA
    LIA   HL    1.0 305  P       01:53:16.99   0.1 M  1.0  LIA
    LIA   HL    1.0 305  S       01:53:31.19   0.2 M  1.0  LIA
    SMTH  HL    1.3 334  P       01:53:20.88   0.1 M  1.0  SMTH
    SMTH  HL    1.3 334  S       01:53:38.25   0.2 M  1.0  SMTH
    SKY   HL    1.4 252  P       01:53:22.75  -0.0 M  1.0  SKY
    SKY   HL    1.4 252  S       01:53:42.05   0.4 M  1.0  SKY
    KRL1  HI    1.6 167  P       01:53:25.44   0.3 M  1.0  KRL1
    KRL1  HI    1.6 167  S       01:53:46.52   0.5 M  1.0  KRL1
    SMG   HL    1.7 164  P       01:53:26.90   0.1 M  1.0  SMG
    THAS  HT    1.7 318  P       01:53:27.02  -0.6 M  1.0  THAS

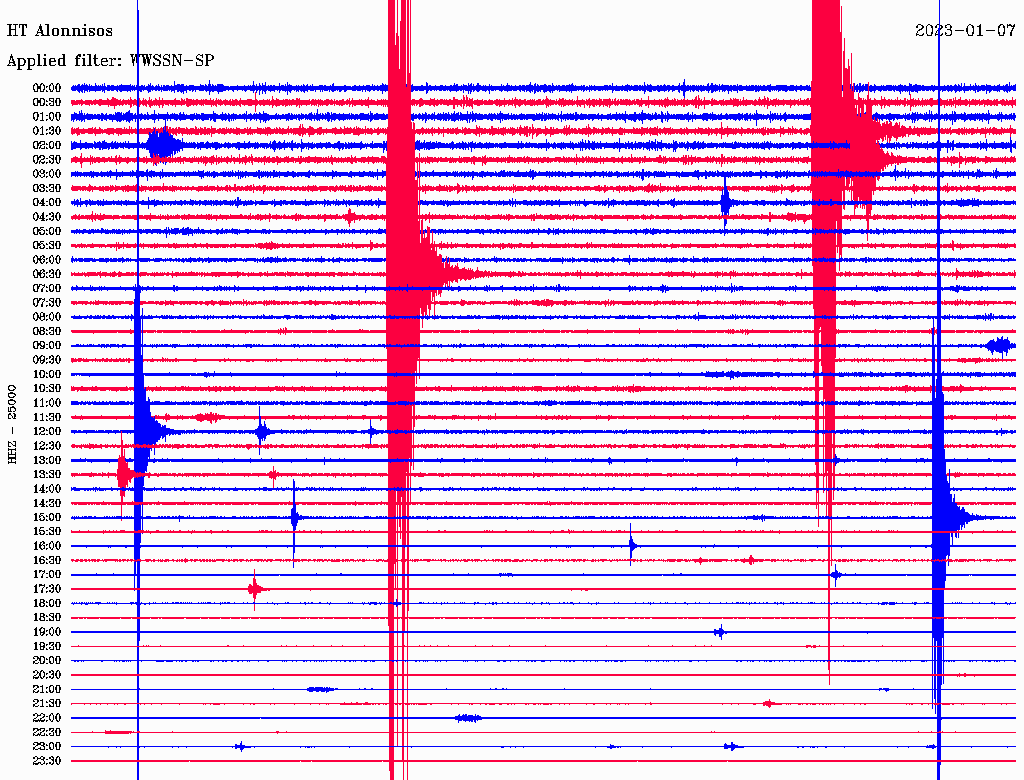

    AOS2  HT    1.9 265  P       01:53:29.49  -0.2 M  1.0  AOS2

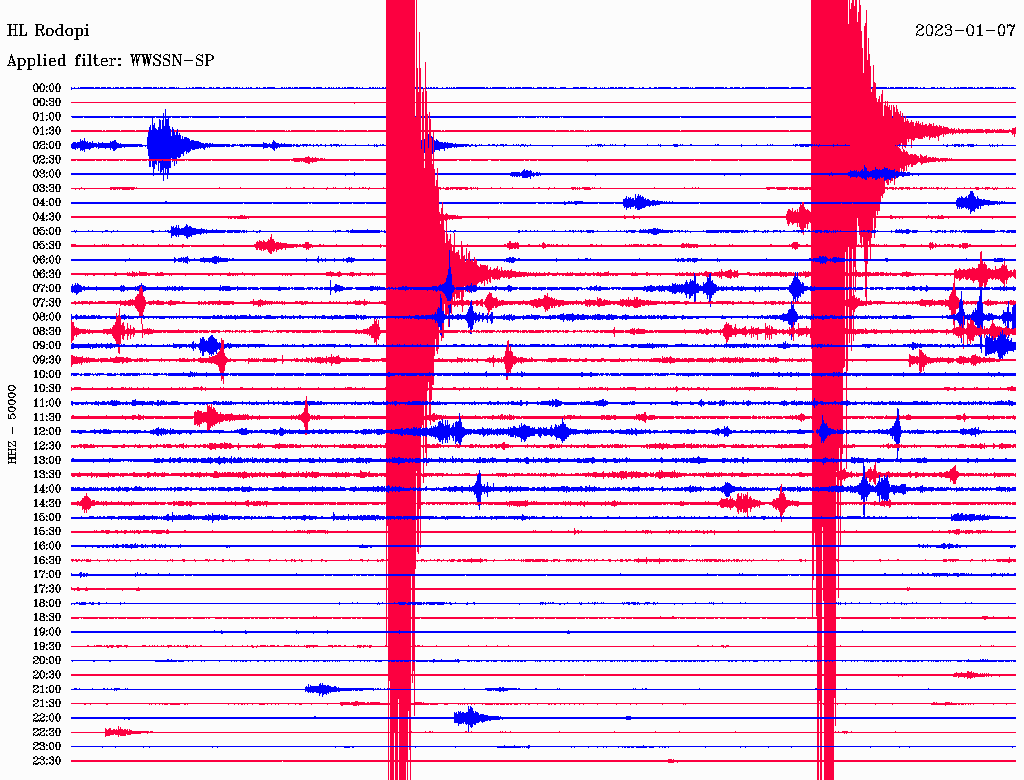

    RDO   HL    1.9 343  P       01:53:29.90   0.1 M  1.0  RDO
    GR04  1Y    1.9 329  P       01:53:29.93  -0.3 M  1.0  GR04
    KARY  HA    1.9 228  P       01:53:29.96  -0.3 M  1.0  KARY
    THNO  HC    1.9 211  P       01:53:29.82  -0.6 M  1.0  THNO
    GR06  1Y    2.0   0  P       01:53:31.34  -0.1 M  1.0  GR06
    GR06  1Y    2.0   0  S       01:53:56.90  -0.4 M  1.0  GR06

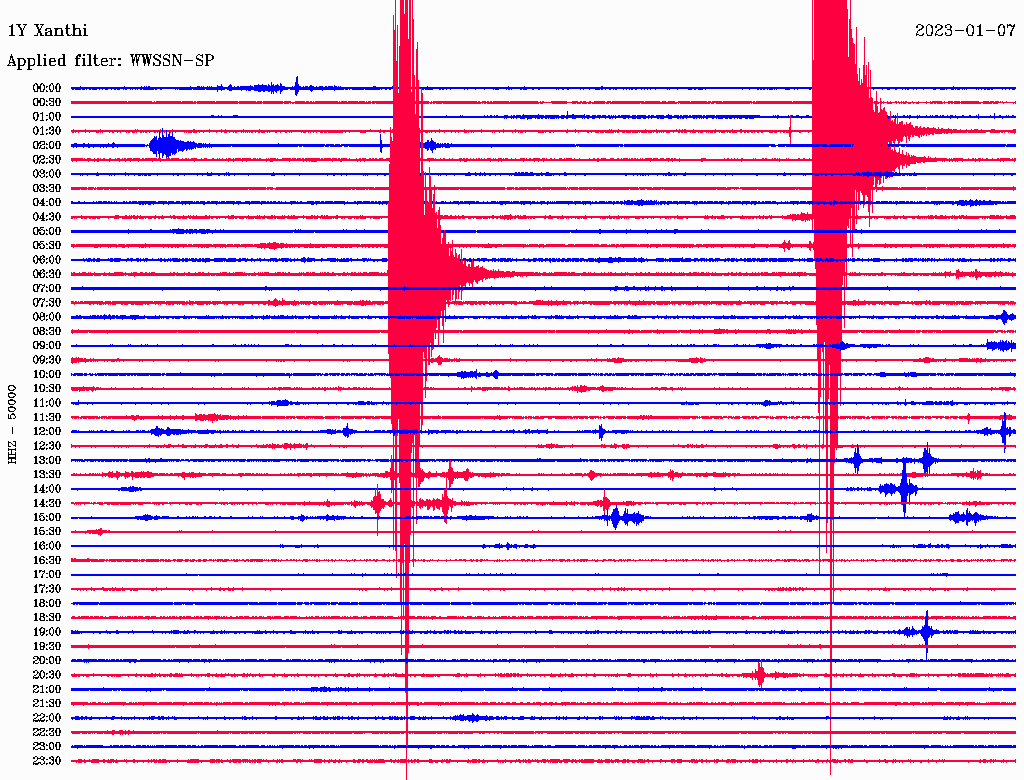

    GR03  1Y    2.1 330  P       01:53:32.70  -0.0 M  1.0  GR03
    ERTR  HA    2.1 245  P       01:53:32.76  -0.5 M  1.0  ERTR
    KVLA  HL    2.2 319  P       01:53:32.93  -0.5 M  1.0  KVLA
    MRKA  HA    2.2 254  P       01:53:33.26  -0.5 M  1.0  MRKA
    MRKA  HA    2.2 254  S       01:54:00.92  -0.6 M  1.0  MRKA
    PLN1  HI    2.2 289  P       01:53:33.32  -0.4 M  1.0  PLN1
    PLN1  HI    2.2 289  S       01:54:01.88   0.3 M  1.0  PLN1
    MRTH  HA    2.2 237  P       01:53:33.32  -0.5 M  1.0  MRTH
    PTL   HL    2.3 236  P       01:53:34.52  -0.5 M  1.0  PTL
    PTL   HL    2.3 236  S       01:54:04.17   0.3 M  1.0  PTL

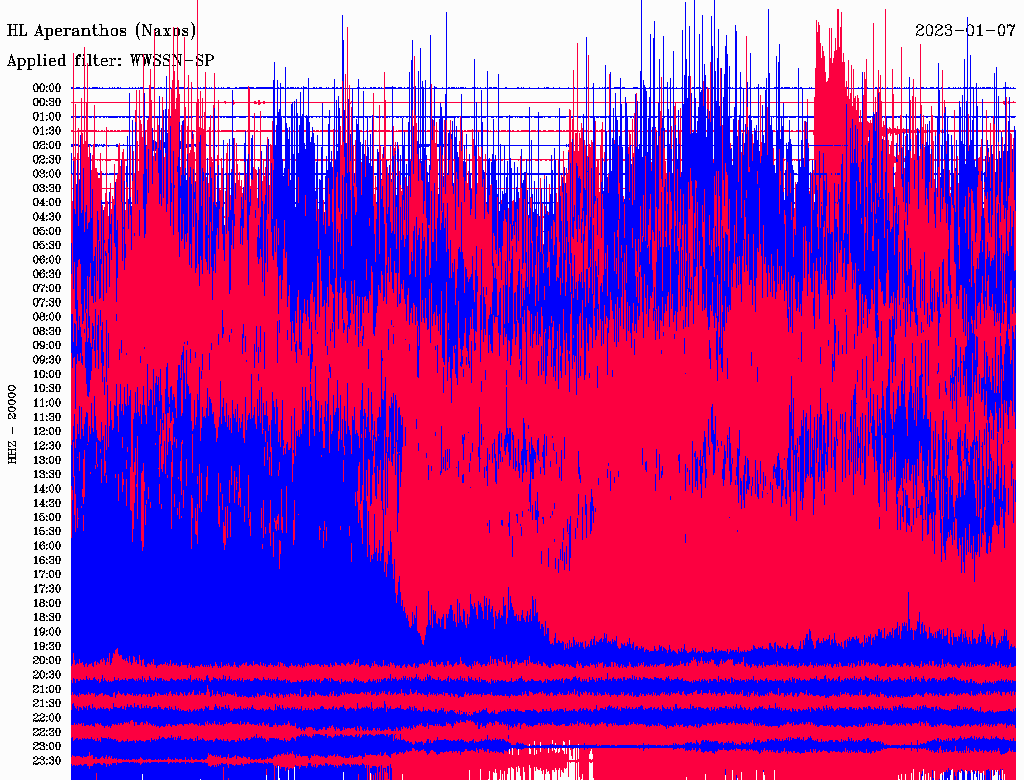

    APE   HL    2.3 195  P       01:53:35.47  -0.3 M  1.0  APE
    APE   HL    2.3 195  S       01:54:04.85  -0.4 M  1.0  APE
    NAX1  HI    2.3 198  P       01:53:36.13   0.3 M  1.0  NAX1
    NAX1  HI    2.3 198  S       01:54:05.32  -0.0 M  1.0  NAX1
    GR09  1Y    2.4 305  P       01:53:36.67   0.1 M  1.0  GR09
    KDZ   BS    2.4 343  P       01:53:36.80  -0.0 M  1.0  KDZ
    PLG   HL    2.4 297  P       01:53:37.26   0.4 M  1.0  PLG
    PRAS  HL    2.4 328  P       01:53:36.92   0.0 M  1.0  PRAS
    ATH   HL    2.4 237  P       01:53:36.91  -0.0 M  1.0  ATH
    ATH   HL    2.4 237  S       01:54:07.79   0.6 M  1.0  ATH
    GR26  1Y    2.4 248  P       01:53:36.50  -0.5 M  1.0  GR26
    GR26  1Y    2.4 248  S       01:54:07.52   0.2 M  1.0  GR26
    STFN  HA    2.4 242  P       01:53:36.89  -0.2 M  1.0  STFN
    THI1  HL    2.4 248  P       01:53:36.83  -0.4 M  1.0  THI1
    VLY   HL    2.4 233  P       01:53:36.84  -0.4 M  1.0  VLY
    VLY   HL    2.4 233  S       01:54:07.35  -0.5 M  1.0  VLY
    GR02  1Y    2.4 319  P       01:53:37.25  -0.0 M  1.0  GR02
    THVA  HL    2.5 247  P       01:53:37.77  -0.3 M  1.0  THVA
    THVA  HL    2.5 247  S       01:54:10.18   0.8 M  1.0  THVA
    THIV  HA    2.5 247  P       01:53:38.20  -0.1 M  1.0  THIV
    THIV  HA    2.5 247  S       01:54:10.66   0.9 M  1.0  THIV
    MDRA  HA    2.5 241  P       01:53:38.59   0.0 M  1.0  MDRA
    MDRA  HA    2.5 241  S       01:54:10.56   0.4 M  1.0  MDRA
    AMPE  HA    2.6 247  P       01:53:38.86  -0.1 M  1.0  AMPE
    AMPE  HA    2.6 247  S       01:54:11.24   0.4 M  1.0  AMPE
    THI2  HL    2.6 249  P       01:53:38.68  -0.4 M  1.0  THI2
    THI2  HL    2.6 249  S       01:54:11.10  -0.0 M  1.0  THI2

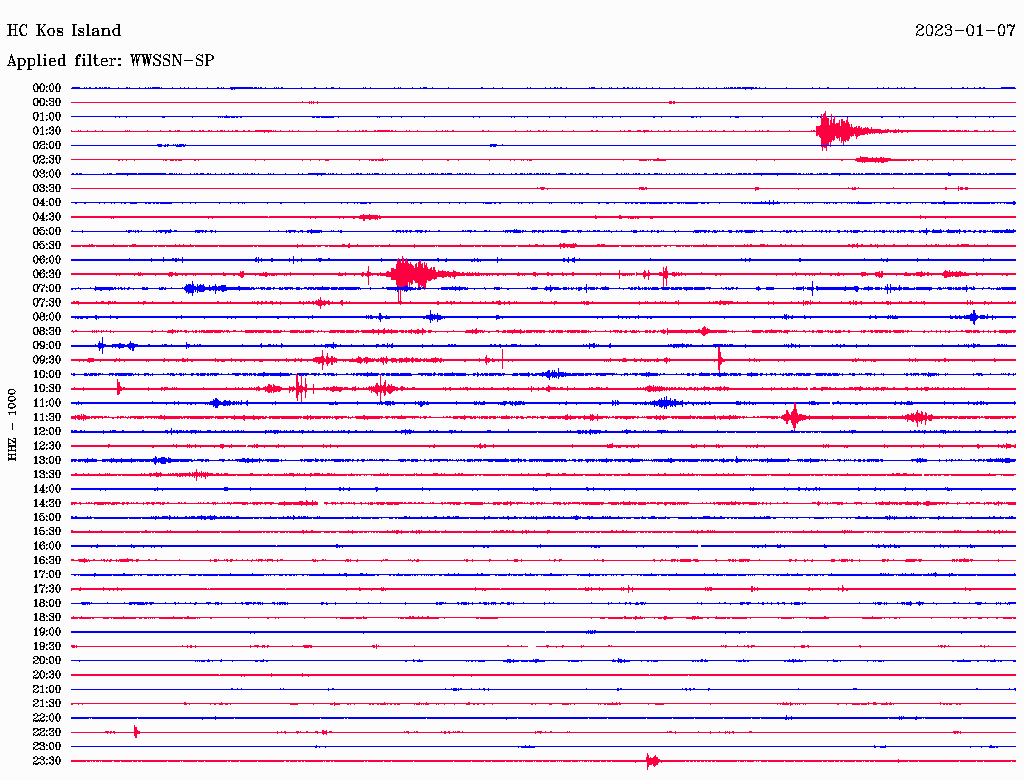

    KOSP  HC    2.6 161  P       01:53:39.65   0.5 M  1.0  KOSP
    SERI  HA    2.6 213  P       01:53:38.59  -0.7 M  1.0  SERI
    SERI  HA    2.6 213  S       01:54:12.16   0.7 M  1.0  SERI
    GR13  1Y    2.6 294  P       01:53:39.38   0.1 M  1.0  GR13
    VILL  HA    2.6 244  P       01:53:39.02  -0.3 M  1.0  VILL
    VILL  HA    2.6 244  S       01:54:10.39  -1.2 M  1.0  VILL
    ATAL  HA    2.6 257  P       01:53:39.34  -0.3 M  1.0  ATAL
    LKR   HL    2.6 256  P       01:53:39.53  -0.5 M  1.0  LKR
    GR22  1Y    2.7 266  P       01:53:40.52  -0.1 M  1.0  GR22
    SRS   HT    2.7 312  P       01:53:40.97  -0.1 M  1.0  SRS
    SRS   HT    2.7 312  S       01:54:15.20   0.6 M  1.0  SRS
    NVR   HL    2.7 319  P       01:53:41.28   0.0 M  1.0  NVR
    NVR   HL    2.7 319  S       01:54:14.44  -0.6 M  1.0  NVR
    HORT  HT    2.7 299  P       01:53:42.09   0.6 M  1.0  HORT
    DOMV  HA    2.8 248  P       01:53:41.91  -0.1 M  1.0  DOMV
    DOMV  HA    2.8 248  S       01:54:15.71  -0.7 M  1.0  DOMV
    GR18  1Y    2.8 279  P       01:53:42.76   0.3 M  1.0  GR18
    NISR2 HL    2.8 165  P       01:53:43.51   0.6 M  1.0  NISR2
    THE   HT    2.8 298  P       01:53:43.43   0.4 M  1.0  THE
    AXAR  HA    2.9 260  P       01:53:43.28   0.1 M  1.0  AXAR
    LTK   HP    2.9 244  P       01:53:43.38  -0.2 M  1.0  LTK
    LTK   HP    2.9 244  S       01:54:19.13  -0.0 M  1.0  LTK
    LOUT  HA    2.9 244  P       01:53:43.56  -0.1 M  1.0  LOUT

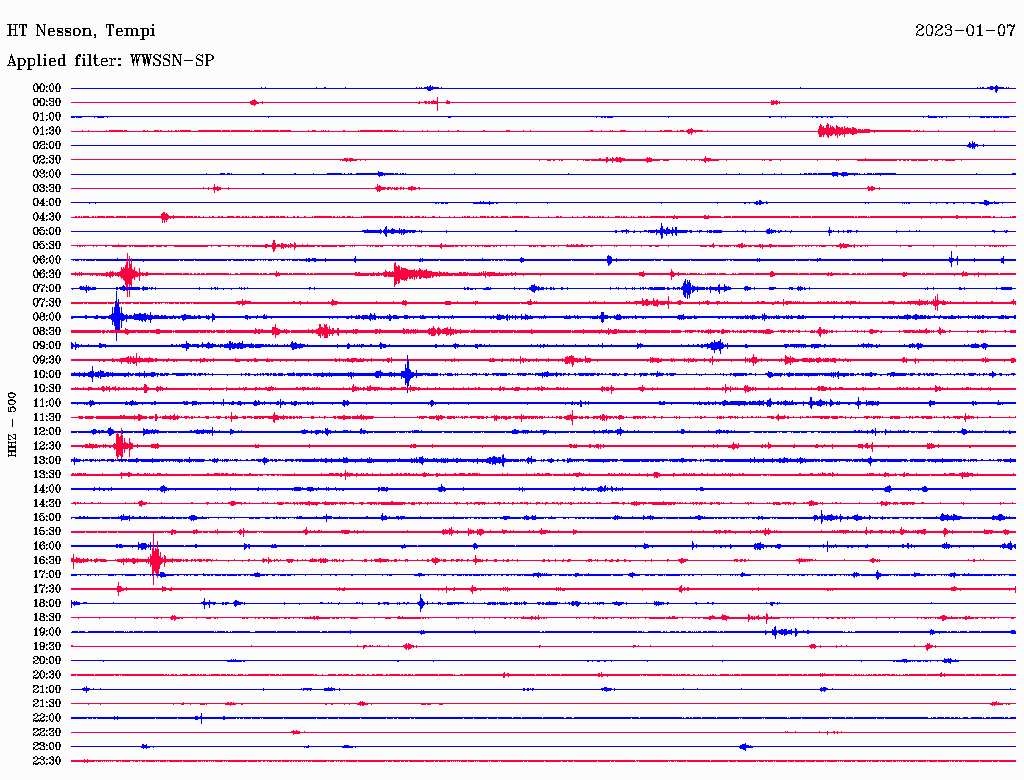

    NESN  HT    2.9 279  P       01:53:44.27   0.5 M  1.0  NESN
    NESN  HT    2.9 279  S       01:54:20.27   0.7 M  1.0  NESN
    GR21  1Y    2.9 272  P       01:53:43.97   0.2 M  1.0  GR21
    MMB   BS    2.9 320  P       01:53:44.48   0.4 M  1.0  MMB
    CMBO  HT    2.9 194  P       01:53:43.82  -0.3 M  1.0  CMBO
    CMBO  HT    2.9 194  S       01:54:20.87   0.7 M  1.0  CMBO

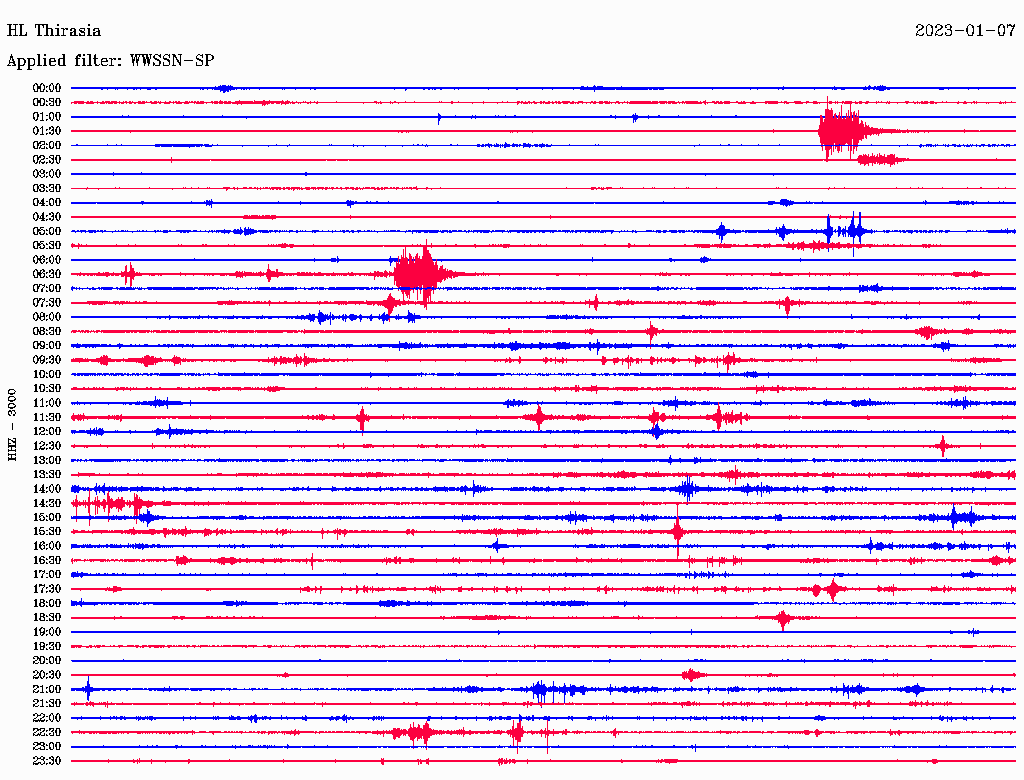

    SAP3  HL    3.0 194  P       01:53:44.44  -0.3 M  1.0  SAP3
    GR01  1Y    3.0 312  P       01:53:45.25   0.2 M  1.0  GR01
    SNT5  HA    3.0 193  P       01:53:44.80  -0.3 M  1.0  SNT5
    EPID  HA    3.0 236  P       01:53:44.72  -0.4 M  1.0  EPID
    LIT   HT    3.0 286  P       01:53:45.36   0.2 M  1.0  LIT
    GINA  HL    3.0 278  P       01:53:44.61  -0.7 M  1.0  GINA
    ACOR  HA    3.0 243  P       01:53:45.28  -0.1 M  1.0  ACOR
    THERA HL    3.0 192  P       01:53:44.87  -0.5 M  1.0  THERA
    DSF   HP    3.1 254  P       01:53:45.60  -0.2 M  1.0  DSF
    AGG   HT    3.1 265  P       01:53:46.22   0.2 M  1.0  AGG
    AGG   HT    3.1 265  S       01:54:23.91   0.4 M  1.0  AGG
    GR12  1Y    3.1 293  P       01:53:46.96   0.8 M  1.0  GR12
    THAL  HA    3.1 246  P       01:53:46.61   0.2 M  1.0  THAL
    THAL  HA    3.1 246  S       01:54:24.57   0.3 M  1.0  THAL

73 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    PRK   HL    0.1 179  MLv     4.66 -0.22    2112.92
    SIGR  HT    0.3 250  MLv     4.82 -0.06    606.865
    MYT1  HI    0.3 136  MLv     4.37 -0.51     209.76
    EFSA  HL    1.0 282  MLv     5.07  0.19     162.77
    LIA   HL    1.0 305  MLv     4.51 -0.36    89.4724
    SMTH  HL    1.3 334  MLv     5.39  0.51    155.606
    SKY   HL    1.4 252  MLv     4.53 -0.35    46.9095
    KRL1  HI    1.6 167  MLv     4.86 -0.02    48.5583
    SMG   HL    1.7 164  MLv     4.83 -0.05    39.1907
    THAS  HT    1.7 318  MLv     4.75 -0.13    30.0719
    AOS2  HT    1.9 265  MLv     4.88  0.00    34.0396
    RDO   HL    1.9 343  MLv     4.98  0.10    28.2967
    GR04  1Y    1.9 329  MLv     4.96  0.08    38.8681
    KARY  HA    1.9 228  MLv     4.60 -0.27    17.1444
    THNO  HC    1.9 211  MLv     4.55 -0.33    14.8927
    GR06  1Y    2.0   0  MLv     5.14  0.27     53.294
    GR03  1Y    2.1 330  MLv     4.78 -0.10    20.5188
    ERTR  HA    2.1 245  MLv     4.97  0.09    30.0863
    KVLA  HL    2.2 319  MLv     4.75 -0.12    18.0682
    MRKA  HA    2.2 254  MLv     5.13  0.25    41.9973
    PLN1  HI    2.2 289  MLv     4.98  0.11    29.8657
    MRTH  HA    2.2 237  MLv     4.84 -0.04    21.4213
    PTL   HL    2.3 236  MLv     4.72 -0.16     14.388
    APE   HL    2.3 195  MLv     4.61 -0.27    10.2759
    NAX1  HI    2.3 198  MLv     4.30 -0.58    5.05462
    GR09  1Y    2.4 305  MLv     4.87 -0.00    17.8446
    KDZ   BS    2.4 343  MLv     5.10  0.23    29.2784
    PLG   HL    2.4 297  MLv     4.68 -0.20    11.0343
    PRAS  HL    2.4 328  MLv     5.05  0.17    25.8224
    ATH   HL    2.4 237  MLv     4.82 -0.05    15.3828
    GR26  1Y    2.4 248  MLv     4.97  0.09    21.4929
    STFN  HA    2.4 242  MLv     4.76 -0.12    13.0803
    THI1  HL    2.4 248  MLv     5.16  0.29     32.878
    VLY   HL    2.4 233  MLv     4.72 -0.16    11.7641
    GR02  1Y    2.4 319  MLv     4.98  0.11    21.4737
    THVA  HL    2.5 247  MLv     5.76  0.89    120.575
    THIV  HA    2.5 247  MLv     4.95  0.07    18.1091
    MDRA  HA    2.5 241  MLv     4.43 -0.45    5.27638
    AMPE  HA    2.6 247  MLv     4.78 -0.10    11.5743
    THI2  HL    2.6 249  MLv     5.09  0.21     23.278
    KOSP  HC    2.6 161  MLv     5.21  0.33    29.9756
    SERI  HA    2.6 213  MLv     4.59 -0.29    7.14504
    GR13  1Y    2.6 294  MLv     4.44 -0.43    5.15575
    VILL  HA    2.6 244  MLv     4.84 -0.04    12.7424
    ATAL  HA    2.6 257  MLv     4.54 -0.33    6.30024
    LKR   HL    2.6 256  MLv     4.83 -0.05    6.32024
    GR22  1Y    2.7 266  MLv     4.76 -0.12    9.38144
    SRS   HT    2.7 312  MLv     5.33  0.45    23.6577
    NVR   HL    2.7 319  MLv     5.12  0.24    15.0662
    HORT  HT    2.7 299  MLv     4.88 -0.00     7.6816
    DOMV  HA    2.8 248  MLv     4.57 -0.31    5.29857
    GR18  1Y    2.8 279  MLv     4.66 -0.22    6.31946
    NISR2 HL    2.8 165  MLv     4.94  0.06    11.4531
    THE   HT    2.8 298  MLv     4.81 -0.06     5.6389
    AXAR  HA    2.9 260  MLv     4.47 -0.41    15.1241
    LTK   HP    2.9 244  MLv     4.44 -0.44    13.0381
    LOUT  HA    2.9 244  MLv     5.11  0.23    15.7102
    NESN  HT    2.9 279  MLv     4.67 -0.21    5.76269
    GR21  1Y    2.9 272  MLv     4.59 -0.29    4.72543
    MMB   BS    2.9 320  MLv     5.04  0.16     12.854
    CMBO  HT    2.9 194  MLv     5.31  0.43    23.9409
    SAP3  HL    3.0 194  MLv     5.12  0.25     24.236
    GR01  1Y    3.0 312  MLv     5.21  0.33    17.5849
    SNT5  HA    3.0 193  MLv     4.71 -0.17    3.21361
    EPID  HA    3.0 236  MLv     5.06  0.19    12.4575
    LIT   HT    3.0 286  MLv     4.55 -0.32    2.77195
    GINA  HL    3.0 278  MLv     4.80 -0.08     6.7475
    ACOR  HA    3.0 243  MLv     4.93  0.05     8.8991
    THERA HL    3.0 192  MLv     4.58 -0.29    3.99926
    DSF   HP    3.1 254  MLv     4.86 -0.01    7.36371
    AGG   HT    3.1 265  MLv     5.18  0.31    11.7911
    GR12  1Y    3.1 293  MLv     4.94  0.06    8.51801
    THAL  HA    3.1 246  MLv     4.80 -0.08    10.7529
