Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2022-01-08 12:08:10 (GMT)
 Μέγεθος
 M 4.0
 Γεωγρ. Πλάτος
 34.4837° Β
 Γεωγρ. Μήκος
 24.3227° Α
 Εστιακό Βάθος
 8 χμ
 Αρ. αφίξεων
 38
 Επίκεντρο 98.9 χμ Ν του Ρεθύμνου
117.7 χμ ΝΝΑ των Χανίων
392.7 χμ Ν της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Μηχ.Γέν.


  Μηχανισμός Γένεσης

Μηχ.Γεν. Παράταξη (°) Κλίση (°) Γων.Ολίσθ. (°) Σεισμ.Ροπή (dyn*cm)
14558-130 7.12E+22

Γεωγρ.Πλάτος (°Β) Γεωγρ.Μήκος (°Α) Βάθος (χμ) Μέγεθος Mw
34.512524.335810.04.5

Υπολογισμός εστιακών παραμέτρων

Κλικ εδώ για λεπτομέρειες μηχανισμού γένεσης


  Χάρτης εντάσεως


PGA
 PGV
 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

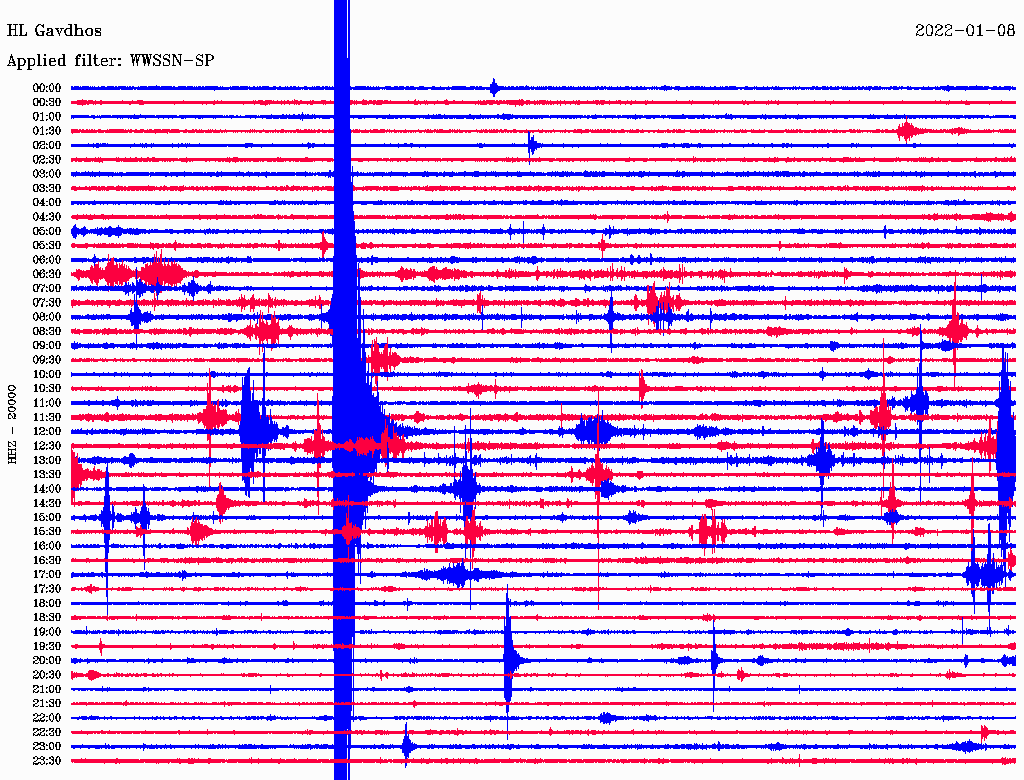

GVDHL45.0331 P12:08:17.97 -0.71.0M
GVDHL45.0331 S12:08:25.25 0.41.0M
GVDSHC46.3328 P12:08:18.09 -0.81.0M

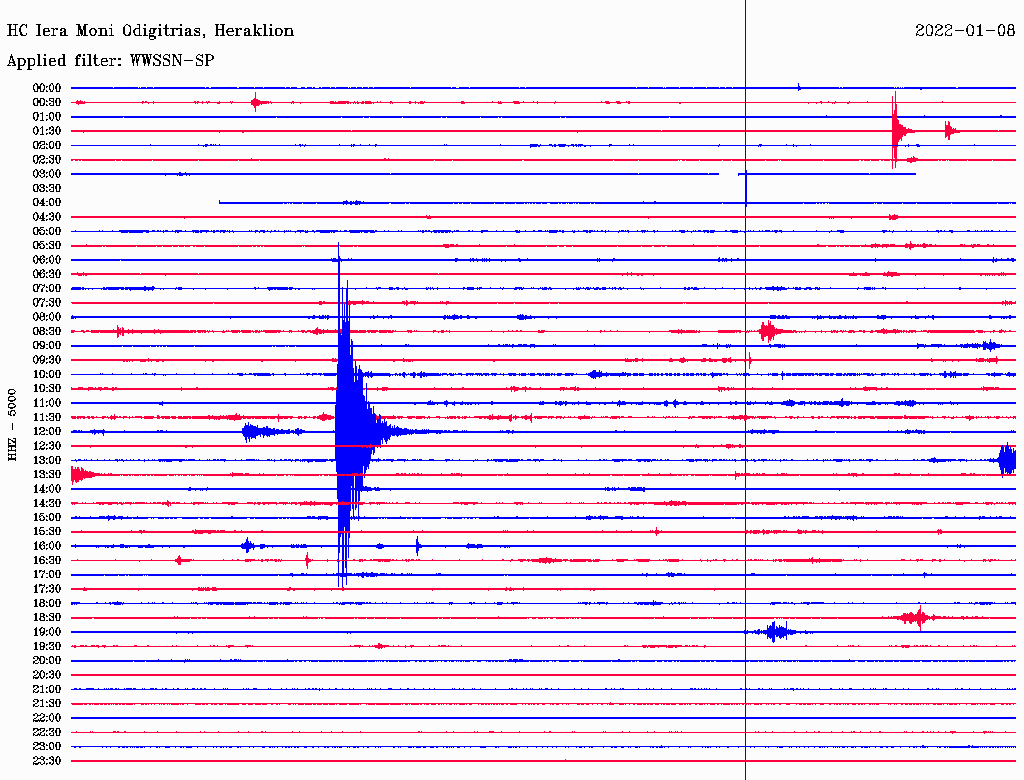

IMODHC69.7 39 P12:08:23.00 0.31.0M

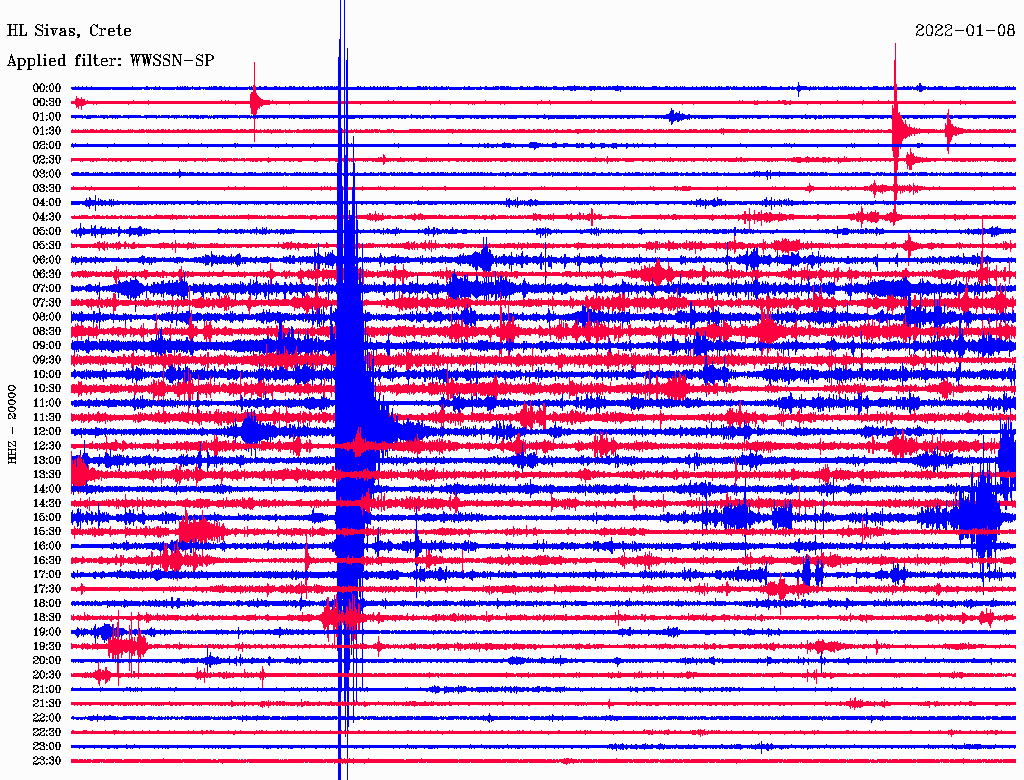

SIVAHL74.3 37 P12:08:23.04 -0.41.0M
SIVAHL74.3 37 S12:08:32.50 -0.81.0M
IPPLHC97.0 8 P12:08:26.58 -0.51.0M
IPPLHC97.0 8 S12:08:38.59 -1.01.0M
KNDRHC105.0323 P12:08:29.33 1.01.0M
KNDRHC105.0323 S12:08:41.79 0.01.0M
CRE3HL107.1 52 P12:08:28.56 -0.11.0M
CRE3HL107.1 52 S12:08:43.48 1.01.0M

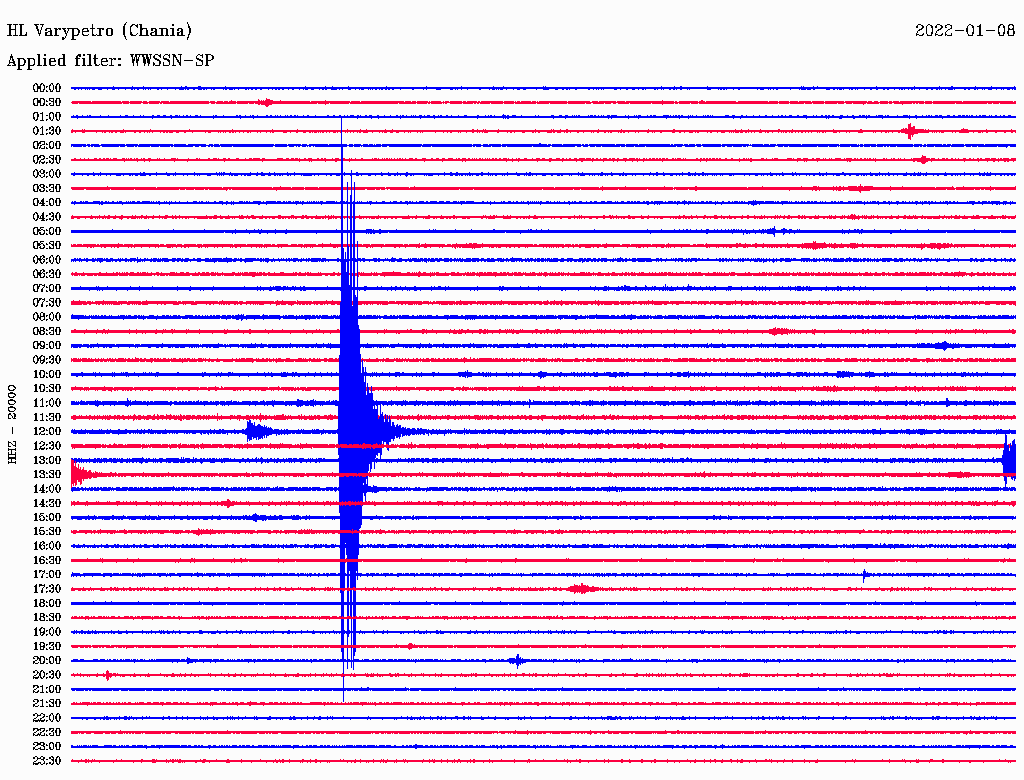

IMMVHL113.0344 P12:08:29.26 -0.31.0M

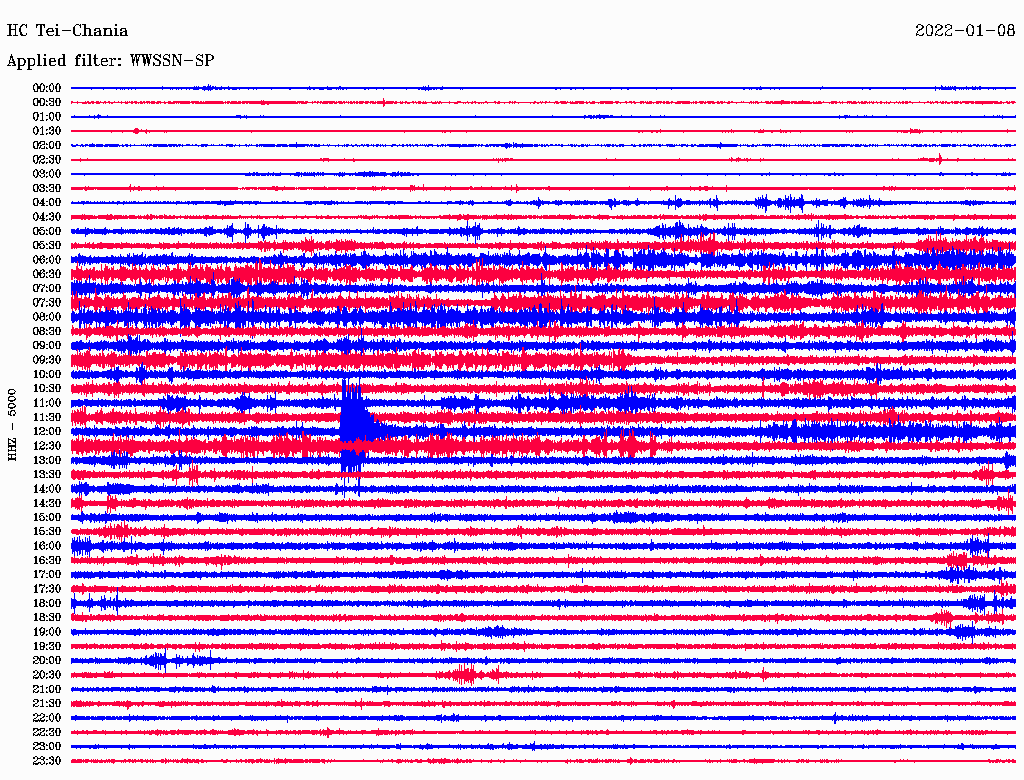

CHANHC117.9347 P12:08:31.12 0.81.0M
KSTEHL120.7 50 P12:08:30.41 -0.51.0M
KSTEHL120.7 50 S12:08:46.87 0.61.0M
PFKSHC122.1 60 P12:08:30.24 -0.91.0M
PFKSHC122.1 60 S12:08:47.40 0.61.0M
ANKYHL179.7329 P12:08:40.07 0.51.0M
ANKYHL179.7329 S12:09:02.15 0.61.0M

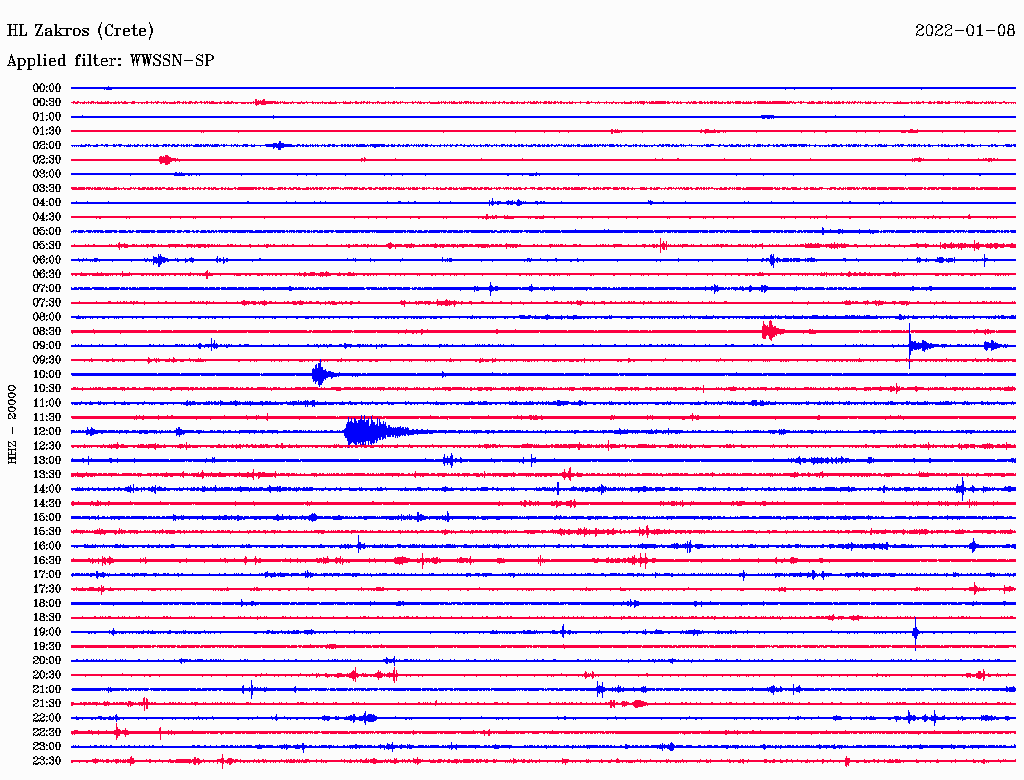

ZKRHL186.7 68 P12:08:40.38 -0.11.0M
ZKRHL186.7 68 S12:09:03.26 0.01.0M
KTHAHL227.9330 P12:08:46.49 0.81.0M
KTHAHL227.9330 S12:09:12.44 0.01.0M

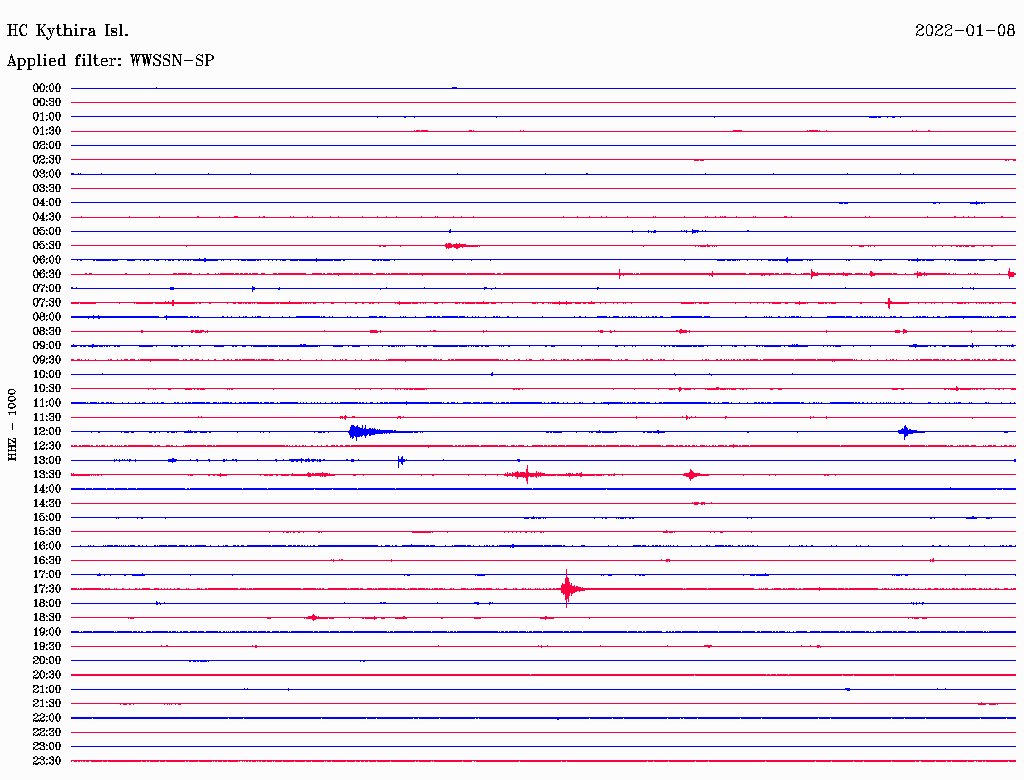

KTHRHC229.9328 P12:08:46.85 0.91.0M
VLIHL277.8333 P12:08:52.38 0.31.0M
APEHL307.6 21 P12:08:55.16 -0.81.0M
APEHL307.6 21 S12:09:30.85 0.41.0M
ARGHL394.5 61 P12:09:07.23 0.11.0M

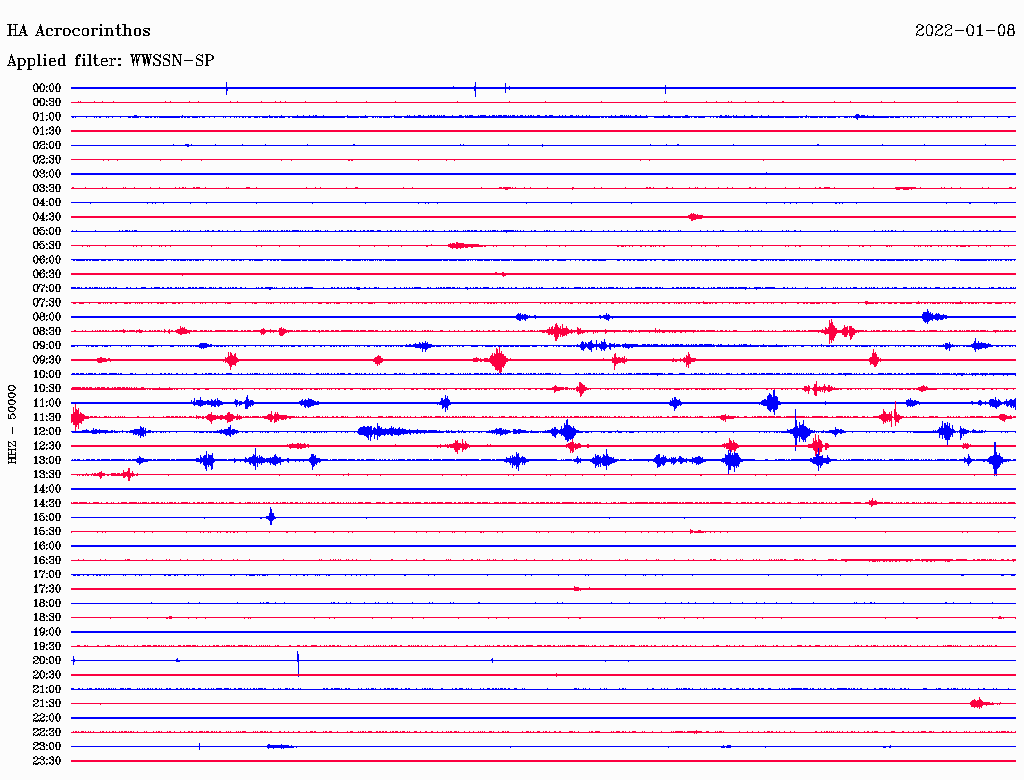

ACORHA400.6341 P12:09:06.71 -1.11.0M

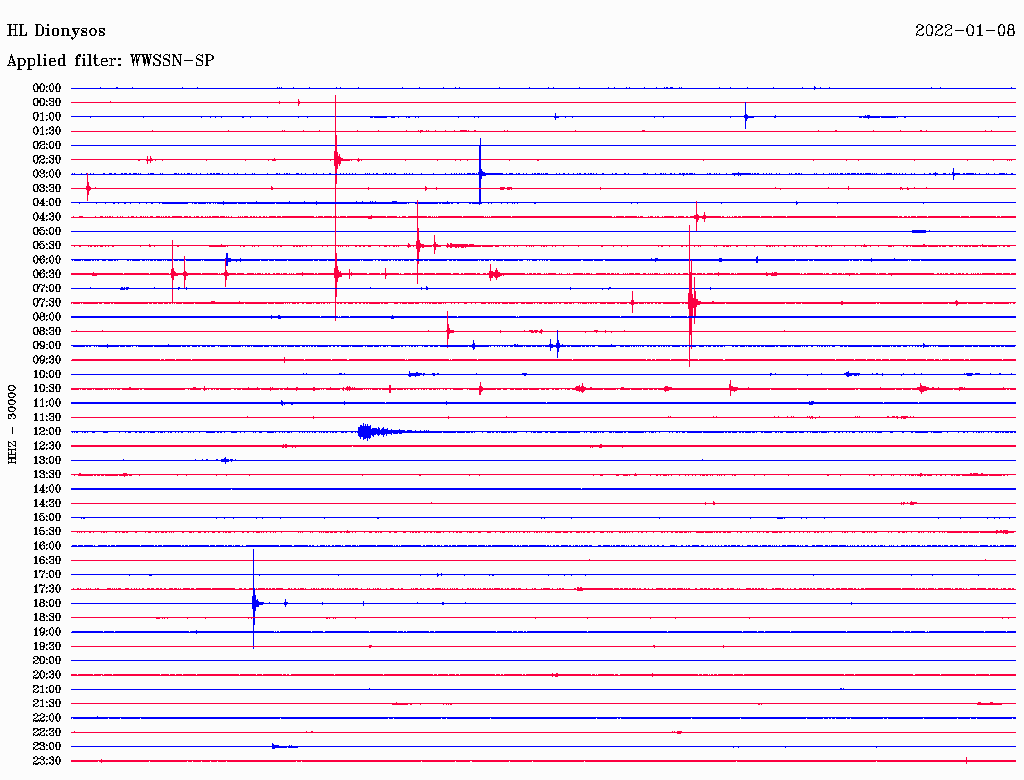

DIONHL401.2355 P12:09:06.77 -1.11.0M
DIONHL401.2355 S12:09:50.84 -0.61.0M

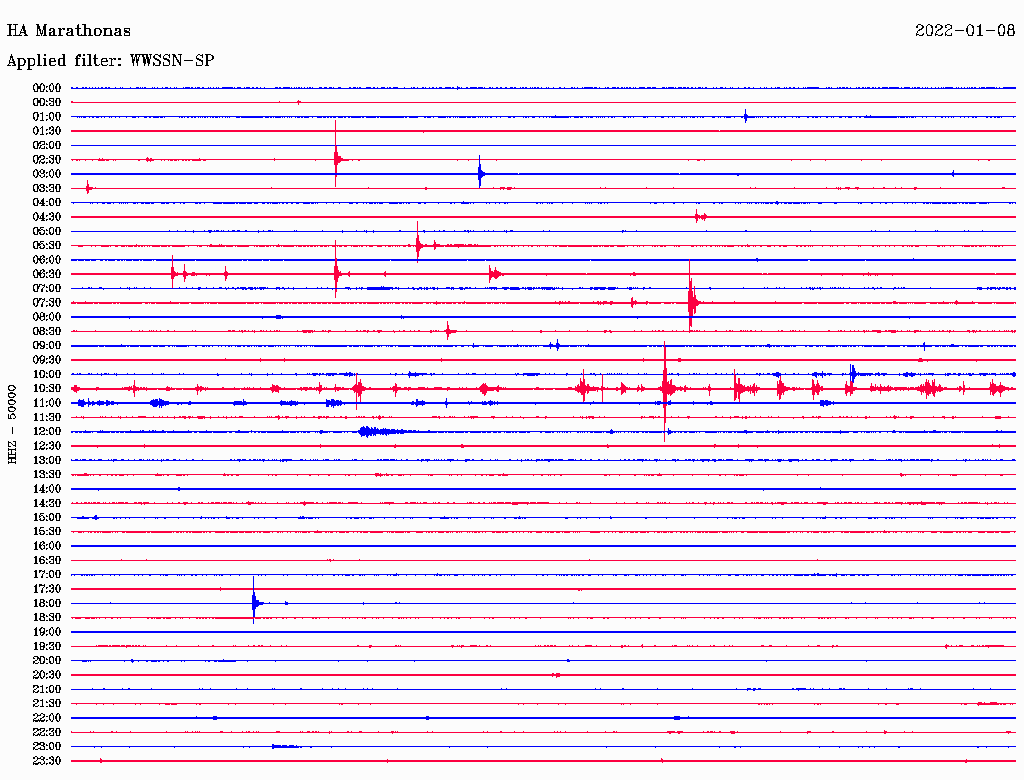

MRTHHA406.1355 P12:09:07.43 -1.01.0M
MRTHHA406.1355 S12:09:52.46 0.01.0M

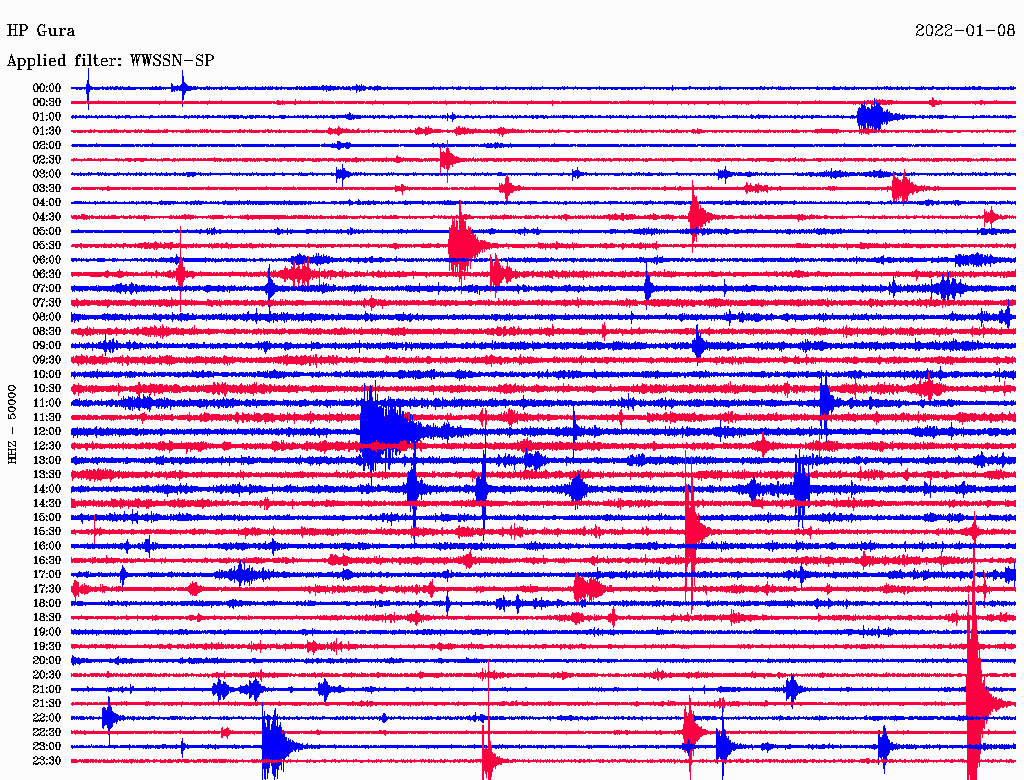

GURHP423.0335 P12:09:10.15 -0.71.0M
GURHP423.0335 S12:09:56.52 -0.11.0M
PLEVHP508.7329 P12:09:21.39 -0.31.0M
AMPLHP566.0331 P12:09:28.15 -0.91.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2022anso
    Description
      region name: Crete, Greece
Origin:
    Date                   2022-01-08
    Time                  12:08:10.58
    Latitude              34.4837 deg  +/-      2 km
    Longitude             24.3227 deg  +/-      2 km
    Depth                       8 km   +/-    2 km
    Agency                 HA
    Author                 Analyst1
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.61 s
    Azimuthal gap             255 deg

3 Network magnitudes:
    MLv       3.98 +/- 0.19  21
    mb        4.70            1
    M         3.98           21 preferred

38 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    GVD   HL    0.4 331  P       12:08:17.97  -0.7 M  1.0  GVD
    GVD   HL    0.4 331  S       12:08:25.25   0.4 M  1.0  GVD

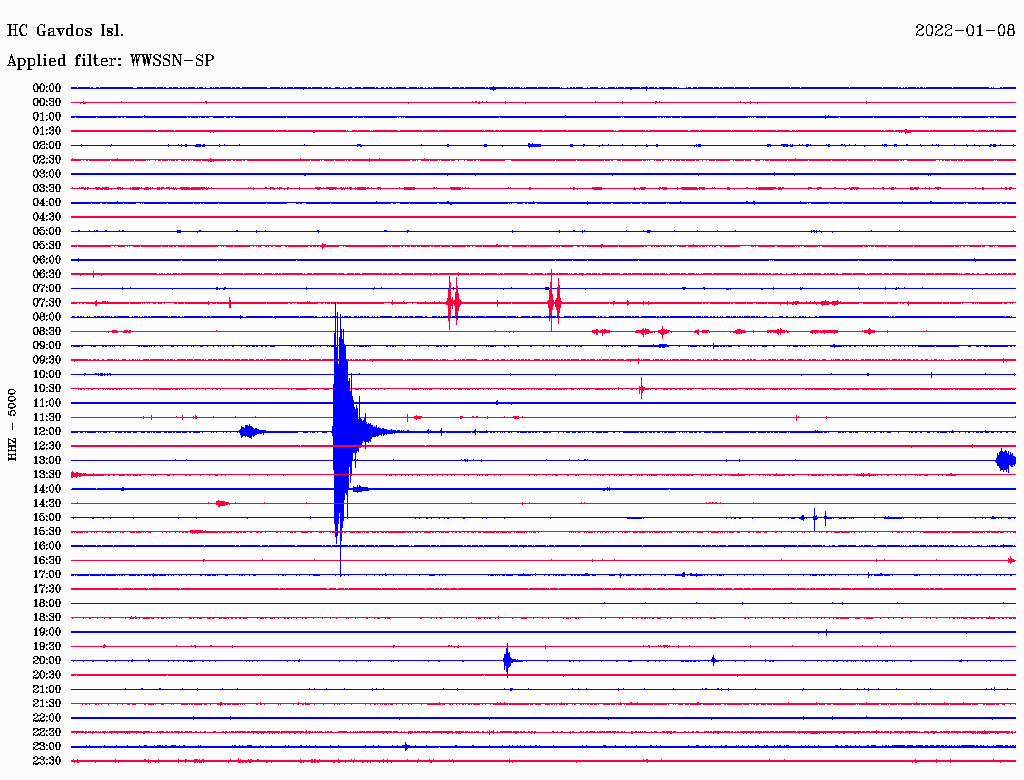

    GVDS  HC    0.4 328  P       12:08:18.09  -0.8 M  1.0  GVDS
    IMOD  HC    0.6  39  P       12:08:23.00   0.3 M  1.0  IMOD
    SIVA  HL    0.7  37  P       12:08:23.04  -0.4 M  1.0  SIVA
    SIVA  HL    0.7  37  S       12:08:32.50  -0.8 M  1.0  SIVA
    IPPL  HC    0.9   8  P       12:08:26.58  -0.5 M  1.0  IPPL
    IPPL  HC    0.9   8  S       12:08:38.59  -1.0 M  1.0  IPPL
    KNDR  HC    0.9 323  P       12:08:29.33   1.0 M  1.0  KNDR
    KNDR  HC    0.9 323  S       12:08:41.79  -0.0 M  1.0  KNDR

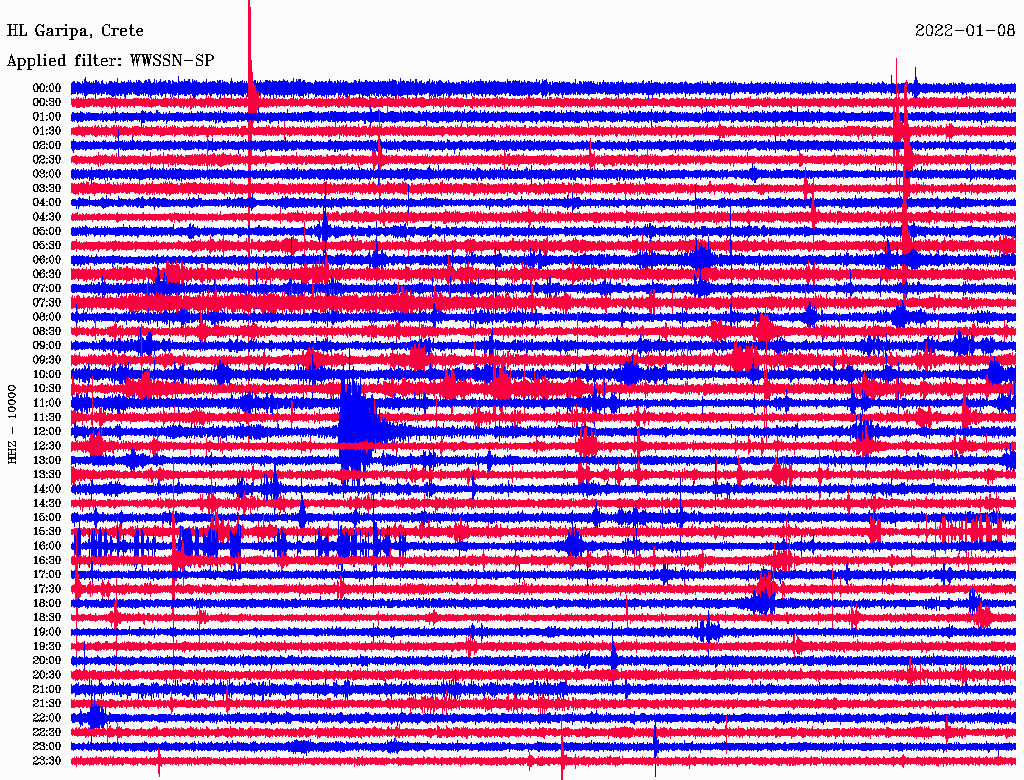

    CRE3  HL    1.0  52  P       12:08:28.56  -0.1 M  1.0  CRE3
    CRE3  HL    1.0  52  S       12:08:43.48   1.0 M  1.0  CRE3
    IMMV  HL    1.0 344  P       12:08:29.26  -0.3 M  1.0  IMMV
    CHAN  HC    1.1 347  P       12:08:31.12   0.8 M  1.0  CHAN

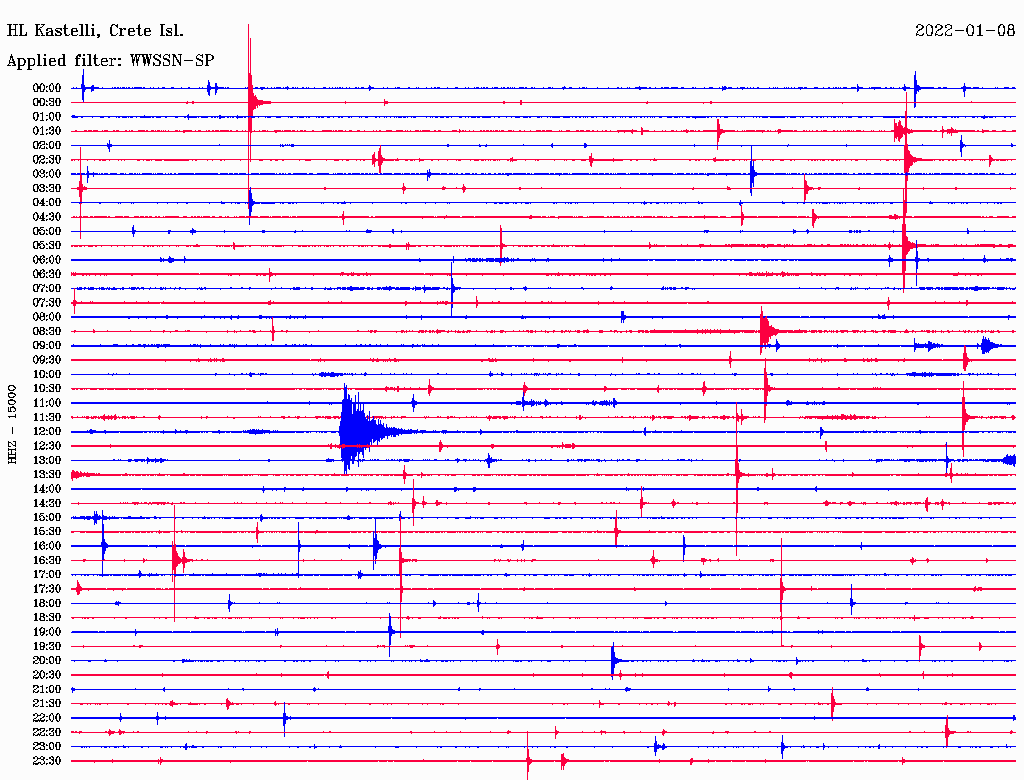

    KSTE  HL    1.1  50  P       12:08:30.41  -0.5 M  1.0  KSTE
    KSTE  HL    1.1  50  S       12:08:46.87   0.6 M  1.0  KSTE
    PFKS  HC    1.1  60  P       12:08:30.24  -0.9 M  1.0  PFKS
    PFKS  HC    1.1  60  S       12:08:47.40   0.6 M  1.0  PFKS
    ANKY  HL    1.6 329  P       12:08:40.07   0.5 M  1.0  ANKY
    ANKY  HL    1.6 329  S       12:09:02.15   0.6 M  1.0  ANKY
    ZKR   HL    1.7  68  P       12:08:40.38  -0.1 M  1.0  ZKR
    ZKR   HL    1.7  68  S       12:09:03.26   0.0 M  1.0  ZKR

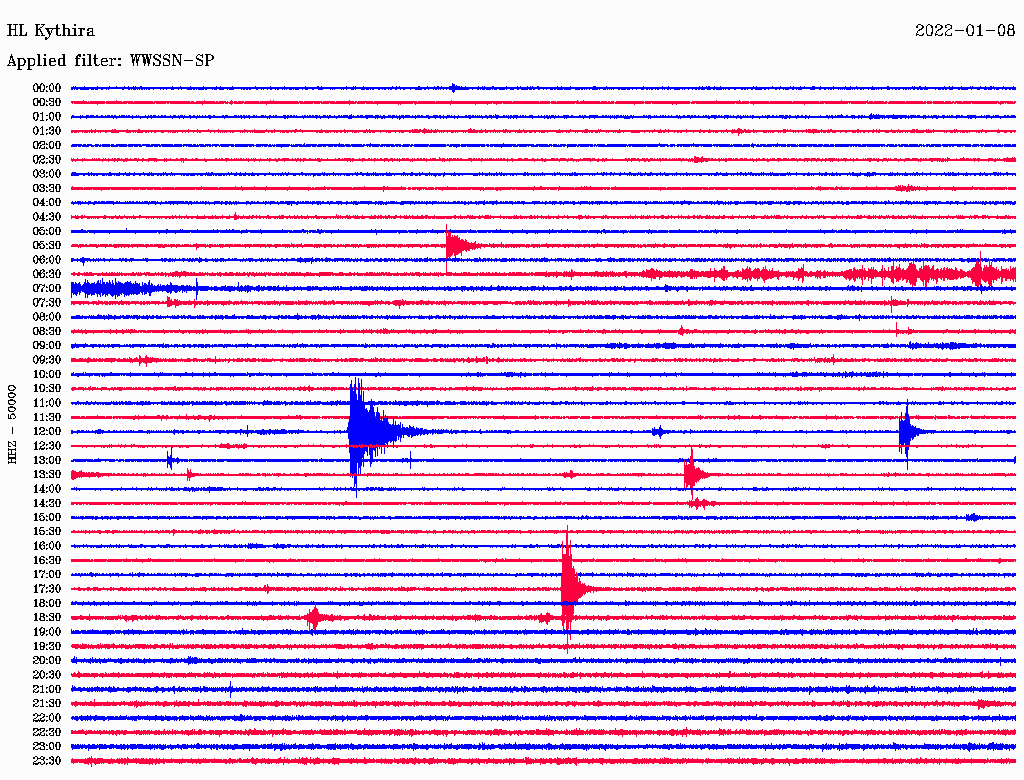

    KTHA  HL    2.0 330  P       12:08:46.49   0.8 M  1.0  KTHA
    KTHA  HL    2.0 330  S       12:09:12.44  -0.0 M  1.0  KTHA
    KTHR  HC    2.1 328  P       12:08:46.85   0.9 M  1.0  KTHR
    VLI   HL    2.5 333  P       12:08:52.38   0.3 M  1.0  VLI

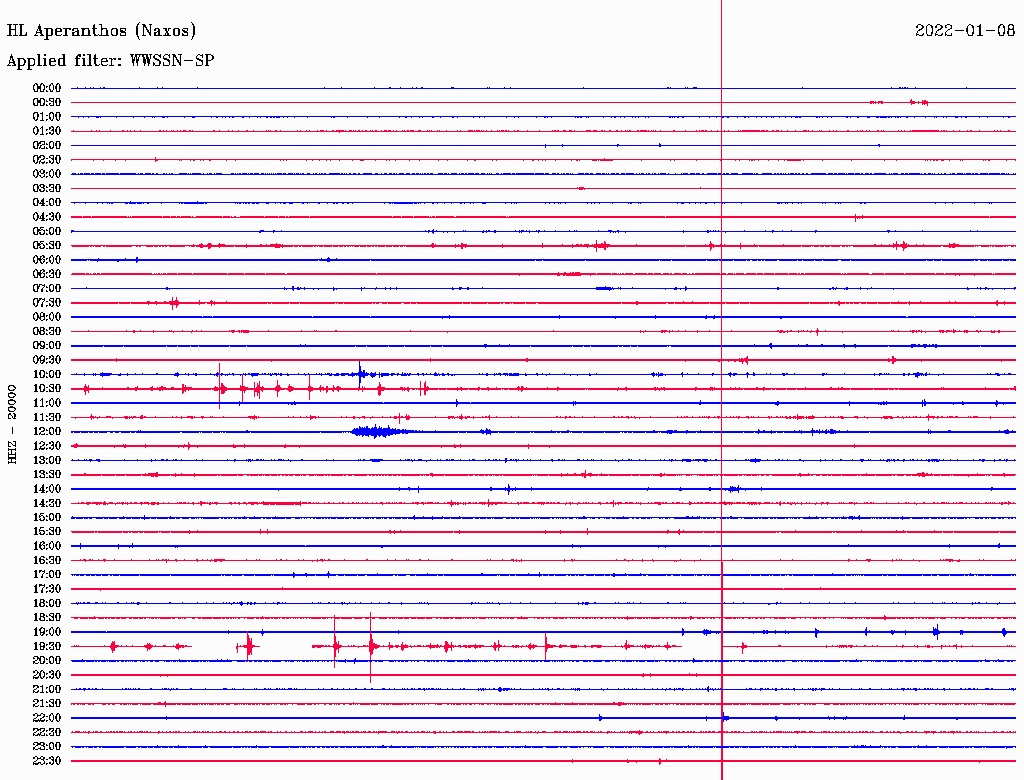

    APE   HL    2.8  21  P       12:08:55.16  -0.8 M  1.0  APE
    APE   HL    2.8  21  S       12:09:30.85   0.4 M  1.0  APE

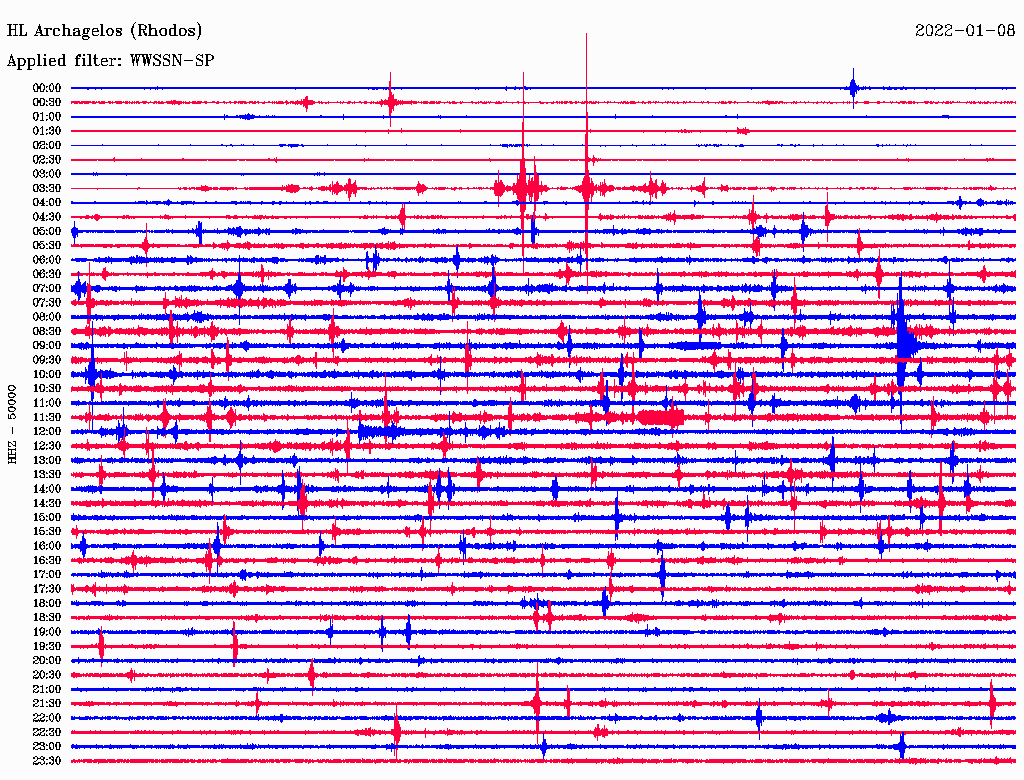

    ARG   HL    3.6  61  P       12:09:07.23   0.1 M  1.0  ARG
    ACOR  HA    3.6 341  P       12:09:06.71  -1.1 M  1.0  ACOR
    DION  HL    3.6 355  P       12:09:06.77  -1.1 M  1.0  DION
    DION  HL    3.6 355  S       12:09:50.84  -0.6 M  1.0  DION
    MRTH  HA    3.6 355  P       12:09:07.43  -1.0 M  1.0  MRTH
    MRTH  HA    3.6 355  S       12:09:52.46   0.0 M  1.0  MRTH
    GUR   HP    3.8 335  P       12:09:10.15  -0.7 M  1.0  GUR
    GUR   HP    3.8 335  S       12:09:56.52  -0.1 M  1.0  GUR

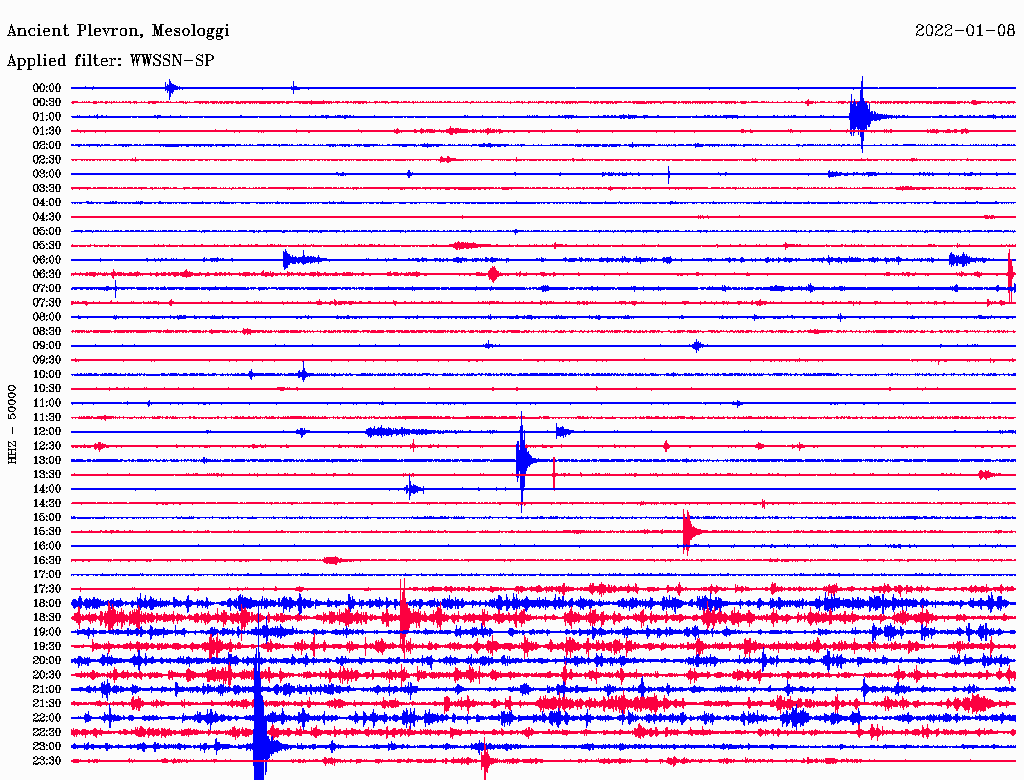

    PLEV  HP    4.6 329  P       12:09:21.39  -0.3 M  1.0  PLEV

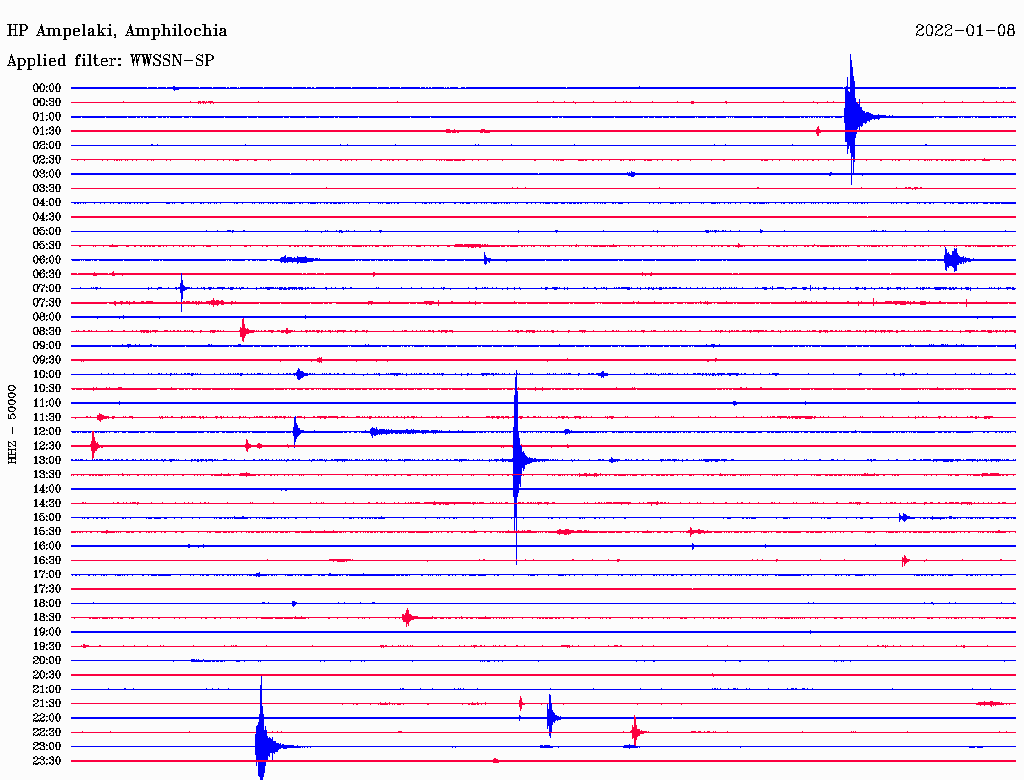

    AMPL  HP    5.1 331  P       12:09:28.15  -0.9 M  1.0  AMPL

25 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    GVD   HL    0.4 331  MLv     3.97 -0.01    42.9868
    GVDS  HC    0.4 328  MLv     3.77 -0.22    32.4131
    IMOD  HC    0.6  39  MLv     3.88 -0.10     17.002
    SIVA  HL    0.7  37  MLv     3.91 -0.07    17.3905
    IPPL  HC    0.9   8  MLv     3.90 -0.08     13.012
    KNDR  HC    0.9 323  MLv     3.96 -0.02    13.6626
    CRE3  HL    1.0  52  MLv     4.28  0.29    27.6861
    IMMV  HL    1.0 344  MLv     4.24  0.25    23.4956
    CHAN  HC    1.1 347  MLv     3.95 -0.04    22.8241
    KSTE  HL    1.1  50  MLv     3.44 -0.55    3.41378
    PFKS  HC    1.1  60  MLv     3.62 -0.37    5.09707
    ANKY  HL    1.6 329  MLv     3.91 -0.08    5.11001
    ZKR   HL    1.7  68  MLv     3.68 -0.30    2.79356
    KTHA  HL    2.0 330  MLv     3.86 -0.12     2.6492
    KTHR  HC    2.1 328  MLv     3.96 -0.02    3.25509
    VLI   HL    2.5 333  MLv     4.07  0.09    3.11355
    APE   HL    2.8  21  MLv     3.77 -0.21   0.866054
    ARG   HL    3.6  61  MLv     4.14  0.16   0.744869
    ACOR  HA    3.6 341  MLv     4.25  0.27   0.893929
    DION  HL    3.6 355  MLv     3.65 -0.34    0.62269
    MRTH  HA    3.6 355  MLv     4.10  0.12   0.611961
    GUR   HP    3.8 335  MLv     4.27  0.29   0.827896
    PLEV  HP    4.6 329  MLv     4.17  0.18    0.42123
    AMPL  HP    5.1 331  MLv     4.25  0.27   0.382006
    AMPL  HP    5.1 331  mb      4.70  0.00     94.382 1.09
