Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2020-10-30 17:16:04 (GMT)
 Μέγεθος
 M 3.8
 Γεωγρ. Πλάτος
 37.7706° Β
 Γεωγρ. Μήκος
 26.8808° Α
 Εστιακό Βάθος
 14 χμ
 Αρ. αφίξεων
 26
 Επίκεντρο 8.6 χμ Δ της Σάμου
66.2 χμ ΑΒΑ της Ικαρίας
277.3 χμ Α της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Μηχ.Γέν.


  Μηχανισμός Γένεσης

Μηχ.Γεν. Παράταξη (°) Κλίση (°) Γων.Ολίσθ. (°) Σεισμ.Ροπή (dyn*cm)
11445-118 6.57E+21

Γεωγρ.Πλάτος (°Β) Γεωγρ.Μήκος (°Α) Βάθος (χμ) Μέγεθος Mw
37.788826.894911.03.8

Υπολογισμός εστιακών παραμέτρων

Κλικ εδώ για λεπτομέρειες μηχανισμού γένεσης


  Χάρτης εντάσεως


PGA
 PGV
 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

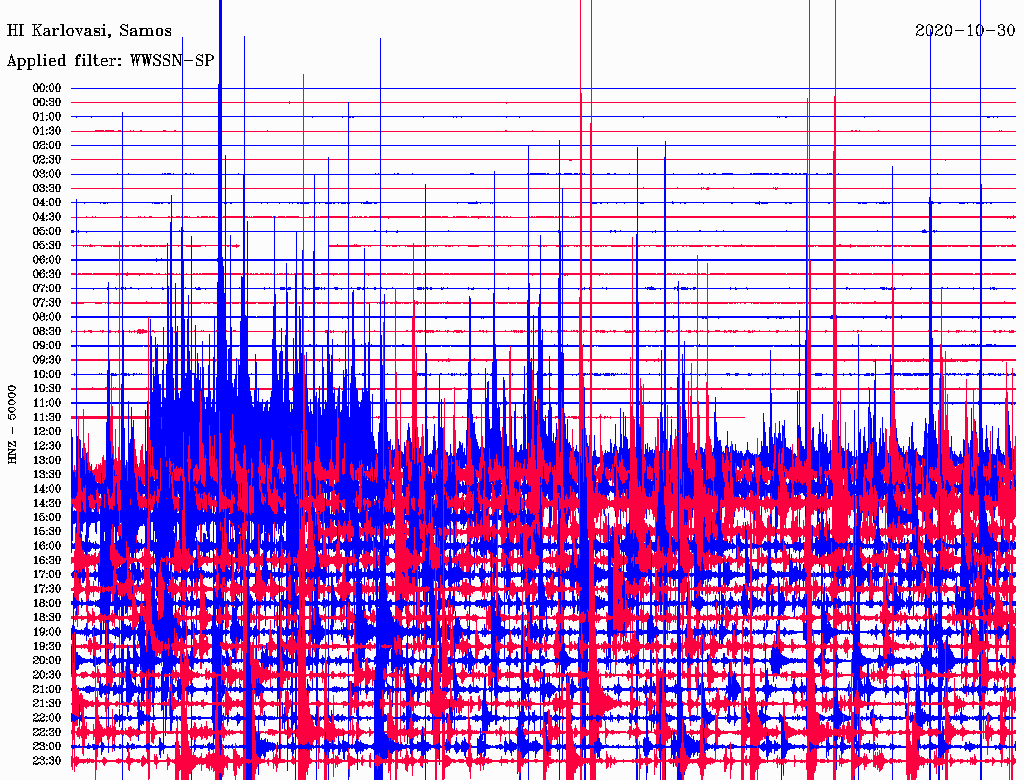

KRL1HI15.6280 P17:16:09.26 -0.31.0M
KRL1HI15.6280 S17:16:13.05 0.01.0M
KLNAHL90.8175 P17:16:20.63 -0.11.0M
KLNAHL90.8175 S17:16:32.77 0.31.0M
CHOSHT99.9313 P17:16:22.06 -0.11.0M
CHOSHT99.9313 S17:16:34.87 0.11.0M
MYT1HI148.7350 P17:16:28.47 -0.21.0M
MYT1HI148.7350 S17:16:47.17 0.61.0M
PRKHL172.5342 P17:16:32.11 0.41.0M
PRKHL172.5342 S17:16:52.51 0.31.0M
ARGHL205.2147 P17:16:36.15 0.21.0M
ARGHL205.2147 S17:16:59.27 -0.51.0M
KARYHA216.4278 P17:16:37.48 0.11.0M
KARYHA216.4278 S17:17:02.20 -0.31.0M
KARPHL248.5174 P17:16:41.24 -0.11.0M
KARPHL248.5174 S17:17:09.76 0.31.0M

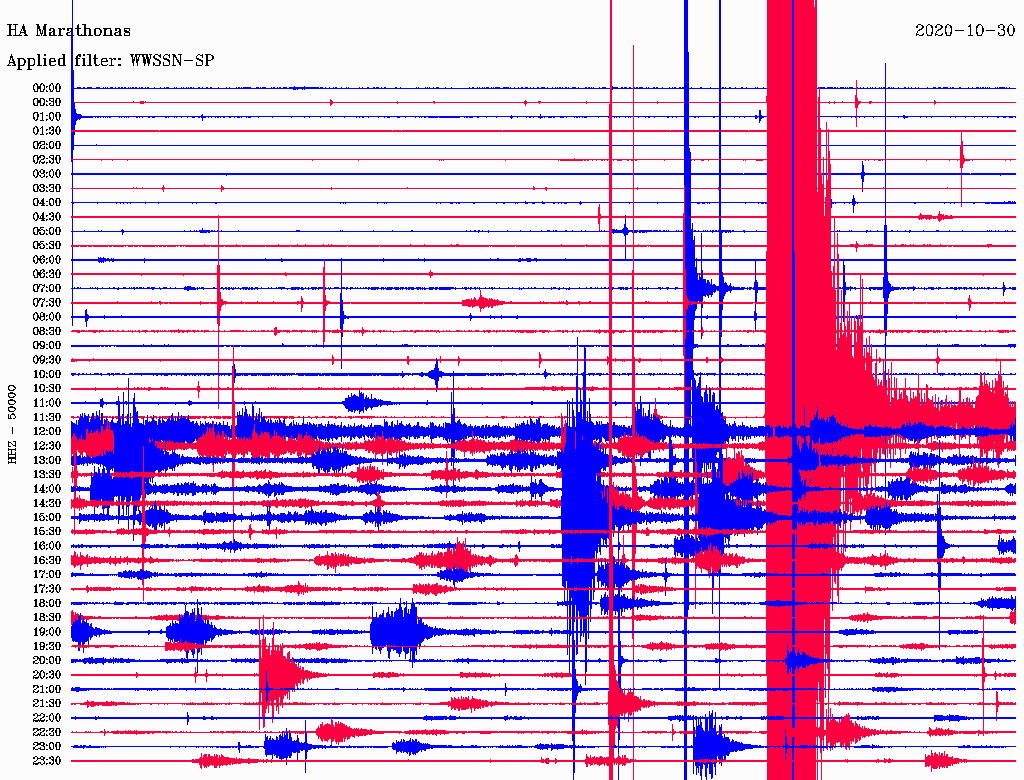

MRTHHA260.7279 P17:16:43.29 0.31.0M
MRTHHA260.7279 S17:17:12.52 0.11.0M
DIONHL260.8278 P17:16:43.21 0.31.0M
DIONHL260.8278 S17:17:12.30 -0.11.0M
KYMIHL261.2292 P17:16:42.93 -0.11.0M
KYMIHL261.2292 S17:17:12.66 0.21.0M
PTLHL266.5278 P17:16:43.96 0.31.0M
PTLHL266.5278 S17:17:13.37 -0.31.0M
SMTHHL322.1339 P17:16:49.24 -1.21.0M
SMTHHL322.1339 S17:17:25.57 -0.31.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2020vixp
    Type                   earthquake
    Description
      region name: Dodecanese Islands, Greece
Origin:
    Date                   2020-10-30
    Time                  17:16:04.80  +/-    0.3 s
    Latitude              37.7706 deg  +/-      2 km
    Longitude             26.8808 deg  +/-      2 km
    Depth                      14 km   +/-    2 km
    Agency                 HA
    Author                 A.Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.35 s
    Azimuthal gap             158 deg

2 Network magnitudes:
    MLv       3.79 +/- 0.42  11
    M         3.79           11 preferred

26 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    KRL1  HI    0.1 280  P       17:16:09.26  -0.3 M  1.0  KRL1
    KRL1  HI    0.1 280  S       17:16:13.05  -0.0 M  1.0  KRL1

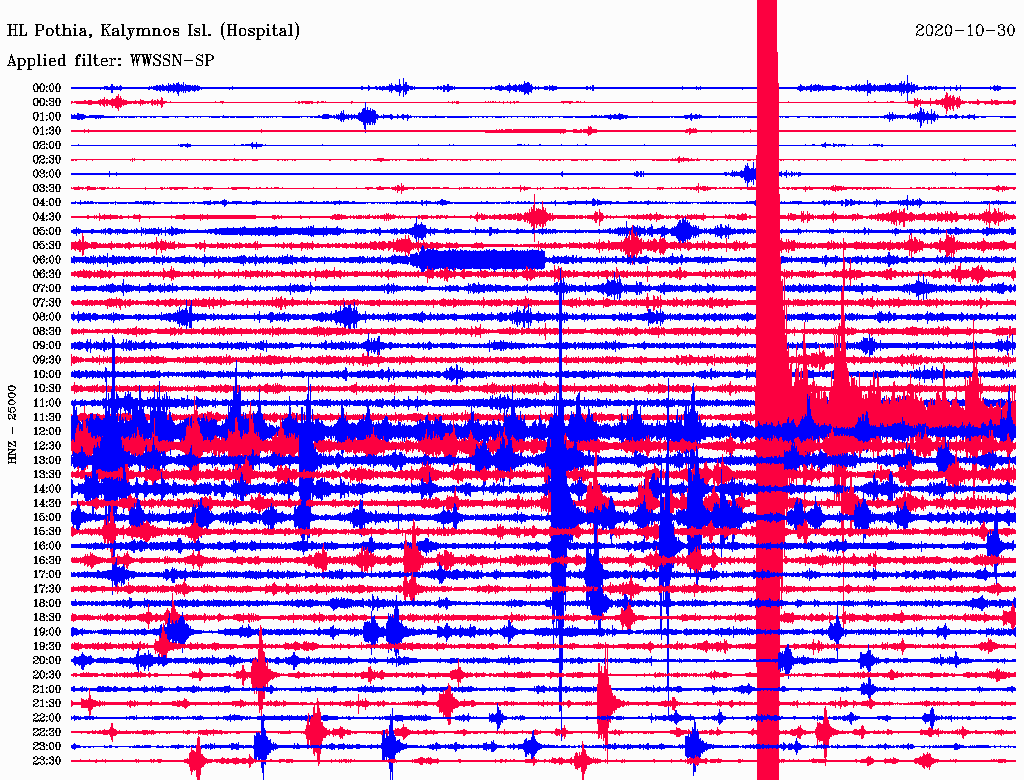

    KLNA  HL    0.8 175  P       17:16:20.63  -0.1 M  1.0  KLNA
    KLNA  HL    0.8 175  S       17:16:32.77   0.3 M  1.0  KLNA
    CHOS  HT    0.9 313  P       17:16:22.06  -0.1 M  1.0  CHOS
    CHOS  HT    0.9 313  S       17:16:34.87   0.1 M  1.0  CHOS

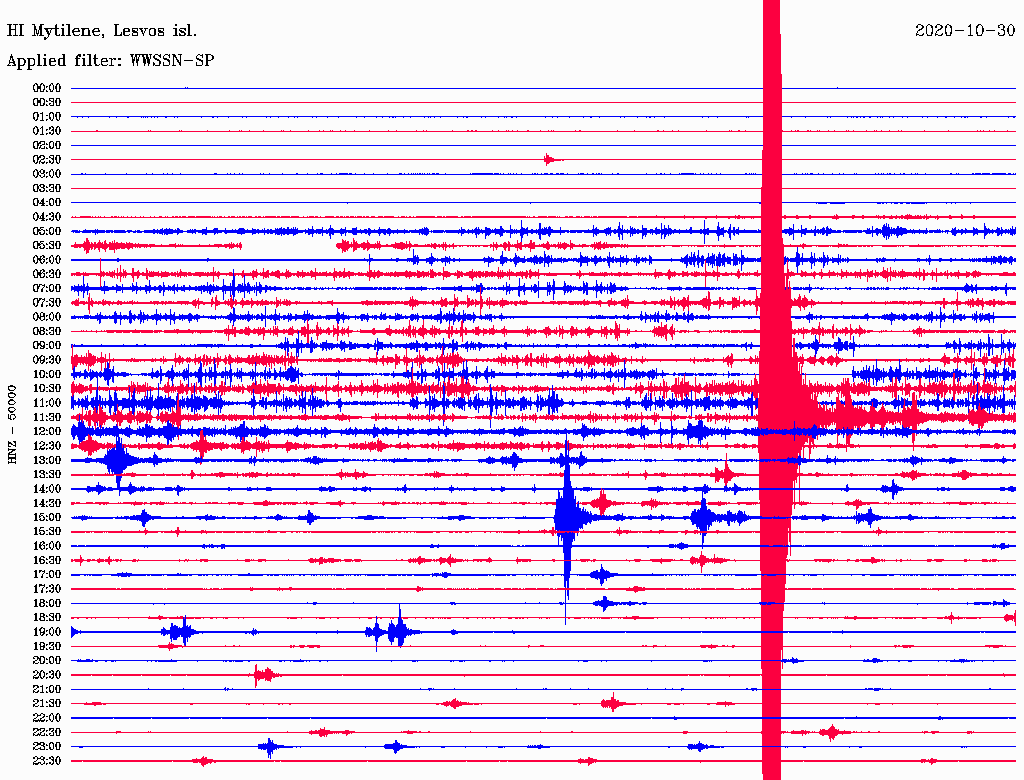

    MYT1  HI    1.3 350  P       17:16:28.47  -0.2 M  1.0  MYT1
    MYT1  HI    1.3 350  S       17:16:47.17   0.6 M  1.0  MYT1
    PRK   HL    1.5 342  P       17:16:32.11   0.4 M  1.0  PRK
    PRK   HL    1.5 342  S       17:16:52.51   0.3 M  1.0  PRK

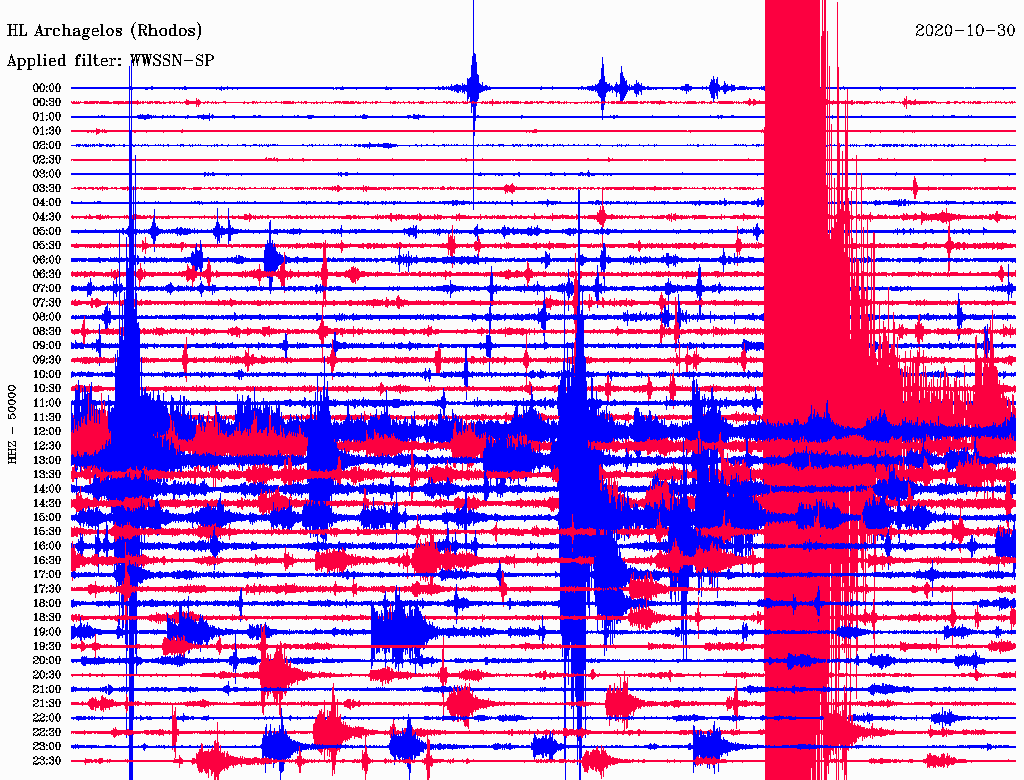

    ARG   HL    1.8 147  P       17:16:36.15   0.2 M  1.0  ARG
    ARG   HL    1.8 147  S       17:16:59.27  -0.5 M  1.0  ARG

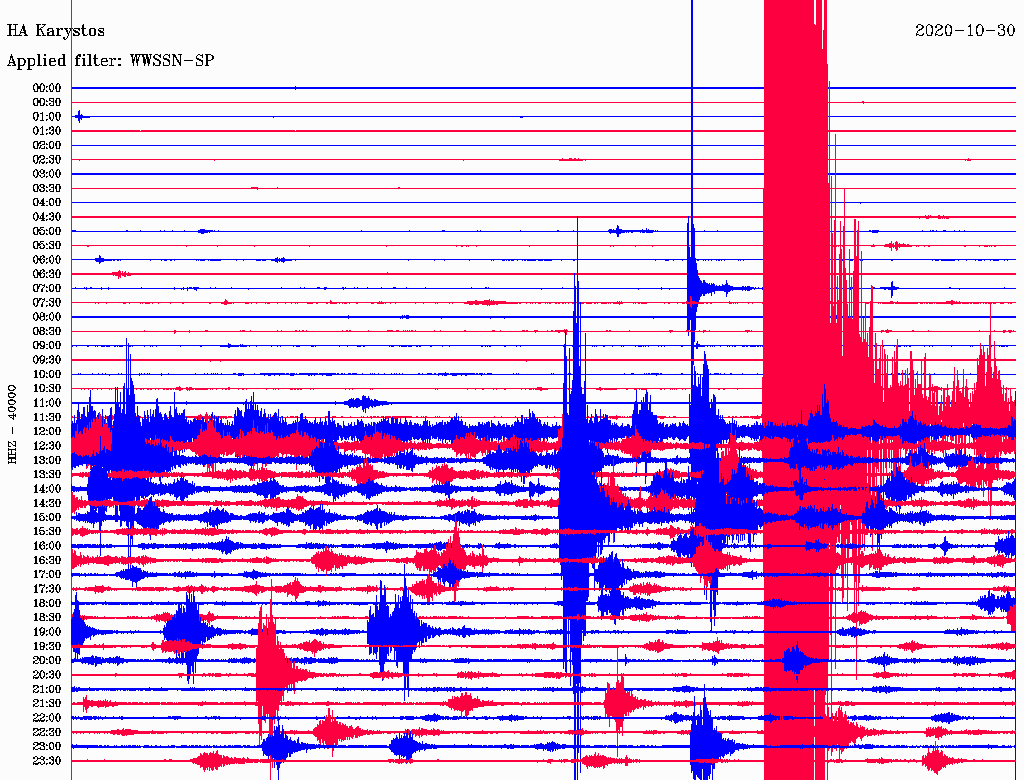

    KARY  HA    2.0 278  P       17:16:37.48   0.1 M  1.0  KARY
    KARY  HA    2.0 278  S       17:17:02.20  -0.3 M  1.0  KARY

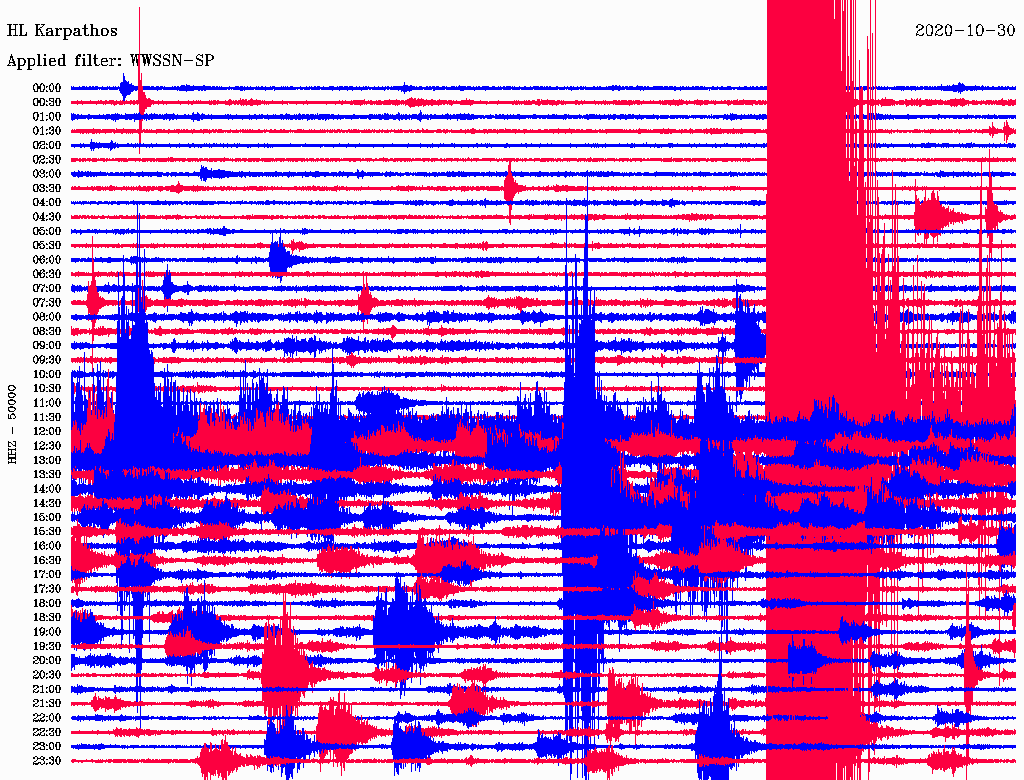

    KARP  HL    2.2 174  P       17:16:41.24  -0.1 M  1.0  KARP
    KARP  HL    2.2 174  S       17:17:09.76   0.3 M  1.0  KARP
    MRTH  HA    2.4 279  P       17:16:43.29   0.3 M  1.0  MRTH
    MRTH  HA    2.4 279  S       17:17:12.52   0.1 M  1.0  MRTH

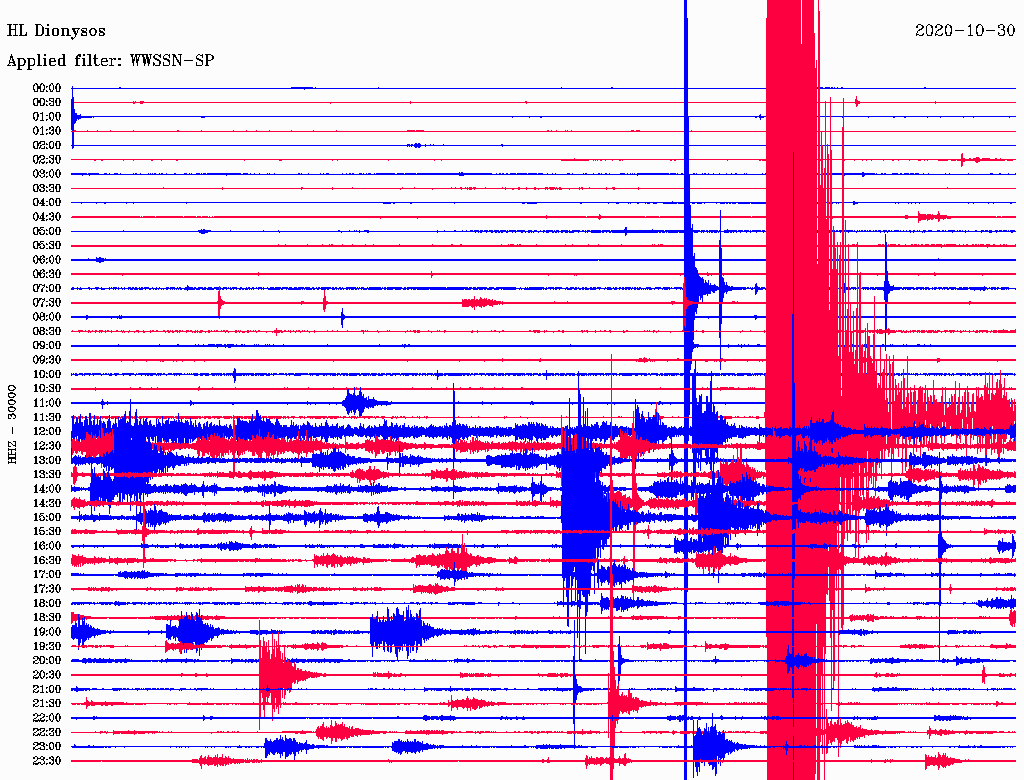

    DION  HL    2.4 278  P       17:16:43.21   0.3 M  1.0  DION
    DION  HL    2.4 278  S       17:17:12.30  -0.1 M  1.0  DION

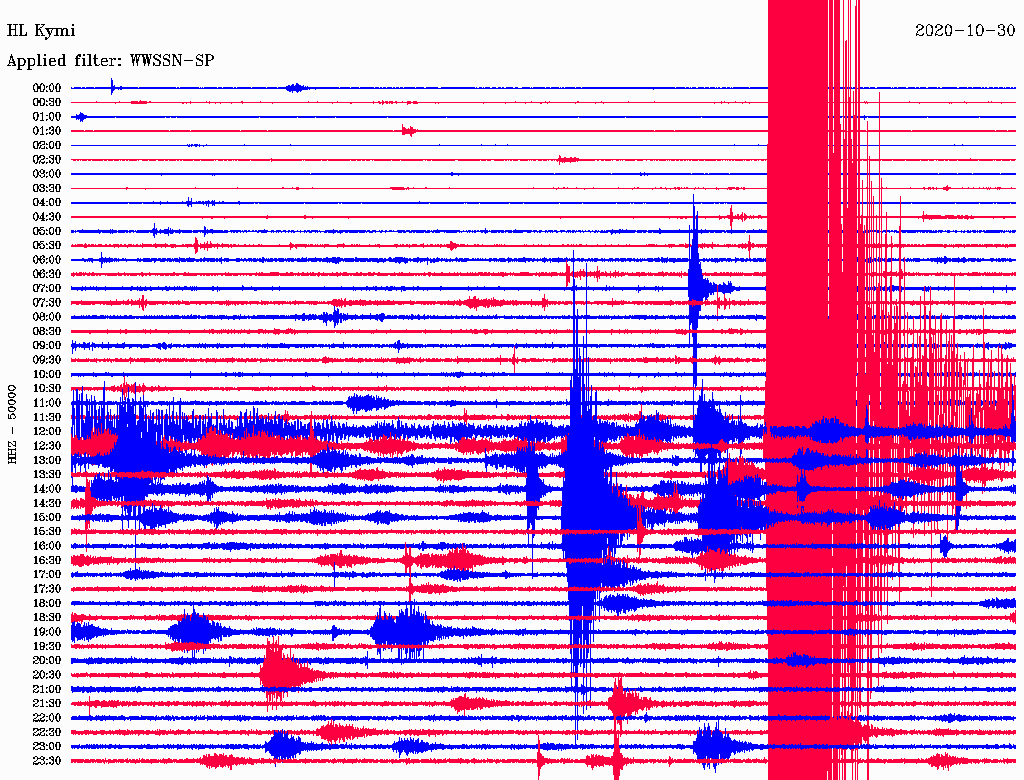

    KYMI  HL    2.4 292  P       17:16:42.93  -0.1 M  1.0  KYMI
    KYMI  HL    2.4 292  S       17:17:12.66   0.2 M  1.0  KYMI
    PTL   HL    2.4 278  P       17:16:43.96   0.3 M  1.0  PTL
    PTL   HL    2.4 278  S       17:17:13.37  -0.3 M  1.0  PTL
    SMTH  HL    2.9 339  P       17:16:49.24  -1.2 M  1.0  SMTH
    SMTH  HL    2.9 339  S       17:17:25.57  -0.3 M  1.0  SMTH

13 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    KRL1  HI    0.1 280  MLv     3.47 -0.32    96.3403
    KLNA  HL    0.8 175  MLv     4.46  0.66    50.2575
    CHOS  HT    0.9 313  MLv     4.32  0.53    33.2373
    MYT1  HI    1.3 350  MLv     4.44  0.65    24.9952
    PRK   HL    1.5 342  MLv     4.38  0.58    16.3379
    ARG   HL    1.8 147  MLv     4.03  0.24     5.1138
    KARY  HA    2.0 278  MLv     3.41 -0.38    1.06842
    KARP  HL    2.2 174  MLv     3.52 -0.27    1.26193
    MRTH  HA    2.4 279  MLv     3.48 -0.32   0.745771
    DION  HL    2.4 278  MLv     3.02 -0.77   0.735425
    KYMI  HL    2.4 292  MLv     3.28 -0.52   0.467949
    PTL   HL    2.4 278  MLv     3.42 -0.37   0.616998
    SMTH  HL    2.9 339  MLv     4.07  0.27   0.926286
