Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2020-07-21 13:32:29 (GMT)
 Μέγεθος
 M 3.9
 Γεωγρ. Πλάτος
 38.0363° Β
 Γεωγρ. Μήκος
 20.3987° Α
 Εστιακό Βάθος
 11 χμ
 Αρ. αφίξεων
 51
 Επίκεντρο 16.9 χμ ΝΝΔ του Αργοστολίου
51.4 χμ ΔΒΔ της Ζακύνθου
292.2 χμ Δ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Μηχ.Γέν.


  Μηχανισμός Γένεσης

Μηχ.Γεν. Παράταξη (°) Κλίση (°) Γων.Ολίσθ. (°) Σεισμ.Ροπή (dyn*cm)
1537045 8.93E+21

Γεωγρ.Πλάτος (°Β) Γεωγρ.Μήκος (°Α) Βάθος (χμ) Μέγεθος Mw
38.060320.408513.03.9

Υπολογισμός εστιακών παραμέτρων

Κλικ εδώ για λεπτομέρειες μηχανισμού γένεσης


  Χάρτης εντάσεως


PGA
 PGV
 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
VLSHL22.8 47 P13:32:34.46 0.31.0M
VLSHL22.8 47 S13:32:37.52 -0.11.0M
RTZLHT32.9 82 P13:32:35.87 0.11.0M
RTZLHT32.9 82 S13:32:40.27 -0.21.0M
EVGIHT68.8 19 P13:32:41.31 -0.11.0M
EVGIHT68.8 19 S13:32:50.41 -0.11.0M
DRAGHT73.6 12 P13:32:42.17 0.01.0M
DRAGHT73.6 12 S13:32:51.71 -0.11.0M
NYDRHT79.7 19 P13:32:42.84 -0.31.0M
NYDRHT79.7 19 S13:32:53.46 0.01.0M
AXSHP87.4 78 P13:32:43.99 -0.41.0M
AXSHP87.4 78 S13:32:56.60 0.91.0M
TSLKHT90.5 14 P13:32:45.09 0.21.0M
TSLKHT90.5 14 S13:32:57.24 0.71.0M
RLSHL93.4 89 P13:32:45.18 -0.21.0M
RLSHL93.4 89 S13:32:57.91 0.51.0M
MSL1HI97.1 67 P13:32:45.90 -0.11.0M
MSL1HI97.1 67 S13:32:58.62 0.21.0M
PLEVHP97.5 65 P13:32:45.79 -0.21.0M
PLEVHP97.5 65 S13:32:58.78 0.21.0M
DROHP115.4 95 P13:32:48.99 0.11.0M
DROHP115.4 95 S13:33:04.02 0.51.0M
PVOHP117.6 57 P13:32:49.32 0.21.0M
PVOHP117.6 57 S13:33:04.15 0.11.0M
AMPLHP121.4 36 P13:32:49.75 0.01.0M
AMPLHP121.4 36 S13:33:05.22 0.21.0M
AGRPCL122.4 71 P13:32:49.47 -0.51.0M
AGRPCL122.4 71 S13:33:05.63 0.21.0M
EFPHP138.6 72 P13:32:52.12 -0.31.0M
EFPHP138.6 72 S13:33:09.76 0.01.0M
MG00CL141.6 73 P13:32:52.49 -0.41.0M
MG00CL141.6 73 S13:33:11.05 0.41.0M
ANXHP146.5 65 P13:32:53.68 -0.11.0M
ANXHP146.5 65 S13:33:12.03 -0.11.0M
PYRGCL147.3 74 P13:32:53.36 -0.51.0M
PYRGCL147.3 74 S13:33:12.30 0.01.0M
TEMECL152.0 82 P13:32:54.48 0.01.0M
KLVHL153.4 90 P13:32:54.53 -0.21.0M
KLVHL153.4 90 S13:33:13.27 -0.71.0M
KALEHA157.1 76 P13:32:55.22 -0.11.0M
KALEHA157.1 76 S13:33:14.43 -0.61.0M
ITMHL164.8125 P13:32:57.08 0.71.0M
ITMHL164.8125 S13:33:17.21 0.51.0M
PANRCL166.0 77 P13:32:56.45 0.01.0M
PANRCL166.0 77 S13:33:16.25 -0.71.0M
IGTHT166.4358 P13:32:56.61 0.11.0M
IGTHT166.4358 S13:33:16.80 -0.11.0M
VALYHP170.0125 P13:32:57.11 0.21.0M
VALYHP170.0125 S13:33:17.97 0.21.0M
GURHP170.7 94 P13:32:57.09 -0.21.0M
GURHP170.7 94 S13:33:17.73 -0.61.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2020ogck
    Type                   earthquake
    Description
      region name: Greece
Origin:
    Date                   2020-07-21
    Time                  13:32:29.55
    Latitude              38.0363 deg  +/-      1 km
    Longitude             20.3987 deg  +/-      1 km
    Depth                      11 km   +/-    1 km
    Agency                 HA
    Author                 A.Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.29 s
    Azimuthal gap             233 deg

2 Network magnitudes:
    MLv       3.93 +/- 0.14  21
    M         3.93           21 preferred

51 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta

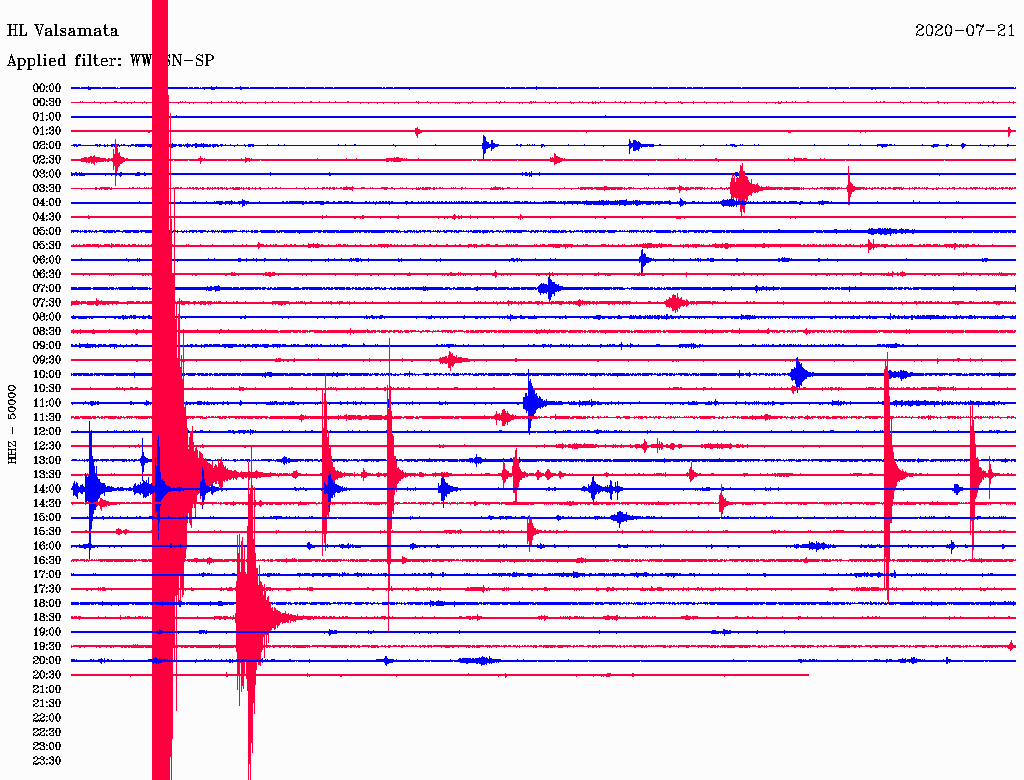

    VLS   HL    0.2  47  P       13:32:34.46   0.3 M  1.0  VLS
    VLS   HL    0.2  47  S       13:32:37.52  -0.1 M  1.0  VLS

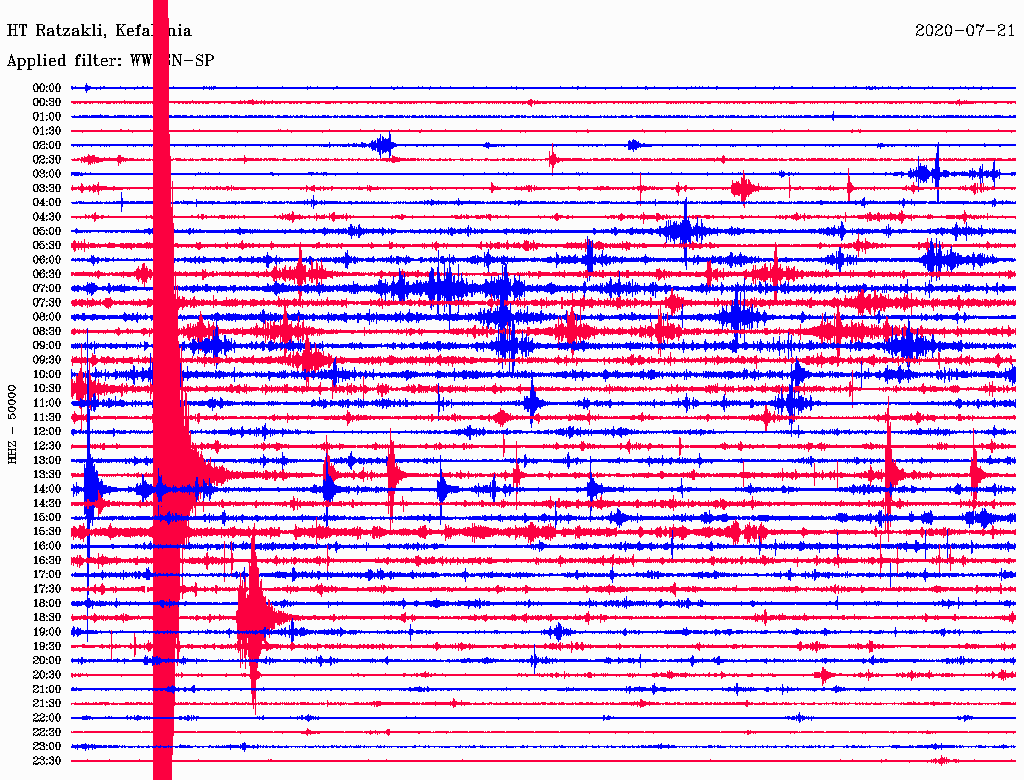

    RTZL  HT    0.3  82  P       13:32:35.87   0.1 M  1.0  RTZL
    RTZL  HT    0.3  82  S       13:32:40.27  -0.2 M  1.0  RTZL

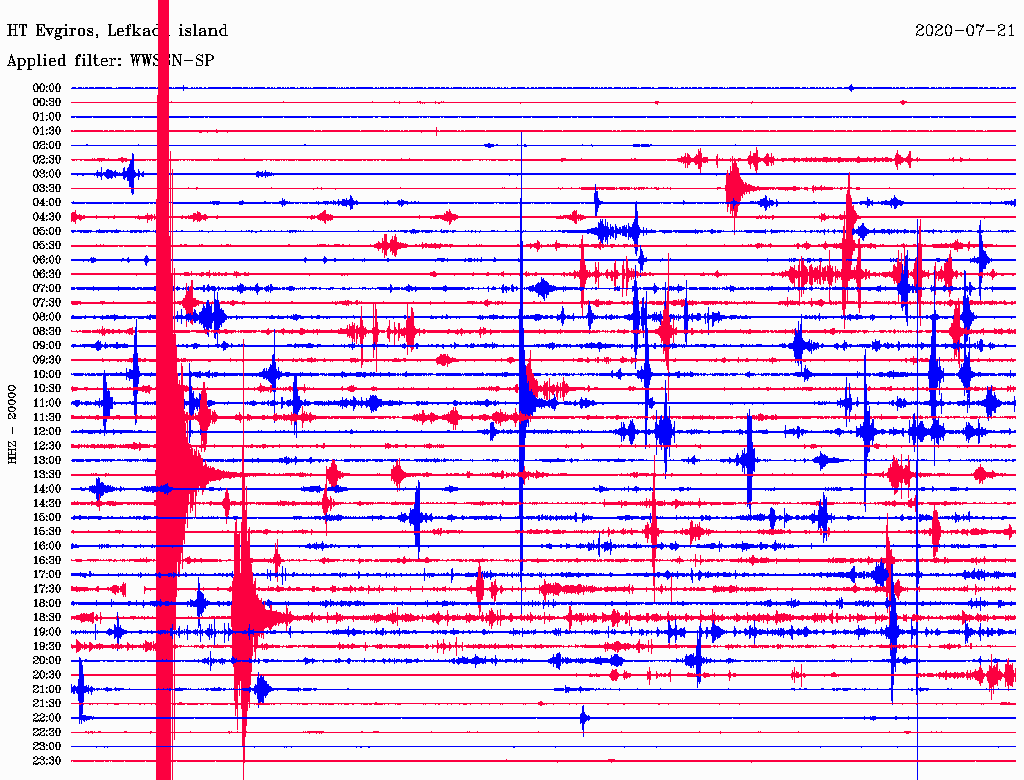

    EVGI  HT    0.6  19  P       13:32:41.31  -0.1 M  1.0  EVGI
    EVGI  HT    0.6  19  S       13:32:50.41  -0.1 M  1.0  EVGI

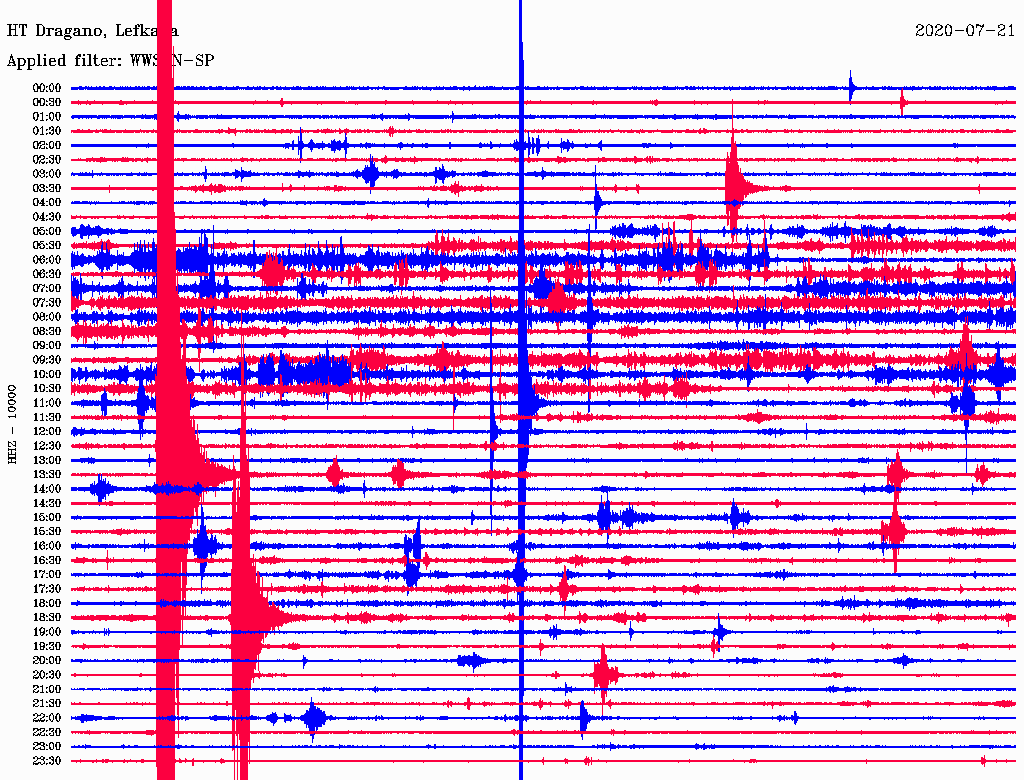

    DRAG  HT    0.7  12  P       13:32:42.17  -0.0 M  1.0  DRAG
    DRAG  HT    0.7  12  S       13:32:51.71  -0.1 M  1.0  DRAG

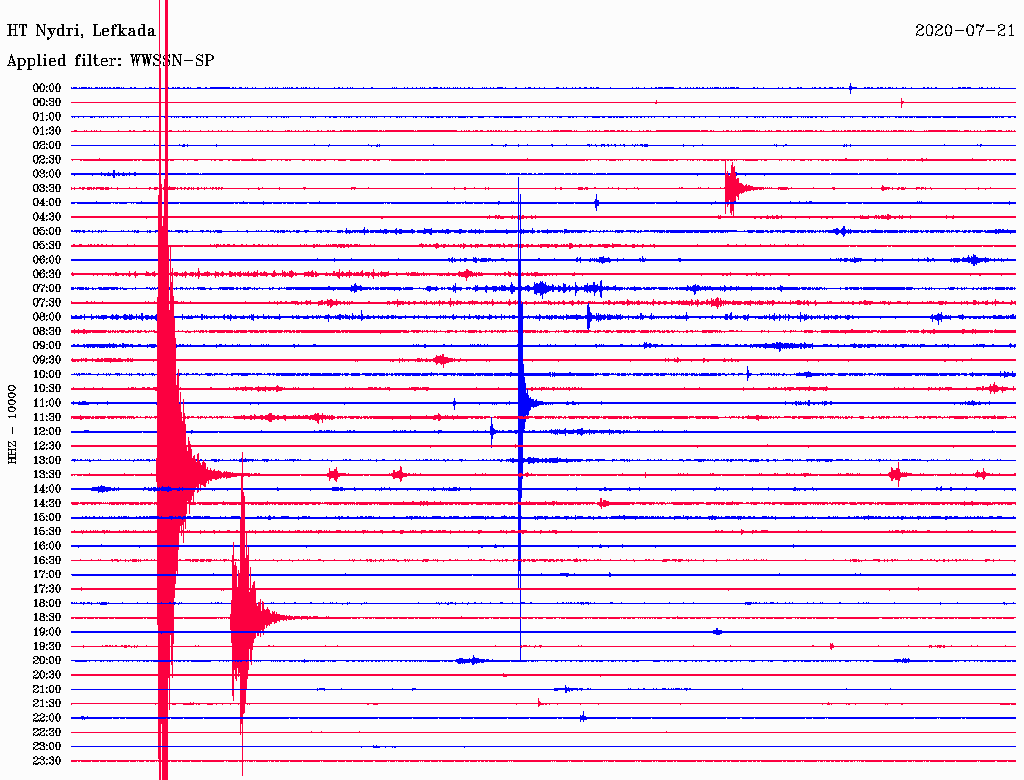

    NYDR  HT    0.7  19  P       13:32:42.84  -0.3 M  1.0  NYDR
    NYDR  HT    0.7  19  S       13:32:53.46  -0.0 M  1.0  NYDR

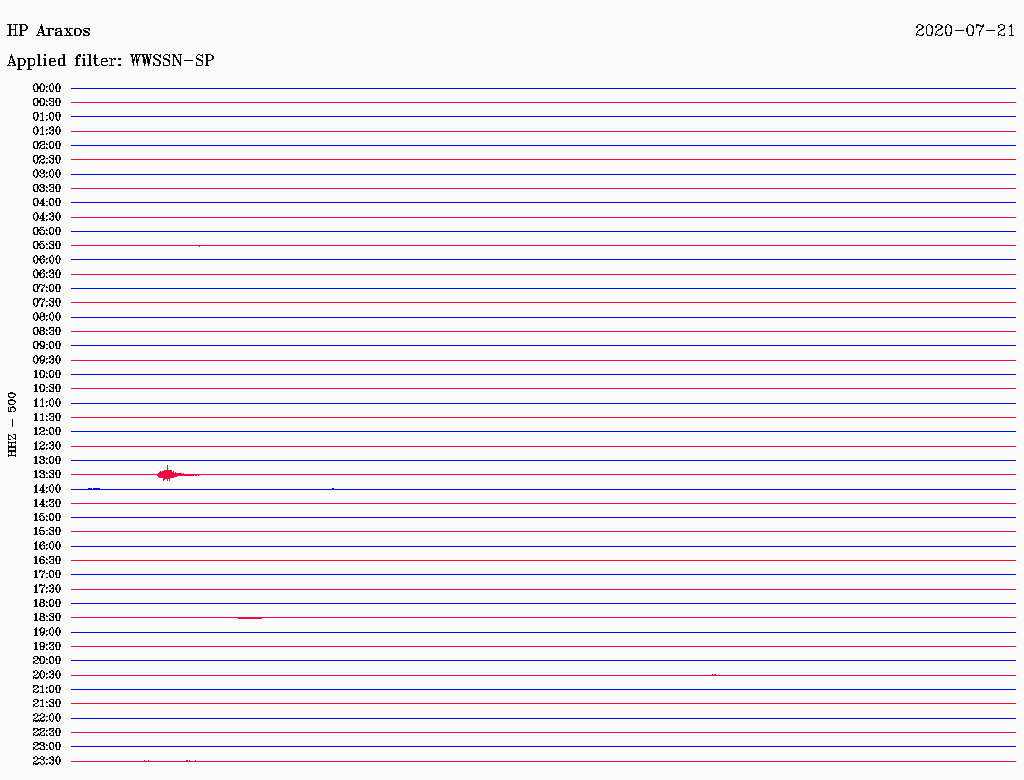

    AXS   HP    0.8  78  P       13:32:43.99  -0.4 M  1.0  AXS
    AXS   HP    0.8  78  S       13:32:56.60   0.9 M  1.0  AXS

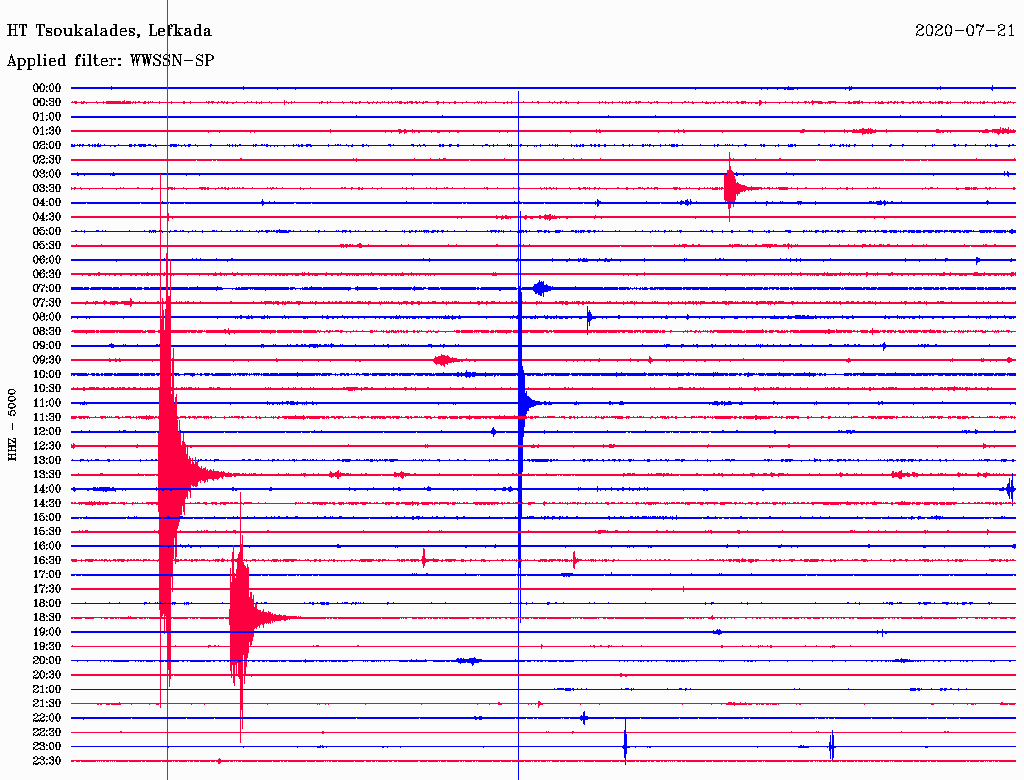

    TSLK  HT    0.8  14  P       13:32:45.09   0.2 M  1.0  TSLK
    TSLK  HT    0.8  14  S       13:32:57.24   0.7 M  1.0  TSLK
    RLS   HL    0.8  89  P       13:32:45.18  -0.2 M  1.0  RLS
    RLS   HL    0.8  89  S       13:32:57.91   0.5 M  1.0  RLS

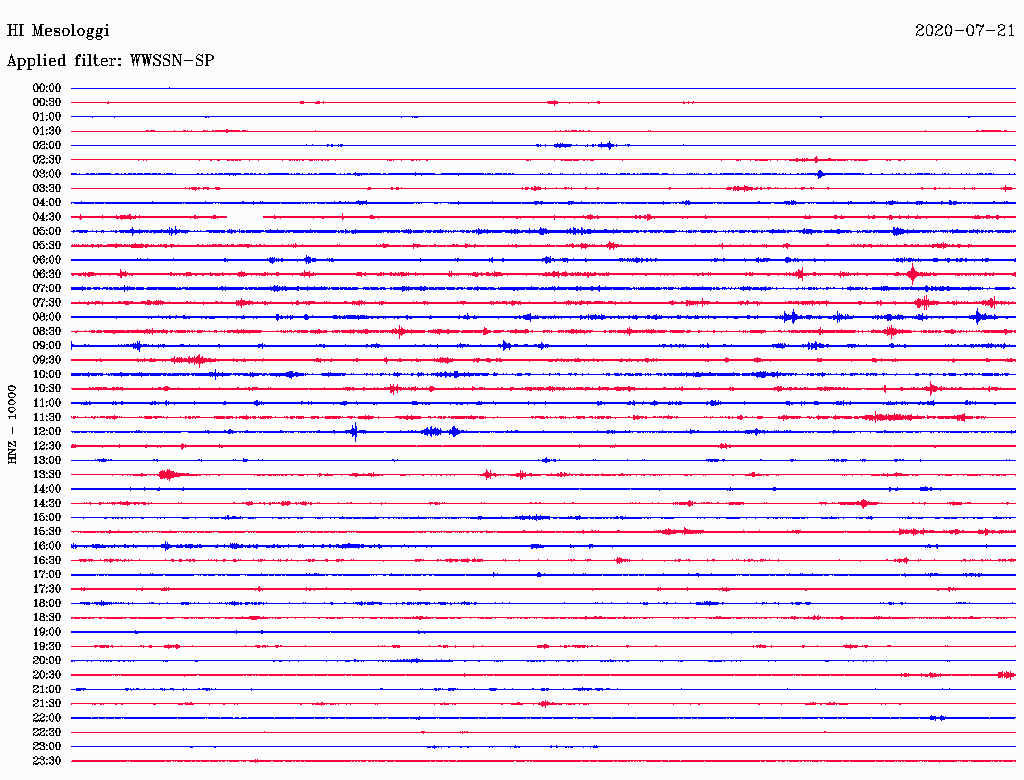

    MSL1  HI    0.9  67  P       13:32:45.90  -0.1 M  1.0  MSL1
    MSL1  HI    0.9  67  S       13:32:58.62   0.2 M  1.0  MSL1

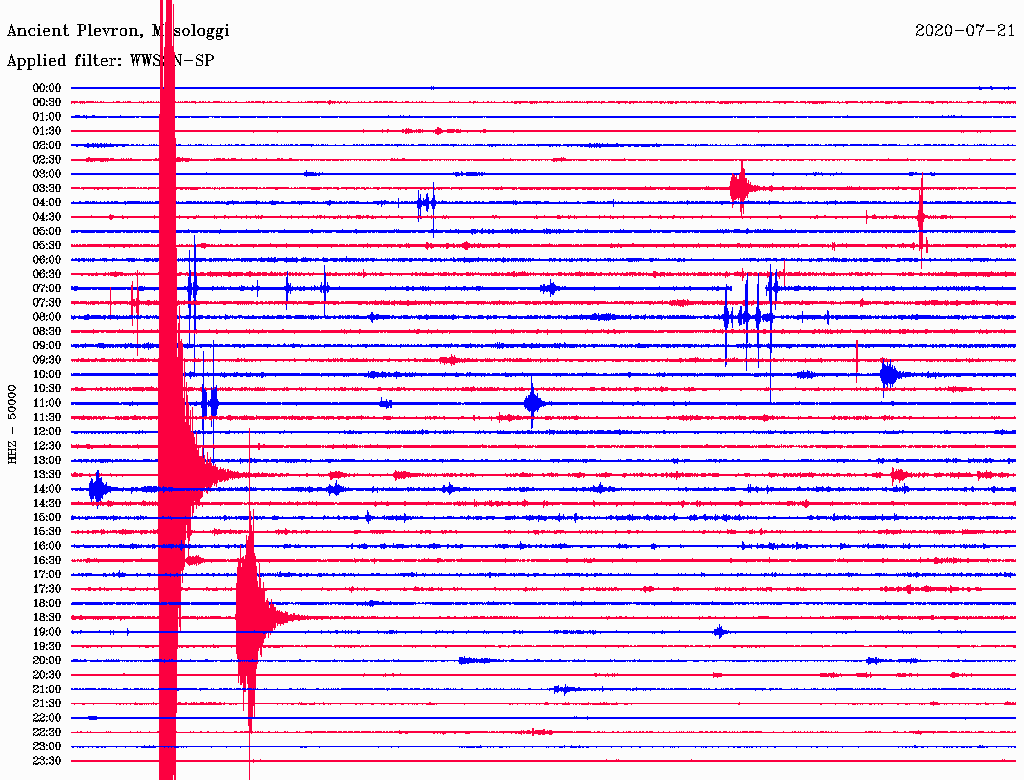

    PLEV  HP    0.9  65  P       13:32:45.79  -0.2 M  1.0  PLEV
    PLEV  HP    0.9  65  S       13:32:58.78   0.2 M  1.0  PLEV

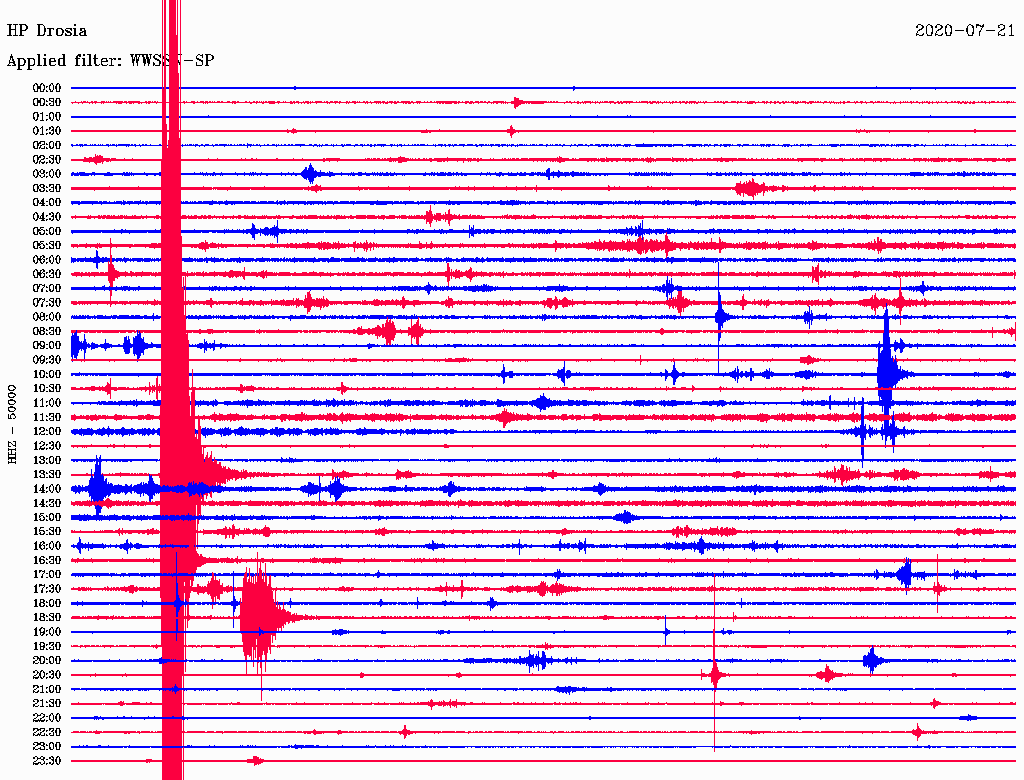

    DRO   HP    1.0  95  P       13:32:48.99   0.1 M  1.0  DRO
    DRO   HP    1.0  95  S       13:33:04.02   0.5 M  1.0  DRO

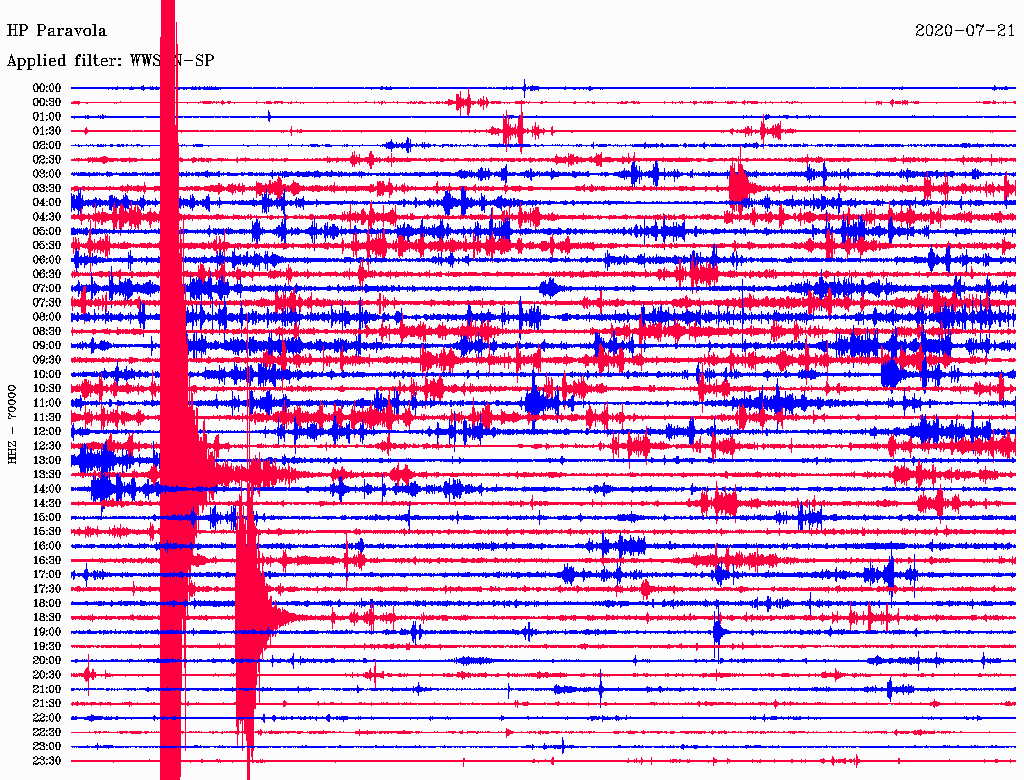

    PVO   HP    1.1  57  P       13:32:49.32   0.2 M  1.0  PVO
    PVO   HP    1.1  57  S       13:33:04.15   0.1 M  1.0  PVO

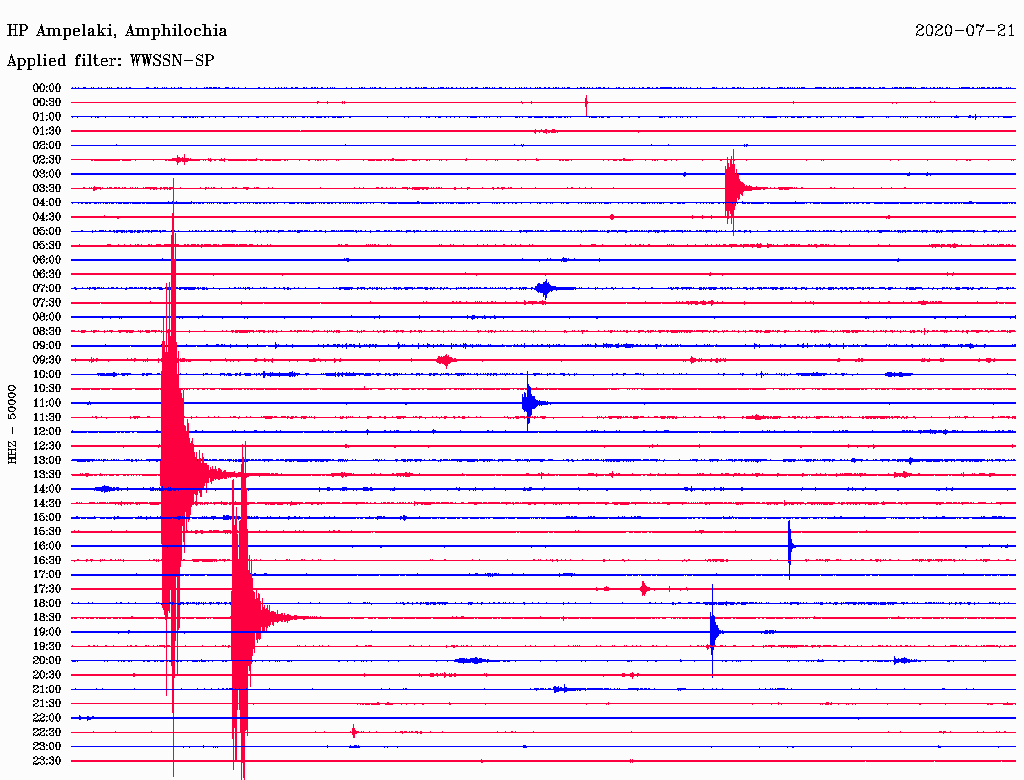

    AMPL  HP    1.1  36  P       13:32:49.75   0.0 M  1.0  AMPL
    AMPL  HP    1.1  36  S       13:33:05.22   0.2 M  1.0  AMPL

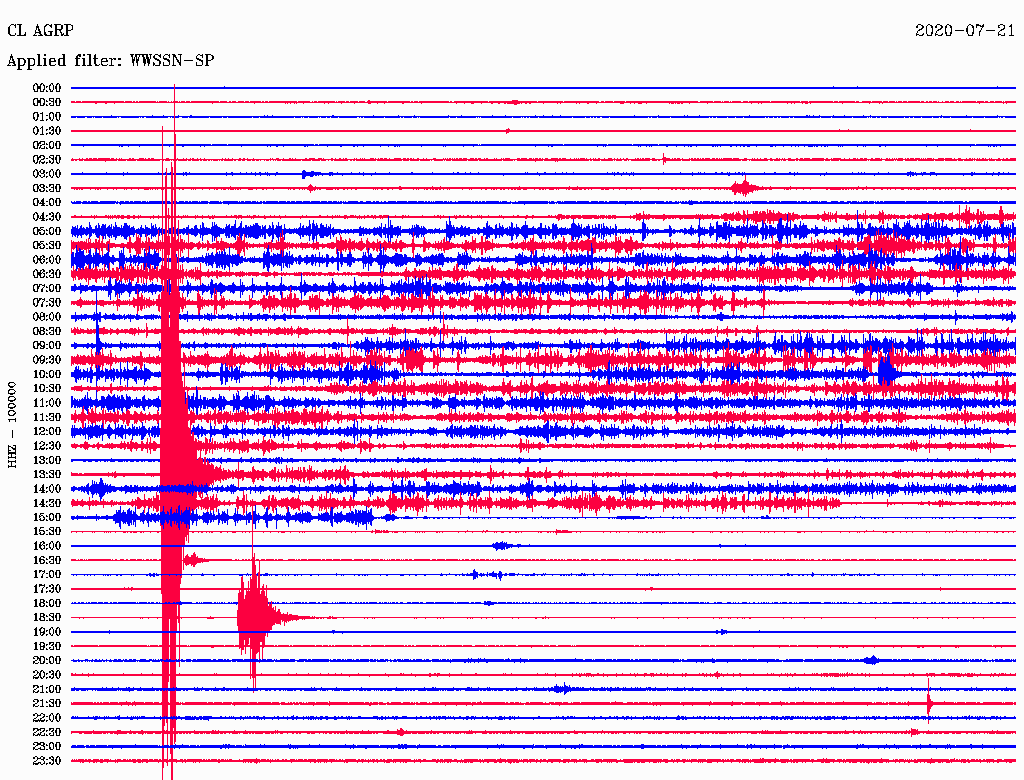

    AGRP  CL    1.1  71  P       13:32:49.47  -0.5 M  1.0  AGRP
    AGRP  CL    1.1  71  S       13:33:05.63   0.2 M  1.0  AGRP
    EFP   HP    1.2  72  P       13:32:52.12  -0.3 M  1.0  EFP
    EFP   HP    1.2  72  S       13:33:09.76  -0.0 M  1.0  EFP

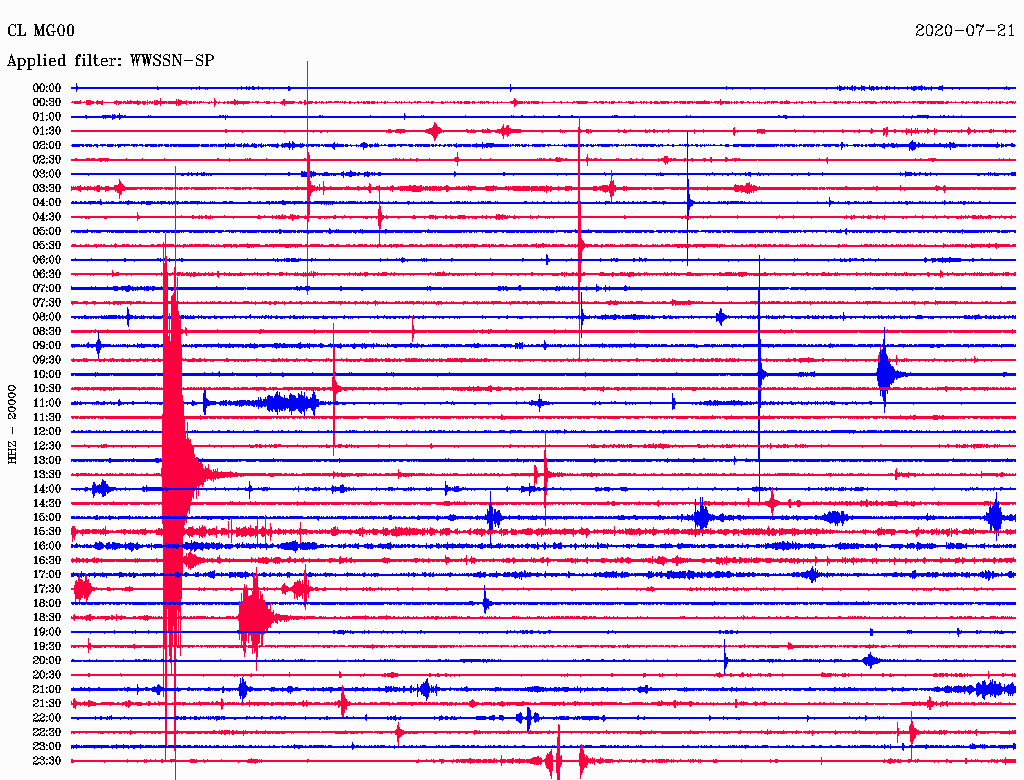

    MG00  CL    1.3  73  P       13:32:52.49  -0.4 M  1.0  MG00
    MG00  CL    1.3  73  S       13:33:11.05   0.4 M  1.0  MG00

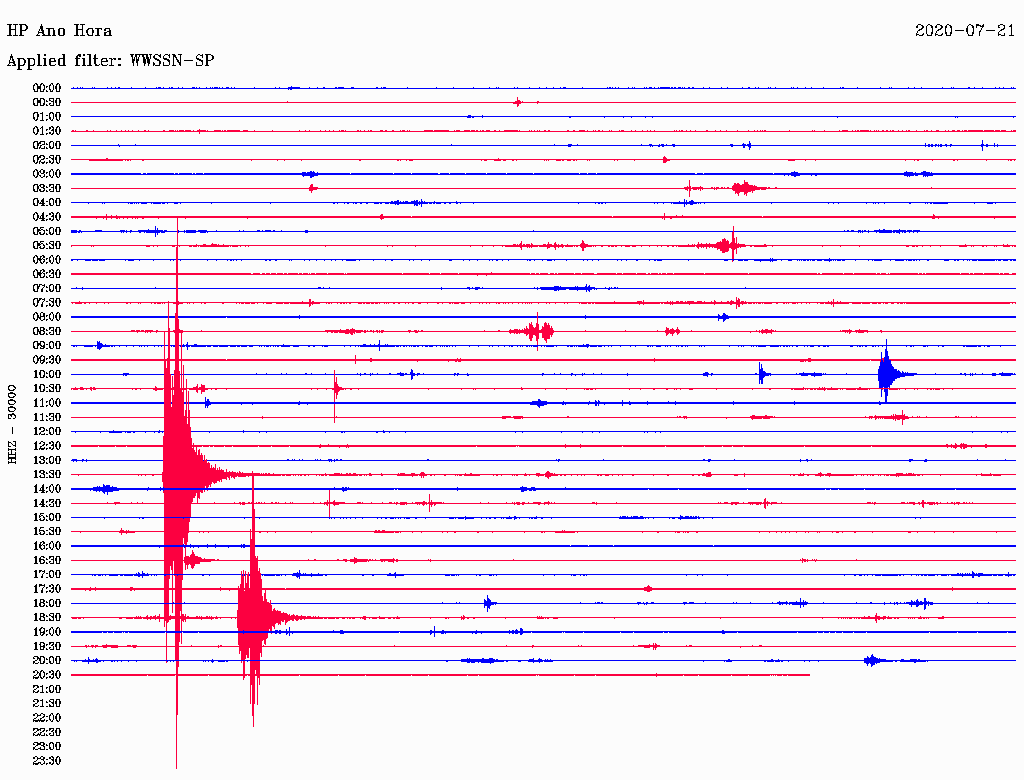

    ANX   HP    1.3  65  P       13:32:53.68  -0.1 M  1.0  ANX
    ANX   HP    1.3  65  S       13:33:12.03  -0.1 M  1.0  ANX

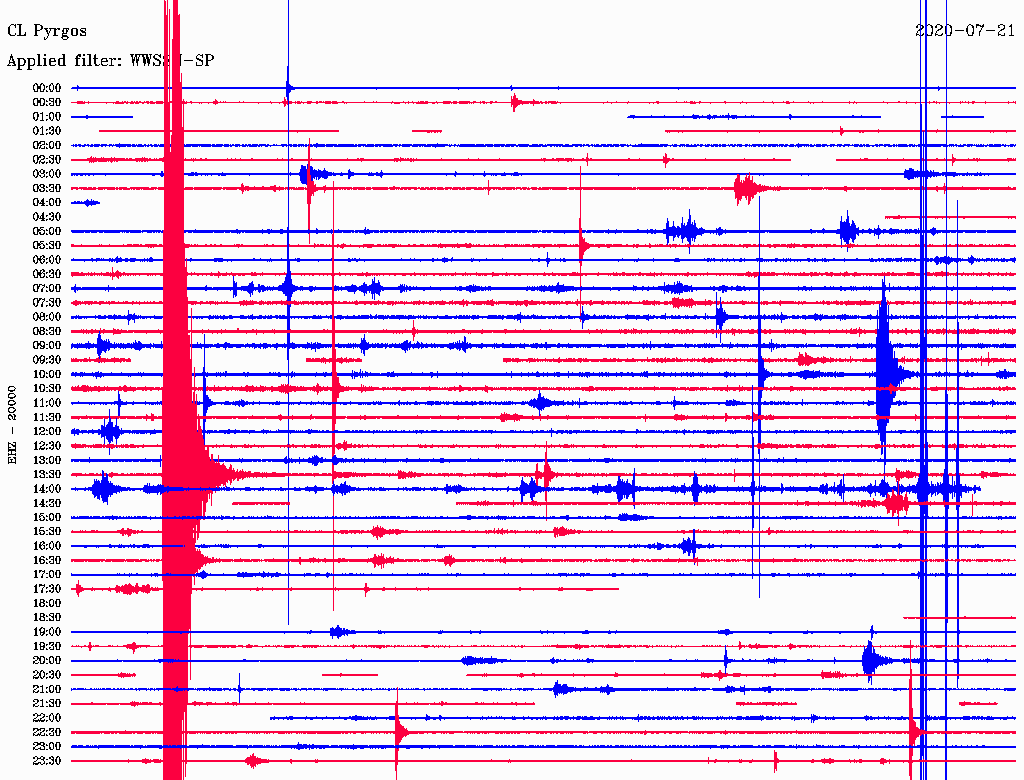

    PYRG  CL    1.3  74  P       13:32:53.36  -0.5 M  1.0  PYRG
    PYRG  CL    1.3  74  S       13:33:12.30   0.0 M  1.0  PYRG

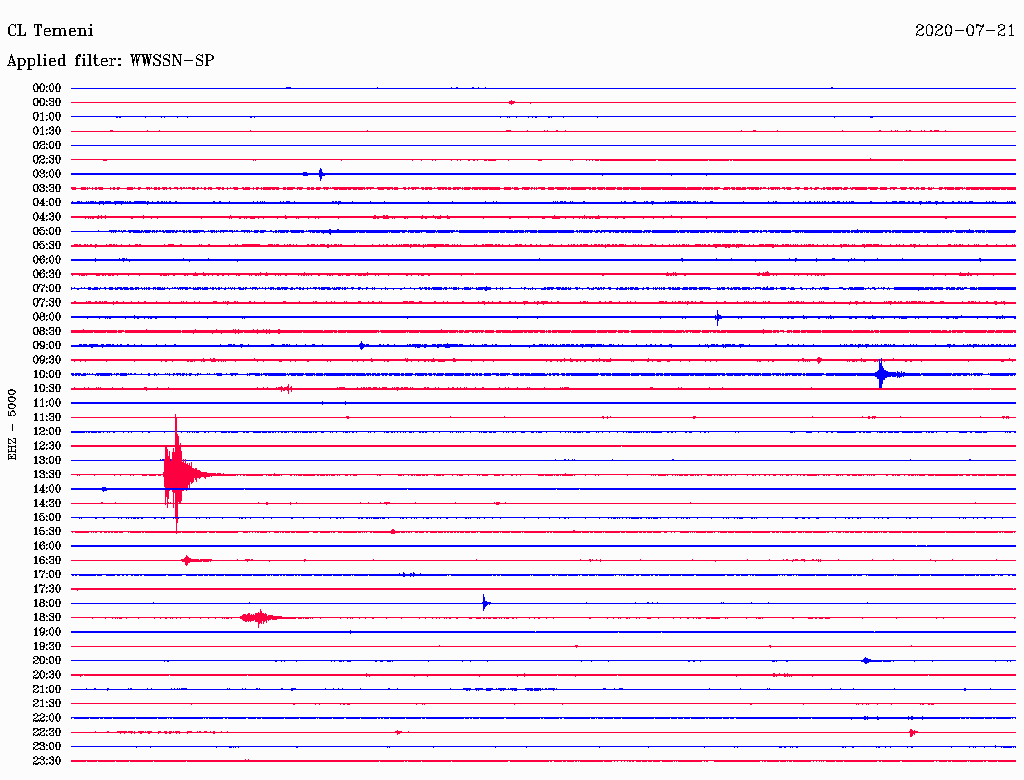

    TEME  CL    1.4  82  P       13:32:54.48   0.0 M  1.0  TEME

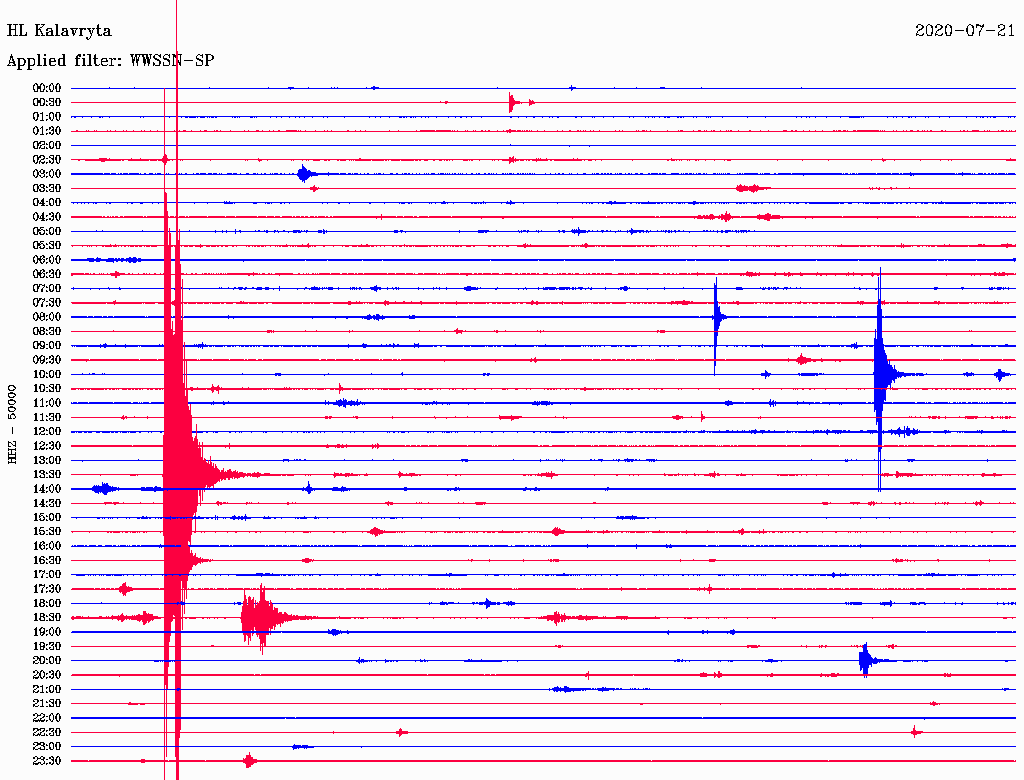

    KLV   HL    1.4  90  P       13:32:54.53  -0.2 M  1.0  KLV
    KLV   HL    1.4  90  S       13:33:13.27  -0.7 M  1.0  KLV

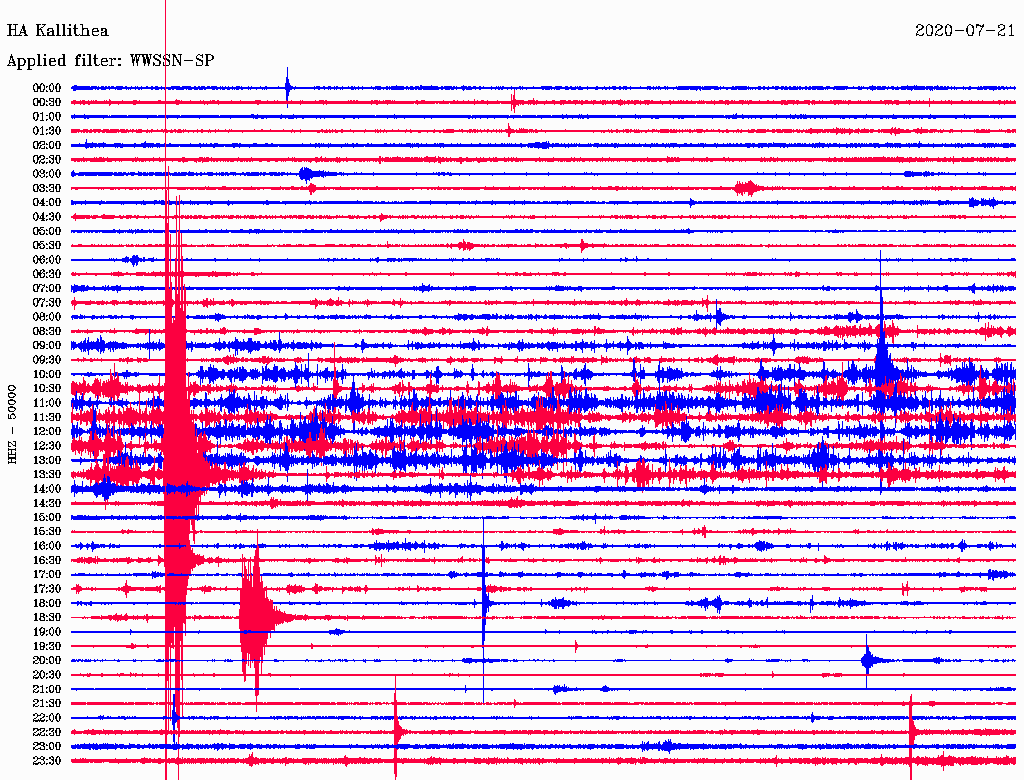

    KALE  HA    1.4  76  P       13:32:55.22  -0.1 M  1.0  KALE
    KALE  HA    1.4  76  S       13:33:14.43  -0.6 M  1.0  KALE

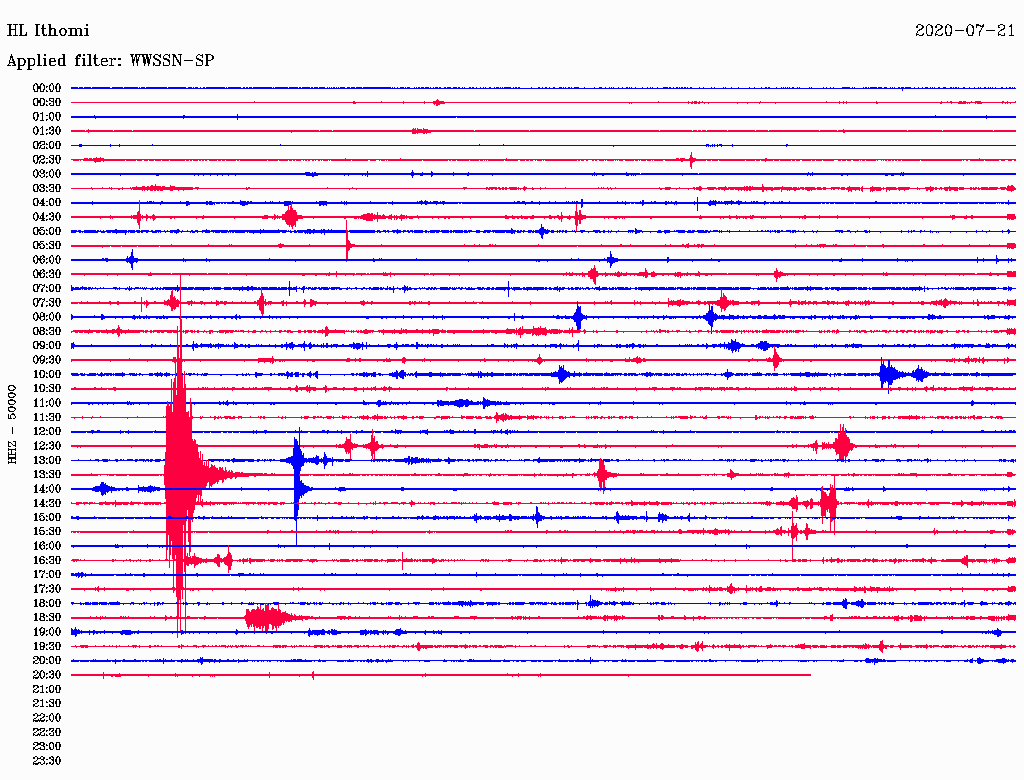

    ITM   HL    1.5 125  P       13:32:57.08   0.7 M  1.0  ITM
    ITM   HL    1.5 125  S       13:33:17.21   0.5 M  1.0  ITM

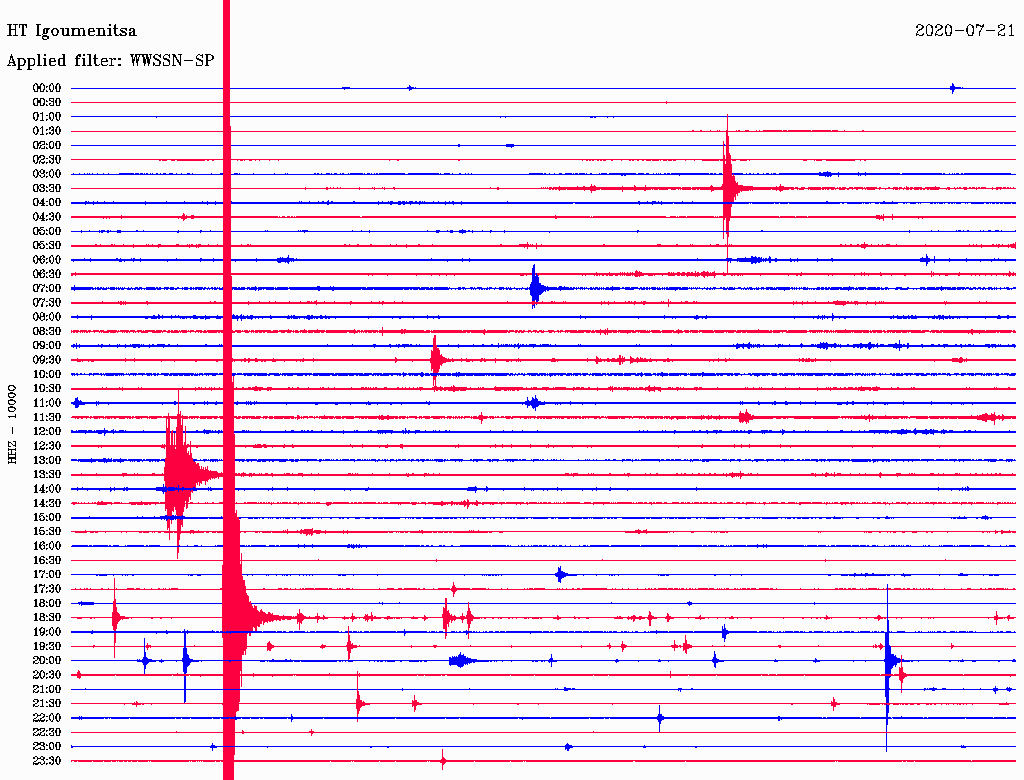

    IGT   HT    1.5 358  P       13:32:56.61   0.1 M  1.0  IGT
    IGT   HT    1.5 358  S       13:33:16.80  -0.1 M  1.0  IGT

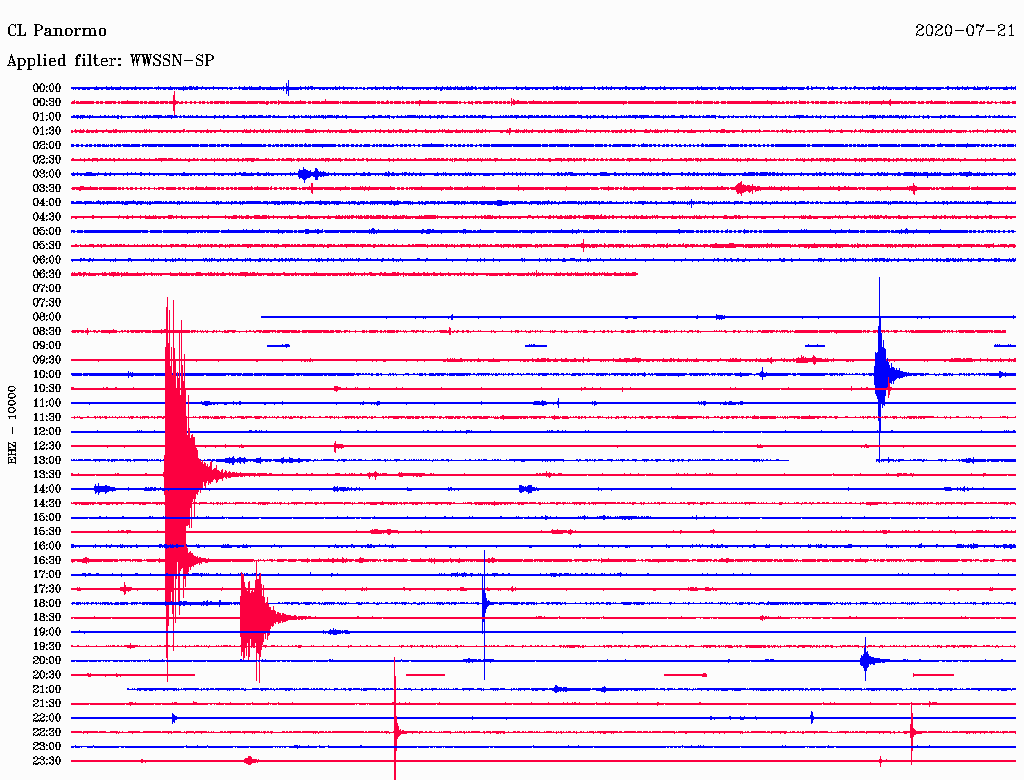

    PANR  CL    1.5  77  P       13:32:56.45  -0.0 M  1.0  PANR
    PANR  CL    1.5  77  S       13:33:16.25  -0.7 M  1.0  PANR

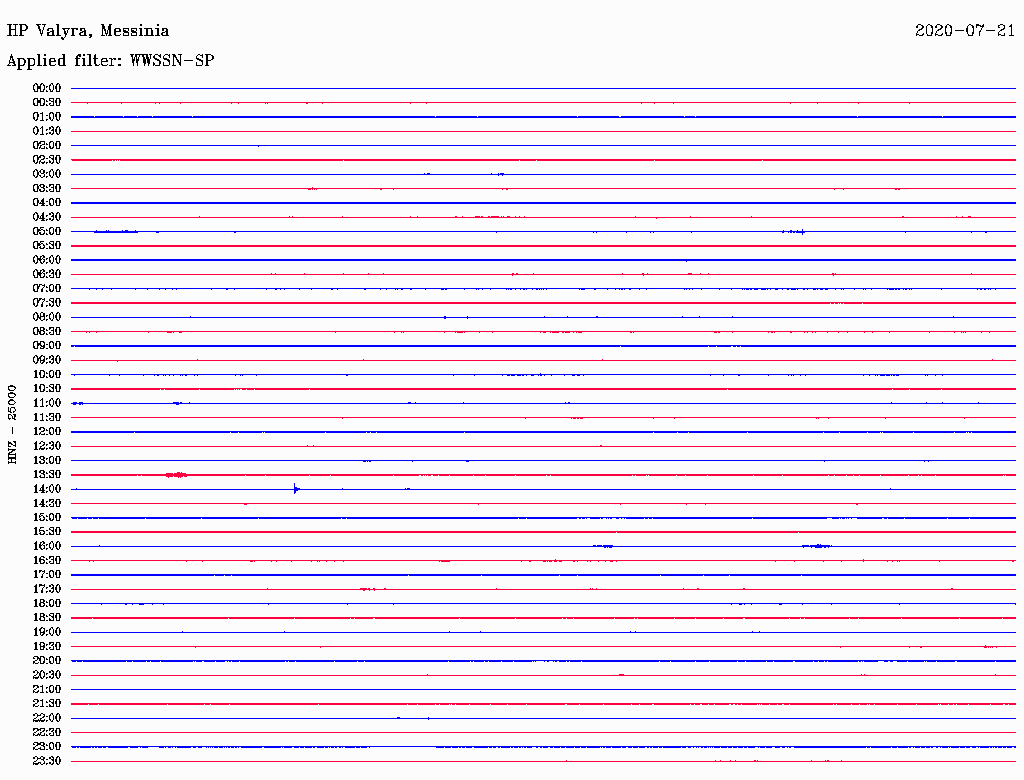

    VALY  HP    1.5 125  P       13:32:57.11   0.2 M  1.0  VALY
    VALY  HP    1.5 125  S       13:33:17.97   0.2 M  1.0  VALY

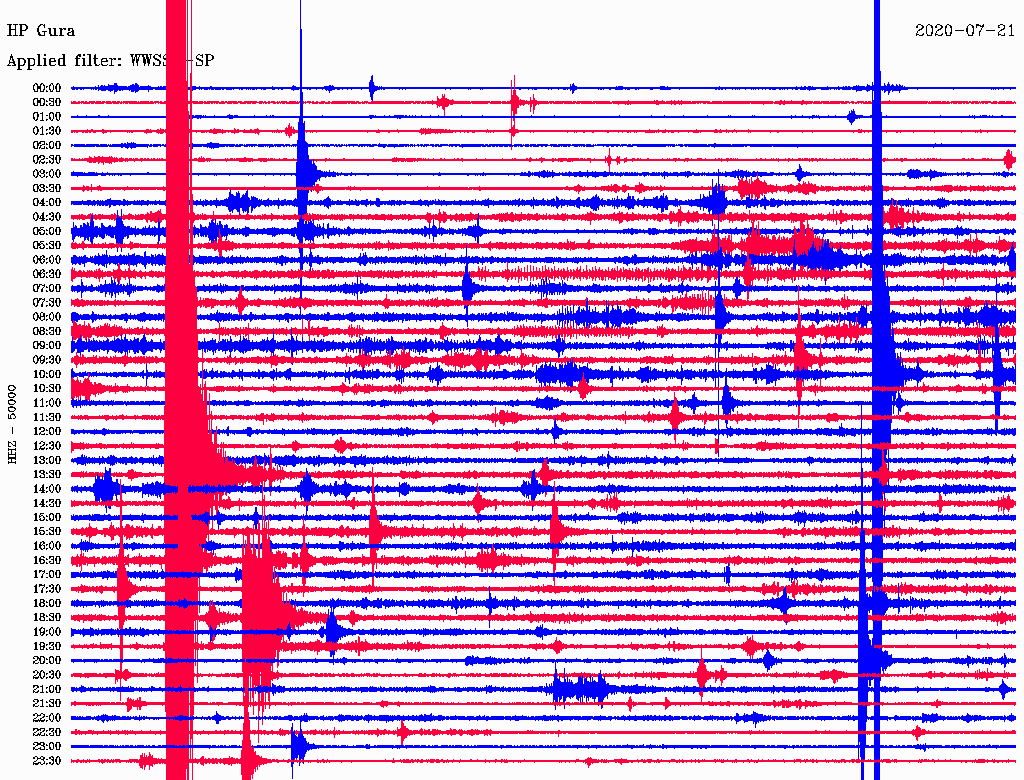

    GUR   HP    1.5  94  P       13:32:57.09  -0.2 M  1.0  GUR
    GUR   HP    1.5  94  S       13:33:17.73  -0.6 M  1.0  GUR

26 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    VLS   HL    0.2  47  MLv     4.00  0.07    211.865
    RTZL  HT    0.3  82  MLv     3.84 -0.09    81.8587
    EVGI  HT    0.6  19  MLv     4.15  0.22    31.9214
    DRAG  HT    0.7  12  MLv     5.30  1.37    28.2065
    NYDR  HT    0.7  19  MLv     4.08  0.16    17.5208
    AXS   HP    0.8  78  MLv     3.69 -0.24    8.93765
    TSLK  HT    0.8  14  MLv     3.99  0.06    17.1308
    RLS   HL    0.8  89  MLv     3.59 -0.33    6.71793
    MSL1  HI    0.9  67  MLv     4.29  0.36     31.736
    PLEV  HP    0.9  65  MLv     3.94  0.02    14.3351
    DRO   HP    1.0  95  MLv     3.71 -0.21    14.3218
    PVO   HP    1.1  57  MLv     4.05  0.12    14.4344
    AMPL  HP    1.1  36  MLv     3.86 -0.06    9.01354
    AGRP  CL    1.1  71  MLv     4.04  0.12    13.5921
    EFP   HP    1.2  72  MLv     3.83 -0.09    6.93824
    MG00  CL    1.3  73  MLv     3.77 -0.15    7.47869
    ANX   HP    1.3  65  MLv     3.99  0.07    9.09405
    PYRG  CL    1.3  74  MLv     3.91 -0.02    4.66772
    TEME  CL    1.4  82  MLv     4.02  0.10    3.05771
    KLV   HL    1.4  90  MLv     4.13  0.21    8.83931
    KALE  HA    1.4  76  MLv     3.76 -0.16    4.75698
    ITM   HL    1.5 125  MLv     3.97  0.04     6.9835
    IGT   HT    1.5 358  MLv     3.74 -0.19     4.0401
    PANR  CL    1.5  77  MLv     5.21  1.29    2.34832
    VALY  HP    1.5 125  MLv     3.98  0.05    6.74567
    GUR   HP    1.5  94  MLv     4.13  0.20    9.47031
