Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2020-02-10 22:46:51 (GMT)
 Μέγεθος
 M 4.7
 Γεωγρ. Πλάτος
 35.2273° Β
 Γεωγρ. Μήκος
 27.9535° Α
 Εστιακό Βάθος
 5 χμ
 Αρ. αφίξεων
 29
 Επίκεντρο 88.0 χμ ΑΝΑ της Καρπάθου
137.1 χμ Ν της Ρόδου
485.5 χμ ΝΑ της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Μηχ.Γέν.


  Μηχανισμός Γένεσης

Μηχ.Γεν. Παράταξη (°) Κλίση (°) Γων.Ολίσθ. (°) Σεισμ.Ροπή (dyn*cm)
25020-54 1.88E+23

Γεωγρ.Πλάτος (°Β) Γεωγρ.Μήκος (°Α) Βάθος (χμ) Μέγεθος Mw
35.242727.907516.04.8

Υπολογισμός εστιακών παραμέτρων

Κλικ εδώ για λεπτομέρειες μηχανισμού γένεσης


  Χάρτης εντάσεως


PGA
 PGV
 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type

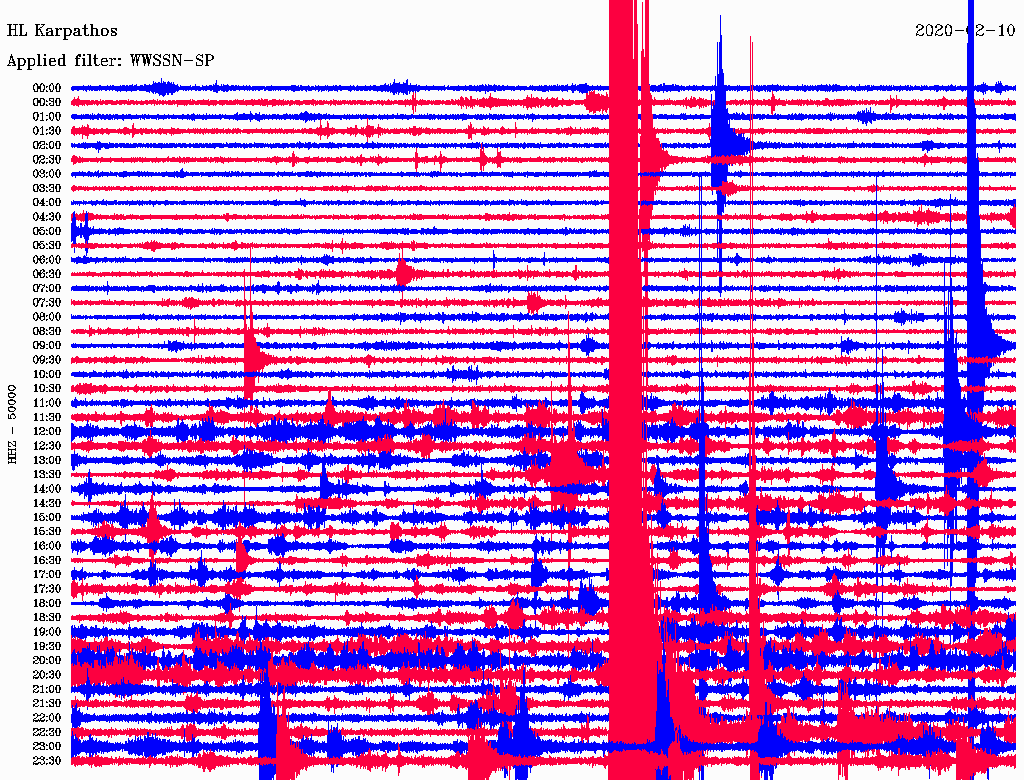

KARPHL80.2296 P22:47:05.16 -0.71.0M
KARPHL80.2296 S22:47:17.39 0.91.0M

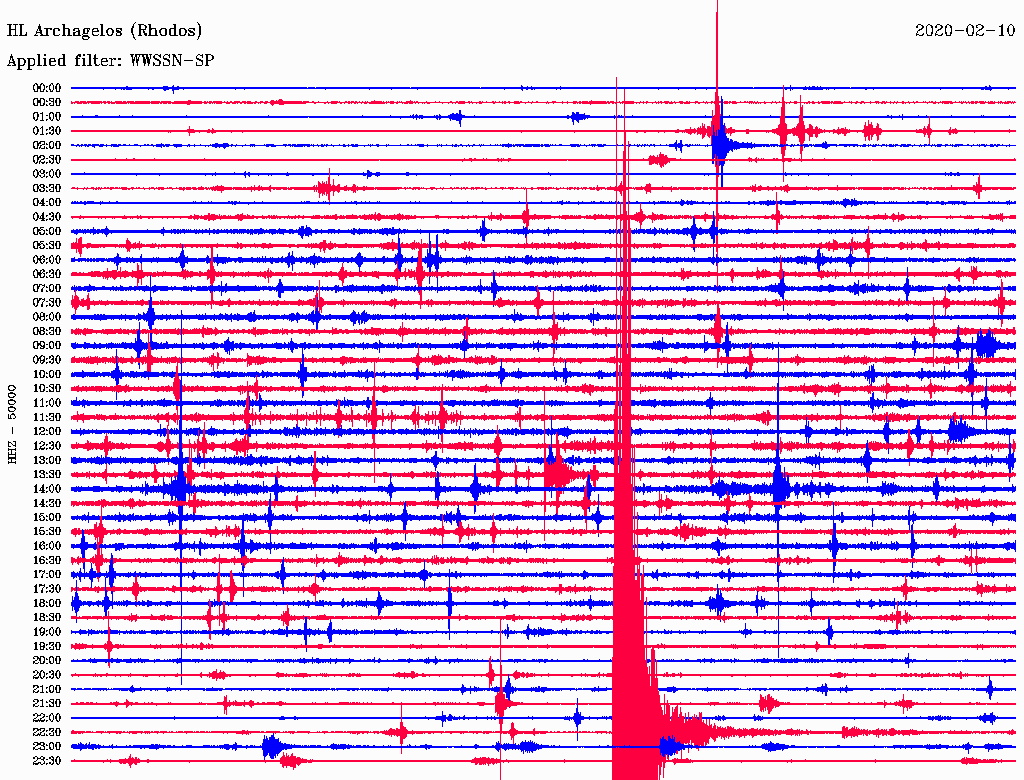

ARGHL110.7 8 P22:47:11.01 0.41.0M
ARGHL110.7 8 S22:47:24.72 -0.21.0M
ZKRHL158.3265 P22:47:17.73 -0.41.0M
SIT2HI167.8269 P22:47:20.40 0.91.0M
KSLHL179.6 55 P22:47:20.35 -0.71.0M
KSLHL179.6 55 S22:47:44.12 0.81.0M
KLNAHL211.6335 P22:47:24.56 -0.61.0M
NPSHL212.8271 P22:47:25.96 0.61.0M
NPSHL212.8271 S22:47:51.06 0.11.0M
SNT5HA265.2299 P22:47:31.71 -0.41.0M
SNT5HA265.2299 S22:48:03.52 0.81.0M

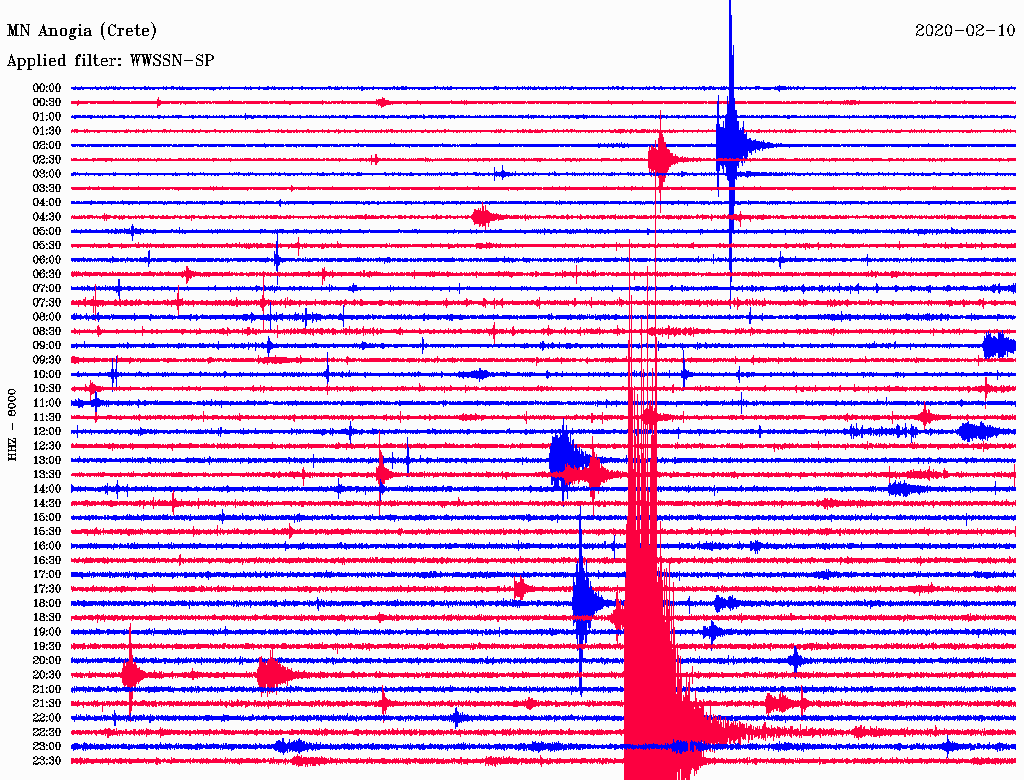

IDIMN278.2271 P22:47:34.06 0.21.0M
IDIMN278.2271 S22:48:06.03 0.11.0M

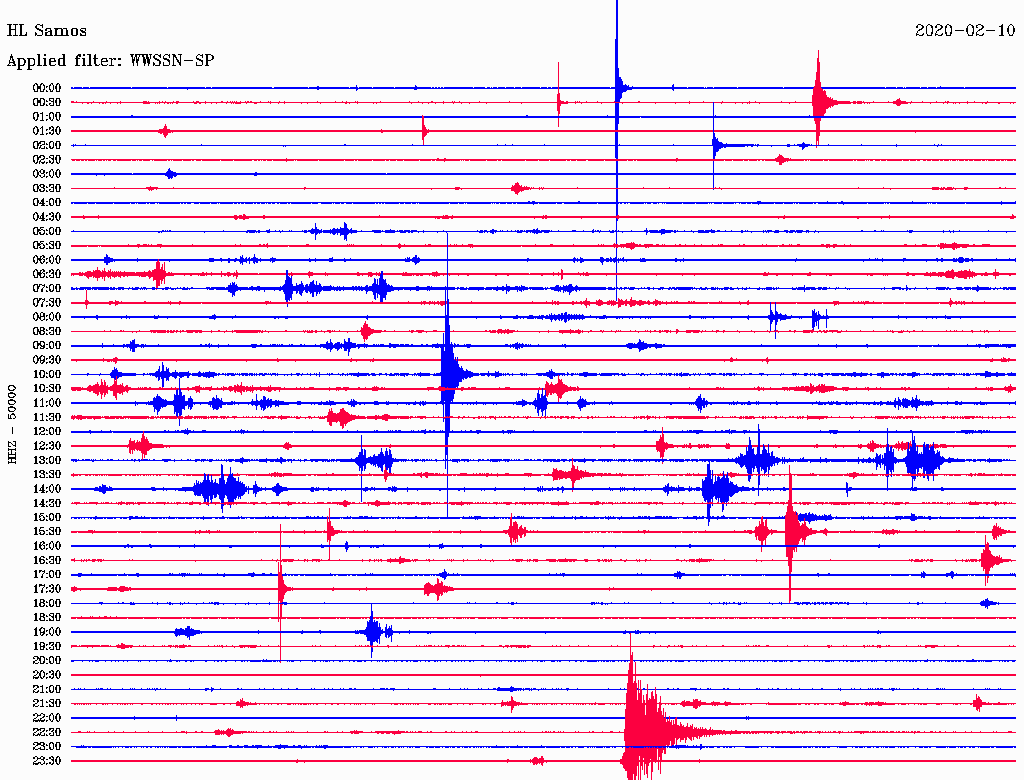

SMGHL292.9340 P22:47:34.81 -0.81.0M
KRL1HI306.5339 P22:47:36.74 -0.51.0M
GVDHL354.6263 P22:47:42.99 -0.61.0M
GVDHL354.6263 S22:48:22.82 -0.21.0M
CHANHC356.0275 P22:47:44.40 0.61.0M
CHANHC356.0275 S22:48:24.22 0.91.0M
CH01HI358.0275 P22:47:43.89 -0.11.0M

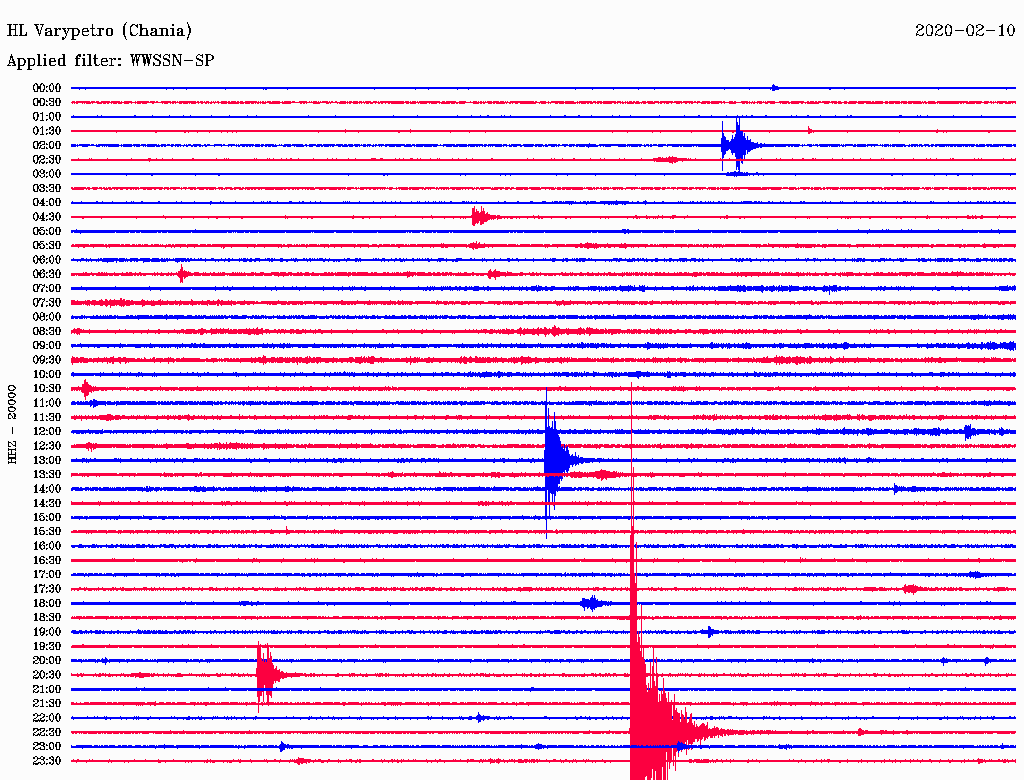

IMMVHL361.2274 P22:47:44.89 0.41.0M
IMMVHL361.2274 S22:48:24.12 -0.41.0M

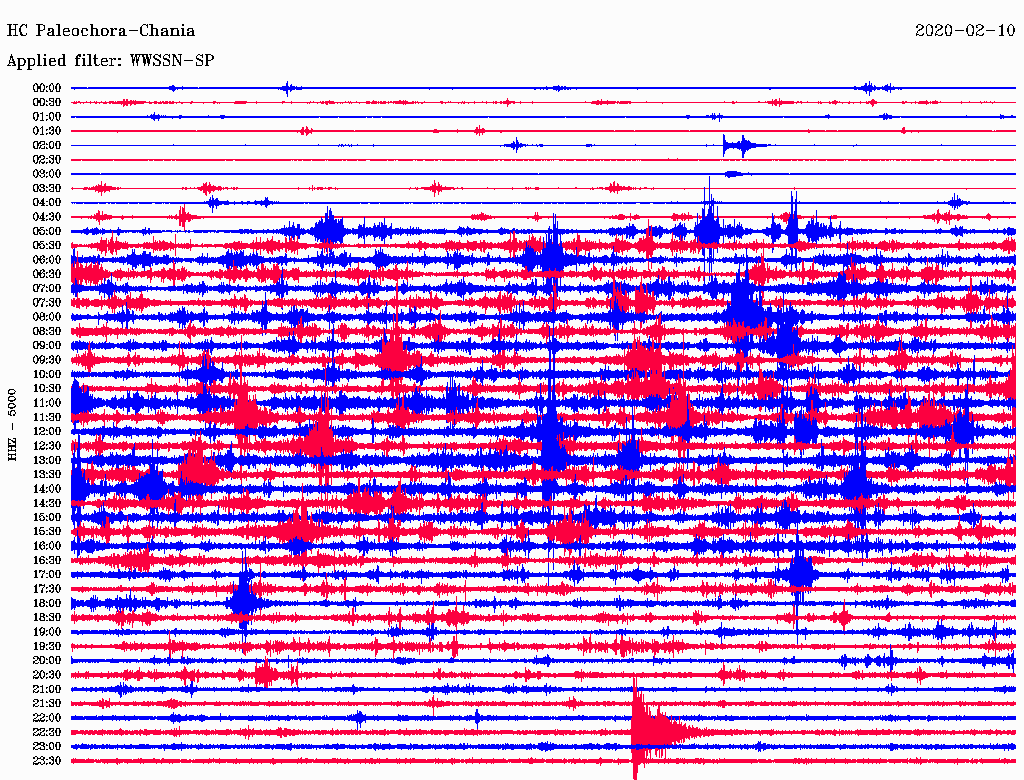

KNDRHC393.1270 P22:47:47.99 -0.61.0M

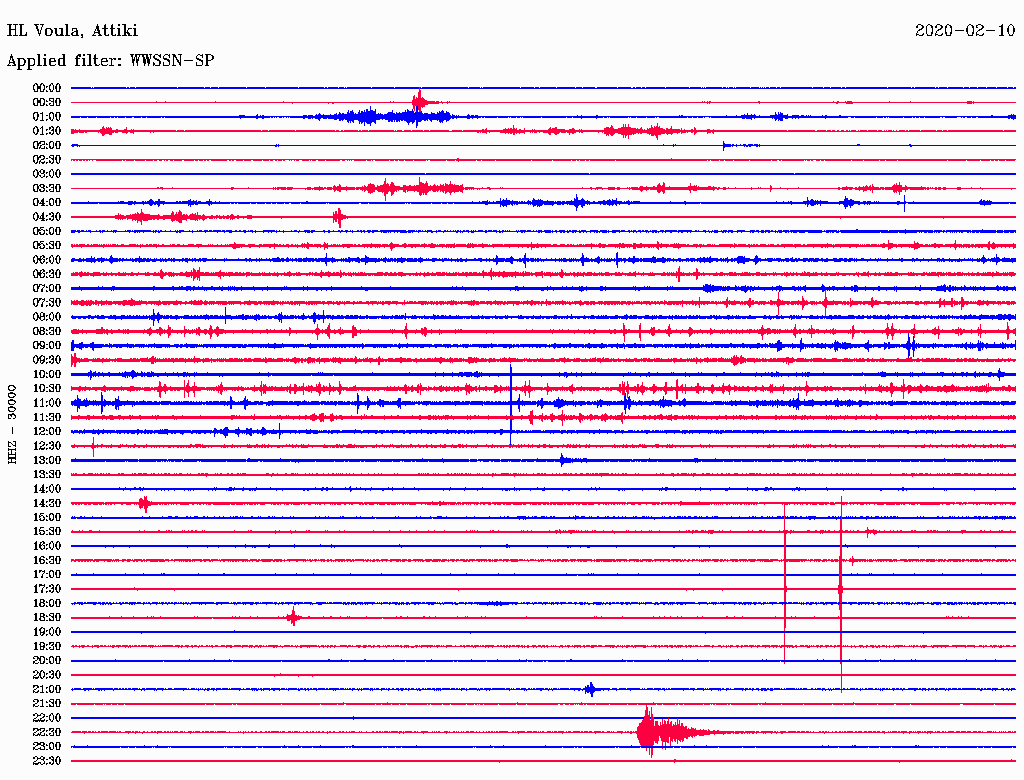

VLYHL472.4308 P22:47:57.88 -0.81.0M
VLYHL472.4308 S22:48:49.88 0.31.0M

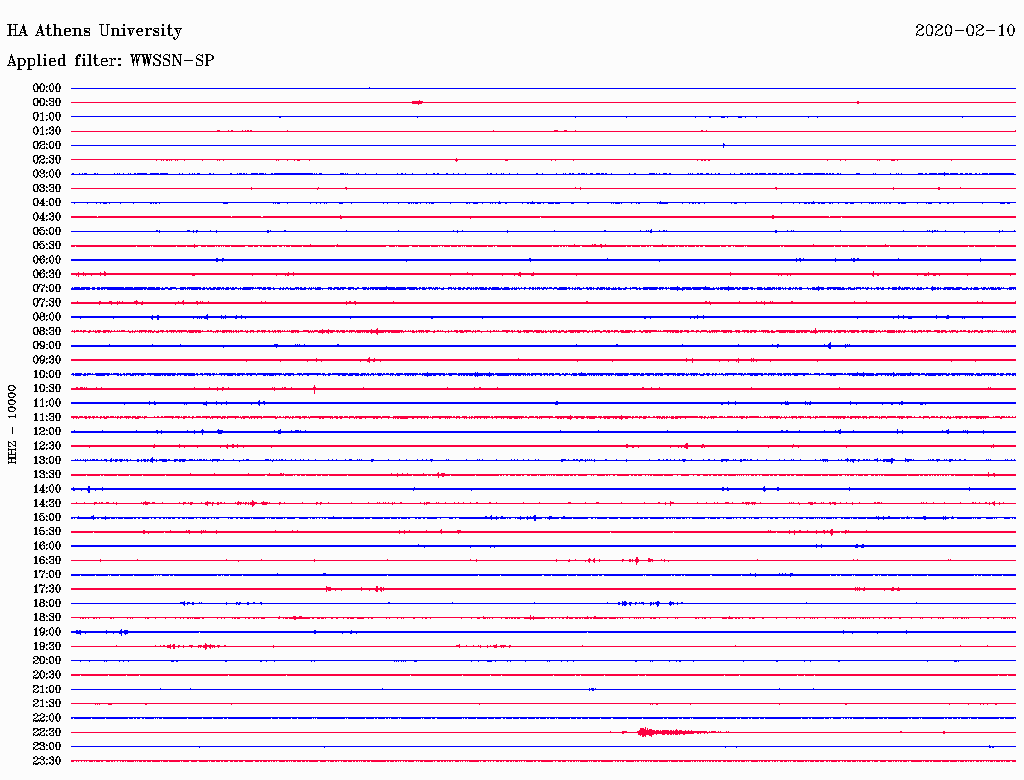

ATHUHA480.8309 P22:47:59.23 -0.51.0M
VILLHA527.0308 P22:48:05.15 -0.61.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2020cwvf
    Type                   earthquake
    Description
      region name: Dodecanese Islands, Greece
Origin:
    Date                   2020-02-10
    Time                  22:46:51.77
    Latitude              35.2273 deg  +/-      1 km
    Longitude             27.9535 deg  +/-      1 km
    Depth                       5 km   +/-    3 km
    Agency                 HA
    Author                 A.Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.59 s
    Azimuthal gap             208 deg

2 Network magnitudes:
    MLv       4.74 +/- 0.20  14
    M         4.74           14 preferred

29 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    KARP  HL    0.7 296  P       22:47:05.16  -0.7 M  1.0  KARP
    KARP  HL    0.7 296  S       22:47:17.39   0.9 M  1.0  KARP
    ARG   HL    1.0   8  P       22:47:11.01   0.4 M  1.0  ARG
    ARG   HL    1.0   8  S       22:47:24.72  -0.2 M  1.0  ARG
    ZKR   HL    1.4 265  P       22:47:17.73  -0.4 M  1.0  ZKR

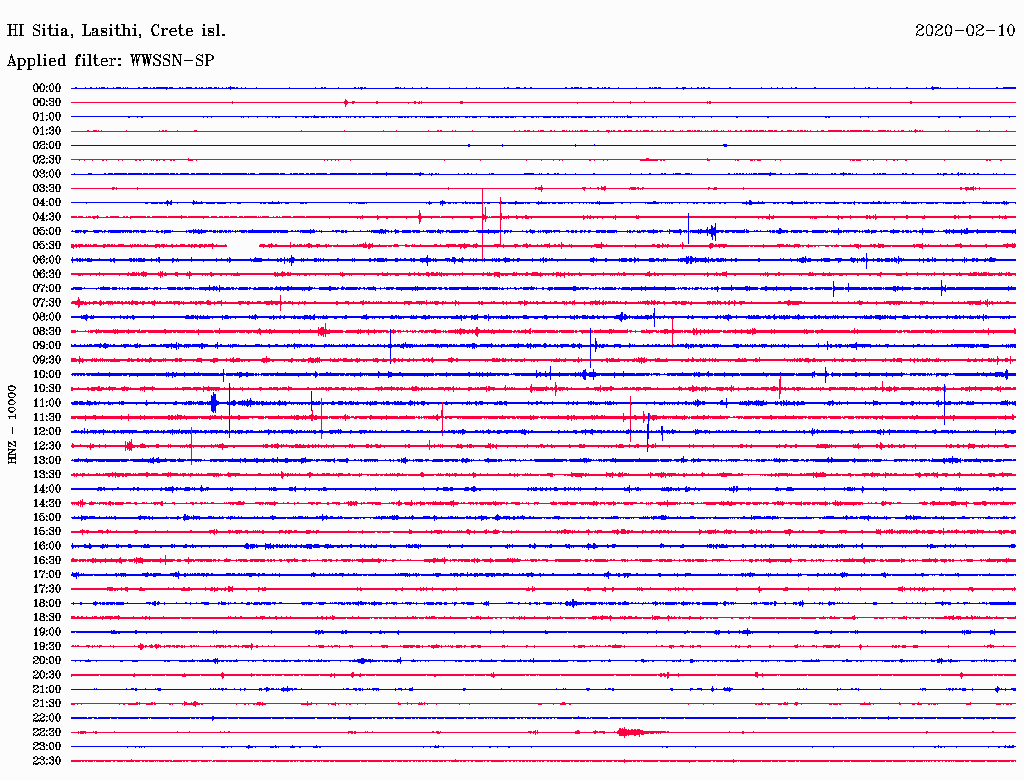

    SIT2  HI    1.5 269  P       22:47:20.40   0.9 M  1.0  SIT2
    KSL   HL    1.6  55  P       22:47:20.35  -0.7 M  1.0  KSL
    KSL   HL    1.6  55  S       22:47:44.12   0.8 M  1.0  KSL

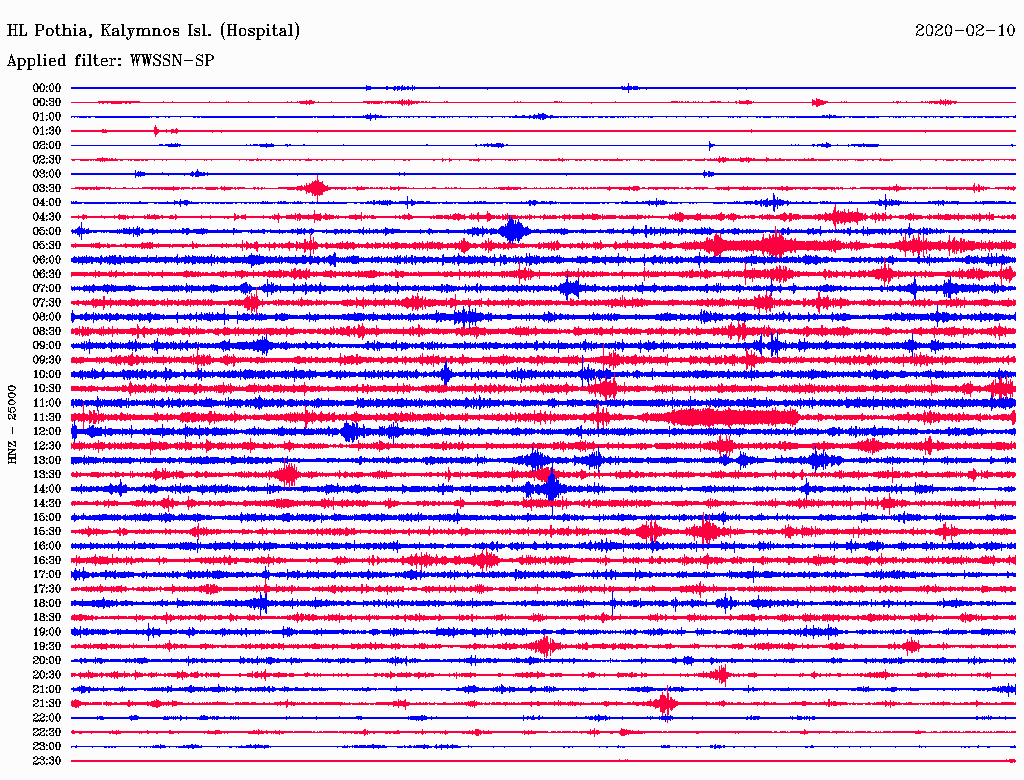

    KLNA  HL    1.9 335  P       22:47:24.56  -0.6 M  1.0  KLNA

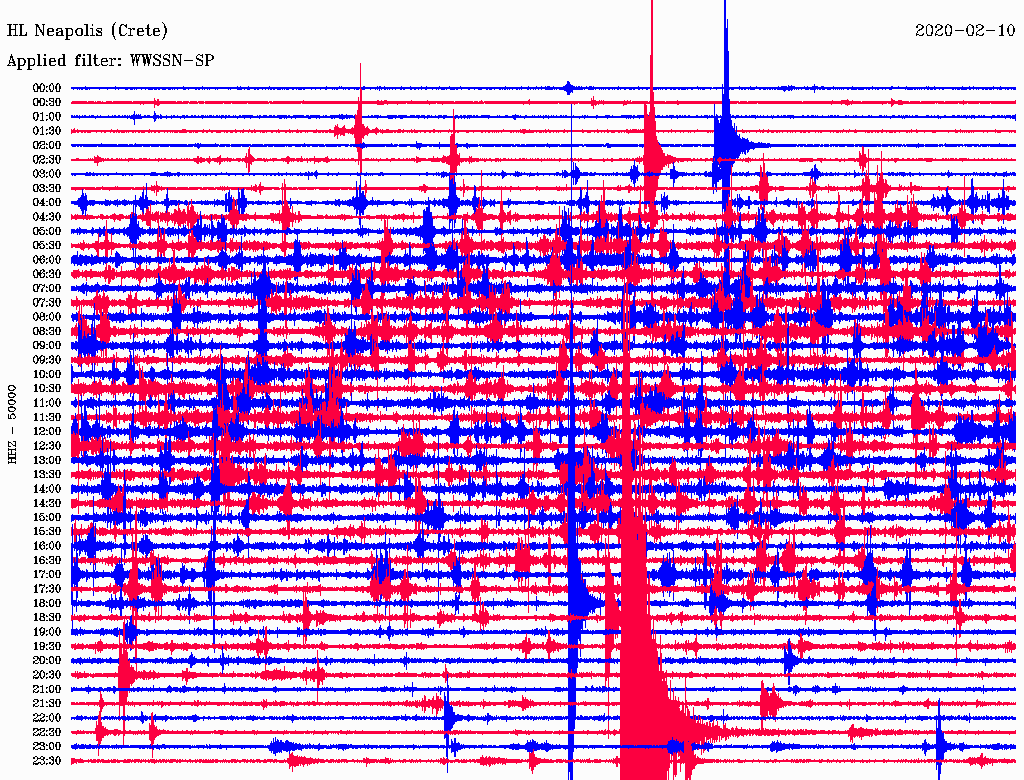

    NPS   HL    1.9 271  P       22:47:25.96   0.6 M  1.0  NPS
    NPS   HL    1.9 271  S       22:47:51.06   0.1 M  1.0  NPS

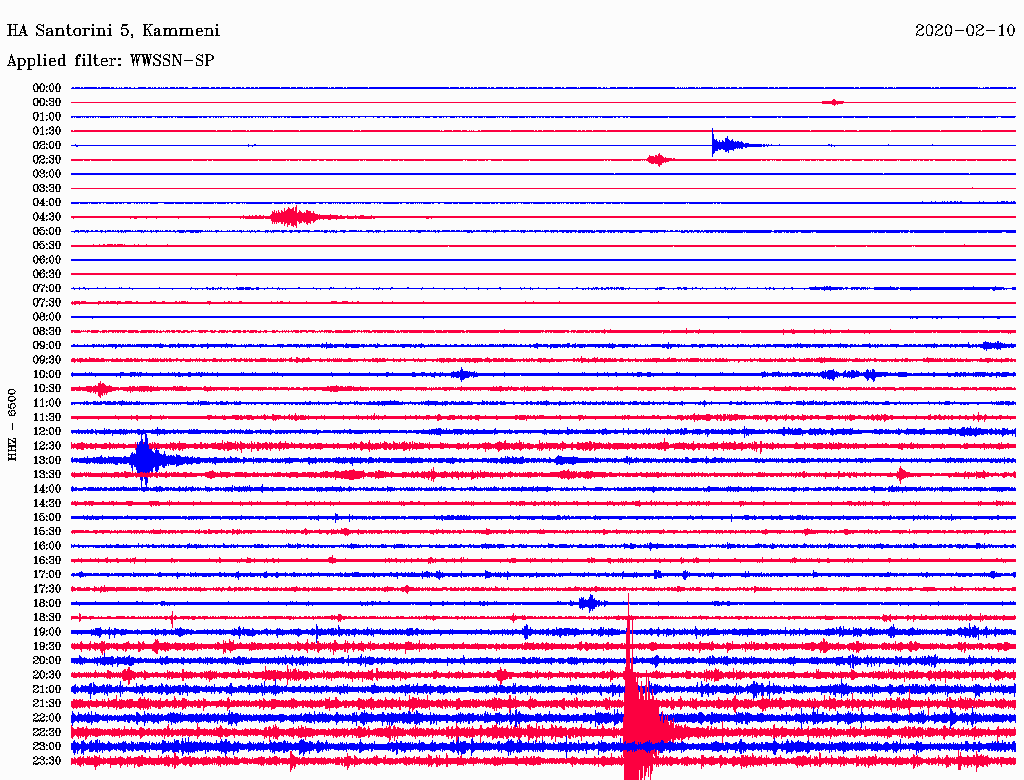

    SNT5  HA    2.4 299  P       22:47:31.71  -0.4 M  1.0  SNT5
    SNT5  HA    2.4 299  S       22:48:03.52   0.8 M  1.0  SNT5
    IDI   MN    2.5 271  P       22:47:34.06   0.2 M  1.0  IDI
    IDI   MN    2.5 271  S       22:48:06.03   0.1 M  1.0  IDI
    SMG   HL    2.6 340  P       22:47:34.81  -0.8 M  1.0  SMG
    KRL1  HI    2.8 339  P       22:47:36.74  -0.5 M  1.0  KRL1

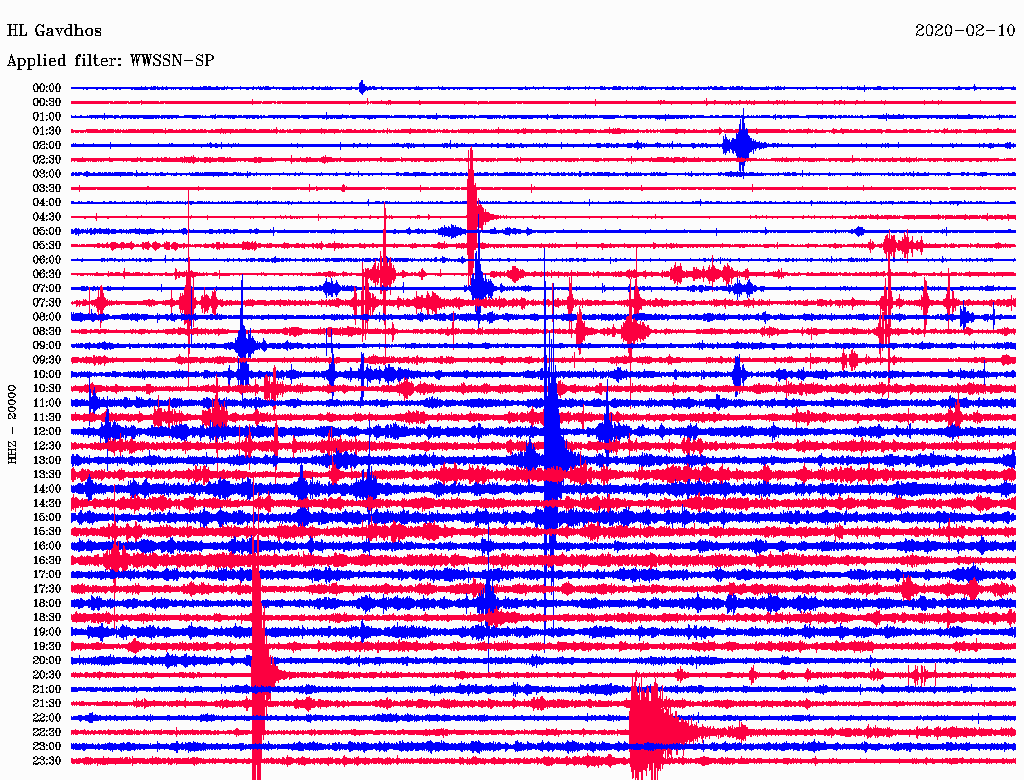

    GVD   HL    3.2 263  P       22:47:42.99  -0.6 M  1.0  GVD
    GVD   HL    3.2 263  S       22:48:22.82  -0.2 M  1.0  GVD

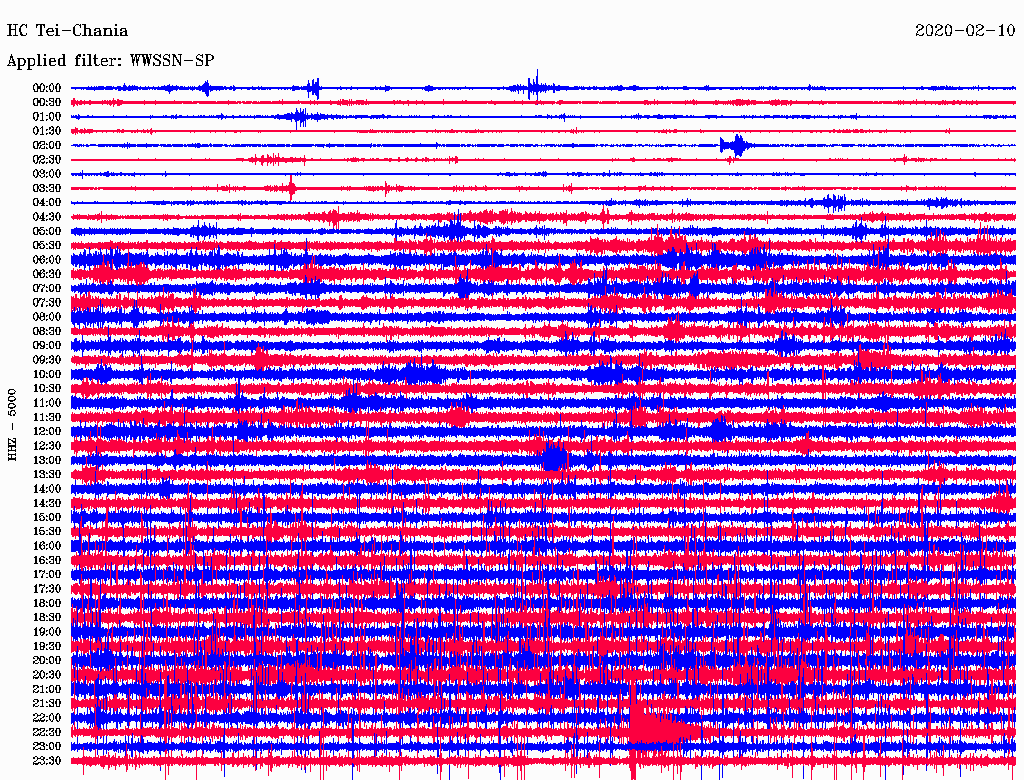

    CHAN  HC    3.2 275  P       22:47:44.40   0.6 M  1.0  CHAN
    CHAN  HC    3.2 275  S       22:48:24.22   0.9 M  1.0  CHAN

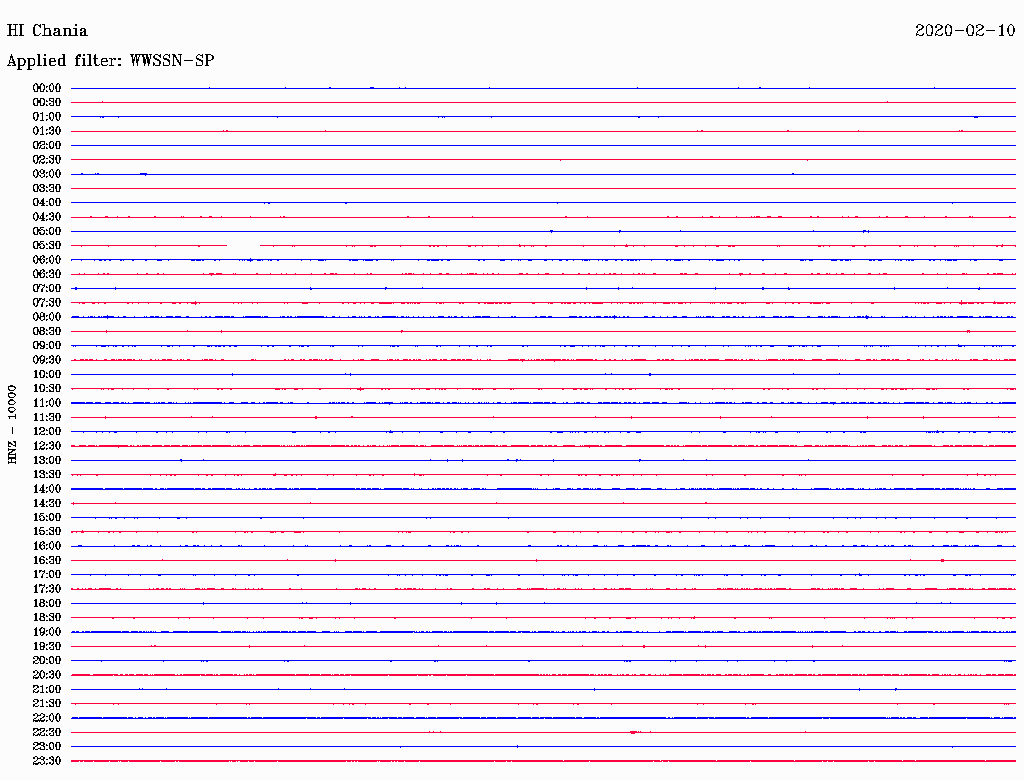

    CH01  HI    3.2 275  P       22:47:43.89  -0.1 M  1.0  CH01
    IMMV  HL    3.3 274  P       22:47:44.89   0.4 M  1.0  IMMV
    IMMV  HL    3.3 274  S       22:48:24.12  -0.4 M  1.0  IMMV
    KNDR  HC    3.5 270  P       22:47:47.99  -0.6 M  1.0  KNDR
    VLY   HL    4.3 308  P       22:47:57.88  -0.8 M  1.0  VLY
    VLY   HL    4.3 308  S       22:48:49.88   0.3 M  1.0  VLY
    ATHU  HA    4.3 309  P       22:47:59.23  -0.5 M  1.0  ATHU

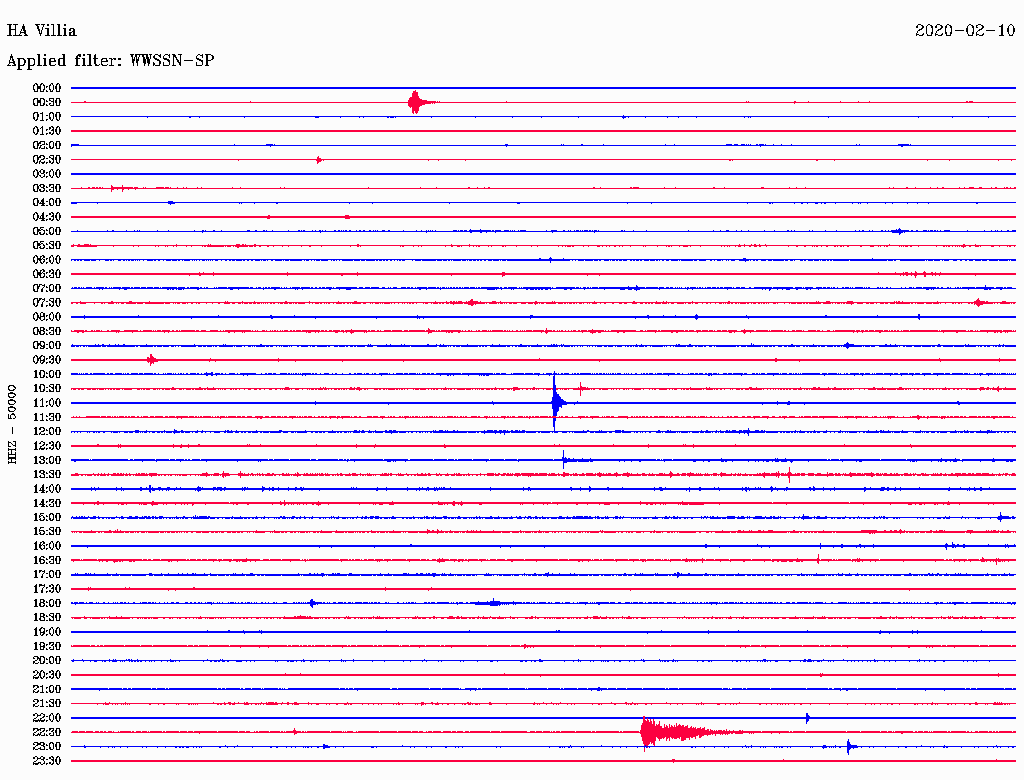

    VILL  HA    4.7 308  P       22:48:05.15  -0.6 M  1.0  VILL

19 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    KARP  HL    0.7 296  MLv     4.78  0.05    160.052
    ARG   HL    1.0   8  MLv     4.62 -0.12    58.7641
    ZKR   HL    1.4 265  MLv     4.78  0.04    49.1698
    SIT2  HI    1.5 269  MLv     4.90  0.16    57.5086
    KSL   HL    1.6  55  MLv     4.33 -0.40    10.8012
    KLNA  HL    1.9 335  MLv     4.32 -0.42    9.12249
    NPS   HL    1.9 271  MLv     4.84  0.10    30.1886
    SNT5  HA    2.4 299  MLv     4.88  0.14    10.5561
    IDI   MN    2.5 271  MLv     4.78  0.04    12.2582
    SMG   HL    2.6 340  MLv     4.61 -0.12    7.09243
    KRL1  HI    2.8 339  MLv     4.87  0.13    10.8057
    GVD   HL    3.2 263  MLv     4.99  0.25    6.34637
    CHAN  HC    3.2 275  MLv     5.06  0.32    18.9974
    CH01  HI    3.2 275  MLv     5.22  0.48    13.4499
    IMMV  HL    3.3 274  MLv     5.27  0.53    14.4578
    KNDR  HC    3.5 270  MLv     5.06  0.32    6.18398
    VLY   HL    4.3 308  MLv     4.81  0.07    2.22444
    ATHU  HA    4.3 309  MLv     4.94  0.21    1.78996
    VILL  HA    4.7 308  MLv     4.86  0.12    1.89667
