Earthquake Information
 Origin Time
2024-10-18 00:37:05 (GMT)
 Magnitude
M 4.3
 Latitude
38.4328° N
 Longitude
20.5288° E
 Focal Depth
2 km
 # of Arrivals
77
 Location 29.2 km N of Argostoli
32.8 km SSW of Leukada
284.4 km W of Athens
 Solution type
manual
 Files / Links
QuakeML  GSE2.0  Alert  .phi  ShakeMap  Foc.Mech.

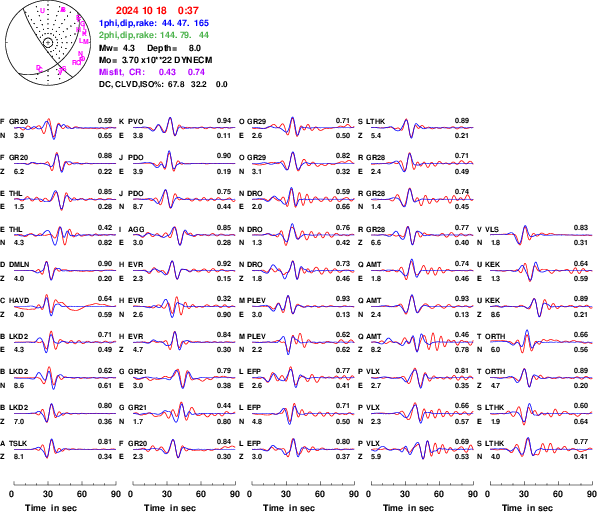

  Focal Mechanism (automatic solution)

Foc.Mech. Strike (°) Dip (°) Rake (°) Seism.Mom. (dyn*cm)
4447165 3.70E+22

Latitude (°N) Longitude (°E) Depth (km) Magnitude Mw
38.442820.53668.04.3

Source parameters determination

Click here for detailed focal mechanism automatic solution

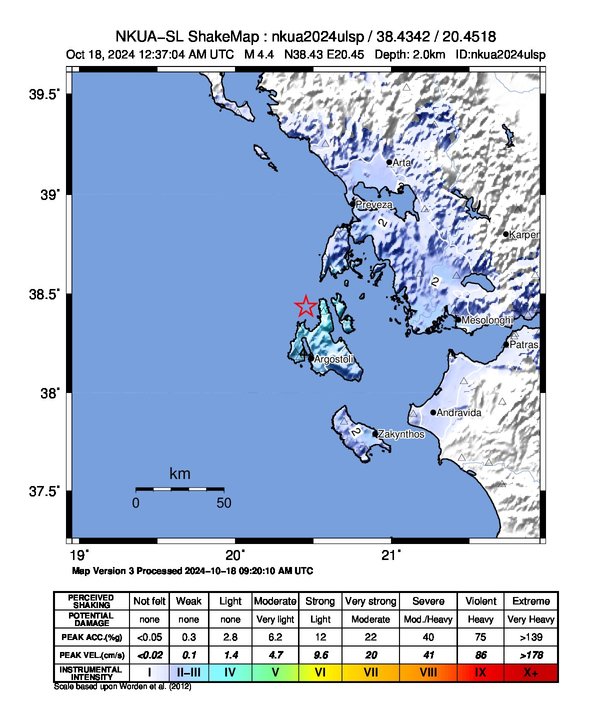

  Intensity map

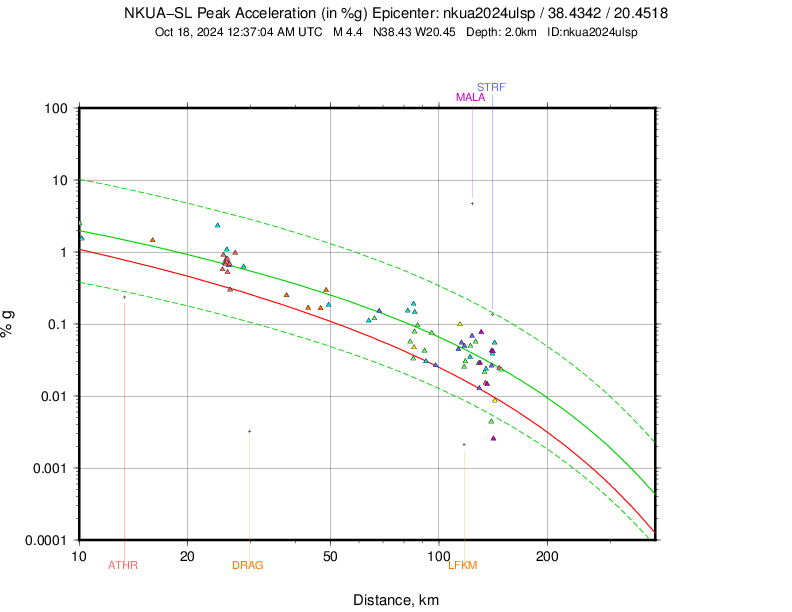

PGA

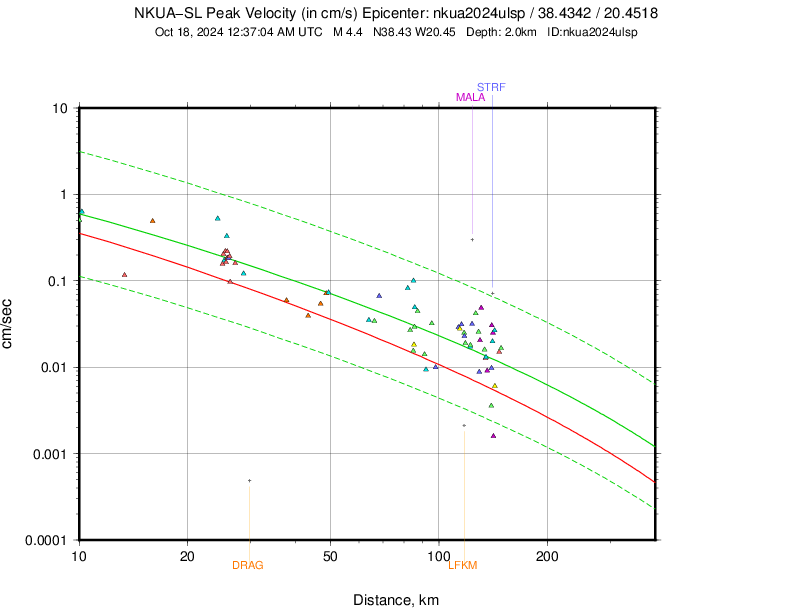

PGV

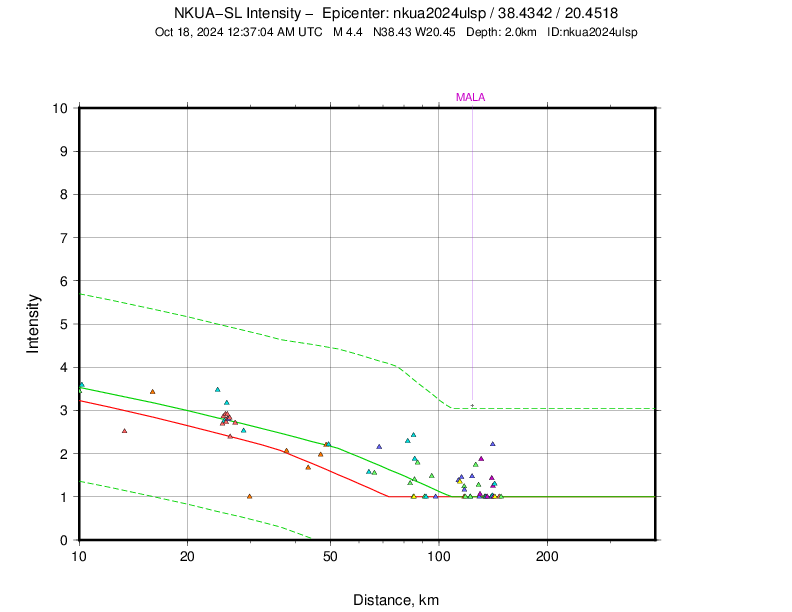

MI

Download files: Google Earth (.kmz), Measurements (.csv)


  Station data

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
ATHRHA16.2217 P00:37:08.78 0.11.0M
ATHRHA16.2217 S00:37:11.82 0.51.0M
EVGIHT23.7 28 P00:37:09.89 -0.31.0M
EVGIHT23.7 28 S00:37:13.46 -0.41.0M
DMLNHT25.5212 P00:37:10.13 -0.41.0M
DMLNHT25.5212 S00:37:14.29 -0.21.0M
LX17HA26.9198 P00:37:10.65 -0.11.0M
LX17HA26.9198 S00:37:14.67 -0.21.0M
LX11HA27.1197 P00:37:10.54 -0.21.0M
LX11HA27.1197 S00:37:14.63 -0.31.0M
LX19HA28.1196 P00:37:10.85 -0.11.0M
LX19HA28.1196 S00:37:16.01 0.81.0M
DRAGHT28.2 8 P00:37:10.25 -0.71.0M
DRAGHT28.2 8 S00:37:14.90 -0.41.0M
HAVDHA28.4206 P00:37:10.61 -0.41.0M
HAVDHA28.4206 S00:37:15.37 0.11.0M
VLSHL28.9170 P00:37:10.81 -0.31.0M
VLSHL28.9170 S00:37:15.64 0.11.0M
LX10HA30.2200 P00:37:11.10 -0.21.0M
LX10HA30.2200 S00:37:16.65 0.81.0M
LKD2HT41.2 16 P00:37:12.28 -1.01.0M
LKD2HT41.2 16 S00:37:18.73 -0.61.0M
RTZLHT45.0152 P00:37:13.29 -0.61.0M
RTZLHT45.0152 S00:37:20.35 0.01.0M
PDOHP59.9 72 P00:37:15.81 -0.51.0M
PDOHP59.9 72 S00:37:24.99 0.31.0M
ORTHHL66.3167 P00:37:16.65 -0.71.0M
ORTHHL66.3167 S00:37:26.39 -0.21.0M
PLEVHP76.6 92 P00:37:18.77 -0.31.0M
PLEVHP76.6 92 S00:37:29.71 0.21.0M
MSL1HI78.3 95 P00:37:19.37 0.01.0M
GR281Y80.6138 P00:37:19.32 -0.41.0M
ART2HI89.1 27 P00:37:20.37 -0.71.0M
PVOHP89.1 77 P00:37:21.02 -0.11.0M
PVOHP89.1 77 S00:37:33.42 0.31.0M
RLSHL91.9117 P00:37:21.20 -0.41.0M
RLSHL91.9117 S00:37:34.57 0.71.0M
PATCHL108.9100 P00:37:24.61 0.31.0M
PATCHL108.9100 S00:37:38.99 0.31.0M
VVKHP111.7 91 P00:37:24.24 -0.61.0M
VVKHP111.7 91 S00:37:39.98 0.31.0M
DROHP116.3117 P00:37:25.26 -0.21.0M
DROHP116.3117 S00:37:41.35 0.51.0M
GR19B1Y116.8338 P00:37:25.81 0.31.0M
GR19B1Y116.8338 S00:37:41.28 0.51.0M
LFKMHT119.8340 P00:37:26.16 0.21.0M
LFKMHT119.8340 S00:37:42.20 0.61.0M
TETRHL120.2 33 P00:37:25.38 -0.81.0M
TETRHL120.2 33 S00:37:42.21 0.21.0M
ANXHP122.4 82 P00:37:26.09 -0.51.0M
ANXHP122.4 82 S00:37:42.96 0.31.0M
PYRGCL129.7 91 P00:37:27.32 -0.31.0M
PYRGCL129.7 91 S00:37:45.13 0.51.0M
PRMDHP131.5 22 P00:37:27.59 -0.31.0M
PRMDHP131.5 22 S00:37:45.57 0.51.0M
DIMTCL133.7 99 P00:37:27.73 -0.51.0M
DIMTCL133.7 99 S00:37:46.35 0.71.0M
TRIZCL134.7 93 P00:37:27.38 -1.01.0M
TRIZCL134.7 93 S00:37:46.65 0.81.0M
AGEOCL135.1 98 P00:37:27.83 -0.61.0M
AGEOCL135.1 98 S00:37:46.77 0.81.0M
STRFHL138.7162 P00:37:28.59 -0.31.0M
STRFHL138.7162 S00:37:47.87 1.11.0M
AMTHP143.9134 P00:37:30.29 0.51.0M
AMTHP143.9134 S00:37:49.25 0.81.0M
PSAMCL144.8 95 P00:37:29.13 -0.81.0M
PSAMCL144.8 95 S00:37:49.47 0.91.0M
GR241Y147.6 79 P00:37:29.70 -0.81.0M
GR241Y147.6 79 S00:37:49.97 0.41.0M
KLVHL148.1107 P00:37:29.64 -0.91.0M
KLVHL148.1107 S00:37:50.13 0.51.0M
GR141Y163.2 2 P00:37:31.82 -0.91.0M
GR141Y163.2 2 S00:37:53.54 0.01.0M
TRKAHL164.2 41 P00:37:33.01 0.21.0M
TRKAHL164.2 41 S00:37:53.58 -0.21.0M
GURHP167.8109 P00:37:32.64 -1.01.0M
GURHP167.8109 S00:37:54.83 -0.31.0M


  Solution details

Event:
    Public ID              nkua2024ulsp
    Description
      region name: Greece
Origin:
    Date                   2024-10-18
    Time                  00:37:05.33
    Latitude              38.4328 deg  +/-      0 km
    Longitude             20.5288 deg  +/-      0 km
    Depth                       2 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.49 s
    Azimuthal gap             120 deg

2 Network magnitudes:
    MLv       4.32 +/- 0.17  30
    M         4.32           30 preferred

77 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    ATHR  HA    0.1 217  P       00:37:08.78   0.1 M  1.0  ATHR
    ATHR  HA    0.1 217  S       00:37:11.82   0.5 M  1.0  ATHR
    EVGI  HT    0.2  28  P       00:37:09.89  -0.3 M  1.0  EVGI
    EVGI  HT    0.2  28  S       00:37:13.46  -0.4 M  1.0  EVGI
    DMLN  HT    0.2 212  P       00:37:10.13  -0.4 M  1.0  DMLN
    DMLN  HT    0.2 212  S       00:37:14.29  -0.2 M  1.0  DMLN
    LX17  HA    0.2 198  P       00:37:10.65  -0.1 M  1.0  LX17
    LX17  HA    0.2 198  S       00:37:14.67  -0.2 M  1.0  LX17
    LX11  HA    0.2 197  P       00:37:10.54  -0.2 M  1.0  LX11
    LX11  HA    0.2 197  S       00:37:14.63  -0.3 M  1.0  LX11
    DRAG  HT    0.3   8  P       00:37:10.25  -0.7 M  1.0  DRAG
    DRAG  HT    0.3   8  S       00:37:14.90  -0.4 M  1.0  DRAG
    LX19  HA    0.3 196  P       00:37:10.85  -0.1 M  1.0  LX19
    LX19  HA    0.3 196  S       00:37:16.01   0.8 M  1.0  LX19
    HAVD  HA    0.3 206  P       00:37:10.61  -0.4 M  1.0  HAVD
    HAVD  HA    0.3 206  S       00:37:15.37   0.1 M  1.0  HAVD
    VLS   HL    0.3 170  P       00:37:10.81  -0.3 M  1.0  VLS
    VLS   HL    0.3 170  S       00:37:15.64   0.1 M  1.0  VLS
    LX10  HA    0.3 200  P       00:37:11.10  -0.2 M  1.0  LX10
    LX10  HA    0.3 200  S       00:37:16.65   0.8 M  1.0  LX10
    LKD2  HT    0.4  16  P       00:37:12.28  -1.0 M  1.0  LKD2
    LKD2  HT    0.4  16  S       00:37:18.73  -0.6 M  1.0  LKD2
    RTZL  HT    0.4 152  P       00:37:13.29  -0.6 M  1.0  RTZL
    RTZL  HT    0.4 152  S       00:37:20.35   0.0 M  1.0  RTZL
    PDO   HP    0.5  72  P       00:37:15.81  -0.5 M  1.0  PDO
    PDO   HP    0.5  72  S       00:37:24.99   0.3 M  1.0  PDO
    ORTH  HL    0.6 167  P       00:37:16.65  -0.7 M  1.0  ORTH
    ORTH  HL    0.6 167  S       00:37:26.39  -0.2 M  1.0  ORTH
    PLEV  HP    0.7  92  P       00:37:18.77  -0.3 M  1.0  PLEV
    PLEV  HP    0.7  92  S       00:37:29.71   0.2 M  1.0  PLEV
    MSL1  HI    0.7  95  P       00:37:19.37   0.0 M  1.0  MSL1
    GR28  1Y    0.7 138  P       00:37:19.32  -0.4 M  1.0  GR28
    ART2  HI    0.8  27  P       00:37:20.37  -0.7 M  1.0  ART2
    PVO   HP    0.8  77  P       00:37:21.02  -0.1 M  1.0  PVO
    PVO   HP    0.8  77  S       00:37:33.42   0.3 M  1.0  PVO
    RLS   HL    0.8 117  P       00:37:21.20  -0.4 M  1.0  RLS
    RLS   HL    0.8 117  S       00:37:34.57   0.7 M  1.0  RLS
    PATC  HL    1.0 100  P       00:37:24.61   0.3 M  1.0  PATC
    PATC  HL    1.0 100  S       00:37:38.99   0.3 M  1.0  PATC
    VVK   HP    1.0  91  P       00:37:24.24  -0.6 M  1.0  VVK
    VVK   HP    1.0  91  S       00:37:39.98   0.3 M  1.0  VVK
    DRO   HP    1.0 117  P       00:37:25.26  -0.2 M  1.0  DRO
    DRO   HP    1.0 117  S       00:37:41.35   0.5 M  1.0  DRO
    GR19B 1Y    1.1 338  P       00:37:25.81   0.3 M  1.0  GR19B
    GR19B 1Y    1.1 338  S       00:37:41.28   0.5 M  1.0  GR19B
    LFKM  HT    1.1 340  P       00:37:26.16   0.2 M  1.0  LFKM
    LFKM  HT    1.1 340  S       00:37:42.20   0.6 M  1.0  LFKM
    TETR  HL    1.1  33  P       00:37:25.38  -0.8 M  1.0  TETR
    TETR  HL    1.1  33  S       00:37:42.21   0.2 M  1.0  TETR
    ANX   HP    1.1  82  P       00:37:26.09  -0.5 M  1.0  ANX
    ANX   HP    1.1  82  S       00:37:42.96   0.3 M  1.0  ANX
    PYRG  CL    1.2  91  P       00:37:27.32  -0.3 M  1.0  PYRG
    PYRG  CL    1.2  91  S       00:37:45.13   0.5 M  1.0  PYRG
    PRMD  HP    1.2  22  P       00:37:27.59  -0.3 M  1.0  PRMD
    PRMD  HP    1.2  22  S       00:37:45.57   0.5 M  1.0  PRMD
    DIMT  CL    1.2  99  P       00:37:27.73  -0.5 M  1.0  DIMT
    DIMT  CL    1.2  99  S       00:37:46.35   0.7 M  1.0  DIMT
    TRIZ  CL    1.2  93  P       00:37:27.38  -1.0 M  1.0  TRIZ
    TRIZ  CL    1.2  93  S       00:37:46.65   0.8 M  1.0  TRIZ
    AGEO  CL    1.2  98  P       00:37:27.83  -0.6 M  1.0  AGEO
    AGEO  CL    1.2  98  S       00:37:46.77   0.8 M  1.0  AGEO
    STRF  HL    1.2 162  P       00:37:28.59  -0.3 M  1.0  STRF
    STRF  HL    1.2 162  S       00:37:47.87   1.1 M  1.0  STRF
    AMT   HP    1.3 134  P       00:37:30.29   0.5 M  1.0  AMT
    AMT   HP    1.3 134  S       00:37:49.25   0.8 M  1.0  AMT
    PSAM  CL    1.3  95  P       00:37:29.13  -0.8 M  1.0  PSAM
    PSAM  CL    1.3  95  S       00:37:49.47   0.9 M  1.0  PSAM
    GR24  1Y    1.3  79  P       00:37:29.70  -0.8 M  1.0  GR24
    GR24  1Y    1.3  79  S       00:37:49.97   0.4 M  1.0  GR24
    KLV   HL    1.3 107  P       00:37:29.64  -0.9 M  1.0  KLV
    KLV   HL    1.3 107  S       00:37:50.13   0.5 M  1.0  KLV
    GR14  1Y    1.5   2  P       00:37:31.82  -0.9 M  1.0  GR14
    GR14  1Y    1.5   2  S       00:37:53.54   0.0 M  1.0  GR14
    TRKA  HL    1.5  41  P       00:37:33.01   0.2 M  1.0  TRKA
    TRKA  HL    1.5  41  S       00:37:53.58  -0.2 M  1.0  TRKA
    GUR   HP    1.5 109  P       00:37:32.64  -1.0 M  1.0  GUR
    GUR   HP    1.5 109  S       00:37:54.83  -0.3 M  1.0  GUR

40 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    ATHR  HA    0.1 217  MLv     3.85 -0.48    220.589
    EVGI  HT    0.2  28  MLv     4.07 -0.26    236.893
    DMLN  HT    0.2 212  MLv     3.95 -0.37    222.379
    LX17  HA    0.2 198  MLv     4.40  0.07    419.073
    LX11  HA    0.2 197  MLv     4.29 -0.03    325.974
    DRAG  HT    0.3   8  MLv     0.61 -3.72   0.0633812
    LX19  HA    0.3 196  MLv     4.45  0.12     443.56
    HAVD  HA    0.3 206  MLv     3.94 -0.39    134.321
    VLS   HL    0.3 170  MLv     4.31 -0.02    304.475
    LX10  HA    0.3 200  MLv     4.24 -0.09    241.239
    LKD2  HT    0.4  16  MLv     3.98 -0.34    71.6863
    RTZL  HT    0.4 152  MLv     4.37  0.04    139.275
    PDO   HP    0.5  72  MLv     4.51  0.18    81.7249
    ORTH  HL    0.6 167  MLv     4.48  0.15    70.2216
    PLEV  HP    0.7  92  MLv     4.37  0.04    48.4045
    MSL1  HI    0.7  95  MLv     5.07  0.75    241.071
    GR28  1Y    0.7 138  MLv     4.33  0.00    42.1508
    ART2  HI    0.8  27  MLv     4.04 -0.29    19.4944
    PVO   HP    0.8  77  MLv     4.39  0.07    44.2028
    RLS   HL    0.8 117  MLv     4.17 -0.15     25.856
    PATC  HL    1.0 100  MLv     4.72  0.39    75.0035
    VVK   HP    1.0  91  MLv     3.76 -0.56    37.6564
    DRO   HP    1.0 117  MLv     4.08 -0.24     33.143
    GR19B 1Y    1.1 338  MLv     4.67  0.35    61.2134
    LFKM  HT    1.1 340  MLv     3.08 -1.25    1.50903
    TETR  HL    1.1  33  MLv     4.49  0.16     38.587
    ANX   HP    1.1  82  MLv     4.67  0.34    56.7669
    PYRG  CL    1.2  91  MLv     4.22 -0.11    11.7356
    PRMD  HP    1.2  22  MLv     4.48  0.16    33.4747
    DIMT  CL    1.2  99  MLv     4.93  0.61    92.3723
    TRIZ  CL    1.2  93  MLv     4.49  0.17    32.9061
    AGEO  CL    1.2  98  MLv     4.25 -0.08    5.37953
    STRF  HL    1.2 162  MLv     4.56  0.23    36.6371
    AMT   HP    1.3 134  MLv     4.45  0.13    27.1812
    PSAM  CL    1.3  95  MLv     4.27 -0.05    17.8248
    GR24  1Y    1.3  79  MLv     4.46  0.13    26.3028
    KLV   HL    1.3 107  MLv     4.45  0.12    19.4875
    GR14  1Y    1.5   2  MLv     4.30 -0.02    15.3763
    TRKA  HL    1.5  41  MLv     4.48  0.15    22.7137
    GUR   HP    1.5 109  MLv     4.45  0.12    20.3054
