Πληροφορίες Σεισμού
 Χρόνος Γένεσης
 2024-11-03 17:03:52 (GMT)
 Μέγεθος
 M 5.3
 Γεωγρ. Πλάτος
 40.1307° Β
 Γεωγρ. Μήκος
 23.2543° Α
 Εστιακό Βάθος
 5 χμ
 Αρ. αφίξεων
 74
 Επίκεντρο 31.3 χμ ΝΝΔ του Πολύγυρου
62.5 χμ ΝΝΑ της Θεσσαλονίκης
242.3 χμ Β της Αθήνας
 Τύπος Λύσης
 Χειρακτική (από αναλυτή)
 Αρχεία / Σύνδεσμοι
 QuakeML  GSE2.0  Alert  .phi  ShakeMap  Μηχ.Γέν.

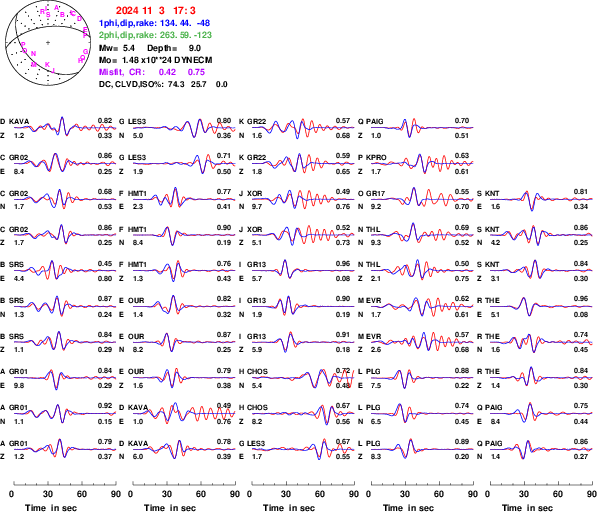

  Μηχανισμός Γένεσης (αυτόματη λύση)

Μηχ.Γεν. Παράταξη (°) Κλίση (°) Γων.Ολίσθ. (°) Σεισμ.Ροπή (dyn*cm)
13444-48 1.48E+24

Γεωγρ.Πλάτος (°Β) Γεωγρ.Μήκος (°Α) Βάθος (χμ) Μέγεθος Mw
40.141423.25249.05.4

Υπολογισμός εστιακών παραμέτρων

Κλικ εδώ για λεπτομέρειες αυτόματου μηχανισμού γένεσης

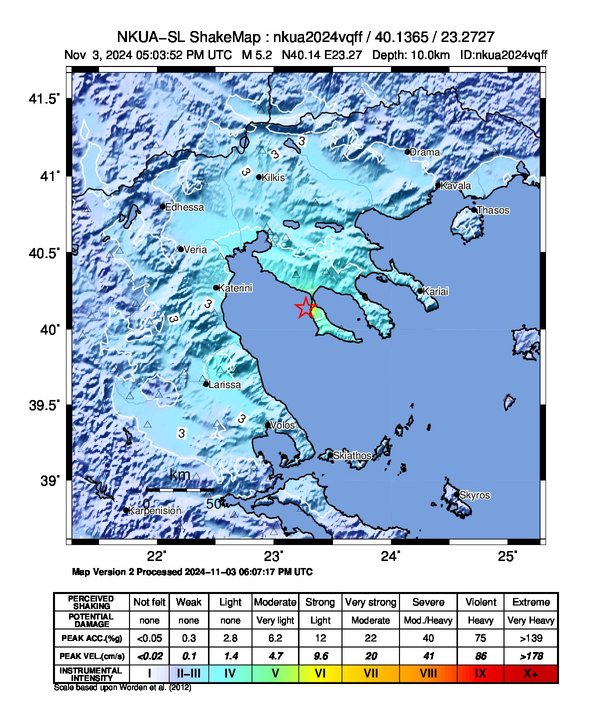

  Χάρτης εντάσεως

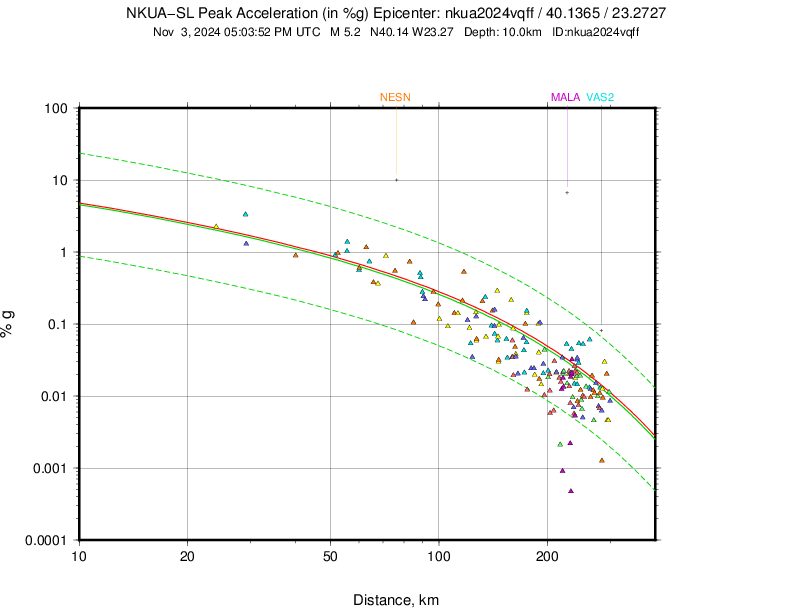

PGA

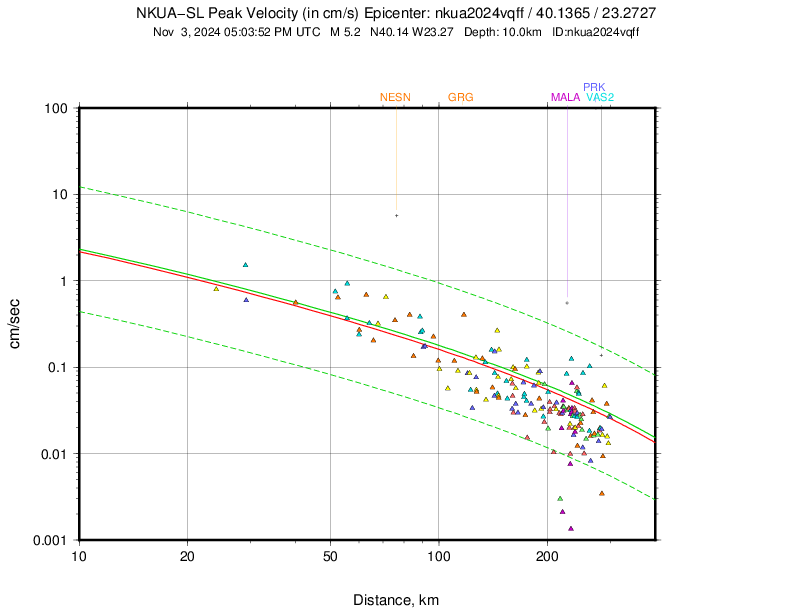

 PGV

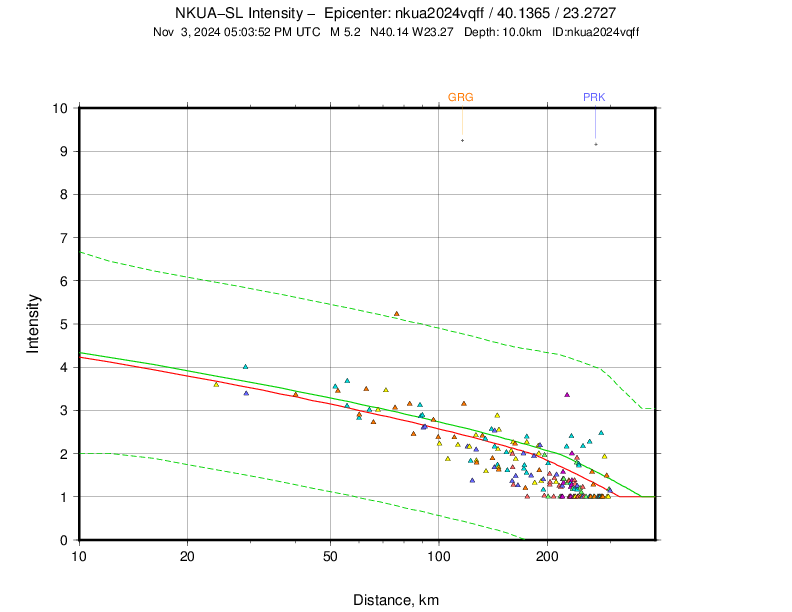

 MI

Αρχεία: Google Earth (.kmz), Measurements (.csv)


  Δεδομένα σταθμών

StationNetDist.(km)Azim.PhaseArr.TimeRes.Wgt.Type
GR131Y25.2347 P17:03:57.26 0.01.0M
GR131Y25.2347 S17:04:01.52 0.51.0M
PLN1HI31.0118 P17:03:58.49 0.21.0M
PLN1HI31.0118 S17:04:03.56 0.81.0M
PLGHL31.2 31 P17:03:57.90 -0.51.0M
PLGHL31.2 31 S17:04:02.65 -0.31.0M
PAIGHT42.0121 P17:04:00.06 0.01.0M
PAIGHT42.0121 S17:04:05.97 0.01.0M
HORTHT53.6346 P17:04:01.63 -0.41.0M
HORTHT53.6346 S17:04:08.93 -0.51.0M
THEHT61.0336 P17:04:03.32 0.21.0M
THEHT61.0336 S17:04:11.10 -0.31.0M
LITHT65.1267 P17:04:04.79 0.81.0M
LITHT65.1267 S17:04:12.45 -0.31.0M
OURHT65.8 70 P17:04:03.77 -0.21.0M
OURHT65.8 70 S17:04:12.59 -0.21.0M
GR181Y67.1228 P17:04:04.40 0.11.0M
GR181Y67.1228 S17:04:12.88 -0.51.0M
GR121Y71.3302 P17:04:04.34 -0.51.0M
GR121Y71.3302 S17:04:14.24 -0.21.0M
NESNHT75.7234 P17:04:05.65 0.01.0M
NESNHT75.7234 S17:04:15.64 -0.11.0M
SOHHT77.2 6 P17:04:05.45 -0.51.0M
SOHHT77.2 6 S17:04:15.96 -0.31.0M
HMT1HT85.5 81 P17:04:07.40 0.11.0M
HMT1HT85.5 81 S17:04:18.34 -0.31.0M
VOL2HI88.9197 P17:04:07.73 0.01.0M
VOL2HI88.9197 S17:04:19.28 -0.11.0M
GINAHL89.9235 P17:04:07.98 0.11.0M
GINAHL89.9235 S17:04:19.93 0.11.0M
NEOHL91.8182 P17:04:08.33 0.11.0M
NEOHL91.8182 S17:04:20.34 0.11.0M
TYRNHT98.8242 P17:04:09.34 0.01.0M
TYRNHT98.8242 S17:04:22.45 0.21.0M
KOKKHT99.0 40 P17:04:09.14 -0.21.0M
KOKKHT99.0 40 S17:04:22.34 0.01.0M
GR111Y100.2296 P17:04:09.30 -0.31.0M
GR111Y100.2296 S17:04:22.70 0.01.0M
GR211Y105.5217 P17:04:10.14 -0.31.0M
GR211Y105.5217 S17:04:24.21 0.11.0M
SRSHT112.3 15 P17:04:11.19 -0.31.0M
SRSHT112.3 15 S17:04:26.85 0.81.0M
GR161Y112.4265 P17:04:11.56 -0.11.0M
GR161Y112.4265 S17:04:26.98 0.61.0M
GRGHT116.6322 P17:04:12.09 -0.11.0M
GRGHT116.6322 S17:04:27.93 0.61.0M
ALNAHL120.0154 P17:04:12.37 -0.51.0M
ALNAHL120.0154 S17:04:28.00 -0.41.0M
GR221Y121.4198 P17:04:12.49 -0.41.0M
GR221Y121.4198 S17:04:28.95 0.41.0M
THLHL123.2239 P17:04:12.74 -0.51.0M
THLHL123.2239 S17:04:29.31 0.21.0M
GR071Y127.2305 P17:04:13.39 -0.51.0M
GR071Y127.2305 S17:04:30.78 0.51.0M
ACHLHT127.4192 P17:04:13.18 -0.61.0M
ACHLHT127.4192 S17:04:30.86 0.81.0M
GR011Y128.4 1 P17:04:13.99 0.01.0M
GR011Y128.4 1 S17:04:30.70 0.31.0M
THASHT134.9 67 P17:04:14.91 -0.11.0M
THASHT134.9 67 S17:04:32.39 0.11.0M
GR021Y137.6 34 P17:04:15.45 0.01.0M
GR021Y137.6 34 S17:04:33.26 0.31.0M
TRKAHL142.3243 P17:04:16.18 0.01.0M
TRKAHL142.3243 S17:04:34.85 0.61.0M
KAVAHT143.2 48 P17:04:15.97 -0.41.0M
KAVAHT143.2 48 S17:04:35.10 0.51.0M
NVRHL144.9 21 P17:04:16.95 0.41.0M
NVRHL144.9 21 S17:04:35.27 0.31.0M
GR171Y145.3252 P17:04:16.79 0.11.0M
GR171Y145.3252 S17:04:35.55 0.31.0M
GR101Y146.1285 P17:04:16.65 -0.21.0M
GR101Y146.1285 S17:04:35.72 0.21.0M
MK04A1Y146.5348 P17:04:16.89 0.11.0M
MK04A1Y146.5348 S17:04:35.68 0.31.0M


  Λεπτομέρειες λύσης

Event:
    Public ID              nkua2024vqff
    Description
      region name: Greece
Origin:
    Date                   2024-11-03
    Time                  17:03:52.34
    Latitude              40.1307 deg  +/-      0 km
    Longitude             23.2543 deg  +/-      0 km
    Depth                       5 km   +/-    1 km
    Agency                 HA
    Author                 A. Karakonstantis
    Mode                   manual
    Status                 confirmed
    Residual RMS             0.34 s
    Azimuthal gap              38 deg

2 Network magnitudes:
    MLv       5.34 +/- 0.19  31
    M         5.34           31 preferred

74 Phase arrivals:
    sta  net   dist azi  phase   time          res     wt  sta
    GR13  1Y    0.2 347  P       17:03:57.26   0.0 M  1.0  GR13
    GR13  1Y    0.2 347  S       17:04:01.52   0.5 M  1.0  GR13
    PLN1  HI    0.3 118  P       17:03:58.49   0.2 M  1.0  PLN1
    PLN1  HI    0.3 118  S       17:04:03.56   0.8 M  1.0  PLN1
    PLG   HL    0.3  31  P       17:03:57.90  -0.5 M  1.0  PLG
    PLG   HL    0.3  31  S       17:04:02.65  -0.3 M  1.0  PLG
    PAIG  HT    0.4 121  P       17:04:00.06  -0.0 M  1.0  PAIG
    PAIG  HT    0.4 121  S       17:04:05.97   0.0 M  1.0  PAIG
    HORT  HT    0.5 346  P       17:04:01.63  -0.4 M  1.0  HORT
    HORT  HT    0.5 346  S       17:04:08.93  -0.5 M  1.0  HORT
    THE   HT    0.5 336  P       17:04:03.32   0.2 M  1.0  THE
    THE   HT    0.5 336  S       17:04:11.10  -0.3 M  1.0  THE
    LIT   HT    0.6 267  P       17:04:04.79   0.8 M  1.0  LIT
    LIT   HT    0.6 267  S       17:04:12.45  -0.3 M  1.0  LIT
    OUR   HT    0.6  70  P       17:04:03.77  -0.2 M  1.0  OUR
    OUR   HT    0.6  70  S       17:04:12.59  -0.2 M  1.0  OUR
    GR18  1Y    0.6 228  P       17:04:04.40   0.1 M  1.0  GR18
    GR18  1Y    0.6 228  S       17:04:12.88  -0.5 M  1.0  GR18
    GR12  1Y    0.6 302  P       17:04:04.34  -0.5 M  1.0  GR12
    GR12  1Y    0.6 302  S       17:04:14.24  -0.2 M  1.0  GR12
    NESN  HT    0.7 234  P       17:04:05.65   0.0 M  1.0  NESN
    NESN  HT    0.7 234  S       17:04:15.64  -0.1 M  1.0  NESN
    SOH   HT    0.7   6  P       17:04:05.45  -0.5 M  1.0  SOH
    SOH   HT    0.7   6  S       17:04:15.96  -0.3 M  1.0  SOH
    HMT1  HT    0.8  81  P       17:04:07.40   0.1 M  1.0  HMT1
    HMT1  HT    0.8  81  S       17:04:18.34  -0.3 M  1.0  HMT1
    VOL2  HI    0.8 197  P       17:04:07.73   0.0 M  1.0  VOL2
    VOL2  HI    0.8 197  S       17:04:19.28  -0.1 M  1.0  VOL2
    GINA  HL    0.8 235  P       17:04:07.98   0.1 M  1.0  GINA
    GINA  HL    0.8 235  S       17:04:19.93   0.1 M  1.0  GINA
    NEO   HL    0.8 182  P       17:04:08.33   0.1 M  1.0  NEO
    NEO   HL    0.8 182  S       17:04:20.34   0.1 M  1.0  NEO
    KOKK  HT    0.9  40  P       17:04:09.14  -0.2 M  1.0  KOKK
    KOKK  HT    0.9  40  S       17:04:22.34   0.0 M  1.0  KOKK
    TYRN  HT    0.9 242  P       17:04:09.34  -0.0 M  1.0  TYRN
    TYRN  HT    0.9 242  S       17:04:22.45   0.2 M  1.0  TYRN
    GR11  1Y    0.9 296  P       17:04:09.30  -0.3 M  1.0  GR11
    GR11  1Y    0.9 296  S       17:04:22.70  -0.0 M  1.0  GR11
    GR21  1Y    0.9 217  P       17:04:10.14  -0.3 M  1.0  GR21
    GR21  1Y    0.9 217  S       17:04:24.21   0.1 M  1.0  GR21
    SRS   HT    1.0  15  P       17:04:11.19  -0.3 M  1.0  SRS
    SRS   HT    1.0  15  S       17:04:26.85   0.8 M  1.0  SRS
    GR16  1Y    1.0 265  P       17:04:11.56  -0.1 M  1.0  GR16
    GR16  1Y    1.0 265  S       17:04:26.98   0.6 M  1.0  GR16
    GRG   HT    1.1 322  P       17:04:12.09  -0.1 M  1.0  GRG
    GRG   HT    1.1 322  S       17:04:27.93   0.6 M  1.0  GRG
    ALNA  HL    1.1 154  P       17:04:12.37  -0.5 M  1.0  ALNA
    ALNA  HL    1.1 154  S       17:04:28.00  -0.4 M  1.0  ALNA
    GR22  1Y    1.1 198  P       17:04:12.49  -0.4 M  1.0  GR22
    GR22  1Y    1.1 198  S       17:04:28.95   0.4 M  1.0  GR22
    THL   HL    1.1 239  P       17:04:12.74  -0.5 M  1.0  THL
    THL   HL    1.1 239  S       17:04:29.31   0.2 M  1.0  THL
    ACHL  HT    1.1 192  P       17:04:13.18  -0.6 M  1.0  ACHL
    ACHL  HT    1.1 192  S       17:04:30.86   0.8 M  1.0  ACHL
    GR07  1Y    1.1 305  P       17:04:13.39  -0.5 M  1.0  GR07
    GR07  1Y    1.1 305  S       17:04:30.78   0.5 M  1.0  GR07
    GR01  1Y    1.2   1  P       17:04:13.99   0.0 M  1.0  GR01
    GR01  1Y    1.2   1  S       17:04:30.70   0.3 M  1.0  GR01
    THAS  HT    1.2  67  P       17:04:14.91  -0.1 M  1.0  THAS
    THAS  HT    1.2  67  S       17:04:32.39   0.1 M  1.0  THAS
    GR02  1Y    1.2  34  P       17:04:15.45   0.0 M  1.0  GR02
    GR02  1Y    1.2  34  S       17:04:33.26   0.3 M  1.0  GR02
    TRKA  HL    1.3 243  P       17:04:16.18   0.0 M  1.0  TRKA
    TRKA  HL    1.3 243  S       17:04:34.85   0.6 M  1.0  TRKA
    KAVA  HT    1.3  48  P       17:04:15.97  -0.4 M  1.0  KAVA
    KAVA  HT    1.3  48  S       17:04:35.10   0.5 M  1.0  KAVA
    NVR   HL    1.3  21  P       17:04:16.95   0.4 M  1.0  NVR
    NVR   HL    1.3  21  S       17:04:35.27   0.3 M  1.0  NVR
    GR17  1Y    1.3 252  P       17:04:16.79   0.1 M  1.0  GR17
    GR17  1Y    1.3 252  S       17:04:35.55   0.3 M  1.0  GR17
    MK04A 1Y    1.3 348  P       17:04:16.89   0.1 M  1.0  MK04A
    MK04A 1Y    1.3 348  S       17:04:35.68   0.3 M  1.0  MK04A
    GR10  1Y    1.3 285  P       17:04:16.65  -0.2 M  1.0  GR10
    GR10  1Y    1.3 285  S       17:04:35.72   0.2 M  1.0  GR10

37 Station magnitudes:
    sta  net   dist azi  type   value   res        amp per
    GR13  1Y    0.2 347  MLv     5.20 -0.14    2957.89
    PLN1  HI    0.3 118  MLv     5.14 -0.20    1828.12
    PLG   HL    0.3  31  MLv     4.85 -0.49    921.783
    PAIG  HT    0.4 121  MLv     5.58  0.24     2077.7
    HORT  HT    0.5 346  MLv     5.57  0.23    909.059
    THE   HT    0.5 336  MLv     5.73  0.39    878.995
    LIT   HT    0.6 267  MLv     5.21 -0.13    278.732
    OUR   HT    0.6  70  MLv     5.43  0.09    637.304
    GR18  1Y    0.6 228  MLv     5.60  0.27    932.328
    GR12  1Y    0.6 302  MLv     5.65  0.32    996.871
    NESN  HT    0.7 234  MLv     5.63  0.29    898.737
    SOH   HT    0.7   6  MLv     5.50  0.16    647.154
    HMT1  HT    0.8  81  MLv     5.60  0.26     744.69
    VOL2  HI    0.8 197  MLv     5.40  0.06    455.537
    GINA  HL    0.8 235  MLv     5.40  0.06    450.069
    NEO   HL    0.8 182  MLv     5.18 -0.16    361.487
    KOKK  HT    0.9  40  MLv     5.39  0.05    393.478
    TYRN  HT    0.9 242  MLv     5.54  0.20    429.952
    GR11  1Y    0.9 296  MLv     5.08 -0.26    190.917
    GR21  1Y    0.9 217  MLv     5.18 -0.16    227.148
    SRS   HT    1.0  15  MLv     5.38  0.05    235.921
    GR16  1Y    1.0 265  MLv     5.12 -0.22    180.279
    GRG   HT    1.1 322  MLv     5.59  0.25     505.43
    ALNA  HL    1.1 154  MLv     5.41  0.07    317.412
    GR22  1Y    1.1 198  MLv     5.11 -0.23    160.074
    THL   HL    1.1 239  MLv     5.22 -0.12    120.316
    ACHL  HT    1.1 192  MLv     5.08 -0.26    139.274
    GR07  1Y    1.1 305  MLv     5.00 -0.34    115.716
    GR01  1Y    1.2   1  MLv     5.39  0.05    278.215
    THAS  HT    1.2  67  MLv     5.40  0.06    266.422
    GR02  1Y    1.2  34  MLv     5.09 -0.25    126.647
    TRKA  HL    1.3 243  MLv     5.72  0.38    509.152
    KAVA  HT    1.3  48  MLv     4.87 -0.47    150.348
    NVR   HL    1.3  21  MLv     5.47  0.13    208.432
    GR17  1Y    1.3 252  MLv     5.45  0.11    266.681
    MK04A 1Y    1.3 348  MLv     5.65  0.32    418.994
    GR10  1Y    1.3 285  MLv     5.18 -0.16    139.867
