Slip Model
of 7 September 1999

Athens earthquake



Athens Earthquake Sequence

On 7 September 1999, an earthquake of magnitude Mw = 6.0 occurred in the Aspropirgos basin located close to the Saronic Gulf as well as to the city of Athens, the capital of Greece. This event was the strongest that happened in a region of low seismic activity. In this region no evidence of important earthquakes was reported by historical catalogues or other sources, therefore this area was considered to be of low seismic risk. Although the earthquake magnitude was moderate the caused damage was very serious. There were 143 killed people, a great number of wounded and several thousands of people became homeless. Consequently it may be considered as one of the most disastrous earthquakes that occurred in Greece during the last centuries.

The seismogenic area is situated next to the eastern edge of the Gulf of Corinth where important earthquakes occurred during the last 20 years. The Gulf of Corinth is characterized by E-W trending, north-dipping normal faulting and by a NNE-SSW direction of extension with a rate of about 1 cm/yr. On 1981 three major earthquakes of magnitudes MS=6.7, 6.4 and 6.4 occurred in the easternmost part of this Gulf. Focal mechanisms of these events revealed normal faulting trending E-W dipping north for the two first events and south for the last event of 4 March. The constrained focal depths vary between 8 and 10 km. Surface breaks were observed and were related to the second and the third event. Coseismic slip reaches 150 cm but the more typical range is 50-70 cm. The aftershock activity is mainly concentrated at the eastern edge of the Gulf (Fig. 1), close to the Vill station, and reaches until the village of Plataies (Pl).

The Cornet seismological permanent network has been installed since 1995 around the eastern Gulf of Corinth by the Department of Geophysics of the University of Athens. For the period 1996-1999 approximately 5000 events were recorded, while more than 2000 were located in the Gulf and the surrounding area. During the operation period of the Cornet network there was no clear evidence of seismic activity in the Aspropirgos basin, until the earthquake sequence of 7 September. The Cornet network has recorded four foreshocks, the main shock of 7 September 1999 and numerous aftershocks.
The calculated slip model revealed strong directivity to the East













Aftershocks

Station Map

Teleseismic Modeling

Teleseismic Modeling for slip

Slip distribution

Synthetic Shakemap

Map of Aftershocks

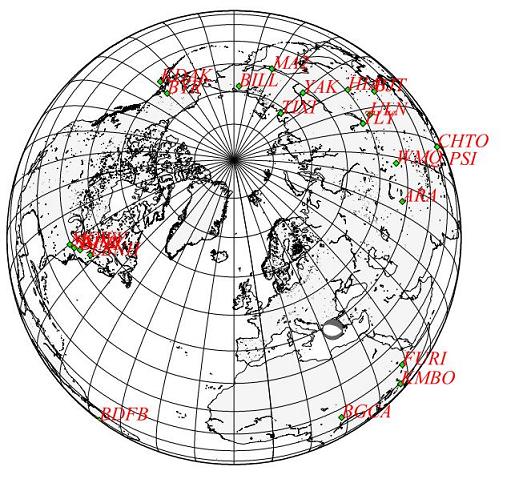

The teleseismic Stations whose data were used in the inversion
and the focal mechanism of the earthquake

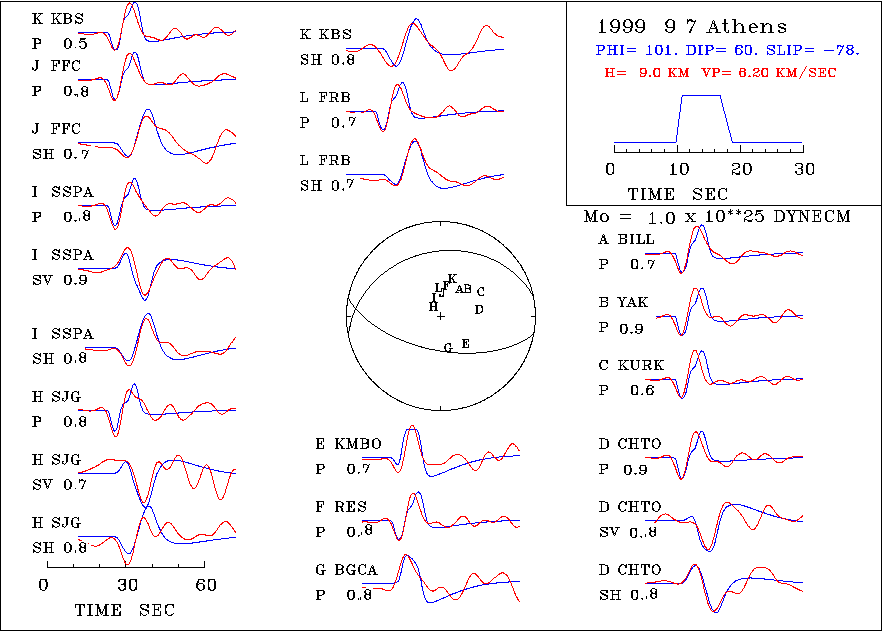

Teleseismic Modeling using P, SH, SV WAVES

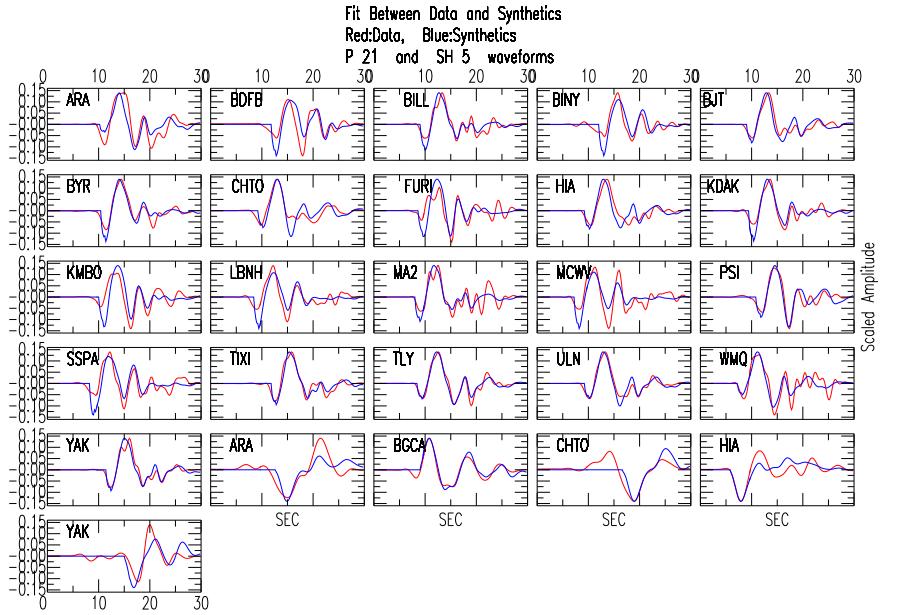

Teleseismic Modeling of P and SH waves





Slip Distribution

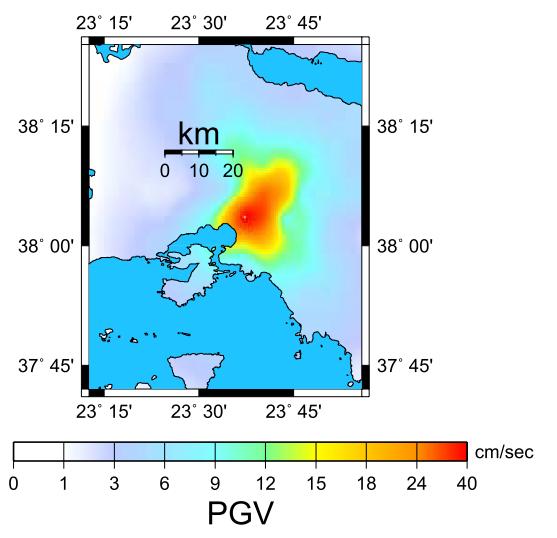

Synthetic PGV map





Slip model by Agalos A. email: aagalos@geol.uoa.gr

Earthquake modeled by Alexandra Moshou, email: amoshou@geol.uoa.gr


References

Agalos A., Papadimitriou P. and Makropoulos K.,2007. Source Parameters Estimation from
Broadband Regional Seismograms for Earthquakes in the Aegean Region and the Gorda Plate.
Proceedings of the 11th International Congress Athens, May 2007

Agalos A., Papadimitriou P., Makropoulos K., 2008. Rupture Histories of Strong Earthquakes. 31st General
Assembly of the European Seismological Commission, held at the Creta Maris
Conference Center, Hersonissos, Crete Greece, Book of Short papers, p 9-16.

Bouchon Michel, 1981. A simple method to calculate Green s functions for elastic layered media.
BSSA, 71, 4, 959-971.

Hartzell S. H., and Heaton T. H., 1983. Inversion of strong ground motion and teleseismic waveform
data for the fault rupture history of the 1979 Imperial Valley, California, earthquake. BSSA, 73, 1553_1583.

Moshou A., Papadimitriou P. and Makropoulos K.,2007. Teleseismic Body Wave Inversion.
Proceedings of the 11th International Congress Athens, May 2007

Moshou A., Papadimitriou P., Makropoulos K., 2008. Waveform Inversion using Teleseismic and
Regional Data for Earthquakes that Occurred in Greece. 31st General Assembly of the European
Seismological Commission, held at the Creta Maris Conference Center, Hersonissos, Crete Greece,
Book of abstracts, p 95.

Wessel, P. and W. H. F. Smith., 1991. Free software helps map and display data, EOS Trans. AGU, 72, 441.
